2BG5S-CLR9034G LTE Wireless Communication Module

CLR903 LTE USB Dongle Contact us ： Tel：021-50177336Web：http://www.yuge-info.comSupport：[email protected] This productuses the ASR1803S chip platform,high speed!stable!Plug and Play! Compatibleand adaptedto variousoperatingsystems,to meet the long-termInternet needs of individualusers and also meet the needs of police and corporateVPDNprivate networks. CLR903 LTE USB Dongle Contact us ： Tel：021-50177336Web：http://www.yuge-info.comSupport：[email protected] ProductFeatures Size89.6 mm*28.6 mm*13mm Weight50g PowerSupply5~18 V/ 0.5~1A AntennaBuilt-inantenna LEDPowerindicator/4Gsignallight Band AU Europeanversion LTE-FDD:B1/B3/B5/ B7/B8/B28 LTE-TDD:B38/B40/B41 WCDMA:B1/B5/ B8 LTE Rate FDD-LTE150MbpsDL / 50MbpsUL @20MBW Cat4 TDD-LTE130MbpsDL / 35MbpsUL @20MBW Cat4 USB DriverWindowsseries/Linux/WinCE/Androidetc. Interface USB 2.0 Micro-SIMcard ×1+eSIMcard or eSIMcard ×3 (QFN5*6) DialingMethodRNDIS Operating Temperature -20°C- 60°C Web Supportwebbackgroundmanagement,address192.168.1.1,defaultlogin accountadmin:admin Maximum ConnectableUsers Less than10 people+1 USB FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harm full interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specific Absorption Rate (SAR) information: This Device meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement the SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: Device has also been tested against this SAR limit. This device was tested for typical body-worn operations with the back of the device kept 5mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain an 5mm separation distance between the user's body and the back of the device. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.

Shanghai Yuge information technology Co., Ltd. Room 204-1,No. 6,Lane 88,Shengrong Road China (Shanghai) pilot Free Trade Zone,Shanghai China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-6-23 To whom it may concern: We, Shanghai Yuge information technology Co., Ltd., hereby certify that the equipment for which authorization is sought (FCC ID: 2BG5S-CLR903) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Guixia Wu Manager Shanghai Yuge information technology Co., Ltd. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Shanghai Yuge information technology Co., Ltd.. Room 204-1, No. 6, Lane 88, Shengrong Road, China (Shanghai) pilot Free Trade Zone, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/06/24 U.S. Agent Designation Shanghai Yuge information technology Co., Ltd.. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BG5S-CLR903): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Shanghai Yuge information technology Co., Ltd.. Shanghai Yuge information technology Co., Ltd..with the FRN [0035581966] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Guixia Wu General Manager Shanghai Yuge information technology Co., Ltd.. Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shanghai Yuge information technology Co., Ltd. Add: Room 204-1,No. 6,Lane 88,Shengrong Road China (Shanghai) pilot Free Trade Zone,Shanghai China Date: 2024-6-23 FCC ID: 2BG5S-CLR903 Dear Sir/Madam, We, Shanghai Yuge information technology Co., Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: 4G LTE Wireless Communication Module Model no.: CLR903, CLR901, CLR902, CLR905, CLR906, CLR907, CLR908, CLR909, CLR910, CLR801, CLR802, CLR803, CLR805, CLR806, CLR807, CLR808, CLR809, CLR920 Sincerely, Name/Title： Guixia Wu/Manager Company: Shanghai Yuge information technology Co., Ltd. Address: Room 204-1,No. 6,Lane 88,Shengrong Road China (Shanghai) pilot Free Trade Zone,Shanghai China Phone: 15013472254 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-6-23> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BG5S-CLR903 CLR903 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Guixia Wu/Manager Company: Shanghai Yuge information technology Co., Ltd. Address: Room 204-1,No. 6,Lane 88,Shengrong Road China (Shanghai) pilot Free Trade Zone,Shanghai China Phone: 15013472254 Fax: N/A E-Mail: [email protected]

Shanghai Yuge information technology Co., Ltd. Room 204-1,No. 6,Lane 88,Shengrong Road China (Shanghai) pilot Free Trade Zone,Shanghai China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-6-23 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BG5S-CLR903 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Guixia Wu/Manager Company: Shanghai Yuge information technology Co., Ltd. Address: Room 204-1,No. 6,Lane 88,Shengrong Road China (Shanghai) pilot Free Trade Zone,Shanghai China Phone: 15013472254 Fax: N/A E-Mail: [email protected]

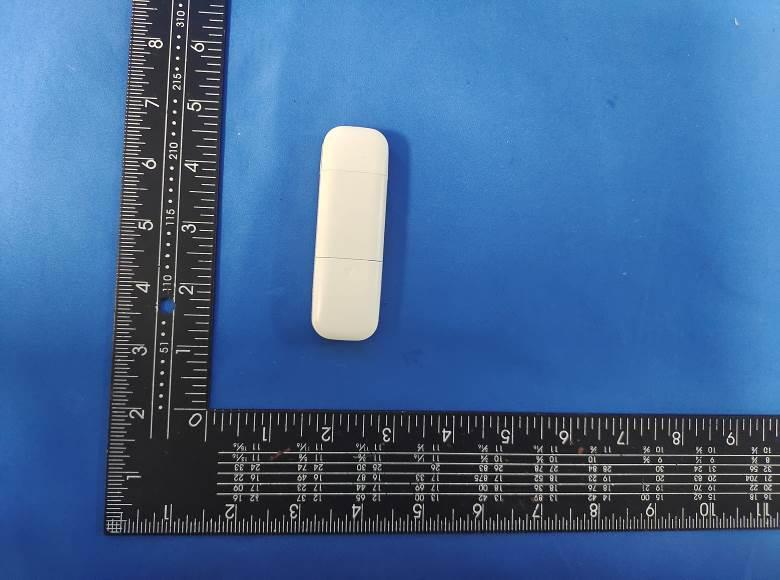

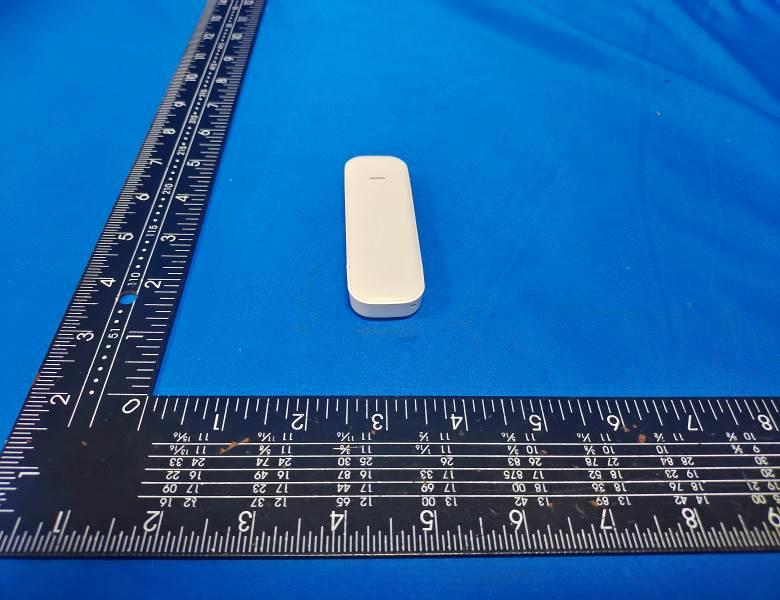

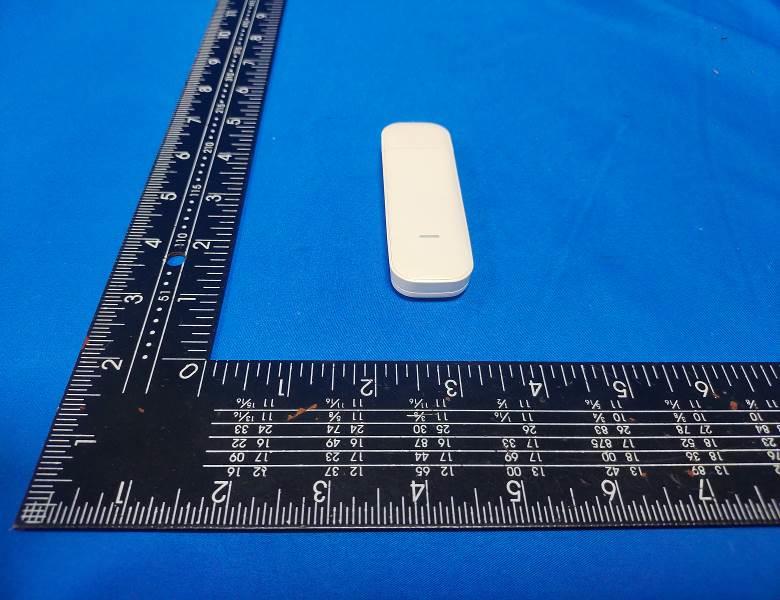

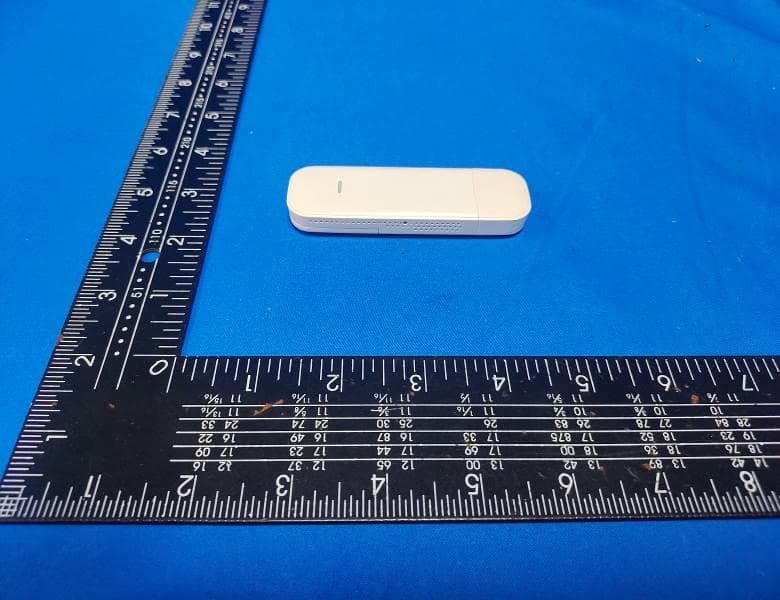

FCC ID: 2BG5S-CLR903 External Photos of the EUT FCC ID: 2BG5S-CLR903

Label and Location Size: L: 1.0cm*W: 0.2cm Label and Location FCC ID : 2BG5S-CLR903

FCC ID: 2BG5S-CLR903 Internal Photos of the EUT Antenna FCC ID: 2BG5S-CLR903 Diversity Antenna FCC ID: 2BG5S-CLR903 FCC ID: 2BG5S-CLR903

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China TEST REPORT Report Reference No. ..................... : FCC ID ........................................... : CTA24053101207 2BG5S-CLR903 Compiled by ( position+printed name+signature) .. : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) .. : Project Engineer Lushan Kong Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Jun. 18, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................. : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shanghai Yuge information technology Co., Ltd. Address ............................................. : Room 204-1, No. 6, Lane 88, Shengrong Road, China (Shanghai) pilot Free Trade Zone, China Test specification ........................... : Standard ........................................... : IEC 62209-2:2010; IEEE 1528:2013; FCC 47 CFR Part 2.1093; ANSI/IEEE C95.1:2005; Reference FCC KDB 447498; KDB 865664; KDB 941225; KDB 616217 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : 4G LTE Wireless Communication Module Trade Mark ....................................... : N/A Manufacturer ..................................... : Shanghai Yuge information technology Co., Ltd. Model/Type reference ....................... : CLR903 Listed Models .................................. : CLR901, CLR902, CLR905, CLR906, CLR907, CLR908, CLR909, CLR910, CLR801, CLR802, CLR803, CLR805, CLR806,CLR807, CLR808, CLR809, CLR920 Rating ............................................... : DC 5.0V From external circuit Result ................................................ : PASS Report No.: CTA24053101207 Page 2 of 88 T E S T R E P O R T Equipment under Test : 4G LTE Wireless Communication Module Model /Type : CLR903 Listed Models : CLR901, CLR902, CLR905, CLR906, CLR907, CLR908, CLR909, CLR910, CLR801, CLR802, CLR803, CLR805, CLR806, CLR807, CLR808, CLR809, CLR920 Applicant : Shanghai Yuge information technology Co., Ltd. Address : Room 204-1, No. 6, Lane 88, Shengrong Road, China (Shanghai) pilot Free Trade Zone, China Manufacturer : Shanghai Yuge information technology Co., Ltd. Address : Room 204-1, No. 6, Lane 88, Shengrong Road, China (Shanghai) pilot Free Trade Zone, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24053101207 Page 3 of 88 ※ ※ Revision History ※ ※ REV. ISSUED DATE DESCRIPTION Rev.1.0 Jun. 18, 2024 Initial Test Report Release Report No.: CTA24053101207 Page 4 of 88 Contents 1 Statement of Compliance ............................................................................................... 6 2 General Information ........................................................................................................ 7 General Remarks ............................................................................................................................................. 7 Description of Equipment Under Test (EUT) ..................................................................................................... 7 Device Category and SAR Limits ..................................................................................................................... 7 Applied Standard .............................................................................................................................................. 7 Test Facility ....................................................................................................................................................... 8 Environment of Test Site ................................................................................................................................... 9 Test Configuration ............................................................................................................................................. 9 3 Specific Absorption Rate (SAR) ................................................................................... 10 Introduction ..................................................................................................................................................... 10 SAR Definition ................................................................................................................................................ 10 4 SAR Measurement System .......................................................................................... 11 E-Field Probe ................................................................................................................................................... 11 Data Acquisition Electronics (DAE) ................................................................................................................. 12 Robot .............................................................................................................................................................. 13 Measurement Server .........................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: CTA24053101207 Page 78 of 88 Report No.: CTA24053101207 Page 79 of 88 Report No.: CTA24053101207 Page 80 of 88 Report No.: CTA24053101207 Page 81 of 88 Report No.: CTA24053101207 Page 82 of 88 Report No.: CTA24053101207 Page 83 of 88 Report No.: CTA24053101207 Page 84 of 88 Report No.: CTA24053101207 Page 85 of 88 Report No.: CTA24053101207 Page 86 of 88 Report No.: CTA24053101207 Page 87 of 88 Report No.: CTA24053101207 Page 88 of 88 *****END OF REPORT*****

1. Antenna Description: Antenna type PIFA Antenna Model CLR903 Manufacturer Shanghai Yuge information technology Co., Ltd. ANT Peak Gain WCDMA Band V(824-849MHz)/LTE Band 5:2.0dBi LTE Band 7(2500 MHz -2570MHz): 2.0dBi LTE Band 38(2570 MHz -2620MHz): 2.0dBi LTE Band 40 (2305 MHz - 2315MHz&2350MHz – 2360MHz): 2.0dBi Band 41(2496 MHz -2690MHz): 2.0dBi 2. Antenna Photo:

1 FCC LTE Band Test Data FCC ID : 2BG5S-CLR903 Company: : Shanghai Yuge information technology Co., Ltd. EUT : 4G LTE Wireless Communication Module Model Number : CLR903 Reviewed By : Eric Wang 2 Appendix B: Peak-to-Average Ratio(CCDF) Test Result Band Bandwidth Modulation Channel RB Configuration Result(dB) Limit(dB) Verdict Band5 1.4MHz QPSK 20407 6RB#0 5.06 13 PASS Band5 1.4MHz QPSK 20525 6RB#0 5.18 13 PASS Band5 1.4MHz QPSK 20643 6RB#0 5.02 13 PASS Band5 1.4MHz 16QAM 20407 6RB#0 5.80 13 PASS Band5 1.4MHz 16QAM 20525 6RB#0 5.90 13 PASS Band5 1.4MHz 16QAM 20643 6RB#0 5.78 13 PASS Band5 3MHz QPSK 20415 15RB#0 5.23 13 PASS Band5 3MHz QPSK 20525 15RB#0 5.36 13 PASS Band5 3MHz QPSK 20635 15RB#0 5.21 13 PASS Band5 3MHz 16QAM 20415 15RB#0 5.98 13 PASS Band5 3MHz 16QAM 20525 15RB#0 6.11 13 PASS Band5 3MHz 16QAM 20635 15RB#0 5.96 13 PASS Band5 5MHz QPSK 20425 25RB#0 5.19 13 PASS Band5 5MHz QPSK 20525 25RB#0 5.36 13 PASS Band5 5MHz QPSK 20625 25RB#0 5.15 13 PASS Band5 5MHz 16QAM 20425 25RB#0 5.87 13 PASS Band5 5MHz 16QAM 20525 25RB#0 6.06 13 PASS Band5 5MHz 16QAM 20625 25RB#0 5.80 13 PASS Band5 10MHz QPSK 20450 50RB#0 5.26 13 PASS Band5 10MHz QPSK 20525 50RB#0 5.30 13 PASS Band5 10MHz QPSK 20600 50RB#0 5.23 13 PASS Band5 10MHz 16QAM 20450 50RB#0 5.96 13 PASS Band5 10MHz 16QAM 20525 50RB#0 6.08 13 PASS Band5 10MHz 16QAM 20600 50RB#0 5.95 13 PASS 3 Test Graphs Band5-1.4MHz-QPSK-20407-6RB#0-PASS Band5-1.4MHz-QPSK-20525-6RB#0-PASS Band5-1.4MHz-QPSK-20643-6RB#0-PASS Band5-1.4MHz-16QAM-20407-6RB#0-PASS 4 Band5-1.4MHz-16QAM-20525-6RB#0-PASS Band5-1.4MHz-16QAM-20643-6RB#0-PASS Band5-3MHz-QPSK-20415-15RB#0-PASS Band5-3MHz-QPSK-20525-15RB#0-PASS 5 Band5-3MHz-QPSK-20635-15RB#0-PASS Band5-3MHz-16QAM-20415-15RB#0-PASS Band5-3MHz-16QAM-20525-15RB#0-PASS Band5-3MHz-16QAM-20635-15RB#0-PASS 6 Band5-5MHz-QPSK-20425-25RB#0-PASS Band5-5MHz-QPSK-20525-25RB#0-PASS Band5-5MHz-QPSK-20625-25RB#0-PASS Band5-5MHz-16QAM-20425-25RB#0-PASS 7 Band5-5MHz-16QAM-20525-25RB#0-PASS Band5-5MHz-16QAM-20625-25RB#0-PASS Band5-10MHz-QPSK-20450-50RB#0-PASS Band5-10MHz-QPSK-20525-50RB#0-PASS 8 Band5-10MHz-QPSK-20600-50RB#0-PASS Band5-10MHz-16QAM-20450-50RB#0-PASS Band5-10MHz-16QAM-20525-50RB#0-PASS Band5-10MHz-16QAM-20600-50RB#0-PASS 9 Appendix C: 26dB Bandwidth and Occupied Bandwidth Test Result Band Bandwidth Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Band5 1.4MHz QPSK 20407 6RB#0 1.0956 1.258 PASS Band5 1.4MHz QPSK 20525 6RB#0 1.0992 1.262 PASS Band5 1.4MHz QPSK 20643 6RB#0 1.0967 1.263 PASS Band5 1.4MHz 16QAM 20407 6RB#0 1.1111 1.270 PASS Band5 1.4MHz 16QAM 20525 6RB#0 1.1092 1.258 PASS Band5 1.4MHz 16QAM 20643 6RB#0 1.1099 1.271 PASS Band5 3MHz QPSK 20415 15RB#0 2.7007 2.896 PASS Band5 3MHz QPSK 20525 15RB#0 2.7004 2.897 PASS Band5 3MHz QPSK 20635 15RB#0 2.6995 2.906 PASS Band5 3MHz 16QAM 20415 15RB#0 2.6846 2.905 PASS Band5 3MHz 16QAM 20525 15RB#0 2.6912 2.904 PASS Band5 3MHz 16QAM 20635 15RB#0 2.6913 2.904 PASS Band5 5MHz QPSK 20425 25RB#0 4.4966 4.862 PASS Band5 5MHz QPSK 20525 25RB#0 4.4963 4.856 PASS Band5 5MHz QPSK 20625 25RB#0 4.5028 4.871 PASS Band5 5MHz 16QAM 20425 25RB#0 4.4952 4.854 PASS Band5 5MHz 16QAM 20525 25RB#0 4.4958 4.852 PASS Band5 5MHz 16QAM 20625 25RB#0 4.5038 4.863 PASS Band5 10MHz QPSK 20450 50RB#0 8.9720 9.691 PASS Band5 10MHz QPSK 20525 50RB#0 8.9694 9.694 PASS Band5 10MHz QPSK 20600 50RB#0 8.9703 9.661 PASS Band5 10MHz 16QAM 20450 50RB#0 8.9776 9.691 PASS Band5 10MHz 16QAM 20525 50RB#0 8.9737 9.656 PASS Band5 10MHz 16QAM 20600 50RB#0 8.9622 9.637 PASS 10 Test Graphs Band5-1.4MHz-QPSK-20407-6RB#0-PASS Band5-1.4MHz-QPSK-20525-6RB#0-PASS Band5-1.4MHz-QPSK-20643-6RB#0-PASS Band5-1.4MHz-16QAM-20407-6RB#0-PASS 11 Band5-1.4MHz-16QAM-20525-6RB#0-PASS Band5-1.4MHz-16QAM-20643-6RB#0-PASS Band5-3MHz-QPSK-20415-15RB#0-PASS Band5-3MHz-QPSK-20525-15RB#0-PASS 12 Band5-3MHz-QPSK-20635-15RB#0-PASS Band5-3MHz-16QAM-20415-15RB#0-PASS Band5-3MHz-16QAM-20525-15RB#0-PASS Band5-3MHz-16QAM-20635-15RB#0-PASS 13 Band5-5MHz-QPSK-20425-25RB#0-PASS Band5-5MHz-QPSK-20525-25RB#0-PASS Band5-5MHz-QPSK-20625-25RB#0-PASS Band5-5MHz-16QAM-20425-25RB#0-PASS 14 Band5-5MHz-16QAM-20525-25RB#0-PASS Band5-5MHz-16QAM-20625-25RB#0-PASS Band5-10MHz-QPSK-20450-50RB#0-PASS Band5-10MHz-QPSK-20525-50RB#0-PASS 15 Band5-10MHz-QPSK-20600-50RB#0-PASS Band5-10MHz-16QAM-20450-50RB#0-PASS Band5-10MHz-16QAM-20525-50RB#0-PASS Band5-10MHz-16QAM-20600-50RB#0-PASS 16 Appendix D: Band Edge Test Result Band Bandwidth Modulation Channel RB Configuration Result(dBm) Verdict Band5 1.4MHz QPSK 20407 6RB#0 -38.47 PASS Band5 1.4MHz QPSK 20643 6RB#0 -30.62 PASS Band5 1.4MHz 16QAM 20407 6RB#0 -38.04 PASS Band5 1.4MHz 16QAM 20643 6RB#0 -36.95 PASS Band5 3MHz QPSK 20415 15RB#0 -38.40 PASS Band5 3MHz QPSK 20635 15RB#0 -38.25 PASS Band5 3MHz 16QAM 20415 15RB#0 -41.06 PASS Band5 3MHz 16QAM 20635 15RB#0 -40.26 PASS Band5 5MHz QPSK 20425 25RB#0 -39.35 PASS Band5 5MHz QPSK 20625 25RB#0 -39.14 PASS Band5 5MHz 16QAM 20425 25RB#0 -41.72 PASS Band5 5MHz 16QAM 20625 25RB#0 -40.85 PASS Band5 10MHz QPSK 20450 50RB#0 -42.31 PASS Band5 10MHz QPSK 20600 50RB#0 -41.98 PASS Band5 10MHz 16QAM 20450 50RB#0 -44.05 PASS Band5 10MHz 16QAM 20600 50RB#0 -43.66 PASS Test Graphs Band5_1.4MHz_QPSK_20407_6RB#0 Band5_1.4MHz_QPSK_20643_6RB#0 17 Band5_1.4MHz_16QAM_20407_6RB#0 Band5_1.4MHz_16QAM_20643_6RB#0 Band5_3MHz_QPSK_20415_15RB#0 Band5_3MHz_QPSK_20635_15RB#0 18 Band5_3MHz_16QAM_20415_15RB#0 Band5_3MHz_16QAM_20635_15RB#0 Band5_5MHz_QPSK_20425_25RB#0 Band5_5MHz_QPSK_20625_25RB#0 19 Band5_5MHz_16QAM_20425_25RB#0 Band5_5MHz_16QAM_20625_25RB#0 Band5_10MHz_QPSK_20450_50RB#0 Band5_10MHz_QPSK_20600_50RB#0 20 Band5_10MHz_16QAM_20450_50RB#0 Band5_10MHz_16QAM_20600_50RB#0 21 Appendix E: Conducted Spurious Emission Test Result Band Bandwidth Modulation Channel RB Configuration Frequency Range Result (dBm) Verdict Band5 1.4MHz QPSK 20407 6RB#0 0.009~0.15 -50.09 PASS Band5 1.4MHz QPSK 20407 6RB#0 0.15~30 -58.36 PASS Band5 1.4MHz QPSK 20407 6RB#0 30~1000 -53.94 PASS Band5…

Text truncated - open the document above for the full version.

27 Band5_1.4MHz_QPSK_20643_6RB#0_30~1000 _30~1000 Band5_1.4MHz_QPSK_20643_6RB#0_1000~30 00_1000~3000 Band5_1.4MHz_QPSK_20643_6RB#0_3000~10 000_3000~10000 Band5_1.4MHz_16QAM_20407_6RB#0_0.009~ 0.15_0.009~0.15 28 Band5_1.4MHz_16QAM_20407_6RB#0_0.15~3 0_0.15~30 Band5_1.4MHz_16QAM_20407_6RB#0_30~100 0_30~1000 Band5_1.4MHz_16QAM_20407_6RB#0_1000~3 000_1000~3000 Band5_1.4MHz_16QAM_20407_6RB#0_3000~1 0000_3000~10000 29 Band5_1.4MHz_16QAM_20525_6RB#0_0.009~ 0.15_0.009~0.15 Band5_1.4MHz_16QAM_20525_6RB#0_0.15~3 0_0.15~30 Band5_1.4MHz_16QAM_20525_6RB#0_30~100 0_30~1000 Band5_1.4MHz_16QAM_20525_6RB#0_1000~3 000_1000~3000 30 Band5_1.4MHz_16QAM_20525_6RB#0_3000~1 0000_3000~10000 Band5_1.4MHz_16QAM_20643_6RB#0_0.009~ 0.15_0.009~0.15 Band5_1.4MHz_16QAM_20643_6RB#0_0.15~3 0_0.15~30 Band5_1.4MHz_16QAM_20643_6RB#0_30~100 0_30~1000 31 Band5_1.4MHz_16QAM_20643_6RB#0_1000~3 000_1000~3000 Band5_1.4MHz_16QAM_20643_6RB#0_3000~1 0000_3000~10000 Band5_3MHz_QPSK_20415_15RB#0_0.009~0. 15_0.009~0.15 Band5_3MHz_QPSK_20415_15RB#0_0.15~30_ 0.15~30 32 Band5_3MHz_QPSK_20415_15RB#0_30~1000 _30~1000 Band5_3MHz_QPSK_20415_15RB#0_1000~30 00_1000~3000 Band5_3MHz_QPSK_20415_15RB#0_3000~10 000_3000~10000 Band5_3MHz_QPSK_20525_15RB#0_0.009~0. 15_0.009~0.15 33 Band5_3MHz_QPSK_20525_15RB#0_0.15~30_ 0.15~30 Band5_3MHz_QPSK_20525_15RB#0_30~1000 _30~1000 Band5_3MHz_QPSK_20525_15RB#0_1000~30 00_1000~3000 Band5_3MHz_QPSK_20525_15RB#0_3000~10 000_3000~10000 34 Band5_3MHz_QPSK_20635_15RB#0_0.009~0. 15_0.009~0.15 Band5_3MHz_QPSK_20635_15RB#0_0.15~30_ 0.15~30 Band5_3MHz_QPSK_20635_15RB#0_30~1000 _30~1000 Band5_3MHz_QPSK_20635_15RB#0_1000~30 00_1000~3000 35 Band5_3MHz_QPSK_20635_15RB#0_3000~10 000_3000~10000 Band5_3MHz_16QAM_20415_15RB#0_0.009~0 .15_0.009~0.15 Band5_3MHz_16QAM_20415_15RB#0_0.15~30 _0.15~30 Band5_3MHz_16QAM_20415_15RB#0_30~100 0_30~1000 36 Band5_3MHz_16QAM_20415_15RB#0_1000~3 000_1000~3000 Band5_3MHz_16QAM_20415_15RB#0_3000~1 0000_3000~10000 Band5_3MHz_16QAM_20525_15RB#0_0.009~0 .15_0.009~0.15 Band5_3MHz_16QAM_20525_15RB#0_0.15~30 _0.15~30 37 Band5_3MHz_16QAM_20525_15RB#0_30~100 0_30~1000 Band5_3MHz_16QAM_20525_15RB#0_1000~3 000_1000~3000 Band5_3MHz_16QAM_20525_15RB#0_3000~1 0000_3000~10000 Band5_3MHz_16QAM_20635_15RB#0_0.009~0 .15_0.009~0.15 38 Band5_3MHz_16QAM_20635_15RB#0_0.15~30 _0.15~30 Band5_3MHz_16QAM_20635_15RB#0_30~100 0_30~1000 Band5_3MHz_16QAM_20635_15RB#0_1000~3 000_1000~3000 Band5_3MHz_16QAM_20635_15RB#0_3000~1 0000_3000~10000 39 Band5_5MHz_QPSK_20425_25RB#0_0.009~0. 15_0.009~0.15 Band5_5MHz_QPSK_20425_25RB#0_0.15~30_ 0.15~30 Band5_5MHz_QPSK_20425_25RB#0_30~1000 _30~1000 Band5_5MHz_QPSK_20425_25RB#0_1000~30 00_1000~3000 40 Band5_5MHz_QPSK_20425_25RB#0_3000~10 000_3000~10000 Band5_5MHz_QPSK_20525_25RB#0_0.009~0. 15_0.009~0.15 Band5_5MHz_QPSK_20525_25RB#0_0.15~30_ 0.15~30 Band5_5MHz_QPSK_20525_25RB#0_30~1000 _30~1000 41 Band5_5MHz_QPSK_20525_25RB#0_1000~30 00_1000~3000 Band5_5MHz_QPSK_20525_25RB#0_3000~10 000_3000~10000 Band5_5MHz_QPSK_20625_25RB#0_0.009~0. 15_0.009~0.15 Band5_5MHz_QPSK_20625_25RB#0_0.15~30_ 0.15~30 42 Band5_5MHz_QPSK_20625_25RB#0_30~1000 _30~1000 Band5_5MHz_QPSK_20625_25RB#0_1000~30 00_1000~3000 Band5_5MHz_QPSK_20625_25RB#0_3000~10 000_3000~10000 Band5_5MHz_16QAM_20425_25RB#0_0.009~0 .15_0.009~0.15 43 Band5_5MHz_16QAM_20425_25RB#0_0.15~30 _0.15~30 Band5_5MHz_16QAM_20425_25RB#0_30~100 0_30~1000 Band5_5MHz_16QAM_20425_25RB#0_1000~3 000_1000~3000 Band5_5MHz_16QAM_20425_25RB#0_3000~1 0000_3000~10000 44 Band5_5MHz_16QAM_20525_25RB#0_0.009~0 .15_0.009~0.15 Band5_5MHz_16QAM_20525_25RB#0_0.15~30 _0.15~30 Band5_5MHz_16QAM_20525_25RB#0_30~100 0_30~1000 Band5_5MHz_16QAM_20525_25RB#0_1000~3 000_1000~3000

45 Band5_5MHz_16QAM_20525_25RB#0_3000~1 0000_3000~10000 Band5_5MHz_16QAM_20625_25RB#0_0.009~0 .15_0.009~0.15 Band5_5MHz_16QAM_20625_25RB#0_0.15~30 _0.15~30 Band5_5MHz_16QAM_20625_25RB#0_30~100 0_30~1000 46 Band5_5MHz_16QAM_20625_25RB#0_1000~3 000_1000~3000 Band5_5MHz_16QAM_20625_25RB#0_3000~1 0000_3000~10000 Band5_10MHz_QPSK_20450_50RB#0_0.009~0 .15_0.009~0.15 Band5_10MHz_QPSK_20450_50RB#0_0.15~30 _0.15~30 47 Band5_10MHz_QPSK_20450_50RB#0_30~100 0_30~1000 Band5_10MHz_QPSK_20450_50RB#0_1000~3 000_1000~3000 Band5_10MHz_QPSK_20450_50RB#0_3000~1 0000_3000~10000 Band5_10MHz_QPSK_20525_50RB#0_0.009~0 .15_0.009~0.15 48 Band5_10MHz_QPSK_20525_50RB#0_0.15~30 _0.15~30 Band5_10MHz_QPSK_20525_50RB#0_30~100 0_30~1000 Band5_10MHz_QPSK_20525_50RB#0_1000~3 000_1000~3000 Band5_10MHz_QPSK_20525_50RB#0_3000~1 0000_3000~10000 49 Band5_10MHz_QPSK_20600_50RB#0_0.009~0 .15_0.009~0.15 Band5_10MHz_QPSK_20600_50RB#0_0.15~30 _0.15~30 Band5_10MHz_QPSK_20600_50RB#0_30~100 0_30~1000 Band5_10MHz_QPSK_20600_50RB#0_1000~3 000_1000~3000 50 Band5_10MHz_QPSK_20600_50RB#0_3000~1 0000_3000~10000 Band5_10MHz_16QAM_20450_50RB#0_0.009~ 0.15_0.009~0.15 Band5_10MHz_16QAM_20450_50RB#0_0.15~3 0_0.15~30 Band5_10MHz_16QAM_20450_50RB#0_30~10 00_30~1000 51 Band5_10MHz_16QAM_20450_50RB#0_1000~ 3000_1000~3000 Band5_10MHz_16QAM_20450_50RB#0_3000~ 10000_3000~10000 Band5_10MHz_16QAM_20525_50RB#0_0.009~ 0.15_0.009~0.15 Band5_10MHz_16QAM_20525_50RB#0_0.15~3 0_0.15~30 52 Band5_10MHz_16QAM_20525_50RB#0_30~10 00_30~1000 Band5_10MHz_16QAM_20525_50RB#0_1000~ 3000_1000~3000 Band5_10MHz_16QAM_20525_50RB#0_3000~ 10000_3000~10000 Band5_10MHz_16QAM_20600_50RB#0_0.009~ 0.15_0.009~0.15 53 Band5_10MHz_16QAM_20600_50RB#0_0.15~3 0_0.15~30 Band5_10MHz_16QAM_20600_50RB#0_30~10 00_30~1000 Band5_10MHz_16QAM_20600_50RB#0_1000~ 3000_1000~3000 Band5_10MHz_16QAM_20600_50RB#0_3000~ 10000_3000~10000 54 Appendix F: Frequency Stability Test Result Temperature Band Bandwidt h Modulatio n Channe l RB Configure Voltag e [Vdc] Tempe rature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict Band5 1.4MHz QPSK 20407 6RB#0 NV -30 -19.13 -0.023196 ±2.5 PASS Band5 1.4MHz QPSK 20407 6RB#0 NV -20 -31.34 -0.038002 ±2.5 PASS Band5 1.4MHz QPSK 20407 6RB#0 NV -10 -17.87 -0.021668 ±2.5 PASS Band5 1.4MHz QPSK 20407 6RB#0 NV 0 8.61 0.010440 ±2.5 PASS Band5 1.4MHz QPSK 20407 6RB#0 NV 10 -34.96 -0.042391 ±2.5 PASS Band5 1.4MHz QPSK 20407 6RB#0 NV 20 -18.74 -0.022723 ±2.5 PASS Band5 1.4MHz QPSK 20407 6RB#0 NV 30 -12.03 -0.014587 ±2.5 PASS Band5 1.4MHz QPSK 20407 6RB#0 NV 40 10.24 0.012417 ±2.5 PASS Band5 1.4MHz QPSK 20407 6RB#0 NV 50 -7.24 -0.008779 ±2.5 PASS Band5 1.4MHz QPSK 20525 6RB#0 NV -30 -23.63 -0.028249 ±2.5 PASS …

Text truncated - open the document above for the full version.
