2BG6CTS-156PHDOutdoor Reflective Display Terminal

1/9 PRODUCTSPECIFICATION ProductName：OutdoorPaperDisplayTerminal ProductModel：TS-156PHD Version:V0 TECHTIONSMART Organizedby CheckedbyApprovedby Connie CUSTOMERAPPROVAL ApprovedbyComment 2/9 Contents 1、Features.................................................................................................4 2、PhysicalSpecifications........................................................................5-7 3、Productappearance................................................................................8 4、Sixviews.................................................................................................8 5、Installation................................................................................................9 3/9 DocumentRevisionHistory DateVersionDescriptionEditor 2024.04.02V0NewReleaseConnie 4/9 1、Features •16：9宽屏，阳光下可读，超低功耗，搭载高速windows系统 16：9widescreen,readableundersunlight,ultralowpowerfearure，equipped withhigh-speedWindowssystem •轻薄/美观/散热性强/耐腐蚀 Thin/beautiful/heatdissipation/corrosionresistance •整机全封闭式无风扇设计 Thewholemachineisfullyenclosedandfanlessdesign •IP65防尘防水标准（屏面） IP65dustproofandwaterproofstandard（frontscreen) •支持纵向和横向显示模式 Supportsportraitandlandscapedisplaymodes •全天候连续不间断运行24H Continuousoperation24hoursaday •整机采用铝合金材质一体压铸制成 Thewholemachineismadeofaluminumalloyandisdie-castinonepiece. •具有良好的抗震性、抗冲击性，适应苛刻环境 Ithasgoodearthquakeresistanceandimpactresistance,andcanadapttoharsh environments. •支持RTC实时时钟、定时开关机、网络唤醒、RS232串口集控. SupportsRTCreal-timeclock,scheduledpoweronandoff,networkwake-up, andRS232serialportcentralizedcontrol. •应用：户外自助售卖终端，户外交通（充电桩、景区导示牌、电子公交站牌、户外灯杆 显示屏等） Applications:Outdoorself-servicevendingterminal,Outdoortransportation (chargingpile、Scenicguideboard、Electronicbusstopsign、Outdoorlightpole displayetc）. 5/9 2、PHYSICALSPECIFICATIONS No.Items Specifications 1MainparametersMainparameters 2ModelTS-156PHD 3ProducttypeOutdoorPaperDisplayTerminal 4FrameAluminumDie-Casting/Black 5BrandTECHTION 6DisplayparametersDisplayparameters 7 LCDSize 15.6” 8 ActiveArea 344.16(H)x193.59(V) 9 Resolution 1920*1080 10PanelTypeTransflective 11 ContrastRatio 8:1 12 PictureAatio 16:9 13 DisplayColors 16.7M 14 ViewingAngle 60/60/60/60(Typ.)(CR>2) 15 ResponseTime 15ms 16BacklightTypeE-LED 17 Brightness TBD 18 Lifespan 30000H 6/9 19 Protection IP65(frontscreen) 20TouchparametersTouchparameters 21TouchTypesCapacitive(G+G) 22ClicksCapacitive＞50milliontimes 23Surfacehardness7H 24TouchPoint10points 25TypeofglassChemicallystrengthenedglass 26Transmittance＞85% 27X86solutionX86solution 28CHIPJ1900 29CPUIntegratedIntel®[email protected] 30GPUIntegratedIntel®UHDGraphics600 31DDRDDR4-4G 32EMMCSSD128G 33OSWindows10Pro（Windows11/Linuxoptional） 34LAN1000M 35WiFi2.4G/5G 36B/T4.0 37Interface USB3.0*2，RJ45*1，VGA*1，HDMI*1，DC12V*1，RS232*1， USB2.0*2，LINEOUT*1，MICIN*1，Wifiantenna*1，B/T antenna*1，POWER*1 38PowerconsumptionPowerconsumption 7/9 39Standbypower（w）≤0.5W 40Powerconsumption（w）≤40W 41SupplyVoltage（v）DC12V 42Audiooutputpower4Ω*2W 43DimensionsDimensions 44PackingSize(mm)430*365*153mm 45ProductDimensions(mm)395.8*245*48.3mm 46NW(kg)3.17kg 47GW(kg)4.23kg 48Embeddedholesize(mm)391.8*241mm 49InstallationEmbedded 50AccessoriesAccessories 51PowerCable1 52Poweradapter112V/5A(AC100-240V50/60Hz) 53FixedpartRecessedclip*4，PM4x30screw*4 54Wifiantenna1 55B/Tantenna1 56EnvironmentEnvironment 57 Operatingtemperature -10°C~60°C 58Operatinghumidity10%～90%RHNon-Condensing 59 Storagetemperature -20°C~70°C 60 Storagehumidity 10%~90%RHNon-Condensing 8/9 2、产品外观图/ProductAppearance 4 、六视图 /Sixviews （ mm) 9/9 5、安装方式/Installation Embedded wall-mounted table-top table-top hanging FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOT E: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help.

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: Shenzhen Techtion Smart Electronics Co., Ltd Address: Room 902, 8th Floor, Unit 1, Building No. 2, Xintianxia Chengyun Factory District, Vanke City Community, Bantian Street, Longgang District, Shenzhen, China Phone: +86-13457341663 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. FCC ID: 2BG6CTS-156PHD If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-07-16 Name / Title: DEBIN ZHANG / Manager Company: Shenzhen Techtion Smart Electronics Co., Ltd Address: Room 902, 8th Floor, Unit 1, Building No. 2, Xintianxia Chengyun Factory District, Vanke City Community, Bantian Street, Longgang District, Shenzhen, China Phone: +86-13457341663 Fax: N/A E-Mail: [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BG6CTS-156PHD TS-156PHD, TS-780PHD, TS-780FHD, TS-101PHD, TS-101FHD, TS-105PHD, TS-105FHD, TS-133PHD, TS-133FHD, TS-156FHD, TS-215PHD, TS-215FHD, TS-238PHD, TS-238FHD, TS-280PHD, TS-280FHD, TS-286THD, TS-298THD, TS-280THD, TS-320PHD, TS-320FHD, TS-362THD, TS-401THD, TS-430PHD, TS-430THD, TS-430FHD, TS-434THD, TS-500THD, TS-500FHD, TS-500PHD, TS-550THD, TS-550FHD, TS-550PHD, TS-650THD, TS-650FHD, TS-650PHD, TS-750THD, TS-750FHD, TS-750PHD, TS-850THD, TS-850FHD, TS-850PHD, TS-860THD, TS-860FHD, TS-860PHD, TS-980THD, TS-980FHD, TS-980PHD, TS-110FHD, TS-110THD We, applicant Company Name: Shenzhen Techtion Smart Electronics Co., Ltd Address: Room 902, 8th Floor, Unit 1, Building No. 2, Xintianxia Chengyun Factory District, Vanke City Community, Bantian Street, Longgang District, Shenzhen, China Phone: +86-13457341663 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-07-16 Name / Title: DEBIN ZHANG / Manager Company: Shenzhen Techtion Smart Electronics Co., Ltd Address: Room 902, 8th Floor, Unit 1, Building No. 2, Xintianxia Chengyun Factory District, Vanke City Community, Bantian Street, Longgang District, Shenzhen, China Phone: +86-13457341663 Fax: N/A E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BG6CTS-156PHD TS-156PHD, TS-780PHD, TS-780FHD, TS-101PHD, TS-101FHD, TS-105PHD, TS-105FHD, TS-133PHD, TS-133FHD, TS-156FHD, TS-215PHD, TS-215FHD, TS-238PHD, TS-238FHD, TS-280PHD, TS-280FHD, TS-286THD, TS-298THD, TS-280THD, TS-320PHD, TS-320FHD, TS-362THD, TS-401THD, TS-430PHD, TS-430THD, TS-430FHD, TS-434THD, TS-500THD, TS-500FHD, TS-500PHD, TS-550THD, TS-550FHD, TS-550PHD, TS-650THD, TS-650FHD, TS-650PHD, TS-750THD, TS-750FHD, TS-750PHD, TS-850THD, TS-850FHD, TS-850PHD, TS-860THD, TS-860FHD, TS-860PHD, TS-980THD, TS-980FHD, TS-980PHD, TS-110FHD, TS-110THD For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-07-16 Name / Title: DEBIN ZHANG / Manager Company: Shenzhen Techtion Smart Electronics Co., Ltd Address: Room 902, 8th Floor, Unit 1, Building No. 2, Xintianxia Chengyun Factory District, Vanke City Community, Bantian Street, Longgang District, Shenzhen, China Phone: +86-13457341663 Fax: N/A E-Mail: [email protected]

Shenzhen Techtion Smart Electronics Co., Ltd Room 902, 8th Floor, Unit 1, Building No. 2, Xintianxia Chengyun Factory District, Vanke City Community, Bantian Street, Longgang District, Shenzhen, China Date: July 16, 2024 FCC ID: 2BG6CTS-156PHD Model Number: TS-156PHD, TS-780PHD, TS-780FHD, TS-101PHD, TS-101FHD, TS-105PHD, TS-105FHD, TS-133PHD, TS-133FHD, TS-156FHD, TS-215PHD, TS-215FHD, TS-238PHD, TS-238FHD, TS-280PHD, TS-280FHD, TS-286THD, TS-298THD, TS-280THD, TS-320PHD, TS-320FHD, TS-362THD, TS-401THD, TS-430PHD, TS-430THD, TS-430FHD, TS-434THD, TS-500THD, TS-500FHD, TS-500PHD, TS-550THD, TS-550FHD, TS-550PHD, TS-650THD, TS-650FHD, TS-650PHD, TS-750THD, TS-750FHD,TS-750PHD, TS-850THD, TS-850FHD, TS-850PHD, TS-860THD, TS-860FHD, TS-860PHD, TS-980THD, TS-980FHD, TS-980PHD, TS-110FHD, TS-110THD To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Shenzhen Techtion Smart Electronics Co.,Ltd hereby declare that our product (Outdoor Reflective Display Terminal) Model Number: TS-156PHD, TS-780PHD, TS-780FHD, TS-101PHD, TS-101FHD, TS-105PHD, TS-105FHD, TS-133PHD, TS-133FHD, TS-156FHD, TS-215PHD, TS-215FHD, TS-238PHD, TS-238FHD, TS-280PHD, TS-280FHD, TS-286THD, TS-298THD, TS-280THD, TS-320PHD, TS-320FHD, TS-362THD, TS-401THD, TS-430PHD, TS-430THD, TS-430FHD, TS-434THD, TS-500THD, TS-500FHD, TS-500PHD, TS-550THD, TS-550FHD, TS-550PHD, TS-650THD, TS-650FHD, TS-650PHD, TS-750THD, TS-750FHD, TS-750PHD, TS-850THD, TS-850FHD, TS-850PHD, TS-860THD, TS-860FHD, TS-860PHD, TS-980THD, TS-980FHD, TS-980PHD, TS-110FHD, TS-110THD board, Schematic, Hardware version, Software version, structure and internal photos are same, named and appearance differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Shenzhen Techtion Smart Electronics Co., Ltd Room 902, 8th Floor, Unit 1, Building No. 2, Xintianxia Chengyun Factory District, Vanke City Community, Bantian Street, Longgang District, Shenzhen, China Sincerely, (Signed) Name / Title: DEBIN ZHANG / Manager Company: Shenzhen Techtion Smart Electronics Co., Ltd Address: Room 902, 8th Floor, Unit 1, Building No. 2, Xintianxia Chengyun Factory District, Vanke City Community, Bantian Street, Longgang District, Shenzhen, China Phone: +86-13457341663 Fax: N/A E-Mail: [email protected]

FCC ID: 2BG6CTS-156PHD Fig. 1 Fig. 2 FCC ID: 2BG6CTS-156PHD Fig. 3 Fig. 4 BT&5G WLAN Antenna 2.4G WLAN Antenna FCC ID: 2BG6CTS-156PHD Fig. 5 Fig. 6 FCC ID: 2BG6CTS-156PHD Fig. 7 Fig. 8 FCC ID: 2BG6CTS-156PHD Fig. 9

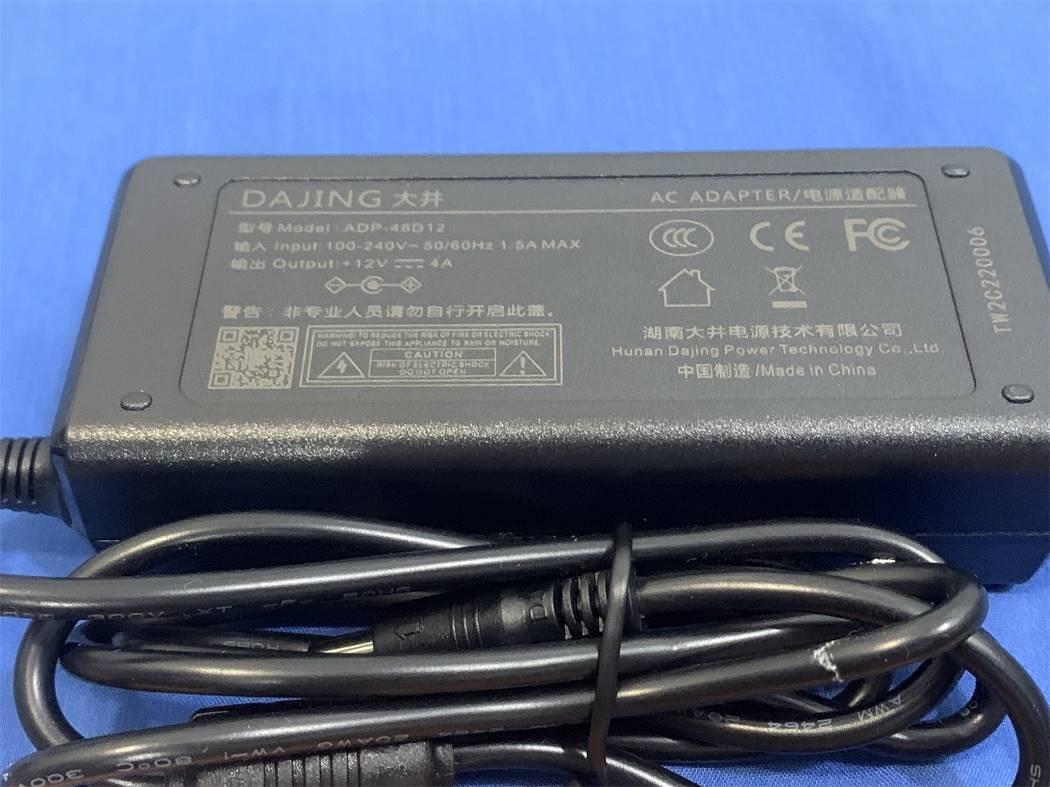

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L3.48cm x 2.98cm) Label Location Outdoor Paper Display Terminal Model : TS-156PHD Input: DC 12.0V/4.0A by Adapter FCC ID: 2BG6CTS-156PHD

FCC ID: 2BG6CTS-156PHD Fig. 1 Fig. 2 FCC ID: 2BG6CTS-156PHD Fig. 3 Fig. 4 FCC ID: 2BG6CTS-156PHD Fig. 5 Fig. 6 FCC ID: 2BG6CTS-156PHD Fig. 7 Fig. 8 FCC ID: 2BG6CTS-156PHD Fig. 9 Fig. 10 FCC ID: 2BG6CTS-156PHD Fig. 11 Fig. 12 FCC ID: 2BG6CTS-156PHD Fig. 13 Fig. 14 FCC ID: 2BG6CTS-156PHD Fig. 15 Fig. 16 FCC ID: 2BG6CTS-156PHD Fig. 17 Fig. 18 FCC ID: 2BG6CTS-156PHD Fig. 19 Fig. 20

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‟an District, Shenzhen, China RF Exposure evaluation Report Reference No. ................. : FCC ID. ......................................... : CTA24053000105 2BG6CTS-156PHD Compiled by ( position+printed name+signature): File administrators Jinghua Xiao Supervised by ( position+printed name+signature): Test Engineer Lushan Kong Approved by ( position+printed name+signature) . : Manager Eric Wang Date of issue .................................... : Jun.21, 2024 Representative Laboratory Name ....................................................... : Shenzhen CTA Testing Technology Co., Ltd. Address ......................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao„an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Techtion Smart Electronics Co., Ltd Address ............................................ : Room 902, 8th Floor, Unit 1, Building No. 2, Xintianxia Chengyun Factory District, Vanke City Community, Bantian Street, Longgang District, Shenzhen, China Test specification ........................ : Standard ........................................ : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices TRF Originator .............................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ................................... : Dated 2014-12 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................. : Outdoor Reflective Display Terminal Trade Mark .................................... : N/A Manufacturer ................................. : Shenzhen Techtion Smart Electronics Co., Ltd Model/Type reference ................... : TS-156PHD Listed Models .............................. : Please refer to page two Hardware Version ........................ : N/A Software Version ........................... : N/A Rating ............................................ : DC12.0V/4.0A by Adapter Result ............................................ : PASS Report No.: CTA24053000105 Page 2 of 16 T E S T R E P O R T Test Report No. : CTA24053000105 Jun. 21, 2024 ______________________________________________________________________________________________ Date of issue Equipment under Test : Outdoor Reflective Display Terminal Model /Type : TS-156PHD Listed model : TS-780PHD,TS-780FHD,TS-101PHD,TS-101FHD,TS-105PHD, TS-105FHD,TS-133PHD,TS-133FHD,TS-156FHD,TS-215PHD, TS-215FHD,TS-238PHD,TS-238FHD,TS-280PHD, TS-280FHD, TS-286THD,TS-298THD,TS-280THD,TS-320PHD,TS-320FHD, TS-362THD,TS-401THD,TS-430PHD,TS-430THD,TS-430FHD, TS-434THD,TS-500THD,TS-500FHD,TS-500PHD,TS-550THD, TS-550FHD,TS-550PHD,TS-650THD,TS-650FHD,TS-650PHD, TS-750THD,TS-750FHD,TS-750PHD,TS-850THD,TS-850FHD, TS-850PHD,TS-860THD,TS-860FHD,TS-860PHD,TS-980THD, TS-980FHD,TS-980PHD,TS-110FHD,TS-110THD Applicant : Shenzhen Techtion Smart Electronics Co., Ltd Address : Room 902, 8th Floor, Unit 1, Building No. 2, Xintianxia Chengyun Factory District, Vanke City Community, Bantian Street, Longgang District, Shenzhen, China Manufacturer : Shenzhen Techtion Smart Electronics Co., Ltd Address : Room 902, 8th Floor, Unit 1, Building No. 2, Xintianxia Chengyun Factory District, Vanke City Community, Bantian Street, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24053000105 Page 3 of 16 Contents 1. SUMMARY ............................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT .............................................................................................................................................. 6 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 6 2.2 TEST FACILITY .................................................................................................................................................................. 6 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 6 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 6 3. METHOD OF MEASUREMENT ................................................................................................................................. 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ............................................................................................................................................................…

Text truncated - open the document above for the full version.

www.delincomm.com www.elincomm.com FAR109-2.4G-SZ-N 2023 v1.0 versioe 第 1 页 共 7 页 客户名称： Customer 供 应 商： Supplier 供 应 商 品 牌 ： brand of supplier 产 品 名 称 Production Name 产 品 型 号 ： ProductionNumber 产品规格承认书 Specification For Approval Shenzhen Techtion Smart Electronics Co.,Ltd DeliNCOMM DeliNCOMM 棒状天线 6688-03-0002 AR109-2.4~5.8G-SZ-N Address :Shenzhou Computer Building, Beier Road, Longgang District, Shenzhen www.delincomm.com FAR109-2.4G-SZ-N 2023 v1.0 versioe 第 2 页 共 7 页 规格书目录(Directory) 电气参数（Electrical parameters) ― ― ― ― ― ― ― ― ― 4 机械参数(Mechanical parameters) ― ― ― ― ― ― ― ― ― ― 4 工作/储存温度（Operating/ Storage Temperature） ― ― ― ― ―4 结构图纸（Structural drawings) ― ― ― ― ― ― ― ― ― ― ― 5 环境与可靠性试验(Environmental and reliability testing) ―--6.7 测试设备(Test equipment) ― ― ― ― ― ― ― ― ― ― ― ―8 测试参数(Testing Parameters） ― ― ― ― ― ― ― ― ― ― ― 9 . 10 www.delincomm.com FAR109-2.4G-SZ-N 2023 v1.0 versioe 第 3 页 共 7 页 电气参数（Electrical parameters）: Frequency 频率范围 2.4~5.8GHz Impedance 特性阻抗 50Ω S.W.R. 电压驻波比 ≤2.0 Antenna Gain 增益 2.0dBi Polarization 极化形式 vertical polarization Return Loss 回波损耗 -9.2dB MAX 机械参数(Mechanical parameters)： Antenna Colour 天线颜色 black RF Cable Model 射频线型号 6688-03-0002 Connect Type 接口方式 SMA 工作/储存温度（Operating/ Storage Temperature）： Operating Temperature 工作温度 -40~85°C Storage Temperature 储存温度 -40~85°C www.delincomm.com FAR109-2.4G-SZ-N 2023 v1.0 versioe 第 4 页 共 7 页 结构图纸（Structural drawings)MM： www.delincomm.com FAR109-2.4G-SZ-N 2023 v1.0 versioe 第 5 页 共 7 页 测试设备(Test equipment): www.delincomm.com FAR109-2.4G-SZ-N 2023 v1.0 versioe 第 6 页 共 7 页 测试参数(Testing Parameters） 阻波比&回波损耗(V.S.W.R&Ruturn Loss) www.delincomm.com FAR109-2.4G-SZ-N 2023 v1.0 versioe 第 7 页 共 7 页

FCC ID2BG6CTS-156PHD 1 Case No. : CTA24053000101 Ambient Condition: 23 °C, 48 %RH According Standard: ■Part15C Test Date: 2024.6.5 Test Engineer: Evan ouyang Appendix A.1: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] DH1 Ant1 2402 1.041 2401.478 2402.519 2441 1.038 2440.478 2441.516 2480 1.038 2479.478 2480.516 2DH1 Ant1 2402 1.359 2401.307 2402.666 2441 1.356 2440.310 2441.666 2480 1.365 2479.304 2480.669 3DH1 Ant1 2402 1.299 2401.331 2402.630 2441 1.299 2440.331 2441.630 2480 1.302 2479.331 2480.633 FCC ID2BG6CTS-156PHD 2 Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 FCC ID2BG6CTS-156PHD 3 2DH1_Ant1_2402 2DH1_Ant1_2441 FCC ID2BG6CTS-156PHD 4 2DH1_Ant1_2480 3DH1_Ant1_2402 3DH1_Ant1_2441 FCC ID2BG6CTS-156PHD 5 3DH1_Ant1_2480 FCC ID2BG6CTS-156PHD 6 Appendix A.2: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] DH1 Ant1 2402 0.93217 2401.5145 2402.4466 2441 0.93304 2440.5143 2441.4473 2480 0.92929 2479.5129 2480.4421 2DH1 Ant1 2402 1.1882 2401.3912 2402.5794 2441 1.1891 2440.3895 2441.5786 2480 1.1908 2479.3875 2480.5783 3DH1 Ant1 2402 1.1804 2401.3948 2402.5752 2441 1.1807 2440.3940 2441.5747 2480 1.1780 2479.3955 2480.5735 FCC ID2BG6CTS-156PHD 7 Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 FCC ID2BG6CTS-156PHD 8 2DH1_Ant1_2402 2DH1_Ant1_2441 FCC ID2BG6CTS-156PHD 9 2DH1_Ant1_2480 3DH1_Ant1_2402 3DH1_Ant1_2441 FCC ID2BG6CTS-156PHD 10 3DH1_Ant1_2480 FCC ID2BG6CTS-156PHD 11 Appendix A.3: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH1 Ant1 2402 1.70 ≤20.97 PASS 2441 2.11 ≤20.97 PASS 2480 1.52 ≤20.97 PASS 2DH1 Ant1 2402 2.93 ≤20.97 PASS 2441 3.53 ≤20.97 PASS 2480 2.82 ≤20.97 PASS 3DH1 Ant1 2402 3.13 ≤20.97 PASS 2441 3.77 ≤20.97 PASS 2480 2.92 ≤20.97 PASS FCC ID2BG6CTS-156PHD 12 Appendix A.4: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH1 Ant1 Hop_2402 1.336 ≥0.694 PASS Hop_2441 1.014 ≥0.694 PASS Hop_2480 1.012 ≥0.694 PASS 2DH1 Ant1 Hop_2402 0.998 ≥0.910 PASS Hop_2441 1.012 ≥0.910 PASS Hop_2480 1.018 ≥0.910 PASS 3DH1 Ant1 Hop_2402 1.004 ≥0.868 PASS Hop_2441 1.03 ≥0.868 PASS Hop_2480 0.992 ≥0.868 PASS FCC ID2BG6CTS-156PHD 13 Test Graphs DH1_Ant1_Hop_2402 DH1_Ant1_Hop_2441 DH1_Ant1_Hop_2480 FCC ID2BG6CTS-156PHD 14 2DH1_Ant1_Hop_2402 2DH1_Ant1_Hop_2441 FCC ID2BG6CTS-156PHD 15 2DH1_Ant1_Hop_2480 3DH1_Ant1_Hop_2402 3DH1_Ant1_Hop_2441 FCC ID2BG6CTS-156PHD 16 3DH1_Ant1_Hop_2480 FCC ID2BG6CTS-156PHD 17 Appendix A.5: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.385 330 0.127 ≤0.4 PASS DH3 Ant1 Hop 1.642 200 0.328 ≤0.4 PASS DH5 Ant1 Hop 2.893 50 0.145 ≤0.4 PASS 2DH1 Ant1 Hop 0.395 320 0.126 ≤0.4 PASS 2DH3 Ant1 Hop 1.647 170 0.28 ≤0.4 PASS 2DH5 Ant1 Hop 2.898 70 0.203 ≤0.4 PASS 3DH1 Ant1 Hop 0.395 310 0.122 ≤0.4 PASS 3DH3 Ant1 Hop 1.647 200 0.329 ≤0.4 PASS 3DH5 Ant1 Hop 2.898 120 0.348 ≤0.4 PASS FCC ID2BG6CTS-156PHD 18 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop FCC ID2BG6CTS-156PHD 19 DH5_Ant1_Hop FCC ID2BG6CTS-156PHD 20 2DH1_Ant1_Hop 2DH3_Ant1_Hop FCC ID2BG6CTS-156PHD 21 2DH5_Ant1_Hop FCC ID2BG6CTS-156PHD 22 3DH1_Ant1_Hop 3DH3_Ant1_Hop FCC ID2BG6CTS-156PHD 23 3DH5_Ant1_Hop FCC ID2BG6CTS-156PHD 24 FCC ID2BG6CTS-156PHD 25 Appendix A.6: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH1 Ant1 Hop 79 ≥15 PASS 2DH1 Ant1 Hop 79 ≥15 PASS 3DH1 Ant1 Hop 79 ≥15 PASS FCC ID2BG6CTS-156PHD 26 Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop FCC ID2BG6CTS-156PHD 27 FCC ID2BG6CTS-156PHD 28 Appendix A.7: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 Low 2402 1.00 -44.12 ≤-19 PASS High 2480 0.86 -48.79 ≤-19.14 PASS Low Hop_2402 4.49 -42.75 ≤-15.51 PASS High Hop_2480 4.23 -48.85 ≤-15.77 PASS 2DH1 Ant1 Low 2402 -1.71 -46.64 ≤-21.71 PASS High 2480 -1.75 -49.06 ≤-21.75 PASS Low Hop_2402 4.29 -43.29 ≤-15.71 PASS High Hop_2480 3.58 -48.21 ≤-16.42 PASS 3DH1 Ant1 Low 2402 -1.72 -45.92 ≤-21.72 PASS High 2480 -1.67 -49.29 ≤-21.67 PASS Low Hop_2402 3.97 -43.44 ≤-16.03 PASS High Hop_2480 4.13 -48.67 ≤-15.87 PASS FCC ID2BG6CTS-156PHD 29 Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 DH1_Ant1_Low_Hop_2402 FCC ID2BG6CTS-156PHD 30 DH1_Ant1_High_Hop_2480 2DH1_Ant1_Low_2402 FCC ID2BG6CTS-156PHD 31 2DH1_Ant1_High_2480 2DH1_Ant1_Low_Hop_2402 2DH1_Ant1_High_Hop_2480 FCC ID2BG6CTS-156PHD 32 3DH1_Ant1_Low_2402 3DH1_Ant1_High_2480 FCC ID2BG6CTS-156PHD 33 3DH1_Ant1_Low_Hop_2402 3DH1_Ant1_High_Hop_2480 FCC ID2BG6CTS-156PHD 34 Appendix A.8: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 2402 Reference 0.48 0.48 --- PASS 30~1000 0.48 -60.04 ≤-19.52 PASS 1000~26500 0.48 -47.84 ≤-19.52 PASS 2441 Reference 1.00 1.00 --- PASS 30~1000 1.00 -60.95 ≤-19 PASS 1000~26500 1.00 -48.18 ≤-19 PASS 2480 Reference 0.27 0.27 --- PASS 30~1000 0.27 -60.77 ≤-19.73 PASS 1000~26500 0.27 -48.13 ≤-19.73 PASS 2DH1 Ant1 2402 Reference -2.03 -2.03 --- PASS 30~1000 -2.03 -60.67 ≤-22.03 PASS 1000~26500 -2.03 -48.09 ≤-22.03 PASS 2441 Reference -1.45 -1.45 --- PASS 30~1000 -1.45 -60.06 ≤-21.45 PASS 1000~26500 -1.45 -45.01 ≤-21.45 PASS 2480 Reference -1.97 -1.97 --- PASS 30~1000 -1.97 -61.05 ≤-21.97 PASS 1000~26500 -1.97 -46.97 ≤-21.97 PASS 3DH1 Ant1 2402 Reference -2.21 -2.21 --- PASS 30~1000 -2.21 -60.66 ≤-22.21 PASS 1000~26500 -2.21 -47.5 ≤-22.21 PASS 2441 Reference -1.60 -1.60 --- PASS 30~1000 -1.60 -60.77 ≤-21.6 PASS 1000~26500 -1.60 -48.05 ≤-21.6 PASS 2480 Reference -2.23 -2.23 --- PASS 30~1000 -2.23 -60.45 ≤-22.23 PASS 1000~26500 -2.23 -47.85 ≤-22.23 PASS FCC ID2BG6CTS-156PHD 35 Test Graphs DH1_Ant1_2402_0~Reference DH1_Ant1_2402_30~1000 DH1_Ant1_2402_1000~26500 FCC ID2BG6CTS-156PHD 36 DH1_Ant1_2441_0~Reference DH1_Ant1_2…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‟an District, Shenzhen, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA24053000101 2BG6CTS-156PHD Compiled by ( position+printed name+signature).. : File administrators Jinghua Xiao Supervised by ( position+printed name+signature).. : Test Engineer Lushan Kong Approved by ( position+printed name+signature).. : Manager Eric Wang Date of issue ..................................... : Jun.21, 2024 Representative Laboratory Name . : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao„an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Techtion Smart Electronics Co., Ltd Address ............................................ : Room 902, 8th Floor, Unit 1, Building No. 2, Xintianxia Chengyun Factory District, Vanke City Community, Bantian Street, Longgang District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400- 2483.5 MHz and 5725-5850 MHz TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Outdoor Reflective Display Terminal Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Techtion Smart Electronics Co., Ltd Model/Type reference ...................... : TS-156PHD List Models ..................................... : Please refer to page two Modulation Type ............................... : GFSK, π/4-DQPSK, 8-DPSK Operation Frequency ........................ : From 2402MHz to 2480MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC12.0V/4.0A by Adapter Result ............................................... : PASS Report No.: CTA24053000101 Pa…

Text truncated - open the document above for the full version.
