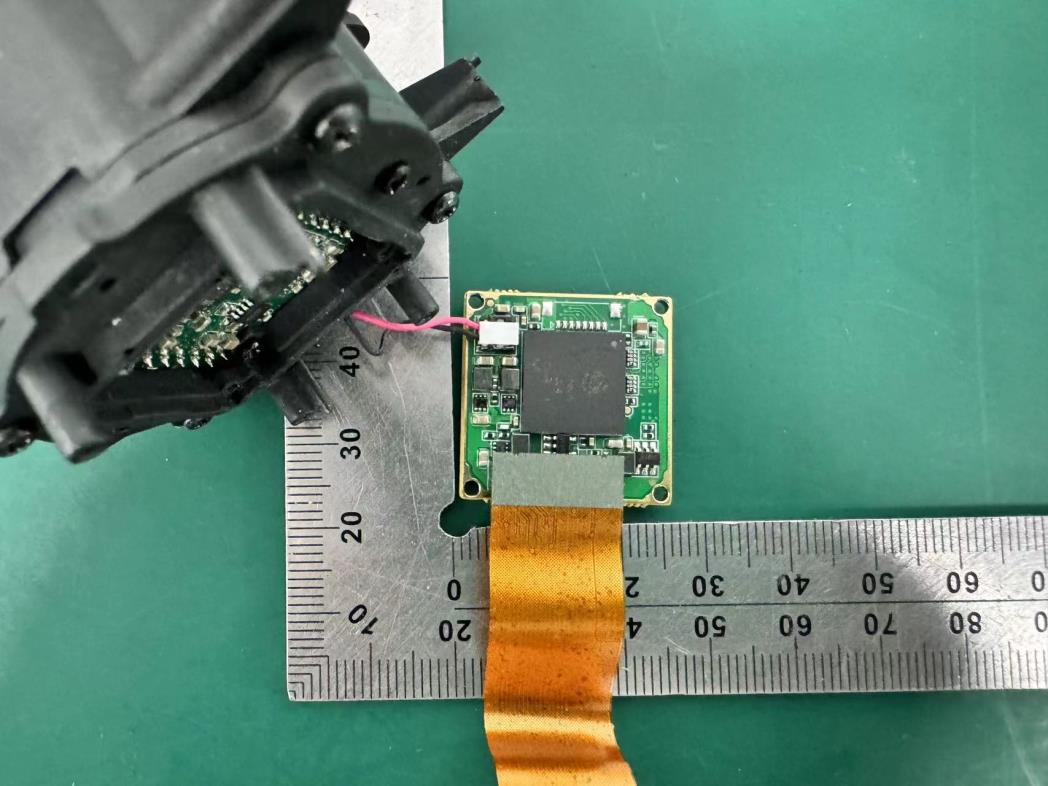

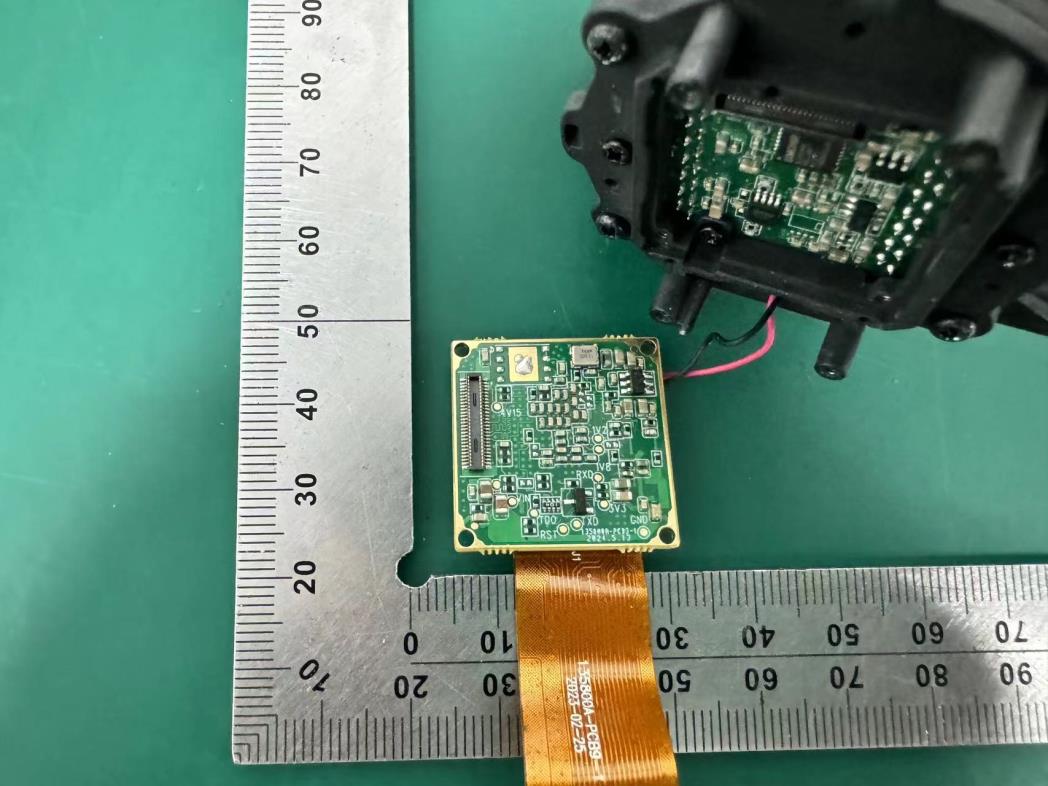

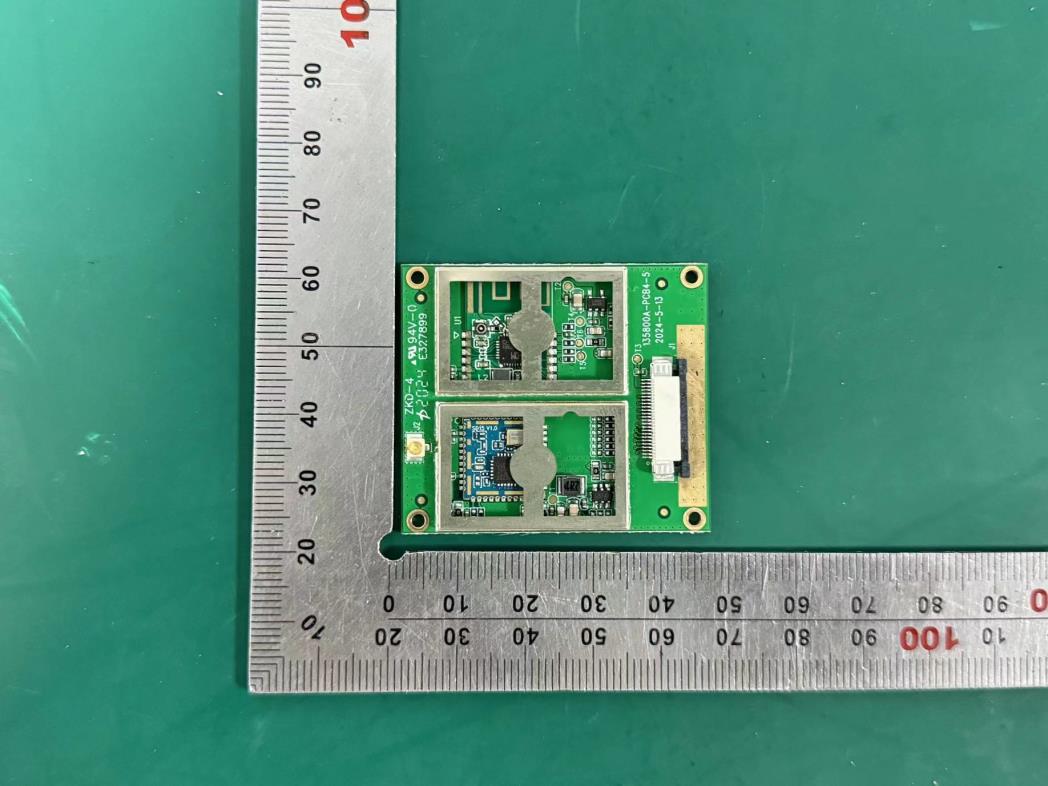

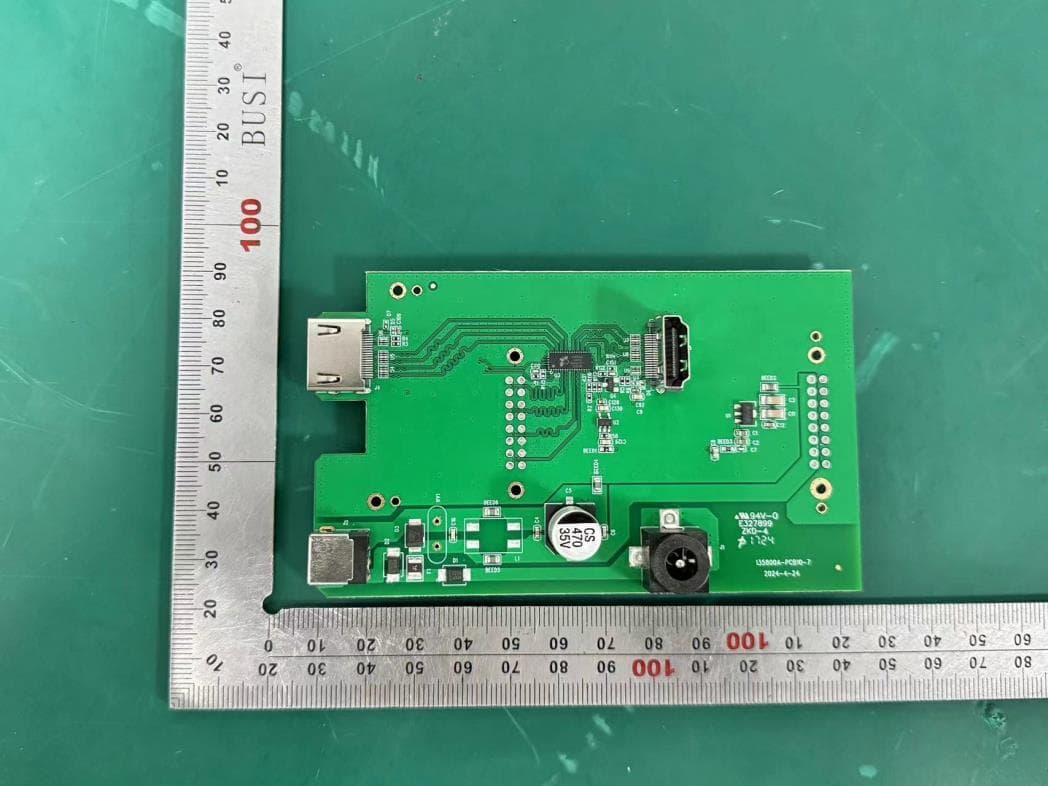

Internal Photos M/N: DT27000 Internal Photos M/N: DT27000 Internal Photos M/N: DT27000 Internal Photos M/N: DT27000 Internal Photos M/N: DT27000 Internal Photos M/N: DT27000 Internal Photos M/N: DT27000 Internal Photos M/N: DT27000 Internal Photos M/N: DT27000 Internal Photos M/N: DT27000 Internal Photos M/N: DT27000 Internal Photos M/N: DT27000 Internal Photos M/N: DT27000 BLE Antenna 2.4G Wi-Fi Antenna Internal Photos M/N: DT27000 Internal Photos M/N: DT27000 Internal Photos M/N: DT27000

Page 1 of 4 Report No. ESTE-R2407162 FCC 47 CFR MPE REPORT Sellmark Corporation DARK30 PTZ 640 Camera Model Number: DT27000 FCC ID: 2BGAS-DT27000 Applicant: Sellmark Corporation Address: 2201 Heritage Parkway, Mansfield, Texas 76063, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2407162 Date of Test: Jun. 19, 2024~ Jul. 22, 2024 Date of Report: Jul. 23, 2024 Page 2 of 4 Report No. ESTE-R2407162 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density Page 3 of 4 Report No. ESTE-R2407162 1.2. MPE Calculation Method E (V/m) = d G × P × 30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d × 377 G × P × 30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained Page 4 of 4 Report No. ESTE-R2407162 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) BLE 1M 2402 2.83 1.919 2440 2.8 1.905 2480 2.86 1.932 IEEE 802.11b 2412 15.51 35.563 2437 15.25 33.497 2462 14.88 30.761 IEEE 802.11g 2412 21.55 142.889 2437 21.28 134.276 2462 20.77 119.399 IEEE 802.11n HT20 2412 21.6 144.544 2437 21.31 135.207 2462 20.72 118.032 IEEE 802.11n HT40 2422 21.58 143.880 2437 21.49 140.929 2452 21.26 133.660 3. Calculated Result and Limit Mode Peak output power (dBm) Target power (dBm) MAX Target power (dBm) Antenna gain Power Density (S) (mW /cm 2 ) Limited of Power Density (S) (mW /cm 2 ) Test Result (dBi) (Linear) 2.4G Band BLE 2.86 2±1 3 2.9 1.950 0.00077 1 Complies IEEE 802.11b 15.51 15±1 16 3.1 2.042 0.01617 1 Complies IEEE 802.11g 21.55 21±1 22 3.1 2.042 0.06438 1 Complies IEEE 802.11n HT20 21.60 21±1 22 3.1 2.042 0.06438 1 Complies IEEE 802.11n HT40 21.58 21±1 22 3.1 2.042 0.06438 1 Complies End of Test Report

Page 1 of 68 Report No.ESTE-R2407160 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Sellmark Corporation DARK30 PTZ 640 Camera Model Number: DT27000 FCC ID: 2BGAS-DT27000 Applicant : Sellmark Corporation Address: 2201 Heritage Parkway, Mansfield, Texas 76063, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2407160 Date of Test: Jun. 19, 2024~ Jul. 22, 2024 Date of Report: Jul. 23, 2024 Page 2 of 68 Report No.ESTE-R2407160 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test Mode .......................................................................................................................................... 9 2.7. Power Setting of Test Software ...................................................................................................... 9 2.8. Duty Cycle .......................................................................................................................................... 9 2.9. Channel List ..................................................................................................................................... 10 2.10. Test Equipment List ...................................................................................................................... 11 3. 6DB BANDWIDTH ............................................................................................................................ 12 3.1. Limit ................................................................................................................................................... 12 3.2. Test Setup ........................................................................................................................................ 12 3.3. Spectrum Analyzer Setting ............................................................................................................ 12 3.4. Test Procedure ................................................................................................................................ 12 3.5. Test Result ....................................................................................................................................... 12 4. MAXIMUM PEAK OUTPUT POWER .................................................................................................. 13 4.1. Limit ................................................................................................................................................... 13 4.2. Test Setup ........................................................................................................................................ 13 4.3. Spectrum Analyzer Setting ............................................................................................................ 13 4.4. Test Procedure ................................................................................................................................ 13 4.5. Test Result ....................................................................................................................................... 13 5. POWER SPECTRAL DENSITY .......................................................................................................... 14 5.1. Limit ................................................................................................................................................... 14 5.2. Test Setup ........................................................................................................................................ 14 5.3. Spectrum Analyzer Setting ............................................................................................................ 14 5.4. Test Procedure ................................................................................................................................ 14 5.5. Test Result ....................................................................................................................................... 14 6. CONDUCTED BAND EDGE .............................................................................................................. 15 6.1. Limit ................................................................................................................................................... 15 6.2. Test Setup ...................…

Text truncated - open the document above for the full version.

Page 1 of 88 Report No. ESTE-R2407161 FCC PART 15C REPORT FOR CERTIFICATION On Behalf of Sellmark Corporation DARK30 PTZ 640 Camera Model Number: DT27000 FCC ID: 2BGAS-DT27000 Applicant : Sellmark Corporation Address: 2201 Heritage Parkway, Mansfield, Texas 76063, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2407161 Date of Test: Jun. 19, 2024~ Jul. 22, 2024 Date of Report: Jul. 23, 2024 Page 2 of 88 Report No. ESTE-R2407161 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test Mode .......................................................................................................................................... 9 2.7. Power Setting of Test Software .................................................................................................... 10 2.8. Duty Cycle ........................................................................................................................................ 10 2.9. Channel List ..................................................................................................................................... 11 2.10. Test Equipment List ...................................................................................................................... 12 3. 6DB BANDWIDTH............................................................................................................................ 13 3.1. Limit ................................................................................................................................................... 13 3.2. Test Setup ........................................................................................................................................ 13 3.3. Spectrum Analyzer Setting ............................................................................................................ 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ....................................................................................................................................... 13 4. MAXIMUM PEAK OUTPUT POWER .................................................................................................. 14 4.1. Limit ................................................................................................................................................... 14 4.2. Test Setup ........................................................................................................................................ 14 4.3. Spectrum Analyzer Setting ............................................................................................................ 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ....................................................................................................................................... 14 5. POWER SPECTRAL DENSITY .......................................................................................................... 15 5.1. Limit ................................................................................................................................................... 15 5.2. Test Setup ........................................................................................................................................ 15 5.3. Spectrum Analyzer Setting ............................................................................................................ 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ....................................................................................................................................... 15 6. CONDUCTED BAND EDGE .............................................................................................................. 16 6.1. Limit ................................................................................................................................................... 16 6.2. Test Setup .........................…

Text truncated - open the document above for the full version.

Page 55 of 88 Report No. ESTE-R2407161 Appendix E: Band edge measurements Test Result Test Mode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 4.05 -39.58 ≤-15.95 PASS 11B Ant1 High 2462 3.58 -41.04 ≤-16.42 PASS 11G Ant1 Low 2412 2.03 -35.88 ≤-17.97 PASS 11G Ant1 High 2462 1.02 -40.89 ≤-18.98 PASS 11N20SISO Ant1 Low 2412 1.76 -34.78 ≤-18.24 PASS 11N20SISO Ant1 High 2462 1.31 -40.97 ≤-18.69 PASS 11N40SISO Ant1 Low 2422 -0.76 -35.33 ≤-20.76 PASS 11N40SISO Ant1 High 2452 -0.85 -40.88 ≤-20.85 PASS Page 56 of 88 Report No. ESTE-R2407161 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2462-PASS 11G-Ant1-2412-PASS Page 57 of 88 Report No. ESTE-R2407161 11G-Ant1-2462-PASS 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2462-PASS Page 58 of 88 Report No. ESTE-R2407161 11N40SISO-Ant1-2422-PASS 11N40SISO-Ant1-2452-PASS Page 59 of 88 Report No. ESTE-R2407161 Appendix F: Conducted Spurious Emission Test Result Test Mode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 30~26500 4.05 -43.33 ≤-15.95 PASS 11B Ant1 2437 30~26500 3.77 -42.97 ≤-16.23 PASS 11B Ant1 2462 30~26500 3.58 -42.95 ≤-16.42 PASS 11G Ant1 2412 30~26500 2.03 -42.96 ≤-17.97 PASS 11G Ant1 2437 30~26500 2.20 -43.51 ≤-17.8 PASS 11G Ant1 2462 30~26500 1.02 -43.06 ≤-18.98 PASS 11N20SISO Ant1 2412 30~26500 1.76 -43 ≤-18.24 PASS 11N20SISO Ant1 2437 30~26500 1.86 -43.26 ≤-18.14 PASS 11N20SISO Ant1 2462 30~26500 1.31 -43.65 ≤-18.69 PASS 11N40SISO Ant1 2422 30~26500 -0.76 -43.32 ≤-20.76 PASS 11N40SISO Ant1 2437 30~26500 -0.69 -43.1 ≤-20.69 PASS 11N40SISO Ant1 2452 30~26500 -0.85 -42.96 ≤-20.85 PASS Page 60 of 88 Report No. ESTE-R2407161 Test Graphs 11B-Ant1-2412-30~26500-PASS 11B-Ant1-2437-30~26500-PASS 11B-Ant1-2462-30~26500-PASS Page 61 of 88 Report No. ESTE-R2407161 11G-Ant1-2412-30~26500-PASS 11G-Ant1-2437-30~26500-PASS 11G-Ant1-2462-30~26500-PASS Page 62 of 88 Report No. ESTE-R2407161 11N20SISO-Ant1-2412-30~26500-PASS 11N20SISO-Ant1-2437-30~26500-PASS 11N20SISO-Ant1-2462-30~26500-PASS Page 63 of 88 Report No. ESTE-R2407161 11N40SISO-Ant1-2422-30~26500-PASS 11N40SISO-Ant1-2437-30~26500-PASS 11N40SISO-Ant1-2452-30~26500-PASS Page 64 of 88 Report No. ESTE-R2407161 Appendix G: Duty Cycle Test Result Test Mode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2437 12.40 12.46 99.52 11G Ant1 2437 2.07 2.11 98.10 11N20SISO Ant1 2437 1.92 2.03 94.58 11N40SISO Ant1 2437 0.95 1.05 90.48 Page 65 of 88 Report No. ESTE-R2407161 Test Graphs NTNV-11B-Ant1-2437 NTNV-11G-Ant1-2437 NTNV-11N20SISO-Ant1-2437 Page 66 of 88 Report No. ESTE-R2407161 NTNV-11N40SISO-Ant1-2437 Page 67 of 88 Report No. ESTE-R2407161 11. TEST SETUP PHOTO Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) Page 68 of 88 Report No. ESTE-R2407161 12. EUT PHOTO External Photos M/N: DT27000 Page 69 of 88 Report No. ESTE-R2407161 External Photos M/N: DT27000 Page 70 of 88 Report No. ESTE-R2407161 External Photos M/N: DT27000 Page 71 of 88 Report No. ESTE-R2407161 External Photos M/N: DT27000 Page 72 of 88 Report No. ESTE-R2407161 External Photos M/N: DT27000 Page 73 of 88 Report No. ESTE-R2407161 Internal Photos M/N: DT27000 Page 74 of 88 Report No. ESTE-R2407161 Internal Photos M/N: DT27000 Page 75 of 88 Report No. ESTE-R2407161 Internal Photos M/N: DT27000 Page 76 of 88 Report No. ESTE-R2407161 Internal Photos M/N: DT27000 Page 77 of 88 Report No. ESTE-R2407161 Internal Photos M/N: DT27000 Page 78 of 88 Report No. ESTE-R2407161 Internal Photos M/N: DT27000 Page 79 of 88 Report No. ESTE-R2407161 Internal Photos M/N: DT27000 Page 80 of 88 Report No. ESTE-R2407161 Internal Photos M/N: DT27000 Page 81 of 88 Report No. ESTE-R2407161 Internal Photos M/N: DT27000 Page 82 of 88 Report No. ESTE-R2407161 Internal Photos M/N: DT27000 Page 83 of 88 Report No. ESTE-R2407161 Internal Photos M/N: DT27000 Page 84 of 88 Report No. ESTE-R2407161 Internal Photos M/N: DT27000 Page 85 of 88 Report No. ESTE-R2407161 Internal Photos M/N: DT27000 2.4G Wi-Fi Antenna Page 86 of 88 Report No. ESTE-R2407161 Internal Photos M/N: DT27000 Page 87 of 88 Report No. ESTE-R2407161 Internal Photos M/N: DT27000 Page 88 of 88 Report No. ESTE-R2407161 Internal Photos M/N: DT27000 End of Test Report
