FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

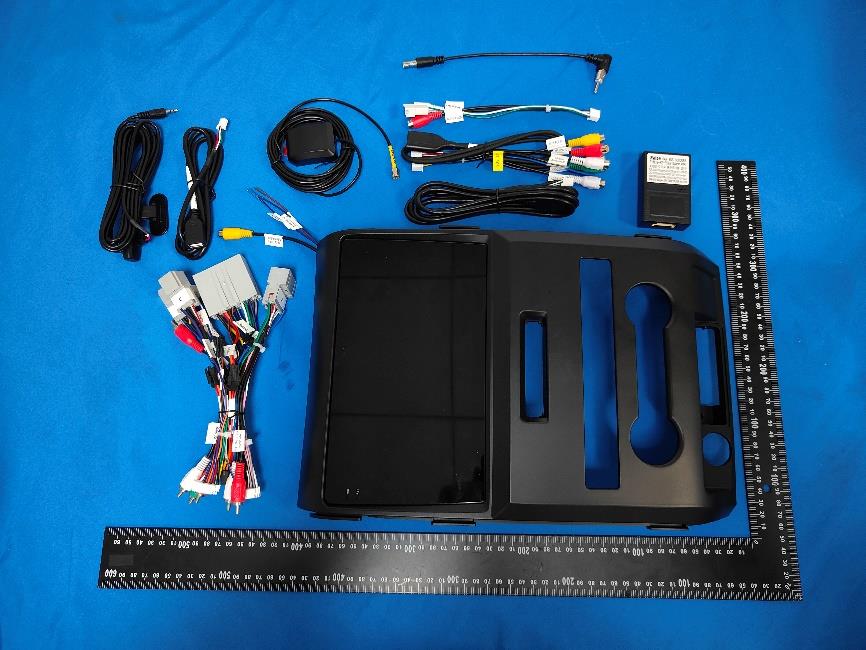

FCC ID:2BGCX-A7M2A01 External Photos of the EUT FCC ID:2BGCX-A7M2A01 FCC ID:2BGCX-A7M2A01 WIFI ANT BT ANT

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BGCX-A7M2A01

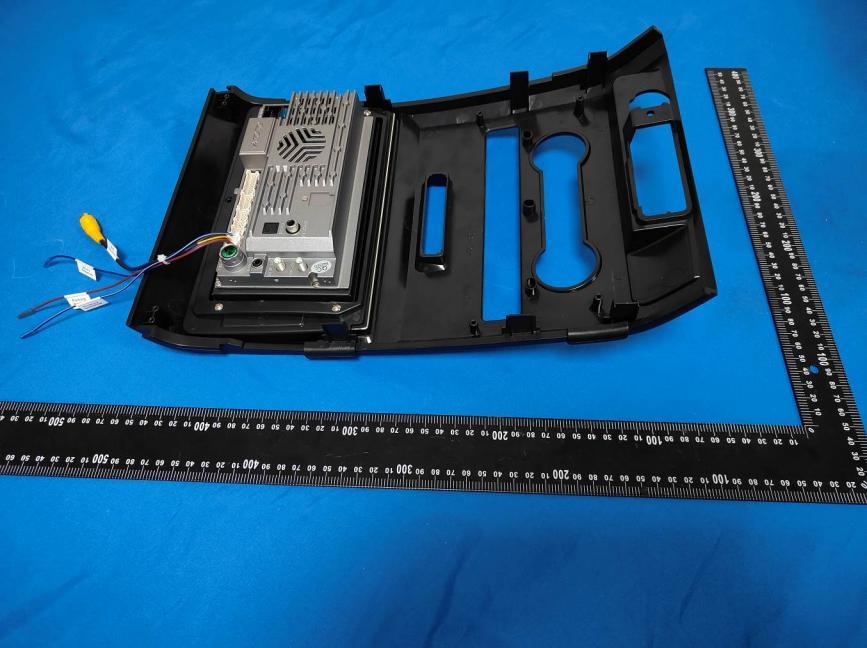

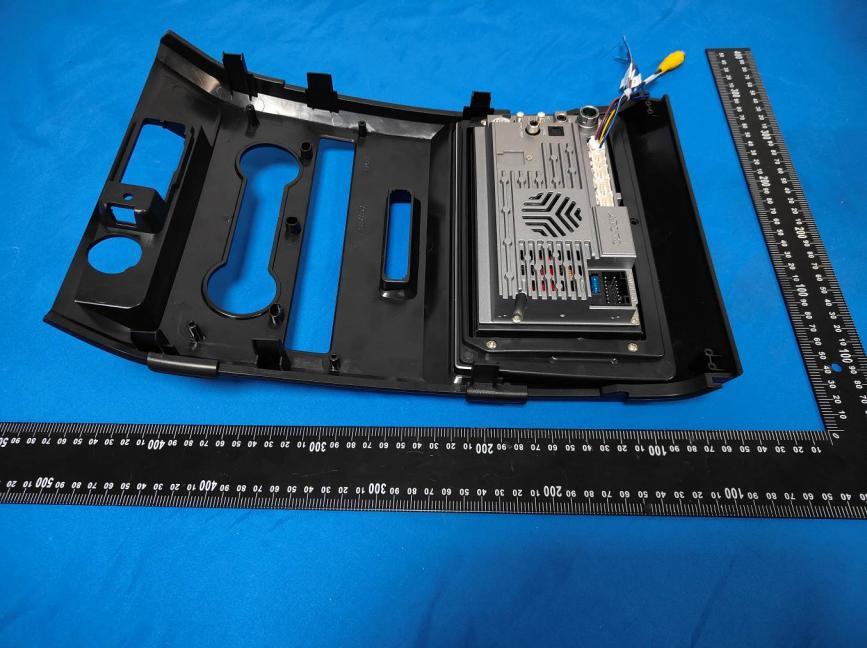

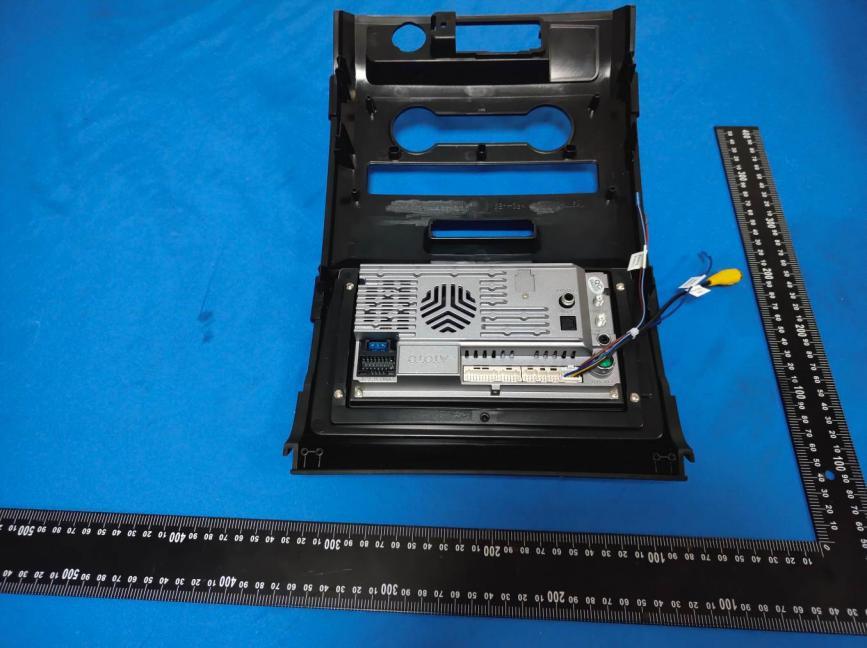

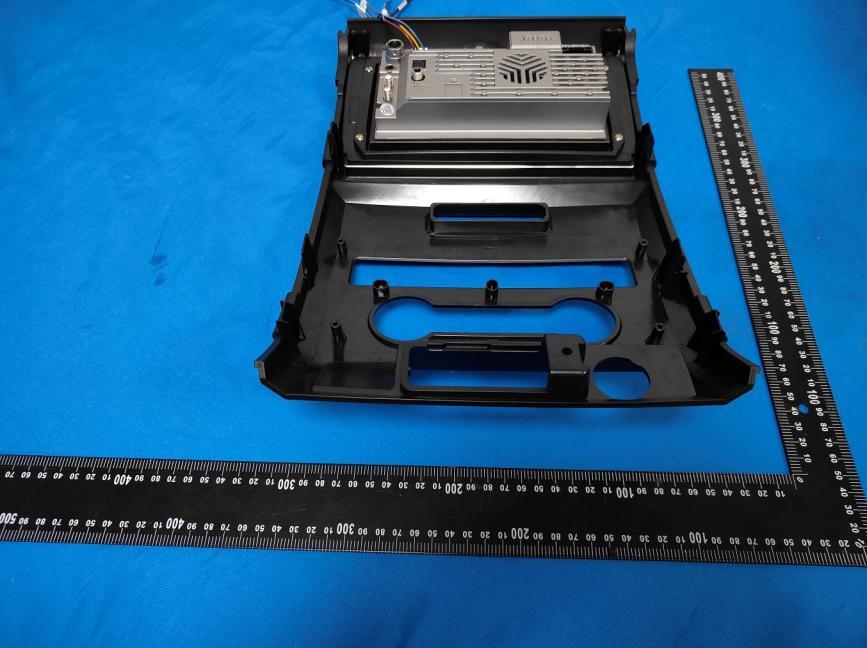

FCC ID:2BGCX-A7M2A01 Internal Photos of the EUT FCC ID:2BGCX-A7M2A01 FCC ID:2BGCX-A7M2A01 FCC ID:2BGCX-A7M2A01

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA26020202003 2BGCX-A7M2A01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Feb. 09, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Yufengzhixing Electronics Tech Co Ltd Address............................................ : RM301-01, Yuan Shuo Tech Park, No8 Nanxiang Xinshiqiao St, Guanlan, Longhua, Shenzhen, 518000 China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Car Navigation Multimedia Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Yufengzhixing Electronics Tech Co Ltd Model/Type reference ...................... : S8LF1509ADM Listed Models ................................... : Refer to page 2 Rating ............................................... : DC 12.0V From external circuit Result ............................................... : PASS Report No.: CTA26020202003 Page 2 of 11 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Car Navigation Multimedia Model /Type : S8LF1509ADM Listed Models : S8LUNV08ADM, S8LSLD10ADM, S8LLFT07ADM, S8LTAC09ADM, S8LTAC10ADM, S8LTUN09ADM, S8LMMR09ADM, S8LJEP09ADM, S8LRAM09ADM, S8LKML09ADM, S8LG2A7SD, S8LG2A7SD-S01, S8LG2A7SD-S02, S8LG2A7SD-S03, S8LG2A7SD-S04, S8LG2B7SD, S8LG2B7SD-S01, S8LG2B7SD-S02, S8LG2B7SD-S03, S8LG2B7SD- S04, S8LG209SD, S8LG209SD-S01, S8LG209SD-S02, S8LG209SD- S03, S8LG209SD-S04, S8LG211SD, S8LG211SD-S01, S8LG211SD- S02, S8LG211SD-S03, S8LG211SD-S04, S8LG110SD, S8LG110SD- S01, S8LG110SD-S02, S8LG110SD-S03, S8LG110SD-S04, S8LG125SD, S8LG125SD-S01, S8LG125SD-S02, S8LG125SD-S03, S8LG125SD-S04, S8LG215KSD, S8LG215KSD-S01, S8LG215KSD- S02, S8LG215KSD-S03, S8LG215KSD-S04, S84G2D7PB, S84G2D7PB-S01, S84G2D7PB-S02, S84G2D7PB-S03, S84G2D7PB- S04, S84G2B7P, S84G2B7P-S01, S84G2B7P-S02, S84G2B7P-S03, S84G2B7P-S04, S84G209P, S84G209P-S01, S84G209P-S02, S84G209P-S03, S84G209P-S04, S84G211P, S84G211P-S01, S84G211P-S02, S84G211P-S03, S84G211P-S04, S84G225P, S84G225P-S01, S84G225P-S02, S84G225P-S03, S84G225P-S04, S84G110PB, S84G110PB-S01, S84G110PB-S02, S84G110PB-S03, S84G110PB-S04, S84G125P, S84G125P-S01, S84G125P-S02, S84G125P-S03, S84G125P-S04, S84G129PB, S84G129PB-S01, S84G129PB-S02, S84G129PB-S03, S84G129PB-S04, S84G215PB, S84G215PB-S01, S84G215PB-S02, S84G215PB-S03, S84G215PB- S04, S84G115PB, S84G115PB-S01, S84G115PB-S02, S84G115PB- S03, S84G115PB-S04, X10G215KE, X10G215KE-R1, X10G215KE- R2, X10G215KE-R3, X10G215KE-R3W, X10G215KE-R3S, V10G215KOC, V10G215KOC-S01, V10G215KOC-S02, V10G215KOC-S03, V10G215KOC-S04, V10G215KOC-S05, V10G215KOC-S06, V10G215KOC-S07, V10G215KOC-S08, V10G215KOC-S09, V10G120OC, V10G120OC-S01, V10G120OC- S02, V10G120OC-S03, V10G120OC-S04, V10G120OC-S05, V10G120OC-S06, V10G120OC-S07, V10G120OC-S08, V10G120OC- S09, V10G115POC, V10G115POC-S01, V10G115POC-S02, V10G115POC-S03, V10G115POC-S04, V10G115POC-S05, V10G115POC-S06, V10G115POC-S07, V10G115POC-S08, V10G115POC-S09, X10G157ESM, X10G129PE-M12S, V10G2D7OC- S09, V10G2B7OC-S01, V10G2B7OC-S02, V10G2B7OC-S05, V10G2B7OC-S06, V10G2B7OC-S08, V10G2B7OC-S09, V10G209OC-S01, V10G209OC-S02, V10G209OC-S05, V10G209OC- S06, V10G209OC-S08, V10G209OC-S09, V10G211OC-S02, V10G211OC-S05, V10G211OC-S06, V10G211OC-S08, V10G211OC- S09, V10G110POC-S01, V10G110POC-S02, V10G110POC-S03, V10G110POC-S04, V10G110POC-S05, V10G110POC-S06, V10G110POC-S07, V10G110POC-S08, V10G110POC-S09, V10G125OC-S01, V10G125OC-S02, V10G125OC-S03, V10G125OC- S04, V10G125OC-S05, V10G125OC-S06, V10G125OC-S07, V10G125OC-S08, V10G125OC-S09, V10G129OC-S01, V10G129OC- S02, V10G129OC-S03, V10G129OC-S04, V10G129OC-S05, V10G129OC-S06, V10G129OC-S07, V10G129OC-S08, V10G129OC- S09, V10G141OC-S01, V10G141OC-S02, V10G141OC-S03, V10G141OC-S04, V10G141OC-S05, V10G141OC-S06, V10G141OC- S07, V10G141OC-S08, V10G141OC-S09, V10G225OC-S01, V10G225OC-S02, V10G225OC-S05, V10G225OC-S06, V10G225OC- S07, V10G225OC-S08, V10G225OC-S09, X10G2A7V12E, X10G2B7V12E, X10G211V12E, CB5A-BK, CB5A-GY, T14GM3-9, T14FO1-12, T14FO2-12, T14FO3-9, T14RM1-13, T14GM1-15, BX1P, BX2P, BX3P, AC-44F9, AC-44F10, FIFA6350, X10G115PE, X10G215PE, X10G211PE, S84G211PK, S8LG211KSD, S84GM110P, S84GM208P, S84TO110P, S84CH109P, S84CH209P, S8GTAC10ADM, S8GMMR09ADM, S8GJEP09ADM, S84G210PB Report No.: CTA26020202…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BGCX-A7M2A01 Company : Shenzhen Yufengzhixing Electronics Tech Co Ltd EUT : Car Navigation Multimedia Model Number : S8LF1509ADM Report No. : CTA26020202002 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.200 2406.960 2417.160 0.5 PASS 2437 10.200 2431.960 2442.160 0.5 PASS 2462 10.200 2456.920 2467.120 0.5 PASS 11G Ant1 2412 15.680 2404.240 2419.920 0.5 PASS 2437 15.720 2429.080 2444.800 0.5 PASS 2462 15.800 2454.080 2469.880 0.5 PASS 11N20SISO Ant1 2412 16.560 2403.720 2420.280 0.5 PASS 2437 16.120 2429.320 2445.440 0.5 PASS 2462 17.160 2453.480 2470.640 0.5 PASS 11N40SISO Ant1 2422 35.040 2404.800 2439.840 0.5 PASS 2437 35.360 2419.720 2455.080 0.5 PASS 2452 35.920 2434.080 2470.000 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.408 2405.3478 2418.7558 --- --- 2437 13.388 2430.3428 2443.7308 --- --- 2462 13.415 2455.3111 2468.7261 --- --- 11G Ant1 2412 16.837 2403.6899 2420.5269 --- --- 2437 16.816 2428.6666 2445.4826 --- --- 2462 16.855 2453.5716 2470.4266 --- --- 11N20SISO Ant1 2412 17.926 2403.1252 2421.0512 --- --- 2437 17.867 2428.0899 2445.9569 --- --- 2462 17.882 2453.0619 2470.9439 --- --- 11N40SISO Ant1 2422 36.137 2404.0372 2440.1742 --- --- 2437 36.018 2419.0489 2455.0669 --- --- 2452 36.013 2434.0835 2470.0965 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 13.99 ≤30.00 PASS 2437 14.16 ≤30.00 PASS 2462 14.31 ≤30.00 PASS 11G Ant1 2412 13.48 ≤30.00 PASS 2437 13.69 ≤30.00 PASS 2462 13.88 ≤30.00 PASS 11N20SISO Ant1 2412 13.31 ≤30.00 PASS 2437 13.40 ≤30.00 PASS 2462 13.71 ≤30.00 PASS 11N40SISO Ant1 2422 13.62 ≤30.00 PASS 2437 13.94 ≤30.00 PASS 2452 13.97 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -12.09 ≤8.00 PASS 2437 -11.35 ≤8.00 PASS 2462 -12.03 ≤8.00 PASS 11G Ant1 2412 -18.09 ≤8.00 PASS 2437 -17.71 ≤8.00 PASS 2462 -17.86 ≤8.00 PASS 11N20SISO Ant1 2412 -17.96 ≤8.00 PASS 2437 -16.55 ≤8.00 PASS 2462 -17.94 ≤8.00 PASS 11N40SISO Ant1 2422 -21.05 ≤8.00 PASS 2437 -20.94 ≤8.00 PASS 2452 -19.20 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 1.98 -48.07 ≤-18.02 PASS High 2462 2.06 -56.25 ≤-17.94 PASS 11G Ant1 Low 2412 -3.01 -33.79 ≤-23.01 PASS High 2462 -2.56 -57.48 ≤-22.56 PASS 11N20SIS O Ant1 Low 2412 -3.29 -33.93 ≤-23.29 PASS High 2462 -2.60 -57.69 ≤-22.6 PASS 11N40SIS O Ant1 Low 2422 -6.28 -33.98 ≤-26.28 PASS High 2452 -5.96 -56.32 ≤-25.96 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 0.96 0.96 --- PASS 30~1000 0.96 -67.89 ≤-19.04 PASS 1000~26500 0.96 -54.96 ≤-19.04 PASS 2437 Reference 1.59 1.59 --- PASS 30~1000 1.59 -67.32 ≤-18.41 PASS 1000~26500 1.59 -54.58 ≤-18.41 PASS 2462 Reference 1.16 1.16 --- PASS 30~1000 1.16 -66.98 ≤-18.84 PASS 1000~26500 1.16 -55.57 ≤-18.84 PASS 11G Ant1 2412 Reference -3.47 -3.47 --- PASS 30~1000 -3.47 -67.6 ≤-23.47 PASS 1000~26500 -3.47 -55.19 ≤-23.47 PASS 2437 Reference -2.73 -2.73 --- PASS 30~1000 -2.73 -67.54 ≤-22.73 PASS 1000~26500 -2.73 -54.43 ≤-22.73 PASS 2462 Reference -3.00 -3.00 --- PASS 30~1000 -3.00 -68.51 ≤-23 PASS 1000~26500 -3.00 -55.12 ≤-23 PASS 11N20SISO Ant1 2412 Reference -4.09 -4.09 --- PASS 30~1000 -4.09 -68.22 ≤-24.09 PASS 1000~26500 -4.09 -55.38 ≤-24.09 PASS 2437 Reference -3.79 -3.79 --- PASS 30~1000 -3.79 -67.34 ≤-23.79 PASS 1000~26500 -3.79 -55.37 ≤-23.79 PASS 2462 Reference -2.63 -2.63 --- PASS 30~1000 -2.63 -67.8 ≤-22.63 PASS 1000~26500 -2.63 -54.8 ≤-22.63 PASS 11N40SISO Ant1 2422 Reference -6.98 -6.98 --- PASS 30~1000 -6.98 -67.5 ≤-26.98 PASS 1000~26500 -6.98 -54.85 ≤-26.98 PASS 2437 Reference -6.61 -6.61 --- PASS 30~1000 -6.61 -67.64 ≤-26.61 PASS 1000~26500 -6.61 -55.29 ≤-26.61 PASS 2452 Reference -6.69 -6.69 --- PASS 30~1000 -6.69 -68.2 ≤-26.69 PASS 1000~26500 -6.69 -54.79 ≤-26.69 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.36 8.40 99.52 0.02 0.12 2437 8.35 8.40 99.40 0.03 0.12 2462 8.35 8.39 99.52 0.02 0.12 11G Ant1 2412 0.14 0.19 73.68 1.33 7.14 2437 0.15 0.19 78.95 1.03 6.67 2462 0.15 0.19 78.95 1.03 6.67 11N20SISO Ant1 2412 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.22 81.82 0.87 5.56 2462 0.17 0.22 77.27 1.12 5.88 11N40SISO Ant1 2422 0.18 0.22 81.82 0.87 5.56 2437 0.18 0.23 78.26 1.06 5.56 2452 0.18 0.23 78.26 1.06 5.56 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 48 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -59.15 2.00 0.02 38.07 ≤54 PASS AV 2386.190 -54.85 2.00 0.02 42.37 ≤54 PASS AV 2390.000 -56.12 2.00 0.02 41.10 ≤54 PASS Peak 2310.000 -51.7 2.00 0.00 45.50 ≤74 PASS Peak 2389.830 -46.84 2.00 0.00 50.36 ≤74 PASS Peak 2390.000 -48.18 2.00 0.00 49.02 ≤74 PASS High 2462 AV 2483.500 -56.11 2.00 0.02 41.11 ≤54 PASS AV 2488.180 -55.33 2.00 0.02 41.89 ≤54 PASS AV 2500.000 -57.8 2.00 0.02 39.42 ≤54 PASS Peak 2483.500 -49.39 2.00 0.00 47.81 ≤74 PASS Peak 2488.180 -46.73 2.00 0.00 50.47 ≤74 PASS Peak 2500.000 -50.52 2.00 0.00 46.68 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -60.2 2.00 1.33 38.33 ≤54 PASS AV 2389.830 -58.51 2.00 1.33 40.02 ≤54 PASS AV 2390.000 -58.95 2.00 1.33 39.58 ≤54 PASS Peak 2310.000 -50.04 2.00 0.00 47.16 ≤74 PASS Peak 2386.710 -48.32 2.00 0.00 48.88 ≤74 PASS Peak 2390.000 -51.42 2.00 0.00 45.78 ≤74 PASS High 2462 AV 2483.500 -58.78 2.00 1.03 39.45 ≤54 PASS AV 2483.560 -58.33 2.00 1.03 39.90 ≤54 PASS AV 2500.000 -59.78 2.00 1.03 38.45 ≤54 PASS Peak 2483.500 -50.95 2.00 0.00 46.25 ≤74 PASS Peak 2484.440 -48.88 2.00 0.00 48.32 ≤74 PASS Peak 2500.000 -51.97 2.00 0.00 45.23 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -60.72 2.00 1.06 37.54 ≤54 PASS AV 2387.230 -58.68 2.00 1.06 39.58 ≤54 PASS AV 2390.000 -59.38 2.00 1.06 38.88 ≤54 PASS Peak 2310.000 -52.62 2.00 0.00 44.58 ≤74 PASS Peak 2315.210 -49.1 2.00 0.00 48.10 ≤74 PASS Peak 2390.000 -52.01 2.00 0.00 45.19 ≤74 PASS High 2462 AV 2483.500 -59.13 2.00 1.12 39.19 ≤54 PASS AV 2494.670 -58.37 2.00 1.12 39.95 ≤54 PASS AV 2500.000 -58.96 2.00 1.12 39.36 ≤54 PASS Peak 2483.500 -51 2.00 0.00 46.20 ≤74 PASS Peak 2486.750 -47.26 2.00 0.00 49.94 ≤74 PASS Peak 2500.000 -51.09 2.00 0.00 46.11 ≤74 PASS 49 11N40SI SO Ant1 Low 2422 AV 2310.000 -59.86 2.00 0.87 38.21 ≤54 PASS AV 2387.150 -58.13 2.00 0.87 39.94 ≤54 PASS AV 2390.000 -58.48 2.00 0.87 39.59 ≤54 PASS Peak 2310.000 -49.71 2.00 0.00 47.49 ≤74 PASS Peak 2342.750 -48.65 2.00 0.00 48.55 ≤74 PASS Peak 2390.000 -50.56 2.00 0.00 46.64 ≤74 PASS High 2452 AV 2483.500 -58.42 2.00 1.06 39.84 ≤54 PASS AV 2484.250 -57.93 2.00 1.06 40.33 ≤54 PASS AV 2500.000 -59.09 2.00 1.06 39.17 ≤54 PASS Peak 2483.500 -50.39 2.00 0.00 46.81 ≤74 PASS Peak 2484.000 -48.56 2.00 0.00 48.64 ≤74 PASS Peak 2500.000 -51.14 2.00 0.00 46.06 ≤74 PASS Note： The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 50 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 51 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 52 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 53 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 54 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 55 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 56 11N40SISO_Ant1_High_2452_Peak

1. Antenna Description: Antenna type External antenna Model S8LF1509ADM Frequency range 2400-2500MHz Manufacturer Shenzhen Yufengzhixing Electronics Tech Co Ltd Address RM301-01, Yuan Shuo Tech Park, No8 Nanxiang Xinshiqiao St, Guanlan, Longhua, Shenzhen, 518000 China ANT Peak Gain 2.0 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26020202002 2BGCX-A7M2A01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Feb. 09, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Yufengzhixing Electronics Tech Co Ltd Address ............................................ : RM301-01, Yuan Shuo Tech Park, No8 Nanxiang Xinshiqiao St, Guanlan, Longhua, Shenzhen, 518000 China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Car Navigation Multimedia Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Yufengzhixing Electronics Tech Co Ltd Model/Type reference ...................... : S8LF1509ADM Listed Models ................................... : Refer to page 2 Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 12.0V From external circuit Result ............................................... : PASS Report No.: CTA26020202002 Page 2 of 29 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Car Navigation Multimedia Model /Type : S8LF1509ADM Listed Models : S8LUNV08ADM, S8LSLD10ADM, S8LLFT07ADM, S8LTAC09ADM, S8LTAC10ADM, S8LTUN09ADM, S8LMMR09ADM, S8LJEP09ADM, S8LRAM09ADM, S8LKML09ADM, S8LG2A7SD, S8LG2A7SD-S01, S8LG2A7SD-S02, S8LG2A7SD-S03, S8LG2A7SD-S04, S8LG2B7SD, S8LG2B7SD-S01, S8LG2B7SD-S02, S8LG2B7SD-S03, S8LG2B7SD- S04, S8LG209SD, S8LG209SD-S01, S8LG209SD-S02, S8LG209SD- S03, S8LG209SD-S04, S8LG211SD, S8LG211SD-S01, S8LG211SD- S02, S8LG211SD-S03, S8LG211SD-S04, S8LG110SD, S8LG110SD- S01, S8LG110SD-S02, S8LG110SD-S03, S8LG110SD-S04, S8LG125SD, S8LG125SD-S01, S8LG125SD-S02, S8LG125SD-S03, S8LG125SD-S04, S8LG215KSD, S8LG215KSD-S01, S8LG215KSD- S02, S8LG215KSD-S03, S8LG215KSD-S04, S84G2D7PB, S84G2D7PB-S01, S84G2D7PB-S02, S84G2D7PB-S03, S84G2D7PB- S04, S84G2B7P, S84G2B7P-S01, S84G2B7P-S02, S84G2B7P-S03, S84G2B7P-S04, S84G209P, S84G209P-S01, S84G209P-S02, S84G209P-S03, S84G209P-S04, S84G211P, S84G211P-S01, S84G211P-S02, S84G211P-S03, S84G211P-S04, S84G225P, S84G225P-S01, S84G225P-S02, S84G225P-S03, S84G225P-S04, S84G110PB, S84G110PB-S01, S84G110PB-S02, S84G110PB-S03, S84G110PB-S04, S84G125P, S84G125P-S01, S84G125P-S02, S84G125P-S03, S84G125P-S04, S84G129PB, S84G129PB-S01, S84G129PB-S02, S84G129PB-S03, S84G129PB-S04, S84G215PB, S84G215PB-S01, S84G215PB-S02, S84G215PB-S03, S84G215PB- S04, S84G115PB, S84G115PB-S01, S84G115PB-S02, S84G115PB- S03, S84G115PB-S04, X10G215KE, X10G215KE-R1, X10G215KE- R2, X10G215KE-R3, X10G215KE-R3W, X10G215KE-R3S, V10G215KOC, V10G215KOC-S01, V10G215KOC-S02, V10G215KOC-S03, V10G215KOC-S04, V10G215KOC-S05, V10G215KOC-S06, V10G215KOC-S07, V10G215KOC-S08, V10G215KOC-S09, V10G120OC, V10G120OC-S01, V10G120OC- S02, V10G120OC-S03, V10G120OC-S04, V10G120OC-S05, V10G120OC-S06, V10G120OC-S07, V10G120OC-S08, V10G120OC- S09, V10G115POC, V10G115POC-S01, V10G115POC-S02, V10G115POC-S03, V10G115POC-S04, V10G115POC-S05, V10G115POC-S06, V10G115POC-S07, V10G115POC-S08, V10G115POC-S09, X10G157ESM, X10G129PE-M12S, V10G2D7OC- S09, V10G2B7OC-S01, V10G2B7OC-S02, V10G2B7OC-S05, V10G2B7OC-S06, V10G2B7OC-S08, V10G2B7OC-S09, V10G209OC-S01, V10G209OC-S02, V10G209OC-S05, V10G209OC- S06, V10G209OC-S08, V10G209OC-S09, V10G211OC-S02, V10G211OC-S05, V10G211OC-S06, V10G211OC-S08, V10G211OC- S09, V10G110POC-S01, V10G110POC-S02, V10G110POC-S03, V10G110POC-S04, V10G110POC-S05, V10G110POC-S06, V10G110POC-S07, V10G110POC-S08, V10G110POC-S09, V10G125OC-S01, V10G125OC-S02, V10G125OC-S03, V10G125OC- S04, V10G125OC-S05, V10G125OC-S06, V10G125OC-S07, V10G125OC-S08, V10G125OC-S09, V10G129OC-S01, V10G129OC- S02, V10G129OC-S03, V10G129OC-S04, V10G129OC-S05, V10G129OC-S06, V10G129OC-S07, V10G129OC-S08, V10G129OC- S09, V10G141OC-S01, V10G141OC-S02, V10G141OC-S03, V10G141OC-S04, V10G141OC-S05, V10G141OC-S06, V10G141OC- S07, V10G141OC-S08, V10G141OC-S09, V10G225OC-S01, V10G225OC-S02, V10G225OC-S05, V10G225OC-S06, V10G225OC- S07, V10G225OC-S08, V10G225OC-S09, X10G2A7V12E, X10G2B7V12E, X10G211V12E, CB5A-BK, CB5A-GY, T14GM3-9, T14FO1-12, T14FO2-12, T14FO3-9, T14RM1-13, …

Text truncated - open the document above for the full version.

FCC ID:2BGCX-A7M2A01 Test Setup Photos of the EUT
