2BGCX-CARACCBT01Lighting Controller

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Shenzhen Yufengzhixing Electronics Tech Co Ltd RM301-01, Yuan Shuo Tech Park, No8 Nanxiang, Xinshiqiao St, Guanlan, Longhua, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/12/25 U.S. Agent Designation Shenzhen Yufengzhixing Electronics Tech Co Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BGCX-CARACCBT01): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Yufengzhixing Electronics Tech Co Ltd Shenzhen Yufengzhixing Electronics Tech Co Ltd with the FRN [0035410232] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Yayan Yan Manager Shenzhen Yufengzhixing Electronics Tech Co Ltd Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shenzhen Yufengzhixing Electronics Tech Co Ltd Add: RM301-01, Yuan Shuo Tech Park, No8 Nanxiang Xinshiqiao St, Guanlan, Longhua, Shenzhen, China Date: 2025-12-25 FCC ID: 2BGCX-CARACCBT01 Dear Sir/Madam, We, Shenzhen Yufengzhixing Electronics Tech Co Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number and light strips and Car charger are different for these model: Product name: Lighting Controller Model no.: AL-ILS324-540, AL-ILS324-540-A, AL-ILS252-420, AL-ILS252-420-A, AL-ILS324-540-A, AL-ILS324-540-B, AL-ILS324-540-C, AL-ILS324-540-D, AL-ILS324-540-E, AL-ILS324-540-F, AL- ILS180-150, AL-ILS180-150-A, AL-ILS216-180, AL-ILS216-180-A, AL-ILS216-180-B, AL-ILS216- 180-C, AL-ILS216-180-D, AL-ILS216-180-E, AL-ILS216-180-F, AL-41NG-18W, AL-3I1-8A1, AL- 41NG-18W-A, AL-8IN20-120W, AL-12IN24-72W, AL-20IN42-126W, AL-4IN20-60W, AL-12IN80- 240W, AL-F14-42W, AL-4_5O14-42W, AL-12IN12-36W, AL-14IN132-264W, AL-20IN132-396W, AL- F14-18W, AL-4_5O14-42W-B, AL-F14-48W, AL-4_5O14-18W, AL-F14-42WB, AL-F14-36W, AL- 20IN132A-396W, AL-SLC-W-A, AL-SLC-W-B, AL-SLC-W-C, AL-SLC-W-D, AL-SLC-W-E, AL-SLC-W- F, AL-ILS150-150, AL-ILS150-150-A, AL-ILS150-150-B, AL-ILS150-150-C, AL-ILS150-150-D, AL- ILS150-150-E, AL-ILS150-150-F, AL-ILS60-100, AL-ILS60-100-A, AL-ILS60-100-B, AL-ILS60-100-C, AL-ILS60-100-D, AL-ILS60-100-E, AL-ILS60-100-F Shenzhen Yufengzhixing Electronics Tech Co Ltd Add: RM301-01, Yuan Shuo Tech Park, No8 Nanxiang Xinshiqiao St, Guanlan, Longhua, Shenzhen, China Refer to follow photos Model number Light strips and Car charger AL-ILS324-540, AL-ILS324-540-A, AL- ILS252-420, AL-ILS252-420-A, AL-ILS324- 540-A, AL-ILS324-540-B, AL-ILS324-540- C, AL-ILS324-540-D, AL-ILS324-540-E, AL-ILS324-540-F AL-ILS180-150, AL-ILS180-150-A, AL- ILS216-180, AL-ILS216-180-A, AL-ILS216- 180-B, AL-ILS216-180-C, AL-ILS216-180- D, AL-ILS216-180-E, AL-ILS216-180-F AL-41NG-18W, AL-3I1-8A1, AL-41NG- 18W-A, AL-8IN20-120W, AL-12IN24-72W, AL-20IN42-126W, AL-4IN20-60W, AL- 12IN80-240W, AL-F14-42W, AL-4_5O14- 42W, AL-12IN12-36W, AL-14IN132-264W, AL-20IN132-396W, AL-F14-18W, AL- 4_5O14-42W-B, AL-F14-48W, AL-4_5O14- 18W, AL-F14-42WB, AL-F14-36W, AL- 20IN132A-396W, AL-SLC-W-A, AL-SLC- W-B, AL-SLC-W-C, AL-SLC-W-D, AL- SLC-W-E, AL-SLC-W-F Shenzhen Yufengzhixing Electronics Tech Co Ltd Add: RM301-01, Yuan Shuo Tech Park, No8 Nanxiang Xinshiqiao St, Guanlan, Longhua, Shenzhen, China AL-ILS150-150, AL-ILS150-150-A, AL- ILS150-150-B, AL-ILS150-150-C, AL- ILS150-150-D, AL-ILS150-150-E, AL- ILS150-150-F AL-ILS60-100, AL-ILS60-100-A, AL- ILS60-100-B, AL-ILS60-100-C, AL-ILS60- 100-D, AL-ILS60-100-E, AL-ILS60-100-F Sincerely, Name/Title： Yayan Yan/Manager Company: Shenzhen Yufengzhixing Electronics Tech Co Ltd Address: RM301-01, Yuan Shuo Tech Park, No8 Nanxiang Xinshiqiao St, Guanlan, Longhua, Shenzhen, China Phone: 13631522350 Fax: E-Mail: [email protected]

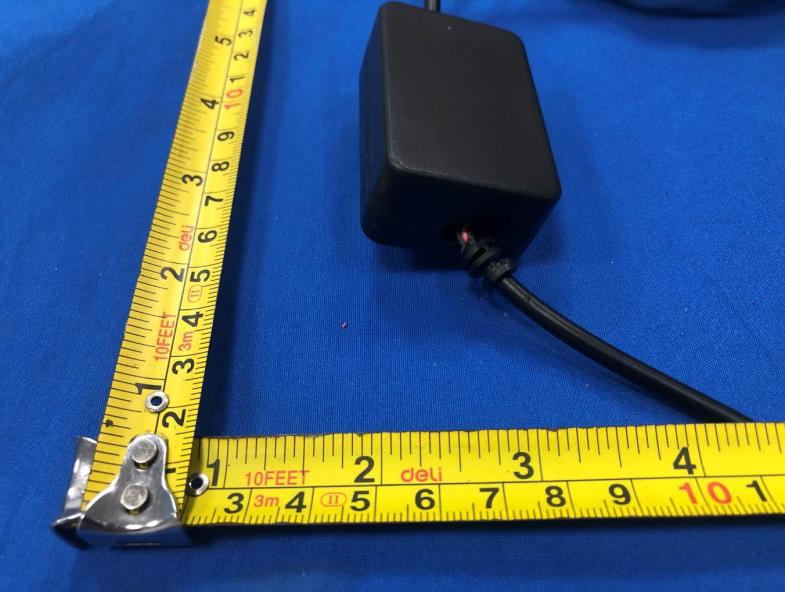

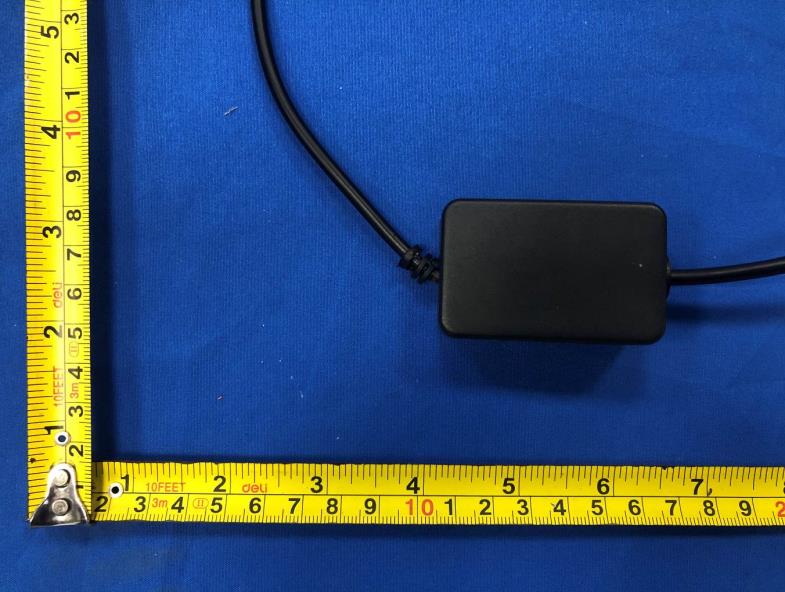

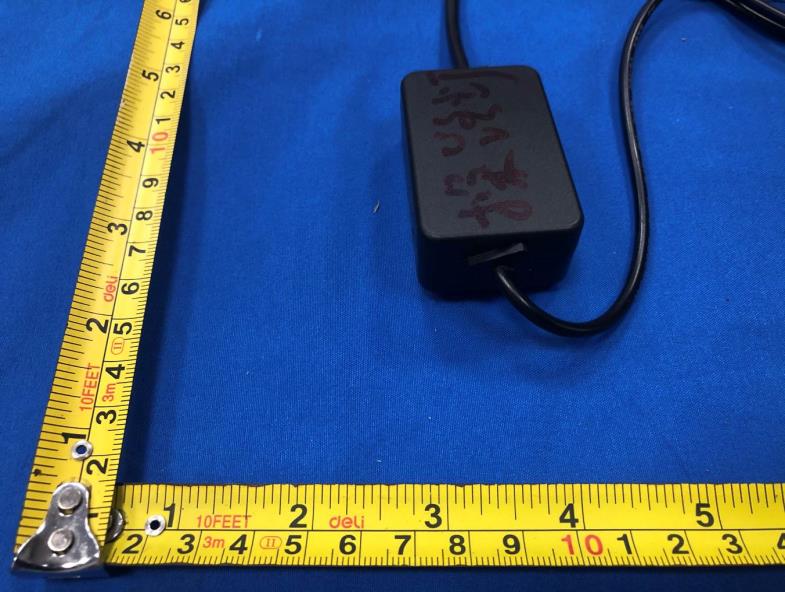

FCC ID: 2BGCX-CARACCBT01 External Photos of the EUT AL-ILS324-540, AL-ILS324-540-A, AL-ILS252-420, AL-ILS252-420-A, AL-ILS324-540-A, AL-ILS324-540-B, AL-ILS324-540-C, AL-ILS324-540-D, AL-ILS324-540-E, AL-ILS324-540-F FCC ID: 2BGCX-CARACCBT01 FCC ID: 2BGCX-CARACCBT01 AL-ILS180-150, AL-ILS180-150-A, AL-ILS216-180, AL-ILS216-180-A, AL-ILS216-180-B, AL-ILS216-180-C, AL-ILS216-180-D, AL-ILS216-180-E, AL-ILS216-180-F FCC ID: 2BGCX-CARACCBT01 FCC ID: 2BGCX-CARACCBT01 FCC ID: 2BGCX-CARACCBT01 AL-41NG-18W, AL-3I1-8A1, AL-41NG-18W-A, AL-8IN20-120W, AL-12IN24-72W, AL-20IN42-126W, AL-4IN20-60W, AL-12IN80-240W, AL-F14-42W, AL-4_5O14-42W, AL-12IN12-36W, AL-14IN132-264W, AL-20IN132-396W, AL-F14-18W, AL-4_5O14-42W-B, AL-F14-48W, AL-4_5O14-18W, AL-F14-42WB, AL-F14-36W, AL-20IN132A-396W, AL-SLC-W-A, AL-SLC-W-B, AL-SLC-W-C, AL-SLC-W-D, AL-SLC-W-E, AL-SLC-W-F FCC ID: 2BGCX-CARACCBT01 FCC ID: 2BGCX-CARACCBT01 AL-ILS150-150, AL-ILS150-150-A, AL-ILS150-150-B, AL-ILS150-150-C, AL-ILS150-150-D, AL-ILS150-150-E, AL-ILS150-150-F FCC ID: 2BGCX-CARACCBT01 FCC ID: 2BGCX-CARACCBT01 FCC ID: 2BGCX-CARACCBT01 AL-ILS60-100, AL-ILS60-100-A, AL-ILS60-100-B, AL-ILS60-100-C, AL-ILS60-100-D, AL-ILS60-100-E, AL-ILS60-100-F FCC ID: 2BGCX-CARACCBT01 FCC ID: 2BGCX-CARACCBT01

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BGCX-CARACCBT01

FCC ID: 2BGCX-CARACCBT01 Internal Photos of the EUT AL-ILS324-540, AL-ILS324-540-A, AL-ILS252-420, AL-ILS252-420-A, AL-ILS324-540-A, AL-ILS324-540-B, AL-ILS324-540-C, AL-ILS324-540-D, AL-ILS324-540-E, AL-ILS324-540-F FCC ID: 2BGCX-CARACCBT01 FCC ID: 2BGCX-CARACCBT01 AL-ILS180-150, AL-ILS180-150-A, AL-ILS216-180, AL-ILS216-180-A, AL-ILS216-180-B, AL-ILS216-180-C, AL-ILS216-180-D, AL-ILS216-180-E, AL-ILS216-180-F ANT FCC ID: 2BGCX-CARACCBT01 FCC ID: 2BGCX-CARACCBT01 AL-41NG-18W, AL-3I1-8A1, AL-41NG-18W-A, AL-8IN20-120W, AL-12IN24-72W, AL-20IN42-126W, AL-4IN20-60W, AL-12IN80-240W, AL-F14-42W, AL-4_5O14-42W, AL-12IN12-36W, AL-14IN132-264W, AL-20IN132-396W, AL-F14-18W, AL-4_5O14-42W-B, AL-F14-48W, AL-4_5O14-18W, AL-F14-42WB, AL-F14-36W, AL-20IN132A-396W, AL-SLC-W-A, AL-SLC-W-B, AL-SLC-W-C, AL-SLC-W-D, AL-SLC-W-E, AL-SLC-W-F FCC ID: 2BGCX-CARACCBT01 FCC ID: 2BGCX-CARACCBT01 AL-ILS150-150, AL-ILS150-150-A, AL-ILS150-150-B, AL-ILS150-150-C, AL-ILS150-150-D, AL-ILS150-150-E, AL-ILS150-150-F FCC ID: 2BGCX-CARACCBT01 FCC ID: 2BGCX-CARACCBT01 AL-ILS60-100, AL-ILS60-100-A, AL-ILS60-100-B, AL-ILS60-100-C, AL-ILS60-100-D, AL-ILS60-100-E, AL-ILS60-100-F FCC ID: 2BGCX-CARACCBT01 FCC ID: 2BGCX-CARACCBT01

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA25101701402 2BGCX-CARACCBT01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Nov. 14, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Yufengzhixing Electronics Tech Co Ltd Address............................................ : RM301-01, Yuan Shuo Tech Park, No8 Nanxiang Xinshiqiao St, Guanlan, Longhua, Shenzhen 518000 China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Lighting Controller Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Yufengzhixing Electronics Tech Co Ltd Model/Type reference ...................... : AL-ILS324-540 Listed Models ................................... : Refer to page 2 Rating ............................................... : DC 12.0V From external circuit Result ............................................... : PASS Report No.: CTA25101701402 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Lighting Controller Model /Type : AL-ILS324-540 Listed Models : AL-ILS324-540-A, AL-ILS252-420, AL-ILS252-420-A, AL-ILS324-540-A, AL-ILS324-540-B, AL-ILS324-540-C, AL-ILS324-540-D, AL-ILS324-540-E, AL-ILS324-540-F, AL-ILS180-150, AL-ILS180-150-A, AL-ILS216-180, AL-ILS216-180-A, AL-ILS216-180-B, AL-ILS216-180-C, AL-ILS216-180-D, AL-ILS216-180-E, AL-ILS216-180-F, AL-41NG-18W, AL-3I1-8A1, AL-41NG-18W-A, AL-8IN20-120W, AL-12IN24-72W, AL-20IN42-126W, AL-4IN20-60W, AL-12IN80-240W, AL-F14-42W, AL-4_5O14-42W, AL-12IN12-36W, AL-14IN132-264W, AL-20IN132-396W, AL-F14-18W, AL-4_5O14-42W-B, AL-F14-48W, AL-4_5O14-18W, AL-F14-42WB, AL-F14-36W, AL-20IN132A-396W, AL-SLC-W-A, AL-SLC-W-B, AL-SLC-W-C, AL-SLC-W-D, AL-SLC-W-E, AL-SLC-W-F, AL-ILS150-150, AL-ILS150-150-A, AL-ILS150-150-B, AL-ILS150-150-C, AL-ILS150-150-D, AL-ILS150-150-E, AL-ILS150-150-F, AL-ILS60-100, AL-ILS60-100-A, AL-ILS60-100-B, AL-ILS60-100-C, AL-ILS60-100-D, AL-ILS60-100-E, AL-ILS60-100-F Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and light strips and Car charger are different for these model. Applicant : Shenzhen Yufengzhixing Electronics Tech Co Ltd Address : RM301-01, Yuan Shuo Tech Park, No8 Nanxiang Xinshiqiao St, Guanlan, Longhua, Shenzhen 518000 China Manufacturer : Shenzhen Yufengzhixing Electronics Tech Co Ltd Address : RM301-01, Yuan Shuo Tech Park, No8 Nanxiang Xinshiqiao St, Guanlan, Longhua, Shenzhen 518000 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25101701402 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .........................................................…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type Internal antenna Model AL-ILS324-540 Frequency range 2400-2500MHz Manufacturer Shenzhen Yufengzhixing Electronics Tech Co Ltd Address RM301-01, Yuan Shuo Tech Park, No8 Nanxiang Xinshiqiao St, Guanlan, Longhua, Shenzhen 518000 China ANT Peak Gain 0.87 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA25101701401 2BGCX-CARACCBT01 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Nov. 14, 2025 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Shenzhen Yufengzhixing Electronics Tech Co Ltd Address ...........................................: RM301-01, Yuan Shuo Tech Park, No8 Nanxiang Xinshiqiao St, Guanlan, Longhua, Shenzhen 518000 China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Lighting Controller Trade Mark ......................................: N/A Manufacturer ...................................: Shenzhen Yufengzhixing Electronics Tech Co Ltd Model/Type reference .....................: AL-ILS324-540 Listed Models ..................................: Refer to page 2 Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: DC 12.0V From external circuit Result ..............................................: PASS Report No.: CTA25101701401 Page 2 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Lighting Controller Model /Type : AL-ILS324-540 Listed Models : AL-ILS324-540-A, AL-ILS252-420, AL-ILS252-420-A, AL-ILS324-540-A, AL-ILS324-540-B, AL-ILS324-540-C, AL-ILS324-540-D, AL-ILS324-540-E, AL-ILS324-540-F, AL-ILS180-150, AL-ILS180-150-A, AL-ILS216-180, AL-ILS216-180-A, AL-ILS216-180-B, AL-ILS216-180-C, AL-ILS216-180-D, AL-ILS216-180-E, AL-ILS216-180-F, AL-41NG-18W, AL-3I1-8A1, AL-41NG-18W-A, AL-8IN20-120W, AL-12IN24-72W, AL-20IN42-126W, AL-4IN20-60W, AL-12IN80-240W, AL-F14-42W, AL-4_5O14-42W, AL-12IN12-36W, AL-14IN132-264W, AL-20IN132-396W, AL-F14-18W, AL-4_5O14-42W-B, AL-F14-48W, AL-4_5O14-18W, AL-F14-42WB, AL-F14-36W, AL-20IN132A-396W, AL-SLC-W-A, AL-SLC-W-B, AL-SLC-W-C, AL-SLC-W-D, AL-SLC-W-E, AL-SLC-W-F, AL-ILS150-150, AL-ILS150-150-A, AL-ILS150-150-B, AL-ILS150-150-C, AL-ILS150-150-D, AL-ILS150-150-E, AL-ILS150-150-F, AL-ILS60-100, AL-ILS60-100-A, AL-ILS60-100-B, AL-ILS60-100-C, AL-ILS60-100-D, AL-ILS60-100-E, AL-ILS60-100-F Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and light strips and Car charger are different for these model. Applicant : Shenzhen Yufengzhixing Electronics Tech Co Ltd Address : RM301-01, Yuan Shuo Tech Park, No8 Nanxiang Xinshiqiao St, Guanlan, Longhua, Shenzhen 518000 China Manufacturer : Shenzhen Yufengzhixing Electronics Tech Co Ltd Address : RM301-01, Yuan Shuo Tech Park, No8 Nanxiang Xinshiqiao St, Guanlan, Longhua, Shenzhen 518000 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25101701401 Page 3 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagra…

Text truncated - open the document above for the full version.

Report No.: CTA25101701401 Page 42 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA25101701401 Page 43 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn AL-ILS60-100, AL-ILS60-100-A, AL-ILS60-100-B, AL-ILS60-100-C, AL-ILS60-100-D, AL-ILS60-100-E, AL-ILS60-100-F Report No.: CTA25101701401 Page 44 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA25101701401 Page 45 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA25101701401 Page 46 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA25101701401 Page 47 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ********************** End of Reprt **********************

1 FCC Appendix RF Test Data for BLE FCC ID : 2BGCX-CARACCBT01 Company : Shenzhen Yufengzhixing Electronics Tech Co Ltd EUT : Lighting Controller Model Number : AL-ILS324-540 Report No. : CTA25101701401 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.628 2401.696 2402.324 0.5 PASS 2440 0.656 2439.688 2440.344 0.5 PASS 2480 0.644 2479.692 2480.336 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0050 2401.5168 2402.5218 --- --- 2440 1.0012 2439.5178 2440.5190 --- --- 2480 1.0041 2479.5187 2480.5228 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -0.23 ≤30 PASS 2440 -0.52 ≤30 PASS 2480 -0.40 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -15.79 ≤8.00 PASS 2440 -16.12 ≤8.00 PASS 2480 -15.87 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -0.19 -51.24 ≤-20.19 PASS High 2480 -1.18 -52.89 ≤-21.18 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -1.04 -1.04 --- PASS 30~1000 -1.04 -68.62 ≤-21.04 PASS 1000~26500 -1.04 -42.53 ≤-21.04 PASS 2440 Reference -0.65 -0.65 --- PASS 30~1000 -0.65 -67.53 ≤-20.65 PASS 1000~26500 -0.65 -44.45 ≤-20.65 PASS 2480 Reference -0.89 -0.89 --- PASS 30~1000 -0.89 -68.33 ≤-20.89 PASS 1000~26500 -0.89 -42.52 ≤-20.89 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21

FCC ID: 2BGCX-CARACCBT01 Test Setup Photos of the EUT
