2BGPH-ELCME01HONOR CHOICE KUMI AI Note

v1.1 User Manual of HONOR CHOICE KUMI AI Note -02- Table of Contents English Ｍanual French Ｍanuel German Handbuch Italian Ｍanuale Spanish Ｍanual Japanese Manual P01-P15 P16-P27 P28-P39 P40-P51 P52-P63 P64-P75 -------------------------------------------------- -------------------------------------------------- ------------------------------------------------- -------------------------------------------------- -------------------------------------------------- -------------------------------------------------- User Manual x 1 Magnetic Charging Cable x 1 Magnetic Ring x 1 KUMI AI Note x 1 -03- I. Package List ③④ ⑤ ①② -04- II. Product Introduction ①、② Microphone Holes ③ Indicator Light ④ Recording Button ⑤ Charging Port Battery = 0%: Automatically powers off. ①Battery < 10%: Red light flashes. ②10% ≤ Battery < 99%: Green light flashes. ③Fully charged: Green light stays on. 2. Power Off 0% 3. Charging LED Status -05- III. Function Operation 1. Power On / Binding LED Status ① Waiting for APP binding, battery < 10%: Red light fashes for 30 seconds. ② Waiting for APP binding, battery ≥ 10%: White light flashes for 30 seconds. ③ APP binding successful, battery < 10%: Red light stays on, turns off after 5 seconds. ④ APP binding successful, battery ≥ 10%: White light stays on, turns off after 5 seconds. 5. Touch Button -06- 4. Recording LED Status ① Recording starts: Blue light stays on. ② Recording stops: Blue light turns off. ③ Charging + recording LED status: The indicator light is consistent with the recording status. ① Short press: a. Wake up from non - recording state. b. Mark important moments during recording. 6. Automatic Sleep No recording, no charging, no file transfer for 8 seconds: Automatically sleeps, still has Bluetooth connection (can be woken up by clicking the touch button). 7. Deep Sleep No recording, no file transfer, no charging for 24 hours: Can be reconnected by touching the button. ② Long press for 1.5 seconds: The motor vibrates once; starts recording (can start recording in power - off state). ③ Long press again for 1.5 seconds: After stopping recording, the motor vibrates twice. ④ Long press for 8 seconds: System abnormal recovery. Scan the QR code to d own load and install the APP -0 7- IV. APP Download -08- V. Product Hardware Specification Parameters Product Specification Parameter Product Size Product Thickness Microphone Memory Network Touch Button Charging Method Product Battery Optimal Range Recording Duration Standby Duration Charging Duration 85*53 mm 2.89 mm Silicon Microphones *2 + Bone Conduction Microphone *1 4 GB Bluetooth + 2.4G & 5G WiFi Start Recording Wireless Charging+Wired Charging 130 mAh Within 3m 24 hours More than 1 year 100 minutes -09- HONOR CHOICE AI Note S/N: 5504AGQX258B0001 Connection All Files Search Add Device Search Device Device Connection VI. Connect Recording Card A short press of the recording button can turn on your AI recording card. When the red or white light is on and flashing, it indicates that your AI recording card is ready to be bound to your account. X1 -10- VII. Recording Operation 1. Start Recording Long press the recording button and hold for 1.5 seconds until you feel a vibration and the blue light is on, indicating that recording has started. 2. Recording Tag When the blue light is on during recording, short press the recording button for 0.5 seconds (the blue light turns off briefly) to mark important moments of the recording. * In the recording file in the APP, is the important moment mark X2 -11- 3. End Recording Long press the recording button for 1.5 seconds until you feel two vibrations and the blue light goes out, indicating that the recording has ended. 4. Export Recording by Connecting Device After Recording Wireless transmission (supported by some models): Turn on Bluetooth and WiFi, pair the device through the official NebulaRec APP (such as HONOR CHOICE AI Note), and synchronize the device recording to the mobile phone. -1 2- VIII. Specifications for Using Magnetic Ring ① ② Tear off the adhesive backing paper The magnetic ring Note: Once the magnetic ring is stuck on the phone, it is difficult to remove. Please confirm the position before sticking. -1 3- IX. Legal Statement: ● ● ● ● ● All rights reserved. Shenzhen Tenxinbona Technology Co., Ltd. reserves all rights． The company has the right to modify any information in this manual at any time without notifying any third party, and shall not be liable to any third party for such modification. Without the company's written consent, no unit or individual shall excerpt, copy or use the contents of this manual in any other way, and shall not disseminate it in any form. This guide is for reference only and does not constitute any form of commitment. The product (including but not limited to color, size, etc.) shall be subject to the actual product. Due to software version upgrades and updates, the content introduced in this guide is for reference only. Please refer to the actual product. X. FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. -1 4- NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installatio…

Text truncated - open the document above for the full version.

v1.1 User Manual of HONOR CHOICE KUMI AI Note -02- Table of Contents English Ｍanual French Ｍanuel German Handbuch Italian Ｍanuale Spanish Ｍanual Japanese Manual P01-P15 P16-P27 P28-P39 P40-P51 P52-P63 P64-P75 -------------------------------------------------- -------------------------------------------------- ------------------------------------------------- -------------------------------------------------- -------------------------------------------------- -------------------------------------------------- User Manual x 1 Magnetic Charging Cable x 1 Magnetic Ring x 1 KUMI AI Note x 1 -03- I. Package List ③④ ⑤ ①② -04- II. Product Introduction ①、② Microphone Holes ③ Indicator Light ④ Recording Button ⑤ Charging Port Battery = 0%: Automatically powers off. ①Battery < 10%: Red light flashes. ②10% ≤ Battery < 99%: Green light flashes. ③Fully charged: Green light stays on. 2. Power Off 0% 3. Charging LED Status -05- III. Function Operation 1. Power On / Binding LED Status ① Waiting for APP binding, battery < 10%: Red light fashes for 30 seconds. ② Waiting for APP binding, battery ≥ 10%: White light flashes for 30 seconds. ③ APP binding successful, battery < 10%: Red light stays on, turns off after 5 seconds. ④ APP binding successful, battery ≥ 10%: White light stays on, turns off after 5 seconds. 5. Touch Button -06- 4. Recording LED Status ① Recording starts: Blue light stays on. ② Recording stops: Blue light turns off. ③ Charging + recording LED status: The indicator light is consistent with the recording status. ① Short press: a. Wake up from non - recording state. b. Mark important moments during recording. 6. Automatic Sleep No recording, no charging, no file transfer for 8 seconds: Automatically sleeps, still has Bluetooth connection (can be woken up by clicking the touch button). 7. Deep Sleep No recording, no file transfer, no charging for 24 hours: Can be reconnected by touching the button. ② Long press for 1.5 seconds: The motor vibrates once; starts recording (can start recording in power - off state). ③ Long press again for 1.5 seconds: After stopping recording, the motor vibrates twice. ④ Long press for 8 seconds: System abnormal recovery. Scan the QR code to d own load and install the APP -0 7- IV. APP Download -08- V. Product Hardware Specification Parameters Product Specification Parameter Product Size Product Thickness Microphone Memory Network Touch Button Charging Method Product Battery Optimal Range Recording Duration Standby Duration Charging Duration 85*53 mm 2.89 mm Silicon Microphones *2 + Bone Conduction Microphone *1 4 GB Bluetooth + 2.4G & 5G WiFi Start Recording Wireless Charging+Wired Charging 130 mAh Within 3m 24 hours More than 1 year 100 minutes -09- HONOR CHOICE AI Note S/N: 5504AGQX258B0001 Connection All Files Search Add Device Search Device Device Connection VI. Connect Recording Card A short press of the recording button can turn on your AI recording card. When the red or white light is on and flashing, it indicates that your AI recording card is ready to be bound to your account. X1 -10- VII. Recording Operation 1. Start Recording Long press the recording button and hold for 1.5 seconds until you feel a vibration and the blue light is on, indicating that recording has started. 2. Recording Tag When the blue light is on during recording, short press the recording button for 0.5 seconds (the blue light turns off briefly) to mark important moments of the recording. * In the recording file in the APP, is the important moment mark X2 -11- 3. End Recording Long press the recording button for 1.5 seconds until you feel two vibrations and the blue light goes out, indicating that the recording has ended. 4. Export Recording by Connecting Device After Recording Wireless transmission (supported by some models): Turn on Bluetooth and WiFi, pair the device through the official NebulaRec APP (such as HONOR CHOICE AI Note), and synchronize the device recording to the mobile phone. -1 2- VIII. Specifications for Using Magnetic Ring ① ② Tear off the adhesive backing paper The magnetic ring Note: Once the magnetic ring is stuck on the phone, it is difficult to remove. Please confirm the position before sticking. -1 3- IX. Legal Statement: ● ● ● ● ● All rights reserved. Shenzhen Tenxinbona Technology Co., Ltd. reserves all rights． The company has the right to modify any information in this manual at any time without notifying any third party, and shall not be liable to any third party for such modification. Without the company's written consent, no unit or individual shall excerpt, copy or use the contents of this manual in any other way, and shall not disseminate it in any form. This guide is for reference only and does not constitute any form of commitment. The product (including but not limited to color, size, etc.) shall be subject to the actual product. Due to software version upgrades and updates, the content introduced in this guide is for reference only. Please refer to the actual product. -1 4- X. FCC Statement This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to whic…

Text truncated - open the document above for the full version.

1/1 USAgentforServiceofProcessLETTEROFATTESTATION TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USAgentforServiceofProcess: CompanyName:HOPEKCORPORATIONINC Address:16755CoyoteBushDrUnit84,SanDiego,CA92127UnitedStates FRN:0034562900 ContactName:YangyangXu TelephoneNo:(561)875-9826 E-mail:[email protected] ThisletteristoconfirmthattheUSAgentforServiceofProcessacceptsresponsibilitytoactas alocalrepresentativeonbehalfofShenzhenTenxinbonaTechnologyCo.,Ltd. TheUSAgentforServiceofProcessisawareofandagreestocomplywiththerequirements outlinedintheFCCEquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause §2.911. Applicant: CompanyName:ShenzhenTenxinbonaTechnologyCo.,Ltd. ProductDescription:HONORCHOICEKUMIAINote FRN:0035487461 GranteeCode:2BGPH FCCID:2BGPH-ELCME01 ContactName:WANGPING Address:Room405,BlockA,UnitedFinancialHoldingsBuilding,No.1ShihuaRoad,Futian District,Shenzhen,China TelephoneNo:13538214502 E-mail:[email protected] TheApplicantisawareofandagreestocomplywiththerequirementsoutlinedintheFCC EquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause§2.911. ThisAgreementisvaliduntil(Permanentlyvalid). Date:2026/4/27 Applicant’sName: ShenzhenTenxinbonaTechnologyCo.,Ltd. USAgentforServiceofProcess’sName: HOPEKCORPORATIONINC Title:ManagerTitle:Manager SignatureSignature

Rev 1/26/2023 Shenzhen Tenxinbona Technology Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Apr. 22, 2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BGPH-ELCME01 [Shenzhen Tenxinbona Technology Co., Ltd.] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Shenzhen Tenxinbona Technology Co., Ltd.] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) WANG PING Rev 1/26/2023 Shenzhen Tenxinbona Technology Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Apr. 22, 2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BGPH-ELCME01 [Shenzhen Tenxinbona Technology Co., Ltd.] certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) WANG PING

Shenzhen Tenxinbona Technology Co., Ltd. FCC Software Configuration Control Declaration Date: April 27, 2026 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. FCC ID: 2BGPH-ELCME01 Product/ Model Number: HONOR CHOICE KUMI AI Note / ELC-ME01 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: WANG PING Date: April 27, 2026 Title: Manager Signature of applicant:

Shenzhen Tenxinbona Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: April 27, 2026 Subject; Request for Confidentiality FCC ID: 2BGPH-ELCME01 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: WANG PING Title: Manager

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 Shenzhen Tenxinbona Technology Co., Ltd. Date: Apr. 22, 2026 Product Model Number: ELC-ME01 FCC ID: 2BGPH-ELCME01 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: 13538214502 On behalf of: Shenzhen Tenxinbona Technology Co., Ltd.

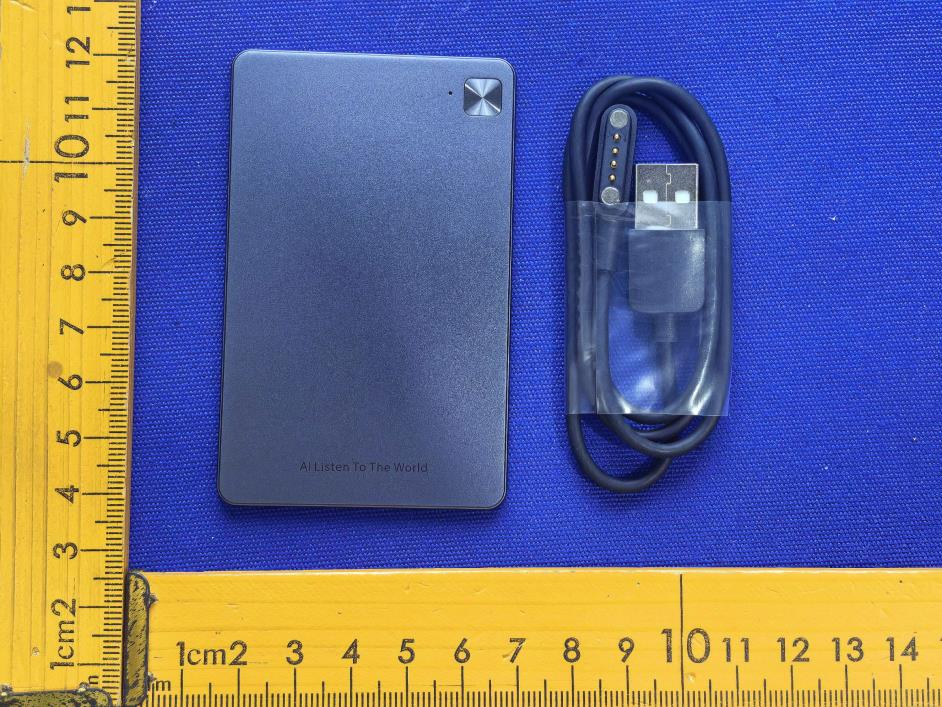

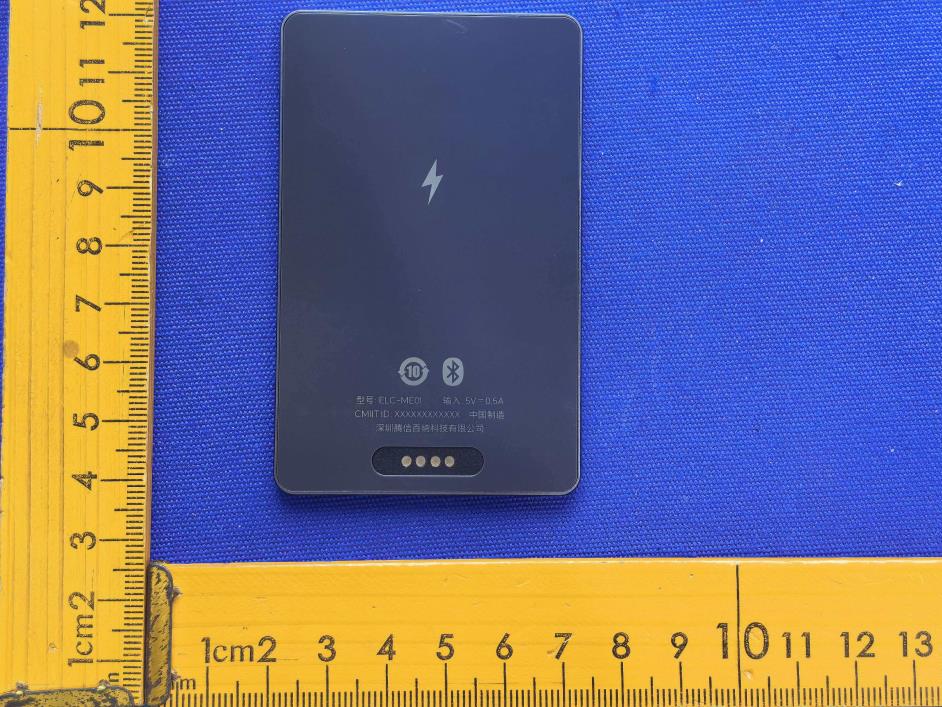

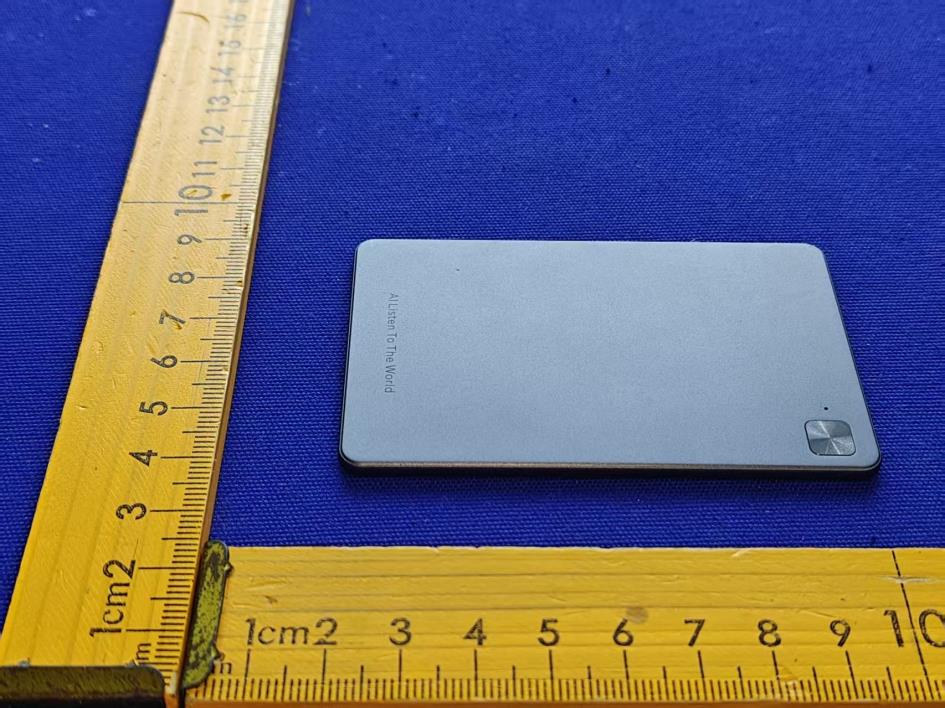

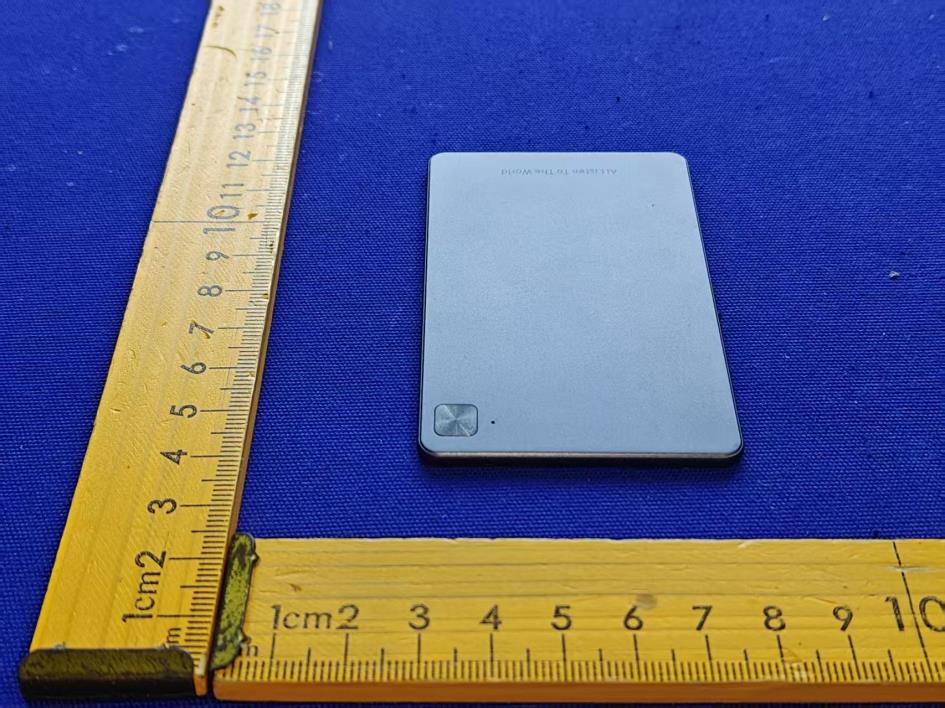

Ext Photos Model: ELC-ME01 Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7

Model: ELC-ME01 Input: 5V 0.5A FCC ID: 2BGPH-ELCME01 Made in China Shenzhen Tenxinbona Technology Co., Ltd. 222-260452 Model: ELC-ME01 Input: 5V 0.5A FCC ID: 2BGPH-ELCME01 Made in China Shenzhen Tenxinbona Technology Co., Ltd. 222-260452 85.6mm 54.0mm 21.4mm 37.3mm

Int Photos Model: ELC-ME01 Photo 1 Photo 2 Photo 3 Photo 4 RX ANT Photo 5 Photo 6 TX ANT Photo 7 Photo 8

Page 1 of 79 Report No.: AiTSZ-260420036FW1 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093) and IEEE Std 1528-2013 Product Name: HONOR CHOICE KUMI AI Note Model No.: ELC-ME01 Serial Model: N/A Brand Name: KUMI Report No.: AiTSZ-260420036FW1 FCC ID: 2BGPH-ELCME01 Prepared for Shenzhen Tenxinbona Technology Co., Ltd. Room 405, Block A, United Financial Holdings Building, No.1 Shihua Road, Futian District, Shenzhen, China Prepared by Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Page 2 of 79 Report No.: AiTSZ-260420036FW1 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Tenxinbona Technology Co., Ltd. Address ................................. : Room 405, Block A, United Financial Holdings Building, No.1 Shihua Road, Futian District, Shenzhen, China Manufacturer's Name .......... : Shenzhen AilyworldTechnology co., Ltd Address ................................. : 21st Floor, South Tower, Tongye Building, MeilinSub-district, Futian District, Shenzhen, China Product description Product name ........................ : HONOR CHOICE KUMI AI Note Trademark ........................... : KUMI Model and/or type reference : ELC-ME01 Serial Model........................... : N/A Standards ............................. : FCC 47 CFR Part 2(2.1093) IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Guangdong Asia Hongke Test Technology Limited. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01.Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. Test Sample Number .............................. : AiTSZ-260420036-1 Date of Test Date (s) of performance of tests ............. : Mar. 16, 2026 ~ Mar. 20, 2026 Date of Issue .......................................... : Apr. 23, 2026 Test Result.............................................. : Pass Reviewed by: Approved by: Ken Zou Jack Li Page 3 of 79 Report No.: AiTSZ-260420036FW1 ※ ※ Revision History※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Apr. 23, 2026 Jack Li Page 4 of 79 Report No.: AiTSZ-260420036FW1 TABLE OF CONTENTS 1. General Information .......................................................................................... 6 1.1. RF exposure limits .................................................................................. 6 1.2. Statement of Compliance ....................................................................... 7 1.3. EUT Description ..................................................................................... 8 1.4. Test specification(s) ................................................................................ 9 1.5. Ambient Condition ................................................................................. 9 1.6. Test Facility ............................................................................................. 9 2. SAR Measurement System ............................................................................... 10 2.1. SATIMO SAR Measurement Set-up Diagram ......................................... 10 2.2. Robot ................................................................................................... 11 2.3. Probe ................................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................ 12 2.4. Phantoms ............................................................................................. 13 2.5. Technical Data ...................................................................................... 14 2.6. Device Holder ...................................................................................... 15 2.7. Test Equipment List .............................................................................. 16 3. SAR Measurement Procedures ........................................................................ 19 3.1. Power Reference.................................................................................. 19 3.2. Area scan & Zoom scan ........................................................................ 19 3.3. Description of interpolation/extrapolation scheme ............................. 21 3.4. Volumetric Scan ................................................................................... 21 3.5. Power Drift .......................................................................................... 21 4. System Verification Procedure ......................................................................... 22 4.1. Tissue Verification ................................................................................ 22 4.1.1. Tissue Dielectric Parameter Check Results ..................................... 23 4.2. System Verification Procedure ............................................................. 24 4.2.1. System Verification Results ............................................................ 25 5. SAR measurement variabilit ............................................................................. 26 6. SAR Measurement Uncertainty ...…

Text truncated - open the document above for the full version.

- Page 1 of 10 - Report No.: HB20260414011E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com RF EXPOSURE Test Report Product: HONOR CHOICE KUMI AI Note Trade Mark: KUMI Model Number: ELC-ME01 FCC ID: 2BGPH-ELCME01 Prepared for Shenzhen Tenxinbona Technology Co., Ltd. Room 405, Block A, United Financial Holdings Building, No.1 Shihua Road, Futian District, Shenzhen, China Prepared by Shenzhen HongBiao Certification& Testing Co., Ltd Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Tel.: +86-755-2998 9321 Fax.: +86-755-2998 5110 Website: http://www.sz-hongbiao.com - Page 2 of 10 - Report No.: HB20260414011E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Table of Contents 1 GENERAL DESCRIPTION ..................................................................................................................................... 5 1.1 DESCRIPTION OF EUT ................................................................................................................................................ 5 1.2 TEST MODE .............................................................................................................................................................. 6 1.3 TEST SETUP .............................................................................................................................................................. 6 1.4 ANCILLARY EQUIPMENT .............................................................................................................................................. 6 2 TEST FACILITIES AND ACCREDITATIONS .............................................................................................................. 7 2.1 TEST LABORATORY ..................................................................................................................................................... 7 2.2 ENVIRONMENTAL CONDITIONS ..................................................................................................................................... 7 2.3 MEASUREMENT UNCERTAINTY ..................................................................................................................................... 7 2.4 TEST SOFTWARE ........................................................................................................................................................ 7 3 LIST OF TEST EQUIPMENT .................................................................................................................................. 8 4 RF EXPOSURE..................................................................................................................................................... 9 4.1 STANDALONE SAR TEST EXCLUSION CONSIDERATIONS........................................................................................................ 9 4.1.1. Limit ............................................................................................................................................................ 9 4.1.2. Test Procedures ........................................................................................................................................... 9 4.1.3. Test Result ................................................................................................................................................. 10 - Page 3 of 10 - Report No.: HB20260414011E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com TEST RESULT CERTIFICATION Applicant’s Name ................. : Shenzhen Tenxinbona Technology Co., Ltd. Address ................................. : Room 405, Block A, United Financial Holdings Building, No.1 Shihua Road, Futian District, Shenzhen, China Manufacturer's Name .......... : Shenzhen Ailyworld Technology Co., Ltd Address ................................. : 21st Floor, South Tower, Tongye Building, Meilin Sub-district…

Text truncated - open the document above for the full version.
