2BGU9-YW01Bluetooth headset

Rev 1/26/2023 Dongguan Yanwei Electronic Technology Co., Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 8, 2024 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BGU9-YW01 [Dongguan Yanwei Electronic Technology Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Min Huang Rev 1/26/2023 Dongguan Yanwei Electronic Technology Co., Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 8, 2024 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BGU9-YW01 [Dongguan Yanwei Electronic Technology Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Min Huang

Dongguan Yanwei Electronic Technology Co., Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: July, 2024 SUBJECT: FCC SDoC declaration for FCC ID: 2BGU9-YW01 To Whom It May Concern: I, the undersigned, hereby states this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules, and will apply the Supplier's Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. I understand the following FCC requirements: 1. Devices subject to the SDoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Pt 2.1077 contains the list of information that must be included in the Supplier's Declaration of Conformity, which must be supplied with each product sold. The SDoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(b), the responsible party is either the Manufacturer or if the product is imported the Importer. Regards, Dongguan Yanwei Electronic Technology Co., Ltd ------------------------------- Min Huang

Dongguan Yanwei Electronic Technology Co., Ltd U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: 07-08-2024 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BGU9-YW01 Dongguan Yanwei Electronic Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Dongguan Yanwei Electronic Technology Co., Ltd FRN: 0035527712 Address: Room 14020, Building 2, No. 69 Fengqing Road, Fenggang Town, Dongguan City, Guangdong Province, China Signature: Contact Person: Min Huang Tel: +86-18682177970 Email: [email protected]

Rev 11/20/07 Dongguan Yanwei Electronic Technology Co., Ltd Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2BGU9-YW01 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (Block Diagram, Schematics, Operational Description) (Block Diagram.pdf, Schematics.pdf, Operational Description.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (Internal Photos, Test Setup Photos, User Manual) (Internal Photos.pdf, Test Setup Photos.pdf, User Manual.pdf) For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Min Huang

Dongguan Yanwei Electronic Technology Co., Ltd Model Difference Statement Dear Sir/Madam, Added models YW02, YW03, YW04, YW05, YW06, YW07, YW08, YW09, YW10, YW11, YW12, YW13, YW14, YW15, YW16, YW17, YW18, YW19, YW20, YW21, YW22, YW23, YW24, YW25, YW26, YW27, YW28, TWS basis of the original product YW01. The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Min Huang Title: Manager Room 14020, Building 2, No. 69 Fengqing Road, Fenggang Town, Dongguan City, Guangdong Province, China

Dongguan Yanwei Electronic Technology Co., Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: July 8, 2024 SUBJECT: FCC Application for FCC ID: 2BGU9-YW01 To Whom It May Concern: We, the undersigned, hereby authorize Lieber Ouyang at Shenzhen CCUT Quality Technology Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Lieber Ouyang at Shenzhen CCUT Quality Technology Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Min Huang

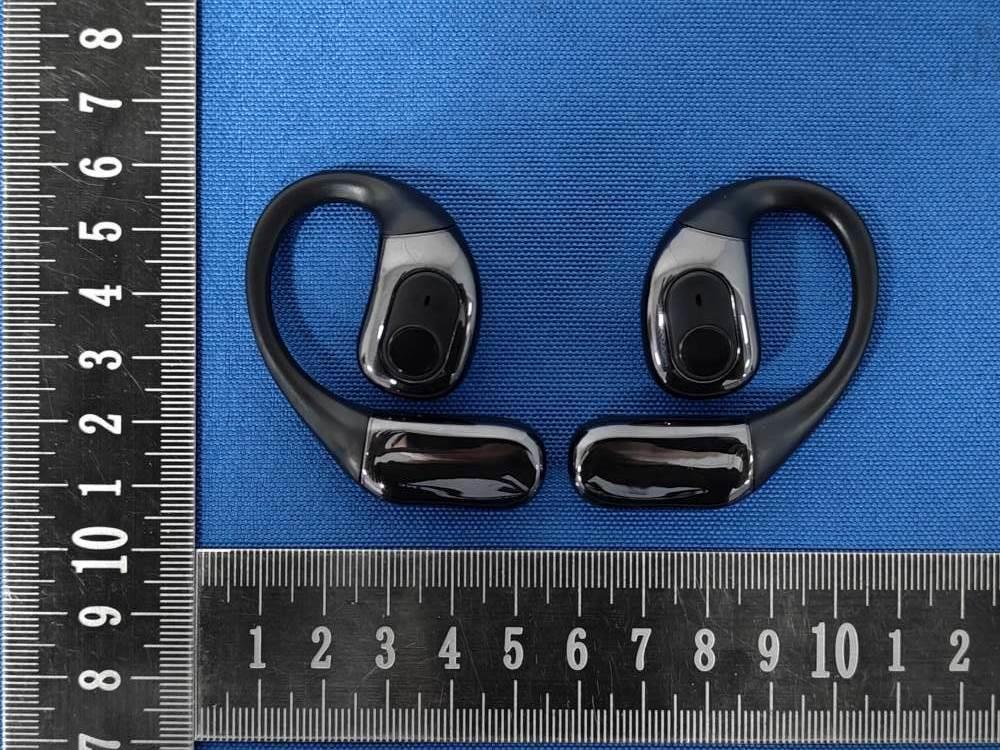

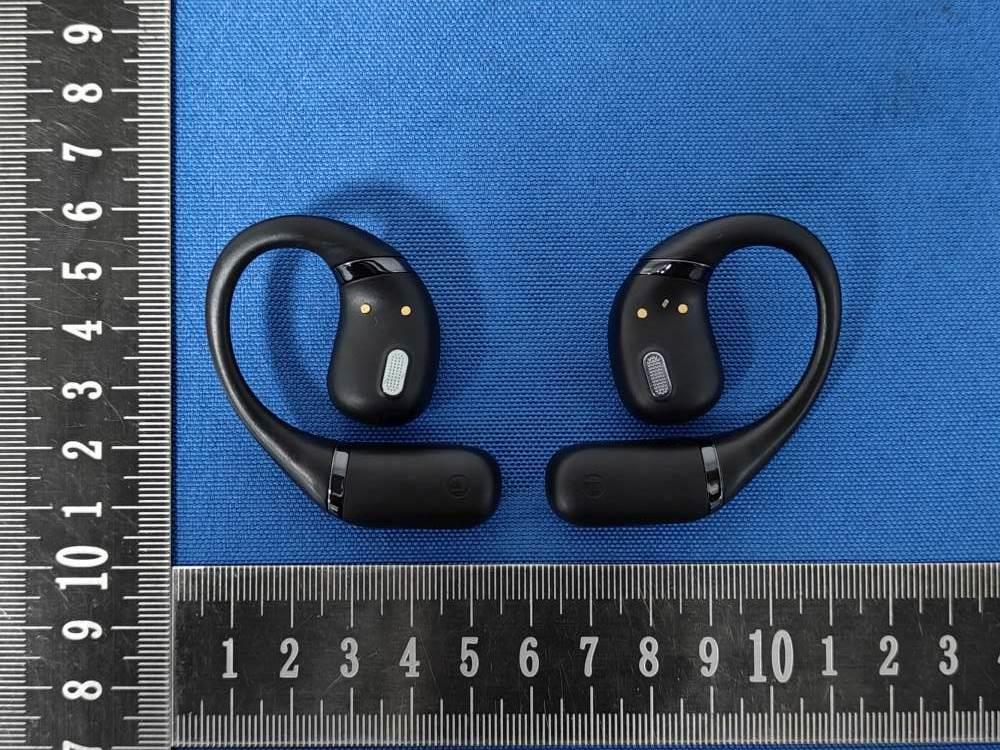

Report No: SSP24070056-1E FCC ID: 2BGU9-YW01 Annex of Test Report Annex A. EUT External Photos EUT View 1 EUT View 2 Report No: SSP24070056-1E FCC ID: 2BGU9-YW01 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP24070056-1E FCC ID: 2BGU9-YW01 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP24070056-1E FCC ID: 2BGU9-YW01 Annex of Test Report EUT View 7

Report No: SSP24070056-1E FCC ID: 2BGU9-YW01 Annex of Test Report Annex D. Label and Inf ormation FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

CCUT Testing & Certification Report No: SSP24070056-2E FCC Test Report Page 1 of 7 RF Exposure Report FCC ID: 2BGU9-YW01 Report No. : SSP24070056-2E Applicant : Dongguan Yanwei Electronic Technology Co., Ltd Product Name : Bluetooth headset Model Name : YW01 Test Standard : FCC CFR 47 PART 2.1093 Date of Issue : 2024-07-08 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. CCUT Testing & Certification Report No: SSP24070056-2E FCC Test Report Page 2 of 7 Test Report Basic Information Applicant..................................: Dongguan Yanwei Electronic Technology Co., Ltd Address of Applicant...............: Room 14020, Building 2, No. 69 Fengqing Road, Fenggang Town, Dongguan City, Guangdong Province, China Manufacturer..........................: Dongguan Yanwei Electronic Technology Co., Ltd Address of Manufacturer........: Room 14020, Building 2, No. 69 Fengqing Road, Fenggang Town, Dongguan City, Guangdong Province, China Product Name.........................: Bluetooth headset Brand Name.............................: - Main Model..............................: YW05 Series Models..........................: YW02, YW03, YW04, YW05, YW06, YW07, YW08, YW09, YW10, YW11, YW12, YW13, YW14, YW15, YW16, YW17, YW18, YW19, YW20, YW21, YW22, YW23, YW24, YW25, YW26, YW27, YW28, TWS Test Standard..........................: FCC CFR 47 PART 2.1093 KDB 447498 D01 v06 Date of Test .............................: 2024-07-04 to 2024-07-08 Test Result...............................: PASSED Tested By ................................: (Walker Wu) Reviewed By............................: (Lieber Ouyang) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. CCUT Testing & Certification Report No: SSP24070056-2E FCC Test Report Page 3 of 7 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Facilities ........................................................................................................................................................5 2. RF Exposure .................................................................................................................................................................6 2.1 Standard and Limit................................................................................................................................................6 2.2 Test Procedure......................................................................................................................................................6 2.3 Test Data and Results ............................................................................................................................................7 CCUT Testing & Certification Report No: SSP24070056-2E FCC Test Report Page 4 of 7 Revision History Revision Issue Date Description Revised By V1.0 2024-07-08 Initial Release Lahm Peng CCUT Testing & Certification Report No: SSP24070056-2E FCC Test Report Page 5 of 7 1. General Inf ormation 1.1 Product Information Product Name: Bluetooth headset Trade Name: - Main Model: YW01 Series Models: YW02, YW03, YW04, YW05, YW06, YW07, YW08, YW09, YW10, YW11, YW12, YW13, YW14, YW15, YW16, YW17, YW18, YW19, YW20, YW21, YW22, YW23, YW24, YW25, YW26, YW27, YW28, TWS Rated Voltage: DC 3.7V by battery, USB 5V charging Battery: DC 3.7V, 40mAh Hardware Version: V1.0 Software Version: V1.0 Note 1: The test data is gathered from a production sample, provided by the manufacturer. Note 2: The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Wireless Specification Wireless Standard: Bluetooth BR+EDR Operating Frequency: 2402MHz ~2480MHz RF Output Power: -3.65dBm Antenna Gain: 3dBi Type of Antenna: SMD Antenna Type of Device: Portable Device Mobile Device Modular Device 1.2 Test Facilities Laboratory Name: Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China CNAS Laboratory No.: L18863 A2LA Certificate No.: 6893.01 FCC Registration No: 583813 ISED Registration No.: CN0164 All measurement facilities used to collect the measurement data are located at 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China. CCUT Testing & Certification Report No: SSP24070056-2E FCC Test Report Page 6 of 7 2. RF Exposure 2.1 Standard and Limit 3.0 for 1g SAR. 2.2 Test Procedure Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the e…

Text truncated - open the document above for the full version.

SymbolsLWTA Dimensions 1.60±0.200.80±0.200.80±0.200.30±0.10 NumberTerminalName ① INPUT ② NC Dimensions(Unit: mm) w ①② ( Side View) ( Bottom View) ( Top View) A T L HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page1 汉阳天线设计有限公司 HanyangAntenna Design Co. Ltd. 1.Bluetooth 2.Dual-band WLAN 3.ISM and UWB 1.Surfacemountedelementwithasmalldimensionof1.6×0.8×0.8mmmeetfutureminiaturizationtrend. 2.EmbeddedandLTCC(lowtemperatureco-firedceramic)technologyisabletointegratewithsystemdesign aswellasbeatifyingthehousingoffinalproduct. 3.Miniaturization,wideband,highstability,lowESR,andlowtolerance. 4.Dual-bandresonancesinthedominantandharmonicmodesenablesmultibandoperations. 5.Novelground-radiationtechniqueenablesradiationfromboththeantennaandthegroundplane. 深圳市宝安区前进二路宝运达物流信息大厦12A10/12A11  12A10/12A11, Baoyunda Logistics Information Building, Qianjin Second Road, Baoan District, Shenzhen P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 Features: Applications: RF chip ANT chipANT pattern PCB ground Mode-2 Mode-1 Layout-1 (3.5mm×6.5mm) HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page2 汉阳天线设计有限公司 HanyangAntenna Design Co. Ltd. 1.5 1 3.5 2.5 0201 footprint (E1) 0201 footprint (E2) 0603 footprint (ANT) 连接微带线， 连接RF I/O口 Connect the microstrip wire to the RF I/O port 6.5 0.5 0.5 0.5 1.5 3.5 2.5 0201 footprint (E3) 6.5 Top layer: Bottom layer: 0.5 0.5 RF chip E1 E3 E2 ANT 深圳市宝安区前进二路宝运达物流信息大厦12A10/12A11 12A10/12A11, Baoyunda Logistics Information Building, Qianjin Second Road, Baoan District, Shenzhen P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 Equivalentcircuit: HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page3 汉阳天线设计有限公司 HanyangAntenna Design Co. Ltd. 2.5 0201 footprint 0603 footprint 连 接微带线， 连接RF I/O口 Connect the microstrip wire to the RF I/O port 10 0.5 1.5 0201 footprint 1.5 3 2.5 10 1.5 2 0.5 0201 footprint 深圳市宝安区前进二路宝运达物流信息大厦12A10/12A11 12A10/12A11, Baoyunda Logistics Information Building, Qianjin Second Road, Baoan District, Shenzhen P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 Layout-2 (1.5mm×10mm) Top layer: Bottom layer: HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page4 汉阳天线设计有限公司 HanyangAntenna Design Co. Ltd. 深圳市宝安区前进二路宝运达物流信息大厦12A10/12A11 12A10/12A11, Baoyunda Logistics Information Building, Qianjin Second Road, Baoan District, Shenzhen P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 5 2 0201 footprint (E1) 0201 footprint (E2) 0603 footprint (ANT) 连接微带线，连接RF I/O口 Connect the microstrip wire to the RF I/O port 7 0.8 5 0201 footprint (E2) 连接微带线，连接RF I/O口 Connect the microstrip wire to the RF I/O port 10 0.8 0603 footprint (ANT) 0201 footprint (E1) Layout-3 (5mm×7mm) Layout-4 (5mm×10mm) 1 3 ElectricalCharacteristics: CharacteristicCurves: FeatureSpecification 1 Centralfrequency2.4GHz&5.5GHz 2 Bandwidth>150MHz 3 Peak gain > ≥3dBi 4 VSWR<2 5 Antenna typeSMD 6 AzimuthbeamwidthOmnidirectional 7 Impedance50Ω HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page5 汉阳天线设计有限公司 HanyangAntenna Design Co. Ltd. 深圳市宝安区前进二路宝运达物流信息大厦12A10/12A11 12A10/12A11, Baoyunda Logistics Information Building, Qianjin Second Road, Baoan District, Shenzhen P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 Radiation Pattern: Other frequencies have been tested, and only the maximum value is recorded in the specification. Y-ZPlane X-ZPlane coordinates： HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page6 汉阳天线设计有限公司 HanyangAntenna Design Co. Ltd. Frequency 2450MHz5500MHz Avg.gain-0.85-1.30 Peakgain3.03.5 Efficiency82%78% RadiationPerformance: P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 Temperature：40±2°C Humidity：90~95%RH Duration：500h Recovery conditions：Room temperature Recovery Time：24h (Class1) or 48h (Class2) Test Temperature Operating Temperature Temperature RelativeHumidity 25°C±5°C -25°C~+125°C 5~40°C 20~70% Notenoughsolder Weak holding forcemay cause bad connection between the chipandPCB. RecommendedSolderingAmounts The optimal solder fillet amounts forre-flowsoldering 天线厚度 以下 The optimal solder fillet amounts for wavesoldering DependabilityTest Too much solder Cracks tend to occur due to large stress. MoistureProof OptimumSolderAmount forReflowSoldering Solderability At least 95% of the terminal electrode is covered by newsolder. Preheating conditions:80 to 120°C;10~30s. Solder Tem p e r at u r e :2 3 5 ±5°CDuration:2 ±0.5s , Solder Tempe r ature:24 5±5°CDu rat ion:2±0.5s HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page7 汉阳天线设计有限公司 HanyangAntenna Design Co. Ltd. 深圳市宝安区前进二路宝运达物流信息大厦12A10/12A11 12A10/12A11, Baoyunda Logistics Information Building, Qianjin Second Road, Baoan District, Shenzhen P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 Other frequencies have been t…

Text truncated - open the document above for the full version.

CCUT Testing & Certification Report No: SSP24070056-1E FCC Test Report Page 1 of 60 FCC TEST REPORT FCC ID: 2BGU9-YW01 Report No. : SSP24070056-1E Applicant : Dongguan Yanwei Electronic Technology Co., Ltd Product Name : Bluetooth headset Model Name : YW01 Test Standard : FCC Part 15.247 Date of Issue : 2024-07-08 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. CCUT Testing & Certification Report No: SSP24070056-1E FCC Test Report Page 2 of 60 Test Report Basic Information Applicant..................................: Dongguan Yanwei Electronic Technology Co., Ltd Address of Applicant...............: Room 14020, Building 2, No. 69 Fengqing Road, Fenggang Town, Dongguan City, Guangdong Province, China Manufacturer..........................: Dongguan Yanwei Electronic Technology Co., Ltd Address of Manufacturer........: Room 14020, Building 2, No. 69 Fengqing Road, Fenggang Town, Dongguan City, Guangdong Province, China Product Name.........................: Bluetooth headset Brand Name.............................: - Main Model..............................: YW01 Series Models..........................: YW02, YW03, YW04, YW05, YW06, YW07, YW08, YW09, YW10, YW11, YW12, YW13, YW14, YW15, YW16, YW17, YW18, YW19, YW20, YW21, YW22, YW23, YW24, YW25, YW26, YW27, YW28, TWS Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2013 Date of Test .............................: 2024-07-04 to 2024-07-08 Test Result...............................: PASS Tested By ................................: (Walker Wu) Reviewed By............................: (Lieber Ouyang) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. CCUT Testing & Certification Report No: SSP24070056-1E FCC Test Report Page 3 of 60 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................8 2. Summary of Test Results .............................................................................................................................................9 3. Antenna Requirement ............................................................................................................................................... 10 3.1 Standard and Limit.............................................................................................................................................. 10 3.2 Test Result .......................................................................................................................................................... 10 4. Conducted Emissions ................................................................................................................................................ 11 4.1 Standard and Limit.............................................................................................................................................. 11 4.2 Test Procedure.................................................................................................................................................... 11 4.3 Test Data and Results .......................................................................................................................................... 12 5. Radiated Emissions ................................................................................................................................................... 15 5.1 Standard and Limit.............................................................................................................................................. 15 5.2 Test Procedure.................................................................................................................................................... 15 5.3 Test Data and Results .......................................................................................................................................... 17 6. Band-edge Emissions(Radiated) ............................................................................................................................... 21 6.1 Standard and Limit.............................................................................................................................................. 21 6.2 Test Procedure..........................................................................…

Text truncated - open the document above for the full version.
