2BGU9-YW09Bluetooth headset

Dongguan Yanwei Electronic Technology Co., Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 3, 2024 FCC ID: 2BGU9-YW09 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing Dongguan Yanwei Electronic Technology Co., Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing Dongguan Yanwei Electronic Technology Co., Ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: Dongguan Yanwei Electronic Technology Co., Ltd Address: Room 14020, Building 2, No. 69 Fengqing Road, Fenggang Town, Dongguan City, Guangdong Province, China Contact Person: Min Huang Tel.: +86-18682177970 Email: [email protected] Sincerely, Signature:

Dongguan Yanwei Electronic Technology Co., Ltd U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: 07-03-2024 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BGU9-YW09 Dongguan Yanwei Electronic Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Dongguan Yanwei Electronic Technology Co., Ltd FRN: 0035527712 Address: Room 14020, Building 2, No. 69 Fengqing Road, Fenggang Town, Dongguan City, Guangdong Province, China Signature: Contact Person: Min Huang Tel: +86-18682177970 Email: [email protected]

SymbolsLWTA Dimensions 1.60±0.200.80±0.200.80±0.200.30±0.10 NumberTerminalName ① INPUT ② NC Dimensions(Unit: mm) w ①② ( Side View) ( Bottom View) ( Top View) A T L HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page1 汉阳天线设计有限公司 HanyangAntenna Design Co. Ltd. 1.Bluetooth 2.Dual-band WLAN 3.ISM and UWB 1.Surfacemountedelementwithasmalldimensionof1.6×0.8×0.8mmmeetfutureminiaturizationtrend. 2.EmbeddedandLTCC(lowtemperatureco-firedceramic)technologyisabletointegratewithsystemdesign aswellasbeatifyingthehousingoffinalproduct. 3.Miniaturization,wideband,highstability,lowESR,andlowtolerance. 4.Dual-bandresonancesinthedominantandharmonicmodesenablesmultibandoperations. 5.Novelground-radiationtechniqueenablesradiationfromboththeantennaandthegroundplane. 深圳市宝安区前进二路宝运达物流信息大厦12A10/12A11  12A10/12A11, Baoyunda Logistics Information Building, Qianjin Second Road, Baoan District, Shenzhen P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 Features: Applications: RF chip ANT chipANT pattern PCB ground Mode-2 Mode-1 Layout-1 (3.5mm×6.5mm) HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page2 汉阳天线设计有限公司 HanyangAntenna Design Co. Ltd. 1.5 1 3.5 2.5 0201 footprint (E1) 0201 footprint (E2) 0603 footprint (ANT) 连接微带线， 连接RF I/O口 6.5 0.5 0.5 0.5 1.5 3.5 2.5 0201 footprint (E3) 6.5 Top layer: Bottom layer: 0.5 0.5 RF chip E1 E3 E2 ANT 深圳市宝安区前进二路宝运达物流信息大厦12A10/12A11 12A10/12A11, Baoyunda Logistics Information Building, Qianjin Second Road, Baoan District, Shenzhen P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 Equivalentcircuit: HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page3 汉阳天线设计有限公司 HanyangAntenna Design Co. Ltd. 2.5 0201 footprint 0603 footprint 连 接微带线， 连接RF I/O口 Connect the microstrip wire to the RF I/O port 10 0.5 1.5 0201 footprint 1.5 3 2.5 10 1.5 2 0.5 0201 footprint 深圳市宝安区前进二路宝运达物流信息大厦12A10/12A11 12A10/12A11, Baoyunda Logistics Information Building, Qianjin Second Road, Baoan District, Shenzhen P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 Layout-2 (1.5mm×10mm) Top layer: Bottom layer: HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page4 汉阳天线设计有限公司 HanyangAntenna Design Co. Ltd. 深圳市宝安区前进二路宝运达物流信息大厦12A10/12A11 12A10/12A11, Baoyunda Logistics Information Building, Qianjin Second Road, Baoan District, Shenzhen P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 5 2 0201 footprint (E1) 0201 footprint (E2) 0603 footprint (ANT) 连接微带线，连接RF I/O口 Connect the microstrip wire to the RF I/O port 7 0.8 5 0201 footprint (E2) 连接微带线，连接RF I/O口 Connect the microstrip wire to the RF I/O port 10 0.8 0603 footprint (ANT) 0201 footprint (E1) Layout-3 (5mm×7mm) Layout-4 (5mm×10mm) 1 3 ElectricalCharacteristics: CharacteristicCurves: FeatureSpecification 1 Centralfrequency2.4GHz&5.5GHz 2 Bandwidth>150MHz 3 Peak gain>3dBi 4 VSWR<2 5 Antenna typeSMD 6 AzimuthbeamwidthOmnidirectional 7 Impedance50Ω HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page5 汉阳天线设计有限公司 HanyangAntenna Design Co. Ltd. 深圳市宝安区前进二路宝运达物流信息大厦12A10/12A11 12A10/12A11, Baoyunda Logistics Information Building, Qianjin Second Road, Baoan District, Shenzhen P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 RadiationPattern: Y-ZPlane X-ZPlane coordinates： HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page6 汉阳天线设计有限公司 HanyangAntenna Design Co. Ltd. Frequency 2450MHz5500MHz Avg.gain-0.85-1.30 Peakgain3.03.5 Efficiency82%78% RadiationPerformance: P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 Temperature：40±2°C Humidity：90~95%RH Duration：500h Recovery conditions：Room temperature Recovery Time：24h (Class1) or 48h (Class2) Test Temperature Operating Temperature Temperature RelativeHumidity 25°C±5°C -25°C~+125°C 5~40°C 20~70% Notenoughsolder Weak holding forcemay cause bad connection between the chipandPCB. RecommendedSolderingAmounts The optimal solder fillet amounts forre-flowsoldering 天线厚度 以下 The optimal solder fillet amounts for wavesoldering DependabilityTest Too much solder Cracks tend to occur due to large stress. MoistureProof OptimumSolderAmount forReflowSoldering Solderability At least 95% of the terminal electrode is covered by newsolder. Preheating conditions:80 to 120°C;10~30s. Solder Tem p e r at u r e :2 3 5 ±5°CDuration:2 ±0.5s , Solder Tempe r ature:24 5±5°CDu rat ion:2±0.5s HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page7 汉阳天线设计有限公司 HanyangAntenna Design Co. Ltd. 深圳市宝安区前进二路宝运达物流信息大厦12A10/12A11 12A10/12A11, Baoyunda Logistics Information Building, Qianjin Second Road, Baoan District, Shenzhen P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 10±1S AppliedForce:5NDuration:10±1S Preheating conditions: up-category temperature, 1h Recovery time:24±1h InitialMeasurement Cycling Times: 5 times, 1 cycle, 4steps: Preheating…

Text truncated - open the document above for the full version.

Dongguan Yanwei Electronic Technology Co., Ltd Date: July 3, 2024 Product Model Number: YW09, YW01, YW02, YW03, YW04, YW05, YW06, YW07, YW08, YW10, YW11, YW12, YW13, YW14, YW15, YW16, YW17, YW18, YW19, YW20, YW21, YW22, YW23, YW24, YW25, YW26, YW27, YW28, TWS FCC ID: 2BGU9-YW09 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: Min Huang Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: +86-18682177970 On behalf of: Dongguan Yanwei Electronic Technology Co., Ltd

Dongguan Yanwei Electronic Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 15, 2024 Subject; Request for Confidentiality FCC ID: 2BGU9-YW09 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Min Huang Title: Manager

Dongguan Yanwei Electronic Technology Co., Ltd Model Difference Statement Dear Sir/Madam, Added models YW01, YW02, YW03, YW04, YW05, YW06, YW07, YW08, YW10, YW11, YW12, YW13, YW14, YW15, YW16, YW17, YW18, YW19, YW20, YW21, YW22, YW23, YW24, YW25, YW26, YW27, YW28, TWS basis of the original product YW09. The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Min Huang Title: Manager Company name: Dongguan Yanwei Electronic Technology Co., Ltd Address: Room 14020, Building 2, No. 69 Fengqing Road, Fenggang Town, Dongguan City, Guangdong Province, China

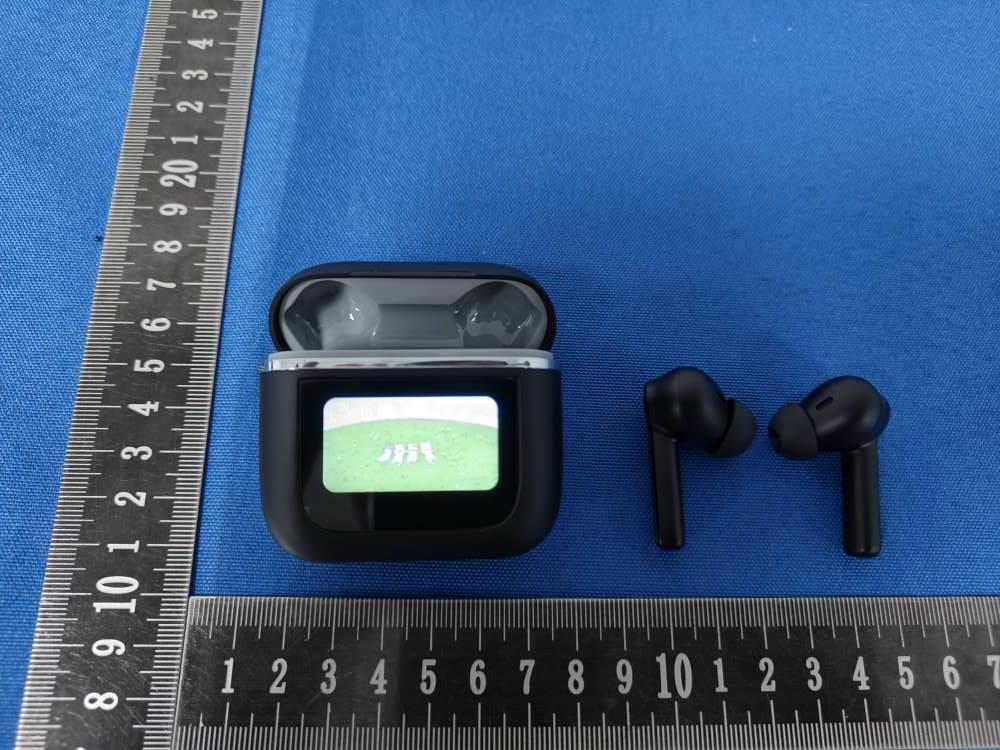

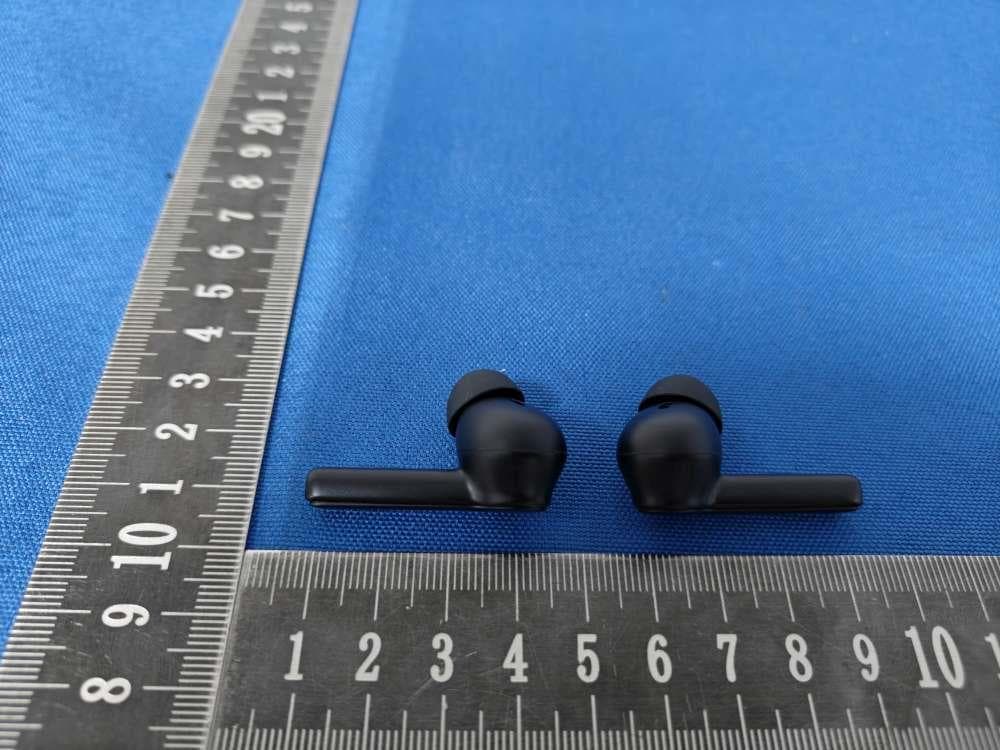

Report No: SSP24070007-1E FCC ID: 2BGU9-YW09 Annex of Test Report Annex A. EUT External Photos EUT View 1 EUT View 2 Report No: SSP24070007-1E FCC ID: 2BGU9-YW09 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP24070007-1E FCC ID: 2BGU9-YW09 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP24070007-1E FCC ID: 2BGU9-YW09 Annex of Test Report EUT View 7 EUT View 8

FCC ID: 2BGU9-YW09 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 1.42 1(±1) 2 1.585 2402 5 0.4913 3.0 So a SAR test is not required

FCC ID: 2BGU9-YW09 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 1.42 1(±1) 2 1.585 2402 5 0.4913 3.0 So a SAR test is not required

CCUT Testing & Certification Report No: SSP24070007-1E FCC Test Report Page 1 of 48 FCC TEST REPORT FCC ID: 2BGU9-YW09 Report No. : SSP24070007-1E Applicant : Dongguan Yanwei Electronic Technology Co., Ltd Product Name : Bluetooth headset Model Name : YW09 Test Standard : FCC Part 15.247 Date of Issue : 2024-07-03 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. CCUT Testing & Certification Report No: SSP24070007-1E FCC Test Report Page 2 of 48 Test Report Basic Information Applicant..................................: Dongguan Yanwei Electronic Technology Co., Ltd Address of Applicant...............: Room 14020, Building 2, No. 69 Fengqing Road, Fenggang Town, Dongguan City, Guangdong Province, China Manufacturer..........................: Dongguan Yanwei Electronic Technology Co., Ltd Address of Manufacturer........: Room 14020, Building 2, No. 69 Fengqing Road, Fenggang Town, Dongguan City, Guangdong Province, China Product Name.........................: Bluetooth headset Brand Name.............................: - Main Model..............................: YW09 Series Models..........................: YW01, YW02, YW03, YW04, YW05, YW06, YW07, YW08, YW10, YW11, YW12, YW13, YW14, YW15, YW16, YW17, YW18, YW19, YW20, YW21, YW22, YW23, YW24, YW25, YW26, YW27, YW28, TWS Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2013 Date of Test .............................: 2024-07-02 to 2024-07-03 Test Result...............................: PASS Tested By ................................: (Walker Wu) Reviewed By............................: (Lieber Ouyang) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. CCUT Testing & Certification Report No: SSP24070007-1E FCC Test Report Page 3 of 48 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................8 2. Summary of Test Results .............................................................................................................................................9 3. Antenna Requirement ............................................................................................................................................... 10 3.1 Standard and Limit.............................................................................................................................................. 10 3.2 Test Result .......................................................................................................................................................... 10 4. Conducted Emissions ................................................................................................................................................ 11 4.1 Standard and Limit.............................................................................................................................................. 11 4.2 Test Procedure.................................................................................................................................................... 11 4.3 Test Data and Results .......................................................................................................................................... 12 5. Radiated Emissions ................................................................................................................................................... 15 5.1 Standard and Limit.............................................................................................................................................. 15 5.2 Test Procedure.................................................................................................................................................... 15 5.3 Test Data and Results .......................................................................................................................................... 17 6. Band-edge Emissions(Radiated) ............................................................................................................................... 21 6.1 Standard and Limit.............................................................................................................................................. 21 6.2 Test Procedure..........................................................................…

Text truncated - open the document above for the full version.

CCUT Testing & Certification Report No: SSP24070007-1E FCC Test Report Page 1 of 48 FCC TEST REPORT FCC ID: 2BGU9-YW09 Report No. : SSP24070007-1E Applicant : Dongguan Yanwei Electronic Technology Co., Ltd Product Name : Bluetooth headset Model Name : YW09 Test Standard : FCC Part 15.247 Date of Issue : 2024-07-03 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. CCUT Testing & Certification Report No: SSP24070007-1E FCC Test Report Page 2 of 48 Test Report Basic Information Applicant..................................: Dongguan Yanwei Electronic Technology Co., Ltd Address of Applicant...............: Room 14020, Building 2, No. 69 Fengqing Road, Fenggang Town, Dongguan City, Guangdong Province, China Manufacturer..........................: Dongguan Yanwei Electronic Technology Co., Ltd Address of Manufacturer........: Room 14020, Building 2, No. 69 Fengqing Road, Fenggang Town, Dongguan City, Guangdong Province, China Product Name.........................: Bluetooth headset Brand Name.............................: - Main Model..............................: YW09 Series Models..........................: YW01, YW02, YW03, YW04, YW05, YW06, YW07, YW08, YW10, YW11, YW12, YW13, YW14, YW15, YW16, YW17, YW18, YW19, YW20, YW21, YW22, YW23, YW24, YW25, YW26, YW27, YW28, TWS Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2013 Date of Test .............................: 2024-07-02 to 2024-07-03 Test Result...............................: PASS Tested By ................................: (Walker Wu) Reviewed By............................: (Lieber Ouyang) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. CCUT Testing & Certification Report No: SSP24070007-1E FCC Test Report Page 3 of 48 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................8 2. Summary of Test Results .............................................................................................................................................9 3. Antenna Requirement ............................................................................................................................................... 10 3.1 Standard and Limit.............................................................................................................................................. 10 3.2 Test Result .......................................................................................................................................................... 10 4. Conducted Emissions ................................................................................................................................................ 11 4.1 Standard and Limit.............................................................................................................................................. 11 4.2 Test Procedure.................................................................................................................................................... 11 4.3 Test Data and Results .......................................................................................................................................... 12 5. Radiated Emissions ................................................................................................................................................... 15 5.1 Standard and Limit.............................................................................................................................................. 15 5.2 Test Procedure.................................................................................................................................................... 15 5.3 Test Data and Results .......................................................................................................................................... 17 6. Band-edge Emissions(Radiated) ............................................................................................................................... 21 6.1 Standard and Limit.............................................................................................................................................. 21 6.2 Test Procedure..........................................................................…

Text truncated - open the document above for the full version.
