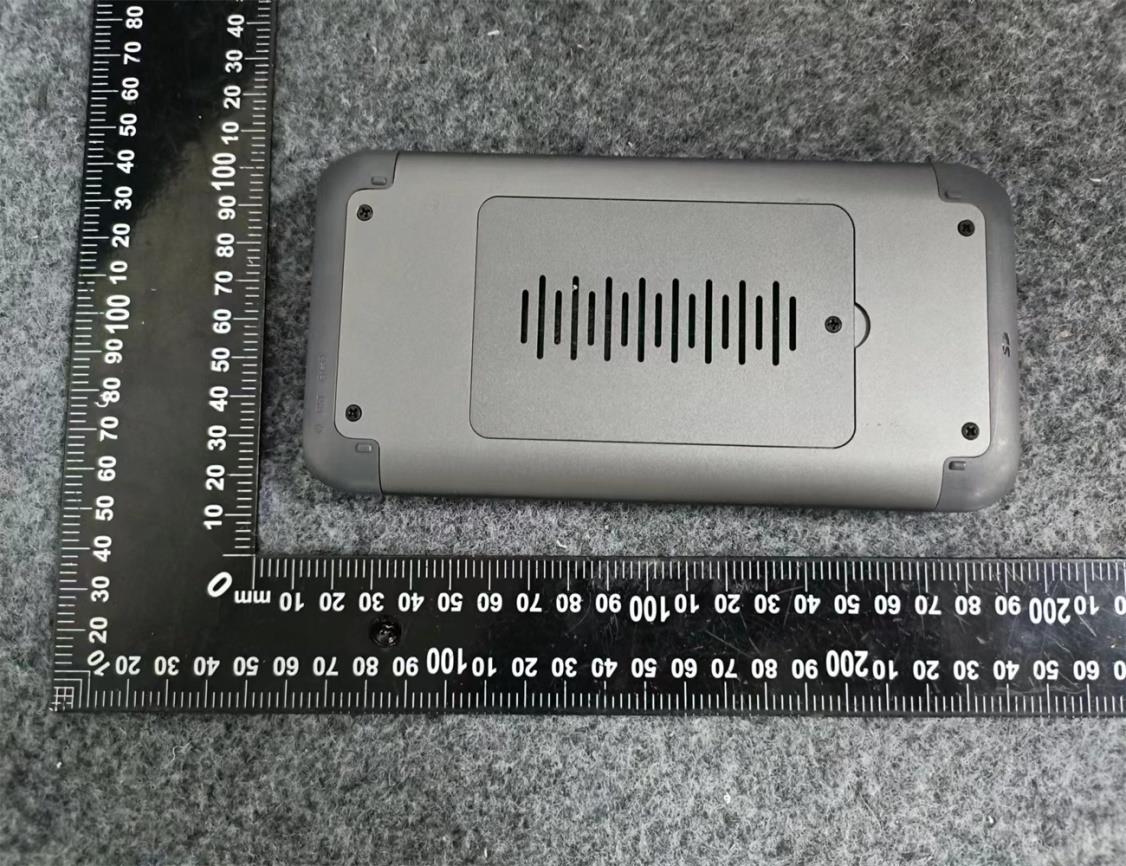

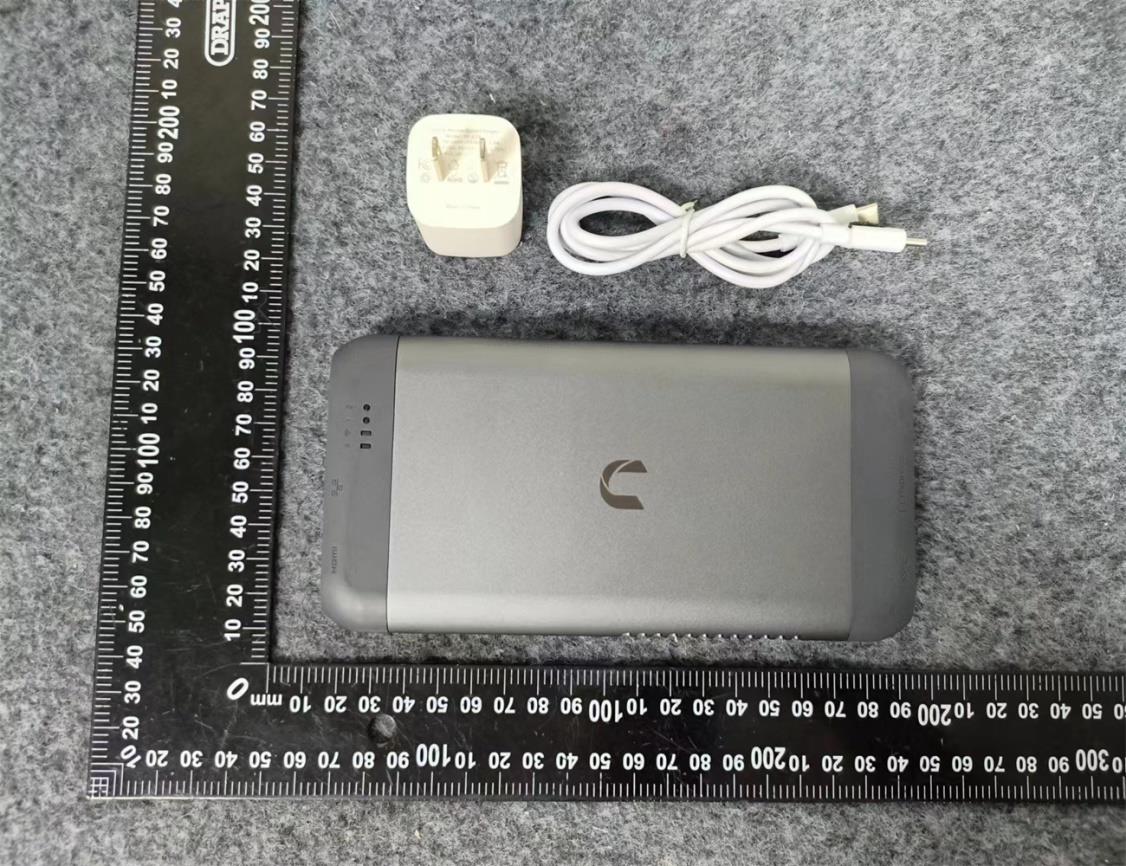

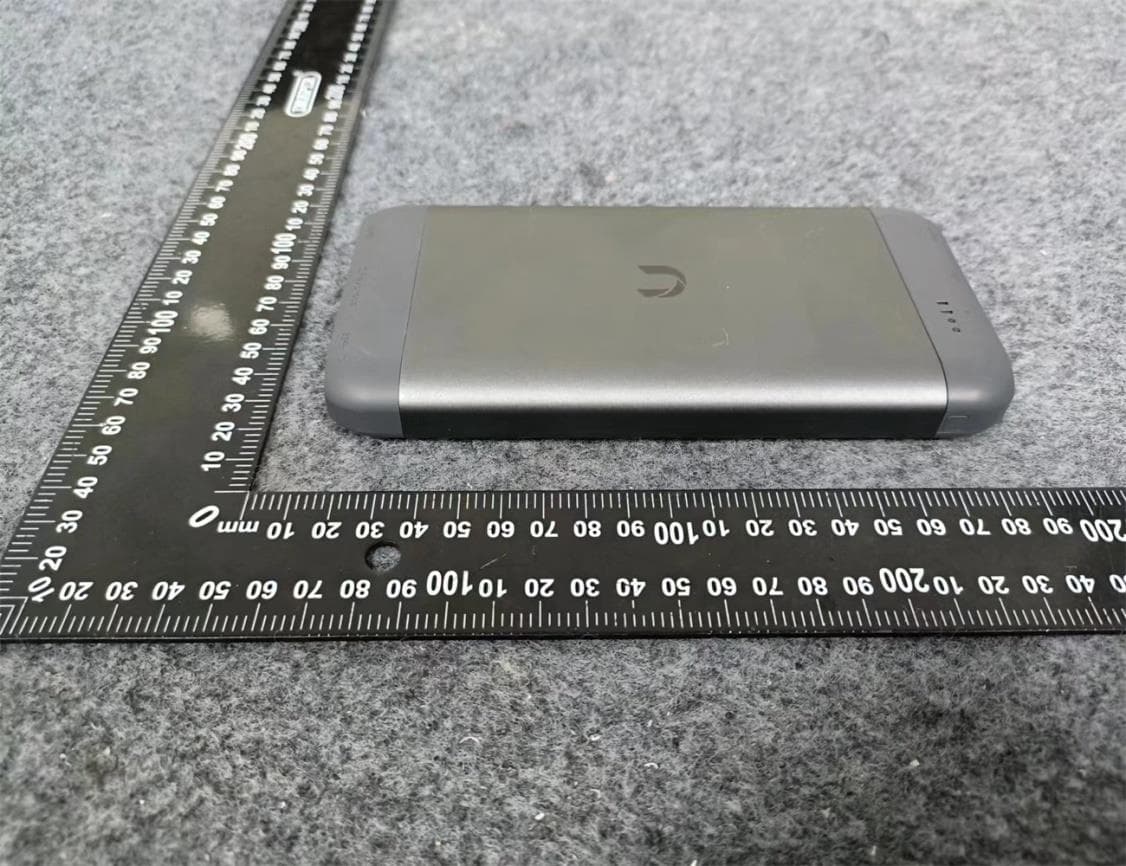

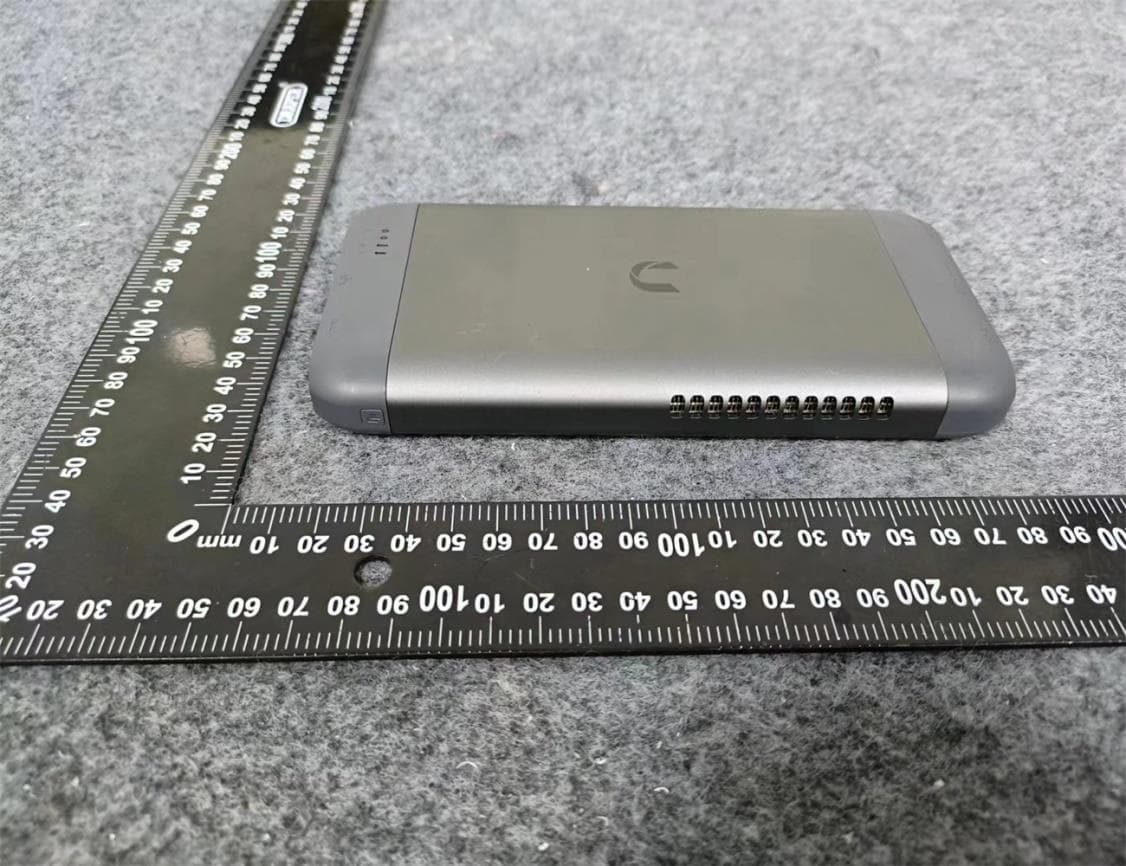

2BGV2UT2Desktop server with BT&WIFI

FCC STATEMENT Warning: Changes or modifications to this unit not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. For a Class B digital device or peripheral, the instructions furnished the user shall include the following orsimilar statement, placed in a prominent location in the text of the manual: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment should be installed and operated with aminumum distance of 20 cm between the radiator andyour body. The device has been evaluated to meet general RF exposure requirement.

Unify Data Technology LLC 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Unify Data Technology LLC Address: 1013 Centre Road, Suite 403S.2Wilmington, DE 19805, County of New Castle Product Name: Desktop server FCC ID: 2BGV2UT2 Model(s): UT2, UT2A, UT2 Pro, UT2C, UT2 Max 2.911(d)(5)(i) Equipment Type We, Unify Data Technology LLC (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Lizhigang Date: 2024-06-28 Title: Manager Company name: Unify Data Technology LLC NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Unify Data Technology LLC 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Unify Data Technology LLC Address: 1013 Centre Road, Suite 403S.2Wilmington, DE 19805, County of New Castle Product Name: Desktop server FCC ID: 2BGV2UT2 Model(s): UT2, UT2A, UT2 Pro, UT2C, UT2 Max 2.911(d)(5)(ii) Applicant filing We, Unify Data Technology LLC (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Lizhigang Date: 2024-06-28 Title: Manager Company name: Unify Data Technology LLC NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Unify Data Technology LLC U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: Jun-30-2024 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BGV2UT2 Unify Data Technology LLC(“the applicant”) certifies that, as of the date of the filing of the application, Unify Data Technology LLC(“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. Unify Data Technology LLC ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: Unify Data Technology LLC FRN: 0035542992 GC: 2BGV2 Address: 1013 Centre Road, Suite 403S.2Wilmington, DE 19805, County of New Castle Signature: Contact Person: Lizhigang Tel: +1 (424) 312-6295 Email: [email protected] Applicant Company Name: Unify Data Technology LLC Address: 1013 Centre Road, Suite 403S.2Wilmington, DE 19805, County of New Castle Signature: Contact Person: Lizhigang Tel: +1 (424) 312-6295 Email: [email protected]

Unify Data Technology LLC Letter of Authorization Company name: Unify Data Technology LLC Address: 1013 Centre Road, Suite 403S.2Wilmington, DE 19805, County of New Castle Product Name: Desktop server Product Name: Desktop server Model Number(s): UT2, UT2A, UT2 Pro, UT2C, UT2 Max We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2024-07-01 Name: Lizhigang Title: Manager Company: Unify Data Technology LLC

Difference Description We Unify Data Technology LLC state: Product name: Desktop server Model: UT2, UT2A, UT2 Pro, UT2C, UT2 Max There is no difference except the name of the model Signature: Signature: Date: 2024-07-01 Name: Lizhigang Title: Manager Company: Unify Data Technology LLC

Unify Data Technology LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2024-07-01 Subject; Request for Long Term Confidentiality FCC ID: 2BGV2UT2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram BOM Operational Description Tune-up Procedure SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Lizhigang Title: Manager

ANT1 BT&WIFI ANT2 WIFI

RF EXPOSURE EVALUATION EUT Specification EUT Desktop server Model Number UT2, UT2A, UT2 Pro, UT2C, UT2 Max FCC ID 2BGV2UT2 Antenna gain (Max) BT/BLE：0.14 2.4GWIFI： ANT1: 0.14dBi, ANT2: -0.08dBi 5GWIFI： ANT1: 0.26 dB, ANT2: 2.68dBi Operation Frequency BT/BLE:2402-2480MHz 2.4GWIFI:2412-2462MHz 5GWIFI: 802.11a/802.11ac20/802.11n(HT20)/802.11ax20: 5180-5240MHz, 5260-5320MHz, 5500-5700MHz, 5745-5825MHz 802.11ac40/802.11n(HT40)/802.11ax40: 5190-5230MHz, 5270- 5310MHz, 5510-5550MHz, 5755-5795MHz 802.11ac80/802.11ax80: 5210MHz, 5290MHz, 5530MHz 5775MHz Input Rating DC 3.85V from battery or DC 12V from adapter Test Requirement: According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) KDB Test Methodology: KDB 447498 D01v06 Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result Mode Frequency (MHz) Prediction distance (cm) RF output power(Max) (dBm) Tune-up power (Max) MPE (mW/cm 2 ) Limit (mW/cm 2 ) SAR Test Exclusion dBm W BT EDR 2402-2480 20 9.88 11 0.012589 0.002588 1 Yes BT LE 2402-2480 20 -4.00 -3 0.00050 0.000103 1 Yes 2.4G WIFI(ANT1) 2412-2462 20 8.95 10 0.01000 0.002056 1 Yes 2.4G WIFI(ANT2) 2412-2462 20 14.68 16 0.03981 0.007779 1 Yes 5G WIFI B1(ANT1) 5180-5240 20 14.90 15 0.03162 0.006683 1 Yes 5G WIFI B1(ANT2) 5180-5240 20 15.75 17 0.05012 0.018491 1 Yes 5G WIFI B2(ANT1) 5260-5320 20 15.00 16 0.039811 0.008413 1 Yes 5G WIFI B2(ANT2) 5260-5320 20 15.17 16 0.03981 0.014688 1 Yes 5G WIFI B3(ANT1) 5500-5700 20 17.15 18 0.06310 0.013334 1 Yes 5G WIFI B3(ANT2) 5500-5700 20 12.85 14 0.02512 0.009267 1 Yes 5G WIFI B4(ANT1) 5745-5825 20 16.21 17 0.05012 0.010591 1 Yes 5G WIFI B4(ANT2) 5745-5825 20 14.95 16 0.03981 0.014688 1 Yes BT Antenna Gain: max gain 0.14dBi, 1.03(numeric) 2.4G WiFi Antenna 1 Gain: max gain 0.14dBi, 1.03(numeric) 2.4G WiFi Antenna 2 Gain: max gain -0.08dBi, 0.98(numeric) 5G WIFI Antenna 1 Gain: max gain 0.26dBi, 1.06(numeric) 5G WIFI Antenna 2 Gain: max gain 2.68dBi, 1.85(numeric) Maximum Simultaneous transmission MPE Ratios for 2.4GWIFI+BT: Max MPE ratio WIFI Max MPE Ratio BT ∑MPE ratios Limit Result 0.007779 0.002588 0.010367 1 Pass MPE= Limit of Power Density (S) (mW/cm2)/ Limit of Power Density (S) (mW/cm2) ratios Maximum Simultaneous transmission MPE Ratios for WIFI MIMO+BT: Max MPE ratio WIFI Max MPE Ratio BT ∑MPE ratios Limit Result 0.010591+0.014688 0.002588 0.027867 1 Pass MPE= Limit of Power Density (S) (mW/cm2)/ Limit of Power Density (S) (mW/cm2) ratios Signature: Stone Tang Date: 2024-06-28

Page 1 / 83 TIRT-TRF/FCC01-2(E):2021A0 Product Name: Desktop server Report No: ITEZA2-202400184RF2 Product Model: UT2, UT2A, UT2 Pro, UT2C, UT2 Max Security Classification: Open Version: V1.0 Total Page: 78 TIRT Testing Report Prepared By: Checked By: Approved By: Aaron Long Stone Tang Joky Wang ITEZA2-202400184RF2 Page 2 / 83 TIRT-TRF/FCC01-2(E):2021A0 RF TEST REPORT FCC ID: 2BGV2UT2 According to 47 CFR FCC Part 15, Subpart C(Section 15.247) ANSI C63.10:2013 Applicant: Unify Data Technology LLC Address: 1013 Centre Road, Suite 403S.2Wilmington, DE 19805, County of New Castle Manufacturer: Beijing Zentreadi Intelligence Information Technology Co.,Ltd Address: Room1109, 10th Floor, Building A, No.2 Zhongguancun South Street, Haidian District, Beijing Sample No: 1000035553 Product Name: Desktop server Brand Name: N/A Model No.: UT2, UT2A, UT2 Pro, UT2C, UT2 Max Test No.: UT2 Date of Receipt: 2024/06/06 Date of Test: 2024/06/06~2024/06/27 Issued Date: 2024/06/30 Testing Lab: TIRT Note: This report shall not be reproduced except in full, without the written approval of Beijing TIRT Technology Service Co.,Ltd Shenzhen.Laboratory. This document may be altered or revised by Beijing TIRT Technology Service Co.,Ltd Shenzhen. Laboratory.Personnel only, and shall be noted in the revision section of the document. The test results of this report relate only to the tested sample identified in this report. ITEZA2-202400184RF2 Page 3 / 83 TIRT-TRF/FCC01-2(E):2021A0 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results ----------------------------------------------------------- 6 1.1. Description of Standards and Results ----------------------------------------------------- 6 2. General Information ---------------------------------------------------------------------------------- 7 2.1. Description of Device (EUT) ----------------------------------------------------------------- 7 2.2. Accessories of Device (EUT) ---------------------------------------------------------------- 8 2.3. Tested Supporting System Details --------------------------------------------------------- 8 2.4. Block Diagram of connection between EUT and simulators ------------------------- 8 2.5. Test Mode Description ------------------------------------------------------------------------- 8 2.6. Test Conditions ---------------------------------------------------------------------------------- 9 2.7. Test Facility --------------------------------------------------------------------------------------- 9 2.8. Measurement Uncertainty -------------------------------------------------------------------- 9 2.9. Test Equipment List--------------------------------------------------------------------------- 10 3. Maximum Peak Output power ------------------------------------------------------------------ 12 3.1. Limit ----------------------------------------------------------------------------------------------- 12 3.2. Test Procedure --------------------------------------------------------------------------------- 12 3.3. Test Result -------------------------------------------------------------------------------------- 12 4. Bandwidth --------------------------------------------------------------------------------------------- 18 4.1. Limit ----------------------------------------------------------------------------------------------- 18 4.2. Test Procedure --------------------------------------------------------------------------------- 18 4.3. Test Result -------------------------------------------------------------------------------------- 18 5. Carrier Frequency Separation ------------------------------------------------------------------ 30 5.1. Limit ----------------------------------------------------------------------------------------------- 30 5.2. Test Procedure --------------------------------------------------------------------------------- 30 5.3. Test Result -------------------------------------------------------------------------------------- 30 6. Number Of Hopping Channel ------------------------------------------------------------------- 32 6.1. Limit ----------------------------------------------------------------------------------------------- 32 6.2. Test Procedure --------------------------------------------------------------------------------- 32 6.3. Test Result -------------------------------------------------------------------------------------- 32 7. Dwell Time --------------------------------------------------------------------------------------------- 34 7.1. Test limit ----------------------------------------------------------------------------------------- 34 7.2. Test Procedure --------------------------------------------------------------------------------- 34 7.3. Test Result -------------------------------------------------------------------------------------- 34 8. Radiated emissions -------------------------------------------------------------------------------- 40 8.1. Limit ----------------------------------------------------------------------------------------------- 40 8.2. Block Diagram of Test setup --------------------------------------------------------------- 41 8.3. Test Procedure --------------------------------------------------------------------------------- 42 8.4. Test Result -------------------------------------------------------------------------------------- 42 9. Band Edge Compliance --------------------------------------------------------------------------- 56 9.1. Block Diagram of Test Setup --------------------------------------------------------------- 56 9.2. Limit ----------------------------------------------------------------------------------------------- 56 9.3. Test Procedure --------------------------------------------------------------------------------- 56 9.4. Test Result -------------------------------------------------------------------------------------- 56 10. Power Line Conducted Emissions ------------------------------------------------------------…

Text truncated - open the document above for the full version.

ITEZA2-202400184RF2 Page 44 / 83 TIRT-TRF/FCC01-2(E):2021A0 Horizontal: Remark: All modes have been tested, and only worst data of GFSK mode, Channel 2402MHz was listed in this report. ITEZA2-202400184RF2 Page 45 / 83 TIRT-TRF/FCC01-2(E):2021A0 From 1G-25GHz All modes had been tested, only show the worst mode GFSK Test Mode: GFSK TX Low Freq (MHz) Read Level (dBuV/m) Polar (H/V) Antenna Factor (dB/m) Cable loss(dB) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Remark 4804 54.31 V 33.93 10.18 34.26 64.16 74 -9.84 PK 4804 36.79 V 33.93 10.18 34.26 46.64 54 -7.36 AV 7206 / / / / / / / / / 9608 / / / / / / / / / 4804 54.86 H 33.93 10.18 34.26 64.71 74 -9.29 PK 4804 37.35 H 33.93 10.18 34.26 47.20 54 -6.80 AV 7206 / / / / / / / / / 9608 / / / / / / / / / Test Mode: GFSK TX Mid 4882 54.01 V 33.95 10.2 34.97 63.19 74 -10.81 PK 4882 37.58 V 33.95 10.2 34.97 46.76 54 -7.24 AV 7323 / / / / / / / / / 9764 / / / / / / / / / 4882 53.47 H 33.95 10.2 34.97 62.65 74 -11.35 PK 4882 39.01 H 33.95 10.2 34.97 48.19 54 -5.81 AV 7323 / / / / / / / / / 9764 / / / / / / / / / Test Mode: GFSK TX High 4960 53.62 V 33.98 10.22 34.25 63.57 74 -10.43 PK 4960 37.28 V 33.98 10.22 34.25 47.23 54 -6.77 AV 7440 / / / / / / / / / 9920 / / / / / / / / / 4960 54.75 H 33.98 10.22 34.25 64.70 74 -9.30 PK 4960 37.12 H 33.98 10.22 34.25 47.07 54 -6.93 AV 7440 / / / / / / / / / 9920 / / / / / / / / / Note: 1, Result = Read level + Antenna factor + cable loss-Amp factor 2, All the other emissions not reported were too low to read and deemed to comply with FCC limit. ITEZA2-202400184RF2 Page 46 / 83 TIRT-TRF/FCC01-2(E):2021A0 Conducted Method TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~1000 9.52 -60.24 ≤-10.48 PASS 1000~26500 9.52 -45.19 ≤-10.48 PASS 2441 30~1000 8.36 -59.77 ≤-11.64 PASS 1000~26500 8.36 -45.72 ≤-11.64 PASS 2480 30~1000 6.42 -59.84 ≤-13.58 PASS 1000~26500 6.42 -46.28 ≤-13.58 PASS 2DH5 Ant1 2402 30~1000 8.91 -58.46 ≤-11.09 PASS 1000~26500 8.91 -45.13 ≤-11.09 PASS 2441 30~1000 7.27 -59.81 ≤-12.73 PASS 1000~26500 7.27 -46.31 ≤-12.73 PASS 2480 30~1000 5.57 -59.38 ≤-14.43 PASS 1000~26500 5.57 -45.78 ≤-14.43 PASS 3DH5 Ant1 2402 30~1000 8.81 -58.86 ≤-11.19 PASS 1000~26500 8.81 -46.01 ≤-11.19 PASS 2441 30~1000 7.15 -59.86 ≤-12.85 PASS 1000~26500 7.15 -45.61 ≤-12.85 PASS 2480 30~1000 5.20 -60.24 ≤-14.8 PASS 1000~26500 5.20 -46.07 ≤-14.8 PASS DH5_Ant1_2402_30~1000 ITEZA2-202400184RF2 Page 47 / 83 TIRT-TRF/FCC01-2(E):2021A0 DH5_Ant1_2402_1000~26500 DH5_Ant1_2441_30~1000 ITEZA2-202400184RF2 Page 48 / 83 TIRT-TRF/FCC01-2(E):2021A0 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_30~1000 ITEZA2-202400184RF2 Page 49 / 83 TIRT-TRF/FCC01-2(E):2021A0 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_30~1000 ITEZA2-202400184RF2 Page 50 / 83 TIRT-TRF/FCC01-2(E):2021A0 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_30~1000 ITEZA2-202400184RF2 Page 51 / 83 TIRT-TRF/FCC01-2(E):2021A0 2DH5_Ant1_2441_1000~26500 2DH5_Ant1_2480_30~1000 ITEZA2-202400184RF2 Page 52 / 83 TIRT-TRF/FCC01-2(E):2021A0 2DH5_Ant1_2480_1000~26500 3DH5_Ant1_2402_30~1000 ITEZA2-202400184RF2 Page 53 / 83 TIRT-TRF/FCC01-2(E):2021A0 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_30~1000 ITEZA2-202400184RF2 Page 54 / 83 TIRT-TRF/FCC01-2(E):2021A0 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_30~1000 ITEZA2-202400184RF2 Page 55 / 83 TIRT-TRF/FCC01-2(E):2021A0 3DH5_Ant1_2480_1000~26500 ITEZA2-202400184RF2 Page 56 / 83 TIRT-TRF/FCC01-2(E):2021A0 9. BAND EDGE COMPLIANCE 9.1. Block Diagram of Test Setup 9.2. Limit All the lower and upper band-edges emissions appearing within restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 9.3. Test Procedure All restriction band and non- restriction band have been tested ，only worse case is reported. 9.4. Test Result PASS. (See below detailed test data) ITEZA2-202400184RF2 Page 57 / 83 TIRT-TRF/FCC01-2(E):2021A0 Test Results PASS Frequency Range 2310MHz~2410MHz Test Mode GFSK TX 2402MHz N o. Freq MHz Polarity Reading (dBuV/m) Correct Factor Result (dBuV/m) Limit (dBuV/m) Margin Remark 1 2390 H 74.35 -21.47 52.88 74.00 -21.12 Peak 2 2390 H -- -21.47 -- 54.00 -- Avg 3 2400 H 74.35 -26.12 48.23 74.00 -25.77 Peak 4 2400 H -- -26.12 -- 54.00 -- Avg 1 2390 V 73.98 -21.47 52.51 74.00 -21.49 Peak 2 2390 V -- -21.47 -- 54.00 -- Avg 3 2400 V 74.01 -26.12 47.89 74.00 -26.11 Peak 4 2400 V -- -26.12 -- 54.00 -- Avg Test Results PASS Frequency Range 2450MHz~2550MHz Test Mode GFSK TX 2480MHz 1 2483.5 H 77.25 -25.29 51.96 74.00 -22.04 Peak 2 2483.5 H -- -25.29 -- 54.00 -- Avg 1 2483.5 V 76.01 -25.29 50.72 74.00 -23.28 Peak 2 2483.5 V -- -25.29 -- 54.00 -- Avg Note: 1. Means other frequency and mode comply with standard requirements and at least have 20dB margin. 2. Correct Factor=Cable Loss+ Antenna Factor-Amplifier Gain. Result=Reading + Correct Factor. Margin= Result-Limit. 3. If the limits for the measurement with the average detector are met when using a receiver with a peak detector, the test unit shall be deemed to meet both limits and the measurement with the average detector need not be carried out. ITEZA2-202400184RF2 Page 58 / 83 TIRT-TRF/FCC01-2(E):2021A0 Test Results PASS Frequency Range 2310MHz~2410MHz Test Mode π/4 DQPSK TX 2402MHz N o. Freq MHz Polarity Reading (dBuV/m) Correct Factor Result (dBuV/m) Limit (dBuV/m) Margin Remark 1 2390 H 72.98 -21.47 51.51 74.00 -22.49 Peak 2 2390 H -- -21.47 -- 54.00 -- Avg 3 2400 H 73.01 -26.12 46.89 74.00 -27.11 Peak 4 2400 H -- -26.12 -- 54.00 -- Avg 1 2390 V 73.12 -21.47 51.65 74.00 -22.35 Peak 2 2390 V -- -21.47 -- 54.00 -- Avg 3 2400 V 74.05 -26.12 47.93 74.00 -26.07 Peak 4 2400 V -- -26.12 -- 54.00 -- Avg Test Results PASS Frequency Range 2450MHz~2550MHz Test Mode π/4 DQPSK TX 2480MHz 1 2483.5 H 75.62 -25.29 50.33 74.00 -23.67 Peak 2 2483.5 H -- -25.29 -- 54.00 -- Avg 1 2483.5 V 76.31 -25.29 51.02 74.00 -22.98 Peak 2…

Text truncated - open the document above for the full version.

AC Power Line Conducted Emissions Test Photos Radiated Emissions Test Photos 30 MHz to 1 GHz Radiated Emissions Test Photos Above 1 GHz Conducted Test Photos DFS
