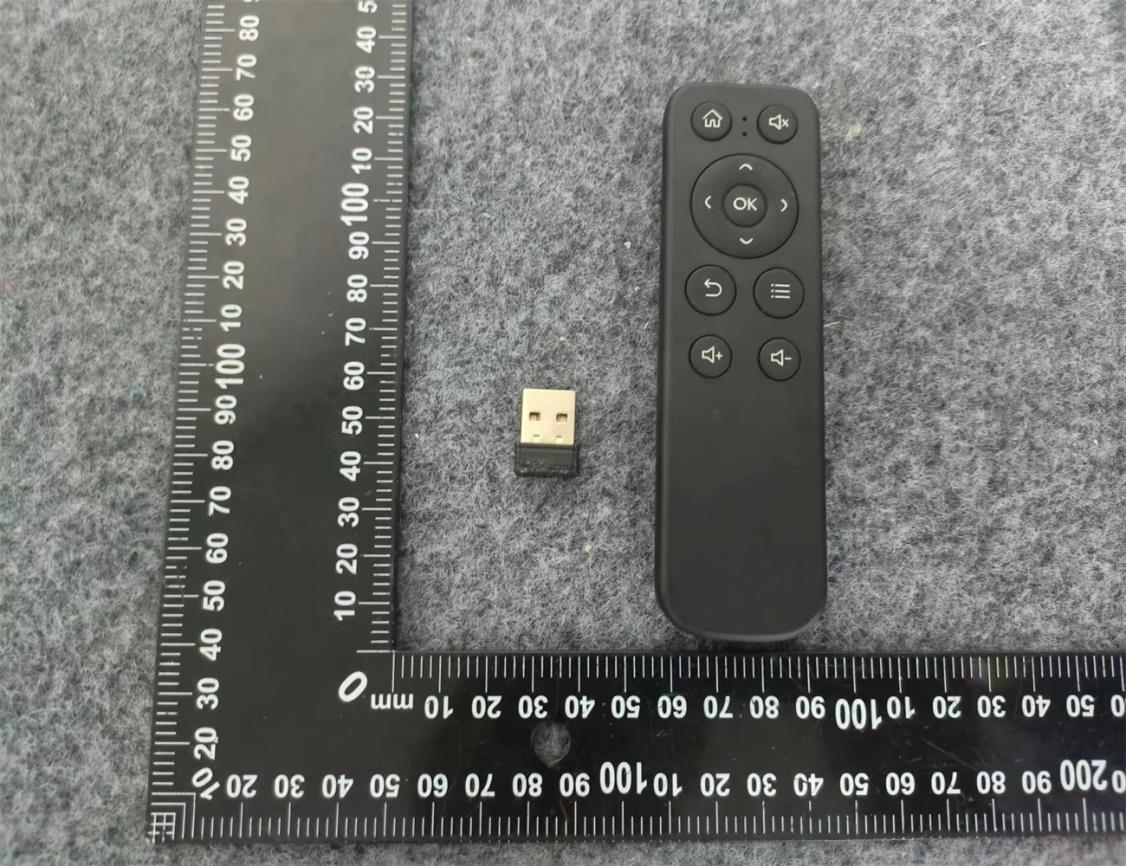

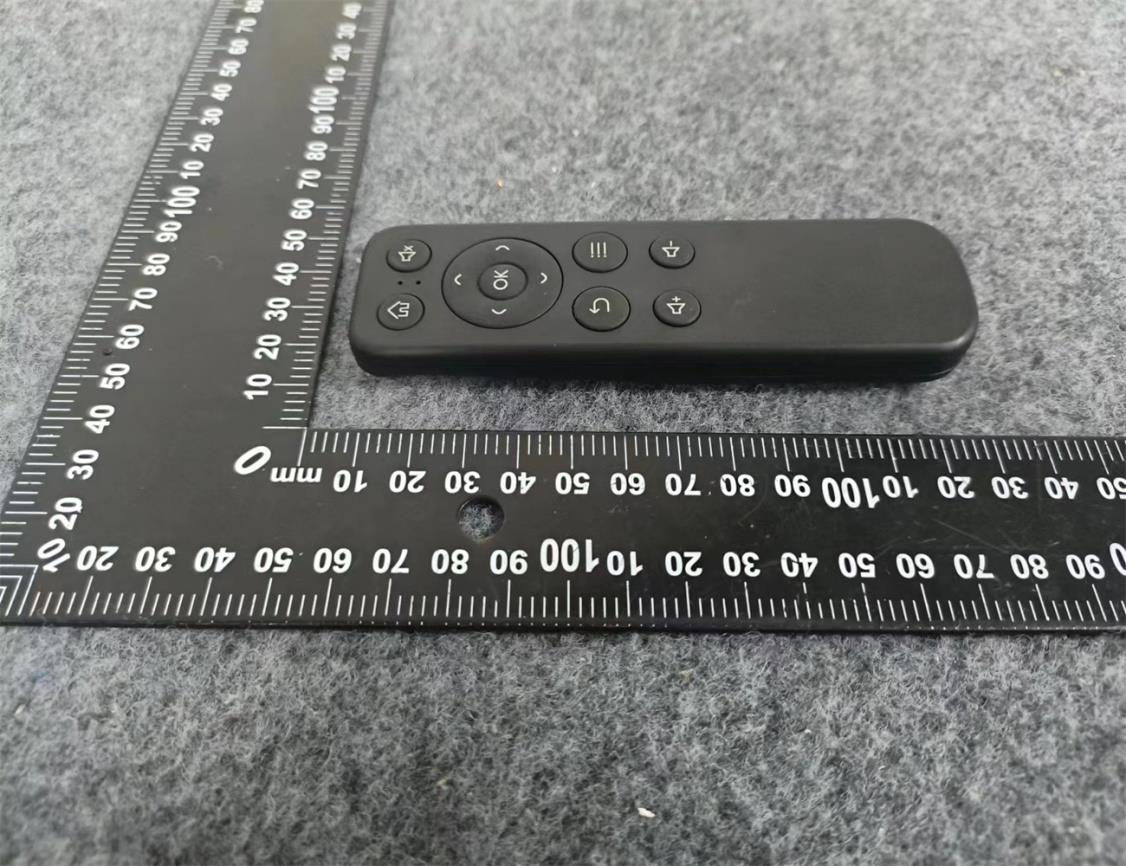

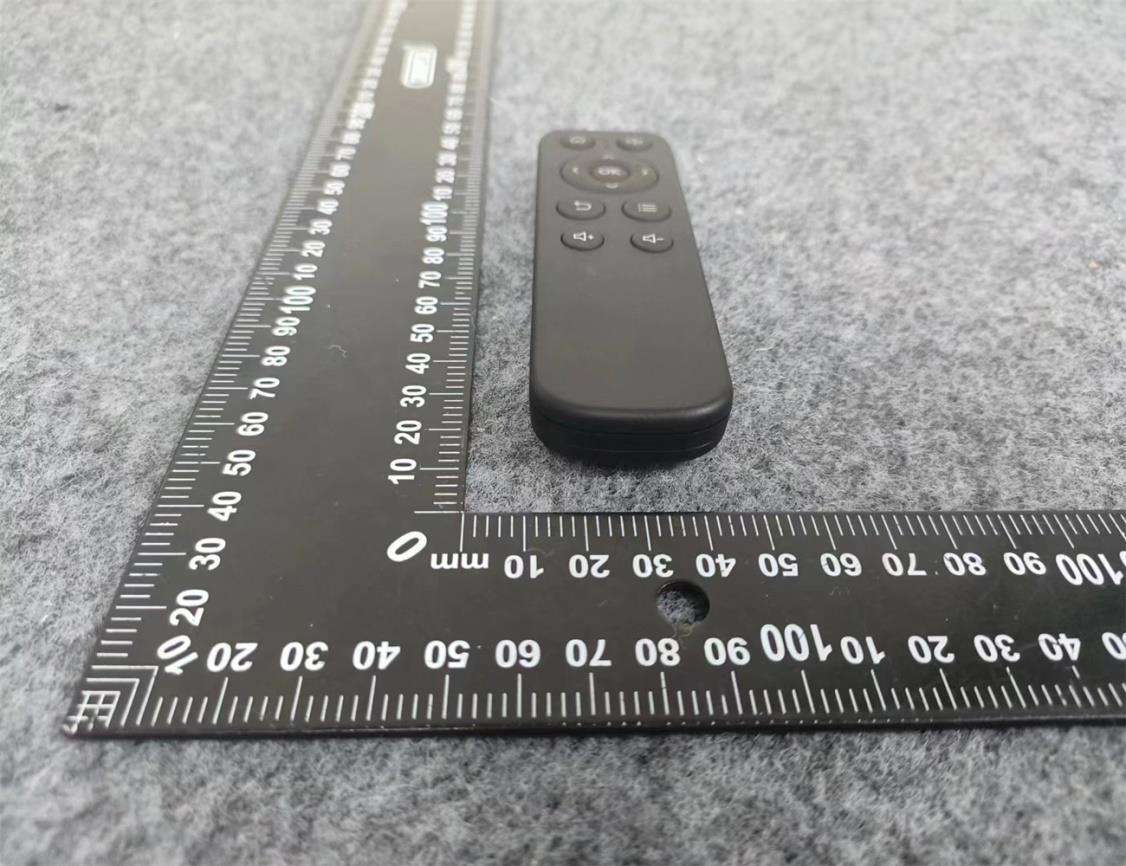

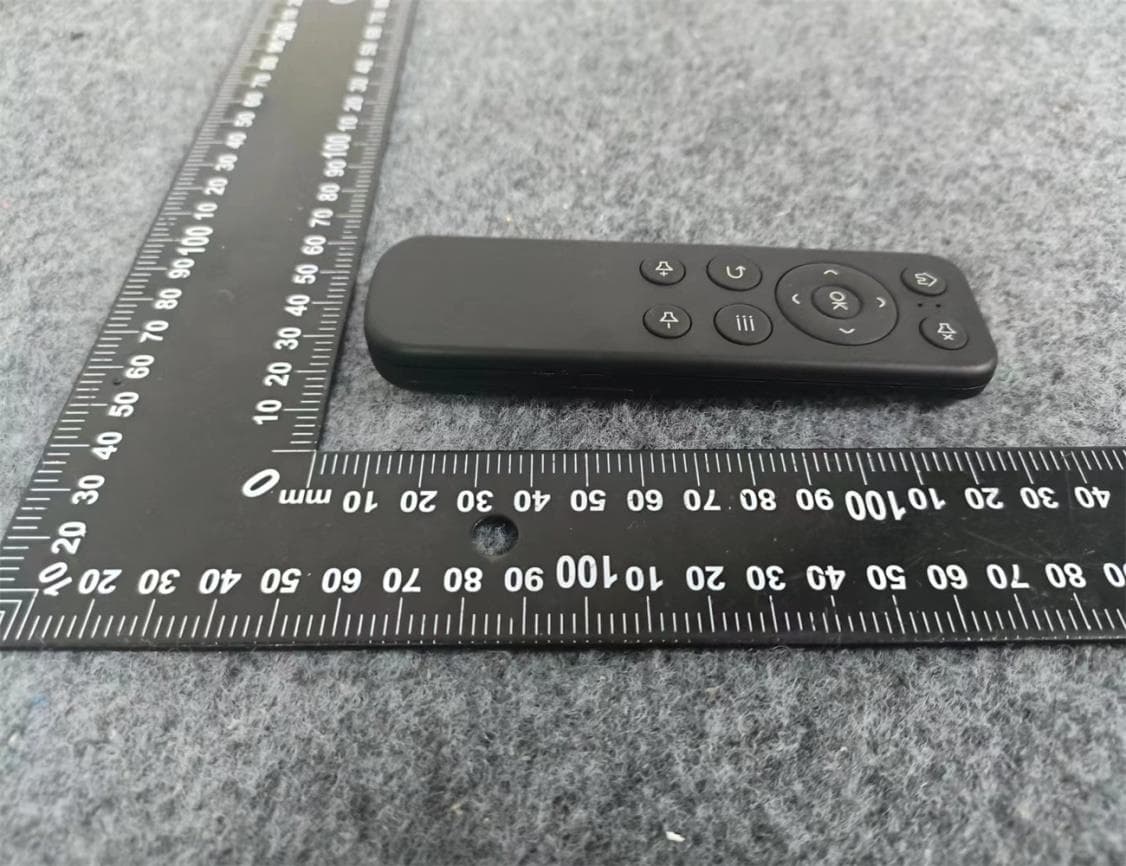

2BGV2ZRC-BU-11BT remote

Ver2.0 ZRC-BU-11 BT remote User Manual Product profile Outside view drawing: Ver2.0 PCB graph: 160*144.6/10,FR-4/1.0mm Green and white word OSP, plus printing Electrical schematic diagram Ver2.0 1. Bluetooth button function 2. 2.4G button function Key key value order number key Key function The HID key value code table explain Usage Page Usage ID 1 HOME 07 102 2 MUTE 07 89 3 OK 07 40 4 UP 07 82 5 DOWN 07 81 6 LEFT 07 80 7 RIGHT 07 79 8 BACK 07 127 9 MENU 07 74 10 VOL+ 07 118 11 VOL- 07 128 Functional operation instructions  USB receiving terminal .1.T2 + USB receiver is defined as a standard HID device, plug and play, receives transmitter signals and data, and supports Windows, Android and iOS systems  2.4G linkage .1 After power up, hold the OK and Home keys of the remote control, and the LED light flashes slowly into 2.4G connection mode for 30 seconds. .2 The 2.4G connection —— is inserted into the USB receiving end to power up and wait for about 3 seconds. Ver2.0 If the LED light goes off, the 2.4G connection is successful.  bluetooth connection .1 After power up, hold the OK and Home keys of the remote control, and the LED lights flash into Bluetooth pairing mode and last for 30 seconds. .2 After Bluetooth connection ——, press the "OK" key and "Home" key of the remote control. At this time, the LED lights flash slowly into Bluetooth pairing mode and last for 30 seconds. Then search the Bluetooth device name is "T2_remote_RC001" connection. If the LED light is off, the Bluetooth pairing is successful.  LED light instructions .1 2.4G is not connected or Bluetooth is not connected, LED light press on, long on time. .2 2.4G connection or Bluetooth connection state, LED light press once bright, long press often bright.  Sleep mode .1 2.4G connection or Bluetooth connection for 1 hour without remote control will automatically enter the sleep mode. At this time, press any button to wake up the remote control. .2 2.4G Without connection or Bluetooth connection for 10 seconds, press any key to wake up the remote control. Function: 1. The Bluetooth mode remote control is 10M, responds 20ms, immediately enters the low power mode with no operation, Bluetooth keeps connected, goes into hibernation one hour later, press any key to wake up, and the wake up connection response (reconnection) time is <2s. 2. The 2.4G mode remote control is 10M away, response 20ms, no operation immediately enters the low power mode, 2.4G keep connected, sleep an hour later, wake up according to any key, wake up the connection response (connection) time <2s. 3. The remote control power consumption can be used continuously for at least 6 months. Ver2.0 Electrical parameters receiving terminal working temperature -40~85°C Storage temperature -40~90°C working voltage 2.2~4.5V service frequency 2400~2480MHZ telecontroller working temperature -40~85°C Storage temperature -40~90°C working voltage 2.2~4.5V Dynamic current (Bluetooth) The average current of short press was <7 mA Long press key average current <7 mA Dynamic current (2.4G) The average current of short press was <7 mA Long press key average current <7 mA Static current (low power consumption) Bluetooth connection to 200 uA Bluetooth disconnect to 2 uA 2.4G linkage ≤500uA 2.4G to disconnect from 2 uA 2.4G and Bluetooth working frequency 2400~2480MHZ Ver2.0 FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. For a Class B digital device or peripheral, the instructions furnished the user shall include the following orsimilar statement, placed in a prominent location in the text of the manual: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement.

Unify Data Technology LLC 6/19/2024 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BGV2ZRC-BU-11 Unify Data Technology LLC (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Yours sincerely, Signature: June 19, 2024 Name: Lizhigang Position: Manager Company Name: Unify Data Technology LLC Address: 1013 Centre Road, Suite 403S.2Wilmington, DE 19805, County of New Castle Tel: +1 (424) 312-6295 Fax: / Email: [email protected] Unify Data Technology LLC 6/19/2024 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BGV2ZRC-BU-11 Unify Data Technology LLC (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Yours sincerely, Signature: June 19, 2024 Name: Lizhigang Position: Manager Company Name: Unify Data Technology LLC Address: 1013 Centre Road, Suite 403S.2Wilmington, DE 19805, County of New Castle Tel: +1 (424) 312-6295 Fax: / Email: [email protected]

Unify Data Technology LLC U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: Jun-14-2024 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BGV2ZRC-BU-11 Unify Data Technology LLC(“the applicant”) certifies that, as of the date of the filing of the application, Unify Data Technology LLC(“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. Unify Data Technology LLC ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: Unify Data Technology LLC FRN: 0035542992 GC: 2BGV2 Address: 1013 Centre Road, Suite 403S.2Wilmington, DE 19805, County of New Castle Signature: Contact Person: Lizhigang Tel: +1 (424) 312-6295 Email: [email protected] Applicant Company Name: Unify Data Technology LLC Address: 1013 Centre Road, Suite 403S.2Wilmington, DE 19805, County of New Castle Signature: Contact Person: Lizhigang Tel: +1 (424) 312-6295 Email: [email protected]

Unify Data Technology LLC 6/14/2024 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product Name: BT remote FCC ID: 2BGV2ZRC-BU-11 Model(s): ZRC-BU-11 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Schematic Diagram, Block Diagram, Operational Description) required to be submitted with this application be permanently withheld from public review. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market Please contact me if there is any information you may need. Yours sincerely, Signature: June 14, 2024 Name: Lizhigang Position: Manager Company Name: Unify Data Technology LLC Address: 1013 Centre Road, Suite 403S.2Wilmington, DE 19805, County of New Castle Tel: +1 (424) 312-6295 Fax: / Email: [email protected]

Unify Data Technology LLC 6/14/2024 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Beijing TIRT Technology Service Co.,Ltd Shenzhen) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This agreement expires one year from the current date. Yours sincerely, Signature: June 14, 2024 Name: Lizhigang Position: Manager Company Name: Unify Data Technology LLC Address: 1013 Centre Road, Suite 403S.2Wilmington, DE 19805, County of New Castle Tel: +1 (424) 312-6295 Fax: / Email: [email protected]

ANT

RF EXPOSURE EVALUATION EUT Specification EUT BT remote Model Number ZRC-BU-11 FCC ID 2BGV2ZRC-BU-11 Antenna gain(Max) 2.499dBi Operation Frequency 2402-2480MHz Input Rating DC 3V from battery（2*AAA battery） Classification Per Stipulated Test Standard §15.247(i), §2.1093 Modulation GFSK Max.outputpower -2.72dBm (0.000535W) TestRequirement: According to §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guide lines. Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters without put power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. One antenna is available for the EUT. The minimum separation distance is 5mm. BLE DTS: According to KDB 447498, no stand-alone required for BT antenna, and no simultaneous SAR measurement is required. Signature: Stone Tang Date: 2024- 06-14 Transmit Frequency (MHz) Bit Rate of Transmitter Mode Measured Power (dBm) Tune up Power (dBm) Max tune up power(dBm) Calculation Result 1-g SAR 2402 1Mbps GFSK -2.72 -3±1 -2 1.549838701 3 2440 1Mbps GFSK -2.96 -3±1 -2 1.549838701 3 2480 1Mbps GFSK -4.11 -4±1 -3 1.549838701 3 2402 2Mbps GFSK -2.81 -3±1 -2 1.549838701 3 2440 2Mbps GFSK -2.73 -3±1 -2 1.549838701 3 2480 2Mbps GFSK -4.01 -4±1 -3 1.549838701 3

Product Name: BT remote Report No:ITEZA2-202400154RF Product Model: ZRC-BU-11 Security Classification: Open Version: V1.0 Total Page:60 TIRT Testing Report Prepared By: Checked By: Approved By: Aaron Long Stone Tang Joky Wang Report No.:ITEZA2-202400154RF Page 2 of 60 FCC Radio Test Report FCC ID: 2BGV2ZRC-BU-11 According to 47 CFR FCC Part 15, Subpart C(Section 15.247) ANSI C63.10:2013 Applicant: Unify Data Technology LLC Address: 1013 Centre Road, Suite 403S.2Wilmington, DE 19805, County of New Castle Manufacturer: Unify Data Technology LLC Address: 1013 Centre Road, Suite 403S.2Wilmington, DE 19805, County of New Castle Sample No: 1000035553 Product Name: BT remote Brand Name: N/A Model No.: ZRC-BU-11 Test No.: ZRC-BU-11 Date of Receipt: 2024/05/27 Date of Test: 2024/05/27~2024/06/11 Issued Date: 2024/06/14 Testing Lab: TIRT Note: This report shall not be reproduced except in full, without the written approval of Beijing TIRT Technology Service Co.,Ltd Shenzhen.Laboratory. This document may be altered or revised by Beijing TIRT Technology Service Co.,Ltd Shenzhen. Laboratory.Personnel only, and shall be noted in the revision section of the document. The test results of this report relate only to the tested sample identified in this report. Report No.:ITEZA2-202400154RF Page 3 of 60 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4. ACCESSORIES OF DEVICE (EUT) 12 2.5 BLOCKDIAGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED 12 2.6 SUPPORT UNITS 12 3 .AC POWER LINE CONDUCTED EMISSIONS 13 3.1 LIMIT 13 3.2 TEST PROCEDURE 13 3.3 DEVIATIONFROMTESTSTANDARD 13 3.4 TESTSETUP 14 3.5 EUT OPERATING CONDITIONS 14 3.6 TEST RESULTS 14 4 . RADIATED EMISSIONS 15 4.1 LIMIT 15 4.2 TEST PROCEDURE 16 4.3 DEVIATIONFROMTESTSTANDARD 17 4.4 TESTSETUP 17 4.5 EUT OPERATING CONDITIONS 19 4.6 TEST RESULT- 9KHZ TO 30MHZ 19 4.7 TEST RESULT- 30MHZ TO 1000MHZ 19 4.8 TEST RESULT- ABOVE 1000MHZ 19 5 .BANDWIDTH 20 5.1 LIMIT 20 5.2 TEST PROCEDURE 20 5.3 DEVIATION FROM STANDARD 20 5.4 TEST SETUP 20 5.5 EUT OPERATION CONDITIONS 20 Report No.:ITEZA2-202400154RF Page 4 of 60 Table of Contents Page 5.6 TESTRESULTS 20 6 .MAXIMUM OUTPUT POWER 21 6.1 LIMIT 21 6.2 TEST PROCEDURE 21 6.3 DEVIATION FROM STANDARD 21 6.4 TEST SETUP 21 6.5 EUT OPERATION CONDITIONS 21 6.6 TESTRESULTS 21 7 .CONDUCTED SPURIOUS EMISSION 22 7.1 LIMIT 22 7.2 TEST PROCEDURE 22 7.3 DEVIATION FROM STANDARD 22 7.4 TEST SETUP 22 7.5 EUT OPERATION CONDITIONS 22 7.6 TEST RESULTS 22 8 .POWER SPECTRAL DENSITY 23 8.1 LIMIT 23 8.2 TEST PROCEDURE 23 8.3 DEVIATION FROM STANDARD 23 8.4 TEST SETUP 23 8.5 EUT OPERATION CONDITIONS 23 8.6 TEST RESULTS 23 9. ANTENNA REQUIREMENT 24 9.1STANDARD REQUIREMENT 24 9.2ANTENNA CONNECTED CONSTRUCTION 24 9.3RESULTS 24 10. MEASUREMENT INSTRUMENTS LIST 25 11. PHOTOS OF TEST SETUP 26 12. PHOTOS OF EUT 28 APPENDIX A - RADIATED EMISSION -9 KHZ TO 30 MHZ 33 APPENDIX B - RADIATED EMISSION-30 MHZ TO 1000 MHZ 34 APPENDIX C - RADIATED EMISSION - ABOVE 1000 MHZ 36 APPENDIX D- BANDWIDTH 38 Report No.:ITEZA2-202400154RF Page 5 of 60 Table of Contents Page APPENDIX E - MAXIMUM OUTPUT POWER 44 APPENDIX F - CONDUCTED SPURIOUS EMISSION 47 APPENDIX G- POWER SPECTRAL DENSITY 58 Report No.:ITEZA2-202400154RF Page 6 of 60 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note ITEZA2-202400154RF V1.0 Original Report. 2024.06.14 Valid Report No.:ITEZA2-202400154RF Page 7 of 60 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A N/A ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious Emission APPENDIX G PASS ------ 15.247(e) Power Spectral Density APPENDIX H PASS ------ 15.203 Antenna Requirement ------ PASS Note(2) Note: (1) “N/A” denotes test is not applicable to this device. (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. Report No.:ITEZA2-202400154RF Page 8 of 60 1.1 TEST FACILITY Company: Beijing TIRT Technology Service Co.,Ltd Shenzhen Address: 104 Building C, Xinmingsheng Industrial Park No.132, Zhangge Old Village East Zone, Zhangge Community, Fucheng Street, Longhua District, Shenzhen, Guangdong, P. R. China CNAS Registration Number: CNAS L14158 A2LA Registration Number: 6049.01 FCC Accredited Lab.Designation Number: CN1366 FCC Test Firm Registration Number: 820690 Telephone: +86-0755-27087573 1.2 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)) The BTL measurement uncertainty as below table: Uncertainty Parameter Uncertainty Occupied Channel Bandwidth ±142.12 KHz RF power conducted ±0.74 dB RF power radiated ±3.25dB Spurious emissions, conducted ±1.78dB Spurious emissions, radiated (30MHz～1GHz) ±4.6dB Spurious emissions, radiated (1GHz ~ 18GHz) ±4.9dB Conduction Emissions(150kHz~30MHz) ±3.1 dB Humidity ±4.6% Temprature ±0.7°C Time ±1.25% Note: Unless specifically mentioned, the uncertainty of measurement has not been taken into account to declare the compliance or non-compliance to the specification. Report No.:ITEZA2-202400154RF Page 9 of 60 1.3 TEST ENVIRONMENT CONDITIONS Test Item Temperature Humidity Test Voltage Tested By AC Power Line Conducted Emissions N/A N/A N/A N/A Radiated Emissions-9 kHz to 30 MHz 24°C 50% DC 3.0V from battery Aaron Long Ra…

Text truncated - open the document above for the full version.

ZRC-BU-11AntennaSpec Productspecification SPECIFICATIONS Frequency（MHz）2400-2480 PeakGain（dBi）2.499 AverageGain（dBi）＞-4 VSWR＜3.2 Impedance（Ω）50Ω AntennaTypePlannarInvertedFAntennaonboard PolarizationLinear TestEnvironment:CSIGTDarkRoomTestSystem X AntennaLayout&moduleonthesystemboard PassiveS-parametersofantennas:VoltageStandingWaveRatio(VSWR), ReturnLoss,andSmithChart. AntennaEfficiencyandGain Frequency（MHz）Gain（dBi）Effciency（%）AverageGain（dBi）Efficiency（dB） 24001.43359.329%-2.717-2.267 24100.92751.861%-3.416-2.852 24200.82952.112%-3.166-2.831 24300.88149.299%-3.258-3.072 24401.19250.672%-3.144-2.952 24501.68853.067%-2.735-2.752 24602.19459.423%-2.276-2.260 24702.11856.680%-2.438-2.466 24802.49961.727%-2.112-2.095 Average1.52954.908%-2.806-2.616 Peak2.49961.727%-2.112-2.095 2440MHz2D-ThetaPattern 2440MHz2D-PhiPattern 2440MHz3D-HorizontalPattern 2440MHz3D-VerticalPattern 2440MHz3D-TotalPattern

Radiated Emissions Test Photos 30 MHz to 1 GHz Radiated Emissions Test Photos Above 1 GHz Conducted Test Photos
