2BGX5-Q23PROBluetooth watch

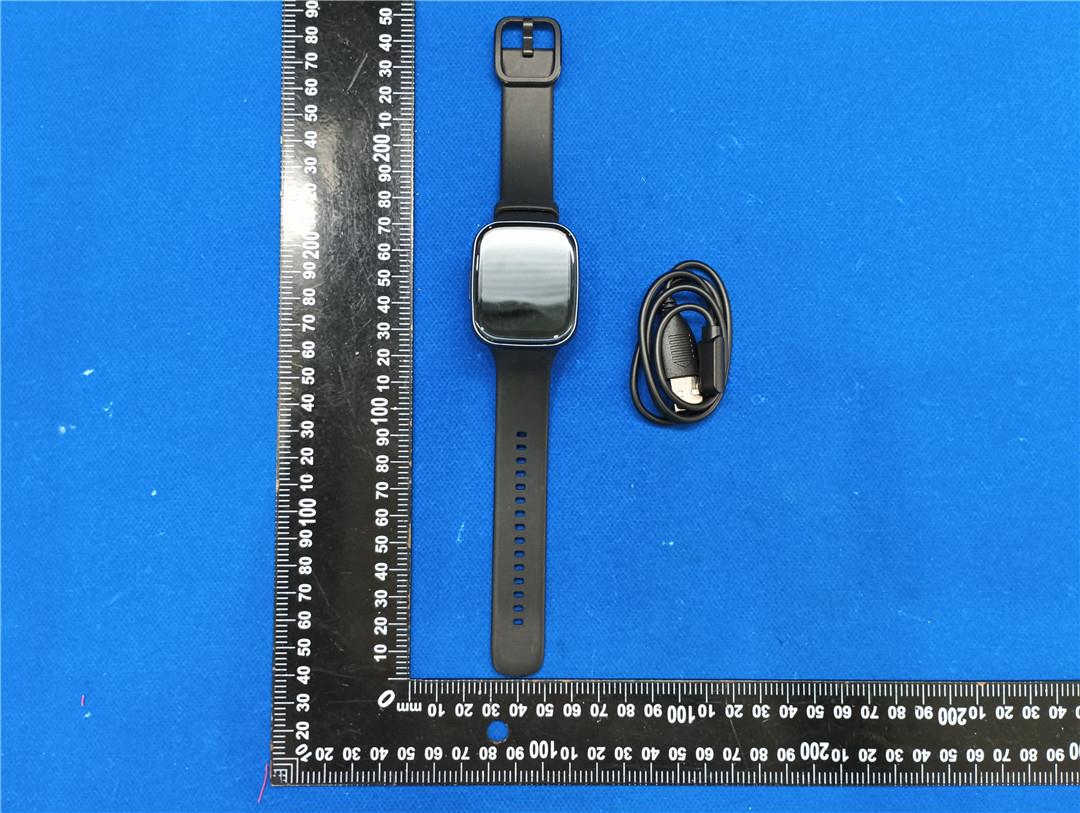

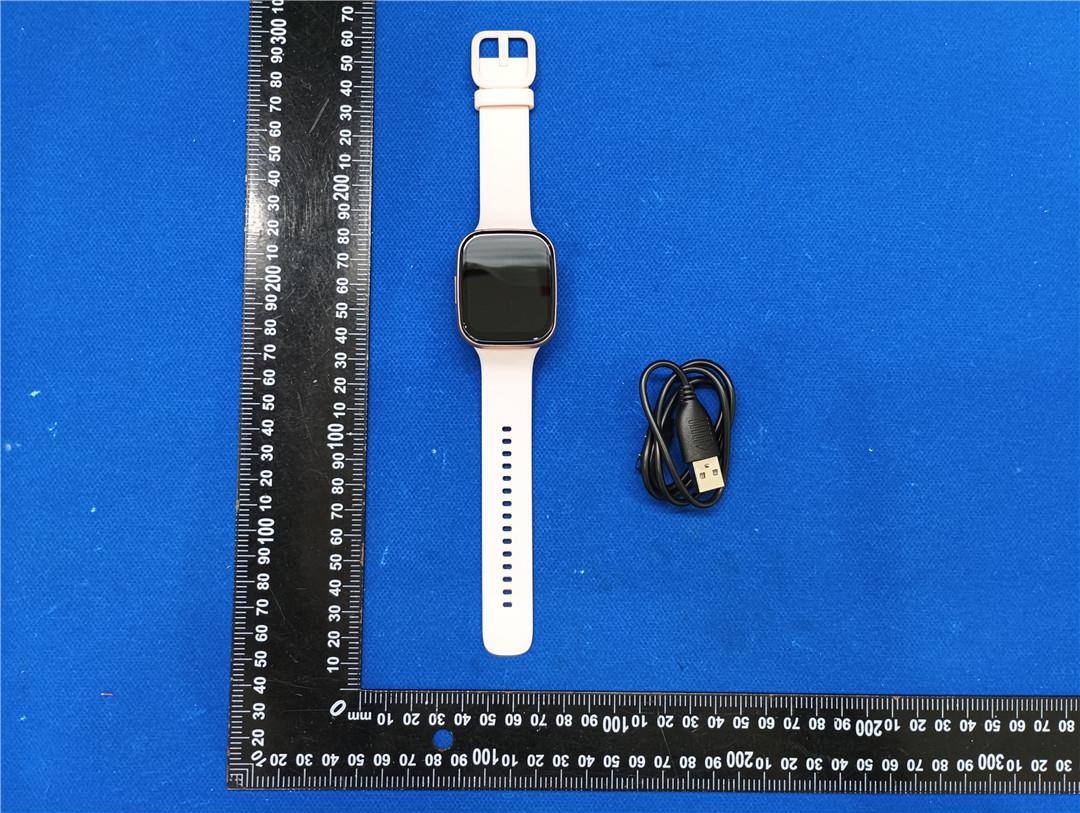

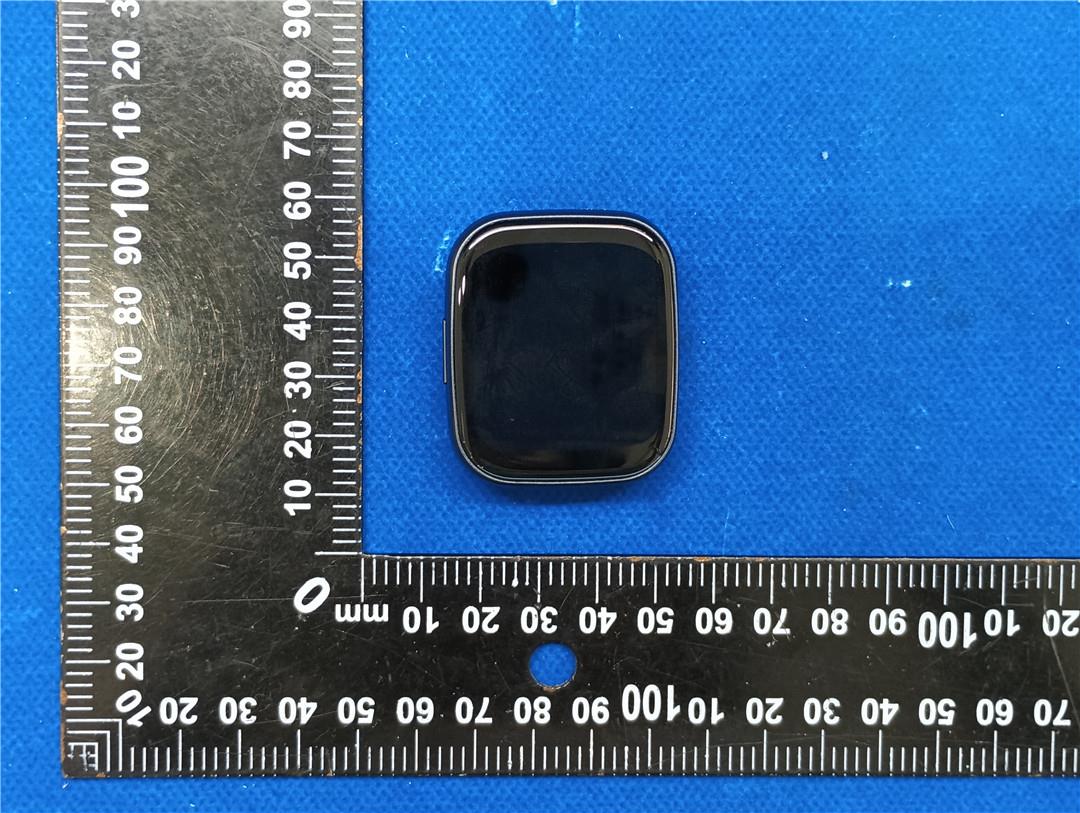

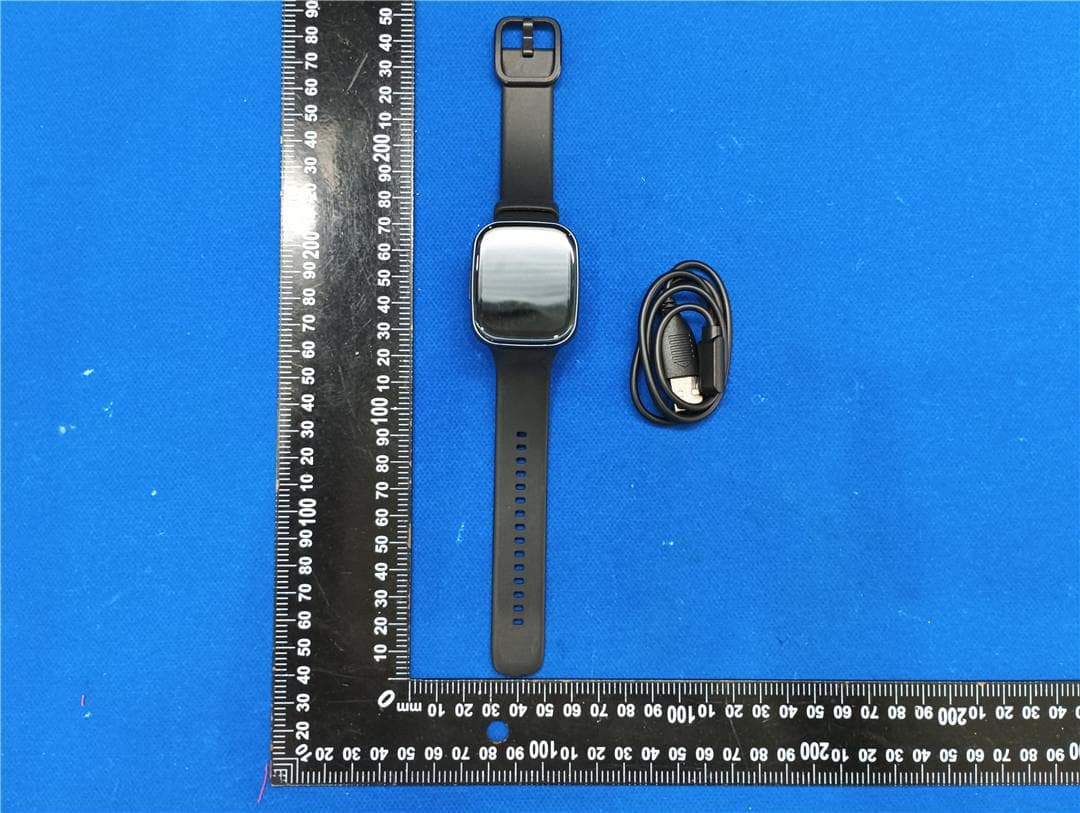

Shenzhen HTT Technology Co., Ltd. Report No.: HTT2026041216 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: Bluetooth watch Model No.: Q23Pro EUT Constructional Details External Photo Report No.: HTT2026041216 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT2026041216 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT2026041216 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

Label and Location Size: L: 1.5cm*W: 0.2cm Label and Location FCC ID : 2BGX5-Q23PRO

Shenzhen HTT Technology Co., Ltd. Report No.: HTT2026041216 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Bluetooth watch Model No.: Q23Pro EUT Constructional Details Internal Photo Report No.: HTT2026041216 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 ------End------ ANTENNA

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 8 RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : HTT2026041216F02 2BGX5-Q23PRO Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : May. 08, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Shenzhen Putuo Technology Co., Ltd Address ............................................ : 3rd Floor, Building 9, Jiatiangang Industrial Zone, Huangtian, Hangcheng Street, Baoan District, Shenzhen Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Bluetooth watch Manufacturer .................................... : Shenzhen Putuo Technology Co., Ltd Trade Mark ........................................ N/A Model/Type reference ...................... : Q23Pro Rating ............................................... : DC 3.85V From Battery and DC 5V From External Circuit Result ............................................... : PASS Report No.: HTT2026041216F02 Page 2 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 8 T E S T R E P O R T Equipment under Test : Bluetooth watch Model /Type : Q23Pro Listed Models : N/A Applicant : Shenzhen Putuo Technology Co., Ltd Address : 3rd Floor, Building 9, Jiatiangang Industrial Zone, Huangtian, Hangcheng Street, Baoan District, Shenzhen Manufacturer : Shenzhen Putuo Technology Co., Ltd Address : 3rd Floor, Building 9, Jiatiangang Industrial Zone, Huangtian, Hangcheng Street, Baoan District, Shenzhen Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT2026041216F02 Page 3 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 8 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 Conducted Power Results 8 4.3 Manufacturing tolerance 8 4.4 Evaluation Result 8 4.5 Simultaneous Transmission for SAR Exclusion 8 5 C O N C L U S I O N 8 Report No.: HTT2026041216F02 Page 4 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 8 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Report No.: HTT2026041216F02 Page 5 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 8 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Apr. 28, 2026 Testing commenced on : Apr. 28, 2026 Testing concluded on : May. 08, 2026 2.2 Product Description Product Description: Bluetooth watch Model/Type reference: Q23Pro Power supply: DC 3.85V From Battery and DC 5V From External Circuit Adapter Information (Auxiliary test provided by the lab) Model: GS-0500200 Input: AC100-240V, 50/60Hz, 0.3A max Output: DC 5V, 2A Testing sample ID： HTT2026041216-1# (Engineer sample) HTT2026041216-2# (Normal sample) Hardware version: / Software version: / Bluetooth BLE Supported type: Bluetooth low Energy Modulation: GFSK Operation frequency: 2402MHz to 2480MHz Channel number: 40 Channel separation: 2 MHz Bit Rate of Transmitter: 1Mbps/2Mbps Antenna type: Wire Antenna Antenna gain: 0.07 dBi 2.3 Special Accessories The following is the EUT test of the auxiliary equipment…

Text truncated - open the document above for the full version.

Shenzhen 3Good Wireless Communication Co., Ltd Infomation Manufacturer Shenzhen Putuo Technology Co., Ltd Model Name Q23pro Date 2024/10/13 Designer luo yong feng Serial Number/ESN/IMEIN/A BandBT Matching Circuit ElementMAIN GPS/WiFi/BT DIV C1(0201) N/AN/AN/A L1(0201) 6.8pf N/AN/A C32(0201) ESD N/AN/A C2(0201) N/AN/A N/A ADD301Shenzhen Baoan District angcheng Street uangtian Community iatiang Industrial one Building , Room 301 Active Test Data BandChannelTRPTIS BT L 2.78 M 2.11 H 2.05-88.79 SWR SWR Return Loss Gain&Efficiency frequency (MHz) gain (dBi) efficiency 2400-0.2119.51% 2410-0.1019.35% 2420-0.0221.88% 2430-0.1820.46% 2440-0.1919.70% 24500.07 22.82% 2460-0.1121.32% 2470-0.1820.87% 2480 2490-0.2118.62% 2500-0.1521.02% 0.0620.18% Smithlnv.smith

1 Appendix RF Test Data for BLE Company: : Shenzhen Putuo Technology Co., Ltd EUT : Bluetooth watch FCC ID: : 2BGX5-Q23PRO Model Number : Q23Pro Report No. : HTT2026041216F01 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 2.162 2.500 86.48 0.63 6.76 2440 2.163 2.500 86.52 0.63 0.00 2480 2.137 2.499 85.51 0.68 0.03 2M SISO 2402 1.106 1.250 88.48 0.53 0.03 2440 1.107 1.250 88.56 0.53 0.03 2480 1.082 1.250 86.56 0.63 0.04 3 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 4 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 5 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 6 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.041 / Pass 2440 1 1.040 / Pass 2480 1 1.041 / Pass 2M SISO 2402 1 1.920 / Pass 2440 1 1.917 / Pass 2480 1 1.917 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.694 >=0.5 Pass 2440 1 0.666 >=0.5 Pass 2480 1 0.668 >=0.5 Pass 2M SISO 2402 1 1.157 >=0.5 Pass 2440 1 1.163 >=0.5 Pass 2480 1 1.159 >=0.5 Pass 7 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 8 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 9 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 10 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 11 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 12 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 13 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -4.61 <=30 Pass 2440 -4.93 <=30 Pass 2480 -4.23 <=30 Pass 2M SISO 2402 -4.66 <=30 Pass 2440 -4.98 <=30 Pass 2480 -4.27 <=30 Pass 14 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit(dBm/3kHz) 1M SISO 2402 -4.95dBm/100kHz <=8 Pass 2440 -5.27dBm/100kHz <=8 Pass 2480 -4.58dBm/100kHz <=8 Pass 2M SISO 2402 -5.54dBm/100kHz <=8 Pass 2440 -5.86dBm/100kHz <=8 Pass 2480 -5.16dBm/100kHz <=8 Pass 15 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 16 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 17 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 18 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 -5.06 2440 1 -5.27 2480 1 -4.64 2M SISO 2402 1 -5.73 2440 1 -5.85 2480 1 -5.17 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 -5.06 -25.06 Pass 2440 1 -5.27 -25.27 Pass 2480 1 -4.64 -24.64 Pass 2M SISO 2402 1 -5.73 -25.73 Pass 2440 1 -5.85 -25.85 Pass 2480 1 -5.17 -25.17 Pass 19 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 20 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 21 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 22 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV 23 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV 24 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 25 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV 26 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : HTT2026041216F01 2BGX5-Q23PRO Compiled by ( position+printed name+signature) : File administrators Supervised by ( position+printed name+signature) : Project Engineer Approved by ( position+printed name+signature) : RF Manager Date of issue ...................................: May. 08, 2026 Testing Laboratory Name .............: Shenzhen HTT Technology Co.,Ltd. Address ...........................................: 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name...........................: Shenzhen Putuo Technology Co., Ltd Address ...........................................: 3rd Floor, Building 9, Jiatiangang Industrial Zone, Huangtian, Hangcheng Street, Baoan District, Shenzhen Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Bluetooth watch Trade Mark ......................................: N/A Manufacturer ...................................: Shenzhen Putuo Technology Co., Ltd Model/Type reference .....................: Q23Pro Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency ........................................ From 2402MHz to 2480MHz Ratings ............................................: DC 3.85V From Battery and DC 5V From External Circuit Result ..............................................: PASS Report No.: HTT2026041216F01 Page 2 of 34 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China T E S T R E P O R T Equipment under Test : Bluetooth watch Model /Type : Q23Pro Listed Models : N/A Applicant : Shenzhen Putuo Technology Co., Ltd Address : 3rd Floor, Building 9, Jiatiangang Industrial Zone, Huangtian, Hangcheng Street, Baoan District, Shenzhen Manufacturer : Shenzhen Putuo Technology Co., Ltd Address : 3rd Floor, Building 9, Jiatiangang Industrial Zone, Huangtian, Hangcheng Street, Baoan District, Shenzhen Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT2026041216F01 Page 3 of 34 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description ................................................................................................................................. 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 5 2.6 EUT operation mode ............................................................................................................................... 5 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT ...................................................................................................................................... 7 3.1 Address of the test laboratory ................................................................................................................. 7 3.2 Test Facility ............................................................................................................................................. 7 3.3 Environmental conditions ........................................................................................................................ 7 3.4 Summary of measurement results ...........................................................................................…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Report No.: HTT2026041216 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Bluetooth watch Model No.: Q23Pro Test Setup Photo Radiated Emission Report No.: HTT2026041216 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 Conducted Emission RF TEST ------End------
