2BGYR-TQ-PB06Toocki

FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device mustaccept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in are sidential installation. This equipment generates uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged totry to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The FCC certification of this device refers to RF exposure testing perfomed in typical operating conditions, where a person is no closer than 0 centimeters from the device surface at all times,except for non-repetitivepatterns with transient time intervals in the order of a second. Only in the stated conditions, the device is shownto fully comply with the FCC RF Exposure requirements of KDB 447498.

- Shenzhen Toocki Network Technology Co., Ltd. - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 6/28/2024 U.S. Agent Designation Shenzhen Toocki Network Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BGYR-TQ-PB06): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of Shenzhen Toocki Network Technology Co., Ltd.. Shenzhen Toocki Network Technology Co., Ltd. with the FRN 0035553254 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature King Li Manager Shenzhen Toocki Network Technology Co., Ltd. Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7) - U, V05

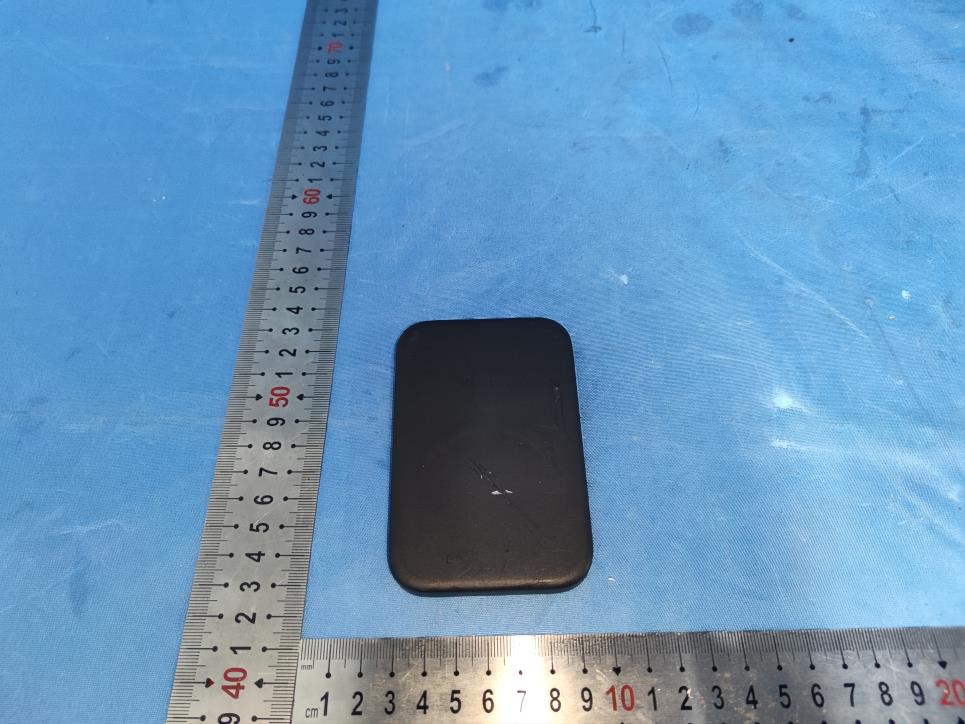

Page 1 of 3 FCC ID: 2BGYR-TQ-PB06 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. External Photos Photo 1 Photo 2 Page 2 of 3 FCC ID: 2BGYR-TQ-PB06 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 3 FCC ID: 2BGYR-TQ-PB06 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 ------End------

Label Size: W15mm * L35mm 1. The label is silk-screen on the sample W L FCC ID：2BGYR-TQ-PB06 Guangdong Easyen Technology Co., Ltd Toocki TQ-PB06 3000mAh 3 3

Page 1 of 3 FCC ID: 2BGYR-TQ-PB06 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Internal Photos Photo 1 Photo 2 Antenna Page 2 of 3 FCC ID: 2BGYR-TQ-PB06 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 3 FCC ID: 2BGYR-TQ-PB06 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 ------End------

Page 1 of 21 Report No.: AITSZ24060705FW2 RF Exposure Evaluation Client Information: Applicant: Shenzhen Toocki Network Technology Co., Ltd. Applicant add.: 308, 3rd Floor, Building A1, Xuexiangyuan, Yuanchuang Space, Xiangjiaotang Community, Bantian Street, Longgang District, Shenzhen, China Manufacturer: Guangdong Easyen Technology Co., Ltd Manufacturer add.: 11F,Liangan Bulding,Huaiya 33 Rd,Humen Town,523900,Guangdong,China Product Information: Product Name: Toocki Model No.: TQ-PB06 Brand Name: N/A FCC ID: 2BGYR-TQ-PB06 Applicable standards: FCC CFR 47 PART 1, § 1.1310 KDB 680106 D01 Wireless Power Transfer v04 Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Jun. 07, 2024 Date of Test: Jun. 07, 2024 ~ Jul. 08, 2024 Date of Issue: Jul. 08, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 21 Report No.: AITSZ24060705FW2 TABLE OF CONTENTS 1 TEST FACILITY 4 1.1 Deviation from standard 4 1.2 Abnormalities from standard conditions 4 1.3 Test Location 4 2 GENERAL INFORMATION 5 2.1 Coil Specifications 6 2.2 Coil Size 6 2.3 Location(s) – Coil to the outer surface of the enclosure(s) 7 3 TEST METHODOLOGY 8 3.1 Measuring Standard 8 3.2 Requirements 8 3.3 Test Setup 9 3.4 Test Procedure 10 4 Equipment Approval Considerations 11 4.1 Description of the test mode 12 4.2 Peripheral List 12 4.3 Test Instruments list 12 4.4 Duty Cycle 13 4.5 Compliance Location: Center vs Tip-Surface of the Probe 14 4.6 Test Result 16 5 Test Setup photo 19 Page 3 of 21 Report No.: AITSZ24060705FW2 Revision History Revision Issue Date Revisions Revised By 00 Jul. 08, 2024 Initial Issue Sean She Page 4 of 21 Report No.: AITSZ24060705FW2 1 TEST FACILITY The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. 1.1 Deviation from standard None 1.2 Abnormalities from standard conditions None 1.3 Test Location Guangdong Asia Hongke Test Technology Limited Address: B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Page 5 of 21 Report No.: AITSZ24060705FW2 2 GENERAL INFORMATION EUT Name: Toocki Model No: TQ-PB06 Serial Model: YC622 Test sample(s) ID: AITSZ24060705001 Sample(s) Status: Engineer sample Operation frequency: 113kHz-205kHz Modulation Technology: ASK Antenna Type: loop coil Antenna Antenna gain: 0dBi Hardware version.: N/A Software version.: N/A Power supply: USB-CInput: 5V⎓3A, 9V⎓2A(18W Max.) USB-C Output: 5V⎓3A, 9V ⎓2.22A, 12V⎓1.67A(20W Max.) Wireless Output: 5W/7.5W/10W/15W Max. Model different: Different model names Note: For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 6 of 21 Report No.: AITSZ24060705FW2 2.1 Coil Specifications ltem Parameter Input inductance: L1: 6.5uH±10% Material of enclosure(s): Enamelled Wire Number of turns: Transmitter 1: 10 turns 2.2 Coil Size Unit: mm A B C D E F H 43.5±0.5 38.5±0.5 20.5±0.5 35±2 3±2 0.5±0.1 1.7±0.2 Page 7 of 21 Report No.: AITSZ24060705FW2 2.3 Location(s) – Coil to the outer surface of the enclosure(s) Unit: mm Front A Rear B Left C Right D Top E Bottom F 10 50 10 10 2 10 Righ t Front Left Rear Top Botto m Page 8 of 21 Report No.: AITSZ24060705FW2 3 TEST METHODOLOGY 3.1 Measuring Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Cocmission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: KDB 680106 D01 Wireless Power Transfer v04. 3.2 Requirements According to the item 3 of KDB 680106 D01v04: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Mobile Device and Portable Device Configurations (2) Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz (3) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the top surface. Limits The criteria listed in the following table shall be used…

Text truncated - open the document above for the full version.

Page 1 of 24 Report No.: AITSZ24060705FW1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. FCC TEST REPORT Client Information: Applicant: Shenzhen Toocki Network Technology Co., Ltd. Applicant add.: 308, 3rd Floor, Building A1, Xuexiangyuan, Yuanchuang Space, Xiangjiaotang Community, Bantian Street, Longgang District, Shenzhen, China Manufacturer: Guangdong Easyen Technology Co., Ltd Manufacturer add.: 11F,Liangan Bulding,Huaiya 33 Rd,Humen Town,523900,Guangdong,China Product Information: Product Name: Toocki Model No.: TQ-PB06 Brand Name: N/A FCC ID: 2BGYR-TQ-PB06 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Jun. 07, 2024 Date of Test: Jun. 07, 2024 ~ Jun. 19, 2024 Date of Issue: Jun. 19, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 24 Report No.: AITSZ24060705FW1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS .................................................................................................................................................... 2 2 TEST SUMMARY ............................................................................................................................................ 5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY ......................................................................................... 5 2.2 MEASUREMENT UNCERTAINTY ...................................................................................................................... 5 3 TEST FACILITY .............................................................................................................................................. 6 3.1 DEVIATION FROM STANDARD ......................................................................................................................... 6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS ............................................................................................... 6 3.3 TEST LOCATION .......................................................................................................................................... 6 4 GENERAL INFORMATION ............................................................................................................................. 7 4.1 EUT TEST MODE ........................................................................................................................................ 8 4.2 DESCRIPTION OF TEST SETUP ....................................................................................................................... 8 4.3 PERIPHERAL LIST ........................................................................................................................................ 9 4.4 EUT PERIPHERAL LIST ................................................................................................................................ 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ................................................................................................. 10 6 CONDUCTED EMISSION TEST.................................................................................................................... 10 6.1 CONDUCTED EMISSION MEASUREMENT............................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION LIMITS ....................................................................................... 11 6.3 TEST PROCEDURE ............................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD .................................................................................................... 11 6.5 TEST SETUP .......................................................................................................................................... 12 6.6 EUT OPERATING CONDITIONS ............................................................................................................ 12 6.7 TEST RESULT ........................................................................................................................................... 13 7 RADIATED EMISSION MEASUREMENT ..................................................................................................... 15 7.1 RADIATED EMISSION LIMITS ........................................................................................................................ 15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM ................................................................................................ 16 7.3 TEST PROCEDURE ..................................................................................................................................... 16 7.4 DEVIATION FROM TEST STANDARD ...............................…

Text truncated - open the document above for the full version.

FinePage1of3 承認書 SPECIFICATIONFORAPPROVAL 客戶： CUSTOMER: 深圳市金天下科技有限公司 客戶料號： CUSTP/N: 松岛料號： FINEP/N: G43.5-6.5uH单线圈0.08*70P*10TS 産品型號： DESC: Φ 43.5MMX5.0MMX0.5MM 日期： DATE: 2023/08/18 版本： Version: A.0 擬制 PREPAREDBY 審核 CHECKEDBY 批准 APPROVEDBY 客戶承認 CUSTOMERAPPROVE 黄燕铭宁元安黄锦华 unicoil Operation frequency: 113kHz-205kHz Antenna gain: 0dBi FinePage2of3 版本變更履歷 VersionChangeHistory 版本 Rev. 變更前 BeforeChange 變更後 AfterChange 更改日期 ChangeDate 批准 ApprovedBy A.0 新发行 ----2018/04/24黄锦华 FinePage3of3 SPECIFICATION 産品型號： DESC Φ 20.5x38.5-6.5uH-0.08x70-35mm-43.5C 版本 Rev：A.0 客戶CUST: XXX 客户料号CUSTP/N: 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATICDIAGRAM: A 43.5.0±0.5 B 38.5.5±0.5 C 20.5±0.5 D 35±2 E 3±2 F 0.5±0.1 H 1.7±0.2 三、绕线参数WindingSpecification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection 1SF0.08*70P10TsCCW 四、电气特性ELECTRICALCHARACTERISTICS: 温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS 1IND.S-F3.8uH±10%100KHz/1.0VLCZMETER1062B 2IND.S-F6.5uH±10%100KHz/1.0VLCZMETER1062B 3DCRS-F≤60mΩ100KHz/1.0VLCZMETER502B 4Q值S-F≥48100KHz/1.0VLCZMETER502B 擬制 / 日期 PREPAREDBY/DATE 審核 / 日期 CHECKEDBY/DATE 黄燕铭 2023/08/18 黄锦华 202308/18 Note: 1. Cross the cable 2. Wrap 3mm (ref) width high-temperature adhesive paper 1-2Ts in the position where it appears; 3, the coil is attached to the circular hard disk with groove, with the back glue, the disk size is 43.5±0.5mm, the inner hole is 5.3mm, the thickness is 0.5±0.1mm. enamelled wire Individual coil Magnetized sheet

Page 1 of 2 FCC ID: 2BGYR-TQ-PB06 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DCD Conduction Radiation (9KHz-30MHz) Page 2 of 2 FCC ID: 2BGYR-TQ-PB06 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Radiation (30MHz-1000MHz) ------End------
