2BGYR-TQ-PB07APower Bank mit Kabeln

PDF created with pdfFactory Pro trial version www.pdffactory.com FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device mustaccept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in are sidential installation. This equipment generates uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged totry to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The FCC certification of this device refers to RF exposure testing perfomed in typical operating conditions, where a person is no closer than 0 centimeters from the device surface at all times,except for non-repetitivepatterns with transient time intervals in the order of a second. Only in the stated conditions, the device is shownto fully comply with the FCC RF Exposure requirements of KDB 447498. PDF created with pdfFactory Pro trial version www.pdffactory.com

- Shenzhen Toocki Network Technology Co., Ltd. - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/10/2024 U.S. Agent Designation Shenzhen Toocki Network Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID:2BGYR-TQ-PB07A): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of Shenzhen Toocki Network Technology Co., Ltd.. Shenzhen Toocki Network Technology Co., Ltd. with the FRN 0035553254 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Yu Zhai Manager Shenzhen Toocki Network Technology Co., Ltd. Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7) - U , V05

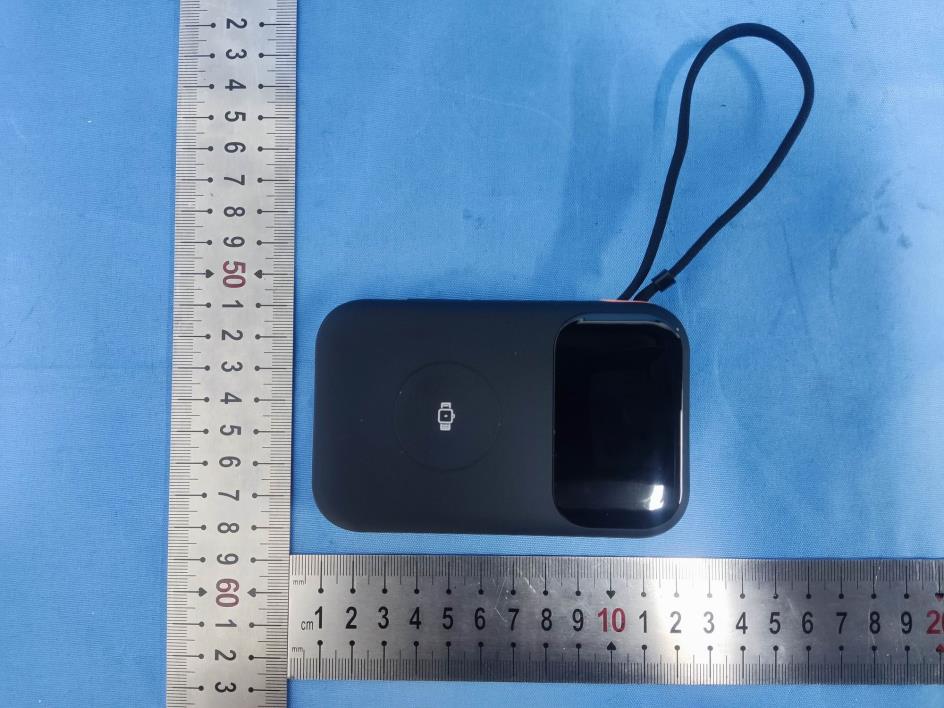

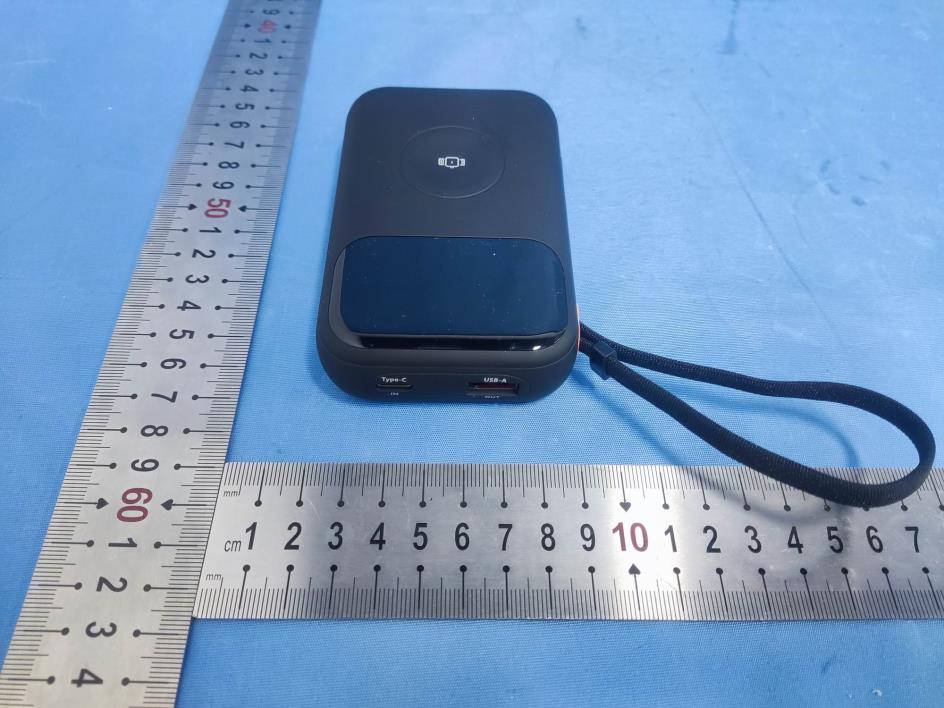

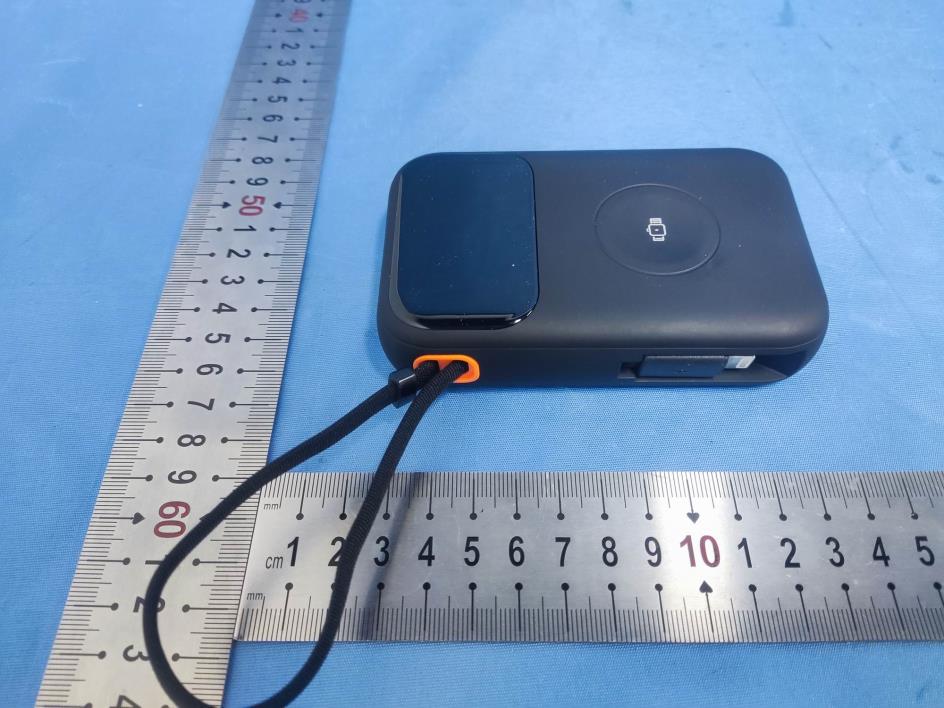

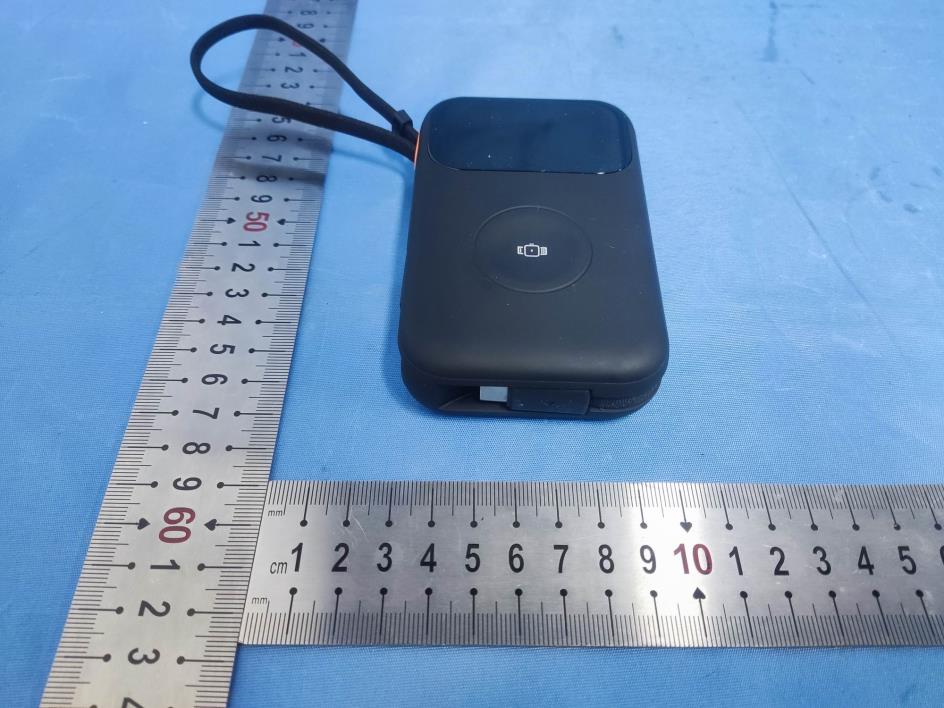

Page 1 of 5 FCC ID: 2BGYR-TQ-PB07A Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. External Photos Photo 1 Photo 2 Page 2 of 5 FCC ID: 2BGYR-TQ-PB07A Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 5 FCC ID: 2BGYR-TQ-PB07A Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 5 FCC ID: 2BGYR-TQ-PB07A Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Page 5 of 5 FCC ID: 2BGYR-TQ-PB07A Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 ------End------

Label Size: L60mm * W45mm 1. The label is silk-screen on the sample Power Bank mit Kabeln Model Name: TQ-PB07A FCC ID: 2BGYR-TQ-PB07A L W

Page 1 of 5 FCC ID: 2BGYR-TQ-PB07A Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Internal Photos Photo 1 Photo 2 Page 2 of 5 FCC ID: 2BGYR-TQ-PB07A Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 5 FCC ID: 2BGYR-TQ-PB07A Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Antenna Page 4 of 5 FCC ID: 2BGYR-TQ-PB07A Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Page 5 of 5 FCC ID: 2BGYR-TQ-PB07A Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 Photo 10 ------End------

Page 1 of 21 Report No.: AITSZ24052244FW2 RF Exposure Evaluation Client Information: Applicant: Shenzhen Toocki Network Technology Co., Ltd. Applicant add.: 308, 3rd Floor, Building A1, Xuexiangyuan, Yuanchuang Space, Xiangjiaotang Community, Bantian Street, Longgang District, Shenzhen Manufacturer: Guangdong Easyen Technology Co., Ltd Manufacturer add.: 11F,Liangan Bulding,Huaiya 33 Rd,Humen Town,523900,Guangdong,China Product Information: Product Name: Power Bank mit Kabeln Model No.: TQ-PB07A Brand Name: N/A FCC ID: 2BGYR-TQ-PB07A Applicable standards: FCC CFR 47 PART 1, § 1.1310 KDB 680106 D01 Wireless Power Transfer v04 Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: May 22, 2024 Date of Test: May 22, 2024 ~ May 26, 2024 Date of Issue: May 27, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 21 Report No.: AITSZ24052244FW2 TABLE OF CONTENTS 1 TEST FACILITY 4 1.1 Deviation from standard 4 1.2 Abnormalities from standard conditions 4 1.3 Test Location 4 2 GENERAL INFORMATION 5 2.1 Coil Specifications 6 2.2 Coil Size 6 2.3 Location(s) – Coil to the outer surface of the enclosure(s) 7 3 TEST METHODOLOGY 8 3.1 Measuring Standard 8 3.2 Requirements 8 3.3 Test Setup 9 3.4 Test Procedure 10 4 Equipment Approval Considerations 11 4.1 Description of the test mode 12 4.2 Peripheral List 12 4.3 Test Instruments list 12 4.4 Duty Cycle 13 4.5 Compliance Location: Center vs Tip-Surface of the Probe 14 4.6 Test Result 16 5 Test Setup photo 19 Page 3 of 21 Report No.: AITSZ24052244FW2 Revision History Revision Issue Date Revisions Revised By 00 May 27, 2024 Initial Issue Sean She Page 4 of 21 Report No.: AITSZ24052244FW2 1 TEST FACILITY The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. 1.1 Deviation from standard None 1.2 Abnormalities from standard conditions None 1.3 Test Location Guangdong Asia Hongke Test Technology Limited Address: B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Page 5 of 21 Report No.: AITSZ24052244FW2 2 GENERAL INFORMATION EUT Name: Power Bank mit Kabeln Model No: TQ-PB07A Serial Model: YC603-35W Test sample(s) ID: AITSZ24052244001 Sample(s) Status: Engineer sample Operation frequency: 300kHz-350kHz Modulation Technology: ASK Antenna Type: loop coil Antenna Antenna gain: 0dBi Hardware version.: N/A Software version.: N/A Power supply: Capacity: 10000mAh. (3.7V/37Wh) Conversion Rate: 60% (5V2A) Input Type-C Port:5V3A,9V3A,12V2A Max Output Type-C Port / Cable:5V3A,9V3A,12V2.5A,15V2A,20V1.75A (35W Max) Output Ligntning Cable: 5V3A,9V3A,12V2.5A MaxOutput USB-A Port: 5V3A,9V2A,12V1.5A Max Output Iwatch Wireless:3W Model different: Different model names Note: For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 6 of 21 Report No.: AITSZ24052244FW2 2.1 Coil Specifications ltem Parameter Input inductance: L1: 8uh ± 5% Material of enclosure(s): Enameled wire Number of turns: Transmitter 1: 14 turns 2.2 Coil Size Unit: mm A B C D E F 13.5±0.2 23.3±0.2 24.5±0.2 10±2 3±1 2.5±0.2 Page 7 of 21 Report No.: AITSZ24052244FW2 2.3 Location(s) – Coil to the outer surface of the enclosure(s) Unit: mm Front A Rear B Left C Right D Top E Bottom F 55 20 20 20 3 10 Righ t Front Left Rear Top Botto m Page 8 of 21 Report No.: AITSZ24052244FW2 3 TEST METHODOLOGY 3.1 Measuring Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Cocmission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: KDB 680106 D01 Wireless Power Transfer v04. 3.2 Requirements According to the item 3 of KDB 680106 D01v04: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Mobile Device and Portable Device Configurations (2) Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz (3) The aggregate H-…

Text truncated - open the document above for the full version.

Page 1 of 23 Report No.: AITSZ24052244FW1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. FCC TEST REPORT Client Information: Applicant: Shenzhen Toocki Network Technology Co., Ltd. Applicant add.: 308, 3rd Floor, Building A1, Xuexiangyuan, Yuanchuang Space, Xiangjiaotang Community, Bantian Street, Longgang District, Shenzhen Manufacturer: Guangdong Easyen Technology Co., Ltd Manufacturer add.: 11F,Liangan Bulding,Huaiya 33 Rd,Humen Town,523900,Guangdong,China Product Information: Product Name: Power Bank mit Kabeln Model No.: TQ-PB07A Brand Name: N/A FCC ID: 2BGYR-TQ-PB07A Applicable standards: FCC CFR Title 47 Part 15 Subpart C Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: May 22, 2024 Date of Test: May 22, 2024 ~ May 26, 2024 Date of Issue: May 27, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 23 Report No.: AITSZ24052244FW1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ........................................................................................................................................................... 2 2 TEST SUMMARY .................................................................................................................................................. 5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................. 5 2.2 MEASUREMENT UNCERTAINTY ............................................................................................................................ 5 3 TEST FACILITY ..................................................................................................................................................... 6 3.1 DEVIATION FROM STANDARD ............................................................................................................................... 6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................... 6 3.3 TEST LOCATION ................................................................................................................................................. 6 4 GENERAL INFORMATION ................................................................................................................................... 7 4.1 EUT TEST MODE ............................................................................................................................................... 8 4.2 DESCRIPTION OF TEST SETUP............................................................................................................................. 8 4.3 PERIPHERAL LIST ............................................................................................................................................... 9 4.4 EUT PERIPHERAL LIST ....................................................................................................................................... 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ..................................................................................................... 10 6 CONDUCTED EMISSION TEST ......................................................................................................................... 10 6.1 CONDUCTED EMISSION MEASUREMENT ................................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION LIMITS ........................................................................................... 11 6.3 TEST PROCEDURE ...................................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD ......................................................................................................... 11 6.5 TEST SETUP ................................................................................................................................................. 12 6.6 EUT OPERATING CONDITIONS .................................................................................................................. 12 6.7 TEST RESULT .................................................................................................................................................. 13 7 RADIATED EMISSION MEASUREMENT .......................................................................................................... 15 7.1 RADIATED EMISSION LIMITS .............................................................................................................................. 15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM ..................................................................................................... 16 7.3 TEST PROCEDURE ................................................…

Text truncated - open the document above for the full version.

深圳市瑞通千业科技有限公司 客户/Ciient 名称/TYPE 苹果线圈Apple coil 产品型号/Model NO G24.5*7.8*2.4线长10MM背胶带磁铁3300GS 产品编/identification of product Part nunbering systey 客户料号/Cient p/NO 工程编号/Enginrer NO 日期/Date 2024年5月20日 本公司工程部/For Enginer Departner Only 修改内容/Rrvised Cintent 认可日期/APProved Date 编制/Prepared 审核/Checked 认可/Approved 万纪美 万纪美 刘成昭 客户认可回签/Authorixed Signaturure Company Chop 工程/ Enginrer 认可/QC APProved 认可日期/APProved 一、 线圈工艺/Winding Procese: NO 绕组 winding 线规 Wire gauge 匝数 Number of turns 绕线方向 Winding direction 备注 remark 1 N1 2UEW-B-0.08*24P 14TS CCW 2 深圳市瑞通千业科技有限公司 二．电气性能/FEATURES: 1.测试条件（Test conditions）：25°C,65%RH@100KHz/1V 1.1 电感量（Inductance） 1.12 L0A(coil + disk)=8uH±5% 1.2 Q value=38MIN 1.3 直流电阻（DCR）：10mΩ MAX 1.4 工作温度(Operating Temperature)：-25°C~85°C 2.测试仪器(Test instrument)：L:创达1068+1310;DCR:502BC;SIZE:Callipers 3.材料清单 单位： MM 天线增益Antenna gain： Operation frequency: 300kHz-350kHz Antenna Type: loop coil Antenna Antenna gain: 0dBi N O 项目 item 材料 Materials 1 WIRE ￠0.08*24p 2UEW- 2 FERRITE 24.5*7.6*2.5 Can type perforated rubber magnetic soft magnetic 3 GLUE Water-based white glue 4 SOLDER HQ-996/JS-996 5 Tin Thousand Island tin 6 High temperature adhesive 7 Magnet 7.5*2.3-3300 Gauss 8 深圳市瑞通千业科技有限公司 三．外形图/OUTSIDE DIAGRA 注：磁片背面贴双面背胶。 标准 A B C D E F STD 13.5.±0.2 23.3±0.2 24.5±0.2 10±2 3±1 2.5±0.2 单位： MM 深圳市瑞通千业科技有限公司 四、包装/PACKAGE 5.3包装以现有包装盘为参照标准，以实际出货包装为准，如有特殊要求可定制。 The packaging shall be based on the exusting packing plate and the actual delivery package shall prevail .If there is any requirement,we can customize it. 深圳市瑞通千业科技有限公司 五、贮存和使用条件 Storage and Use condition 5.1 贮存条件 Storage condition 5.1.1 建议贮存条件：温度-25°C~ 85°C ，湿度70% (Max.) Recommended keeping conditions: -25°C ~85°C, 70%RH (Max.) 5.1.2 贮存期限：自生产之日起六个月内 Storage life : Within the limits of six months from being produced. 5.2 使用条件 Use condition 使用条件限制：温度=-25°C~ 85°C, 湿度≤ 90% Use condition limit: T=-25°C~85°C, RH≤ 90%.

Page 1 of 2 FCC ID: 2BGYR-TQ-PB07A Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DCD Conduction Radiation (9KHz-30MHz) Page 2 of 2 FCC ID: 2BGYR-TQ-PB07A Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Radiation (30MHz-1000MHz) ------End------
