2BH5P-CAW02Apple Watch Charging Dock

Attestation Statement. Old Code: C5266091 24 New Code: 00015544 Ed.3 Change reason: FRN is added to the Applicant information section. 1/1 TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Shenzhen Frageway Technology Co.,Ltd. Grantee code: 2BH5P FCC ID: 2BH5P-CAW02 FRN: 0035778489 Contact Name: Evan Xu Address: 3rd floor,Building 2,No. 13 Tianyuan Road, Dongfang Community, Songgang Street, Bao'an District, Shenzhen Telephone No: 86-13510650464 Fax No:/ Email: [email protected] i. [Shenzhen Frageway Technology Co.,Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Shenzhen Frageway Technology Co.,Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Shenzhen Frageway Technology Co.,Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment . Date: 2024/12/20 Applicant’s Name: Ada Jiang Title: Manager Signature The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Shenzhen Frageway Technology Co.,Ltd Address: 3rd floor,Building 2,No. 13 Tianyuan Road, Dongfang Community, Songgang Street, Bao'an District, Shenzhen Product Name: Apple Watch Charging Dock Model Number: CAW02, MI-CAW02-199W, HW-CAW02-XXX, CTC-CAW02-XXX FCC Identifier: 2BH5P-CAW02 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Evan Xu Date: 2024.11.21 Title: General manager Signature of applicant:

C5266091_X10_Ed.2 1/1 <ShenzhenFragewayTechnologyCo.,Ltd> OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2024.11.21 Subject:RequestforConfidentiality FCCID:2BH5P-CAW02 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE2 IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo ☐ BlockDiagram ☒☐ Schematics ☒☐ TestReportNoNo TestSetupPhotosNo ☐ User’sManual ☐ NOTE 1 ☐ InternalPhotos ☐ NOTE 1 ☐ PartsList/TuneUp ☐☐ RFExposureInfoNoNo OperationalDescription ☒☐ CoverLetter(s)NoNo SDRSoftware/SecurityInfo ☐ No NOTE1:Long-TermConfidentialitymaybepermittedunderspecialconditions(SeeII.LONG-TERMCONFIDENTIALITY,Section3of KDB726920,uselastinforce) NOTE2:Short-TermConfidentialitycanberequestedforamaximumof180daysfromthedateofthegrant. Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Incaseofshort-termConfidentiality,theapplicantrequeststheexhibitsselectedabove arewithheldfrompublicviewforaperiodof______daysfromthedateoftheGrant ofEquipmentAuthorizationandpriortomarketing. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name:EvanXu Title:Generalmanager

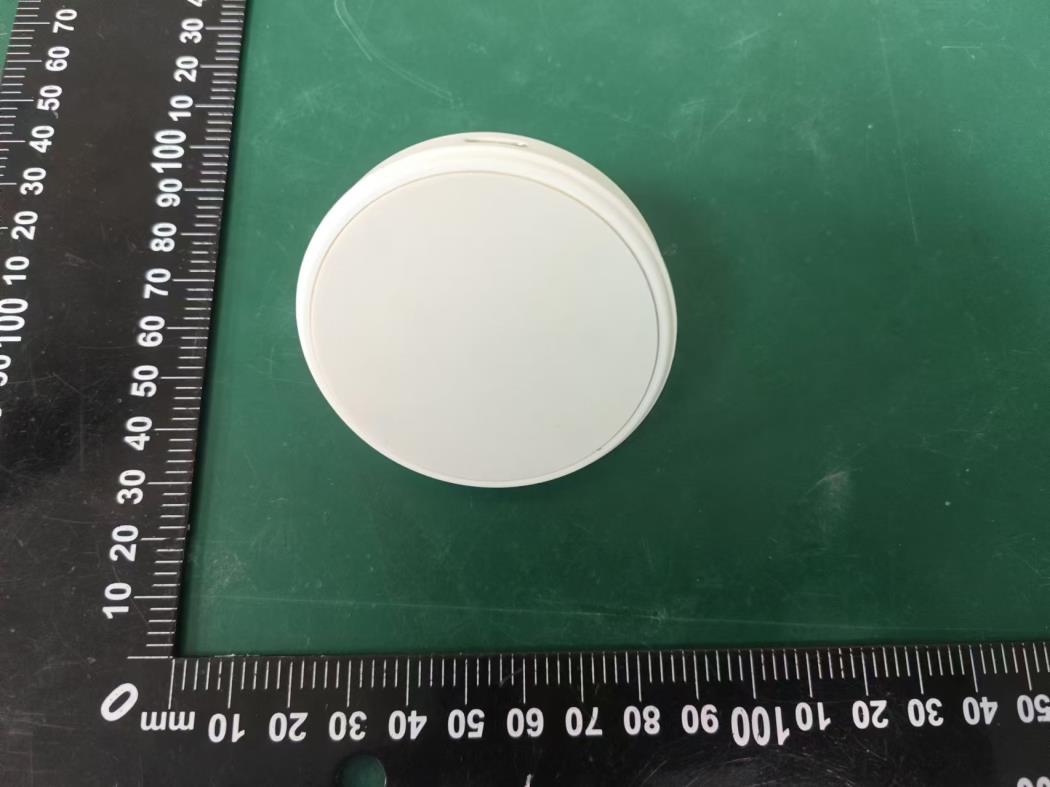

External Photo FCC ID: 2BH5P-CAW02

Label Size:17.7mm(Width) * 20mm(Height)

Internal Photo FCC ID: 2BH5P-CAW02 ANT for Watch

MPE REPORT Apple Watch Charging Dock MODEL No.: CAW02 (Refer to section 2 for details) FCC ID: 2BH5P-CAW02 REPORT NO.:NCT24034467XE-2 ISSUE DATE: Dec. 20, 2024 Prepared for Shenzhen Frageway Technology Co.,Ltd 3rd floor,Building 2,No. 13 Tianyuan Road, Dongfang Community, Songgang Street, Bao'an District, Shenzhen Prepared by Shenzhen NCT Testing Technology Co., Ltd. A101&2F B2, Fuqiao 6th Area, Xintian Community, Fuhai Street, Baoan District, Shenzhen, People’s Republic of China TEL: 400-8868-419 FAX: 86-755-27790922 Report No.: NCT24034467XE-2 Page 2 of 14 Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn TABLE OF CONTENT Test Report Description Page 1. SUMMARY OF TEST RESULT ......................................................................................................4 2. GENERAL INFORMATION .............................................................................................................5 2.1. DESCRIPTION OF DEVICE (EUT) ................................................................................................................................ 5 2.2. TEST SETUP ................................................................................................................................................................ 6 2.3. DESCRIPTION OF TEST FACILITY ................................................................................................................................ 7 2.4. MEASUREMENT UNCERTAINTY ................................................................................................................................... 7 3. MEASURING DEVICE AND TEST EQUIPMENT .......................................................................8 3.1. FOR MPE MEASUREMENT ......................................................................................................................................... 8 4. RF EXPOSURE.................................................................................................................................9 4.1. MEASURING STANDARD .............................................................................................................................................. 9 4.2. REQUIMENTS ............................................................................................................................................................... 9 4.3. TEST CONFIGURATIO ................................................................................................................................................. 10 4.4. LIMITS ......................................................................................................................................................................... 11 4.5. MEASURING RESULTS ............................................................................................................................................... 12 5. PHOTOGRAPHS OF TEST SETUP ...........................................................................................14 Report No.: NCT24034467XE-2 Page 3 of 14 Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn TEST REPORT DESCRIPTION Applicant : Shenzhen Frageway Technology Co.,Ltd Address : 3rd floor,Building 2,No. 13 Tianyuan Road, Dongfang Community, Songgang Street, Bao'an District, Shenzhen Manufacturer : Shenzhen Frageway Technology Co.,Ltd Address : 3rd floor,Building 2,No. 13 Tianyuan Road, Dongfang Community, Songgang Street, Bao'an District, Shenzhen EUT : Apple Watch Charging Dock Model Name : CAW02 (Refer to section 2 for details) Trademark : / Measurement Procedure Used: FCC Part 1(1.1310) and Part 2(2.1091) KDB 680106 D01 Wireless Power Transfer v04 The device described above is tested by Shenzhen NCT Testing Technology Co., Ltd. to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Shenzhen NCT Testing Technology Co., Ltd. is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Shenzhen NCT Testing Technology Co., Ltd. Test Engineer: Keven Wu / Engineer Technical Manager: Henry Wang / Manager Report No.: NCT24034467XE-2 Page 4 of 14 Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn 1. SUMMARY OF TEST RESULT EMISSION Description of Test Item Standard & Limits Results MPE FCC Part 1(1.1310) and Part 2(2.1091) KDB 680106 D01 Wireless Power Transfer v04 Pass Note: N/A is an abbreviation for Not Applicable. Report No.: NCT24034467XE-2 Page 5 of 14 Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn 2. GENERAL INFORMATION 2.1. Description of Device (EUT) EUT : Apple Watch Charging Dock Model Number : CAW02, MI-CAW02-199W, HW-CAW02-XXX, CTC-CAW02-XXX (XXX is a variable, The first "X" and the second "X" and the third "X" represent different numbers from 0 to 9, respectively.) Model different : All models are identical to each other except for model name, product case color and end customer. All tests are performed on model CAW02. Power Rating : Input: 5VDC 1A Output: 3W Max Operation Frequency for WPT : 320-330kHz Modulation : FSK Antenna Type: : Coil Antenna Date of Received : Nov.12, 2024 Date of Test : Nov.13, 2024 to Nov.18, 2024 Report No.: NCT24034467XE-2 Page 6 of 14 Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn 2.2. Test Setup Report No.: NCT24034467XE-2 Page 7 of 14 Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn 2.3. Description of Test Facility 2.4. Measurement Uncertainty Parameter Uncertainty RF output power, conducted ±1.0dB Power Spectral Density, conducted ±2.2dB Radio Frequency ± 1 x 10 -6 Bandwidth ± 1.5 x 10 …

Text truncated - open the document above for the full version.

FCC PART 15 SUBPART C Apple Watch Charging Dock MODEL No.: CAW02 (Refer to section 2 for details) FCC ID: 2BH5P-CAW02 REPORT NO.: NCT24034467XE-1 ISSUE DATE: Dec. 20, 2024 Prepared for Shenzhen Frageway Technology Co.,Ltd 3rd floor,Building 2,No. 13 Tianyuan Road, Dongfang Community, Songgang Street, Bao'an District, Shenzhen Prepared by Shenzhen NCT Testing Technology Co., Ltd A101&2F B2, Fuqiao 6th Area, Xintian Community, Fuhai Street, Baoan District, Shenzhen, People’s Republic of China TEL: 400-8868-419 FAX: 86-755-27790922 Report No.: NCT24034467XE-1 Page 2 of 20 Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn TABLE OF CONTENT Test Report Description Page 1. SUMMARY OF TEST RESULTS .............................................................................................................................. 5 2. GENERAL INFORMATION ...................................................................................................................................... 6 2.1. Description of Device (EUT) .............................................................................................................................. 6 2.2. Description of Support Units .............................................................................................................................. 6 2.3. Independent Operation Modes .......................................................................................................................... 7 2.4. Test Mode ........................................................................................................................................................... 7 2.5. Description of Test Facility ................................................................................................................................. 7 2.6. Measurement Uncertainty .................................................................................................................................. 8 3. MEASURING DEVICE AND TEST EQUIPMENT .................................................................................................... 9 4. 20DB BANDWIDTH ............................................................................................................................................... 11 4.1. Test Procedure ................................................................................................................................................. 11 4.2. Test Results ...................................................................................................................................................... 11 5. POWER LINE CONDUCTED EMISSION MEASUREMENT ................................................................................. 12 5.1. Block Diagram of Test Setup ............................................................................................................................ 12 5.2. Limits ................................................................................................................................................................ 12 5.3. Test Procedure ................................................................................................................................................. 12 5.4. Measuring Results ........................................................................................................................................... 13 6. RADIATED EMISSION TEST ................................................................................................................................. 14 6.1. Measurement Procedure ................................................................................................................................. 14 6.2. Test SET-UP (Block Diagram of Configuration) ............................................................................................... 14 6.3. Radiated Emission Limit .................................................................................................................................. 15 6.4. Measurement Result ........................................................................................................................................ 17 7. TEST PHOTOGRAPHS AND EUT PHOTOGRAPHS ........................................................................................... 20 Report No.: NCT24034467XE-1 Page 3 of 20 Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn TEST REPORT DESCRIPTION Applicant : Shenzhen Frageway Technology Co.,Ltd Address : 3rd floor,Building 2,No. 13 Tianyuan Road, Dongfang Community, Songgang Street, Bao'an District, Shenzhen Manufacturer : Shenzhen Frageway Technology Co.,Ltd Address : 3rd floor,Building 2,No. 13 Tianyuan Road, Dongfang Community, Songgang Street, Bao'an District, Shenzhen EUT : Apple Watch Charging Dock Model Name : CAW02 (Refer to section 2 for details) Trademark : / Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by Shenzhen NCT Testing Technology Co., LtdThe test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15C The test results of this report relate only to the tested sample identified in this report. Test Engineer: Keven Wu / Engineer Technical Manager: Henry Wang / Manager Report No.: NCT24034467XE-1 Page 4 of 20 Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn Modified Information Version Report No. Revision Data Summary Ver.1.0 NCT24034467XE-1 Dec. 20, 2024 Original Version Report No.: NCT24034467XE-1 Page 5 of 20 Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn 1. SUMMARY OF TEST RESULTS Test Item Section in CFR 47 …

Text truncated - open the document above for the full version.

DongguanEasyElectronicTechnologyCo.,LTD Address:No.8BugeRoad,TangxiaTown,DongguanCity Tel.:069-81000895 Fax:0769-81000896 产品规格承认书 SPECIFICATONAPPROVAL 客户名称： CUSTOMER 承认： APPROVED 苹果手表发射模组 核准：制表：日期： APPROVEDDRAWN 王丽娜 DATE2023.6.23 ，SpecificationsReferenceDesigns 产品型号： ModelNumber XQ-001 客户料号： CustomerP/N 发射摸组 供应商料号： SupplierP/N 一，外观与尺寸（AppearanceSize）：（单位/mm） A 8±0.05 B 2.8±0.02 C 3.6±0.02 Version1.0.0part2of5 SpecificationsReferenceDesigns Version1.0.0part3of5 二，原理图（SchematicDiagram）： 灌型软磁 D 23.5 ± 0.5 E 24.6 ± 0.3 F 9 ± 0.05 G 5 ± 0.2 H 12 ± 1 J 2 ± 1 K 2.6 ± 0.2 磁铁:7.5*2.5-3400 高斯-中心位置 M N O P Q R S T U V W X Y Z 三，绕线参数（WindingParameters）： 绕组 Winding 开始 Start 结束 Finish 圈数 Turns 线径 LineDiameter 绕线方式 Winding Way 绕线方向 Winding Direction 层数&圈数 Layer&Circle SF13TS0.08*24P 密绕逆时针1层/13TS 四，电气特性（ElectricalCharacteristics）： 项目 Item 端子 Terminal 测试条件 TestConditions 测试仪器 Test Instrument 参数 Parameter 单位 Unit 数值 NumericalValue 电感 S-F 100KHz/ 1.00V/100Ω 1062电桥 Inductance@1 00KHz/1V μH6.8μH±10% Q值 S-F 100KHz/ 1.00V/100Ω 1062电桥 Q@100KHz/1V30MIN 电阻 S-F 100KHz/ 1.00V/100Ω 1062电桥 DCR@100KHz/ 1V mΩ 160MAX MaterielBillOfMaterials Version1.0.0part4of5 材料清单 MaterialList 客户料号: CustomerP/N 制造商料号: SupplierP/N 序号 No. 材料名称 MaterialName 材料规格 MaterialSpecification 材料代号 MaterialCode 制作商 Manufacturer 1 热风线 0.08*24P 2 无铅锡条高温 3 高温胶带 4 胶水树脂胶 FQ-530 5 双面胶 3M*19*0.12 6 灌型磁片 24.5*2.5*8PC40 7 珍珠棉 8 纸箱 9 10 11 承认人员 Approver 校对人员 Proofreader 制图员 Cartographer 日期 Date 王丽娜 2023.6.23 EncasementPackageCriterion 客户名称 Customer 客户料号 CustomerP/N 样品检测报告 样品数量 TotalOfSample 检测数量 QuantityOfTest 检测日期 DateOfTesting 检测事项 InspectionItems 项次 No. 项目/规格 Item/Specifications 12345 测量仪器 Measuring Instrument 判定 Judge 1 外径 B 2 内径 B 3 磁片外径 B 4 厚度 B 5 引线 B 6 焊锡 B 7 电感 H 8 电阻 H 9 Q值 H 测量仪器：A.目视B.游标卡尺C.分离卡D.高度规 E.角度规F.投影机G.标准针规H.电桥 外观检查 VisualInspection 外观检查无异常 检测人员 TestingPersonnel 审核人员 Auditor

Setup Photo FCC ID: 2BH5P-CAW02
