2BH6C-F800Projector

AOGES CO., LIMITED 1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: AOGES CO., LIMITED Contact Name: XIAOYAN LAI Address: 1624 Market St., Ste 226, #30327 Denver CO, 80202 US Telephone No: +1 303 623 1940 Email: [email protected] FRN: 0033947847 Applicant: Company name: Shenzhen Ruichi Information Technology Co., Ltd Product Description: Projector FRN: 0035782812 Grantee code: 2BH6C FCC ID: 2BH6C-F800 Contact Name: ZHANG XINYA Address: Room 601, North Block, Jinwen Digital Valley, Hangcheng Street, Bao'an District, Shenzhen, China Telephone No: 0755-36886288 Email: [email protected] [Shenzhen Ruichi Information Technology Co., Ltd] certifies that, as of the date of this filing of the application with the TCB, [AOGES CO., LIMITED] is our designated US agent for service of process for the above referenced FCC ID. [Shenzhen Ruichi Information Technology Co., Ltd] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [AOGES CO., LIMITED] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2024.08.16 Applicant’s Name: Shenzhen Ruichi Information Technology Co., Ltd US Agent’s Name: AOGES CO., LIMITED Title:CEO Title: General Manager Signature Signature XIAOYAN LAI

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Shenzhen Ruichi Information Technology Co., Ltd Grantee code: 2BH6C FRN: 0035782812 FCC ID: 2BH6C-F800 Contact Name: ZHANG XINYA Address: Room 601, North Block, Jinwen Digital Valley, Hangcheng Street, Bao'an District, Shenzhen, China Telephone No: 0755-36886288 Fax No: Email: [email protected] i. [Shenzhen Ruichi Information Technology Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Shenzhen Ruichi Information Technology Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Shenzhen Ruichi Information Technology Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment. Date: 2024.08.14 Applicant’s Name: Shenzhen Ruichi Information Technology Co., Ltd Title:CEO Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Shenzhen Ruichi Information Technology Co., Ltd Product Similarity Declaration Product name: Projector Model name: F800, F813, F811, F801, F806, F809, F828, F895, F810, F820, F830 FCC ID: 2BH6C-F800 We (Shenzhen Ruichi Information Technology Co., Ltd) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name Signature: Name: ZHANG XINYA Title: CEO China, 2024.08.16

C5266091_X8_Ed.1 1/1 < Shenzhen Ruichi Information Technology Co., Ltd > Letter of Authorization Company: Shenzhen Ruichi Information Technology Co., Ltd Address: Room 601, North Block, Jinwen Digital Valley, Hangcheng Street, Bao'an District, Shenzhen, China Product Name: Projector Model Number: F800, F813, F811, F801, F806, F809, F828, F895, F810, F820, F830 FCC Identifier: 2BH6C-F800 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: ZHANG XINYA Date: 2024.08.16 Title: CEO Signature of applicant:

C5266091_X10_Ed.2 1/1 < Shenzhen Ruichi Information Technology Co., Ltd > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2024.08.16 Subject: Request for Confidentiality FCC ID: 2BH6C-F800 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: ZHANG XINYA Title:CEO

C5266091_X13_Ed.1 1/1 < Shenzhen Ruichi Information Technology Co., Ltd > FCC Software Configuration Control Declaration Date: 2024.08.16 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: Projector/ F800, F813, F811, F801, F806, F809, F828, F895, F810, F820, F830 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Signature of applicant Name: ZHANG XINYA Title: CEO

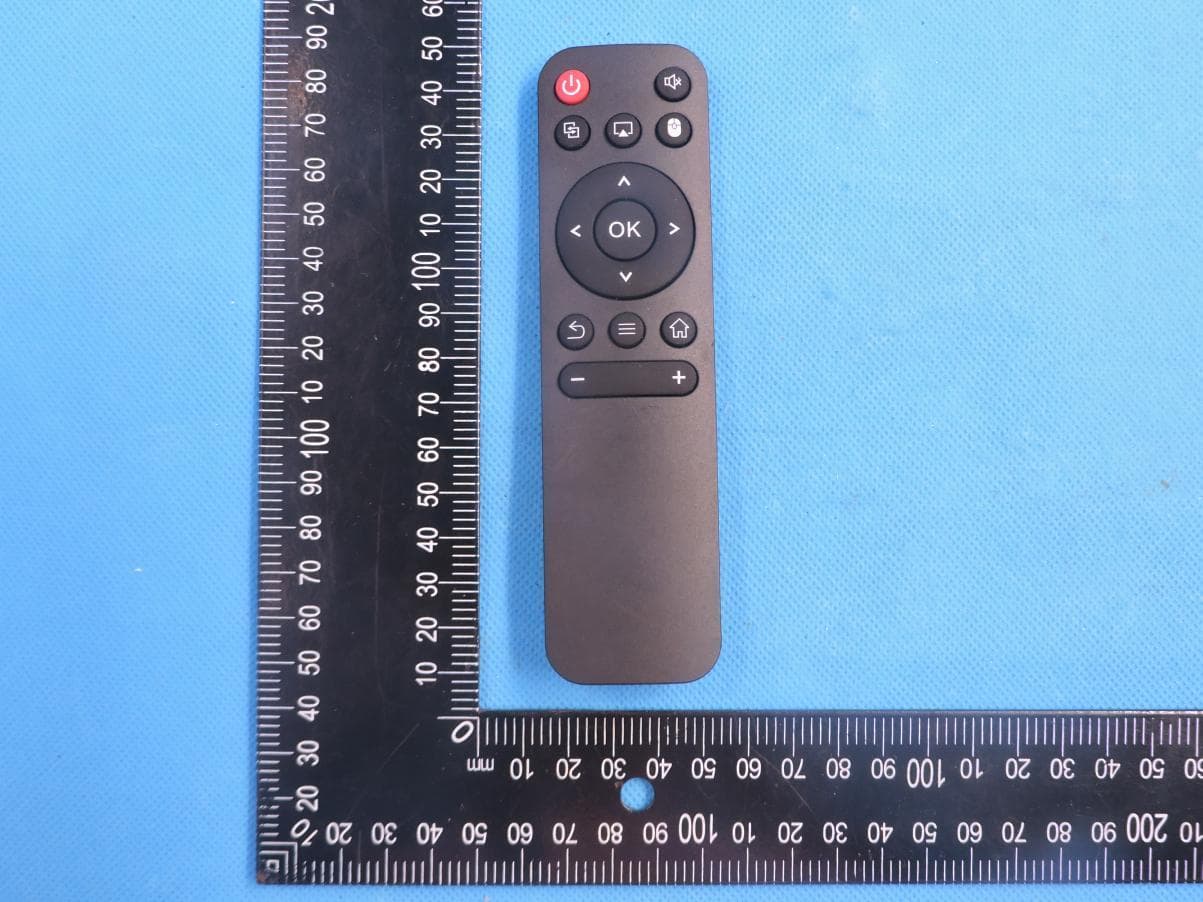

Page 1 of 6 Report No.: STS2408060 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: F800 Photo 1 Photo 2 Page 2 of 6 Report No.: STS2408060 Photo 3 Photo 4 Page 3 of 6 Report No.: STS2408060 Photo 5 Photo 6 Page 4 of 6 Report No.: STS2408060 Photo 7 Photo 8 Page 5 of 6 Report No.: STS2408060 Photo 9 Photo 10 Page 6 of 6 Report No.: STS2408060 Photo 11

Label Projector Model: F8 00 FCC ID: 2BH6C-F800 20mm 30mm

Page 1 of 5 Report No.: STS2408060 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model:F800 Photo 1 Photo 2 WIFI/BT Antenna Page 2 of 5 Report No.: STS2408060 Photo 3 Photo 4 Page 3 of 5 Report No.: STS2408060 Photo 5 Photo 6 Page 4 of 5 Report No.: STS2408060 Photo 7 Photo 8 Page 5 of 5 Report No.: STS2408060 Photo 9 Photo 10

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.: STS2408060H02 Issued for Shenzhen Ruichi Information Technology Co., Ltd Room 601, North Block, Jinwen Digital Valley, Hangcheng Street, Bao'an District, Shenzhen, China. Product Name: Projector Brand Name: N/A Model Name: F800 Series Model(s): F813, F811, F801, F806, F809, F828, F895, F810, F820, F830 FCC ID: 2BH6C-F800 Test Standards: FCC 47CFR §2.1091 Page 2 of 9 Report No.: STS2408060H02 TEST REPORT Applicant’s Name ................. : Shenzhen Ruichi Information Technology Co., Ltd Address .................................. : Room 601, North Block, Jinwen Digital Valley, Hangcheng Street, Bao'an District, Shenzhen, China. Manufacturer's Name .......... : Shenzhen Ruichi Information Technology Co., Ltd Address .................................. : Room 601, North Block, Jinwen Digital Valley, Hangcheng Street, Bao'an District, Shenzhen, China. Product Description Product Name ........................ : Projector Brand ................................... : N/A Model Number ....................... : ... : F800 Series Model(s) ...................... : F813, F811, F801, F806, F809, F828, F895, F810, F820, F830 Standards ............................. : FCC 47CFR §2.1091 447498 D04 Interim General RF Exposure Guidance v01 The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ............................................ : Date of receipt of test item ...................... : 08 Aug. 2024 Date (s) of performance of tests.............. : 08 Aug. 2024 ~ 13 Aug. 2024 Date of Issue ........................................... : 13 Aug. 2024 Test Result ............................................... : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Chris Chen) Authorized Signatory : (Bovey Yang) Page 3 of 9 Report No.: STS2408060H02 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 5 2. FCC 47CFR §2.1091 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 9 Page 4 of 9 Report No.: STS2408060H02 Revision History Rev. Issue Date Report No. Effect Page Contents 00 13 Aug. 2024 STS2408060H02 ALL Initial Issue Page 5 of 9 Report No.: STS2408060H02 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name Projector Brand N/A Model Number F800 Series Model(s) F813, F811, F801, F806, F809, F828, F895, F810, F820, F830 Model Difference Only the model name is different. Product Description The EUT is Projector Operation Frequency: BT: 2402~2480 MHz 2.4G WLAN: 802.11b/g/n 20: 2412~2462 MHz 802.11n(40MHz):2422~2452MHz 5G WLAN: IEEE 802.11a/n(HT20):5.180GHz-5.240GHz IEEE 802.11n(HT40): 5.190GHz-5.230GHz Modulation Type: BT BR(1Mbps): GFSK BT EDR(2Mbps): π/4-DQPSK BT EDR(3Mbps): 8DPSK 2.4G WLAN: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM 5G WLAN: 802.11a(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM Antenna gain: BT/2.4G WLAN:2.1dBi 5G WLAN:2.56dBi Antenna Designation: PIFA Rating Input: AC 100-240V~50/60Hz 1.5A Hardware version number A0240626/713M Software version number eng.ys.20240621.093637 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 6 of 9 Report No.: STS2408060H02 2. FCC 47CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS Follow the maximum permissible exposure (MPE) limits specified in 447498 D04 Interim General Radio Frequency Exposure Guidelines v01. The gain of the antenna used in the product was extracted from the supplied antenna data sheet and the maximum total power input to the antenna was also measured. Calculate the distance from the product to the MPE limit by the formula. 2.2 LIMIT For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of Part 1.1307. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: Page 7 of 9 Report No.: STS2408060H02 (C) Or using below table and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). RF Source frequency (MHz) Threshold ERP(watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,…

Text truncated - open the document above for the full version.

TEL：+86 0755-23073599FAX：+86 0755-23097189E-mail:[email protected] SHENZHEN 客户 : 品 名 规 格 DESCRIPTION: 料号 PART NO. ： 客 户 料 号 CUS PART NO.： 日期 D A T E ： 云顶呈样签章 工 程 ENGINEERING DEPARTMENT 品保 Q C DEPARTMENT 业 务 SALES DEPARTMENT 客户承认签章 工 程 ENGINEERING DEPARTMENT 品保 Q C DEPARTMENT 采 购 PURCHASING DEPARTMENT 联系电话：0755 23073599 ж 承认书一式三份，惠蒙贵司承认签章 ж Approval in duplicate, please signed by your company. APPROVAL YD-2.4/5GHZ Ver1.0-L120-1-A 2024.3.30 company 2.4/5GHz Ver1.0 Shenzhen star Chuangzhan Electronics Co., LTD 深圳天星创展电子有限公司 HEN SWR Antenna performance TEL：+860755-23073599FAX：+860755-23097189E-mail:[email protected] SHENZHEN PassiveTestForWIFI2.4 FreqEffiGain (MHz)(%)(dBi) 240052.790.91 241053.940.96 242052.110.9 243053.010.99 244057.671.43 245063.291.92 246062.31.88 247065.182 248068.52.1 249073.412.55 250071.92.51 Antenna efficiency and gain TEL：+860755-23073599FAX：+860755-23097189E-mail:[email protected] SHENZHEN PassiveTestForWIFI5.8 FreqEffiGain (MHz)(%)(dBi) 515055.492.56 520052.582.08 525050.521.53 530053.882.34 535059.163.2 540065.73.46 545057.362.96 550055.252.87 555051.222.4 560044.641.57 565044.981.34 570049.182.02 575060.243.43 580061.273.38 585053.192.78 TEL：+86 0755-23073599FAX：+86 0755-23097189E-mail:[email protected] SHENZHEN Antenna size diagram Unit: mm TEL：+860755-23073599FAX：+860755-23097189E-mail:[email protected] SHENZHEN 电器技术参数 电性能指标 ElectricalSpecifications 频率范围2400~2500/5150~5850MHz FrequencyRange 2400~2500/5150~5850MHz 电压驻波比≤2.0VSWR≤2.0 输入阻抗50ΩInputImpedance50Ω 增益3.5DBIGain3.5DBI 机械指标 MechanicalSpecifications 天线颜色黑色AntennaColorBlack 接口形式IPEX一代InputconnectorIPEX1 天线线长120mmCablelength120mm 工作温度-40°C~+85°CWorkingTemperature-40°C~+85°C 工作湿度20~80%WorkingHumidity20~80%

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.:STS2408060W06 Issued for Shenzhen Ruichi Information Technology Co., Ltd Room 601, North Block, Jinwen Digital Valley, Hangcheng Street, Bao'an District, Shenzhen, China. Product Name: Projector Brand Name: N/A Model Name: F800 Series Model(s): F813, F811, F801, F806, F809, F828, F895, F810, F820, F830 FCC ID: 2BH6C-F800 Test Standard: FCC Part15.407 S T L A B S Page 2 of 39 Report No.: STS2408060W06 TEST REPORT Applicant’s Name ................. : Shenzhen Ruichi Information Technology Co., Ltd Address ................................. : Room 601, North Block, Jinwen Digital Valley, Hangcheng Street, Bao'an District, Shenzhen, China. Manufacturer's Name ........... : Shenzhen Ruichi Information Technology Co., Ltd Address ................................. : Room 601, North Block, Jinwen Digital Valley, Hangcheng Street, Bao'an District, Shenzhen, China. Product Description Product Name ........................ : Projector Brand Name .......................... : N/A Model Name .......................... : F800 Series Model(s) .................... : F813, F811, F801, F806, F809, F828, F895, F810, F820, F830 Test Standards ..................... : FCC Part15.407 Test Procedure ............................... : ANSI C63.10-2020 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 08 Aug. 2024 Date (s) of performance of tests ............. : 08 Aug. 2024 ~ 13 Aug. 2024 Date of Issue .......................................... : 13 Aug. 2024 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Chris Chen) Authorized Signatory : (Bovey Yang) Page 3 of 39 Report No.: STS2408060W06 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF THE EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TEST SOFTWARE AND POWER LEVEL 9 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.2 RADIATED EMISSION AND ( BANDEDGE) MEASUREMENT 17 4. POWER SPECTRAL DENSITY TEST 31 4.1 LIMIT 31 4.2 TEST PROCEDURE 31 4.3 DEVIATION FROM STANDARD 32 4.4 TEST SETUP 32 4.5 EUT OPERATION CONDITIONS 32 4.6 TEST RESULTS 32 5. BANDWIDTH MEASUREMENT 33 5.1 EMISSION BANDWIDTH (EBW) 26 BANDWID PROCEDURES / LIMIT 33 5.2 OCCUPIED BANDWIDTH ( 99%) TEST APPLIED PROCEDURES / LIMIT 34 5.3 MINIMUM EMISSION BANDWIDTH(6 DB) PROCEDURES / LIMIT 35 6. MAXIMUM CONDUCTED OUTPUT POWER 36 6.1 LIMIT 36 6.2 TEST PROCEDURE 36 6.3 DEVIATION FROM STANDARD 36 6.4 TEST SETUP 36 6.5 EUT OPERATION CONDITIONS 36 6.6 TEST RESULTS 36 7. AUTOMATICALLY DISCONTINUE TRANSMISSION 37 7.1 LIMIT OF AUTOMATICALLY DISCONTINUE TRANSMISSION 37 7.2 TEST RESULT OF AUTOMATICALLY DISCONTINUE TRANSMISSION 37 8. ANTENNA REQUIREMENT 38 8.1 STANDARD REQUIREMENT 38 8.2 EUT ANTENNA 38 APPENDIX - PHOTOS OF TEST SETUP 39 Page 4 of 39 Report No.: STS2408060W06 Revision History Rev. Issue Date Report No. Effect Page Contents 00 13 Aug. 2024 STS2408060W06 ALL Initial Issue Page 5 of 39 Report No.: STS2408060W06 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: § 15.407,KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 FCC Part 15.407 FCC standard Test Item Results 15.207 AC Conducted Emission PASS 15.407 (a) /15.407 (e) 26dB/6dB &99% Bandwidth PASS 15.407(a) Maximum Conducted Output Power PASS 15.407(b)/15.205/15.209 Radiated Emission And (bandedge Emissions) Measurement PASS 15.407(a) Power Spectral Density PASS 15.407°C Automatically Discontinue Transmission PASS 15.203/15.204 Antenna Requirement PASS NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Page 6 of 39 Report No.: STS2408060W06 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.755dB 2 Unwanted Emissions, conducted ±2.874dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.18dB 5 All emissions, radiated 1G-6GHz ±4.90dB 6 All emissions, radiated>6G ±5.24dB 7 Conducted Emission (9KHz-150KHz) ±2.19dB 8 Conducted Emission (150KHz-30MHz) ±2.53dB 9 Occupied Channel Bandwidth ±3.5% 10 Power Spectral Density, conducted ±1.245dB 11 Duty Cycle ±3.2% Page 7 of 39 Report No.: STS2408060W06 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Projector Brand Name N/A Model Name F800 Series Model(s) F813, F811, F801, F806, F809, F828, F895, F810, F820, F830 Model Difference Only the model name is different. Product Description The EUT is a Projector Operation Frequency: IEEE 802.11a/n(HT20):5.180GHz-5.240GHz …

Text truncated - open the document above for the full version.

Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 1. Duty Cycle Condition Mode Frequency (MHz) Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5180 97.01 0.13 0.72 NVNT a 5200 97.01 0.13 0.72 NVNT a 5240 97.01 0.13 0.72 NVNT n20 5180 96.73 0.14 0.77 NVNT n20 5200 96.8 0.14 0.77 NVNT n20 5240 96.8 0.14 0.77 NVNT n40 5190 93.93 0.27 1.54 NVNT n40 5230 93.93 0.27 1.54 Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 Test Graphs Duty Cycle NVNT a 5180MHz Duty Cycle NVNT a 5200MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 Duty Cycle NVNT a 5240MHz Duty Cycle NVNT n20 5180MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 Duty Cycle NVNT n20 5200MHz Duty Cycle NVNT n20 5240MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 Duty Cycle NVNT n40 5190MHz Duty Cycle NVNT n40 5230MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 2. Maximum Conducted Output Power Condition Mode Frequency (MHz) Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5180 9.82 0.13 9.95 <=24 Pass NVNT a 5200 9.62 0.13 9.75 <=24 Pass NVNT a 5240 9.46 0.13 9.59 <=24 Pass NVNT n20 5180 9.47 0.14 9.61 <=24 Pass NVNT n20 5200 10.01 0.14 10.15 <=24 Pass NVNT n20 5240 9.84 0.14 9.98 <=24 Pass NVNT n40 5190 9.65 0.27 9.92 <=24 Pass NVNT n40 5230 9.84 0.27 10.11 <=24 Pass Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 Test Graphs Power NVNT a 5180MHz Power NVNT a 5200MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 Power NVNT a 5240MHz Power NVNT n20 5180MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 Power NVNT n20 5200MHz Power NVNT n20 5240MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 Power NVNT n40 5190MHz Power NVNT n40 5230MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 3. -26dB Bandwidth Condition Mode Frequency (MHz) -26 dB Bandwidth (MHz) Verdict NVNT a 5180 22.2974 Pass NVNT a 5200 19.6531 Pass NVNT a 5240 19.5671 Pass NVNT n20 5180 20.7594 Pass NVNT n20 5200 20.4264 Pass NVNT n20 5240 21.5893 Pass NVNT n40 5190 41.1197 Pass NVNT n40 5230 50.4218 Pass Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 Test Graphs -26dB Bandwidth NVNT a 5180MHz -26dB Bandwidth NVNT a 5200MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 -26dB Bandwidth NVNT a 5240MHz -26dB Bandwidth NVNT n20 5180MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 -26dB Bandwidth NVNT n20 5200MHz -26dB Bandwidth NVNT n20 5240MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 -26dB Bandwidth NVNT n40 5190MHz -26dB Bandwidth NVNT n40 5230MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 4. Occupied Channel Bandwidth Condition Mode Frequency (MHz) 99% OBW (MHz) NVNT a 5180 16.3982 NVNT a 5200 16.3581 NVNT a 5240 16.4114 NVNT n20 5180 17.5452 NVNT n20 5200 17.5556 NVNT n20 5240 17.5639 NVNT n40 5190 36.0435 NVNT n40 5230 36.0172 Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 Test Graphs OBW NVNT a 5180MHz OBW NVNT a 5200MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 OBW NVNT a 5240MHz OBW NVNT n20 5180MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 OBW NVNT n20 5200MHz OBW NVNT n20 5240MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 OBW NVNT n40 5190MHz OBW NVNT n40 5230MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 5. Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Conducted PSD (dBm) Duty Factor (dB) Total PSD (dBm) Limit (dBm) Verdict NVNT a 5180 0.181 0.13 0.311 <=11 Pass NVNT a 5200 0.042 0.13 0.172 <=11 Pass NVNT a 5240 -0.005 0.13 0.125 <=11 Pass NVNT n20 5180 0.21 0.14 0.35 <=11 Pass NVNT n20 5200 0.089 0.14 0.229 <=11 Pass NVNT n20 5240 0.229 0.14 0.369 <=11 Pass NVNT n40 5190 -3.119 0.27 -2.849 <=11 Pass NVNT n40 5230 -2.921 0.27 -2.651 <=11 Pass Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 Test Graphs PSD NVNT a 5180MHz PSD NVNT a 5200MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 PSD NVNT a 5240MHz PSD NVNT n20 5180MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 PSD NVNT n20 5200MHz PSD NVNT n20 5240MHz Report: TR_STS2408060W06_RF_Appendix 5G WIFI U-NII-1 PSD NVNT n40 5190MHz PSD NVNT n40 5230MHz

Page 1 of 2 FCC ID.: 2BH6C-F800 DSS&DTS Setup photo Model Number: F800 DSS&DTS conduction DSS&DTS radiation L Page 2 of 2 FCC ID.: 2BH6C-F800 DSS&DTS radiation H
