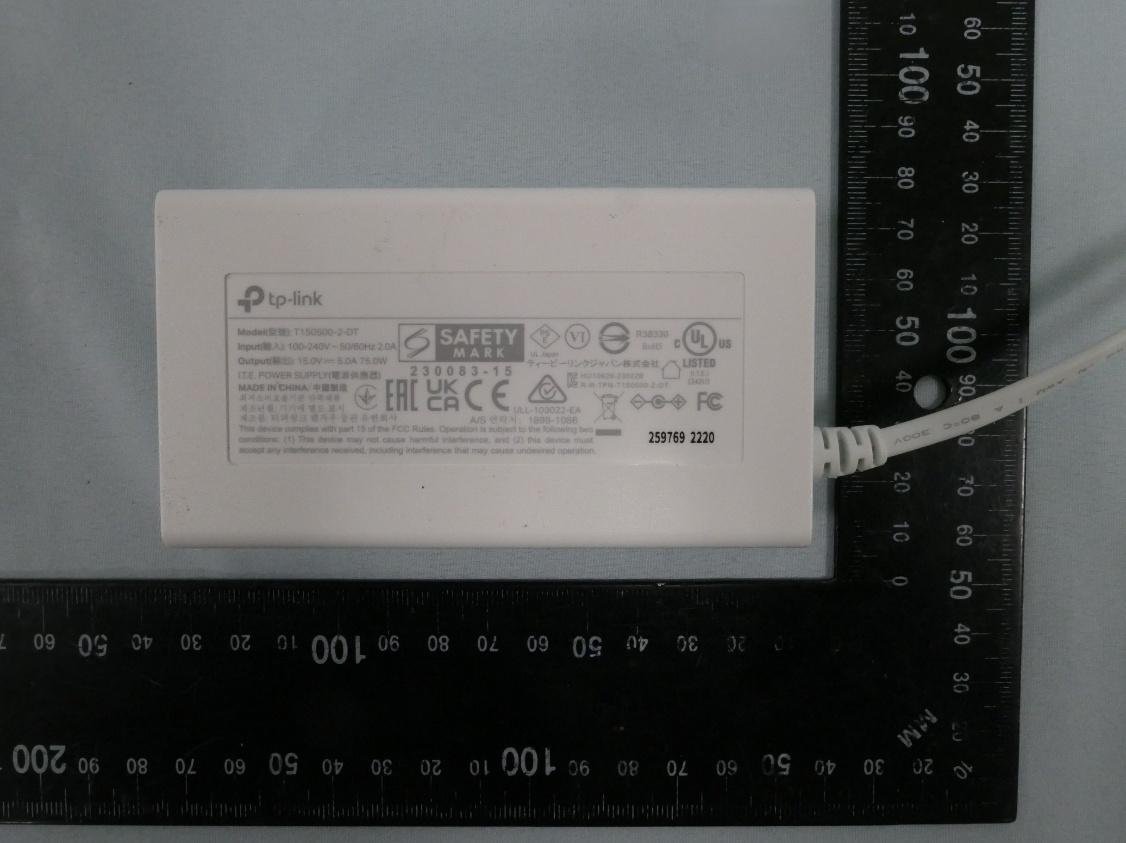

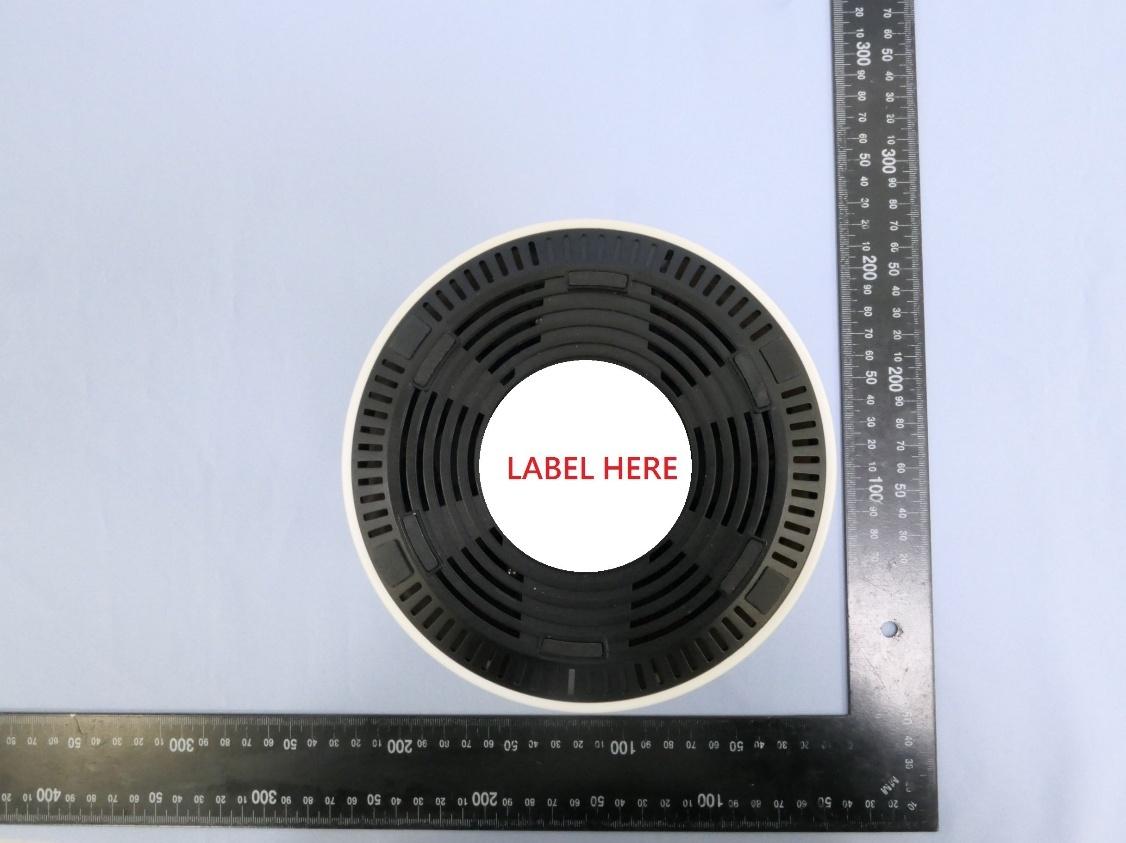

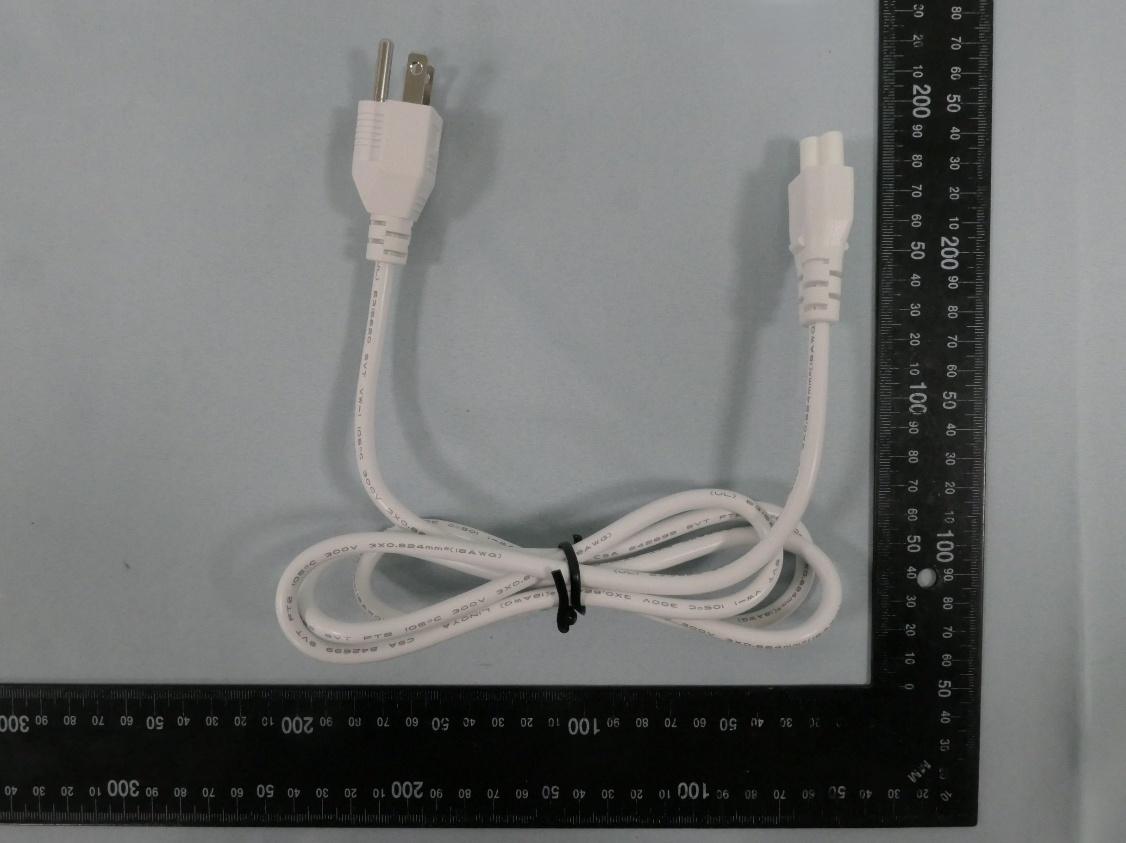

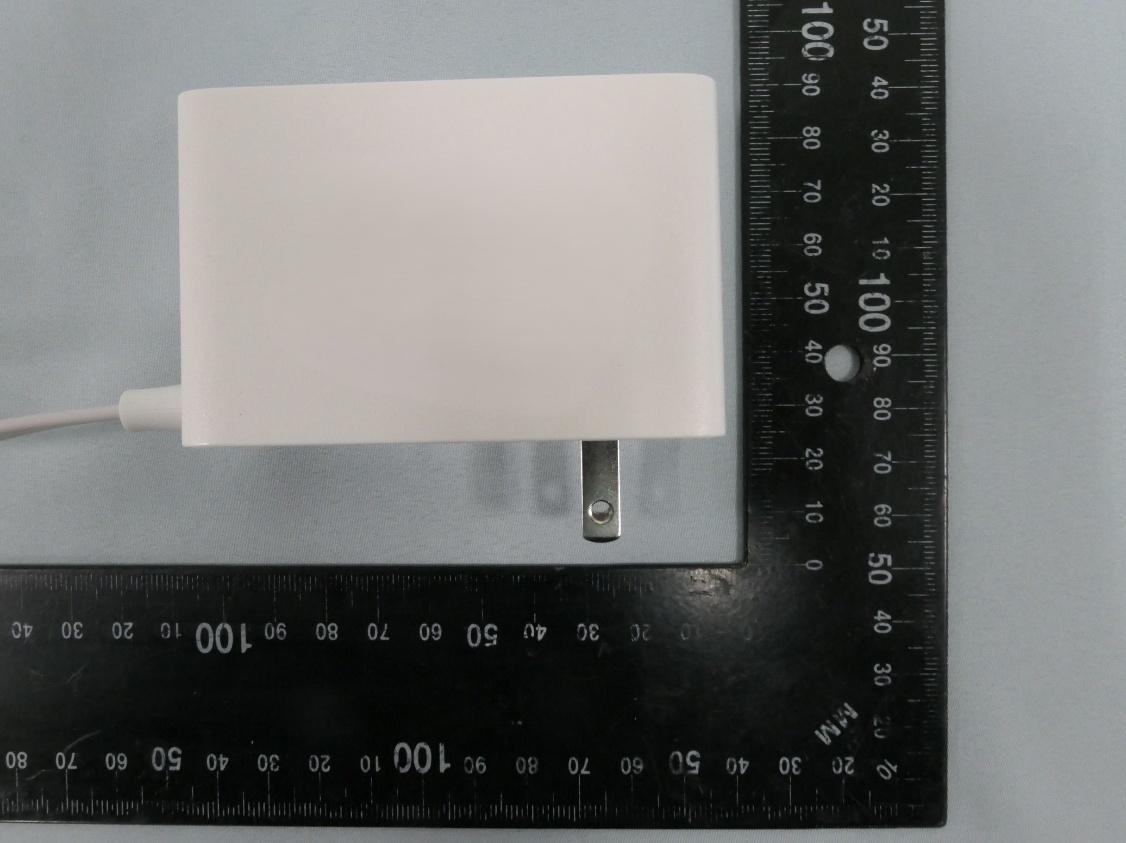

2BH7FBE85V3BE22000 Whole Home Mesh Wi-Fi 7 System

Deco BE85_Installation and User Guide Table of Contents About This Guide This guide provides a brief introduction to BE22000 Whole Home Mesh Wi-Fi 7 System and regulatory information. Features available in Deco may vary by model and software version. Deco availability may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Deco experience. Conventions In this guide, the following conventions are used: ConventionDescription DecoStands for Deco Whole Home Mesh Wi-Fi System/Unit. Underline Underlined words or phrases are hyperlinks. You can click to redirect to a website or a specific section. Bold Contents to be emphasized and texts on the web page are in bold, including the menus, items, buttons and so on. > The menu structures to show the path to load the corresponding page. For example, Settings > System Tools > Firmware Upgrade means the Firmware Upgrade page is under the System Tools menu that is located in the Settings tab. Note:Ignoring this type of note might result in a malfunction or damage to the device. Tip:Indicates important information that helps you make better use of your device. More Info Specific product information can be found on the product page at https://www.tp-link.com. A Technical Community is provided for you to discuss our products at https://community.tp-link.com. Our Technical Support contact information can be found at the Help center of the Deco app and the Contact Technical Support page at https://www.tp-link.com/support. Disclaimer Speed/Coverage/Device Quantity Disclaimer Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. MU-MIMO Disclaimer Use of MU-MIMO requires clients to also support MU-MIMO. IoT Compatibility Disclaimer IoT compatibility refers only to smart devices that can be controlled via the Deco app. Other wireless devices can still connect to Deco for normal Wi-Fi use. Seamless Roaming Disclaimer Clients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device. 1. Appearance Each Deco has an LED that changes color according to its status, a WPS button, two 2.5 Gbps WAN/LAN ports, a 10 Gbps WAN/LAN port, a 10 Gbps RJ45/SFP+ WAN/LAN Combo port, a USB 3.0 port, a power slot, and a Reset button. See the explanation below: LED Explanation LEDIndication Pulse YellowDeco is resetting. Solid YellowDeco is starting up. Pulse BlueDeco is ready for setup. Solid BlueDeco is setting up. Pulse GreenDeco is upgrading firmware. Solid GreenDeco is all set up and connected to the internet. Pulse RedThe satellite Deco is disconnected from the main Deco. LEDIndication Solid RedThe main Deco is disconnected from the internet. Ports and Buttons Port/ButtonDescription WPS Button Press this WPS button, and immediately press the WPS buttonon your client device to start the WPS process. Reset Button Press for 1 second and release to reset Deco to factory default settings. The light changing from pulsing yellow to solid yellow indicates a successful reset. Port/ButtonDescription 2.5 Gbps WAN/LAN ports For connecting Deco to your modem, the Ethernet outlet, or other internet devices. 10 Gbps WAN/LAN port For connecting Deco to your modem, the Ethernet outlet, or other internet devices. 10 Gbps RJ45/SFP+ WAN/LAN Combo Port Use Deco’s Combo pair. The Combo pair includes an Ethernet port and an SFP+ port.Only one port in the pair can be used at a time. USB 3.0 PortFor connecting a USB storage device to Deco. Power SlotFor connecting Deco to the power socket via the provided power adapter. 2. Set Up Your Deco Network First, let's start by setting up the Deco network. Get the TP-Link Deco app for iOS or Android, then follow the app to walk through the setup. 1. Get the Deco app Scan the QR code below or go to Google Play or the App Store to download the Deco app. Install the app on your Android or iOS smartphone or tablet. 2. Log in or sign up with TP-Link ID Open the app and log in with your TP-Link ID. If you don’t have a TP-Link ID, create one first. Note: If you forgot your login password, tap Forgot Password?. The app will help you reset your password. 3. Create a Network In the Deco app, tap the + button on the top right corner of the homepage, then select Create a Network. 4. Plug in your Deco Plug in your Deco and wait until your Deco's LED pulses blue, then your phone/tablet will connect to the Deco's default Wi-Fi automatically. Note: You can turn on Bluetooth on your phone/tablet in advance for a quicker setup. 5. Connect your Deco Power off your modem. Connect your Deco to the modem and power it on. If you don't have a modem, connect your Deco to a networking device's LAN port or directly to the Ethernet outlet through the SFP+ port . oror 6. Specify your Deco's location Select or custom a location for your Deco. The location will be used as the name of your Deco. 7. Connect your Deco to the internet Select the internet connection type and enter the information. If you are not sure, contact your internet service provider. 8. Create your Wi-Fi network Set a network name and a password. These will be the name and password you use to connect your devices to Wi-Fi. 9. Setup complete Your Deco network is now up. You can connect your devices to the Deco network for better connections. Additionally, add more Deco units to expand the Wi-Fi coverage. Troubleshooting Solutions to common problems during setup or use are provided here for reference. Follow the steps and the provided link below to diagnose and solve problems you might experience with your Deco. If problems still exist, contact us: TP-Li…

Text truncated - open the document above for the full version.

Report No.: R25S1037117-U201 823 of 1158 Product BE22000 Whole Home Mesh Wi-Fi 7 System Test Engineer Alex Liu Test Site WJ-AC1 Test Date 2025-12-04 ~ 2025-12-16 Test Mode 802.11ax-HE80 (Mode A, Nss = 4) Test Channel 151 Remark 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20 dB below limit line within 1-18 GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB/m) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 11628.40 23.73 19.76 43.49 74.00 -30.51 Peak Horizontal * 14050.90 27.11 22.34 49.45 88.20 -38.75 Peak Horizontal * 17024.20 24.85 28.68 53.53 88.20 -34.67 Peak Horizontal 17711.00 9.95 30.14 40.09 54.00 -13.91 Average Horizontal 17711.00 28.57 30.14 58.71 74.00 -15.29 Peak Horizontal 11526.40 29.80 19.45 49.25 74.00 -24.75 Peak Vertical * 13877.50 29.19 22.27 51.46 88.20 -36.74 Peak Vertical * 16692.70 28.65 28.27 56.92 88.20 -31.28 Peak Vertical 17702.50 10.12 30.14 40.26 54.00 -13.74 Average Vertical 17702.50 28.71 30.14 58.85 74.00 -15.15 Peak Vertical Note 1: “*” is not in restricted band, its limit is -27 dBm/MHz. At a distance of 3 meters, the field strength limit in dBμV/m can be determined by adding a “conversion” factor of 95.2 dB to the Limit of -27 dBm/MHz to obtain the limit for out of band spurious emissions. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB/m) Factor (dB/m) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: R25S1037117-U201 824 of 1158 Product BE22000 Whole Home Mesh Wi-Fi 7 System Test Engineer Alex Liu Test Site WJ-AC1 Test Date 2025-12-04 ~ 2025-12-16 Test Mode 802.11ax-HE80 (Mode A, Nss = 4) Test Channel 167 Remark 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20 dB below limit line within 1-18 GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB/m) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 11565.50 26.14 19.73 45.87 74.00 -28.13 Peak Horizontal * 13568.10 30.14 22.32 52.46 88.20 -35.74 Peak Horizontal * 16750.50 24.83 28.67 53.50 88.20 -34.70 Peak Horizontal 17949.00 9.71 28.98 38.69 54.00 -15.31 Average Horizontal 17949.00 29.39 28.98 58.37 74.00 -15.63 Peak Horizontal 12374.70 27.20 21.72 48.92 74.00 -25.08 Peak Vertical * 13568.10 33.29 22.32 55.61 88.20 -32.59 Peak Vertical * 16886.50 23.49 28.35 51.84 88.20 -36.36 Peak Vertical 17932.00 9.66 30.04 39.70 54.00 -14.30 Average Vertical 17932.00 28.10 30.04 58.14 74.00 -15.86 Peak Vertical Note 1: “*” is not in restricted band, its limit is -27 dBm/MHz. At a distance of 3 meters, the field strength limit in dBμV/m can be determined by adding a “conversion” factor of 95.2 dB to the Limit of -27 dBm/MHz to obtain the limit for out of band spurious emissions. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB/m) Factor (dB/m) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: R25S1037117-U201 825 of 1158 Product BE22000 Whole Home Mesh Wi-Fi 7 System Test Engineer Alex Liu Test Site WJ-AC1 Test Date 2025-12-04 ~ 2025-12-16 Test Mode 802.11ax-HE80 (Mode A, Nss = 4) Test Channel 183 Remark 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20 dB below limit line within 1-18 GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB/m) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 12175.80 25.36 21.16 46.52 74.00 -27.48 Peak Horizontal * 13750.00 29.68 21.97 51.65 88.20 -36.55 Peak Horizontal * 17209.50 25.36 28.72 54.08 88.20 -34.12 Peak Horizontal 17824.90 9.93 30.32 40.25 54.00 -13.75 Average Horizontal 17824.90 22.94 30.32 53.26 74.00 -20.74 Peak Horizontal 12374.70 24.64 21.72 46.36 74.00 -27.64 Peak Vertical * 13750.00 27.34 21.97 49.31 88.20 -38.89 Peak Vertical * 17116.00 24.10 28.64 52.74 88.20 -35.46 Peak Vertical 17933.70 9.82 29.92 39.74 54.00 -14.26 Average Vertical 17933.70 29.17 29.92 59.09 74.00 -14.91 Peak Vertical Note 1: “*” is not in restricted band, its limit is -27 dBm/MHz. At a distance of 3 meters, the field strength limit in dBμV/m can be determined by adding a “conversion” factor of 95.2 dB to the Limit of -27 dBm/MHz to obtain the limit for out of band spurious emissions. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB/m) Factor (dB/m) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: R25S1037117-U201 826 of 1158 Product BE22000 Whole Home Mesh Wi-Fi 7 System Test Engineer Alex Liu Test Site WJ-AC1 Test Date 2025-12-04 ~ 2025-12-16 Test Mode 802.11ax-HE80 (Mode A, Nss = 4) Test Channel 199 Remark 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20 dB below limit line within 1-18 GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB/m) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 12012.60 25.60 20.73 46.33 74.00 -27.67 Peak Horizontal * 13862.20 26.86 22.04 48.90 88.20 -39.30 Peak Horizontal * 16978.30 23.83 28.76 52.59 88.20 -35.61 Peak Horizontal 17950.70 9.90 29.05 38.95 54.00 -15.05 Average Horizontal 17950.70 28.55 29.05 57.60 74.00 -16.40 Peak Horizontal 12340.70 24.52 21.55 46.07 74.00 -27.93 Peak Vertical * 13750.00 26.86 21.97 48.83 88.20 -39.37 Peak Vertical * 17209.50 23.68 28.72 52.40 88.20 -35.80 Peak Vertical 17983.00 9.62 30.60 40.22 54.00 -13.78 Average Vertical 17983.00 27.09 30.60 57.69 74.00 -16.31 Peak Vertical Note 1: “*” is not in restricted band, its limit is -27 dBm/MHz. At a distance of 3 meters, the field strength limit in dBμV/m can be determined by adding a “conversion” factor of 95.2 dB to the Limit of -27 dBm/MHz to obtain the limit for out of band spurious emissions. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB/m) Facto…

Text truncated - open the document above for the full version.

Report No.: R25S1037117-U201 303 of 1158 802.11be-EHT20 Power Spectral Density- Ant 10 (Nss = 4) Channel 33 (6115 MHz) Channel 61 (6255 MHz) Channel 93 (6415 MHz) Channel 97 (6435 MHz) Channel 105 (6475 MHz) Channel 113 (6515 MHz) Report No.: R25S1037117-U201 304 of 1158 802.11be-EHT20 Power Spectral Density- Ant 10 (Nss = 4) Channel 117 (6535 MHz) Channel 149 (6695 MHz) Channel 181 (6855 MHz) Channel 185 (6875 MHz) Channel 189 (6895 MHz) Channel 209 (6995 MHz) Report No.: R25S1037117-U201 305 of 1158 802.11be-EHT20 Power Spectral Density- Ant 10 (Nss = 4) Channel 229 (7095 MHz) Report No.: R25S1037117-U201 306 of 1158 802.11be-EHT40 Power Spectral Density- Ant 10 (Nss = 4) Channel 35 (6125 MHz) Channel 59 (6245 MHz) Channel 91 (6405 MHz) Channel 99 (6445 MHz) Channel 107 (6485 MHz) Channel 115 (6525 MHz) Report No.: R25S1037117-U201 307 of 1158 802.11be-EHT40 Power Spectral Density- Ant 10 (Nss = 4) Channel 123 (6565 MHz) Channel 147 (6685 MHz) Channel 179 (6845 MHz) Channel 187 (6885 MHz) Channel 195 (6925 MHz) Channel 211 (7005 MHz) Report No.: R25S1037117-U201 308 of 1158 802.11be-EHT40 Power Spectral Density- Ant 10 (Nss = 4) Channel 227 (7085 MHz) Report No.: R25S1037117-U201 309 of 1158 802.11be-EHT80 Power Spectral Density- Ant 10 (Nss = 4) Channel 39 (6145 MHz) Channel 55 (6225 MHz) Channel 87 (6385 MHz) Channel 103 (6465 MHz) Channel 119 (6545 MHz) Channel 135 (6625 MHz) Report No.: R25S1037117-U201 310 of 1158 802.11be-EHT80 Power Spectral Density- Ant 10 (Nss = 4) Channel 151 (6705 MHz) Channel 167 (6785 MHz) Channel 183 (6865 MHz) Channel 199 (6945 MHz) Channel 215 (7025 MHz) Report No.: R25S1037117-U201 311 of 1158 802.11be-EHT160 Power Spectral Density- Ant 10 (Nss = 4) Channel 47 (6185 MHz) Channel 79 (6345 MHz) Channel 111 (6505 MHz) Channel 143 (6665 MHz) Channel 175 (6825 MHz) Channel 207 (6985 MHz) Report No.: R25S1037117-U201 312 of 1158 802.11be-EHT320 Power Spectral Density- Ant 10 (Nss = 4) Channel 95 (6425 MHz) Channel 159 (6745 MHz) 802.11be-EHT320 Power Spectral Density- Ant 10 (Nss = 4) Channel 63 (6265 MHz) Channel 127 (6585 MHz) Channel 191 (6905 MHz) Report No.: R25S1037117-U201 313 of 1158 Test Site WJ-SR2 Test Engineer Layla Gui Test Date 2025-11-26 ~ 2025-12-02 Test Mode Mode B, Nss = 1 Test Mode Data Rate/ MCS Channel No. Freq. (MHz) PSD (dBm/MHz) Duty Cycle (%) Antenna Gain (dBi) EIRP PSD (dBm/MHz) Limit (dBm/MHz) Ant 7 Ant 8 Ant 11 Ant 12 802.11ax-HE20 MCS0 33 6115 -10.240 -10.338 -10.195 -10.958 99.71 9.05 4.65 ≤ 5.00 802.11ax-HE20 MCS0 61 6255 -10.381 -10.055 -10.397 -11.516 99.71 9.05 4.52 ≤ 5.00 802.11ax-HE20 MCS0 93 6415 -9.782 -10.417 -10.288 -9.947 99.71 9.05 4.97 ≤ 5.00 802.11ax-HE20 MCS0 97 6435 -9.704 -10.104 -10.155 -10.082 99.71 8.76 4.77 ≤ 5.00 802.11ax-HE20 MCS0 105 6475 -9.024 -10.076 -10.068 -10.306 99.71 8.76 4.94 ≤ 5.00 802.11ax-HE20 MCS0 113 6515 -9.389 -10.047 -9.853 -11.080 99.71 8.76 4.73 ≤ 5.00 802.11ax-HE20 MCS0 117 6535 -8.354 -9.320 -8.903 -10.053 99.71 7.73 4.64 ≤ 5.00 802.11ax-HE20 MCS0 149 6695 -8.847 -9.194 -8.777 -8.319 99.71 7.73 4.98 ≤ 5.00 802.11ax-HE20 MCS0 181 6855 -8.038 -9.023 -8.615 -9.671 99.71 7.73 4.95 ≤ 5.00 802.11ax-HE20 MCS0 185 6875 -8.253 -8.997 -8.881 -9.656 99.71 7.73 4.83 ≤ 5.00 802.11ax-HE20 MCS0 189 6895 -8.069 -8.352 -8.364 -8.891 99.71 6.64 4.25 ≤ 5.00 802.11ax-HE20 MCS0 209 6995 -8.037 -8.183 -8.250 -8.322 99.71 6.64 4.46 ≤ 5.00 802.11ax-HE20 MCS0 229 7095 -8.055 -7.898 -7.899 -7.968 99.71 6.64 4.71 ≤ 5.00 802.11ax-HE40 MCS0 35 6125 -10.525 -10.379 -10.359 -10.597 99.63 9.05 4.61 ≤ 5.00 802.11ax-HE40 MCS0 59 6245 -10.239 -9.405 -10.566 -11.152 99.63 9.05 4.78 ≤ 5.00 802.11ax-HE40 MCS0 91 6405 -10.060 -9.930 -10.646 -9.895 99.63 9.05 4.95 ≤ 5.00 802.11ax-HE40 MCS0 99 6445 -9.471 -9.607 -10.299 -9.902 99.63 8.76 4.97 ≤ 5.00 802.11ax-HE40 MCS0 107 6485 -9.719 -9.527 -10.200 -10.429 99.63 8.76 4.83 ≤ 5.00 802.11ax-HE40 MCS0 115 6525 -9.512 -9.953 -10.141 -10.872 99.63 8.76 4.69 ≤ 5.00 802.11ax-HE40 MCS0 123 6565 -8.324 -8.760 -9.370 -10.212 99.63 7.73 4.64 ≤ 5.00 802.11ax-HE40 MCS0 147 6685 -8.796 -9.396 -8.894 -9.074 99.63 7.73 4.72 ≤ 5.00 802.11ax-HE40 MCS0 179 6845 -8.564 -8.999 -9.759 -8.920 99.63 7.73 4.71 ≤ 5.00 802.11ax-HE40 MCS0 187 6885 -8.733 -8.398 -9.477 -9.502 99.63 7.73 4.75 ≤ 5.00 802.11ax-HE40 MCS0 195 6925 -7.549 -7.968 -7.990 -9.743 99.63 6.64 4.42 ≤ 5.00 802.11ax-HE40 MCS0 211 7005 -8.143 -8.655 -7.922 -9.607 99.63 6.64 4.13 ≤ 5.00 802.11ax-HE40 MCS0 227 7085 -8.202 -8.014 -8.217 -7.784 99.63 6.64 4.61 ≤ 5.00 Report No.: R25S1037117-U201 314 of 1158 Test Mode Data Rate/ MCS Channel No. Freq. (MHz) PSD (dBm/MHz) Duty Cycle (%) Antenna Gain (dBi) EIRP PSD (dBm/MHz) Limit (dBm/MHz) Ant 7 Ant 8 Ant 11 Ant 12 802.11ax-HE80 MCS0 39 6145 -10.254 -10.295 -10.372 -10.249 99.63 9.05 4.78 ≤ 5.00 802.11ax-HE80 MCS0 55 6225 -9.875 -10.007 -10.717 -9.914 99.63 9.05 4.96 ≤ 5.00 802.11ax-HE80 MCS0 87 6385 -10.814 -10.680 -10.694 -10.285 99.63 9.05 4.46 ≤ 5.00 802.11ax-HE80 MCS0 103 6465 -9.928 -10.328 -10.715 -9.656 99.63 8.76 4.64 ≤ 5.00 802.11ax-HE80 MCS0 119 6545 -9.149 -9.538 -10.118 -11.102 99.63 8.76 4.86 ≤ 5.00 802.11ax-HE80 MCS0 135 6625 -8.061 -9.263 -9.111 -10.456 99.63 7.73 4.61 ≤ 5.00 802.11ax-HE80 MCS0 151 6705 -8.949 -9.446 -9.099 -9.113 99.63 7.73 4.60 ≤ 5.00 802.11ax-HE80 MCS0 167 6785 -8.732 -9.410 -9.691 -8.359 99.63 7.73 4.73 ≤ 5.00 802.11ax-HE80 MCS0 183 6865 -8.687 -9.108 -9.297 -9.974 99.63 7.73 4.51 ≤ 5.00 802.11ax-HE80 MCS0 199 6945 -7.810 -8.010 -8.848 -9.781 99.63 6.64 4.12 ≤ 5.00 802.11ax-HE80 MCS0 215 7025 -8.462 -8.439 -8.027 -9.446 99.63 6.64 4.10 ≤ 5.00 802.11ax-HE160 MCS0 47 6185 -9.878 -10.559 -11.131 -10.536 99.67 9.05 4.57 ≤ 5.00 802.11ax-HE160 MCS0 79 6345 -10.010 -10.157 -10.294 -10.068 99.67 9.05 4.94 ≤ 5.00 802.11ax-HE160 MCS0 111 6505 -9.898 -9.907 -10.305 -9.869 99.67 8.76 4.79 ≤ 5.00 802.11ax-HE160 MCS0 143 6665 -7.205 -9.037 -11.477 -9.592 99.67 7.73 4.69 ≤ 5.00 802.11ax-HE160 MCS0 175 6825 -8.559 -9.693 -9.376 -9.069 99.67 7.73 4.60 ≤ 5.00 802.11ax-HE160 …

Text truncated - open the document above for the full version.

Report No.: R25S1037117-U201 356 of 1158 802.11ax-HE20 Power Spectral Density- Ant 11 (Nss = 1) Channel 117 (6535 MHz) Channel 149 (6695 MHz) Channel 181 (6855 MHz) Channel 185 (6875 MHz) Channel 189 (6895 MHz) Channel 209 (6995 MHz) Report No.: R25S1037117-U201 357 of 1158 802.11ax-HE20 Power Spectral Density- Ant 11 (Nss = 1) Channel 229 (7095 MHz) Report No.: R25S1037117-U201 358 of 1158 802.11ax-HE40 Power Spectral Density- Ant 11 (Nss = 1) Channel 35 (6125 MHz) Channel 59 (6245 MHz) Channel 91 (6405 MHz) Channel 99 (6445 MHz) Channel 107 (6485 MHz) Channel 115 (6525 MHz) Report No.: R25S1037117-U201 359 of 1158 802.11ax-HE40 Power Spectral Density- Ant 11 (Nss = 1) Channel 123 (6565 MHz) Channel 147 (6685 MHz) Channel 179 (6845 MHz) Channel 187 (6885 MHz) Channel 195 (6925 MHz) Channel 211 (7005 MHz) Report No.: R25S1037117-U201 360 of 1158 802.11ax-HE40 Power Spectral Density- Ant 11 (Nss = 1) Channel 227 (7085 MHz) Report No.: R25S1037117-U201 361 of 1158 802.11ax-HE80 Power Spectral Density- Ant 11 (Nss = 1) Channel 39 (6145 MHz) Channel 55 (6225 MHz) Channel 87 (6385 MHz) Channel 103 (6465 MHz) Channel 119 (6545 MHz) Channel 135 (6625 MHz) Report No.: R25S1037117-U201 362 of 1158 802.11ax-HE80 Power Spectral Density- Ant 11 (Nss = 1) Channel 151 (6705 MHz) Channel 167 (6785 MHz) Channel 183 (6865 MHz) Channel 199 (6945 MHz) Channel 215 (7025 MHz) Report No.: R25S1037117-U201 363 of 1158 802.11ax-HE160 Power Spectral Density- Ant 11 (Nss = 1) Channel 47 (6185 MHz) Channel 79 (6345 MHz) Channel 111 (6505 MHz) Channel 143 (6665 MHz) Channel 175 (6825 MHz) Channel 207 (6985 MHz) Report No.: R25S1037117-U201 364 of 1158 802.11be-EHT20 Power Spectral Density- Ant 11 (Nss = 1) Channel 33 (6115 MHz) Channel 61 (6255 MHz) Channel 93 (6415 MHz) Channel 97 (6435 MHz) Channel 105 (6475 MHz) Channel 113 (6515 MHz) Report No.: R25S1037117-U201 365 of 1158 802.11be-EHT20 Power Spectral Density- Ant 11 (Nss = 1) Channel 117 (6535 MHz) Channel 149 (6695 MHz) Channel 181 (6855 MHz) Channel 185 (6875 MHz) Channel 189 (6895 MHz) Channel 209 (6995 MHz) Report No.: R25S1037117-U201 366 of 1158 802.11be-EHT20 Power Spectral Density- Ant 11 (Nss = 1) Channel 229 (7095 MHz) Report No.: R25S1037117-U201 367 of 1158 802.11be-EHT40 Power Spectral Density- Ant 11 (Nss = 1) Channel 35 (6125 MHz) Channel 59 (6245 MHz) Channel 91 (6405 MHz) Channel 99 (6445 MHz) Channel 107 (6485 MHz) Channel 115 (6525 MHz) Report No.: R25S1037117-U201 368 of 1158 802.11be-EHT40 Power Spectral Density- Ant 11 (Nss = 1) Channel 123 (6565 MHz) Channel 147 (6685 MHz) Channel 179 (6845 MHz) Channel 187 (6885 MHz) Channel 195 (6925 MHz) Channel 211 (7005 MHz) Report No.: R25S1037117-U201 369 of 1158 802.11be-EHT40 Power Spectral Density- Ant 11 (Nss = 1) Channel 227 (7085 MHz) Report No.: R25S1037117-U201 370 of 1158 802.11be-EHT80 Power Spectral Density- Ant 11 (Nss = 1) Channel 39 (6145 MHz) Channel 55 (6225 MHz) Channel 87 (6385 MHz) Channel 103 (6465 MHz) Channel 119 (6545 MHz) Channel 135 (6625 MHz) Report No.: R25S1037117-U201 371 of 1158 802.11be-EHT80 Power Spectral Density- Ant 11 (Nss = 1) Channel 151 (6705 MHz) Channel 167 (6785 MHz) Channel 183 (6865 MHz) Channel 199 (6945 MHz) Channel 215 (7025 MHz) Report No.: R25S1037117-U201 372 of 1158 802.11be-EHT160 Power Spectral Density- Ant 11 (Nss = 1) Channel 47 (6185 MHz) Channel 79 (6345 MHz) Channel 111 (6505 MHz) Channel 143 (6665 MHz) Channel 175 (6825 MHz) Channel 207 (6985 MHz) Report No.: R25S1037117-U201 373 of 1158 802.11be-EHT320 Power Spectral Density- Ant 11 (Nss = 1) Channel 95 (6425 MHz) Channel 159 (6745 MHz) 802.11be-EHT320 Power Spectral Density- Ant 11 (Nss = 1) Channel 63 (6265 MHz) Channel 127 (6585 MHz) Channel 191 (6905 MHz) Report No.: R25S1037117-U201 374 of 1158 802.11ax-HE20 Power Spectral Density- Ant 12 (Nss = 1) Channel 33 (6115 MHz) Channel 61 (6255 MHz) Channel 93 (6415 MHz) Channel 97 (6435 MHz) Channel 105 (6475 MHz) Channel 113 (6515 MHz) Report No.: R25S1037117-U201 375 of 1158 802.11ax-HE20 Power Spectral Density- Ant 12 (Nss = 1) Channel 117 (6535 MHz) Channel 149 (6695 MHz) Channel 181 (6855 MHz) Channel 185 (6875 MHz) Channel 189 (6895 MHz) Channel 209 (6995 MHz) Report No.: R25S1037117-U201 376 of 1158 802.11ax-HE20 Power Spectral Density- Ant 12 (Nss = 1) Channel 229 (7095 MHz) Report No.: R25S1037117-U201 377 of 1158 802.11ax-HE40 Power Spectral Density- Ant 12 (Nss = 1) Channel 35 (6125 MHz) Channel 59 (6245 MHz) Channel 91 (6405 MHz) Channel 99 (6445 MHz) Channel 107 (6485 MHz) Channel 115 (6525 MHz) Report No.: R25S1037117-U201 378 of 1158 802.11ax-HE40 Power Spectral Density- Ant 12 (Nss = 1) Channel 123 (6565 MHz) Channel 147 (6685 MHz) Channel 179 (6845 MHz) Channel 187 (6885 MHz) Channel 195 (6925 MHz) Channel 211 (7005 MHz) Report No.: R25S1037117-U201 379 of 1158 802.11ax-HE40 Power Spectral Density- Ant 12 (Nss = 1) Channel 227 (7085 MHz) Report No.: R25S1037117-U201 380 of 1158 802.11ax-HE80 Power Spectral Density- Ant 12 (Nss = 1) Channel 39 (6145 MHz) Channel 55 (6225 MHz) Channel 87 (6385 MHz) Channel 103 (6465 MHz) Channel 119 (6545 MHz) Channel 135 (6625 MHz) Report No.: R25S1037117-U201 381 of 1158 802.11ax-HE80 Power Spectral Density- Ant 12 (Nss = 1) Channel 151 (6705 MHz) Channel 167 (6785 MHz) Channel 183 (6865 MHz) Channel 199 (6945 MHz) Channel 215 (7025 MHz) Report No.: R25S1037117-U201 382 of 1158 802.11ax-HE160 Power Spectral Density- Ant 12 (Nss = 1) Channel 47 (6185 MHz) Channel 79 (6345 MHz) Channel 111 (6505 MHz) Channel 143 (6665 MHz) Channel 175 (6825 MHz) Channel 207 (6985 MHz) Report No.: R25S1037117-U201 383 of 1158 802.11be-EHT20 Power Spectral Density- Ant 12 (Nss = 1) Channel 33 (6115 MHz) Channel 61 (6255 MHz) Channel 93 (6415 MHz) Channel 97 (6435 MHz) Channel 105 (6475 MHz) Channel 113 (6515 MHz) Report No.: R25S1037117-U201 384 of 1158 802.11be-EHT20 Power Spectral Density- Ant 12 (Nss = 1) Channel 117 (6535 MHz) Channel 149 (6695 MHz) Channel 181 (6855 MHz) Channel 185 (6875 MHz) Channel 18…

Text truncated - open the document above for the full version.

Report No.: R25S1037117-U201 409 of 1158 802.11be-EHT40 Power Spectral Density- Ant 7 (Nss = 4) Channel 35 (6125 MHz) Channel 59 (6245 MHz) Channel 91 (6405 MHz) Channel 99 (6445 MHz) Channel 107 (6485 MHz) Channel 115 (6525 MHz) Report No.: R25S1037117-U201 410 of 1158 802.11be-EHT40 Power Spectral Density- Ant 7 (Nss = 4) Channel 123 (6565 MHz) Channel 147 (6685 MHz) Channel 179 (6845 MHz) Channel 187 (6885 MHz) Channel 195 (6925 MHz) Channel 211 (7005 MHz) Report No.: R25S1037117-U201 411 of 1158 802.11be-EHT40 Power Spectral Density- Ant 7 (Nss = 4) Channel 227 (7085 MHz) Report No.: R25S1037117-U201 412 of 1158 802.11be-EHT80 Power Spectral Density- Ant 7 (Nss = 4) Channel 39 (6145 MHz) Channel 55 (6225 MHz) Channel 87 (6385 MHz) Channel 103 (6465 MHz) Channel 119 (6545 MHz) Channel 135 (6625 MHz) Report No.: R25S1037117-U201 413 of 1158 802.11be-EHT80 Power Spectral Density- Ant 7 (Nss = 4) Channel 151 (6705 MHz) Channel 167 (6785 MHz) Channel 183 (6865 MHz) Channel 199 (6945 MHz) Channel 215 (7025 MHz) Report No.: R25S1037117-U201 414 of 1158 802.11be-EHT160 Power Spectral Density- Ant 7 (Nss = 4) Channel 47 (6185 MHz) Channel 79 (6345 MHz) Channel 111 (6505 MHz) Channel 143 (6665 MHz) Channel 175 (6825 MHz) Channel 207 (6985 MHz) Report No.: R25S1037117-U201 415 of 1158 802.11be-EHT320 Power Spectral Density- Ant 7 (Nss = 4) Channel 95 (6425 MHz) Channel 159 (6745 MHz) 802.11be-EHT320 Power Spectral Density- Ant 7 (Nss = 4) Channel 63 (6265 MHz) Channel 127 (6585 MHz) Channel 191 (6905 MHz) Report No.: R25S1037117-U201 416 of 1158 802.11ax-HE20 Power Spectral Density- Ant 8 (Nss = 4) Channel 33 (6115 MHz) Channel 61 (6255 MHz) Channel 93 (6415 MHz) Channel 97 (6435 MHz) Channel 105 (6475 MHz) Channel 113 (6515 MHz) Report No.: R25S1037117-U201 417 of 1158 802.11ax-HE20 Power Spectral Density- Ant 8 (Nss = 4) Channel 117 (6535 MHz) Channel 149 (6695 MHz) Channel 181 (6855 MHz) Channel 185 (6875 MHz) Channel 189 (6895 MHz) Channel 209 (6995 MHz) Report No.: R25S1037117-U201 418 of 1158 802.11ax-HE20 Power Spectral Density- Ant 8 (Nss = 4) Channel 229 (7095 MHz) Report No.: R25S1037117-U201 419 of 1158 802.11ax-HE40 Power Spectral Density- Ant 8 (Nss = 4) Channel 35 (6125 MHz) Channel 59 (6245 MHz) Channel 91 (6405 MHz) Channel 99 (6445 MHz) Channel 107 (6485 MHz) Channel 115 (6525 MHz) Report No.: R25S1037117-U201 420 of 1158 802.11ax-HE40 Power Spectral Density- Ant 8 (Nss = 4) Channel 123 (6565 MHz) Channel 147 (6685 MHz) Channel 179 (6845 MHz) Channel 187 (6885 MHz) Channel 195 (6925 MHz) Channel 211 (7005 MHz) Report No.: R25S1037117-U201 421 of 1158 802.11ax-HE40 Power Spectral Density- Ant 8 (Nss = 4) Channel 227 (7085 MHz) Report No.: R25S1037117-U201 422 of 1158 802.11ax-HE80 Power Spectral Density- Ant 8 (Nss = 4) Channel 39 (6145 MHz) Channel 55 (6225 MHz) Channel 87 (6385 MHz) Channel 103 (6465 MHz) Channel 119 (6545 MHz) Channel 135 (6625 MHz) Report No.: R25S1037117-U201 423 of 1158 802.11ax-HE80 Power Spectral Density- Ant 8 (Nss = 4) Channel 151 (6705 MHz) Channel 167 (6785 MHz) Channel 183 (6865 MHz) Channel 199 (6945 MHz) Channel 215 (7025 MHz) Report No.: R25S1037117-U201 424 of 1158 802.11ax-HE160 Power Spectral Density- Ant 8 (Nss = 4) Channel 47 (6185 MHz) Channel 79 (6345 MHz) Channel 111 (6505 MHz) Channel 143 (6665 MHz) Channel 175 (6825 MHz) Channel 207 (6985 MHz) Report No.: R25S1037117-U201 425 of 1158 802.11be-EHT20 Power Spectral Density- Ant 8 (Nss = 4) Channel 33 (6115 MHz) Channel 61 (6255 MHz) Channel 93 (6415 MHz) Channel 97 (6435 MHz) Channel 105 (6475 MHz) Channel 113 (6515 MHz) Report No.: R25S1037117-U201 426 of 1158 802.11be-EHT20 Power Spectral Density- Ant 8 (Nss = 4) Channel 117 (6535 MHz) Channel 149 (6695 MHz) Channel 181 (6855 MHz) Channel 185 (6875 MHz) Channel 189 (6895 MHz) Channel 209 (6995 MHz) Report No.: R25S1037117-U201 427 of 1158 802.11be-EHT20 Power Spectral Density- Ant 8 (Nss = 4) Channel 229 (7095 MHz) Report No.: R25S1037117-U201 428 of 1158 802.11be-EHT40 Power Spectral Density- Ant 8 (Nss = 4) Channel 35 (6125 MHz) Channel 59 (6245 MHz) Channel 91 (6405 MHz) Channel 99 (6445 MHz) Channel 107 (6485 MHz) Channel 115 (6525 MHz) Report No.: R25S1037117-U201 429 of 1158 802.11be-EHT40 Power Spectral Density- Ant 8 (Nss = 4) Channel 123 (6565 MHz) Channel 147 (6685 MHz) Channel 179 (6845 MHz) Channel 187 (6885 MHz) Channel 195 (6925 MHz) Channel 211 (7005 MHz) Report No.: R25S1037117-U201 430 of 1158 802.11be-EHT40 Power Spectral Density- Ant 8 (Nss = 4) Channel 227 (7085 MHz) Report No.: R25S1037117-U201 431 of 1158 802.11be-EHT80 Power Spectral Density- Ant 8 (Nss = 4) Channel 39 (6145 MHz) Channel 55 (6225 MHz) Channel 87 (6385 MHz) Channel 103 (6465 MHz) Channel 119 (6545 MHz) Channel 135 (6625 MHz) Report No.: R25S1037117-U201 432 of 1158 802.11be-EHT80 Power Spectral Density- Ant 8 (Nss = 4) Channel 151 (6705 MHz) Channel 167 (6785 MHz) Channel 183 (6865 MHz) Channel 199 (6945 MHz) Channel 215 (7025 MHz) Report No.: R25S1037117-U201 433 of 1158 802.11be-EHT160 Power Spectral Density- Ant 8 (Nss = 4) Channel 47 (6185 MHz) Channel 79 (6345 MHz) Channel 111 (6505 MHz) Channel 143 (6665 MHz) Channel 175 (6825 MHz) Channel 207 (6985 MHz) Report No.: R25S1037117-U201 434 of 1158 802.11be-EHT320 Power Spectral Density- Ant 8 (Nss = 4) Channel 95 (6425 MHz) Channel 159 (6745 MHz) 802.11be-EHT320 Power Spectral Density- Ant 8 (Nss = 4) Channel 63 (6265 MHz) Channel 127 (6585 MHz) Channel 191 (6905 MHz) Report No.: R25S1037117-U201 435 of 1158 802.11ax-HE20 Power Spectral Density- Ant 11 (Nss = 4) Channel 33 (6115 MHz) Channel 61 (6255 MHz) Channel 93 (6415 MHz) Channel 97 (6435 MHz) Channel 105 (6475 MHz) Channel 113 (6515 MHz) Report No.: R25S1037117-U201 436 of 1158 802.11ax-HE20 Power Spectral Density- Ant 11 (Nss = 4) Channel 117 (6535 MHz) Channel 149 (6695 MHz) Channel 181 (6855 MHz) Channel 185 (6875 MHz) Channel 189 (6895 MHz) Channel 209 (6995 MHz) Report No.: R25S1037117-U201 437 of 1158 802.11ax-HE20 Power Spectral Den…

Text truncated - open the document above for the full version.
