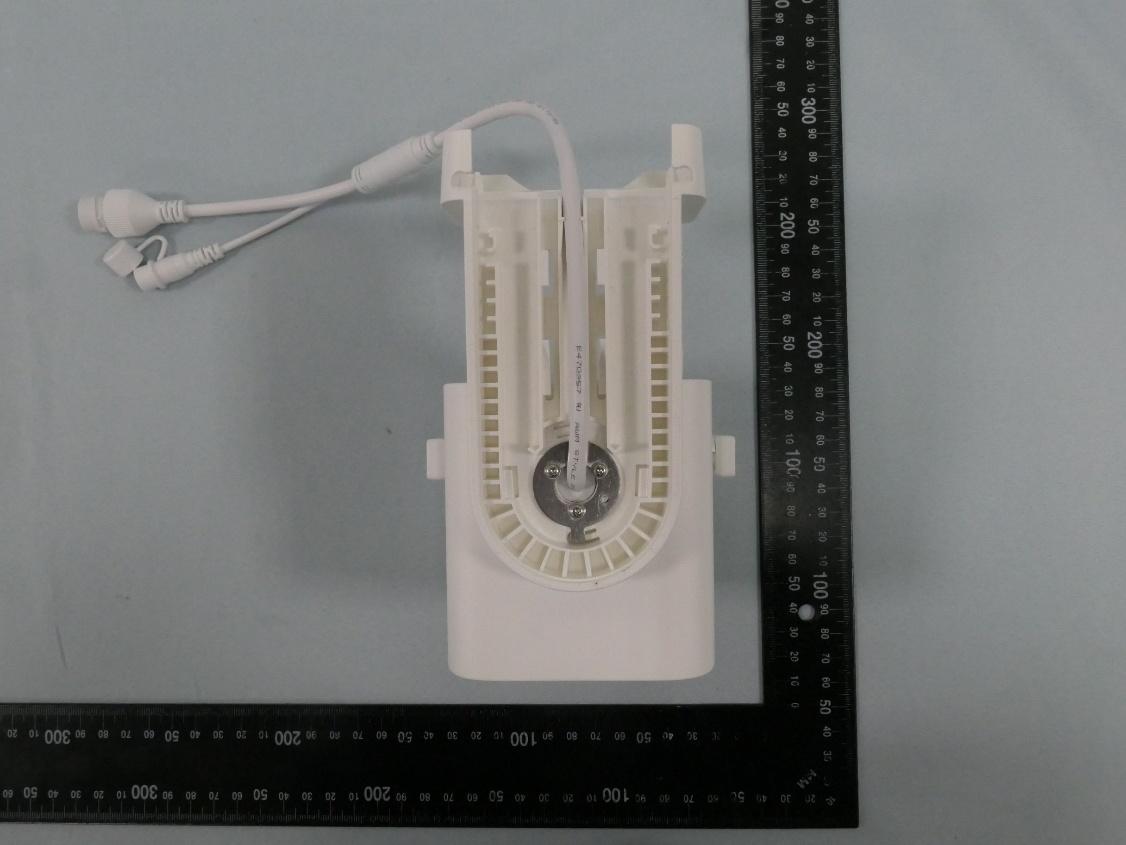

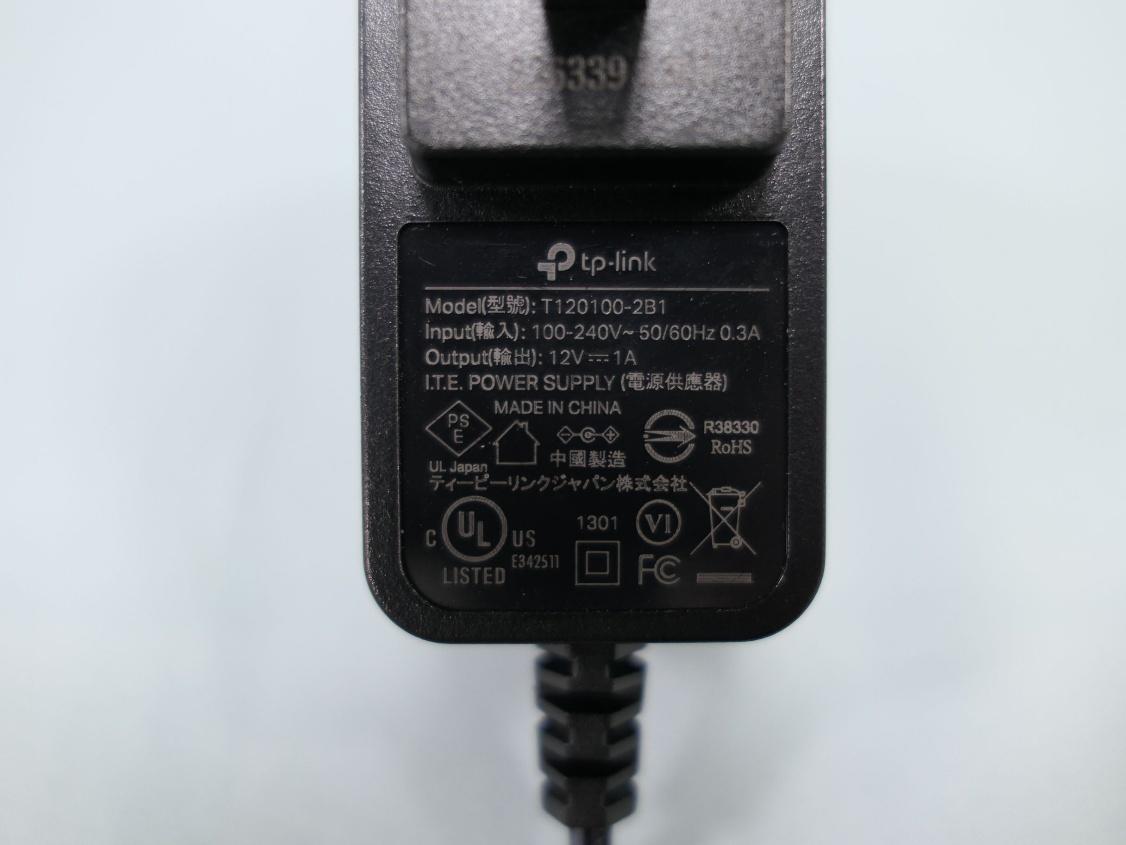

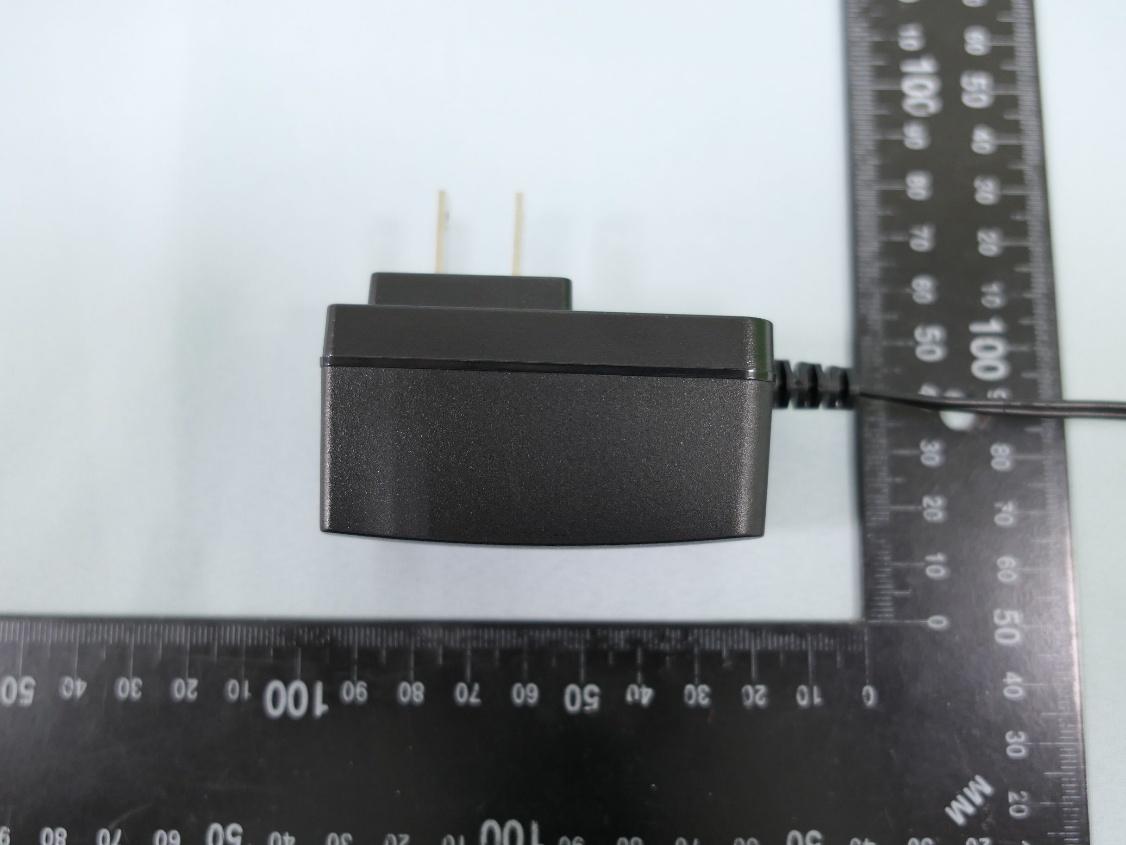

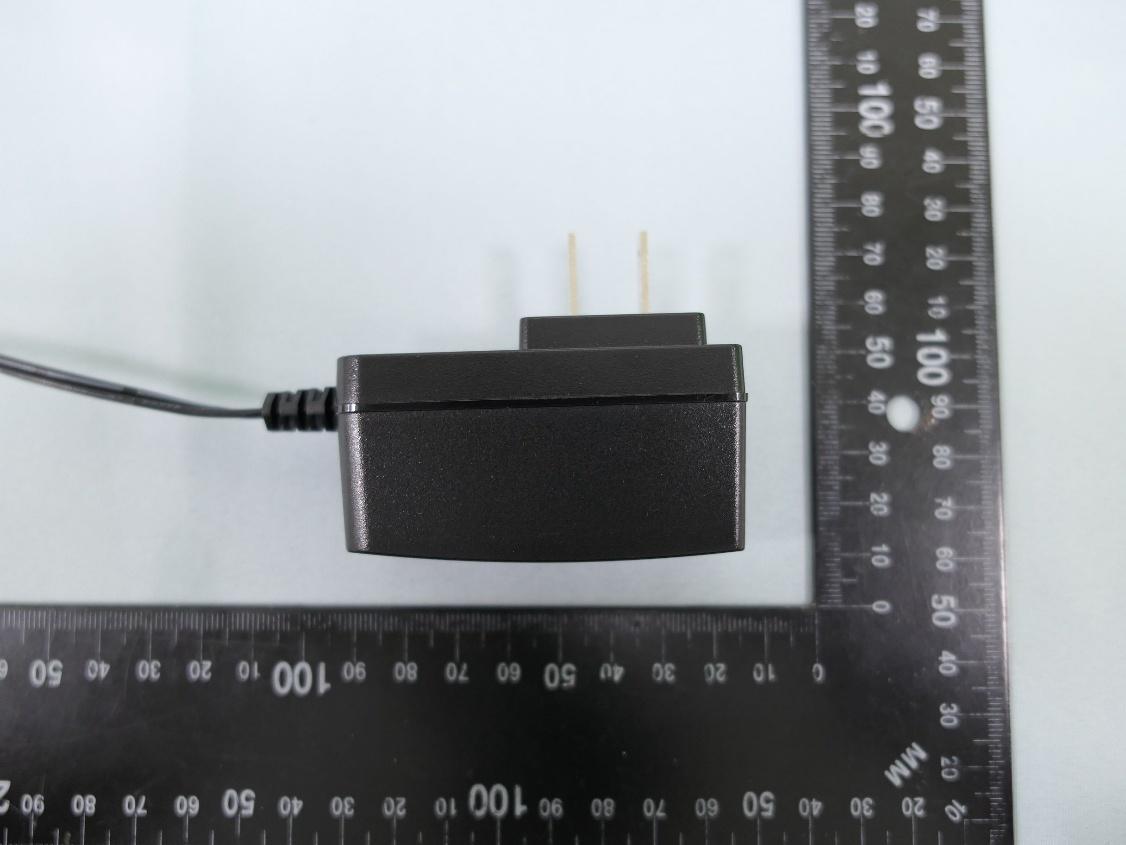

2BH7FC575DOutdoor Dual Lens Pan/Tilt Security Camera

Quick Start Guide *Images may differ from actual products.7100002233 REV1.0.0 Outdoor Dual Lens Pan/Tilt Security Camera Appearance 11 5 2 67891011 3 4 3 3 11 3 1 White Light LED 2 Microphone 3 IR LED 4 Wide-Angle Lens 5 System LED 6 Telephoto Lens 7 Ethernet Port 8 Waterproof Cap 9 DC Power Connector 10 microSD Card Slot 11 Reset Button microSD After installation, adjust the camera to your preferred angle for the best view. How to Adjust Your Camera Tapo app adjustment Manual rotation only: -20°-0° vertically 240° horizontally Need some help? Visit https://www.tapo.com/support/ for technical support, the user guide, FAQs, warranty & more Safety Information • Do not use damaged charger or USB cable to charge the device. • Do not use any other chargers than those recommended. • Do not use the device where wireless devices are not allowed. • Adapter shall be easily accessible. • Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid. • Do not disassemble, repair or modify the product. • Do not use the product if the casing has been broken. Danger of electric shock. • Never touch the product with wet hands. • Do not place near automatically controlled devices such as fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident. • Observe restrictions on using wireless products in fuel depots, chemical plants or when blasting operations are in progress. • Do not use liquid to clean the product. Only use a dry cloth. • Never put metal objects inside the product. If a metal object enters the product turn off the circuit breaker and contact an authorised electrician. • This product is not intended to be used when providing medical care. Consult the manufacturer of any personal medical devices, such as pacemakers or hearing aids to determine if they are adequately shielded from external RF (radio frequency) energy. • Do not use this product in health care facilities. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy. • Do not place heavy objects on top of the product. • When you leave the product unused for a long time unplug the product from the power outlet. • This product may interfere with other electronic products such as TV, radios, personal computers, phones or other wireless devices. • Adapter should be used indoors where the ambient temperature is lower than or equal to 40 ºC. • Use only power supplies listed in the user instructions. Refer to the User Manual on the product support page. • Operating Temperature: -30 ºC ~ 60 ºC (-22 °F ~ 140 °F ) Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk. TP-Link hereby declares that the Outdoor Dual Lens Pan/Tilt Security Camera is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU declaration of conformity may be found at https://www.tapo.com/support/ce TP-Link hereby declares that the Outdoor Dual Lens Pan/Tilt Security Camera is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK declaration of conformity may be found at https://www.tapo.com/support/ukca/ ©2025 TP-Link FCC compliance information statement Product Name: Outdoor Dual Lens Pan/Tilt Security Camera Model Number: Tapo C575D I.T.E. Power Supply T120100-2B1 Responsible Party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1 ）This device may not cause harmful interference. 2 ）This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. "To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 …

Text truncated - open the document above for the full version.

MRT Technology (Taiwan) Co., Ltd Report No.: 2511TW0119-U6 Phone: +886-3-3288388 Report Version: 1.0 Web: www.mrt-cert.com Issue Date: 2025-12-26 Page Number: 1 of 13 RF Exposure Evaluation Declaration FCC ID : 2BH7FC575D Applicant : TP-Link Systems Inc. Application Type : Certification Product : Outdoor Dual Lens Pan/Tilt Security Camera Model No. : Tapo C575D Brand Name : tp-link / tapo FCC Rule Part(s) : FCC Part 2.1091 FCC Classification : Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) Received Date : November 28, 2025 Test By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2511TW0119-U6 Page Number: 2 of 13 Revision History Report No. Version Description Issue Date Note 2511TW0119-U6 1.0 Original Report 2025-12-26 Report No.: 2511TW0119-U6 Page Number: 3 of 13 CONTENTS Description Page 1. INTRODUCTION ................................................................................................................... 5 1.1. Scope ........................................................................................................................ 5 1.2. MRT Test Location .................................................................................................... 5 2. PRODUCT INFORMATION ................................................................................................... 6 2.1. Feature of Equipment under Test .............................................................................. 6 2.2. Description of Available Antennas .............................................................................. 7 2.3. Device Classification .................................................................................................. 8 2.4. Applied Standards ..................................................................................................... 8 3. RF Exposure Evaluation ..................................................................................................... 9 3.1. Limits ......................................................................................................................... 9 3.2. MPE Exemptions ......................................................................................................10 3.3. Test Result of RF Exposure Evaluation .....................................................................13 Report No.: 2511TW0119-U6 Page Number: 4 of 13 General Information Applicant TP-Link Systems Inc. Applicant Address 10 Mauchly, Irvine, CA 92618 Manufacturer TP-Link Systems Inc. Manufacturer Address 10 Mauchly, Irvine, CA 92618 Test Site MRT Technology (Taiwan) Co., Ltd Test Site Address No. 38, Fuxing Second Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C) MRT FCC Registration No. 291082 Test Device Serial No. N/A Production Pre-Production Engineering Test Facility / Accreditations 1. MRT facility is a FCC registered (Reg. No. 291082) test facility with the site description report on file and is designated by the FCC as an Accredited Test Firm. 2. MRT facility is an IC registered (MRT Reg. No. 21723) test laboratory with the site description on file at Industry Canada. 3. MRT Lab is accredited to ISO 17025 by the Taiwan Accreditation Foundation (TAF Cert. No. 3261) in EMC, Telecommunications and Radio testing for FCC (Designation Number: TW3261), Industry Canada, EU and TELEC Rules. Report No.: 2511TW0119-U6 Page Number: 5 of 13 1. INTRODUCTION 1.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Innovation, Science and Economic Development Canada and Certification and Engineering Bureau. 1.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taoyuan City. These measurement tests were conducted at the MRT Technology (Taiwan) Co., Ltd. Facility located at No.38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C). Report No.: 2511TW0119-U6 Page Number: 6 of 13 2. PRODUCT INFORMATION 2.1. Feature of Equipment under Test Product Name: Outdoor Dual Lens Pan/Tilt Security Camera Model No.: Tapo C575D Specification WLAN: 802.11a/b/g/n/ac/ax WPAN: Bluetooth Single Mode Accessory Power Adapter Brand: tp-link Model No: T120100-2B1 Input: AC 100-240V~50/60Hz , 0.3A Output: 12V⎓1A DC Cable Out: Non-Shielded, 3m Report No.: 2511TW0119-U6 Page Number: 7 of 13 2.2. Description of Available Antennas Antenna Type Frequency Band (MHz) Max Antenna Gain (dBi) Ant0 Ant1 BLE & Wi-Fi Antenna Dipole 2402 ~ 2480 2.00 1.98 2412 ~ 2462 2.00 1.98 5150 ~ 5850 2.96 3.00 Report No.: 2511TW0119-U6 Page Number: 8 of 13 2.3. Device Classification According to the user manual, this device is classified as a Mobile Device. So, the RF exposure evaluation requirements of § 2.1091 for mobile device exposure conditions subject to MPE limits. 2.4. Applied Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards: FCC Part 2.1091 & KDB 447498 D04 Interim General RF Exposure Guidance v01 Report No.: 2511TW0119-U6 Page Number: 9 of 13 3. RF Exposure Evaluation 3.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits For Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Po…

Text truncated - open the document above for the full version.

Report No.: 2511TW0119-UT 1 of 5 RF Test Photograph Description: Front View of Conducted Emission Test Setup Description: Back View of Conducted Emission Test Setup Report No.: 2511TW0119-UT 2 of 5 Description: Radiated Emission Test Setup for below 1GHz Description: Radiated Emission Test Setup for above 1GHz_BLE & Wi-Fi 2.4G Report No.: 2511TW0119-UT 3 of 5 Description: Radiated Emission Test Setup for above 1GHz_Wi-Fi 5G Description: Radiated Emission Test Setup for 18GHz~40GHz Report No.: 2511TW0119-UT 4 of 5 Description: Radiated Emission Test Setup for 9kHz~30MHz Description: Conducted Measurement Test Setup Report No.: 2511TW0119-UT 5 of 5 Description: DFS Test Setup

MRT Technology (Taiwan) Co., Ltd Report No.: 2511TW0119-U5 Phone: +86-512-66308358 Report Version: 1.0 Fax: +86-512-66308368 Issue Date: 2025-12-26 Web: www.mrt-cert.com Page Number: 1 of 26 FCC ID : 2BH7FC575D APPLICANT : TP-Link Systems Inc. Application Type : Certification Product : Outdoor Dual Lens Pan/Tilt Security Camera Model No. : Tapo C575D Brand Name : tp-link / tapo FCC Classification : Unlicensed National Information Infrastructure (NII) FCC Rule Part(s) : Part 15.407 Test Procedure(s) : Master Device Client Device without radar detection Client Device with radar detection Received Date : November 28, 2025 Test Date : December 4, 2025 DFS MEASUREMENT REPORT Tested By : ( Jay Chiu ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in Part 15.407. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2511TW0119-U5 Page Number: 2 of 26 Revision History Report No. Version Description Issue Date Note 2511TW0119-U5 1.0 Original Report 2025-12-26 Report No.: 2511TW0119-U5 Page Number: 3 of 26 CONTENTS Description Page 1. INTRODUCTION ..................................................................................................................... 5 1.1. Scope ........................................................................................................................... 5 1.2. MRT Test Location ....................................................................................................... 5 2. PRODUCT INFORMATION ..................................................................................................... 6 2.1. Equipment Description .................................................................................................. 6 2.2. Product Specification Subjective to this Report ............................................................. 6 2.3. Description of Available Antennas ................................................................................ 7 2.4. DFS Band Carrier Frequencies Operation .................................................................... 8 2.5. Test Mode .................................................................................................................... 8 3. DFS DETECTION THRESHOLDS AND RADAR TEST WAVEFORMS................................... 9 3.1. Applicability .................................................................................................................. 9 3.2. DFS Devices Requirements ........................................................................................ 10 3.3. DFS Detection Threshold Values ................................................................................. 11 3.4. Parameters of DFS Test Signals ................................................................................. 12 3.5. Conducted Test Setup ................................................................................................ 15 4. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 16 5. TEST RESULT ...................................................................................................................... 17 5.1. Summary .................................................................................................................... 17 5.2. Radar Waveform Calibration ....................................................................................... 18 5.2.1. Calibration Setup ........................................................................................................ 18 5.2.2. Calibration Procedure ................................................................................................. 18 5.2.3. Cablibration Result ..................................................................................................... 19 5.3. Channel Loading Test Result ...................................................................................... 20 5.4. In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period Measurement ........................................................................................ 22 5.4.1. Test Limit .................................................................................................................... 22 5.4.2. Test Procedure Used .................................................................................................. 22 5.4.3. Test Result .................................................................................................................. 23 6. CONCLUSION ....................................................................................................................... 25 Appendix A : Test Photograph .................................................................................................... 26 Appendix B : EUT Photograph .................................................................................................... 26 Appendix C : Internal Photograph .............................................................................................. 26 Report No.: 2511TW0119-U5 Page Number: 4 of 26 General Information Applicant TP-Link Systems Inc. Applicant Address 10 Mauchly, Irvine, CA 92618 Manufacturer TP-Link Systems Inc. Manufacturer Address 10 Mauchly, Irvine, CA 92618 Test Site MRT Technology (Taiwan) Co., Ltd Test Site Address No. 38, Fuxing Second Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C) MRT FCC Registration No. 291082 FCC Rule Part(s) Part 15.407 Test Facility / Accreditations 1. MRT facility is a FCC registered (Reg. No. 291082) te…

Text truncated - open the document above for the full version.

Report No.: 2511TW0119-U4 Page Number: 479 of 517 EUT Outdoor Dual Lens Pan/Tilt Security Camera Date of Test 2025-12-08 Factor DRH18-E Temp. / Humidity 20C /60% Polarity Horizontal Site / Test Engineer AC2 / Aby Test Mode 802.11ax-20MHz_TX_Band2_CH 64_ANT 1 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 5321.660 89.06 1.91 90.98 N/A N/A 102 241 Average 2 5350.000 40.41 1.90 42.31 -11.69 54.00 102 241 Average 3 * 5350.815 40.46 1.90 42.36 -11.64 54.00 102 241 Average Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB) + 10dB Attenuation. 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2511TW0119-U4 Page Number: 480 of 517 EUT Outdoor Dual Lens Pan/Tilt Security Camera Date of Test 2025-12-08 Factor DRH18-E Temp. / Humidity 20C /60% Polarity Vertical Site / Test Engineer AC2 / Aby Test Mode 802.11ax-20MHz_TX_Band2_CH 64_ANT 1 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 5321.320 111.88 1.91 113.80 N/A N/A 124 276 Peak 2 * 5350.000 68.55 1.90 70.45 -3.55 74.00 124 276 Peak 3 5350.815 66.59 1.90 68.50 -5.50 74.00 124 276 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB) + 10dB Attenuation. 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2511TW0119-U4 Page Number: 481 of 517 EUT Outdoor Dual Lens Pan/Tilt Security Camera Date of Test 2025-12-08 Factor DRH18-E Temp. / Humidity 20C /60% Polarity Vertical Site / Test Engineer AC2 / Aby Test Mode 802.11ax-20MHz_TX_Band2_CH 64_ANT 1 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 5321.490 100.72 1.91 102.63 N/A N/A 124 276 Average 2 * 5350.000 47.44 1.90 49.34 -4.66 54.00 124 276 Average 3 5350.560 47.24 1.90 49.15 -4.85 54.00 124 276 Average Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB) + 10dB Attenuation. 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2511TW0119-U4 Page Number: 482 of 517 EUT Outdoor Dual Lens Pan/Tilt Security Camera Date of Test 2025-12-08 Factor DRH18-E Temp. / Humidity 20C /60% Polarity Horizontal Site / Test Engineer AC2 / Aby Test Mode 802.11ax-20MHz_TX_Band3_CH 100_ANT 1 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 5452.770 53.06 2.05 55.11 -18.89 74.00 100 311 Peak 2 5460.000 51.44 2.07 53.51 -20.49 74.00 100 311 Peak 3 5468.160 55.20 2.10 57.30 -10.90 68.20 100 311 Peak 4 * 5470.000 55.66 2.11 57.76 -10.44 68.20 100 311 Peak 5 5501.460 100.10 2.21 102.30 N/A N/A 100 311 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB) + 10dB Attenuation. 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2511TW0119-U4 Page Number: 483 of 517 EUT Outdoor Dual Lens Pan/Tilt Security Camera Date of Test 2025-12-08 Factor DRH18-E Temp. / Humidity 20C /60% Polarity Horizontal Site / Test Engineer AC2 / Aby Test Mode 802.11ax-20MHz_TX_Band3_CH 100_ANT 1 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 * 5458.440 39.39 2.07 41.46 -12.54 54.00 100 311 Average 2 5460.000 39.19 2.07 41.26 -12.74 54.00 100 311 Average 3 5468.700 40.89 2.10 42.99 N/A N/A 100 311 Average 4 5470.000 40.99 2.11 43.10 N/A N/A 100 311 Average 5 5501.640 88.74 2.21 90.95 N/A N/A 100 311 Average Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB) + 10dB Attenuation. 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2511TW0119-U4 Page Number: 484 of 517 EUT Outdoor Dual Lens Pan/Tilt Security Camera Date of Test 2025-12-08 Factor DRH18-E Temp. / Humidity 20C /60% Polarity Vertical Site / Test Engineer AC2 / Aby Test Mode 802.11ax-20MHz_TX_Band3_CH 100_ANT 1 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 5455.110 58.64 2.06 60.69 -13.31 74.00 109 275 Peak 2 5460.000 58.96 2.07 61.03 -12.97 74.00 109 275 Peak 3 * 5469.510 65.99 2.10 68.09 -0.11 68.20 109 275 Peak 4 5470.000 63.84 2.11 65.94 -2.26 68.20 109 275 Peak 5 5501.370 110.65 2.21 112.86 N/A N/A 109 275 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB) + 10dB Attenuation. 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2511TW0119-U4 Page Number: 485 of 517 EUT Outdoor Dual Lens Pan/Tilt Security Camera Date of Test 2025-12-08 Factor DRH18-E Temp. / Humidity…

Text truncated - open the document above for the full version.

Report No.: 2511TW0119-U4 Page Number: 370 of 517 EUT Outdoor Dual Lens Pan/Tilt Security Camera Date of Test 2025-12-08 Factor DRH18-E Temp. / Humidity 20C /60% Polarity Horizontal Site / Test Engineer AC2 / Marcus Test Mode 802.11ac-40MHz_TX_Band2_CH 62_ANT 0 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 5312.000 94.91 1.92 96.83 N/A N/A 100 64 Peak 2 5350.000 60.50 1.90 62.41 -11.59 74.00 100 64 Peak 3 * 5350.400 61.13 1.90 63.04 -10.96 74.00 100 64 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB) + 10dB Attenuation. 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2511TW0119-U4 Page Number: 371 of 517 EUT Outdoor Dual Lens Pan/Tilt Security Camera Date of Test 2025-12-08 Factor DRH18-E Temp. / Humidity 20C /60% Polarity Horizontal Site / Test Engineer AC2 / Marcus Test Mode 802.11ac-40MHz_TX_Band2_CH 62_ANT 0 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 5311.500 84.80 1.92 86.72 N/A N/A 100 64 Average 2 5350.000 42.20 1.90 44.11 -9.89 54.00 100 64 Average 3 * 5350.400 42.36 1.90 44.27 -9.73 54.00 100 64 Average Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB) + 10dB Attenuation. 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2511TW0119-U4 Page Number: 372 of 517 EUT Outdoor Dual Lens Pan/Tilt Security Camera Date of Test 2025-12-08 Factor DRH18-E Temp. / Humidity 20C /60% Polarity Vertical Site / Test Engineer AC2 / Marcus Test Mode 802.11ac-40MHz_TX_Band2_CH 62_ANT 0 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 5308.400 104.74 1.92 106.66 N/A N/A 242 94 Peak 2 5350.000 70.05 1.90 71.96 -2.04 74.00 242 94 Peak 3 * 5350.500 70.23 1.90 72.13 -1.87 74.00 242 94 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB) + 10dB Attenuation. 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2511TW0119-U4 Page Number: 373 of 517 EUT Outdoor Dual Lens Pan/Tilt Security Camera Date of Test 2025-12-08 Factor DRH18-E Temp. / Humidity 20C /60% Polarity Vertical Site / Test Engineer AC2 / Marcus Test Mode 802.11ac-40MHz_TX_Band2_CH 62_ANT 0 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 5305.800 95.30 1.92 97.22 N/A N/A 242 94 Average 2 * 5350.000 51.83 1.90 53.74 -0.26 54.00 242 94 Average 3 5350.600 50.58 1.90 52.49 -1.51 54.00 242 94 Average Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB) + 10dB Attenuation. 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2511TW0119-U4 Page Number: 374 of 517 EUT Outdoor Dual Lens Pan/Tilt Security Camera Date of Test 2025-12-08 Factor DRH18-E Temp. / Humidity 20C /60% Polarity Horizontal Site / Test Engineer AC2 / Marcus Test Mode 802.11ac-40MHz_TX_Band3_CH 102_ANT 0 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 5449.600 54.04 2.04 56.08 -17.92 74.00 100 64 Peak 2 5460.000 51.80 2.07 53.87 -20.13 74.00 100 64 Peak 3 * 5470.000 59.19 2.11 61.30 -6.90 68.20 100 64 Peak 4 5512.000 94.16 2.25 96.41 N/A N/A 100 64 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB) + 10dB Attenuation. 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2511TW0119-U4 Page Number: 375 of 517 EUT Outdoor Dual Lens Pan/Tilt Security Camera Date of Test 2025-12-08 Factor DRH18-E Temp. / Humidity 20C /60% Polarity Horizontal Site / Test Engineer AC2 / Marcus Test Mode 802.11ac-40MHz_TX_Band3_CH 102_ANT 0 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 5448.100 39.66 2.04 41.69 -12.31 54.00 100 64 Average 2 * 5460.000 39.64 2.07 41.71 -12.29 54.00 100 64 Average 3 5470.000 42.78 2.11 44.89 N/A N/A 100 64 Average 4 5511.500 84.04 2.25 86.29 N/A N/A 100 64 Average Note: 1. " *", means this dat…

Text truncated - open the document above for the full version.
