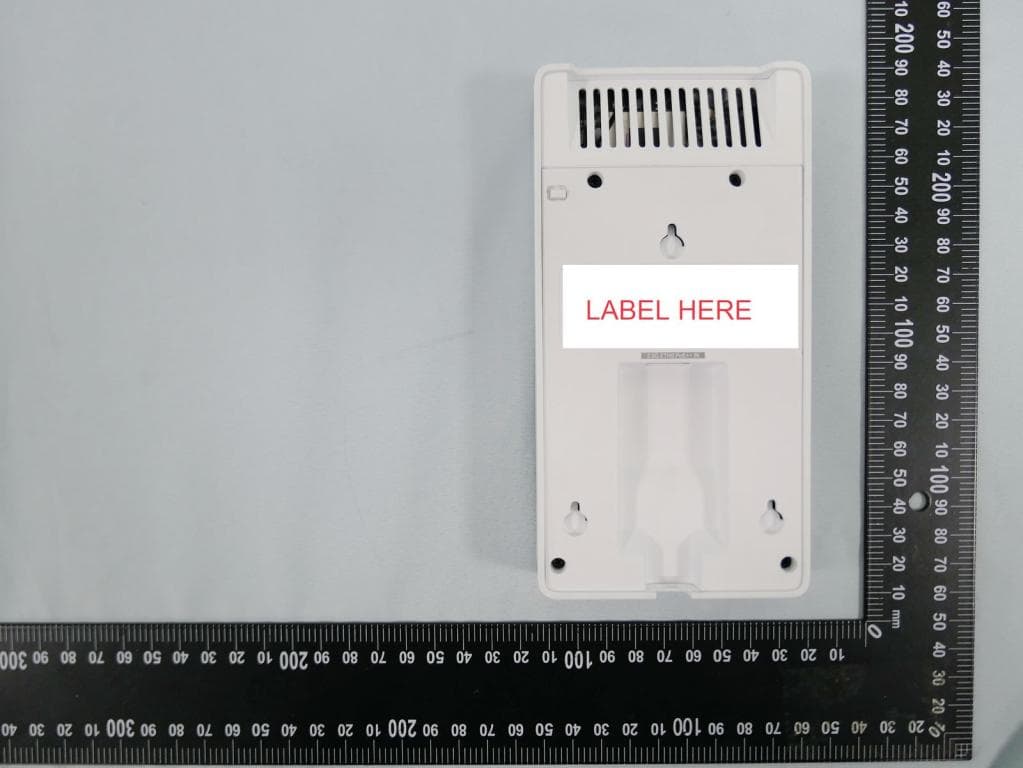

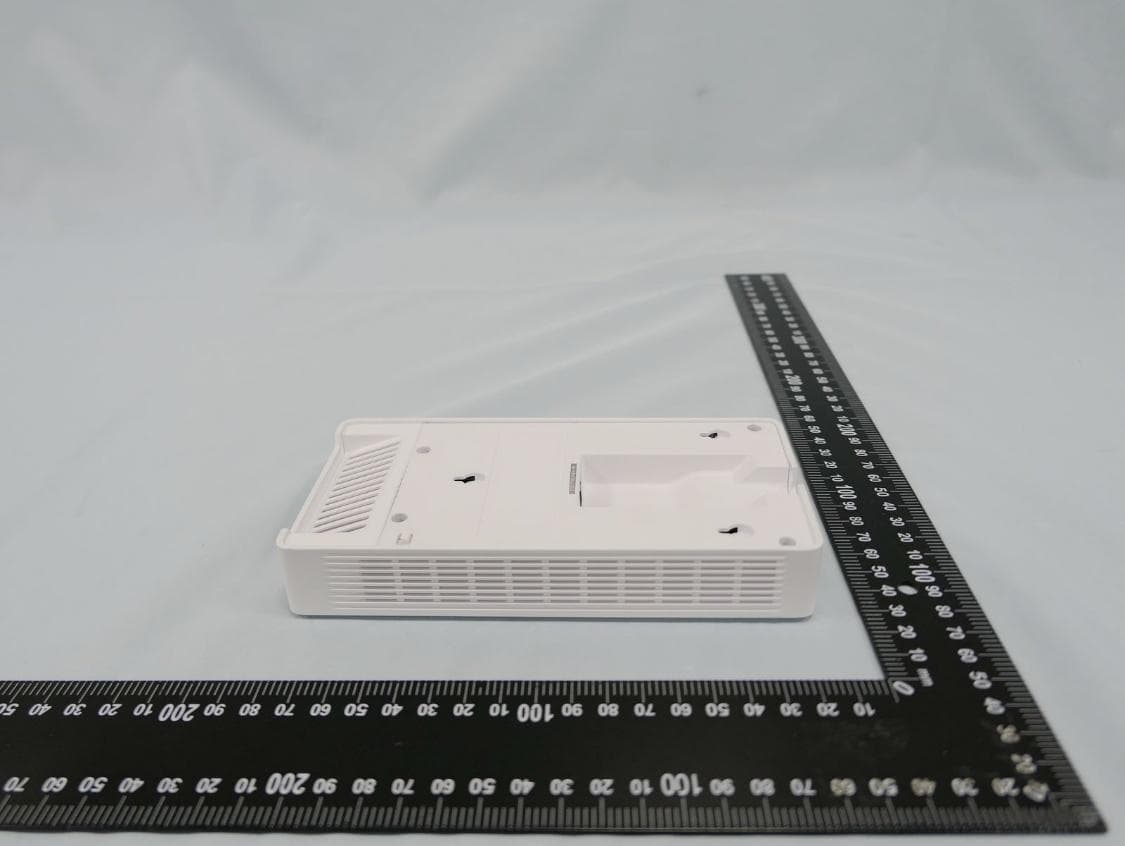

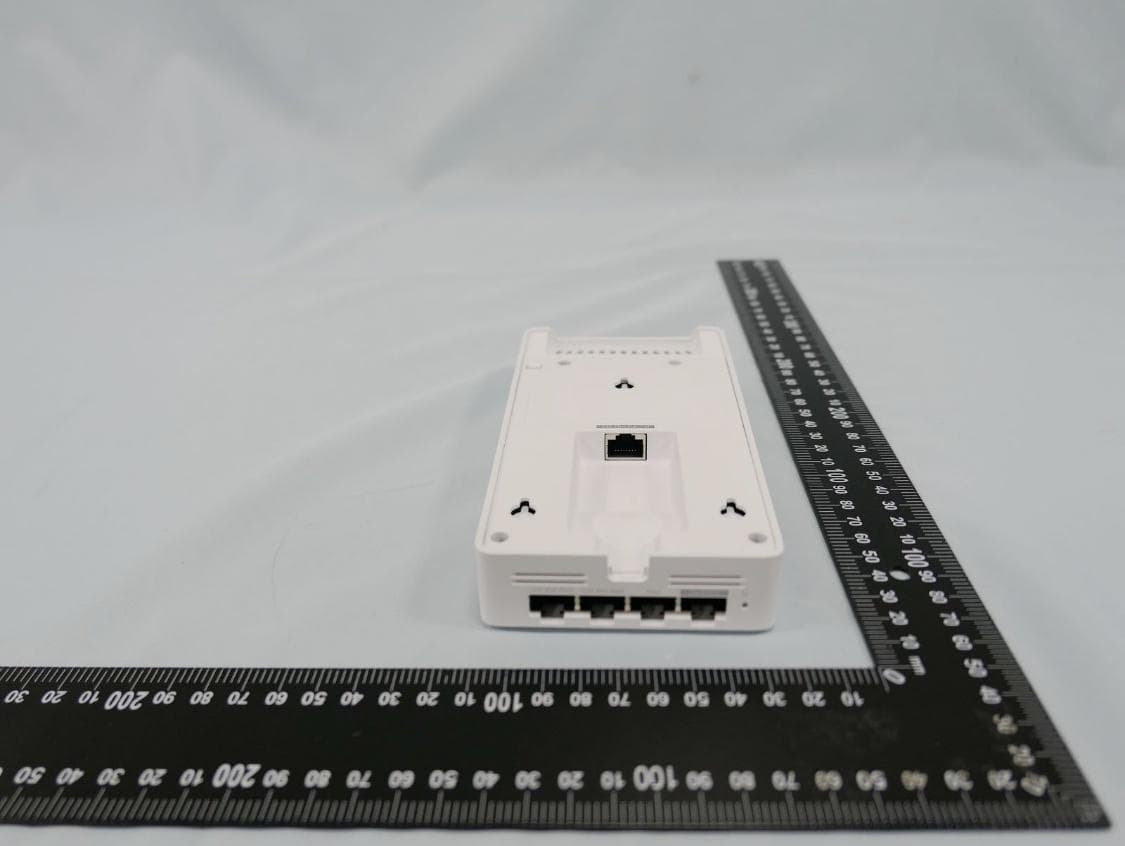

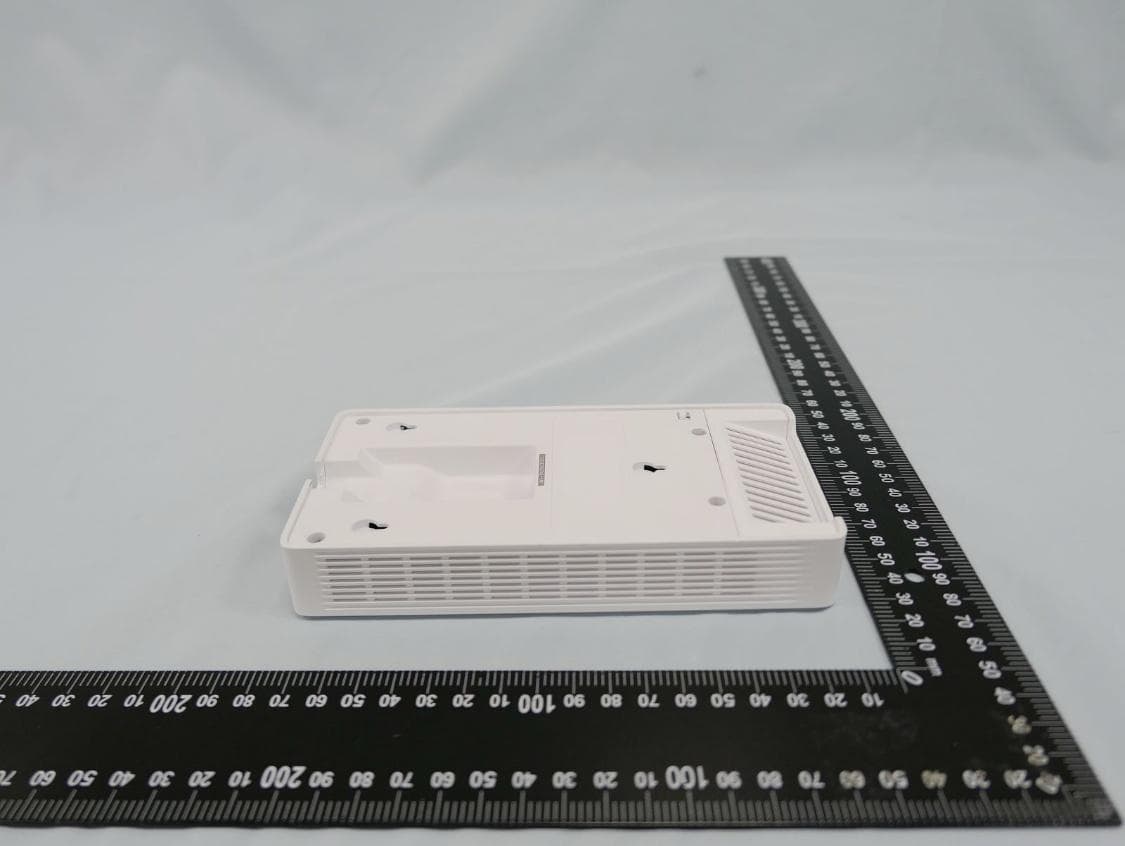

2BH7FEAP725WALLV2BE5000 Wall Plate Wi-Fi 7 Access Point

Quick Installation Guide Wall Plate Access Point Note: EAP725-Wall is used as an example throughout the guide. Images may differ from your actual product. ©2026 TP-Link 7100002929 REV2.0.0 Scan for EAP Start Guide 1234 1234 Note: This equipment shall be installed at a height of less than 2 meters. Package ContentsInstallation Note: Accessories may vary by region and model. Choose the accessory screws that fit your junction box. Compatible wall junctions: Note: For simplicity, this guide uses a Single Gang US wall junction box for demonstration. Note: Reinforced or irregularly-designed network cables may not support this cable routing option. Φ≤6.5 mm 40–43.6 mm ≤40 mm Φ≤6.5 mm 40–43.6 mm ≤40 mm Guide 1×1×1× Option 1 Option 2 2 1 2× Φ 7.6 mm (19/64 in) 1× Φ 25 mm (63/64 in) 1× 1× Option 1 Option 2 Option 3 2×2×2× OR 2×2× Standard EU Single Gang USDual Gang US 86 mm Octagon Note: Reinforced or irregularly-designed network cables may not support this cable routing option. Configuration PoE Switch Gateway/Router EAPEAP Configure and manage each EAP on its standalone page. Option 1: Standalone Mode Scan for Standalone Start Guide PoE Switch Gateway/Router On-Premises Controller Omada Central (Cloud-Based) Or EAPEAPEAP Configure and manage EAPs (and other Omada devices) centrally with an Omada Controller. Option 2: Controller Mode Scan for Controller Start Guide More Configurations For more configurations, refer to the User Guides of the Omada Controller and Omada Access Points at: https://support.omadanetworks.com/document/ Omada App With the TP-Link Omada app, you can access and manage your Omada devices at a local site or remotely with a tap of your phone. Scan for OmadaOmada or Safety Information • Keep the device away from water, fire, humidity or hot environments. • Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us. • Do not use the device where wireless devices are not allowed. • This device can be powered only by equipments that comply with Power Source Class 2 (PS2) or Limited Power Source (LPS) defined in the standard of IEC 62368-1. • The PoE ports shall not be used to charge lithium batteries or devices supplied by lithium batteries. TP-Link hereby declares that the Access Point is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2011 /65/EU and (EU) 2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/ TP-Link hereby declares that the Access Point is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca/ The EAP will be locked after installed. To uninstall, unlock with the provided L-Key. Appendix For details on the warranty period, policy, and procedures, visit https://support.omadanetworks.com/warranty-services/. Warranty Support For technical support, user guides, and other information, please visit https://support.omadanetworks.com/, or simply scan the QR code. More Resources Main Site https://www.omadanetworks.com/ https://support.omadanetworks.com/video/ https://support.omadanetworks.com/document/ https://support.omadanetworks.com/product/ https://support.omadanetworks.com/contact-support/ Video Center Product Support Documents Technical Support 1234 Option 3 2 1 2× Φ 7.6 mm (19/64 in) 1 2

Regulatory Compliance EAP725-Wall © 2026 TP-Link FCC Compliance Information Statement Product Name: BE5000 Wall Plate Wi-Fi 7 Access Point M odel Number: EAP725-Wall Responsible party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.” We, TP-Link Systems Inc. , has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated. Issue Date: 2026-04-09 CE Mark Warning OPERATING FREQUENCY (the maximum transmitted power) 5150MHz—5250MHz (23dBm) 5250MHz—5350MHz (23dBm) 5470MHz—5725MHz (30dBm) EU Declaration of Conformity TP-Link hereby declares that the Access Point is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ c e /. RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 20cm from your body. National Restrictions Frequency band: 5150 - 5250 MHz: Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is limited to within the 5170 - 5250 MHz band. Frequency band: 5250 - 5350 MHz: Indoor use: Inside buildings only. Installations and use in road vehicles, trains and aircraft are not permitted. Outdoor use is not permitted. Frequency band: 5470 - 5725 MHz: Installations and use in road vehicles, trains and aircraft and use for unmanned aircraft systems (UAS) are not permitted. UKCA Mark UK Declaration of Conformity TP-Link hereby declares that the Access Point is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca National Restrictions Attention: In Great Britain, the operation in the frequency range 5150MHz - 5350MHz is only permitted indoors. UK Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Caution / Avertissement •The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; •DFS (Dynamic Frequency Selection) products that operate in t…

Text truncated - open the document above for the full version.

Report No.: 2601TW0102-U4 Page Number: 48 of 533 7.3.5.TestResult Product BE5000 Wall Plate Wi-Fi 7 Access Point Test Engineer Yang Test Site SR7 Test Date 2026/1/19 Test Mode Data Rate/ MCS Channel No. Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) Result Ant 1 802.11a 6Mbps 149 5745 16.33 ≥ 0.5 Pass 802.11a 6Mbps 157 5785 16.30 ≥ 0.5 Pass 802.11a 6Mbps 165 5825 15.03 ≥ 0.5 Pass 802.11ac-VHT20 MCS0 149 5745 17.62 ≥ 0.5 Pass 802.11ac-VHT20 MCS0 157 5785 17.68 ≥ 0.5 Pass 802.11ac-VHT20 MCS0 165 5825 17.61 ≥ 0.5 Pass 802.11ac-VHT40 MCS0 151 5755 36.47 ≥ 0.5 Pass 802.11ac-VHT40 MCS0 159 5795 36.46 ≥ 0.5 Pass 802.11ac-VHT80 MCS0 155 5775 76.53 ≥ 0.5 Pass 802.11ax-HE20 MCS0 149 5745 18.01 ≥ 0.5 Pass 802.11ax-HE20 MCS0 157 5785 19.04 ≥ 0.5 Pass 802.11ax-HE20 MCS0 165 5825 18.84 ≥ 0.5 Pass 802.11ax-HE40 MCS0 151 5755 38.12 ≥ 0.5 Pass 802.11ax-HE40 MCS0 159 5795 38.13 ≥ 0.5 Pass 802.11ax-HE80 MCS0 155 5775 78.15 ≥ 0.5 Pass 802.11be-EHT20 MCS0 149 5745 18.75 ≥ 0.5 Pass 802.11be-EHT20 MCS0 157 5785 18.27 ≥ 0.5 Pass 802.11be-EHT20 MCS0 165 5825 18.89 ≥ 0.5 Pass 802.11be-EHT40 MCS0 151 5755 38.13 ≥ 0.5 Pass 802.11be-EHT40 MCS0 159 5795 38.21 ≥ 0.5 Pass 802.11be-EHT80 MCS0 155 5775 77.71 ≥ 0.5 Pass Report No.: 2601TW0102-U4 Page Number: 49 of 533 802.11a 6dB Bandwidth Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) 802.11ac-VHT20 6dB Bandwidth Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2601TW0102-U4 Page Number: 50 of 533 802.11ac-VHT40 6dB Bandwidth Channel 151 (5755MHz) Channel 159 (5795MHz) 802.11ac-VHT80 6dB Bandwidth Channel 155 (5775MHz) Report No.: 2601TW0102-U4 Page Number: 51 of 533 802.11ax-HE20 6dB Bandwidth Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2601TW0102-U4 Page Number: 52 of 533 802.11ax-HE40 6dB Bandwidth Channel 151 (5755MHz) Channel 159 (5795MHz) 802.11ax-HE80 6dB Bandwidth Channel 155 (5775MHz) Report No.: 2601TW0102-U4 Page Number: 53 of 533 802.11be-EHT20 6dB Bandwidth Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2601TW0102-U4 Page Number: 54 of 533 802.11be-EHT40 6dB Bandwidth Channel 151 (5755MHz) Channel 159 (5795MHz) 802.11be-EHT80 6dB Bandwidth Channel 155 (5775MHz) Report No.: 2601TW0102-U4 Page Number: 55 of 533 7.4. Output Power Measurement 7.4.1.Test Limit For the band 5.15-5.25 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W provided the maximum antenna gain does not exceed 6 dBi. For the 5.25-5.35 GHz and 5.47-5.725 GHz bands, the maximum conducted output power over the frequency bands of operation shall not exceed the lesser of 250 mW or 11 dBm + 10 log B, where B is the 26 dB emission bandwidth in megahertz. For the band 5.725-5.85 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W (30dBm). If transmitting antennas of directional gain greater than 6dBi are used, the maximum conducted output power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 7.4.2.Test Procedure Used KDB 789033D02v02r01- Section E)3)b) Method PM-G 7.4.3.Test Setting Average power measurements were performed only when the EUT was transmitting at its maximum power control level using a broadband power meter with a pulse sensor. The power meter implemented triggering and gating capabilities which were set up such that power measurements were recorded only during the ON time of the transmitter. 7.4.4.Test Setup Report No.: 2601TW0102-U4 Page Number: 56 of 533 7.4.5.Test Result Product BE5000 Wall Plate Wi-Fi 7 Access Point Test Engineer Yang Test Site SR7 Test Date 2026/1/18 Test Mode CDD Mode Test Mode Data Rate/ MCS Channel No. Freq. (MHz) Ant 0 Average Power (dBm) Ant 1 Average Power (dBm) Total Average Power (dBm) Average Power Limit (dBm) Result 11a 6Mbps 36 5180 21.25 21.41 24.34 ≤ 30.00 Pass 11a 6Mbps 40 5200 20.95 21.46 24.22 ≤ 30.00 Pass 11a 6Mbps 48 5240 21.33 21.61 24.48 ≤ 30.00 Pass 11a 6Mbps 52 5260 16.01 16.52 19.28 ≤ 23.98 Pass 11a 6Mbps 60 5300 16.00 17.00 19.54 ≤ 23.98 Pass 11a 6Mbps 64 5320 16.13 17.04 19.62 ≤ 23.98 Pass 11a 6Mbps 100 5500 14.77 15.29 18.05 ≤ 23.77 Pass 11a 6Mbps 116 5580 14.33 14.78 17.57 ≤ 23.77 Pass 11a 6Mbps 140 5700 13.97 14.44 17.22 ≤ 23.77 Pass 11a 6Mbps 144 5720 14.00 14.67 17.36 ≤ 22.95 Pass 11a 6Mbps 149 5745 21.06 21.54 24.32 ≤ 30.00 Pass 11a 6Mbps 157 5785 21.00 21.59 24.32 ≤ 30.00 Pass 11a 6Mbps 165 5825 21.10 21.65 24.39 ≤ 30.00 Pass 11ac-VHT20 MCS0 36 5180 21.00 21.79 24.42 ≤ 30.00 Pass 11ac-VHT20 MCS0 40 5200 20.90 21.55 24.25 ≤ 30.00 Pass 11ac-VHT20 MCS0 48 5240 21.07 21.86 24.49 ≤ 30.00 Pass 11ac-VHT20 MCS0 52 5260 16.26 17.09 19.71 ≤ 23.98 Pass 11ac-VHT20 MCS0 60 5300 16.38 17.59 20.04 ≤ 23.98 Pass 11ac-VHT20 MCS0 64 5320 16.58 17.76 20.22 ≤ 23.98 Pass 11ac-VHT20 MCS0 100 5500 15.48 15.85 18.68 ≤ 23.77 Pass 11ac-VHT20 MCS0 116 5580 15.69 15.70 18.71 ≤ 23.77 Pass 11ac-VHT20 MCS0 140 5700 15.23 15.15 18.20 ≤ 23.77 Pass 11ac-VHT20 MCS0 144 5720 15.24 15.28 18.27 ≤ 23.04 Pass 11ac-VHT20 MCS0 149 5745 21.35 21.27 24.32 ≤ 30.00 Pass 11ac-VHT20 MCS0 157 5785 21.10 21.33 24.23 ≤ 30.00 Pass 11ac-VHT20 MCS0 165 5825 21.01 21.39 24.21 ≤ 30.00 Pass Report No.: 2601TW0102-U4 Page Number: 57 of 533 Test Mode Data Rate/ MCS Channel No. Freq. (MHz) Ant 0 Average Power (dBm) Ant 1 Average Power (dBm) Total Average Power (dBm) Average Power Limit (dBm) Result 11ac-VHT40 MCS0 38 5190 20.76 20.73 23.76 ≤ 30.00 Pass 11ac-VHT40 MCS0 46 5230 21.43 21.51 24.48 ≤ 30.00 Pass 11ac-VHT40 MCS0 54 5270 19.33 19.40 22.38 ≤ 23.98 Pass 11ac-VHT40 MCS0 62 5310 19.44 19.81 22.64 ≤ 23.98 Pass 11ac-VHT40 MCS0 102 5510 18.44 18.66 21.56 ≤ 23.77 Pass 11ac-VHT40 MCS0 110 5550 18.36 18.69 21.54 ≤ 23.77 Pass 11ac-VHT40 MCS0 134 5670 17.69 18.14 20.93 ≤ 23.77 Pass 11ac-VHT40 MCS0 142 5710 17.67 18.22 20.96 ≤ 23.77 Pass 11ac-VHT40 MCS0 151 5755 21.15 21.52 24.35 ≤ 30.00 Pass 11ac-VHT40 MCS0 159 5795 20.99 21.53 24.28 ≤ 30.00 Pass …

Text truncated - open the document above for the full version.

Report No.: 2601TW0102-UT 1 of 9 BLE Test Photograph Description: Front View of Conducted Emission Test Setup Description: Back View of Conducted Emission Test Setup Report No.: 2601TW0102-UT 2 of 9 Description: Radiated Emission Test Setup for below 1GHz Description: Radiated Emission Test Setup for above 1GHz Report No.: 2601TW0102-UT 3 of 9 Description: Radiated Emission Test Setup for 18GHz~40GHz Description: Radiated Emission Test Setup for 9kHz~30MHz Report No.: 2601TW0102-UT 4 of 9 Description: Conducted Measurement Test Setup Report No.: 2601TW0102-UT 5 of 9 WiFi Test Photograph Description: Front View of Conducted Emission Test Setup Description: Back View of Conducted Emission Test Setup Report No.: 2601TW0102-UT 6 of 9 Description: Radiated Emission Test Setup for below 1GHz Description: Radiated Emission Test Setup for above 1GHz Report No.: 2601TW0102-UT 7 of 9 Description: Radiated Emission Test Setup for 18GHz~40GHz Description: Radiated Emission Test Setup for 9kHz~30MHz Report No.: 2601TW0102-UT 8 of 9 Description: Conducted Measurement Test Setup Description: DFS Test Setup _Master Report No.: 2601TW0102-UT 9 of 9 Description: DFS Test Setup _Mesh

Report No.: 2601TW0102-U5 Page Number: 309 of 332 Type 5 Radar Waveform_28 Type 5 Radar Waveform_29 Report No.: 2601TW0102-U5 Page Number: 310 of 332 Radar Type 6 - Radar Statistical Performance Trail # 1=Detection 0=No Detection Trail # 1=Detection 0=No Detection 0 1 15 1 1 1 16 1 2 1 17 1 3 1 18 1 4 1 19 1 5 1 20 1 6 1 21 1 7 1 22 1 8 1 23 1 9 1 24 1 10 1 25 1 11 1 26 1 12 1 27 1 13 1 28 1 14 1 29 1 Detection Percentage (%) 100% Report No.: 2601TW0102-U5 Page Number: 311 of 332 Type 6 Radar Waveform_0 Report No.: 2601TW0102-U5 Page Number: 312 of 332 Type 6 Radar Waveform_1 Type 6 Radar Waveform_2 Report No.: 2601TW0102-U5 Page Number: 313 of 332 Type 6 Radar Waveform_3 Report No.: 2601TW0102-U5 Page Number: 314 of 332 Type 6 Radar Waveform_4 Type 6 Radar Waveform_5 Report No.: 2601TW0102-U5 Page Number: 315 of 332 Type 6 Radar Waveform_6 Report No.: 2601TW0102-U5 Page Number: 316 of 332 Type 6 Radar Waveform_7 Type 6 Radar Waveform_8 Report No.: 2601TW0102-U5 Page Number: 317 of 332 Type 6 Radar Waveform_9 Report No.: 2601TW0102-U5 Page Number: 318 of 332 Type 6 Radar Waveform_10 Type 6 Radar Waveform_11 Report No.: 2601TW0102-U5 Page Number: 319 of 332 Type 6 Radar Waveform_12 Report No.: 2601TW0102-U5 Page Number: 320 of 332 Type 6 Radar Waveform_13 Type 6 Radar Waveform_14 Report No.: 2601TW0102-U5 Page Number: 321 of 332 Type 6 Radar Waveform_15 Report No.: 2601TW0102-U5 Page Number: 322 of 332 Type 6 Radar Waveform_16 Type 6 Radar Waveform_17 Report No.: 2601TW0102-U5 Page Number: 323 of 332 Type 6 Radar Waveform_18 Report No.: 2601TW0102-U5 Page Number: 324 of 332 Type 6 Radar Waveform_19 Type 6 Radar Waveform_20 Report No.: 2601TW0102-U5 Page Number: 325 of 332 Type 6 Radar Waveform_21 Report No.: 2601TW0102-U5 Page Number: 326 of 332 Type 6 Radar Waveform_22 Type 6 Radar Waveform_23 Report No.: 2601TW0102-U5 Page Number: 327 of 332 Type 6 Radar Waveform_24 Report No.: 2601TW0102-U5 Page Number: 328 of 332 Type 6 Radar Waveform_25 Type 6 Radar Waveform_26 Report No.: 2601TW0102-U5 Page Number: 329 of 332 Type 6 Radar Waveform_27 Report No.: 2601TW0102-U5 Page Number: 330 of 332 Type 6 Radar Waveform_28 Type 6 Radar Waveform_29 Report No.: 2601TW0102-U5 Page Number: 331 of 332 6. CONCLUSION The data collected relate only the item(s) tested and show that the device is in compliance with Part 15E of the FCC Rules. Report No.: 2601TW0102-U5 Page Number: 332 of 332 Appendix A : Test Setup Photograph Refer to “2601TW0102-UT” file. Appendix B : EUT Photograph Refer to “2601TW0102-UE” file. Appendix C : Internal Photograph Refer to “2601TW0102-UI” file. The End

Report No.: 2601TW0102-U5 Page Number: 203 of 332 Type 5 Radar Waveform_4 Type 5 Radar Waveform_5 Report No.: 2601TW0102-U5 Page Number: 204 of 332 Type 5 Radar Waveform_6 Report No.: 2601TW0102-U5 Page Number: 205 of 332 Type 5 Radar Waveform_7 Type 5 Radar Waveform_8 Report No.: 2601TW0102-U5 Page Number: 206 of 332 Type 5 Radar Waveform_9 Report No.: 2601TW0102-U5 Page Number: 207 of 332 Type 5 Radar Waveform_10 Type 5 Radar Waveform_11 Report No.: 2601TW0102-U5 Page Number: 208 of 332 Type 5 Radar Waveform_12 Report No.: 2601TW0102-U5 Page Number: 209 of 332 Type 5 Radar Waveform_13 Type 5 Radar Waveform_14 Report No.: 2601TW0102-U5 Page Number: 210 of 332 Type 5 Radar Waveform_15 Report No.: 2601TW0102-U5 Page Number: 211 of 332 Type 5 Radar Waveform_16 Type 5 Radar Waveform_17 Type 5 Radar Waveform_18 Report No.: 2601TW0102-U5 Page Number: 212 of 332 Type 5 Radar Waveform_19 Type 5 Radar Waveform_20 Type 5 Radar Waveform_21 Report No.: 2601TW0102-U5 Page Number: 213 of 332 Type 5 Radar Waveform_22 Type 5 Radar Waveform_23 Report No.: 2601TW0102-U5 Page Number: 214 of 332 Type 5 Radar Waveform_24 Report No.: 2601TW0102-U5 Page Number: 215 of 332 Type 5 Radar Waveform_25 Type 5 Radar Waveform_26 Report No.: 2601TW0102-U5 Page Number: 216 of 332 Type 5 Radar Waveform_27 Report No.: 2601TW0102-U5 Page Number: 217 of 332 Type 5 Radar Waveform_28 Type 5 Radar Waveform_29 Report No.: 2601TW0102-U5 Page Number: 218 of 332 Radar Type 6 - Radar Statistical Performance Trail # 1=Detection 0=No Detection Trail # 1=Detection 0=No Detection 0 1 15 1 1 1 16 1 2 1 17 1 3 1 18 1 4 1 19 1 5 1 20 1 6 1 21 1 7 1 22 1 8 1 23 1 9 1 24 1 10 1 25 1 11 1 26 1 12 1 27 1 13 1 28 1 14 1 29 1 Detection Percentage (%) 100% Report No.: 2601TW0102-U5 Page Number: 219 of 332 Type 6 Radar Waveform_0 Report No.: 2601TW0102-U5 Page Number: 220 of 332 Type 6 Radar Waveform_1 Type 6 Radar Waveform_2 Report No.: 2601TW0102-U5 Page Number: 221 of 332 Type 6 Radar Waveform_3 Report No.: 2601TW0102-U5 Page Number: 222 of 332 Type 6 Radar Waveform_4 Type 6 Radar Waveform_5 Report No.: 2601TW0102-U5 Page Number: 223 of 332 Type 6 Radar Waveform_6 Report No.: 2601TW0102-U5 Page Number: 224 of 332 Type 6 Radar Waveform_7 Type 6 Radar Waveform_8 Report No.: 2601TW0102-U5 Page Number: 225 of 332 Type 6 Radar Waveform_9 Report No.: 2601TW0102-U5 Page Number: 226 of 332 Type 6 Radar Waveform_10 Type 6 Radar Waveform_11 Report No.: 2601TW0102-U5 Page Number: 227 of 332 Type 6 Radar Waveform_12 Report No.: 2601TW0102-U5 Page Number: 228 of 332 Type 6 Radar Waveform_13 Type 6 Radar Waveform_14 Report No.: 2601TW0102-U5 Page Number: 229 of 332 Type 6 Radar Waveform_15 Report No.: 2601TW0102-U5 Page Number: 230 of 332 Type 6 Radar Waveform_16 Type 6 Radar Waveform_17 Report No.: 2601TW0102-U5 Page Number: 231 of 332 Type 6 Radar Waveform_18 Report No.: 2601TW0102-U5 Page Number: 232 of 332 Type 6 Radar Waveform_19 Type 6 Radar Waveform_20 Report No.: 2601TW0102-U5 Page Number: 233 of 332 Type 6 Radar Waveform_21 Report No.: 2601TW0102-U5 Page Number: 234 of 332 Type 6 Radar Waveform_22 Type 6 Radar Waveform_23 Report No.: 2601TW0102-U5 Page Number: 235 of 332 Type 6 Radar Waveform_24 Report No.: 2601TW0102-U5 Page Number: 236 of 332 Type 6 Radar Waveform_25 Type 6 Radar Waveform_26 Report No.: 2601TW0102-U5 Page Number: 237 of 332 Type 6 Radar Waveform_27 Report No.: 2601TW0102-U5 Page Number: 238 of 332 Type 6 Radar Waveform_28 Type 6 Radar Waveform_29 Report No.: 2601TW0102-U5 Page Number: 239 of 332 Product BE5000 Wall Plate Wi-Fi 7 Access Point Temperature 25°C Test Engineer Parker Relative Humidity 50% Test Site SR5 Test Date 2026/04/30 Test Item Radar Statistical Performance Check (802.11be-EHT160 mode – 5570MHz)-Master Radar Type 1-4 - Radar Statistical Performance Trial Frequency 1=Detection, 0=No Detection (MHz) Radar Type 1 Radar Type 2 Radar Type 3 Radar Type 4 0 5492 1 1 1 1 1 5496 1 1 0 1 2 5500 1 1 1 0 3 5504 1 1 1 0 4 5508 1 1 1 0 5 5512 1 1 1 0 6 5516 1 0 1 0 7 5520 1 0 1 0 8 5524 1 1 1 1 9 5528 1 1 1 1 10 5532 1 0 1 1 11 5540 1 1 1 1 12 5548 1 0 1 1 13 5556 1 1 1 1 14 5564 1 0 0 1 15 5572 1 1 1 1 16 5580 1 1 1 0 17 5588 1 1 1 1 18 5596 1 1 0 1 19 5604 1 1 0 0 20 5612 1 1 1 1 21 5616 1 0 0 0 22 5620 1 0 0 1 23 5624 1 1 1 0 24 5628 1 1 1 1 25 5632 1 1 1 1 26 5636 1 1 1 1 Report No.: 2601TW0102-U5 Page Number: 240 of 332 Trial Frequency 1=Detection, 0=No Detection (MHz) Radar Type 1 Radar Type 2 Radar Type 3 Radar Type 4 27 5640 1 1 1 1 28 5644 1 0 1 1 29 5648 1 1 1 1 Probability: 100.00% 73.33% 80.00% 66.67% Type1-4 80.00% (>80%) Report No.: 2601TW0102-U5 Page Number: 241 of 332 Radar Type 1 - Radar Waveform Report No.: 2601TW0102-U5 Page Number: 242 of 332 Radar Type 2 - Radar Waveform Report No.: 2601TW0102-U5 Page Number: 243 of 332 Radar Type 3 - Radar Waveform Report No.: 2601TW0102-U5 Page Number: 244 of 332 Radar Type 4 - Radar Waveform Report No.: 2601TW0102-U5 Page Number: 245 of 332 Radar Type 5 - Radar Statistical Performance Trail # Test Freq. (MHz) 1=Detection 0=No Detection Trail # Test Freq. (MHz) 1=Detection 0=No Detection 0 5495 1 15 5570 1 1 5497.8 1 16 5570 1 2 5496.6 1 17 5570 1 3 5497.4 1 18 5570 1 4 5495.8 1 19 5570 1 5 5495.4 1 20 5646.6 1 6 5496.6 1 21 5646.6 1 7 5497.4 1 22 5647 1 8 5497.8 1 23 5641.4 1 9 5494.6 1 24 5644.6 1 10 5570 1 25 5644.6 1 11 5570 1 26 5644.2 1 12 5570 1 27 5641.8 1 13 5570 1 28 5642.6 1 14 5570 1 29 5641 1 Detection Percentage (%) 100% Type 5 Radar Waveform_0 Report No.: 2601TW0102-U5 Page Number: 246 of 332 Type 5 Radar Waveform_1 Type 5 Radar Waveform_2 Report No.: 2601TW0102-U5 Page Number: 247 of 332 Type 5 Radar Waveform_3 Report No.: 2601TW0102-U5 Page Number: 248 of 332 Type 5 Radar Waveform_4 Type 5 Radar Waveform_5 Report No.: 2601TW0102-U5 Page Number: 249 of 332 Type 5 Radar Waveform_6 Report No.: 2601TW0102-U5 Page Number: 250 of 332 Type 5 Radar Waveform_7 Type 5 Radar Waveform_8 Report No.: 2601TW0102-U5 Page Number: 251 of 332 Type 5 Radar Waveform_9 Repor…

Text truncated - open the document above for the full version.

Report No.: 2601TW0102-U5 Page Number: 99 of 332 Type 6 Radar Waveform_28 Type 6 Radar Waveform_29 Report No.: 2601TW0102-U5 Page Number: 100 of 332 Product BE5000 Wall Plate Wi-Fi 7 Access Point Temperature 25°C Test Engineer Parker Relative Humidity 50% Test Site SR5 Test Date 2026/04/30 Test Item Radar Statistical Performance Check (802.11be-EHT40 mode – 5510MHz)-Master Radar Type 1-4 - Radar Statistical Performance Trial Frequency 1=Detection, 0=No Detection (MHz) Radar Type 1 Radar Type 2 Radar Type 3 Radar Type 4 0 5491 1 1 1 1 1 5492 1 1 1 0 2 5493 1 0 0 1 3 5494 1 1 1 1 4 5495 1 1 1 1 5 5496 1 1 1 1 6 5497 1 0 1 1 7 5498 1 1 1 1 8 5499 1 1 1 1 9 5500 1 0 0 1 10 5501 1 1 1 1 11 5502 1 1 0 1 12 5504 1 1 1 1 13 5506 1 1 1 0 14 5508 1 1 1 1 15 5510 1 0 1 0 16 5512 1 1 1 0 17 5514 1 1 1 1 18 5516 1 0 0 0 19 5518 1 1 1 1 20 5520 1 1 0 0 21 5521 1 0 1 0 22 5522 1 1 1 1 23 5523 1 1 1 0 24 5524 1 1 1 1 25 5525 1 1 0 0 26 5526 1 1 1 1 Report No.: 2601TW0102-U5 Page Number: 101 of 332 Trial Frequency 1=Detection, 0=No Detection (MHz) Radar Type 1 Radar Type 2 Radar Type 3 Radar Type 4 27 5527 1 1 0 0 28 5528 1 1 1 0 29 5529 1 1 1 1 Probability: 100.00% 80.00% 76.67% 63.33% Type1-4 80% (>80%) Report No.: 2601TW0102-U5 Page Number: 102 of 332 Radar Type 1 - Radar Waveform Report No.: 2601TW0102-U5 Page Number: 103 of 332 Radar Type 2 - Radar Waveform Report No.: 2601TW0102-U5 Page Number: 104 of 332 Radar Type 3 - Radar Waveform Report No.: 2601TW0102-U5 Page Number: 105 of 332 Radar Type 4 - Radar Waveform Report No.: 2601TW0102-U5 Page Number: 106 of 332 Radar Type 5 - Radar Statistical Performance Trail # Test Freq. (MHz) 1=Detection 0=No Detection Trail # Test Freq. (MHz) 1=Detection 0=No Detection 0 5496.1 1 15 5510 1 1 5495.7 1 16 5510 1 2 5496.9 1 17 5510 1 3 5492.9 1 18 5510 1 4 5494.1 1 19 5510 1 5 5495.7 1 20 5526.7 1 6 5497.7 1 21 5523.5 1 7 5495.7 1 22 5522.7 1 8 5498.1 1 23 5527.5 1 9 5492.5 1 24 5523.9 1 10 5510 1 25 5525.9 1 11 5510 1 26 5525.5 1 12 5510 1 27 5524.7 1 13 5510 1 28 5523.9 1 14 5510 1 29 5525.9 1 Detection Percentage (%) 100% Type 5 Radar Waveform_0 Report No.: 2601TW0102-U5 Page Number: 107 of 332 Type 5 Radar Waveform_1 Type 5 Radar Waveform_2 Report No.: 2601TW0102-U5 Page Number: 108 of 332 Type 5 Radar Waveform_3 Report No.: 2601TW0102-U5 Page Number: 109 of 332 Type 5 Radar Waveform_4 Type 5 Radar Waveform_5 Report No.: 2601TW0102-U5 Page Number: 110 of 332 Type 5 Radar Waveform_6 Report No.: 2601TW0102-U5 Page Number: 111 of 332 Type 5 Radar Waveform_7 Type 5 Radar Waveform_8 Report No.: 2601TW0102-U5 Page Number: 112 of 332 Type 5 Radar Waveform_9 Report No.: 2601TW0102-U5 Page Number: 113 of 332 Type 5 Radar Waveform_10 Type 5 Radar Waveform_11 Report No.: 2601TW0102-U5 Page Number: 114 of 332 Type 5 Radar Waveform_12 Report No.: 2601TW0102-U5 Page Number: 115 of 332 Type 5 Radar Waveform_13 Type 5 Radar Waveform_14 Report No.: 2601TW0102-U5 Page Number: 116 of 332 Type 5 Radar Waveform_15 Report No.: 2601TW0102-U5 Page Number: 117 of 332 Type 5 Radar Waveform_16 Type 5 Radar Waveform_17 Report No.: 2601TW0102-U5 Page Number: 118 of 332 Type 5 Radar Waveform_18 Report No.: 2601TW0102-U5 Page Number: 119 of 332 Type 5 Radar Waveform_19 Type 5 Radar Waveform_20 Report No.: 2601TW0102-U5 Page Number: 120 of 332 Type 5 Radar Waveform_21 Report No.: 2601TW0102-U5 Page Number: 121 of 332 Type 5 Radar Waveform_22 Type 5 Radar Waveform_23 Report No.: 2601TW0102-U5 Page Number: 122 of 332 Type 5 Radar Waveform_24 Report No.: 2601TW0102-U5 Page Number: 123 of 332 Type 5 Radar Waveform_25 Type 5 Radar Waveform_26 Report No.: 2601TW0102-U5 Page Number: 124 of 332 Type 5 Radar Waveform_27 Report No.: 2601TW0102-U5 Page Number: 125 of 332 Type 5 Radar Waveform_28 Type 5 Radar Waveform_29 Report No.: 2601TW0102-U5 Page Number: 126 of 332 Radar Type 6 - Radar Statistical Performance Trail # 1=Detection 0=No Detection Trail # 1=Detection 0=No Detection 0 1 15 1 1 1 16 1 2 1 17 1 3 1 18 1 4 1 19 1 5 1 20 1 6 1 21 1 7 1 22 1 8 1 23 1 9 1 24 1 10 1 25 1 11 1 26 1 12 1 27 1 13 1 28 1 14 1 29 1 Detection Percentage (%) 100% Report No.: 2601TW0102-U5 Page Number: 127 of 332 Type 6 Radar Waveform_0 Report No.: 2601TW0102-U5 Page Number: 128 of 332 Type 6 Radar Waveform_1 Type 6 Radar Waveform_2 Report No.: 2601TW0102-U5 Page Number: 129 of 332 Type 6 Radar Waveform_3 Report No.: 2601TW0102-U5 Page Number: 130 of 332 Type 6 Radar Waveform_4 Type 6 Radar Waveform_5 Report No.: 2601TW0102-U5 Page Number: 131 of 332 Type 6 Radar Waveform_6 Report No.: 2601TW0102-U5 Page Number: 132 of 332 Type 6 Radar Waveform_7 Type 6 Radar Waveform_8 Report No.: 2601TW0102-U5 Page Number: 133 of 332 Type 6 Radar Waveform_9 Report No.: 2601TW0102-U5 Page Nu…
