Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
PoweredbyAndroid 16 Depth 0 848 519 Depth 0 848 519
The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 203 SAR TEST REPORT Product Name: Mobile Phone Model Number: a1 FCC ID: 2BH83-A1 Issued For : FULL TECHNOLOGY TRADE LIMITED RM 13,UNIT A1,2/F.,PHASE 1,KAISER ESTATE,NO.41 MAN YUE STREET,HUNGHOM,KLN HONG KONG,China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26C168HA01 Sample Received Date: Mar. 23, 2026 Date of Test Apr. 08, 2026 ~ Apr. 17, 2026 Date of Issue Apr. 20, 2026 Max. SAR (1g) Head: 0.848 W/kg Body: 0.519 W/kg Hotspot: 0.938 W/kg Reprot No.: LGT26C168HA01 Page 2 of 203 Table of Contents 1. General Information 5 1.1 EUT Description 5 1.2 Test Environment 7 1.3 Test Factory 7 2. Test Standards and Limits 8 3. SAR Measurement System 9 3.1 Definition of Specific Absorption Rate (SAR) 9 3.2 SAR System 9 4. Tissue Simulating Liquids 12 4.1 Simulating Liquids Parameter Check 12 5. SAR System Validation 14 5.1 Validation System 14 5.2 Validation Result 15 6. SAR Evaluation Procedures 16 7. EUT Antenna Location Sketch 17 7.1 SAR test exclusion consider table 18 8. EUT Test Position 24 8.1 Define Two Imaginary Lines on the Handset 24 8.2 Hotspot mode exposure position condition 25 9. Uncertainty 26 9.1 Measurement Uncertainty 26 9.2 System validation Uncertainty 27 10. Conducted Power Measurement 28 10.1 Test Result 29 10.2 Tune up 80 11. EUT and Test Setup Photo 88 11.1 EUT Photos 88 11.2 Setup Photos 91 12. SAR Result Summary 100 12.1 Head SAR 100 12.2 Hotspot SAR 104 12.3 Body-worn SAR 108 12.4 Repeated SAR 112 12.5 Repeated SAR measurement 112 12.6 Simultaneous Multi-band Transmission Evaluation 113 Reprot No.: LGT26C168HA01 Page 3 of 203 13. Equipment List 116 Appendix A. System Validation Plots 117 Appendix B. SAR Test Plots 143 Appendix C. Probe Calibration and Dipole Calibration Report 203 Revision History Rev. Issue Date Contents 00 Apr. 20, 2026 Initial Issue Reprot No.: LGT26C168HA01 Page 4 of 203 TEST REPORT CERTIFICATION Applicant FULL TECHNOLOGY TRADE LIMITED Address RM 13,UNIT A1,2/F.,PHASE 1,KAISER ESTATE,NO.41 MAN YUE STREET,HUNGHOM,KLN HONG KONG,China Manufacture FULL TECHNOLOGY TRADE LIMITED Address RM 13,UNIT A1,2/F.,PHASE 1,KAISER ESTATE,NO.41 MAN YUE STREET,HUNGHOM,KLN HONG KONG,China Product Name Mobile Phone Trademark Lifephone Model Number a1 Sample number LGT2603233-4 APPLICABLE STANDARDS STANDARD TEST RESULTS ANSI/IEEE Std. C95.1-2019 FCC 47 CFR Part 2 (2.1093) IEEE 1528: 2013 PASS Prepared by: Approved by: Deng Deng Engineer Vita Li Manager Reprot No.: LGT26C168HA01 Page 5 of 203 1. General Information Environmental evaluation measurements of specific absorption rate (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 1.1 EUT Description Product Name Mobile Phone Test Model Number a1 Series Number N/A Model Difference N/A Device Category Portable Product stage Production unit RF Exposure Environment General Population / Uncontrolled Hardware Version A661-MB-V0.2 Software Version LIFEPHONE_a1_A16_T615_V01.04_2026_04_08 Frequency Range GSM 850: 824 ~ 849 MHz PCS 1900: 1850 ~ 1910 MHz WCDMA Band II: 1850 ~ 1910 MHz WCDMA Band IV:1710 ~ 1755 MHz WCDMA Band V: 824 ~ 849 MHz LTE Band 2:1850 ~1910MHz LTE Band 4:1710 ~1755MHz LTE Band 5:824 ~ 849MHz LTE Band 7:2500 ~ 2570MHz LTE Band 12:699~716MHz LTE Band 13:777~787MHz LTE Band 17:704 ~ 716MHz LTE Band 38:2570~2620MHz LTE Band 40:2305~2315MHz/2350-2360MHz LTE Band 66:1710~1780MHz WLAN 802.11b/g/n20: 2412 MHz ~ 2462 MHz WLAN 802.11n40: 2422 MHz ~ 2452 MHz WLAN 802.11a/n20/n40/ac20/ac40/ac80: 5150 ~ 5250 MHz WLAN 802.11a/n20/n40/ac20/ac40/ac80: 5250 ~ 5350 MHz WLAN 802.11a/n20/n40/ac20/ac40/ac80: 5470 ~ 5725 MHz WLAN 802.11a/n20/n40/ac20/ac40/ac80: 5725 ~ 5850 MHz Bluetooth: 2402 ~ 2480 MHz NFC: 13.56 MHz Max. Reported SAR(1g): (Limit:1.6W/kg) Test distance: Head:0mm Body:15mm Hotspot:10mm Mode Head (W/kg) Body Worn (W/kg) Hotspot (W/kg) GSM 850 0.169 0.167 0.299 PCS 1900 0.57 0.369 0.317 WCDMA Band II 0.848 0.469 0.938 WCDMA Band IV 0.783 0.317 0.658 WCDMA Band V 0.312 0.174 0.417 LTE Band 2 0.509 0.479 0.677 LTE Band 4 0.546 0.372 0.606 LTE Band 5 0.333 0.21 0.4 LTE Band 7 0.604 0.295 0.444 LTE Band 12 0.415 0.223 0.286 LTE Band 13 0.288 0.114 0.199 LTE Band 17 0.393 0.233 0.284 Reprot No.: LGT26C168HA01 Page 6 of 203 LTE Band 38 0.474 0.171 0.334 LTE Band 40 0.479 0.254 0.596 LTE Band 66 0.51 0.403 0.5 2.4G WLAN 0.56 0.14 0.213 5.2G WLAN 0.211 0.393 0.468 5.3G WLAN 0.496 0.309 0.477 5.6G WLAN 0.687 0.454 0.512 5.8G WLAN 0.155 0.519 0.598 Bluetooth Note 0.116 0.116 0.116 NFC Note 0.000001 0.000001 0.000001 1-g Sum SAR 1.535 0.998 1.536 Battery Rated Voltage:3.87V Capacity: 4900mAh Description test modes SIM 1 and SIM 2 is a chipset unit and tested as single chipset, SIM 1 is used to tested. Operating Mode: GSM: GSM Voice; GPRS/EGPRS Class 12 WCDMA: RMC, HSDPA, HSUPA Release 6 LTE: QPSK, 16QAM 2.4G WLAN: 802.11b(DSSS): CCK, DQPSK, DBPSK 802.11g(OFDM): BPSK, QPSK,16-QAM,64-QAM 802.11n(OFDM): BPSK, QPSK,16-QAM,64-QAM 5G WLAN: 802.11a(OFDM): BPSK, QPSK,16-QAM,64-QAM 802.11n(OFDM): BPSK, QPSK,16-QAM,64-QAM 802.11ac (OFDM): BPSK, QPSK,16-QAM,64-QAM,256-QAM Bluetooth: GFSK +π/4DQPSK+8DPSK BLE: GFSK NFC: ASK Antenna Specification GSM/WCDMA/LTE: PIFA Antenna Bluetooth: PIFA Antenna WLAN:…
Text truncated - open the document above for the full version.
Page 1 of 2 Report No.: LGT26C168 Appendix - Test Setup photos Set-up for Transmitter & Receiver Spurious Emissions, 9kHz to 30MHz Set-up for Transmitter & Receiver Spurious Emissions, 30MHz to 1000MHz Page 2 of 2 Report No.: LGT26C168 Set-up for Radiated Spurious Emission, Above 1GHz Set-up for Conducted Emission
FCC ID_SAR Setup photos Right Touch Right Tilt Left Touch Left Tilt Hotspot Front side (separation distance is 10mm) Body Front side (separation distance is 15mm) Hotspot Back side (separation distance is 10mm) Body Back side (separation distance15mm) Hotspot Left side (separation distance is 10mm) Body Left side (separation distance is 15mm) Hotspot Right side (separation distance is 10mm) Body Right side (separation distance is 15mm) Hotspot Top side (separation distance is 10mm) Body Top side (separation distance is 15mm) Hotspot Bottom side (separation distance is 10mm) Body Bottom side (separation distance is 15mm)
Report No.: LGT26C168RF01 Page 60 of 80 Band Edge NVNT 1-DH5 2480MHz No-Hopping Emission Band Edge NVNT 2-DH5 2402MHz No-Hopping Ref Band Edge NVNT 2-DH5 2402MHz No-Hopping Emission Report No.: LGT26C168RF01 Page 61 of 80 Band Edge NVNT 2-DH5 2480MHz No-Hopping Ref Band Edge NVNT 2-DH5 2480MHz No-Hopping Emission Band Edge NVNT 3-DH5 2402MHz No-Hopping Ref Report No.: LGT26C168RF01 Page 62 of 80 Band Edge NVNT 3-DH5 2402MHz No-Hopping Emission Band Edge NVNT 3-DH5 2480MHz No-Hopping Ref Band Edge NVNT 3-DH5 2480MHz No-Hopping Emission Report No.: LGT26C168RF01 Page 63 of 80 Band Edge(Hopping) Condition Mode Frequency (MHz) Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Hopping -57.66 -20 Pass NVNT 1-DH5 2480 Hopping -58.04 -20 Pass NVNT 2-DH5 2402 Hopping -56.69 -20 Pass NVNT 2-DH5 2480 Hopping -57.56 -20 Pass NVNT 3-DH5 2402 Hopping -57.04 -20 Pass NVNT 3-DH5 2480 Hopping -56.32 -20 Pass Report No.: LGT26C168RF01 Page 64 of 80 Test Graphs Band Edge(Hopping) NVNT 1-DH5 2402MHz Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2402MHz Hopping Emission Band Edge(Hopping) NVNT 1-DH5 2480MHz Hopping Ref Report No.: LGT26C168RF01 Page 65 of 80 Band Edge(Hopping) NVNT 1-DH5 2480MHz Hopping Emission Band Edge(Hopping) NVNT 2-DH5 2402MHz Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2402MHz Hopping Emission Report No.: LGT26C168RF01 Page 66 of 80 Band Edge(Hopping) NVNT 2-DH5 2480MHz Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2480MHz Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2402MHz Hopping Ref Report No.: LGT26C168RF01 Page 67 of 80 Band Edge(Hopping) NVNT 3-DH5 2402MHz Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2480MHz Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2480MHz Hopping Emission Report No.: LGT26C168RF01 Page 68 of 80 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 -58.68 -20 Pass NVNT 1-DH5 2441 -59.68 -20 Pass NVNT 1-DH5 2480 -60.89 -20 Pass NVNT 2-DH5 2402 -58.84 -20 Pass NVNT 2-DH5 2441 -59.29 -20 Pass NVNT 2-DH5 2480 -58.65 -20 Pass NVNT 3-DH5 2402 -56.86 -20 Pass NVNT 3-DH5 2441 -58.84 -20 Pass NVNT 3-DH5 2480 -59.12 -20 Pass Report No.: LGT26C168RF01 Page 69 of 80 Test Graphs Tx. Spurious NVNT 1-DH5 2402MHz Ref Tx. Spurious NVNT 1-DH5 2402MHz Emission Tx. Spurious NVNT 1-DH5 2441MHz Ref Report No.: LGT26C168RF01 Page 70 of 80 Tx. Spurious NVNT 1-DH5 2441MHz Emission Tx. Spurious NVNT 1-DH5 2480MHz Ref Tx. Spurious NVNT 1-DH5 2480MHz Emission Report No.: LGT26C168RF01 Page 71 of 80 Tx. Spurious NVNT 2-DH5 2402MHz Ref Tx. Spurious NVNT 2-DH5 2402MHz Emission Tx. Spurious NVNT 2-DH5 2441MHz Ref Report No.: LGT26C168RF01 Page 72 of 80 Tx. Spurious NVNT 2-DH5 2441MHz Emission Tx. Spurious NVNT 2-DH5 2480MHz Ref Tx. Spurious NVNT 2-DH5 2480MHz Emission Report No.: LGT26C168RF01 Page 73 of 80 Tx. Spurious NVNT 3-DH5 2402MHz Ref Tx. Spurious NVNT 3-DH5 2402MHz Emission Tx. Spurious NVNT 3-DH5 2441MHz Ref Report No.: LGT26C168RF01 Page 74 of 80 Tx. Spurious NVNT 3-DH5 2441MHz Emission Tx. Spurious NVNT 3-DH5 2480MHz Ref Tx. Spurious NVNT 3-DH5 2480MHz Emission Report No.: LGT26C168RF01 Page 75 of 80 Number of Hopping Channel Condition Mode Hopping Number Limit Verdict NVNT 1-DH5 79 15 Pass NVNT 2-DH5 79 15 Pass NVNT 3-DH5 79 15 Pass Report No.: LGT26C168RF01 Page 76 of 80 Test Graphs Hopping No. NVNT 1-DH5 2441MHz Hopping No. NVNT 2-DH5 2441MHz Hopping No. NVNT 3-DH5 2441MHz Report No.: LGT26C168RF01 Page 77 of 80 Dwell Time Condition Mode Frequency (MHz) Pulse Time (ms) Total Dwell Time (ms) Burst Count Period Time (ms) Limit (ms) Verdict NVNT 1-DH5 2441 2.909 302.536 104 31600 400 Pass NVNT 2-DH5 2441 2.898 304.29 105 31600 400 Pass NVNT 3-DH5 2441 2.898 336.168 116 31600 400 Pass Report No.: LGT26C168RF01 Page 78 of 80 Test Graphs Dwell NVNT 1-DH5 2441MHz One Burst Dwell NVNT 1-DH5 2441MHz Accumulated Dwell NVNT 2-DH5 2441MHz One Burst Report No.: LGT26C168RF01 Page 79 of 80 Dwell NVNT 2-DH5 2441MHz Accumulated Dwell NVNT 3-DH5 2441MHz One Burst Dwell NVNT 3-DH5 2441MHz Accumulated Report No.: LGT26C168RF01 Page 80 of 80 APPENDIX II - MEASUREMENT PHOTOS Note: Please see the attached RF_Test Setup photos for FCC ID. ※※※※※END OF THE REPORT※※※※※
The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 80 RF TEST REPORT Product Name: Mobile Phone Model Number: a1 FCC ID: 2BH83-A1 Issued For : FULL TECHNOLOGY TRADE LIMITED RM 13,UNIT A1,2/F.,PHASE 1,KAISER ESTATE,NO.41 MAN YUE STREET,HUNGHOM,KLN HONG KONG,China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26C168RF01 Sample Received Date: Mar. 23, 2026 Date of Test: Mar. 23, 2026 ~ Apr. 19, 2026 Date of Issue: Apr. 20, 2026 Report No.: LGT26C168RF01 Page 2 of 80 TEST REPORT CERTIFICATION Applicant: FULL TECHNOLOGY TRADE LIMITED Address: RM 13,UNIT A1,2/F.,PHASE 1,KAISER ESTATE,NO.41 MAN YUE STREET,HUNGHOM,KLN HONG KONG,China Manufacturer: FULL TECHNOLOGY TRADE LIMITED Address: RM 13,UNIT A1,2/F.,PHASE 1,KAISER ESTATE,NO.41 MAN YUE STREET,HUNGHOM,KLN HONG KONG,China Product Name: Mobile Phone Trademark: Lifephone Model Number: a1 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2020 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT26C168RF01 Page 3 of 80 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST LABORATORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 30 4.1 LIMIT 30 4.2 TEST PROCEDURE 30 4.3 TEST SETUP 30 4.4 EUT OPERATION CONDITIONS 31 4.5 TEST RESULTS 31 5. NUMBER OF HOPPING CHANNEL 32 5.1 LIMIT 32 5.2 TEST PROCEDURE 32 5.3 TEST SETUP 32 5.4 EUT OPERATION CONDITIONS 32 5.5 TEST RESULTS 32 6. AVERAGE TIME OF OCCUPANCY 33 6.1 LIMIT 33 6.2 TEST PROCEDURE 33 6.3 TEST SETUP 33 6.4 EUT OPERATION CONDITIONS 33 6.5 TEST RESULTS 33 7. HOPPING CHANNEL SEPARATION MEASUREMEN 34 7.1 LIMIT 34 7.2 TEST PROCEDURE 34 Report No.: LGT26C168RF01 Page 4 of 80 7.3 TEST SETUP 34 7.4 EUT OPERATION CONDITIONS 34 7.5 TEST RESULTS 34 8. BANDWIDTH TEST 35 8.1 LIMIT 35 8.2 TEST PROCEDURE 35 8.3 TEST SETUP 35 8.4 EUT OPERATION CONDITIONS 35 8.5 TEST RESULTS 35 9. OUTPUT POWER TEST 36 9.1 LIMIT 36 9.2 TEST PROCEDURE 36 9.3 TEST SETUP 36 9.4 EUT OPERATION CONDITIONS 36 9.5 TEST RESULTS 36 10. ANTENNA REQUIREMENT 37 10.1 STANDARD REQUIREMENT 37 10.2 EUT ANTENNA 37 APPENDIX I - TEST RESULTS 38 DUTY CYCLE 38 MAXIMUM PEAK CONDUCTED OUTPUT POWER 42 -20DB BANDWIDTH 46 OCCUPIED CHANNEL BANDWIDTH 50 CARRIER FREQUENCIES SEPARATION 54 BAND EDGE 58 BAND EDGE(HOPPING) 63 CONDUCTED RF SPURIOUS EMISSION 68 NUMBER OF HOPPING CHANNEL 75 DWELL TIME 77 APPENDIX II - MEASUREMENT PHOTOS 80 Report No.: LGT26C168RF01 Page 5 of 80 Revision History Rev. Issue Date Revisions 00 Apr. 20, 2026 Initial Issue Report No.: LGT26C168RF01 Page 6 of 80 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Report No.: LGT26C168RF01 Page 7 of 80 1.1 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Occupied Channel Bandwidth ±0.46% 2 RF Output Power, Conducted ±0.71dB 3 Power Spectral Density, Conducted ±1.57dB 4 Unwanted Emission, Conducted ±0.63dB 5 Conducted emission ±2.80dB 6 All Emissions, Radiated (0.009-30MHz) ±2.16dB 7 All Emissions, Radiated (30MHz-1GHz) ±4.61dB 8 All Emissions, Radiated (1GHz-18GHz) ±5.49dB 9 Temperature ±0.5°C 10 Humidity ±2% 11 Duty Cycle ±2.3% Note: The measurement uncertainty is not included in the test result. Report No.: LGT26C168RF01 Page 8 of 80 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: Mobile Phone Test Model Number: a1 Series Number: N/A Model Difference: N/A Channel List: Please refer to the Note 3. Bluetooth: Frequency:2402 – 2480 MHz Modulation: GFSK(1Mbps), π/4-DQPSK(2Mbps), 8DPSK(3Mbps) Antenna Type: PIFA Antenna Gain: -1.15dBi Adapter: Input: AC 100-240V 50/60Hz 0.3A Output: DC 5.0V 2.0A Battery: Capacity:4900mAh Rated Voltage: 3.87V Hardware Version: A661-MB-V0.2 Software Version: LIFEPHONE_a1_A16_T615_V01.04_2026_04_08 Connecting …
Text truncated - open the document above for the full version.
Antenna Specification Mobile antenna test report Heyuan Xunwei Communication Technology Co., Ltd RF:Chen chuanming Date:2026.03.17 Office address: A316, Bldg. A, Languang Technology Bldg., No. 5 Xinxi Rd. W, Nanshan Dist., Shenzhen, Test equipment Wireless communications test set: CMW500 Network Analyzer: Agilent 5071B Anechoic Chamber : SATIMO SG24 Antenna information Customer Boat of wealth Antenna model FPC Antenna type PIFA Antenna band GSM850/900/1800/1900 WCDMA- B1/B2/B4/B5/B8 LTE- B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B28AB/B66/B38/B40 frequency range(MHz) 703-960 1710-2170 2500-2690 VSWR <3.5 <3.5 <3.5 Matching circuit(No modification): Element Value E1 E2 E3 E4 Antenna location map (showing the positions of all antennas and the frequency bands they use) All of Implementation antenna Main antenna(Antenna Label:A): LTE B5/B8/B12/B13/B17/B28AB RX&TX LTE B1/B2/B3/B4/B7/B66/B38/B40 RX WCDMA B1/B2/B4 RX GSM B2/B3 RX DIV antenna(Antenna Label:B): LTE B1/B2/B3/B4/B7/B66/B38/B40 RX&TX WiFi/BT 2.4~2.5G/2412MHz~2472MHz& WiFi 5G 5.1~5.8MHz /GPS: 1575.42 MHz ; Antenna Max. Peak Gain: GSM850: -2.38dBi EGSM900:-2.47dBi DCS1800: -1.28dBi PCS1900: -1.45dBi W-B1: -1.50dBi W-B2: -1.45dBi W-B4: -1.28dBi W-B5: -2.38dBi W-B8: -2.47dBi LTE-B1: -1.50dBi LTE-B2: -1.45dBi LTE-B3: -1.28dBi LTE-B4:-1.28dBi LTE-B5:-2.38dBi LTE-B7:-1.68dBi LTE-B8:-2.47dBi LTE-B12: -2.68dBi LTE-13: -2.69dBi LTE-B17: -2.68dBi LTE-B28:-2.68dBi LTE-B66:-1.28dBi LTE-B38:-1.68dBi LTE-B40:-1.91dBi WIFI(2.4G)/BT: -1.15dBi WIFI(5G): -1.31dB GPS:-1.21Bi 3. Antenna Apple Diagram 703MHZ~960MHZ 1710MHZ~2170MHZ 2400MHZ~2700MHZ 1550MHZ~1600MHZ(GPS) 2400MHZ~2500MHZ(BT/WIFI 2.4G) 5.1MHZ~5.8MHZ(WIFI 5G) Dimensional drawing of main antenna Unit: mm Dimensional drawing of GPS/WIFI/BT antenna Unit: mm Dimensional drawing of diversity antenna Unit: mm
Reprot No.: LGT26C168HA01 Page 179 of 203 Plot 37: Test Date 2026-04-09 Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Right head Device Position Cheek Band LTE band 40 Signal LTE FDD Frequency 2310 SAR 10g (W/Kg) 0.264 SAR 1g (W/Kg) 0.443 ConvF 1.47 Relative permittivity 40.23 Conductivity (S/m) 1.68 Maximum location: X=-5.00, Y=18.00 ; SAR Peak: 0.71 W/kg SURFACE SAR VOLUME SAR 3D screen shot Hot spot position Reprot No.: LGT26C168HA01 Page 180 of 203 Plot 38: Test Date 2026-04-09 Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Side Band LTE band 40 Signal LTE FDD Frequency 2310 SAR 10g (W/Kg) 0.276 SAR 1g (W/Kg) 0.551 ConvF 1.47 Relative permittivity 40.23 Conductivity (S/m) 1.68 Maximum location: X=16.00, Y=18.00 ; SAR Peak: 0.92 W/kg SURFACE SAR VOLUME SAR 3D screen shot Hot spot position Reprot No.: LGT26C168HA01 Page 181 of 203 Plot 39: Test Date 2026-04-15 Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Right head Device Position Cheek Band LTE band 66 Signal LTE FDD Frequency 1745 SAR 10g (W/Kg) 0.308 SAR 1g (W/Kg) 0.474 ConvF 1.21 Relative permittivity 40.48 Conductivity (S/m) 1.42 Maximum location: X=-17.00, Y=9.00 ; SAR Peak: 0.72 W/kg SURFACE SAR VOLUME SAR 3D screen shot Hot spot position Reprot No.: LGT26C168HA01 Page 182 of 203 Plot 40: Test Date 2026-04-13 Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Side Band LTE band 66 Signal LTE FDD Frequency 1720 SAR 10g (W/Kg) 0.309 SAR 1g (W/Kg) 0.506 ConvF 1.21 Relative permittivity 40.73 Conductivity (S/m) 1.39 Maximum location: X=18.00, Y=46.00 ; SAR Peak: 0.77 W/kg SURFACE SAR VOLUME SAR 3D screen shot Hot spot position Reprot No.: LGT26C168HA01 Page 183 of 203 Plot 41: Test Date 2026-04-11 Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Side Band GPRS850 Signal TDMA (GPRS) Frequency 824.2 SAR 10g (W/Kg) 0.082 SAR 1g (W/Kg) 0.157 ConvF 1.02 Relative permittivity 42.10 Conductivity (S/m) 0.91 Maximum location: X=-11.00, Y=-39.00 ; SAR Peak: 0.29 W/kg SURFACE SAR VOLUME SAR 3D screen shot Hot spot position Reprot No.: LGT26C168HA01 Page 184 of 203 Plot 42: Test Date 2026-04-08 Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Side Band GPRS1900 Signal TDMA (GPRS) Frequency 1880 SAR 10g (W/Kg) 0.089 SAR 1g (W/Kg) 0.341 ConvF 1.34 Relative permittivity 40.92 Conductivity (S/m) 1.38 Maximum location: X=-1.00, Y=37.00 ; SAR Peak: 1.27 W/kg SURFACE SAR VOLUME SAR 3D screen shot Hot spot position Reprot No.: LGT26C168HA01 Page 185 of 203 Plot 43: Test Date 2026-04-08 Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Left Side Band Band 2 (1900) Signal WCDMA Frequency 1880 SAR 10g (W/Kg) 0.276 SAR 1g (W/Kg) 0.424 ConvF 1.34 Relative permittivity 40.92 Conductivity (S/m) 1.38 Maximum location: X=9.00, Y=10.00 ; SAR Peak: 0.62 W/kg SURFACE SAR VOLUME SAR 3D screen shot Hot spot position Reprot No.: LGT26C168HA01 Page 186 of 203 Plot 44: Test Date 2026-04-13 Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Side Band Band 4 (1700) Signal WCDMA Frequency 1712.6 SAR 10g (W/Kg) 0.189 SAR 1g (W/Kg) 0.299 ConvF 1.21 Relative permittivity 40.73 Conductivity (S/m) 1.39 Maximum location: X=9.00, Y=10.00 ; SAR Peak: 0.48 W/kg SURFACE SAR VOLUME SAR 3D screen shot Hot spot position Reprot No.: LGT26C168HA01 Page 187 of 203 Plot 45: Test Date 2026-04-11 Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Side Band Band 5 (850) Signal WCDMA Frequency 846.6 SAR 10g (W/Kg) 0.094 SAR 1g (W/Kg) 0.162 ConvF 1.02 Relative permittivity 42.10 Conductivity (S/m) 0.91 Maximum location: X=0.00, Y=1.00 ; SAR Peak: 0.24 W/kg SURFACE SAR VOLUME SAR 3D screen shot Hot spot position Reprot No.: LGT26C168HA01 Page 188 of 203 Plot 46: Test Date 2026-04-09 Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back side Band ISM Signal IEEE 802.11 b Frequency 2437 SAR 10g (W/Kg) 0.061 SAR 1g (W/Kg) 0.129 ConvF 1.51 Relative permittivity 39.81 Conductivity (S/m) 1.75 Maximum location: X=0.00, Y=24.00 ; SAR Peak: 0.39 W/kg SURFACE SAR VOLUME SAR 3D screen shot Hot spot position Reprot No.: LGT26C168HA01 Page 189 of 203 Plot 47: Test Date 2026-04-16 Area Scan dx=8mm dy=8mm Zoom Scan 7x7x12,dx=4mm dy=4mm dz=2mm Phantom Validation plane Device Position Back side Band U-NII-1 Signal IEEE 802.11a Frequency 5180 SAR 10g (W/Kg) 0.240 SAR 1g (W/Kg) 0.363 ConvF 1.58 Relative permittivity 36.87 Conductivity (S/m) 4.60 Maximum location: X=0.00, Y=-24.00 ; SAR Peak: 0.75 W/kg SURFACE SAR VOLUME SAR 3D screen shot Hot spot position Reprot No.: LGT26C168HA01 Page 190 of 203 Plot 48: Test Date 2026-04-16 Area Scan dx=8mm dy=8mm Zoom Scan 7x7x12,dx=4mm dy=4mm dz=2mm Phantom Validation plane Device Position Back Side Band U-NII-2a Signal IEEE 802.11 a Frequency 5260 SAR 10g (W/Kg) 0.114 SAR 1g (W/Kg) 0.289 ConvF 1.60 Relative permittivity 36.30 Conductivity (S/m) 4.89 Maximum location: X=-26.00, Y=28.00 ; SAR Peak: 4.57 W/kg SURFACE SAR VOLUME SAR 3D screen shot Hot spot position Reprot No.: LGT26C168HA01 Page 191 of 203 Plot 49: Test Date 2026-04-17 Area Scan dx=8mm dy=8mm Zoom Scan 7x7x12,dx=4mm dy=4mm dz=2mm Phantom Validation plane Device Position Back Side Band U-NII-2c Signal IEEE 802.11a Frequency 5500 SAR 10g (W/Kg) 0.244 SAR 1g (W/Kg) 0.427 ConvF 1.63 Relative permittivity 36.41 Conductivity (S/m) 5.11 Maximum location: X=-9.00, Y=24.00 ; SAR Peak: 0.81 W/kg SURFACE SAR VOLUME SAR 3D screen shot Hot spot position Reprot No.: LGT26C168HA01 Page 192 of 203 Plot 50: Test Date 2026-04-17 Area Scan dx=8mm dy=8mm Zoom Scan 7x7x12,dx=4mm dy=4mm dz=2mm Phantom Validation plane Device Position Back Side Ba…
Text truncated - open the document above for the full version.
Reprot No.: LGT26C168HA01 Page 94 of 203 Hotspot Back side (separation distance is 10mm) Body Back side (separation distance15mm) Reprot No.: LGT26C168HA01 Page 95 of 203 Hotspot Left side (separation distance is 10mm) Body Left side (separation distance is 15mm) Reprot No.: LGT26C168HA01 Page 96 of 203 Hotspot Right side (separation distance is 10mm) Body Right side (separation distance is 15mm) Reprot No.: LGT26C168HA01 Page 97 of 203 Hotspot Top side (separation distance is 10mm) Body Top side (separation distance is 15mm) Reprot No.: LGT26C168HA01 Page 98 of 203 Hotspot Bottom side (separation distance is 10mm) Body Bottom side (separation distance is 15mm) Reprot No.: LGT26C168HA01 Page 99 of 203 Liquid depth (15 cm) Liquid depth (15 cm) Reprot No.: LGT26C168HA01 Page 100 of 203 12. SAR Result Summary 12.1 Head SAR Band Model Test Position Freq. SAR (1g) (W/kg) Power Drift (%) Max. Turn-up Power (dBm) Meas. Output Power (dBm) Scaling Factor Scaled SAR (W/Kg) Meas. No. GSM850 GSM Right Cheek 836.6 0.143 0.73 33.90 33.60 1.072 0.153 / Right Tilt 836.6 0.125 0.89 33.90 33.60 1.072 0.134 / Left Cheek 836.6 0.158 -0.20 33.90 33.60 1.072 0.169 1 Left Tilt 836.6 0.127 2.48 33.90 33.60 1.072 0.136 / PCS 1900 GSM Right Cheek 1850.2 0.432 -1.04 28.60 28.33 1.064 0.460 / Right Tilt 1850.2 0.358 -1.25 28.60 28.33 1.064 0.381 / Left Cheek 1850.2 0.536 -2.85 28.60 28.33 1.064 0.570 3 Left Tilt 1850.2 0.448 0.92 28.60 28.33 1.064 0.477 / WCDMA Band II RMC Right Cheek 1852.4 0.744 -0.99 18.70 18.35 1.084 0.806 / Right Cheek 1880 0.793 0.41 18.80 18.51 1.069 0.848 5 Right Cheek 1907.6 0.732 -0.34 18.60 18.32 1.067 0.781 / Right Tilt 1880 0.637 -3.43 18.80 18.51 1.069 0.681 / Left Cheek 1880 0.539 0.45 18.80 18.51 1.069 0.576 / Left Tilt 1880 0.418 -1.65 18.80 18.51 1.069 0.447 / WCDMA Band IV RMC Right Cheek 1712.6 0.731 1.82 20.30 20.00 1.072 0.783 7 Right Tilt 1712.6 0.600 3.58 20.30 20.00 1.072 0.643 / Left Cheek 1712.6 0.596 3.26 20.30 20.00 1.072 0.639 / Left Tilt 1712.6 0.500 -1.44 20.30 20.00 1.072 0.536 / WCDMA Band V RMC Right Cheek 846.6 0.287 3.31 23.80 23.50 1.072 0.308 / Right Tilt 846.6 0.231 2.55 23.80 23.50 1.072 0.248 / Left Cheek 846.6 0.291 1.13 23.80 23.50 1.072 0.312 9 Left Tilt 846.6 0.243 0.98 23.80 23.50 1.072 0.260 / 2.4G WLAN 802.11b Right Cheek 2437 0.260 -2.43 17.50 17.16 1.081 0.281 / Right Tilt 2437 0.203 0.56 17.50 17.16 1.081 0.220 / Left Cheek 2437 0.518 -1.99 17.50 17.16 1.081 0.560 11 Left Tilt 2437 0.421 1.52 17.50 17.16 1.081 0.455 / 5.2G WLAN 802.11ac Right Cheek 5180 0.165 -0.29 14.30 13.93 1.089 0.180 / Right Tilt 5180 0.144 1.51 14.30 13.93 1.089 0.157 / Left Cheek 5180 0.194 3.45 14.30 13.93 1.089 0.211 13 Left Tilt 5180 0.138 2.90 14.30 13.93 1.089 0.150 / 5.3G WLAN 802.11a Right Cheek 5260 0.382 -0.52 16.00 15.70 1.072 0.409 / Right Tilt 5260 0.306 -1.70 16.00 15.70 1.072 0.328 / Left Cheek 5260 0.463 -2.23 16.00 15.70 1.072 0.496 15 Left Tilt 5260 0.370 -0.76 16.00 15.70 1.072 0.396 / 5.6G WLAN 802.11ac Right Cheek 5500 0.507 2.92 13.80 13.42 1.091 0.553 / Right Tilt 5500 0.421 3.08 13.80 13.42 1.091 0.459 / Left Cheek 5500 0.629 -2.63 13.80 13.42 1.091 0.687 17 Left Tilt 5500 0.515 -2.68 13.80 13.42 1.091 0.562 / 5.8G WLAN 802.11a Right Cheek 5745 0.127 0.51 10.10 9.77 1.079 0.137 / Right Tilt 5745 0.077 0.22 10.10 9.77 1.079 0.083 / Left Cheek 5745 0.144 3.78 10.10 9.77 1.079 0.155 19 Left Tilt 5745 0.125 3.82 10.10 9.77 1.079 0.135 / Reprot No.: LGT26C168HA01 Page 101 of 203 Band BW (MHz) Mod. RB Size RB offset Test Position Freq. Result 1g (W/Kg) Power Drift (%) Max. Turn- up Power (dBm) Meas. Output Power (dBm) Scaling Factor Scaled SAR (W/Kg) Meas. No. LTE Band 2 20M QPSK 1 0 Right Cheek 1880 0.476 -3.01 18.50 18.21 1.069 0.509 21 50 0 Right Cheek 1880 0.419 -1.30 17.00 16.69 1.074 0.450 / 1 0 Right Tilt 1880 0.375 -1.96 18.50 18.21 1.069 0.401 / 50 0 Right Tilt 1880 0.308 2.21 17.00 16.69 1.074 0.331 / 1 0 Left Cheek 1880 0.422 0.17 18.50 18.21 1.069 0.451 / 50 0 Left Cheek 1880 0.354 2.42 17.00 16.69 1.074 0.380 / 1 0 Left Tilt 1880 0.400 0.02 18.50 18.21 1.069 0.428 / 50 0 Left Tilt 1880 0.319 0.19 17.00 16.69 1.074 0.343 / LTE Band 4 20M QPSK 1 99 Right Cheek 1745 0.514 3.28 20.40 20.14 1.062 0.546 23 50 49 Right Cheek 1720 0.404 3.10 19.30 18.96 1.081 0.437 / 1 99 Right Tilt 1745 0.420 -0.36 20.40 20.14 1.062 0.446 / 50 49 Right Tilt 1720 0.329 3.16 19.30 18.96 1.081 0.356 / 1 99 Left Cheek 1745 0.459 -3.53 20.40 20.14 1.062 0.487 / 50 49 Left Cheek 1720 0.373 -2.32 19.30 18.96 1.081 0.403 / 1 99 Left Tilt 1745 0.411 -2.40 20.40 20.14 1.062 0.436 / 50 49 Left Tilt 1720 0.323 -3.70 19.30 18.96 1.081 0.349 / LTE Band 5 10M QPSK 1 24 Right Cheek 829 0.294 1.19 24.80 24.52 1.067 0.314 / 25 12 Right Cheek 844 0.229 0.92 22.30 22.04 1.062 0.243 / 1 24 Right Tilt 829 0.244 0.64 24.80 24.52 1.067 0.260 / 25 12 Right Tilt 844 0.190 3.11 22.30 22.04 1.062 0.202 / 1 24 Left Cheek 829 0.312 -2.75 24.80 24.52 1.067 0.333 25 25 12 Left Cheek 844 0.238 2.43 22.30 22.…
Text truncated - open the document above for the full version.
3722 Illinois Avenue, Saint Charles, IL,60174, USA · United States
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 2.59 mW |

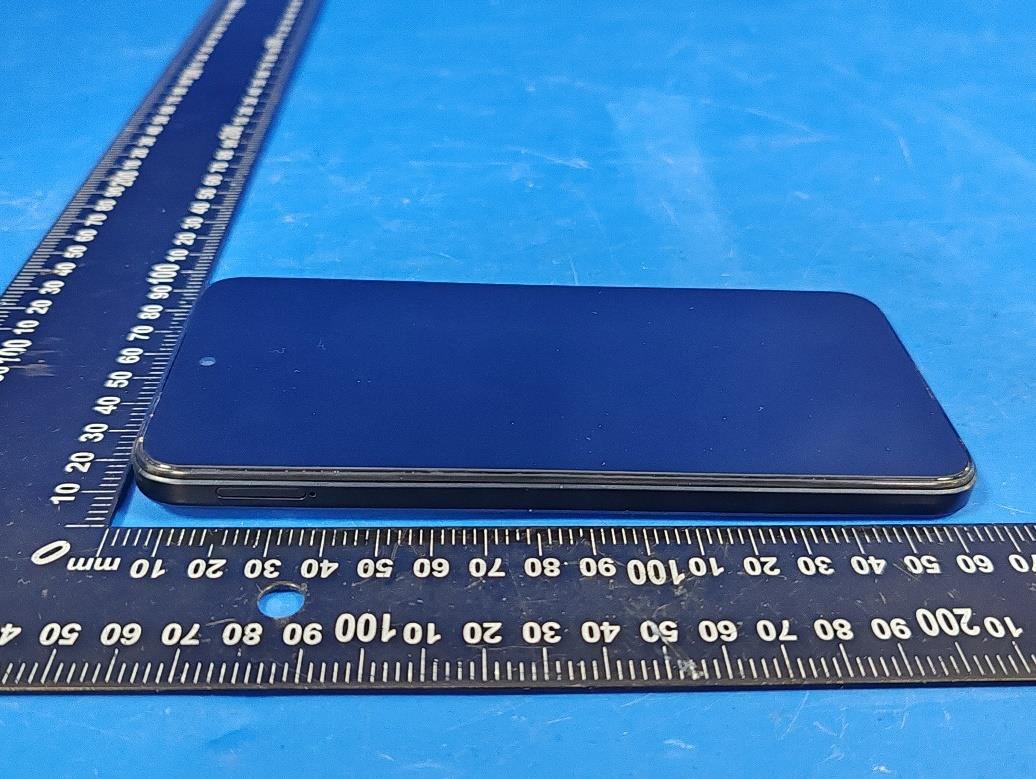

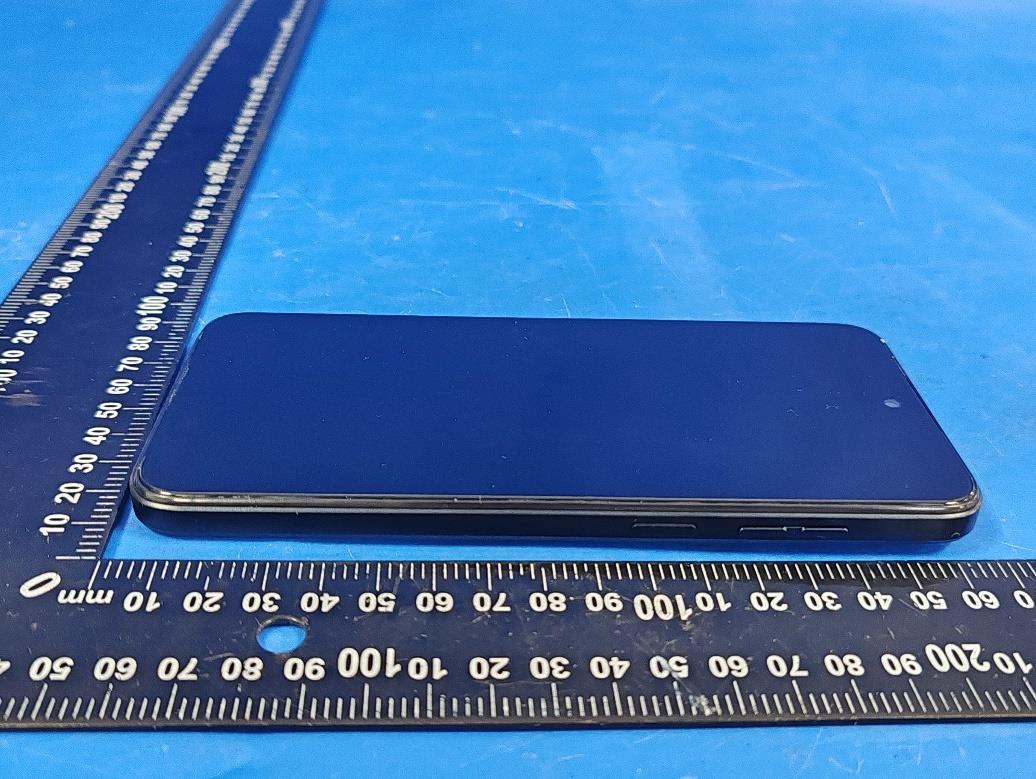

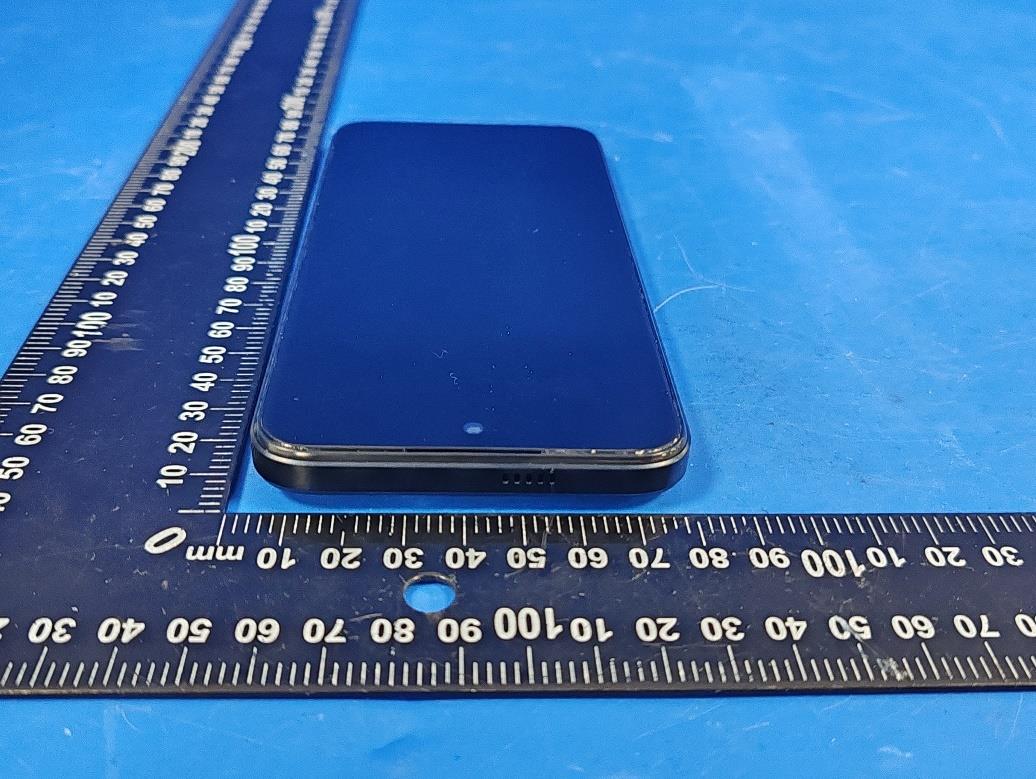

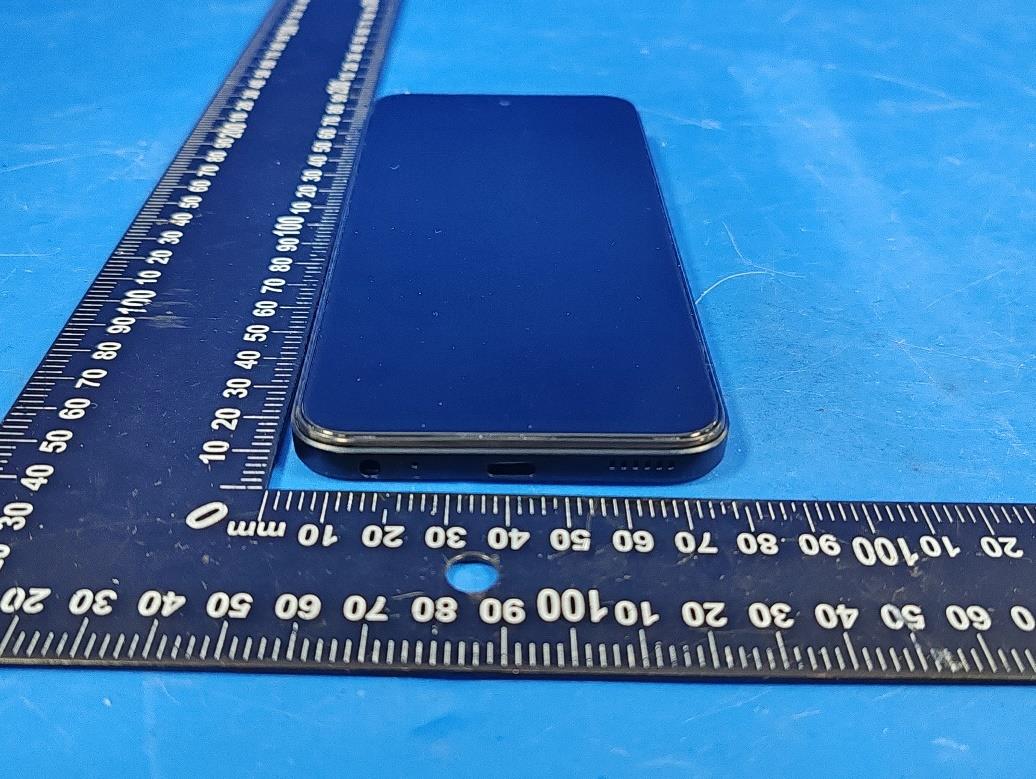

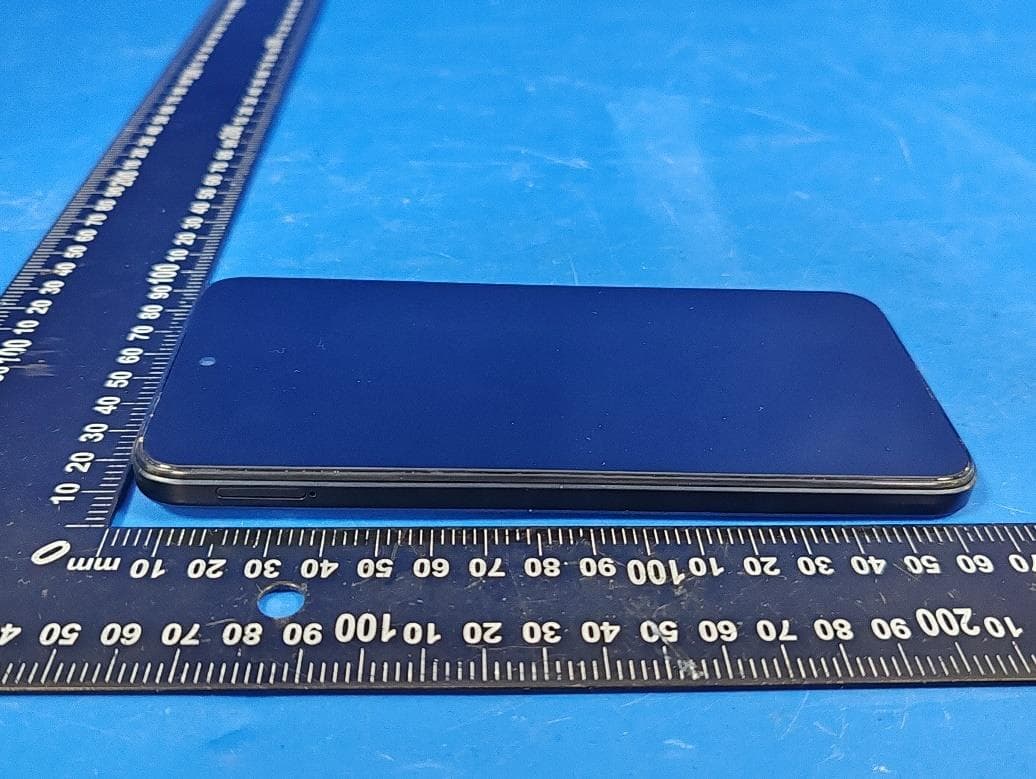

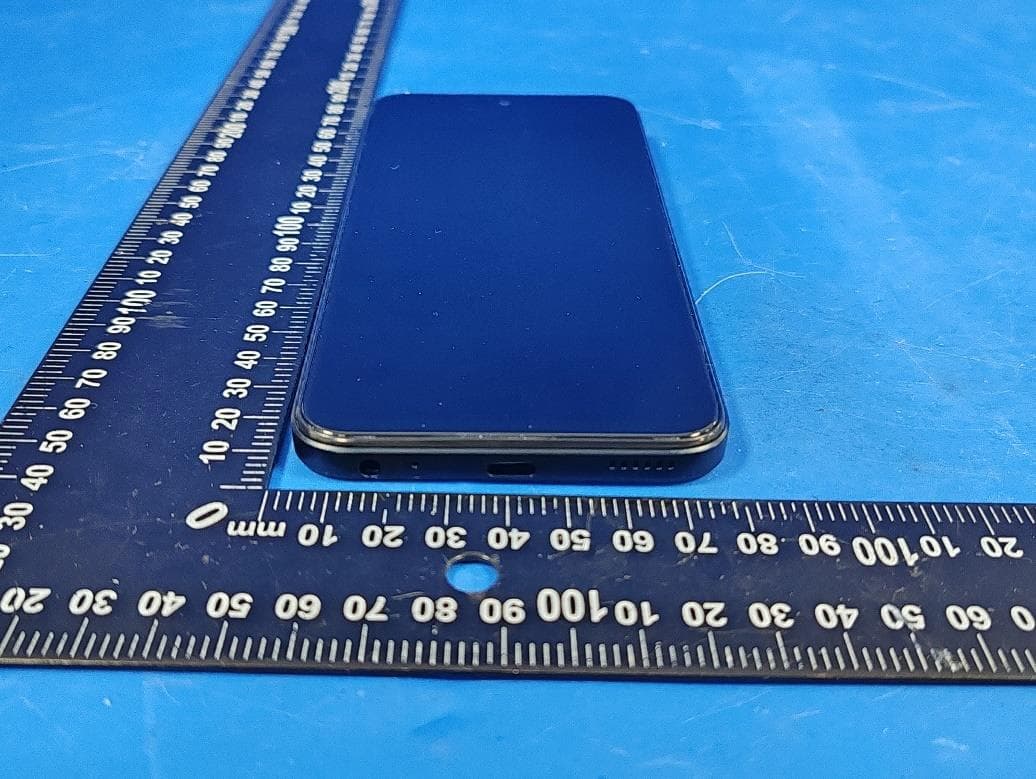

Mobile Phone
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Mobile Phone
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Mobile Phone
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Mobile Phone
Equipment Class
PCE - PCS Licensed Transmitter held to ear
Mobile Phone
Equipment Class
PCE - PCS Licensed Transmitter held to ear
