2BHAE-FBA-10Guitar Amplifier

Shenzhen Flanger Musical Instruments Co., Limited

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Apr 07, 2026
Application Purpose: Original Equipment
Equipment Note: Guitar Amplifier
Frequency Range: 2402.00000000 - 2480.00000000
Company: Shenzhen Flanger Musical Instruments Co., Limited
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

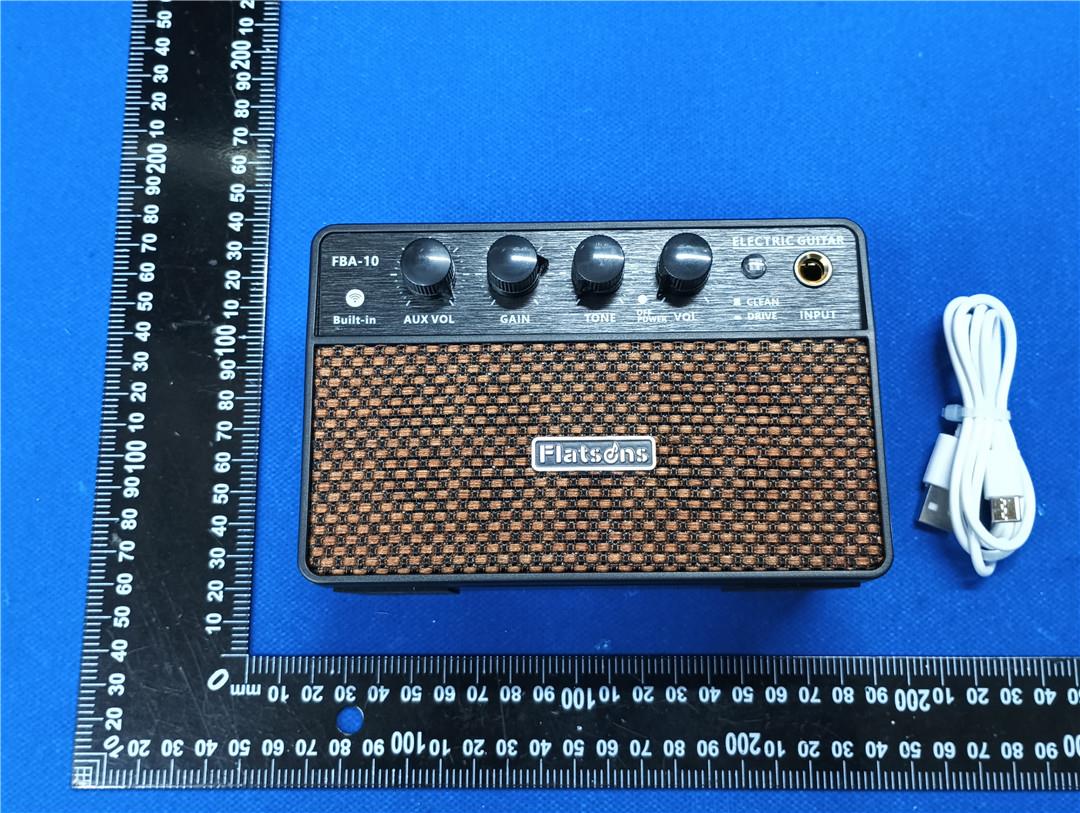

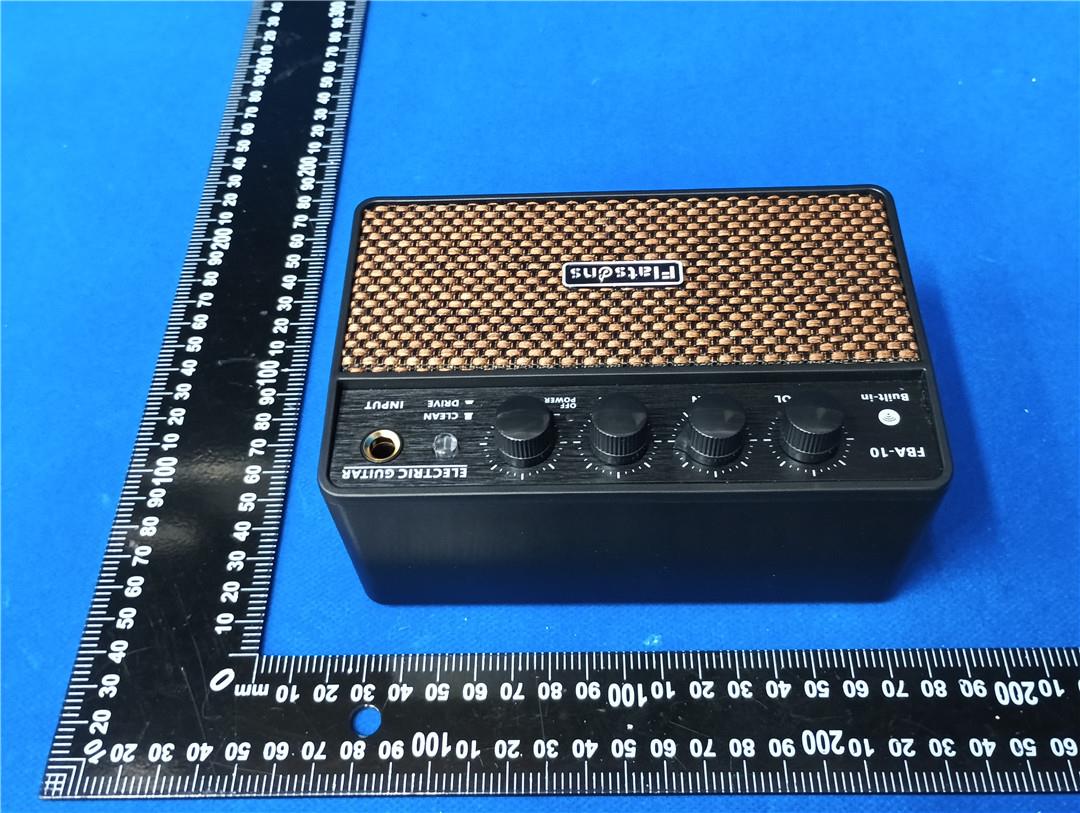

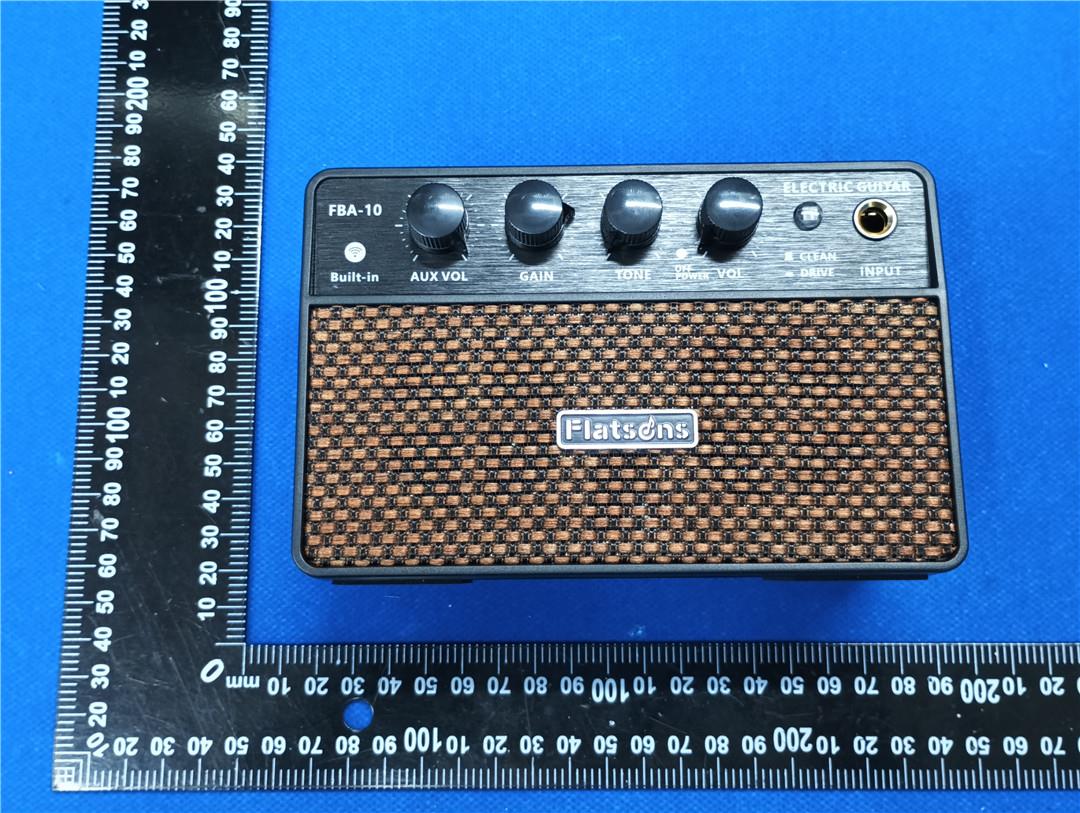

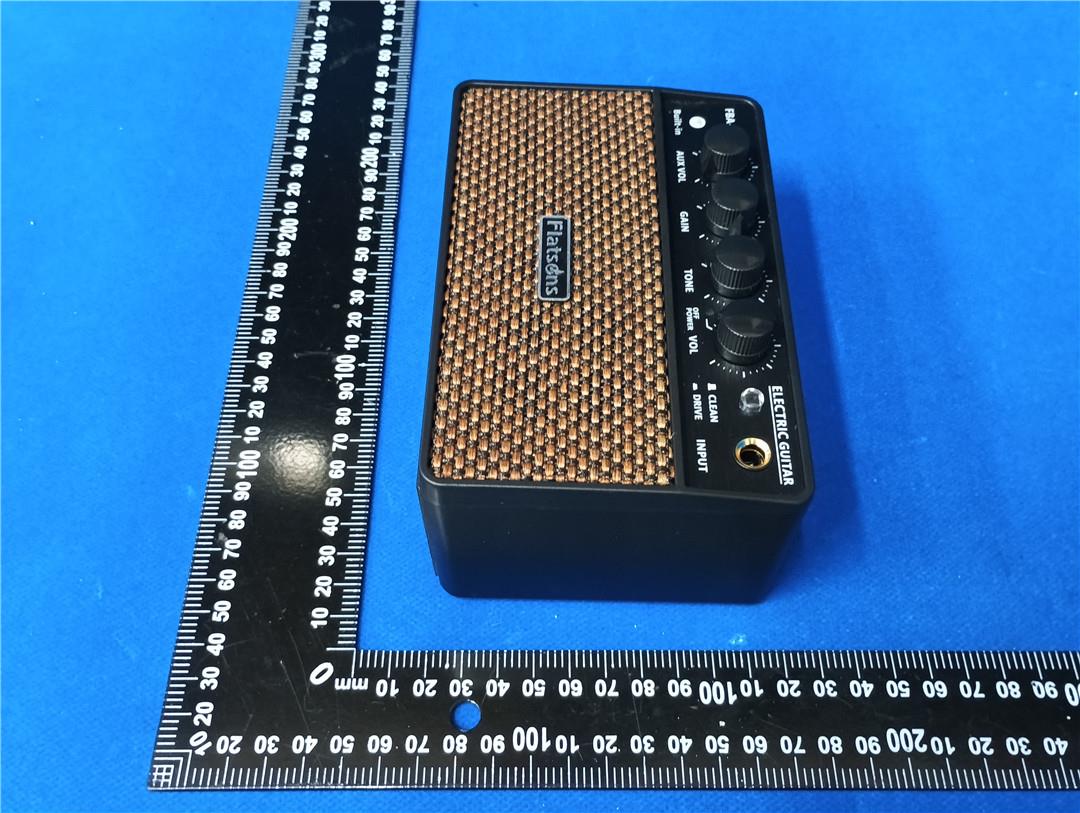

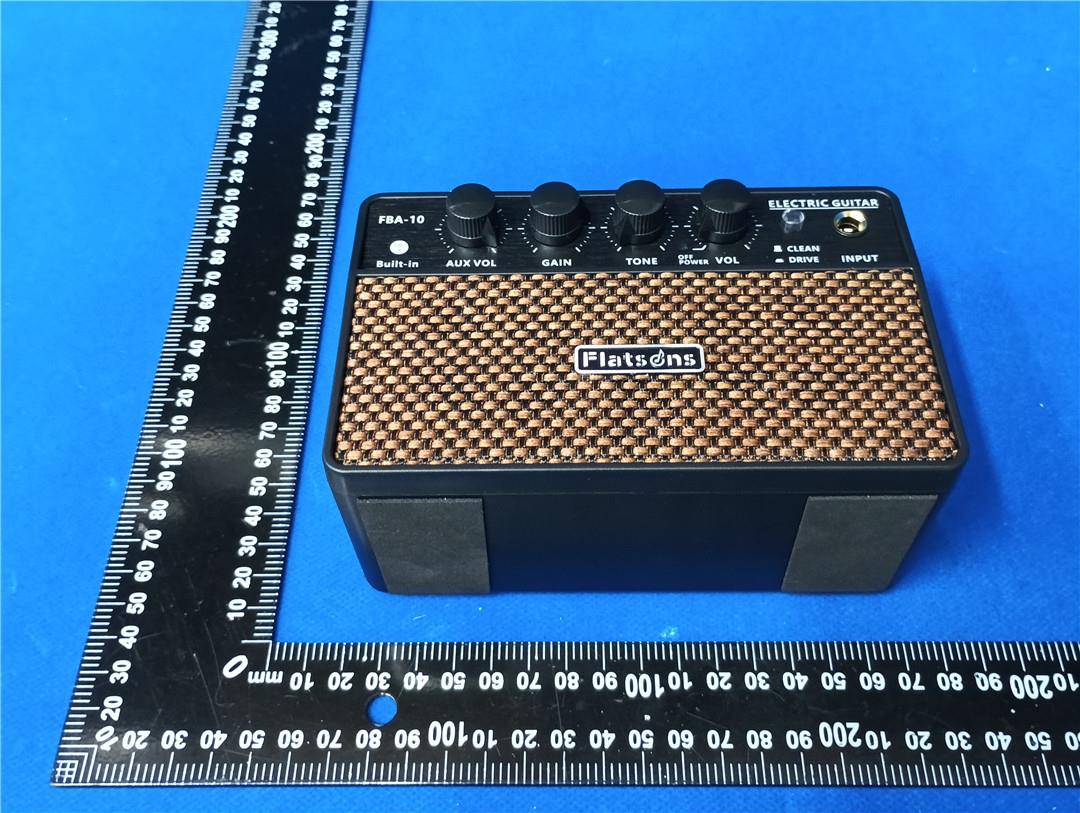

External Photos

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202509608 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: Guitar Amplifier Model No.: FBA-10 EUT Constructional Details External Photo Report No.: HTT202509608 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT202509608 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT202509608 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

ID Label/Location Info

Label and Location Size: L: 3.0cm*W: 2.0cm FCC ID : 2BHAE-FBA-10 Label and Location

Internal Photos

RF Exposure Info

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 8 RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : HTT202509608F02 2BHAE-FBA-10 Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Sep. 18, 2025 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Shenzhen Flanger Musical Instruments Co., Limited Address............................................ : F/513, FENGSHANG ERA BLDG D,514, JIAN’AN 1ST ROAD, WENHUI COMMUNITY, XINAN STREET, BAO’AN DISTRICT SHENZHEN, CHINA Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Guitar Amplifier Manufacturer .................................... : Shenzhen Flanger Musical Instruments Co., Limited Trade Mark ........................................ N/A Model/Type reference ...................... : FBA-10 Rating ............................................... : DC 3.7V From Battery and DC 5V From External Circuit Result ............................................... : PASS Report No.: HTT202509608F02 Page 2 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 8 T E S T R E P O R T Equipment under Test : Guitar Amplifier Model /Type : FBA-10 Listed Models : FGA10,KB-10,LB-10,LG-10,KG-10,BGA10,BGB10,VGA10,VGB10 Applicant : Shenzhen Flanger Musical Instruments Co., Limited Address : F/513, FENGSHANG ERA BLDG D,514, JIAN’AN 1ST ROAD, WENHUI COMMUNITY, XINAN STREET, BAO’AN DISTRICT SHENZHEN, CHINA Manufacturer : Shenzhen Flanger Musical Instruments Co., Limited Address : F/513, FENGSHANG ERA BLDG D,514, JIAN’AN 1ST ROAD, WENHUI COMMUNITY, XINAN STREET, BAO’AN DISTRICT SHENZHEN, CHINA Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202509608F02 Page 3 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 8 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 Conducted Power Results 8 4.3 Manufacturing tolerance 8 4.4 Evaluation Result 8 4.5 Simultaneous Transmission for SAR Exclusion 8 5 C O N C L U S I O N 8 Report No.: HTT202509608F02 Page 4 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 8 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Report No.: HTT202509608F02 Page 5 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 8 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Sep. 12, 2025 Testing commenced on : Sep. 12, 2025 Testing concluded on : Sep. 18, 2025 2.2 Product Description Product Name: Guitar Amplifier Model No.: FBA-10 Series model: FGA10,KB-10,LB-10,LG-10,KG-10,BGA10,BGB10,VGA10,VGB10 Test sample(s) ID: HTT202509608-1(Engineer sample) HTT202509608-2(Normal sample) Operation Frequency: 2402MHz~2480MHz Channel numbers: 79 Channel separation: 1MHz Modulation type: GFSK, π/4-DQPSK Antenna Type: PCB Antenna Antenna Gain: -0.58 dBi Power Supply: DC 3.7V From Battery and DC 5V From External Circuit Adapter Information (Auxiliary test provided by the lab): 2.3 Special Accessories The following is the EUT test of the auxiliary equipment provided by…

Text truncated - open the document above for the full version.

Test Report

Inverted F Antenna Specification Summary ANT SPECITEM 2.4G ANTModel Name VerticalHorizontal 2500MHz2400MHz2500MHz2400MHz Center Frequency -1.86-2.46-5.25-0.58-0.76-1.26 -0.58dBiMAX. Gain Horizontal and VerticalPolarization Azimuth Beam Pattern Omni-directional 50 OhmImpedance 38.20mmAntenna Length Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD No. 333 Kexing Road, Xiangzhou District, Zhuhai City Antenna Photo & Length (mm) 2450MHz2450MHz Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Test Report

1 Appendix RF Test Data for BT Company: : Shenzhen Flanger Musical Instruments Co., Limited EUT : Guitar Amplifier FCC ID: : 2BHAE-FBA-10 Model Number : FBA-10 Report No. : HTT202509608F01 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) GFSK SISO 2402 DH5 2.880 3.749 76.82 1.15 0.01 2441 DH5 2.888 3.751 76.99 1.14 0.03 2480 DH5 2.882 3.751 76.83 1.14 0.03 Pi/4DQPSK SISO 2402 2DH5 2.887 3.751 76.97 1.14 0.03 2441 2DH5 2.886 3.750 76.96 1.14 0.03 2480 2DH5 2.887 3.750 76.99 1.14 0.01 3 1.2 Test Graph 1.2.1 Ant1 GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 4 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 5 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 6 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.932 / Pass 2441 DH5 1 0.964 / Pass 2480 DH5 1 0.977 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.215 / Pass 2441 2DH5 1 1.256 / Pass 2480 2DH5 1 1.257 / Pass 2.1.2 20dB BW Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 1.025 / Pass 2441 DH5 1 1.053 / Pass 2480 DH5 1 1.055 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.335 / Pass 2441 2DH5 1 1.358 / Pass 2480 2DH5 1 1.353 / Pass 7 2.2 Test Graph 2.2.1 OBW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 8 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 9 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 10 2.2.2 20dB BW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 11 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 12 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 13 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 -2.31 <=20.97 Pass 2441 DH5 0.17 <=20.97 Pass 2480 DH5 0.64 <=20.97 Pass Pi/4DQPSK SISO 2402 2DH5 -1.71 <=20.97 Pass 2441 2DH5 0.64 <=20.97 Pass 2480 2DH5 1.25 <=20.97 Pass 14 4. Carrier Frequency Separation 4.1 Test Result 4.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 0.984 1.055 >=0.703 Pass Pi/4DQPSK SISO HOPP 2DH5 1.001 1.358 >=0.905 Pass 15 4.2 Test Graph 4.2.1 Ant1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 16 5. Number of Hopping Frequencies 5.1 Test Result 5.1.1 HoppNum Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 17 5.2 Test Graph 5.2.1 HoppNum GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 18 6. Time of Occupancy (Dwell Time) 6.1 Test Result 6.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.380 31.600 305 115.900 <=400 Pass DH3 1.636 31.600 144 235.584 <=400 Pass DH5 2.890 31.600 107 309.230 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.388 31.600 310 120.280 <=400 Pass 2DH3 1.640 31.600 156 255.840 <=400 Pass 2DH5 2.896 31.600 120 347.520 <=400 Pass 19 6.2 Test Graph 6.2.1 Ant1 GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV 20 GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV 21 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV 22 Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV 23 Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV 24 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 25 7. Unwanted Emissions In Non-restricted Frequency Bands 7.1 Test Result 7.1.1 Ref Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) GFSK SISO 2402 DH5 1 -2.56 2441 DH5 1 -0.14 2480 DH5 1 0.26 Pi/4DQPSK SISO 2402 2DH5 1 -2.54 2441 2DH5 1 -0.16 2480 2DH5 1 0.21 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 7.1.2 CSE Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) Limit (dBm) Verdict GFSK SISO 2402 DH5 1 0.26 -19.74 Pass 2441 DH5 1 0.26 -19.74 Pass 2480 DH5 1 0.26 -19.74 Pass HOPP DH5 1 0.26 -19.74 Pass 0.26 -19.74 Pass Pi/4DQPSK SISO 2402 2DH5 1 0.21 -19.79 Pass 2441 2DH5 1 0.21 -19.79 Pass 2480 2DH5 1 0.21 -19.79 Pass HOPP 2DH5 1 0.21 -19.79 Pass 0.21 -19.79 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 26 7.2 Test Graph 7.2.1 Ref GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 27 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 28 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 29 7.2.2 CSE GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_LCH_2402MHz_Ant1_NTNV 30 GFSK_DH5_MCH_2441MHz_Ant1_NTNV GFSK_DH5_HCH_2480MHz_Ant1_NTNV 31 GFSK_DH5_HCH_2480MHz_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV 32 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 33 Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV 34 Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 35 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV

Test Report

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202509608F01 This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 30 TEST Report Applicant: Shenzhen Flanger Musical Instruments Co., Limited Address of Applicant: F/513, FENGSHANG ERA BLDG D,514, JIAN’AN 1ST ROAD, WENHUI COMMUNITY, XINAN STREET, BAO’AN DISTRICT SHENZHEN, CHINA Manufacturer : Shenzhen Flanger Musical Instruments Co., Limited Address of Manufacturer : F/513, FENGSHANG ERA BLDG D,514, JIAN’AN 1ST ROAD, WENHUI COMMUNITY, XINAN STREET, BAO’AN DISTRICT SHENZHEN, CHINA Equipment Under Test (EUT) Product Name: Guitar Amplifier Model No.: FBA-10 Series model: FGA10,KB-10,LB-10,LG-10,KG-10,BGA10, BGB10,VGA10,VGB10 Trade Mark: N/A FCC ID: 2BHAE-FBA-10 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: Sep. 12, 2025 Date of Test: Sep. 12, 2025 ~ Sep. 18, 2025 Date of report issued: Sep. 18, 2025 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: HTT202509608F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 30 1. Version Version No. Date Description 00 Sep. 18, 2025 Original Tested/ Prepared By Date: Sep. 18, 2025 Project Engineer Check By: Date: Sep. 18, 2025 Reviewer Approved By : Date: Sep. 18, 2025 Authorized Signature Report No.: HTT202509608F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 30 2. Contents Page 1. VERSION ........................................................................................................................................................ 2 2. CONTENTS .................................................................................................................................................... 3 3. TEST SUMMARY ........................................................................................................................................... 4 4. GENERAL INFORMATION ............................................................................................................................ 5 4.1. GENERAL DESCRIPTION OF EUT ................................................................................................................ 5 4.2. TEST MODE ............................................................................................................................................... 8 4.3. DESCRIPTION OF SUPPORT UNITS .............................................................................................................. 8 4.4. DEVIATION FROM STANDARDS .................................................................................................................... 8 4.5. ABNORMALITIES FROM STANDARD CONDITIONS ........................................................................................... 8 4.6. TEST FACILITY ........................................................................................................................................... 8 4.7. TEST LOCATION ......................................................................................................................................... 8 4.8. ADDITIONAL INSTRUCTIONS ........................................................................................................................ 8 5. TEST INSTRUMENTS LIST ........................................................................................................................... 9 6. TEST RESULTS AND MEASUREMENT DATA ......................................................................................... 10 6.1. CONDUCTED EMISSIONS .......................................................................................................................... 10 6.2. CONDUCTED PEAK OUTPUT POWER ......................................................................................................... 13 6.3. 20DB EMISSION BANDWIDTH .................................................................................................................... 14 6.4. FREQUENCIES SEPARATION ..................................................................................................................... 15 6.5. HOPPING CHANNEL NUMBER .................................................................................................................... 16 6.6. DWELL TIME ............................................................................................................................................ 17 6.7. BAND EDGE ............................................................................................................................................. 18 6.7.1. Conducted Emission Method ......................................................................................................... 18 6.7.2. Radiated Emission Method ............................................................................................................ 19 6.8. SPURIOUS EMISSION ................................................................................................................................ 21 6.8.1. Conducted Emission Method ......................................................................................................... 21 6.8.2. Radiated Emission Method ............................................................................................................ 22 6.9. ANTENNA REQUIREMENT ...................…

Text truncated - open the document above for the full version.

Test Setup Photos
