2BHCJ-WPC58THERMAL RECEIPT PRINTER

-Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC warning: (1) This device may not cause harmful interference, and These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. (2) this device must accept any interference received, including interference that may cause undesired operation. -Increase the separation between the equipment and receiver. Note: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. continuously press FEED button three times, the printer will return to standard mode. 6 APP Bluetooth connection software (1) Scan QR code to download printing and editing (2)After the installation is complete, open the software and select the ticket printer (3)select Bluetooth connection (4)Select the Bluetooth name corresponding to the self- check page and click Connect (5)The upper right corner of the APP main interface displays "Connected", indicating a successful Bluetooth connection 7 8

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Guangzhou Winprt Technology Co.,Ltd. Grantee code: 2BHCJ FRN: 0035625417 FCC ID: 2BHCJ-WPC58 Contact Name: Yuling Kuang Address: Room 616, NO.80, Jingang Road, Nansha District, Guangzhou, Guangdong, China Telephone No: 13750049639 Fax No: Email: [email protected] i. [Guangzhou Winprt Technology Co.,Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Guangzhou Winprt Technology Co.,Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Guangzhou Winprt Technology Co.,Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment . Date: 2024/08/23 Applicant’s Name: Yuling Kuang Title: General Manager Signature The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Guangzhou Winprt Technology Co.,Ltd. Ltd. Product Similarity Declaration Product name: THERMAL RECEIPT PRINTER Model: WPC58, WP-B1, WP-C1, WP-D1, WP-E1, WP-G1, WP-H1, WP-I1, WP-B2, WP-C2, WP-D2, WP-E2, WP-G2, WP-H2, WP-I2, WP-B3, WP-C3, WP-D3, WP-E3, WP-G3, WP-H3, WP-I3, WP-B4, WP-C4, WP-D4, WP-E4, WP-G4, WP-H4, WP-I4, WP-B5, WP-C5, WP-D5, WP-E5, WP-G5, WP-H5, WP-I5, WP-B6, WP-C6, WP-D6, WP-E6, WP-G6, WP-H6, WP-I6, WP-B7, WP-C7, WP-D7, WP-E7, WP-G7, WP-H7, WP-I7, WP-B8, WP-C8, WP-D8, WP-E8, WP-G8, WP-H8, WP-I8, WP-B9, WP-C9, WP-D9, WP-E9, WP-G9, WP-H9, WP-I9, WP-B10, WP-C10, WP-D10, WP-E10, WP-G10, WP-H10, WP-I10, WP-T2C, WPQ3C, WP-Q2B, WP-Q2A, WP-Q2E, WP-F10, WP-T2A, WP-Q2D, WP-T3K, WPL58, WP-T2B, WPM58, WP-Q3B, WP-Q2C FCC ID: 2BHCJ-WPC58 We (Guangzhou Winprt Technology Co.,Ltd.) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), The only difference is the model name. Signature: Name: Yuling Kuang Title: General Manager Place, date Guangzhou Winprt Technology Co.,Ltd. (In China) 2024.08.23

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Guangzhou Winprt Technology Co.,Ltd. Address: Room 616, NO.80, Jingang Road, Nansha District, Guangzhou, Guangdong, China Product Name: THERMAL RECEIPT PRINTER Model Number: WPC58, WP-B1, WP-C1, WP-D1, WP-E1, WP-G1, WP-H1, WP-I1, WP-B2, WP-C2, WP-D2, WP-E2, WP-G2, WP-H2, WP-I2, WP-B3, WP-C3, WP-D3, WP-E3, WP-G3, WP-H3, WP-I3, WP-B4, WP-C4, WP-D4, WP-E4, WP-G4, WP-H4, WP-I4, WP-B5, WP-C5, WP-D5, WP-E5, WP-G5, WP-H5, WP-I5, WP-B6, WP-C6, WP-D6, WP-E6, WP-G6, WP-H6, WP-I6, WP-B7, WP-C7, WP-D7, WP-E7, WP-G7, WP-H7, WP-I7, WP-B8, WP-C8, WP-D8, WP-E8, WP-G8, WP-H8, WP-I8, WP-B9, WP-C9, WP-D9, WP-E9, WP-G9, WP-H9, WP-I9, WP-B10, WP-C10, WP-D10, WP-E10, WP-G10, WP-H10, WP-I10, WP-T2C, WPQ3C, WP-Q2B, WP-Q2A, WP-Q2E, WP-F10, WP-T2A, WP-Q2D, WP-T3K, WPL58, WP-T2B, WPM58, WP-Q3B, WP-Q2C FCC Identifier: 2BHCJ-WPC58 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Yuling Kuang Date: 2024.08.23 Title: General Manager Signature of applicant:

C5266091_X10_Ed.2 1/1 < Guangzhou Winprt Technology Co.,Ltd.> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2024.08.23 Subject: Request for Confidentiality FCC ID: 2BHCJ-WPC58 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: Yuling Kuang Title: General Manager

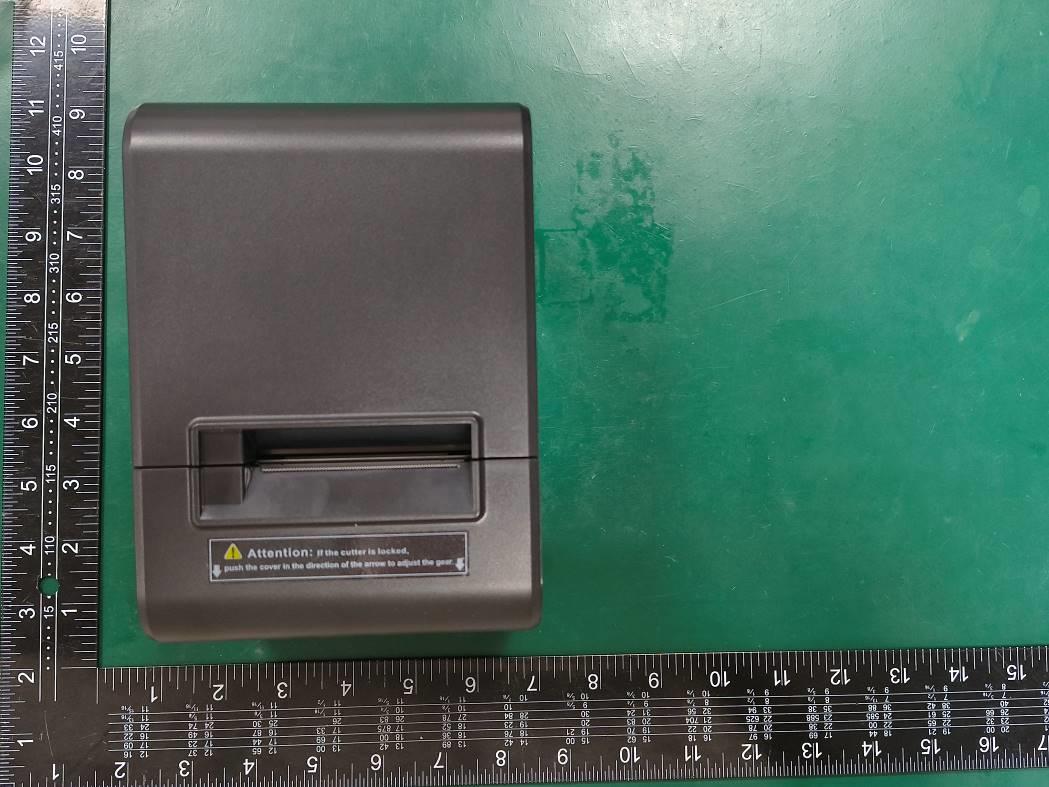

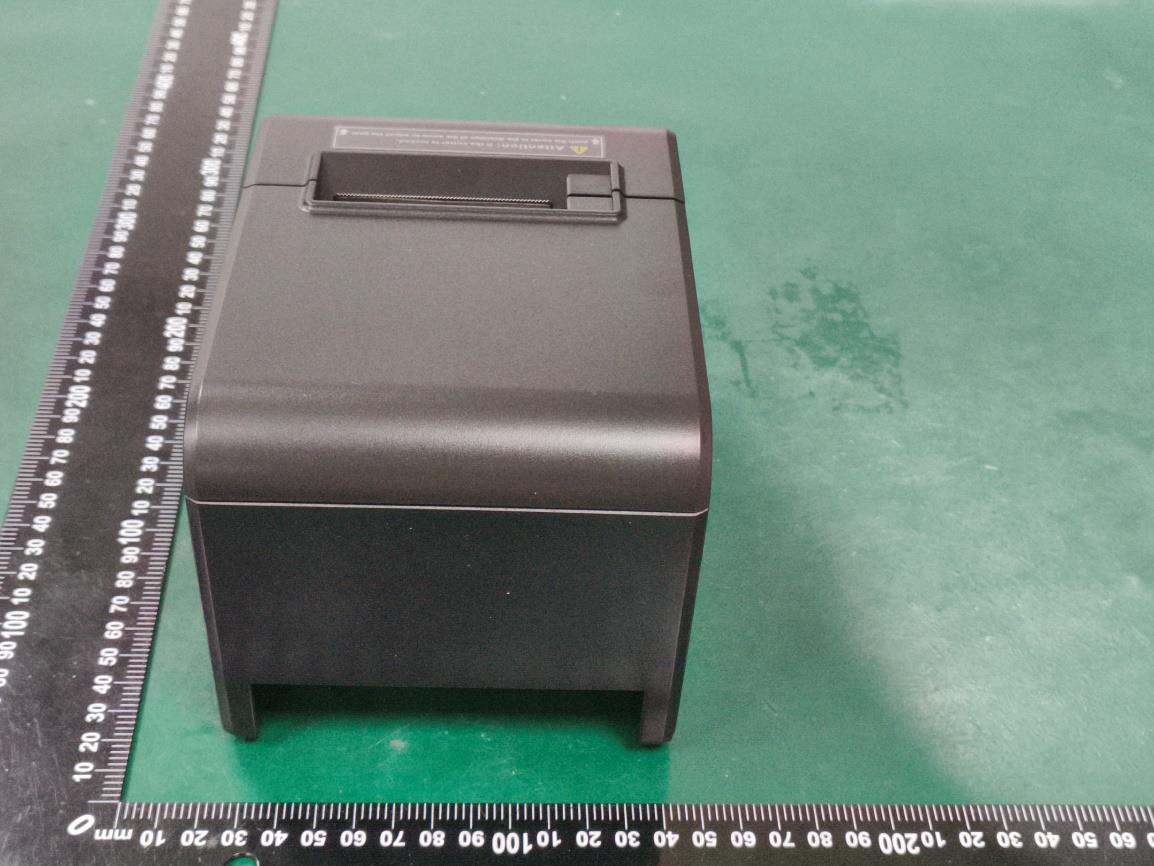

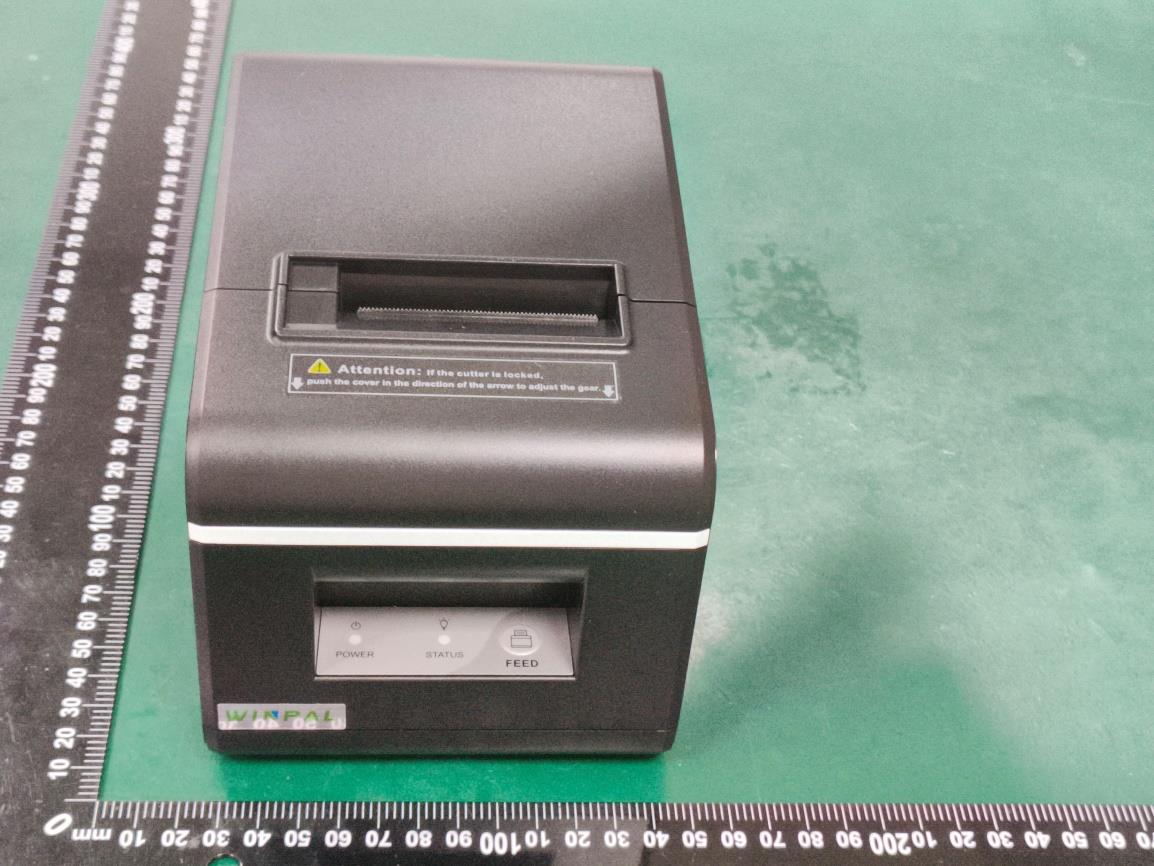

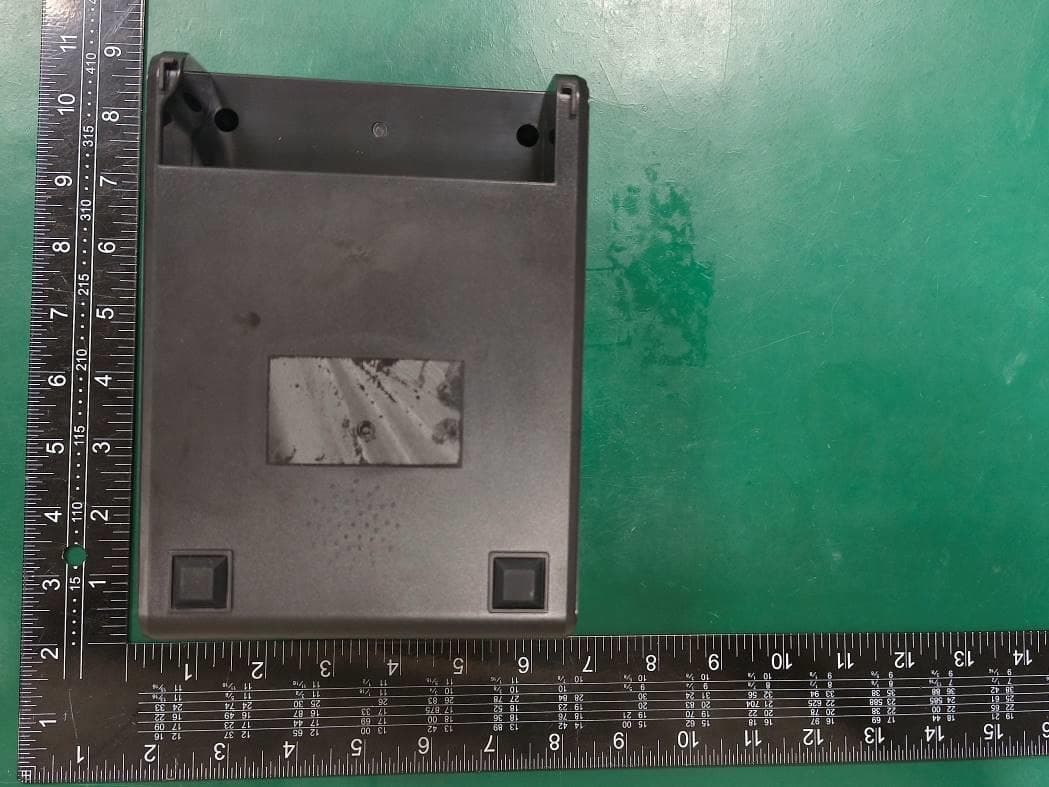

External Photo FCC ID: 2BHCJ-WPC58

Label

Internal Photo FCC ID: 2BHCJ-WPC58 ANT

FCC ID: 2BHCJ-WPC58 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1091，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation So a SAR test is not required Modulation Frequency ( MHz) Output power to antenna (dBm) Target power W/toler ance (dBm） Max Output power to antenna (dBm) Max Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/c m 2 ) Result BT GFSK 2402 -1.82 -2±1 -1 0.794 0.000154 1.0 PASS 2441 -1.02 -2±1 -1 0.794 0.000154 1.0 PASS 2480 -1.19 -2±1 -1 0.794 0.000154 1.0 PASS Π/4-DQPSK 2402 -1.00 -1±1 0 1.000 0.000194 1.0 PASS 2441 -0.20 -1±1 0 1.000 0.000194 1.0 PASS 2480 -0.40 -1±1 0 1.000 0.000194 1.0 PASS 8DPSK 2402 -0.37 -1±1 0 1.000 0.000194 1.0 PASS 2441 0.43 0±1 1 1.259 0.000244 1.0 PASS 2480 0.20 0±1 1 1.259 0.000244 1.0 PASS BLE GFSK (1Mbps) 2402 -2.94 -3±1 -2 0.631 0.000122 1.0 PASS 2440 -2.67 -3±1 -2 0.631 0.000122 1.0 PASS 2480 -2.59 -3±1 -2 0.631 0.000122 1.0 PASS

Antenna Specifications BT and BLE： Manufacturer: Feasycom Technology Co.,Ltd. PCB Part No..: ANT1 Antenna Type: PCB Printed Antenna (板载天线) BT and BLE Antenna Dimension: Size: Frequency Range (MHz) 2402MHz to 2480MHz Gain (dBi) -0.12dBi BT and BLE Antenna 2400MHz XOY ZOX ZOY 2450MHz XOY ZOX ZOY 2500MHz XOY ZOX ZOY

Page 1 of 34 Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn FCC TEST REPORT FCC ID: 2BHCJ-WPC58 Product : THERMAL RECEIPT PRINTER Model Name : WPC58 (See Page 7 for series model) Brand : Report No. : NCT24030726XE-1 Prepared for Guangzhou Winprt Technology Co.,Ltd. Room 616, NO.80, Jingang Road, Nansha District, Guangzhou, Guangdong, China Prepared by Shenzhen NCT Testing Technology Co., Ltd. A101&2F B2, Fuqiao 6th Area, Xintian Community, Fuhai Street, Baoan District, Shenzhen, People’s Republic of China TEL: 400-8868-419 FAX: 86-755-27790922 Report No.: NCT24030726XE-1 Page 2 of 34 Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn 1 TEST RESULT CERTIFICATION Applicant’s name : Guangzhou Winprt Technology Co.,Ltd. Address : Room 616, NO.80, Jingang Road, Nansha District, Guangzhou, Guangdong, China Manufacture's name : Guangzhou Winprt Technology Co.,Ltd. Address : Room 616, NO.80, Jingang Road, Nansha District, Guangzhou, Guangdong, China Product name : THERMAL RECEIPT PRINTER Model name : WPC58 (See Page 7 for series model) Standards : FCC CFR47 Part 15 Section 15.247 Test procedure : ANSI C63.10:2013 Test Date : August. 09, 2024- August. 19, 2024 Date of Issue : August. 20, 2024 Test Result : Pass This device described above has been tested by NCT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NCT, this document may be altered or revised by NCT, personal only, and shall be noted in the revision of the document. Test Engineer: Keven Wu / Engineer Technical Manager: Henry Wang / Manager Report No.: NCT24030726XE-1 Page 3 of 34 Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn Contents Page 1 TEST RESULT CERTIFICATION .............................................................................................................................. 2 2 TEST SUMMARY ................................................................................................................................................... 5 3 TEST FACILITY ..................................................................................................................................................... 6 4 GENERAL INFORMATION .................................................................................................................................. 7 4.1 GENERAL DESCRIPTION OF E.U.T............................................................................ 7 4.2 CHANNEL LIST ........................................................................................................... 8 4.3 TEST SETUP CONFIGURATION .................................................................................. 9 4.4 TEST MODE ............................................................................................................... 9 5 EQUIPMENT DURING TEST ............................................................................................................................. 10 5.1 EQUIPMENTS LIST ................................................................................................... 10 5.2 MEASUREMENT UNCERTAINTY................................................................................ 12 5.3 DESCRIPTION OF SUPPORT UNITS .......................................................................... 12 6 CONDUCTED EMISSION ................................................................................................................................... 13 6.1 E.U.T. OPERATION ................................................................................................. 13 6.2 EUT SETUP ............................................................................................................. 13 6.3 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ........................................ 14 6.4 MEASUREMENT PROCEDURE: ................................................................................. 14 6.5 CONDUCTED EMISSION LIMIT .................................................................................. 14 6.6 MEASUREMENT DESCRIPTION ................................................................................ 14 6.7 CONDUCTED EMISSION TEST RESULT .................................................................... 14 7 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 17 7.1 EUT OPERATION ..................................................................................................... 17 7.2 TEST SETUP ............................................................................................................ 18 7.3 SPECTRUM ANALYZER SETUP ................................................................................ 19 7.4 TEST PROCEDURE ................................................................................................... 20 7.5 SUMMARY OF TEST RESULTS ................................................................................. 21 8 MAXIMUM PEAK OUTPUT POWER TEST .................................................................................................... 27 8.1 TEST STANDARD AND LIMIT .................................................................................... 27 8.2 TEST SETUP ............................................................................................................ 27 Report No.: NCT24030726XE-1 Page 4 of 34 Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn 8.3 TEST PROCEDURE ................................................................................................... 27 8.4 TEST DATA .............................................................................................................. 27 9 20DB OCCUPY BANDWIDTH TEST ..............................…

Text truncated - open the document above for the full version.

Table of Contents 1. -20dB Bandwidth and 99% Occupied Bandwidth ..................................................................................... 2 2. Peak Output Power ............................................................................................................................................ 8 3. Spurious Emissions .......................................................................................................................................... 14 4. Band Edge .......................................................................................................................................................... 17 5. Carrier Frequencies Separation (Hopping) ................................................................................................ 21 6. Number of Hopping Channel (Hopping) ................................................................................................... 27 7. Dwell Time (Hopping) ..................................................................................................................................... 30 Page 2 of 32 FCC ID: 2BHCJ-WPC58 FCC_BT (Part15.247) Test Data 1. -20dB Bandwidth and 99% Occupied Bandwidth Condition Mode Frequency (MHz) Antenna -20 dB Bandwidth (MHz) 99% Occupied Bandwidth (MHz) Limit (MHz) Verdict NVNT 1-DH5 2402 Ant1 1.033 0.9304 N/A Pass NVNT 1-DH5 2441 Ant1 1.041 0.9460 N/A Pass NVNT 1-DH5 2480 Ant1 1.052 0.9699 N/A Pass NVNT 2-DH5 2402 Ant1 1.285 1.2146 N/A Pass NVNT 2-DH5 2441 Ant1 1.339 1.2373 N/A Pass NVNT 2-DH5 2480 Ant1 1.302 1.2341 N/A Pass NVNT 3-DH5 2402 Ant1 1.283 1.2128 N/A Pass NVNT 3-DH5 2441 Ant1 1.291 1.2183 N/A Pass NVNT 3-DH5 2480 Ant1 1.315 1.2293 N/A Pass Page 3 of 32 Test Graphs -20dB Bandwidth NVNT 1-DH5 2402MHz Ant1 -20dB Bandwidth NVNT 1-DH5 2441MHz Ant1 Page 4 of 32 -20dB Bandwidth NVNT 1-DH5 2480MHz Ant1 -20dB Bandwidth NVNT 2-DH5 2402MHz Ant1 Page 5 of 32 -20dB Bandwidth NVNT 2-DH5 2441MHz Ant1 -20dB Bandwidth NVNT 2-DH5 2480MHz Ant1 Page 6 of 32 -20dB Bandwidth NVNT 3-DH5 2402MHz Ant1 -20dB Bandwidth NVNT 3-DH5 2441MHz Ant1 Page 7 of 32 -20dB Bandwidth NVNT 3-DH5 2480MHz Ant1 Page 8 of 32 2. Peak Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH5 2402 Ant1 -1.82 21 Pass NVNT 1-DH5 2441 Ant1 -1.02 21 Pass NVNT 1-DH5 2480 Ant1 -1.19 21 Pass NVNT 2-DH5 2402 Ant1 -1 21 Pass NVNT 2-DH5 2441 Ant1 -0.2 21 Pass NVNT 2-DH5 2480 Ant1 -0.4 21 Pass NVNT 3-DH5 2402 Ant1 -0.37 21 Pass NVNT 3-DH5 2441 Ant1 0.43 21 Pass NVNT 3-DH5 2480 Ant1 0.2 21 Pass Page 9 of 32 Test Graphs Power NVNT 1-DH5 2402MHz Ant1 Power NVNT 1-DH5 2441MHz Ant1 Page 10 of 32 Power NVNT 1-DH5 2480MHz Ant1 Power NVNT 2-DH5 2402MHz Ant1 Page 11 of 32 Power NVNT 2-DH5 2441MHz Ant1 Power NVNT 2-DH5 2480MHz Ant1 Page 12 of 32 Power NVNT 3-DH5 2402MHz Ant1 Power NVNT 3-DH5 2441MHz Ant1 Page 13 of 32 Power NVNT 3-DH5 2480MHz Ant1 Page 14 of 32 3. Spurious Emissions All the modes have tested and recorded the worst mode (GFSK) in the report. Test Graphs Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Emission Page 15 of 32 Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Emission Page 16 of 32 Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Emission Page 17 of 32 4. Band Edge All the modes have tested and recorded the worst mode (GFSK) in the report Test Graphs Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Emission Page 18 of 32 Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Emission Page 19 of 32 Test Graphs Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Emission Page 20 of 32 Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Emission Page 21 of 32 5. Carrier Frequencies Separation (Hopping) Condition Mode Antenna Channel Frequency (MHz) Hopping Freq1 (MHz) Hopping Freq2 (MHz) Carrier Frequencies Separation (MHz) Limit (MHz) Verdict NVNT 1-DH5 Ant1 2402 2401.989 2402.97 0.981 0.689 Pass NVNT 1-DH5 Ant1 2441 2440.978 2441.962 0.984 0.694 Pass NVNT 1-DH5 Ant1 2480 2479.001 2479.956 0.955 0.701 Pass NVNT 2-DH5 Ant1 2402 2402.09 2402.99 0.9 0.857 Pass NVNT 2-DH5 Ant1 2441 2441.144 2442.332 1.188 0.893 Pass NVNT 2-DH5 Ant1 2480 2478.98 2480.248 1.268 0.868 Pass NVNT 3-DH5 Ant1 2402 2401.881 2402.81 0.929 0.855 Pass NVNT 3-DH5 Ant1 2441 2440.903 2441.808 0.905 0.861 Pass NVNT 3-DH5 Ant1 2480 2478.882 2479.978 1.096 0.877 Pass Note: Limit = 20dB bandwidth * 2/3 Page 22 of 32 Test Graphs CFS NVNT 1-DH5 2402MHz Ant1 CFS NVNT 1-DH5 2441MHz Ant1 Page 23 of 32 CFS NVNT 1-DH5 2480MHz Ant1 CFS NVNT 2-DH5 2402MHz Ant1 Page 24 of 32 CFS NVNT 2-DH5 2441MHz Ant1 CFS NVNT 2-DH5 2480MHz Ant1 Page 25 of 32 CFS NVNT 3-DH5 2402MHz Ant1 CFS NVNT 3-DH5 2441MHz Ant1 Page 26 of 32 CFS NVNT 3-DH5 2480MHz Ant1 Page 27 of 32 6. Number of Hopping Channel (Hopping) Condition Mode Antenna Hopping Number Limit Verdict NVNT 1-DH5 Ant1 79 15 Pass NVNT 2-DH5 Ant1 79 15 Pass NVNT 3-DH5 Ant1 79 15 Pass Page 28 of 32 Test Graphs Hopping No. NVNT 1-DH5 2402MHz Ant1 Hopping No. NVNT 2-DH5 2402MHz Ant1 Page 29 of 32 Hopping No. NVNT 3-DH5 2402MHz Ant1 Page 30 of 32 7. Dwell Time (Hopping) All the modes have tested and recorded the worst mode (GFSK) in the report Condition Mode Frequency (MHz) Antenna Pulse Time (ms) Dwell Time (ms) Limit (ms) Verdict NVNT 1-DH1 2402 Ant1 0.377 120.263 400 Pass NVNT 1-DH3 2402 Ant1 1.632 252.96 155 Pass NVNT 1-DH5 2402 Ant1 2.88 342.72 400 Pass Note: Dwell Time(DH1)=PW*(1600/2/79)*31.6 Dwell Time(DH3)=PW*(1600/4/79)*31.6 Dwell Time(DH5)=PW*(1600/6/79)*31.6 Page 31 of 32 Test Graphs Dwell NVNT 1-DH1 2402MHz Ant1 One Burst Dwell NVNT 1-DH3 2402MHz Ant1 One Burst Page 32 of 32 Dwell NVNT 1-DH5 2402MHz Ant1 One Burst

Setup Photo FCC ID: 2BHCJ-WPC58
