2BHCJ-WPC58WTHERMAL RECEIPT PRINTER

Guangzhou Winprt Technology Co.,Ltd.
THERMAL RECEIPT PRINTER - FCC ID 2BHCJ-WPC58W - Guangzhou Winprt Technology Co.,Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 07, 2024
Application Purpose
Original Equipment
Date of Application
Sep 05, 2024
Equipment Note
THERMAL RECEIPT PRINTER
Frequency Range
2412.00000000 - 2462.00000000
Company
Guangzhou Winprt Technology Co.,Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. (2) this device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Note: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. continuously press FEED button three times, the printer will return to standard mode. 6 7 8 120.12 mm WiFi Function Usage Tutorial the FEED paper key, and then start,wait until the printer flashes (1)Due to the printer's default AP mode, the self-test page (as shown in Figure1). After the self-check page is printed, press and hold the key for 0.2 seconds immediately, and a menu will needs to be printed: After the printer is turned off, press and hold come out, and then press the key twice continuously(AP mode web tutorial) to automatically type out a webtutorial (as shown in Figure 2). a red light and then let go,and a self-check page will come out Figure1 Figure2 (2)On the self-check page, check the displayed SSID:WiFi name of Printer (as shown in Figure 3). The mobile phone connects to the WiFi hotspot named Printer for password-free connection (as shown in Figure 4). (3)Open the mobile browser and enter 10.10.100.254 to access. In the pop-up dialog box, enter the username "admin" and password "admin", and click login.(as shown in Figure 5) Figure3 Figure4 Figure5 (4)After entering the setting interface, click Mode setting, select STA mode, click Save, and click return after saving (as shown in Figure 6). Figure6 (5)After switching STA mode, select STA Settings, enter the WiFi name and password of the router to be connected (note: WiFi frequency must be 2.4G, 5G frequency is not supported). Automatically obtain an IP address Select Enable. You do not need to manually change the IP address. The printer automatically assigns an IP address and then click Save. (Figure 7) Figure7 (6) After the web parameters are saved, restart the printer to print the self-check page, check whether the automatically assigned IP address is in the same network segment as the Router, check whether the WiFi name and password are consistent with the router, and check Router Status: (If connect is displayed, it indicates that the router is connected. If Disconnect is displayed, it indicates that the connection is not connected and needs to be reconnected with WiFi).(Figure 8) Figure8 10 9

Attestation Statements

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Guangzhou Winprt Technology Co.,Ltd. Grantee code: 2BHCJ FRN: 0035625417 FCC ID: 2BHCJ-WPC58W Contact Name: Yuling Kuang Address: Room 616, NO.80, Jingang Road, Nansha District, Guangzhou, Guangdong, China Telephone No: 13750049639 Fax No: Email: [email protected] i. [Guangzhou Winprt Technology Co.,Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Guangzhou Winprt Technology Co.,Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Guangzhou Winprt Technology Co.,Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment . Date: 2024/08/23 Applicant’s Name: Yuling Kuang Title: General Manager Signature The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Attestation Statements

Guangzhou Winprt Technology Co.,Ltd. Ltd. Product Similarity Declaration Product name: THERMAL RECEIPT PRINTER Model: WPC58, WP-B1, WP-C1, WP-D1, WP-E1, WP-G1, WP-H1, WP-I1, WP-B2, WP-C2, WP-D2, WP-E2, WP-G2, WP-H2, WP-I2, WP-B3, WP-C3, WP-D3, WP-E3, WP-G3, WP-H3, WP-I3, WP-B4, WP-C4, WP-D4, WP-E4, WP-G4, WP-H4, WP-I4, WP-B5, WP-C5, WP-D5, WP-E5, WP-G5, WP-H5, WP-I5, WP-B6, WP-C6, WP-D6, WP-E6, WP-G6, WP-H6, WP-I6, WP-B7, WP-C7, WP-D7, WP-E7, WP-G7, WP-H7, WP-I7, WP-B8, WP-C8, WP-D8, WP-E8, WP-G8, WP-H8, WP-I8, WP-B9, WP-C9, WP-D9, WP-E9, WP-G9, WP-H9, WP-I9, WP-B10, WP-C10, WP-D10, WP-E10, WP-G10, WP-H10, WP-I10, WP-T2C, WPQ3C, WP-Q2B, WP-Q2A, WP-Q2E, WP-F10, WP-T2A, WP-Q2D, WP-T3K, WPL58, WP-T2B, WPM58, WP-Q3B, WP-Q2C FCC ID: 2BHCJ-WPC58W We (Guangzhou Winprt Technology Co.,Ltd.) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), The only difference is the model name. Signature: Name: Yuling Kuang Title: General Manager Place, date Guangzhou Winprt Technology Co.,Ltd. (In China) 2024.08.23

Cover Letter(s)

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Guangzhou Winprt Technology Co.,Ltd. Address: Room 616, NO.80, Jingang Road, Nansha District, Guangzhou, Guangdong, China Product Name: THERMAL RECEIPT PRINTER Model Number: WPC58, WP-B1, WP-C1, WP-D1, WP-E1, WP-G1, WP-H1, WP-I1, WP-B2, WP-C2, WP-D2, WP-E2, WP-G2, WP-H2, WP-I2, WP-B3, WP-C3, WP-D3, WP-E3, WP-G3, WP-H3, WP-I3, WP-B4, WP-C4, WP-D4, WP-E4, WP-G4, WP-H4, WP-I4, WP-B5, WP-C5, WP-D5, WP-E5, WP-G5, WP-H5, WP-I5, WP-B6, WP-C6, WP-D6, WP-E6, WP-G6, WP-H6, WP-I6, WP-B7, WP-C7, WP-D7, WP-E7, WP-G7, WP-H7, WP-I7, WP-B8, WP-C8, WP-D8, WP-E8, WP-G8, WP-H8, WP-I8, WP-B9, WP-C9, WP-D9, WP-E9, WP-G9, WP-H9, WP-I9, WP-B10, WP-C10, WP-D10, WP-E10, WP-G10, WP-H10, WP-I10, WP-T2C, WPQ3C, WP-Q2B, WP-Q2A, WP-Q2E, WP-F10, WP-T2A, WP-Q2D, WP-T3K, WPL58, WP-T2B, WPM58, WP-Q3B, WP-Q2C FCC Identifier: 2BHCJ-WPC58W We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Yuling Kuang Date: 2024.08.23 Title: General Manager Signature of applicant:

Cover Letter(s)

C5266091_X10_Ed.2 1/1 < Guangzhou Winprt Technology Co.,Ltd.> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2024.08.23 Subject: Request for Confidentiality FCC ID: 2BHCJ-WPC58W To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: Yuling Kuang Title: General Manager

External Photos

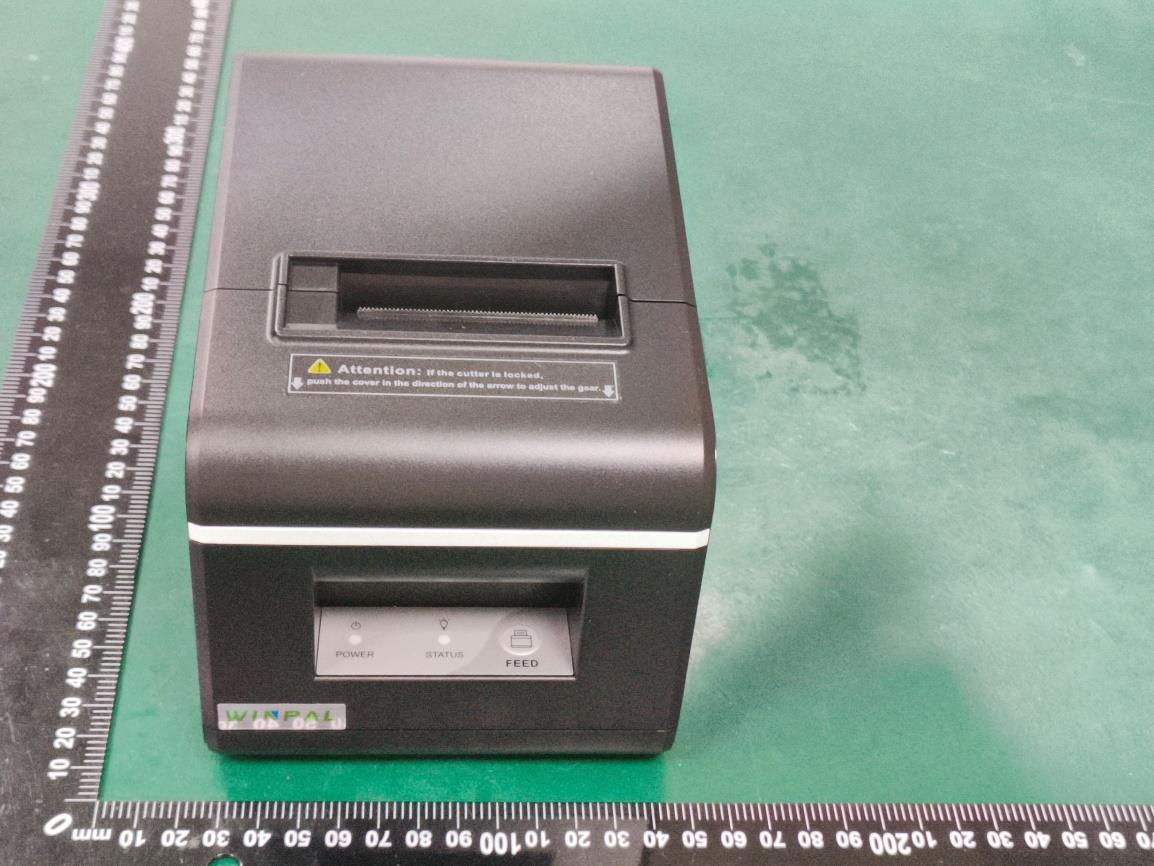

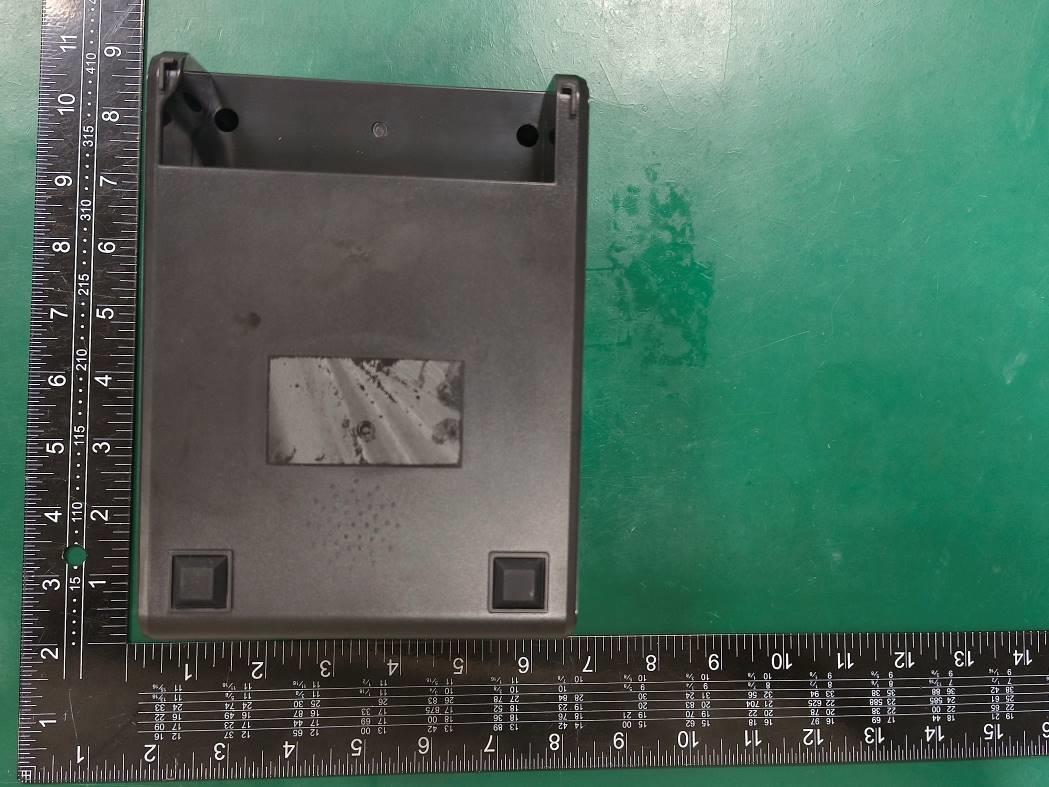

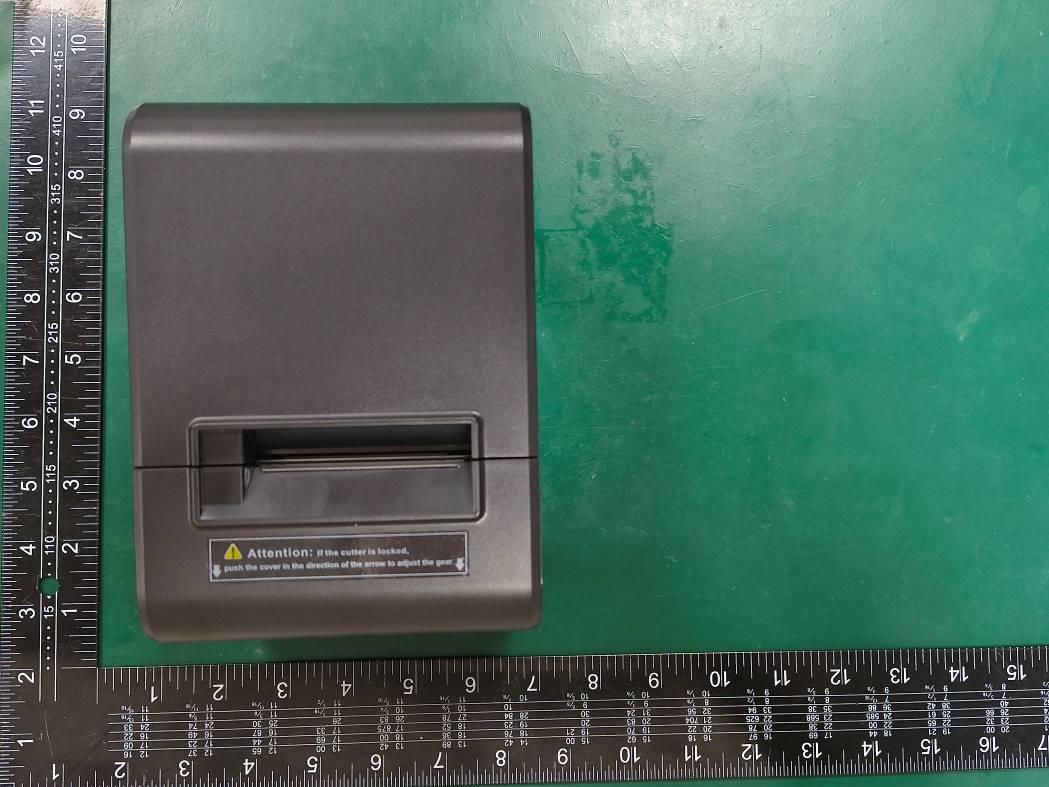

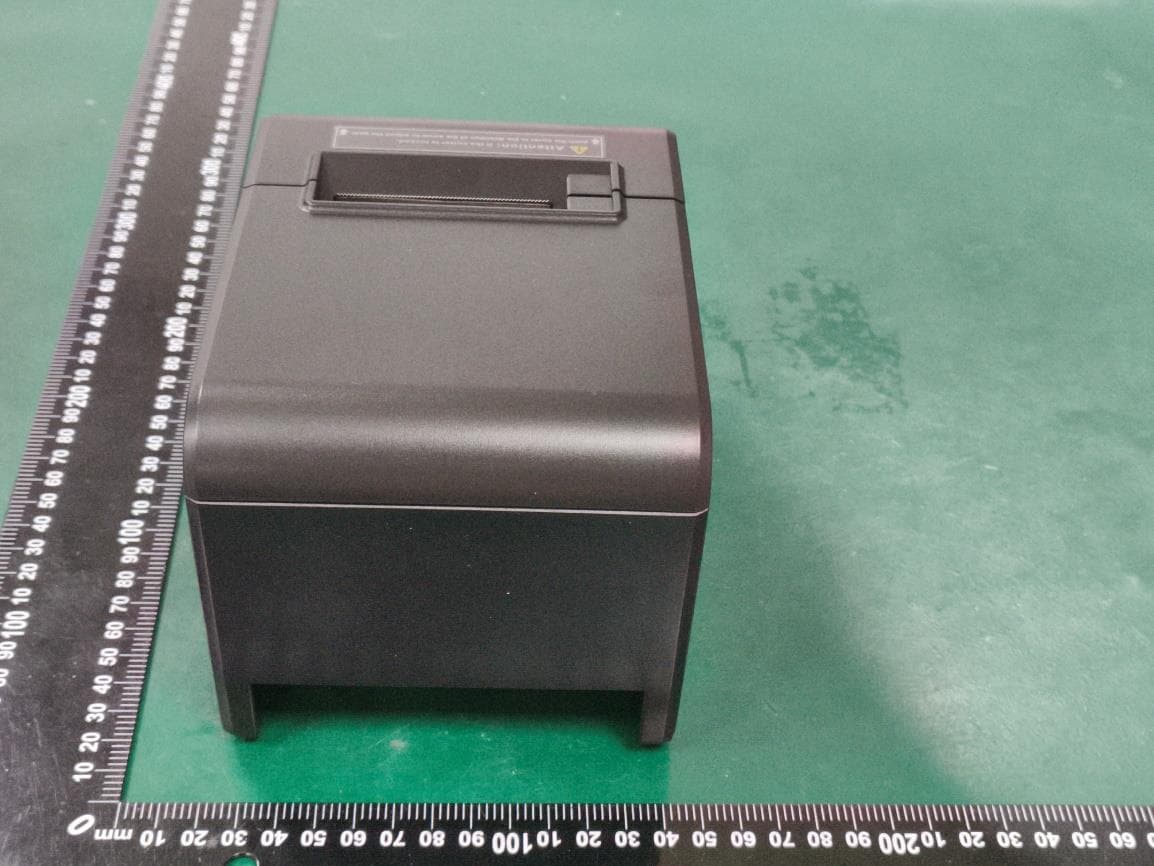

External Photo FCC ID: 2BHCJ-WPC58W

ID Label/Location Info

Label

Internal Photos

Internal Photo FCC ID: 2BHCJ-WPC58W ANT

RF Exposure Info

FCC ID: 2BHCJ-WPC58W RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation Modulation Frequency (MHz) Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 2412 13.90 24.547089 0.009263 1.0 PASS 2437 14.53 28.379190 0.010709 1.0 PASS 2462 15.15 32.734069 0.012352 1.0 PASS 802.11g 2412 12.35 17.179084 0.006482 1.0 PASS 2437 12.97 19.815270 0.007477 1.0 PASS 2462 13.65 23.173946 0.008744 1.0 PASS 802.11n20 2412 12.43 17.498467 0.006603 1.0 PASS 2437 13.05 20.183664 0.007616 1.0 PASS 2462 13.65 23.173946 0.008744 1.0 PASS 802.11n40 2422 13.15 20.653802 0.007793 1.0 PASS 2437 13.54 22.594358 0.008526 1.0 PASS 2452 14.00 25.118864 0.009478 1.0 PASS So a SAR test is not required

Test Report

Antenna Specifications WIFI: Manufacturer: ShenZhen Powerful Technology CO., Limited PCB Part No..: ANT1 Antenna Type: PCB Printed Antenna (板载天线) WIFI Antenna Dimension: 35.8mm±0.15×12.0mm±0.15 Frequency Range (MHz) 2402MHz to 2480MHz Gain (dBi) 2.78dBi WIFI Antenna

Test Report

FCC TEST REPORT FCC ID: 2BHCJ-WPC58W Product : THERMAL RECEIPT PRINTER Model Name : WPC58 (See Page 7 for series model) Brand : Report No. : NCT24030726XE-3 Prepared for Guangzhou Winprt Technology Co.,Ltd. Room 616, NO.80, Jingang Road, Nansha District, Guangzhou, Guangdong, China Prepared by Shenzhen NCT Testing Technology Co., Ltd. A101&2F B2, Fuqiao 6th Area, Xintian Community, Fuhai Street, Baoan District, Shenzhen, People’s Republic of China TEL: 400-8868-419 FAX: 86-755-27790922 Report No.: NCT24030726XE-3 Page 2 of 32 Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn 1 TEST RESULT CERTIFICATION Applicant : Guangzhou Winprt Technology Co.,Ltd. Address : Room 616, NO.80, Jingang Road, Nansha District, Guangzhou, Guangdong, China Manufacturer : Guangzhou Winprt Technology Co.,Ltd. Address : Room 616, NO.80, Jingang Road, Nansha District, Guangzhou, Guangdong, China Product name : THERMAL RECEIPT PRINTER Model name : WPC58 (See Page 7 for series model) Standards : FCC CFR47 Part 15 Section 15.247 Test procedure : ANSI C63.10:2013 Date of test : August. 09, 2024- August. 19, 2024 Date of Issue : August. 20, 2024 Test Result : Pass This device described above has been tested by NCT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NCT, this document may be altered or revised by NCT, personal only, and shall be noted in the revision of the document. Test Engineer: Keven Wu / Engineer Technical Manager: Henry Wang / Manager Report No.: NCT24030726XE-3 Page 3 of 32 Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn Contents Page 1 TEST RESULT CERTIFICATION .............................................................................................................................. 2 2 TEST SUMMARY ......................................................................................................................................................... 5 3 GENERAL INFORMATION ........................................................................................................................................ 6 3.1 GENERAL DESCRIPTION OF E.U.T. .................................................................................................................... 6 3.2 CHANNEL LIST .................................................................................................................................................... 7 3.3 TEST SITE ........................................................................................................................................................... 8 3.4 TEST SETUP CONFIGURATION ........................................................................................................................... 9 3.5 TEST MODE ........................................................................................................................................................ 9 4 EQUIPMENT DURING TEST ................................................................................................................................... 10 4.1 EQUIPMENTS LIST............................................................................................................................................. 10 4.2 MEASUREMENT UNCERTAINTY ......................................................................................................................... 12 4.3 DESCRIPTION OF SUPPORT UNITS ................................................................................................................... 12 5 CONDUCTED EMISSION ......................................................................................................................................... 13 5.1 E.U.T. OPERATION ........................................................................................................................................... 13 5.2 EUT SETUP ...................................................................................................................................................... 13 5.3 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................................. 13 5.4 MEASUREMENT PROCEDURE ........................................................................................................................... 14 5.5 CONDUCTED EMISSION LIMIT ........................................................................................................................... 14 5.6 MEASUREMENT DESCRIPTION .......................................................................................................................... 14 5.7 CONDUCTED EMISSION TEST RESULT ............................................................................................................. 14 6 RADIATED SPURIOUS EMISSIONS ..................................................................................................................... 17 6.1 EUT OPERATION .............................................................................................................................................. 17 6.2 TEST SETUP ..................................................................................................................................................... 18 6.3 SPECTRUM ANALYZER SETUP .......................................................................................................................... 19 6.4 TEST PROCEDURE ............................................................................................................................................ 20 6.5 SUMMARY OF TEST RESULTS .......................................................................................................................... 21 Report No.: NCT24030726XE-3 Page 4 of 32 Hotline: 400-8868-419 Fax: 8…

Text truncated - open the document above for the full version.

Test Report

Table of Contents 1. -6dB Bandwidth & 99% Occupied Bandwidth ............................................................................................. 2 2. Duty Cycle ............................................................................................................................................................... 9 3. Power Spectral Density ..................................................................................................................................... 16 4. Band edge ............................................................................................................................................................ 23 5. Spurious Emission .............................................................................................................................................. 25 Page 2 of 27 FCC ID: 2BHCJ-WPC58W FCC_2.4G_WIFI (Part15.247) Test Data 1. -6dB Bandwidth & 99% Occupied Bandwidth Condition Antenna Modulation Frequency (MHz) -6dB BW(MHz) Limit -6dB BW (kHz) 99% Occupied Bandwidth (MHz) Result NVNT ANT1 802.11b 2412.00 9.348 500 15.059 Pass NVNT ANT1 802.11b 2437.00 9.312 500 14.925 Pass NVNT ANT1 802.11b 2462.00 8.107 500 14.877 Pass NVNT ANT1 802.11g 2412.00 16.469 500 16.447 Pass NVNT ANT1 802.11g 2437.00 16.468 500 16.436 Pass NVNT ANT1 802.11g 2462.00 16.451 500 16.425 Pass NVNT ANT1 802.11n(HT20) 2412.00 12.43 500 17.698 Pass NVNT ANT1 802.11n(HT20) 2437.00 13.05 500 17.658 Pass NVNT ANT1 802.11n(HT20) 2462.00 13.65 500 17.677 Pass NVNT ANT1 802.11n(HT40) 2422.00 36.331 500 36.179 Pass NVNT ANT1 802.11n(HT40) 2437.00 36.385 500 36.170 Pass NVNT ANT1 802.11n(HT40) 2452.00 36.393 500 36.144 Pass Page 3 of 27 -6dB_Bandwidth_NVNT_ANT1_802_11b_2412 -6dB_Bandwidth_NVNT_ANT1_802_11b_2437 Page 4 of 27 -6dB_Bandwidth_NVNT_ANT1_802_11b_2462 -6dB_Bandwidth_NVNT_ANT1_802_11g_2412 Page 5 of 27 -6dB_Bandwidth_NVNT_ANT1_802_11g_2437 -6dB_Bandwidth_NVNT_ANT1_802_11g_2462 Page 6 of 27 -6dB_Bandwidth_NVNT_ANT1_802_11n(H20)_2412 -6dB_Bandwidth_NVNT_ANT1_802_11n(HT20)_2437 Page 7 of 27 -6dB_Bandwidth_NVNT_ANT1_802_11n(HT20)_2462 -6dB_Bandwidth_NVNT_ANT1_802_11n(HT40)_2422 Page 8 of 27 -6dB_Bandwidth_NVNT_ANT1_802_11n(HT40)_2437 -6dB_Bandwidth_NVNT_ANT1_802_11n(HT40)_2452 Page 9 of 27 2. Duty Cycle Condition Antenna Modulation Frequency (MHz) Duty cycle(%) Duty factor(dB) NVNT ANT1 802.11b 2412.00 99.16 0.04 NVNT ANT1 802.11b 2437.00 99.16 0.04 NVNT ANT1 802.11b 2462.00 99.16 0.04 NVNT ANT1 802.11g 2412.00 96.36 0.16 NVNT ANT1 802.11g 2437.00 96.38 0.16 NVNT ANT1 802.11g 2462.00 96.46 0.16 NVNT ANT1 802.11n(HT20) 2412.00 98.75 0.05 NVNT ANT1 802.11n(HT20) 2437.00 98.75 0.05 NVNT ANT1 802.11n(HT20) 2462.00 98.74 0.06 NVNT ANT1 802.11n(HT40) 2422.00 97.57 0.05 NVNT ANT1 802.11n(HT40) 2437.00 97.61 0.05 NVNT ANT1 802.11n(HT40) 2452.00 97.64 0.06 Page 10 of 27 Duty_Cycle_NVNT_ANT1_802_11b_2412 Duty_Cycle_NVNT_ANT1_802_11b_2437 Page 11 of 27 Duty_Cycle_NVNT_ANT1_802_11b_2462 Duty_Cycle_NVNT_ANT1_802_11g_2412 Page 12 of 27 Duty_Cycle_NVNT_ANT1_802_11g_2437 Duty_Cycle_NVNT_ANT1_802_11g_2462 Page 13 of 27 Duty_Cycle_NVNT_ANT1_802_11n(HT20)_2412 Duty_Cycle_NVNT_ANT1_802_11n(HT20)_2437 Page 14 of 27 Duty_Cycle_NVNT_ANT1_802_11n(HT20)_2462 Duty_Cycle_NVNT_ANT1_802_11n(HT40)_2422 Page 15 of 27 Duty_Cycle_NVNT_ANT1_802_11n(HT40)_2437 Duty_Cycle_NVNT_ANT1_802_11n(HT40)_2452 Page 16 of 27 3. Power Spectral Density ConditionAntennaModulation Frequency (MHz) Conducted PSD(dBm/100kHz) RB factor(dB) Total PSD (dBm/3kHz) Limit (dBm/3kHz) Result NVNTANT1802.11b2412.001.53 -15.23-13.78 Pass NVNTANT1802.11b2437.002.28 -15.23-12.958 Pass NVNTANT1802.11b2462.002.89 -15.23-12.348 Pass NVNTANT1802.11g2412.00-3.57-15.23-18.88 Pass NVNTANT1802.11g2437.00-3.13-15.23-18.368 Pass NVNTANT1802.11g2462.00-2.55-15.23-17.788 Pass NVNT ANT1 802.11n(HT20) 2412.00 -3.59-15.23-18.828 Pass NVNT ANT1 802.11n(HT20) 2437.00 -3.42-15.23-18.658 Pass NVNT ANT1 802.11n(HT20) 2462.00 -2.88-15.23-18.118 Pass NVNTANT1802.11n(HT40)2422.00-5.88-15.23-21.118 Pass NVNTANT1802.11n(HT40)2437.00-5.39-15.23-20.628 Pass NVNTANT1802.11n(HT40)2452.00-5.04-15.23-20.278 Pass Remark: RB factor =10*LOG(RBW(measure) / RBW(ref)) Page 17 of 27 Power_Spectral_Density_NVNT_ANT1_802_11b_2412 Power_Spectral_Density_NVNT_ANT1_802_11b_2437 Page 18 of 27 Power_Spectral_Density_NVNT_ANT1_802_11b_2462 Power_Spectral_Density_NVNT_ANT1_802_11g_2412 Page 19 of 27 Power_Spectral_Density_NVNT_ANT1_802_11g_2437 Power_Spectral_Density_NVNT_ANT1_802_11g_2462 Page 20 of 27 Power_Spectral_Density_NVNT_ANT1_802_11n(HT20)_2412 Power_Spectral_Density_NVNT_ANT1_802_11n(HT20)_2437 Page 21 of 27 Power_Spectral_Density_NVNT_ANT1_802_11n(HT20)_2462 Power_Spectral_Density_NVNT_ANT1_802_11n(HT40)_2422 Page 22 of 27 Power_Spectral_Density_NVNT_ANT1_802_11n(HT40)_2437 Power_Spectral_Density_NVNT_ANT1_802_11n(HT40)_2452 Page 23 of 27 4. Band edge All the modes have tested and recorded the worst mode (802.11b) in the report. 1_Reference_Level_NVNT_ANT1_802_11b_2412 2_Bandedge_NVNT_ANT1_802_11b_2412 Page 24 of 27 1_Reference_Level_NVNT_ANT1_802_11b_2462 2_Bandedge_NVNT_ANT1_802_11b_2462 Page 25 of 27 5. Spurious Emission All the modes have tested and recorded the worst mode (802.11n(HT40)) in the report. 1_Reference_Level_NVNT_ANT1_802_11n(HT40)_2422 2_Spurious_Emission_NVNT_ANT1_802_11n(HT40)_2422 Page 26 of 27 1_Reference_Level_NVNT_ANT1_802_11n(HT40)_2437 2_Spurious_Emission_NVNT_ANT1_802_11n(HT40)_2437 Page 27 of 27 1_Reference_Level_NVNT_ANT1_802_11n(HT40)_2452 2_Spurious_Emission_NVNT_ANT1_802_11n(HT40)_2452

Test Setup Photos

Setup Photo FCC ID: 2BHCJ-WPC58W

Contact Information

Applicant

Yuling Kuang(General Manager)
[email protected]13750049639Fax: N.A

Technical Contact

Shenzhen NCT Testing Technology Co., Ltd.Henry Wang
[email protected]0755-27790922

Shenzhen · China

Non-Technical Contact

Shenzhen NCT Testing Technology Co., Ltd.Henry Wang
[email protected]0755-27790922

Test Firm

SHENZHEN NCT TESTING TECHNOLOGY CO., LTD.Henry Wang
[email protected]0755-27790922

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz32.73 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End-users must be provided with operating procedures for satisfying RF exposure compliance. The device contains 20MHz and 40MHz bandwidth.
