2BHE9-GM01Bluetooth Speaker

JobsiteBluetoothSpeaker GM01USERGUIDE Definitions:SafetyAlertSymbolsandWords Thisinstructionmanualusesthefollowingsafetyalertsymbolsandwordstoalertyouto hazardoussituationsandyourrisk DANGER:Indicatesanimminentlyhazardoussituationwhich,ifnotavoided,will resultindeathorseriousinjury CAUTION:Indicatesapotentiallyhazardoussituationwhich,ifnotavoided,may resultinminorormoderateinjury (Usedwithoutword)Indicatesasafetyrelatedmessage. NOTICE:Indicatesapracticenotrelatedtopersonalinjurywhich,ifnotavoided,may resultinpropertydamage ①②③ ④⑤⑥⑦ ①Vol-/Previous/Reset②Playpause③Vol+/Nexttrack④Bass⑤TWSPair⑥BTPair ⑦ON/OFF⑧Batteryadaptor⑨DCpowerport⑩USB⑪AUX⑫Subwoofer ToInstalltheBatteryAdaptorintotheSpeaker 1)Alignthebatterypackwiththeguidesinsidethespeakerbatteryport. 2)Slideitinuntilthebatterypackisfirmlyseatedandensurethatyouhearthelocksnap intoplace.Besurethatitdoesnotdisengage. IMPORTANTSAFETYINSTRUCTIONS WARNING:Readallsafetywarningsandallinstructions.Failuretofollowthewarnings andinstructionsmayresultinshockcircuit,fireand/orseriousinjury. 1.Readtheseinstructions. 2.Keeptheseinstructions. 3.Heedallwarnings. 4.Followallinstructions. 5.Donotusethisapparatusnearwater. 6.Cleanonlywithadrycloth. 7.Donotblockanyventilationopenings.Useinaccordancewiththemanufacturer’s instructions. 8.Donotusenearanyheatsourcessuchasradiators,heatregisters,stoves,orother apparatus(includingamplifiers)thatproduceheat. 9.Protectthepowercordfrombeingwalkedonorpinched,particularlyatplugs, conveniencereceptacles,andthepointwheretheyexitfromtheapparatus. 10.Onlyuseattachments/accessoriesspecifiedbythemanufacturer. 11.Unplugthisapparatusduringlightningstormsorwhenunusedforlongperiodsof time. 12.Referallservicingtoqualifiedservicepersonnel.Servicingisrequiredwhenthe apparatushasbeendamagedinanyway,suchasthepower-supplycordorplugis damaged,liquidhasbeenspilled,orobjectshavefallenintotheapparatus,the apparatushasbeenexposedtorainormoisture,doesnotoperatenormally,orhas beendropped. 13.Apparatusshallnotbeexposedtodrippingorsplashing,andnoobjectsfilledwith liquids,suchasvases,shallbeplacedontheapparatus. 14.Donotuseunderwetconditionsorinthepresenceofflammableliquidsorgases. 15.Donotkeepearsclosetothisappliance. SafetyInstructionsforSpeakers 1.Toreducetheriskoffireorelectricshock,donotexposethisapparatustorainor moisture. 2.Donotabusethecord.Nevercarrythespeakerbyitscord.Neverpullthecordto disconnectfromthesocket.Keepthecordawayfromheat,oil,andsharpedges. 3.Removethebatterypack.Switchoffthedevicebeforeleavingitunattended.Remove thebatterypackwhennotinuse,beforechangingaccessoriesorattachments,and beforeservicing. 4.Thisapplianceisnotintendedforusebypersons(includingchildren)withreduced physical,sensory,ormentalcapabilities,orlackofexperienceandknowledge, unlesstheyhavebeengivensupervisionorinstructionconcerningtheuseofthe appliancebyapersonresponsiblefortheirsafety. 5.Childrenshouldbesupervisedtoensurethattheydonotplaywiththeappliance. 6.Noexposedflamesources,suchaslightedcandles,shouldbeplacedonthe speaker. 7.Toreducetheriskofhearingdamage,donotplaceearstooclosetothespeaker. 8.Themainsplugisusedasthedisconnectdevice;thedisconnectdevice(plug)shall remainreadilyoperable. Attention:UsingSuppliedACPowerAdaptor CAUTION: 1.AlwaysdisconnecttheACpoweradaptorcompletelybeforemovingthespeaker.If theACadaptorisnotremoved,itmaycauseanelectricshock. 2.Neverpulland/ordragthecordoftheadaptor.Ifnot,thespeakermayaccidentally falldown,causinginjurytoyouorsomeonearoundyou. 3.IMPORTANT: 4.Themainsadaptorisusedasthemeansofconnectingthespeakertothemains supply.Themainssocketusedforthespeakermustremainaccessibleduring normaluse. 5.Inordertodisconnectthespeaker,themainsadaptorshouldberemovedfromthe mainsoutletcompletely. 6.Donotholdthepowersupplycableandplugbyyourmouth.Doingsomightcausean electricshock. 7.Donottouchthepowerplugwithwetorgreasyhands. 8.Damagedorentangledcordsincreasetheriskofelectricshock. 9.Afteruse,alwaysstoretheACpoweradaptoroutofthereachofchildren.Ifchildren playwiththecord,theymaysufferinjury. NOTE: Ensurethespecificationofyourexternaldevice,suchasamobilephoneorplayer,is compatiblewiththespeaker.Pleasereadtheinstructionmanualofyourexternaldevice beforecharging. IMPORTANT: ThechargermaynotsupplypowertosomeUSBdevices. Whennotusingoraftercharging,removetheUSBcableandclosethecover. DonotconnectapowersourcetotheUSBport.Otherwise,thereisariskoffire.TheUSB portisonlyintendedforcharginglowervoltagedevices.Alwaysplacethecoverontothe USBportwhennotchargingalowervoltagedevice. Donotinsertanail,wire,etc.,intotheUSBpowersupplyport.Otherwise,acircuitshort maycausesmokeandfire. DonotconnectthisUSBsocketwithyourPCUSBport,asitishighlypossiblethatitmay causeabreakdownoftheunits. Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance couldvoidtheuser'sauthoritytooperatetheequipment. ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovid FCC Statement e reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device…

Text truncated - open the document above for the full version.

Huizhou Jiemeisi Technology Co., Ltd Covered Equipment Certification Attestation Letter Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covere 9/5/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2BHE9-GM01 Huizhou Jiemeisi Technology Co., Ltd(“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. d” equipment. Huizhou Jiemeisi Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Dora.shao Title: Sales Assistant Company Name: Huizhou Jiemeisi Technology Co., Ltd Date2024-09-05

* Huizhou Jiemeisi Technology Co., Ltd the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Sep 05, 2024 Canada ATTN.: Reviewing Engineer Phuntion LLC 25214 Spectrum, Irvine, CA92618 Jun.Tian [email protected] FCC ID: 2BHE9-GM01 FRN:0035645928 Per section 2.911(d)(7) of the FCC rules,Wuhan Yixin Technology Co., Ltd.certifies that the equipment for which authorization is sought is designated to thefollowing U.S. Designated agent* for service of process: Company Name: Physical U.S. Company Address: Agent name: Agent Email Address: FRN: Expiration date:Sep 04,2025 0033422403 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Printed name: Jun.Tian Title: CEO Company Name: Phuntion LLC Signed: Printed name:Dora.shao Title: Sales Assistant Company Name: Huizhou Jiemeisi Technology Co., Ltd Date: Sep 05,2024 Date: Sep 05, 2024

Huizhou Jiemeisi Technology Co., Ltd Printed name: Dora. 9/5/2024 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint Huizhou Jiemeisi Technology Co., LtdNo.63, Qingtang Dashuling Humei Street, Xiaojinkou street office, Huicheng District, Huizhou City, Guangdong Province, China.to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, shao

Huizhou Jiemeisi Technology Co., Ltd Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada 9/5/2024 K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC PERMANENT LONG-TERM CONFIDENTIALITY: Schematics Block Diagrams Theory of Operation The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. FCC ID: 2BHE9-GM01 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request confidential treatment of information accompanying this application as outlined below: Sincerely, Signed: Printed name: Dora.shao Title: Sales Assistant Company Name: Huizhou Jiemeisi Technology Co., Ltd

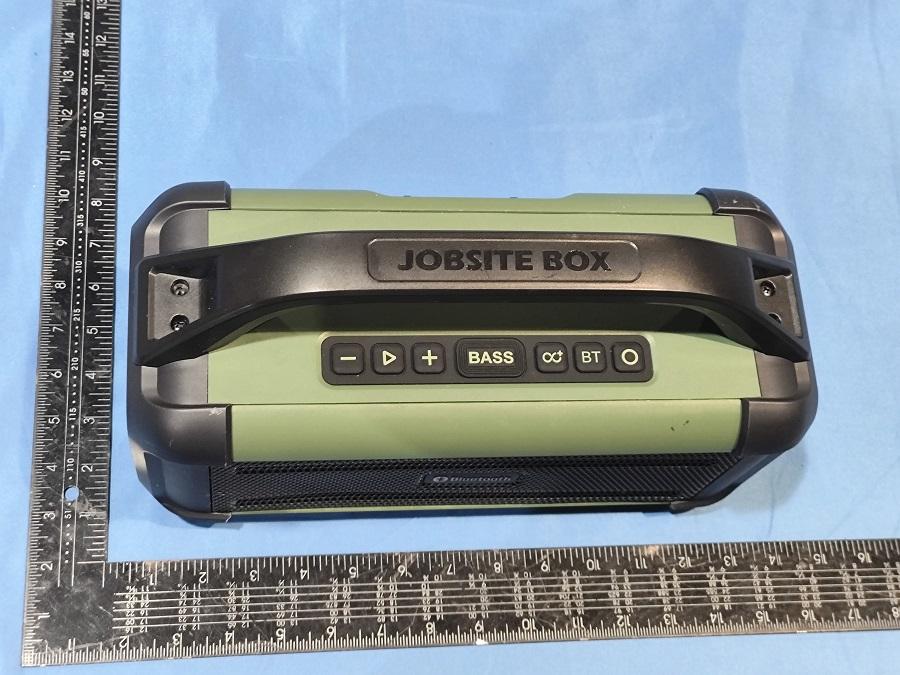

External photo FCC ID: 2BHE9-GM01 Page 1/5 External photo FCC ID: 2BHE9-GM01 Page 2/5 External photo FCC ID: 2BHE9-GM01 Page 3/5 External photo FCC ID: 2BHE9-GM01 Page 4/5 External photo FCC ID: 2BHE9-GM01 Page 5/5 --END---

Label Location

Internal photo FCCID: 2BHE9-GM01 Page 1/3 Internal photo FCCID: 2BHE9-GM01 Page 2/3 antenna Internal photo FCCID: 2BHE9-GM01 Page 3/3 --END---

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dB Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) 333 Kexing Road, Xiangzhou District, Zhuhai City address Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

RF Exposure FCC ID: 2BHE9-GM01 Report No.: LP23080282C01-39-1 Page 1/2 Limits for Maximum Permissible Exposure (MPE) The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is Reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. RF Exposure FCC ID: 2BHE9-GM01 Report No.: LP23080282C01-39-1 Page 2/2 MEASUREMENT RESULT Mode Frequenc y (MHz) Peak output power (dBm) Peak output power (mW) Target power （dBm） Maximum tune-up Power (mW) Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result (dBi) (Linear) GFSK 2402 1.789 1.509 1±1 1.58 -0.58 0.87 0.0027 1 Complies 2441 2.279 1.690 2±1 2.00 -0.58 0.87 0.0035 1 Complies 2480 2.456 1.760 2±1 2.00 -0.58 0.87 0.0035 1 Complies 8-DPSK 2402 0.020 1.005 1±1 1.58 -0.58 0.87 0.0027 1 Complies 2441 0.150 1.035 1±1 1.58 -0.58 0.87 0.0027 1 Complies 2480 0.309 1.073 1±1 1.58 -0.58 0.87 0.0027 1 Complies Prepared by: Approved & Authorized Signer: Jerry Hu/ Engineer ---END Frank Shen/ Manager Issue Date：September 5, 2024 ---

Report No. LP23080282C01-39 Dongguan Lepont Testing Service Co.,Ltd. page 1 of 64 TEST REPORT Applicant: Address: Huizhou Jiemeisi Technology Co., Ltd No.63, Qingtang Dashuling Humei Street, Xiaojinkou street office, Huicheng District, Huizhou City, Guangdong Province, China. Manufacturer: Address: Huizhou Jiemeisi Technology Co., Ltd No.63, Qingtang Dashuling Humei Street, Xiaojinkou street office, Huicheng District, Huizhou City, Guangdong Province, China. Factory: Address: Huizhou Jiemeisi Technology Co., Ltd No.63, Qingtang Dashuling Humei Street, Xiaojinkou street office, Huicheng District, Huizhou City, Guangdong Province, China. E.U.T.: Bluetooth Speaker Model Number: GM01 Trade mark: N/A FCC ID: 2BHE9-GM01 Date of Receipt: Aug 14, 2024 Date of Test: Aug 14, 2024- Aug 31,2024 Test Specification: FCC 47 CFR Part 15, Subpart C Test Result: The equipment under test was found to be compliance with the requirements of the standards applied. Prepared by: Approved & Authorized Signer: Jerry Hu/ Engineer Frank Shen/ Manager Issue Date: September 5, 2024 This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Dongguan Lepont Service Co., Ltd. Report No. LP23080282C01-39 Dongguan Lepont Testing Service Co.,Ltd. page 2 of 64 TABLE OF CONTENTS 1. GENERAL PRODUCT INFORMATION 4 1.1. PRODUCT FUNCTION ..................................................................................................................................................... 4 1.2. EUT TECHNICAL DESCRIPTION ............................................................................................................................ 4 1.3. INDEPENDENT OPERATION MODES ............................................................................................................................... 5 2. TEST STANDARDS AND SITES 6 2.1. DESCRIPTION OF STANDARDS AND RESULTS ................................................................................................................. 6 2.2. LIST OF TEST AND MEASUREMENT INSTRUMENTS ........................................................................................................ 7 2.3. MEASUREMENT UNCERTAINTY .......................................................................................................................... 8 2.4. TEST FACILITY .............................................................................................................................................................. 8 3. SETUP OF EQUIPMENT UNDER TEST 9 3.1. RADIO FREQUENCY TEST SETUP 1 ...................................................................................................................... 9 3.2. RADIO FREQUENCY TEST SETUP 2 ...................................................................................................................... 9 3.3. CONDUCTED EMISSION TEST SETUP .................................................................................................................. 11 3.4. BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM .................................................................................. 11 3.5. SUPPORT EQUIPMENT ............................................................................................................................................ 12 4. TEST RESULTS AND MEASUREMENT DATA 13 4.1. 20DB BANDWIDTH .................................................................................................................................................. 13 4.2. CARRIER FREQUENCY SEPARATION .................................................................................................................. 19 4.3. NUMBER OF HOPPING FREQUENCIES ................................................................................................................. 25 4.4. AVERAGE TIME OF OCCUPANCY (DWELL TIME) ............................................................................................. 29 4.5. MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................. 37 4.6. RADIATED SPURIOUS EMISSION .......................................................................................................................... 43 4.7. CONDUCTED EMISSION TEST ............................................................................................................................... 60 4.8. ANTENNA APPLICATION ....................................................................................................................................... 63 4.9. RF EXPOSURE ........................................................................................................................................................... 64 Report No. LP23080282C01-39 Dongguan Lepont Testing Service Co.,Ltd. page 3 of 64 Revision History of This Test Report Report Number Description Issued Date LP23080282C01-39 Initial Issue 2024-9-5 Report No. LP23080282C01-39 Dongguan Lepont Testing Service Co.,Ltd. page 4 of 64 1. GENERAL PRODUCT INFORMATION 1.1. PRODUCT FUNCTION Refer to Technical Construction Form and User Manual. 1.2. EUT TECHNICAL DESCRIPTION Product Name: Bluetooth Speaker Model No.: GM01 Test Model No: GM01 Remark: All above models are identical in the same PCB layout, interior structure and electrical circuits. The differences are model name for commercial purpose. Test sample(s) ID: LP23080009C01-S033 Sample(s) Status Engineer sample Operation Frequency: 2402MHz-2480MHz Channel numbers: 79 Channel separation: 1MHz Modulation type: GFSK, π/4-DQPSK, 8DPSK Antenna Type: FPC Antenna Antenna gain: -0.58dBi Power supply: DC 20V From Adapter 120V/60Hz Report No. LP23080282C01-39 Dongguan Lepont Testing Service Co.,Ltd. page 5 of 64 1.3. INDEPENDENT OPERATION MODES The EUT has been tested under its typical operating condition. The EUT configuration for testing is installed on RF field stren…

Text truncated - open the document above for the full version.

Test photo F FCC ID: 2BHE9-GM01 Page 1/2 Radiated emission Test photo F FCC ID: 2BHE9-GM01 Page 2/2 Conducted Emission at The Mains Terminals Test ---END---
