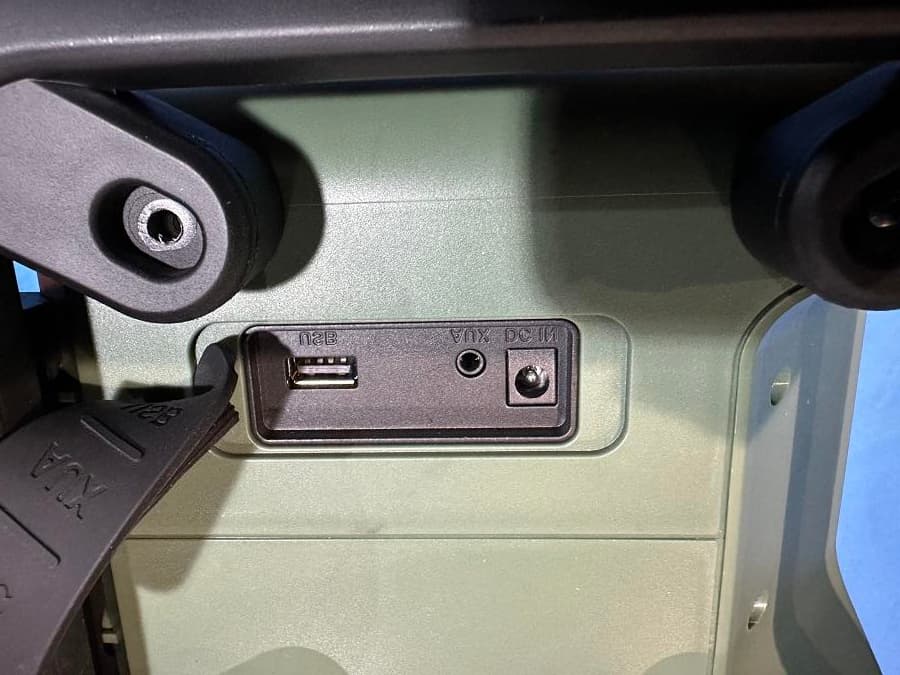

Worksite Radio Speaker GM20B USER GUIDE Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury (Used without word) Indicates a safety related message. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage 1.EQ 2.Power button/Volume buttons +/- 3.Info/MENU （press and hold to return to the previous menu） 4.Bluetooth button 5.DAB/FM button 6.SCAN 7.PRESET 8.Previous 9.Next track 10.DC Interface 11.AUX input 12.USB 13.Battery bracket To Install the Battery Pack into the Speaker 1) Align the battery pack with the guides inside the speaker battery port. 2) Slide it in until the battery pack is firmly seated and ensure that you hear the lock snap into place. Be sure that it does not disengage. IMPORTANT SAFETY INSTRUCTIONS WARNING: 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Use in accordance with the manufacturer’s instructions. 8. Do not use near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 10. Only use attachments/accessories specified by the manufacturer. 11. Unplug this apparatus during lightning storms or when unused for long periods of time. 12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled, or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 13. Apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the apparatus. 14. Do not use under wet conditions or in the presence of flammable liquids or gases. 15. Do not keep ears close to this appliance. Safety Instructions for Speakers 1. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 2. Do not abuse the cord. Never carry the speaker by its cord. Never pull the cord to disconnect from the socket. Keep the cord away from heat, oil, and sharp edges. 3. Remove the battery pack. Switch off the device before leaving it unattended. Remove the battery pack when not in use, before changing accessories or attachments, and before servicing. 4. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. 5. Children should be supervised to ensure that they do not play with the appliance. 6. No exposed flame sources, such as lighted candles, should be placed on the speaker. 7. To reduce the risk of hearing damage, do not place ears too close to the speaker. 8. The mains plug is used as the disconnect device; the disconnect device (plug) shall remain readily operable. Attention: Using Supplied AC Power Adaptor CAUTION: 1. Always disconnect the AC power adaptor completely before moving the speaker. If the AC adaptor is not removed, it may cause an electric shock. 2. Never pull and/or drag the cord of the adaptor. If not, the speaker may accidentally fall down, causing injury to you or someone around you. 3. IMPORTANT: 4. The mains adaptor is used as the means of connecting the speaker to the mains supply. The mains socket used for the speaker must remain accessible during normal use. 5. In order to disconnect the speaker, the mains adaptor should be removed from the mains outlet completely. 6. Do not hold the power supply cable and plug by your mouth. Doing so might cause an electric shock. 7. Do not touch the power plug with wet or greasy hands. 8. Damaged or entangled cords increase the risk of electric shock. 9. After use, always store the AC power adaptor out of the reach of children. If children play with the cord, they may suffer injury. NOTE: Ensure the specification of your external device, such as a mobile phone or player, is compatible with the speaker. Please read the instruction manual of your external device before charging. IMPORTANT: The charger may not supply power to some USB devices. When not using or after charging, remove the USB cable and close the cover. Do not connect a power source to the USB port. Otherwise, there is a risk of fire. The USB port is only intended for charging lower voltage devices. Always place the cover onto the USB port when not charging a lower voltage device. Do not insert a nail, wire, etc., into the USB power supply port. Otherwise, a circuit short may cause smoke and fire. Do not connect this USB socket with your PC USB port, as it is highly possible that it may cause a breakdown of the units. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment ge…

Text truncated - open the document above for the full version.

Huizhou Jiemeisi Technology Co., Ltd Covered Equipment Certification Attestation Letter 8/5/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2BHE9-GM20B Huizhou Jiemeisi Technology Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Huizhou Jiemeisi Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Dora.shao Title: Sales Assistant Company Name: Huizhou Jiemeisi Technology Co., Ltd Date 2024-08-05

* Huizhou Jiemeisi Technology Co., Ltd the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Aug 05, 2024 Canada ATTN.: Reviewing Engineer Phuntion LLC 25214 Spectrum, Irvine, CA92618 Jun.Tian [email protected] FCC ID: 2BHE9-GM20B FRN:0035645928 Per section 2.911(d)(7) of the FCC rules,Wuhan Yixin Technology Co., Ltd.certifies that the equipment for which authorization is sought is designated to thefollowing U.S. Designated agent* for service of process: Company Name: Physical U.S. Company Address: Agent name: Agent Email Address: FRN: Expiration date:Aug 05,2025 0033422403 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Printed name: Jun.Tian Title: CEO Company Name: Phuntion LLC Date: Aug 05 Signed: Printed name:Dora.shao Title: Sales Assistant Company Name: Huizhou Jiemeisi Technology Co., Ltd ,2024 Date: Aug 05, 2024

Huizhou Jiemeisi Technology Co., Ltd 8/5/2024 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint Huizhou Jiemeisi Technology Co., Ltd No.63, Qingtang Dashuling Humei Street, Xiaojinkou street office, Huicheng District, Huizhou City, Guangdong Province, China. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Printed name: Dora.shao

Huizhou Jiemeisi Technology Co., Ltd 8/5/2024 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: 2BHE9-GM20B Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT LONG-TERM CONFIDENTIALITY: Schematics Block Diagrams Theory of Operation The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Signed: Printed name: Dora.shao Title: Sales Assistant Company Name: Huizhou Jiemeisi Technology Co., Ltd

Huizhou Jiemeisi Technology Co., Ltd Model difference statement E.U.T.: Bluetooth Speaker Model Number: GM20B, POWDP8061, 21150 (All above models are identical in the same PCB layout, interior structure and electrical circuits, RF Chip/antenna/look is the same. The differences are model name for commercial purpose.) FCC ID: 2BHE9-GM20B Signed: Printed name: Dora.shao Title: Sales Assistant Company Name: Huizhou Jiemeisi Technology Co., Ltd Date 2024-08-05

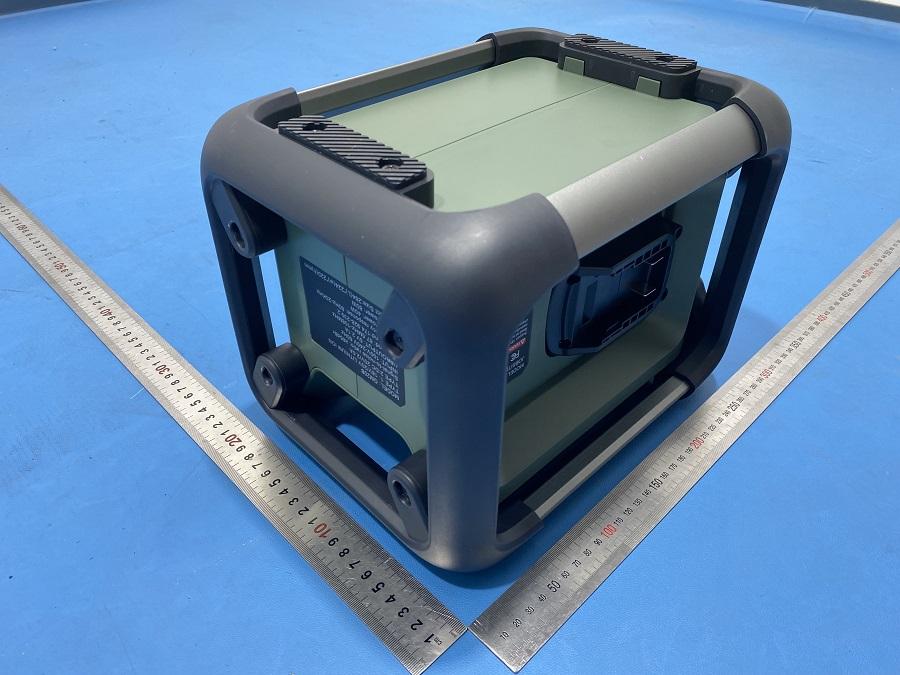

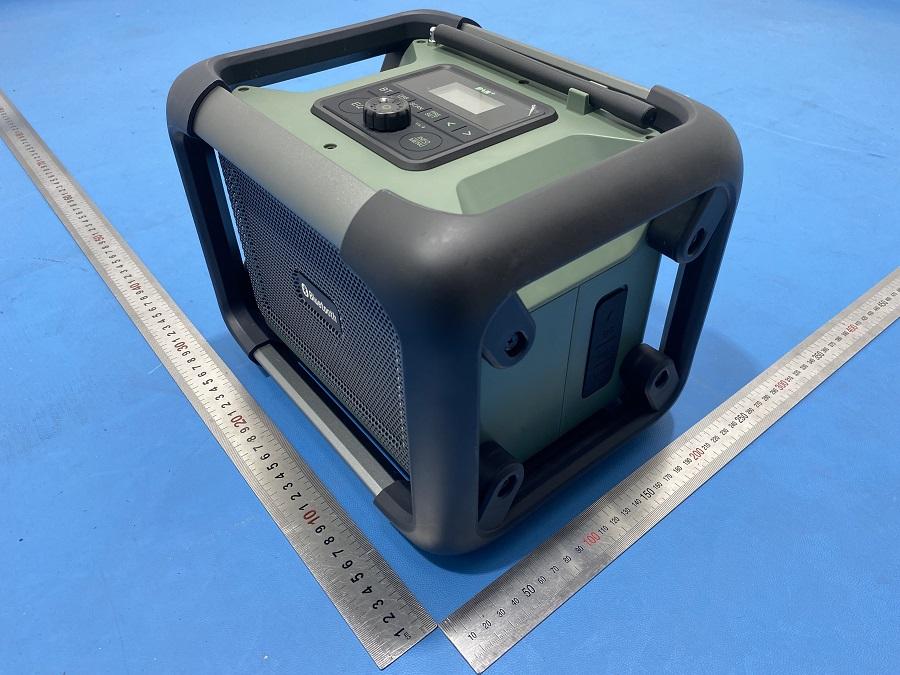

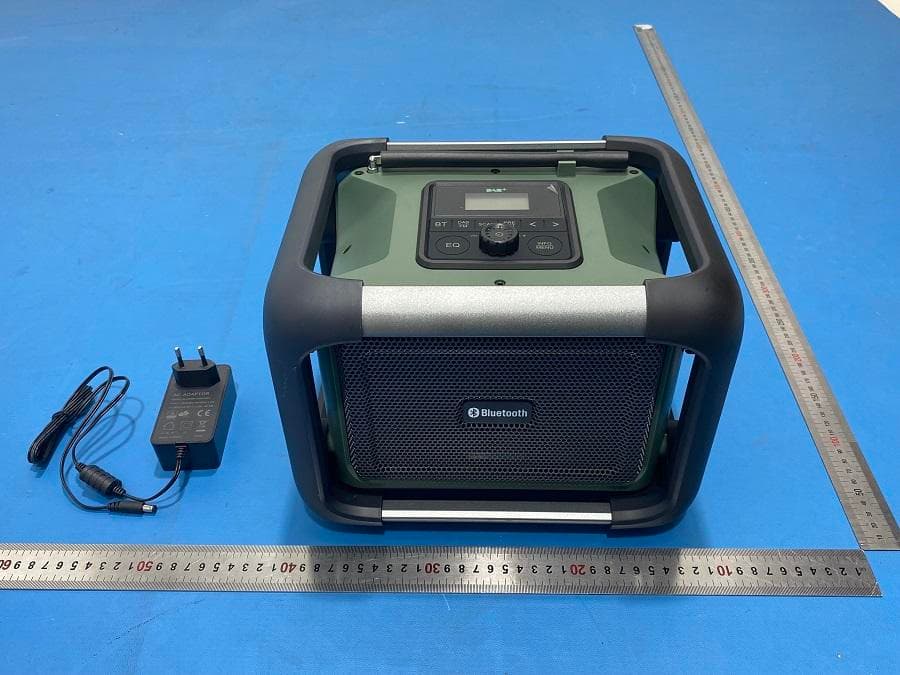

External photo FCC ID: 2BHE9-GM20B Page 1/3 External photo FCC ID: 2BHE9-GM20B Page 2/3 External photo FCC ID: 2BHE9-GM20B Page 3/3 --END---
