2BHHH-OR001Tablet Keyboard Case

Shenzhen Pinjin Technology Co., Ltd
Tablet Keyboard Case - FCC ID 2BHHH-OR001 - Shenzhen Pinjin Technology Co., Ltd
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Aug 11, 2024
Application Purpose
Original Equipment
Date of Application
Aug 11, 2024
Equipment Note
Tablet Keyboard Case
Frequency Range
2402.00000000 - 2480.00000000
Company
Shenzhen Pinjin Technology Co., Ltd
Country
China

Documents & Files

Select a file to view

Users Manual

โ†—

Attestation Statements

โ†—
โ†—

Cover Letter(s)

โ†—
โ†—
โ†—

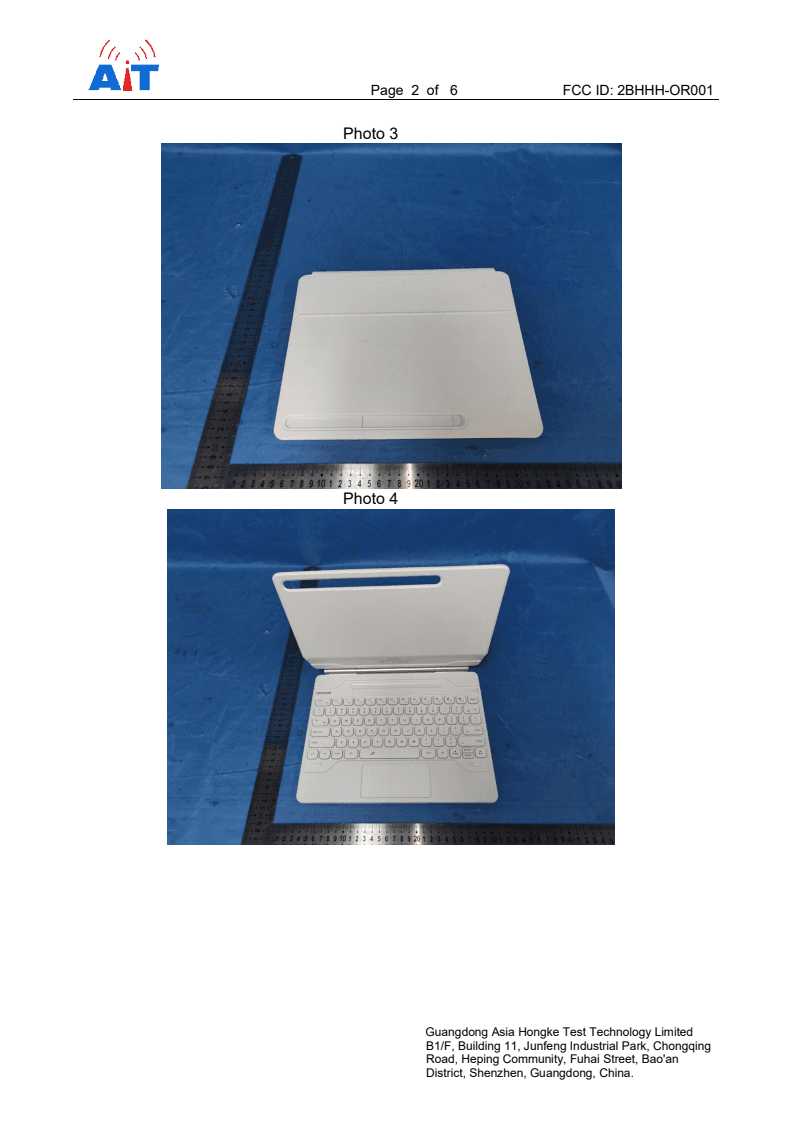

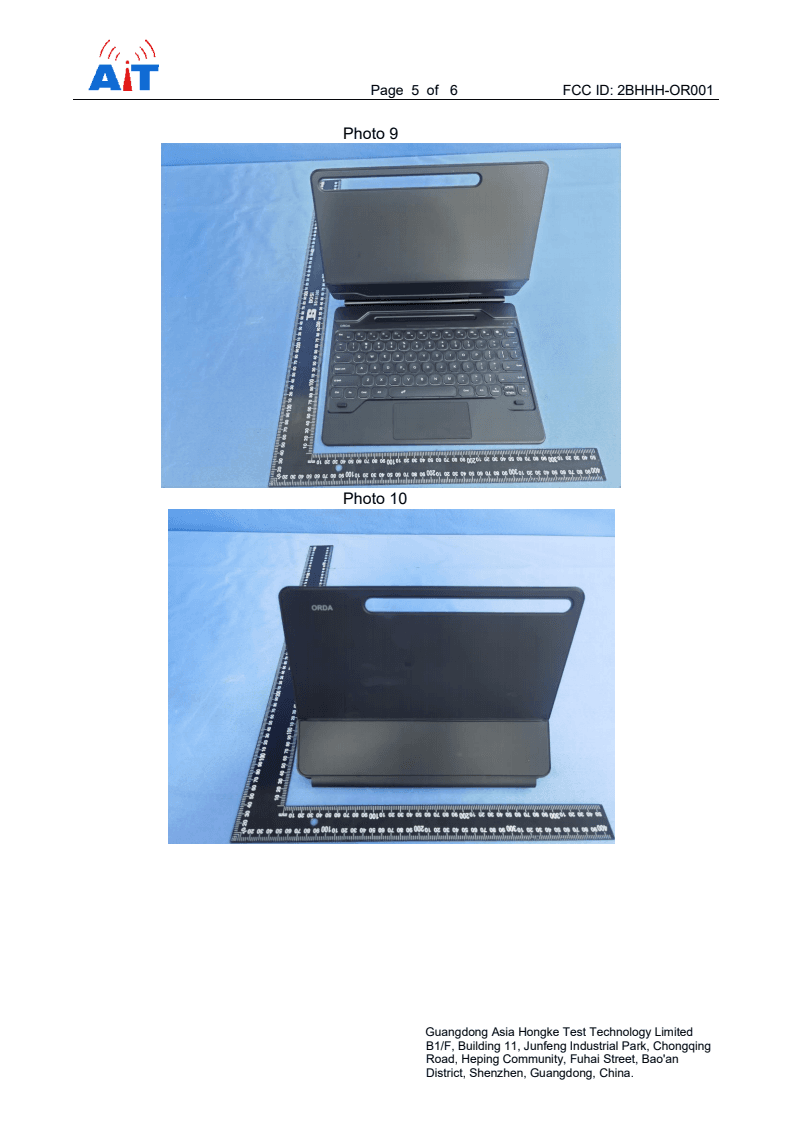

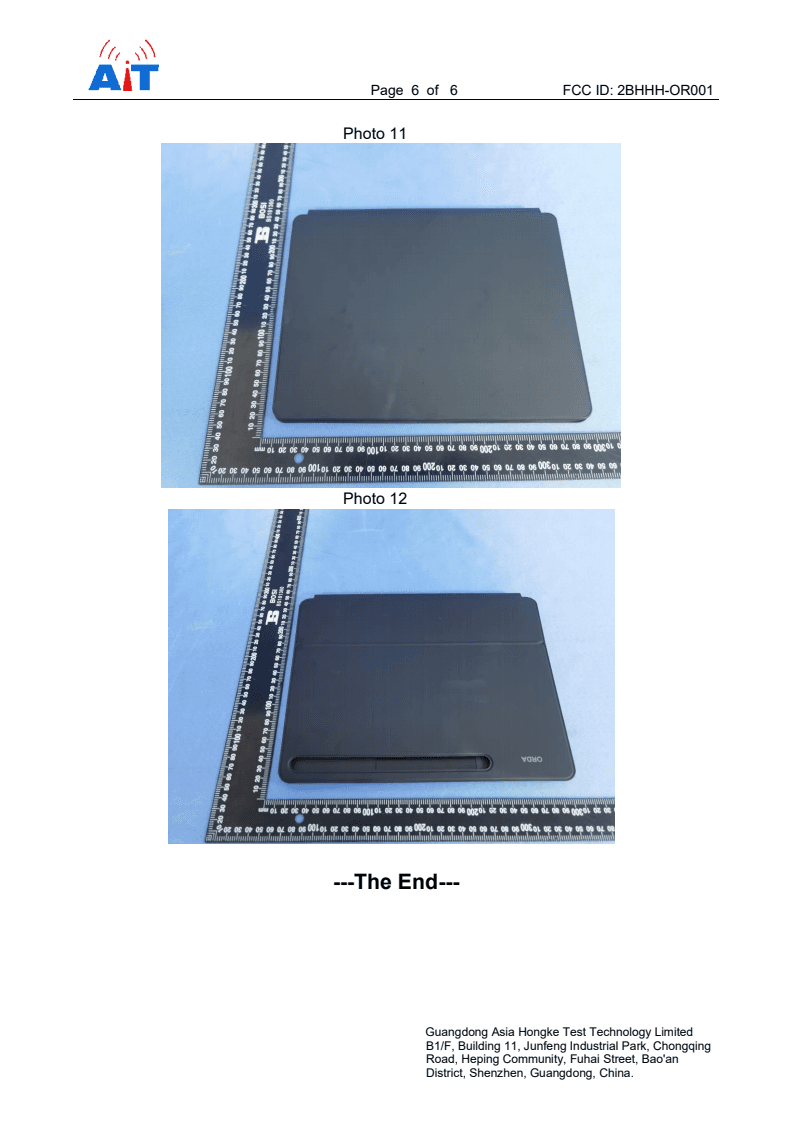

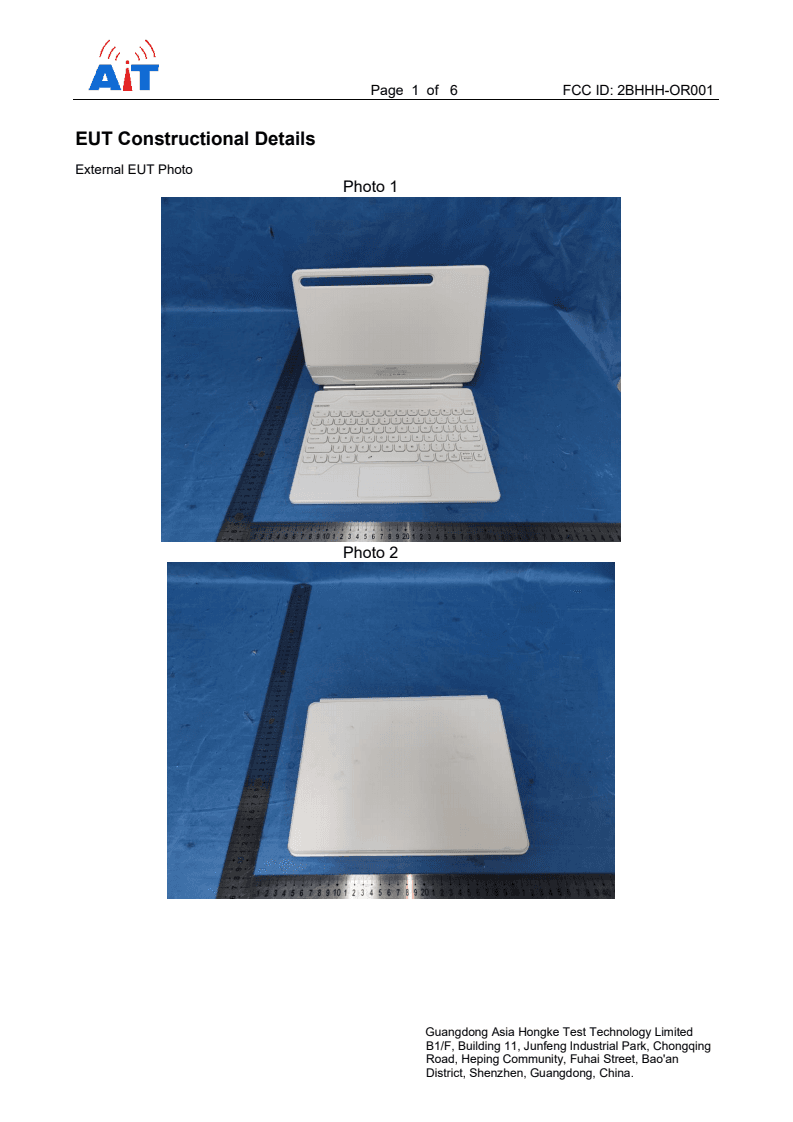

External Photos

โ†—

ID Label/Location Info

Internal Photos

โ†—

RF Exposure Info

โ†—

Test Report

โ†—
โ†—

Test Setup Photos

โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

ORDA www.orda-tech.com ORDA ORDA 9 ORDA ORDA ORDA ORDA ORDA ORDA FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. * RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Attestation Statements

- Shenzhen Pinjin Technology Co., Ltd - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/8/2024 U.S. Agent Designation Shenzhen Pinjin Technology Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BHHH-OR001): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of Shenzhen Pinjin Technology Co., Ltd. Shenzhen Pinjin Technology Co., Ltd with the FRN 0035665785 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under ยง 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Coper Coper Manager Shenzhen Pinjin Technology Co., Ltd Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7) - U, V05

Test Report

Page 1 of 54 Report No.: AiTSZ-240710009FW2 1. Bandwidth 1.1 Test Result 1.1.1 OBW Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.845 / Pass 2441 DH5 1 0.845 / Pass 2480 DH5 1 0.844 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.183 / Pass 2441 2DH5 1 1.183 / Pass 2480 2DH5 1 1.180 / Pass 8DPSK SISO 2402 3DH5 1 1.184 / Pass 2441 3DH5 1 1.184 / Pass 2480 3DH5 1 1.184 / Pass 1.1.2 20dB BW Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.945 / Pass 2441 DH5 1 0.945 / Pass 2480 DH5 1 0.946 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.300 / Pass 2441 2DH5 1 1.304 / Pass 2480 2DH5 1 1.304 / Pass 8DPSK SISO 2402 3DH5 1 1.315 / Pass 2441 3DH5 1 1.315 / Pass 2480 3DH5 1 1.313 / Pass Page 2 of 54 Report No.: AiTSZ-240710009FW2 1.2 Test Graph 1.2.1 OBW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 3 of 54 Report No.: AiTSZ-240710009FW2 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 4 of 54 Report No.: AiTSZ-240710009FW2 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 5 of 54 Report No.: AiTSZ-240710009FW2 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 6 of 54 Report No.: AiTSZ-240710009FW2 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 7 of 54 Report No.: AiTSZ-240710009FW2 1.2.2 20dB BW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 8 of 54 Report No.: AiTSZ-240710009FW2 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 9 of 54 Report No.: AiTSZ-240710009FW2 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 10 of 54 Report No.: AiTSZ-240710009FW2 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 11 of 54 Report No.: AiTSZ-240710009FW2 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 12 of 54 Report No.: AiTSZ-240710009FW2 2. Maximum Conducted Output Power 2.1 Test Result 2.1.1 Power Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 6.77 <=30 Pass 2441 DH5 8.67 <=30 Pass 2480 DH5 8.82 <=30 Pass Pi/4DQPSK SISO 2402 2DH5 2.49 <=20.97 Pass 2441 2DH5 4.73 <=20.97 Pass 2480 2DH5 5.15 <=20.97 Pass 8DPSK SISO 2402 3DH5 2.72 <=20.97 Pass 2441 3DH5 4.96 <=20.97 Pass 2480 3DH5 5.38 <=20.97 Pass Note1: Antenna Gain: Ant1: 1.87dBi; Page 13 of 54 Report No.: AiTSZ-240710009FW2 2.2 Test Graph 2.2.1 Power GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 14 of 54 Report No.: AiTSZ-240710009FW2 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 15 of 54 Report No.: AiTSZ-240710009FW2 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 16 of 54 Report No.: AiTSZ-240710009FW2 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 17 of 54 Report No.: AiTSZ-240710009FW2 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 18 of 54 Report No.: AiTSZ-240710009FW2 3. Carrier Frequency Separation 3.1 Test Result 3.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 1.000 0.946 >=0.946 Pass Pi/4DQPSK SISO HOPP 2DH5 1.044 1.304 >=0.869 Pass 8DPSK SISO HOPP 3DH5 1.008 1.315 >=0.877 Pass Page 19 of 54 Report No.: AiTSZ-240710009FW2 3.2 Test Graph 3.2.1 Ant1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 20 of 54 Report No.: AiTSZ-240710009FW2 8DPSK_3DH5_HOPP_Ant1_NTNV Page 21 of 54 Report No.: AiTSZ-240710009FW2 4. Number of Hopping Frequencies 4.1 Test Result 4.1.1 HoppNum Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 8DPSK SISO HOPP 3DH5 79 >=15 Pass Page 22 of 54 Report No.: AiTSZ-240710009FW2 4.2 Test Graph 4.2.1 HoppNum GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 23 of 54 Report No.: AiTSZ-240710009FW2 8DPSK_3DH5_HOPP_Ant1_NTNV Page 24 of 54 Report No.: AiTSZ-240710009FW2 5. Time of Occupancy (Dwell Time) 5.1 Test Result 5.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.396 31.600 319 126.324 <=400 Pass DH3 1.652 31.600 170 280.840 <=400 Pass DH5 2.912 31.600 101 294.112 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.388 31.600 320 124.160 <=400 Pass 2DH3 1.656 31.600 153 253.368 <=400 Pass 2DH5 2.902 31.600 101 293.102 <=400 Pass 8DPSK SISO HOPP 3DH1 0.400 31.600 320 128.000 <=400 Pass 3DH3 1.636 31.600 155 253.580 <=400 Pass 3DH5 2.902 31.600 95 275.690 <=400 Pass Page 25 of 54 Report No.: AiTSZ-240710009FW2 5.2 Test Graph 5.2.1 Ant1 GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV Page 26 of 54 Report No.: AiTSZ-240710009FW2 GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV Page 27 of 54 Report No.: AiTSZ-240710009FW2 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV Page 28 of 54 Report No.: AiTSZ-240710009FW2 Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Page 29 of 54 Report No.: AiTSZ-240710009FW2 Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Page 30 of 54 Report No.: AiTSZ-240710009FW2 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 31 of 54 Report No.: AiTSZ-240710009FW2 8DPSK_3DH1_HOPP_Ant1_NTNV 8DPSK_3DH1_HOPP_Ant1_NTNV Page 32 of 54 Report No.: AiTSZ-240710009FW2 8DPSK_3DH3_HOPP_Ant1_NTNV 8DPSK_3DH3_HOPP_Ant1_NTNV Page 33 of 54 Report No.: AiTSZ-240710009FW2 8DPSK_3DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV Page 34 of 54 Report No.: AiTSZ-240710009FW2 6. Unwanted Emissions In Non-restricted Frequency Bands 6.1 Test Result 6.1.1 Ref Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) GFSK SISO 2402 DH5 1 6.71 2441 DH5 1 8.63 2480 DH5 1 8.77 HOPP DH5 1 9.36 9.36 Pi/4DQPSK SISO 2402 2DH5 1 -0.02 2441 2DH5 1 2.45 2480 2DH5 1 2.80 HOPP 2DH5 1 2.69 2.69 8DPSK SISO 2402 3DH5 1 0.โ€ฆ

Text truncated - open the document above for the full version.

Test Report

UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Report By Alfred Grau UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Tested Products.โ€ข Antenna 1: integrated antenna. โ€ข Frequency = 2.402GHz. โ€ข Frequency = 2.441GHz. โ€ข Frequency = 2.480GHz. UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Coordinate System Reference: Antenna 1. Top view Side view Z Y X Front view Front viewRear view SMA connector X Z Y UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Return Loss: Antenna 1 BW(-10dB) ยก 13.48% 2 2.2 2.4 2.6 2.8 3 Frequency (GHz) -16-14-12-10 -8-6-4-2 R e t u r n L o s s ( d B ) UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Measurements summary Frequency (GHz) Plane Return Loss (dB) Polarization Gain max. (dBi) ฮธ for Gain max. ฯ† for Gain max. Antenna 1 2.402 XZ -10.90 Vertical -7.8 290 2.402 XZ -10.90 Horizontal 0.786 182 2.402 YZ -10.90 Vertical 1.21 226 2.402 YZ -10.90 Horizontal -7.75 10 2.402 XY -10.90 Vertical -15.4 20 2.402 XY -10.90 Horizontal 0.93 180 2.441 XZ -12.20 Vertical -7.36 318 2.441 XZ -12.20 Horizontal 1.32 180 2.441 YZ -12.20 Vertical 0.981 204 2.441 YZ -12.20 Horizontal -8.23 24 2.441 XY -12.20 Vertical -14.1 -14 2.441 XY -12.20 Horizontal 1.74 180 2.48 XZ -13.80 Vertical -7.95 312 2.48 XZ -13.80 Horizontal 1.81 186 2.48 YZ -13.80 Vertical 0.204 214 2.48 YZ -13.80 Horizontal -8.38 8 2.48 XY -13.80 Vertical -15.8 12 2.48 XY -13.80 Horizontal 1.87 180

Contact Information

Applicant

Coper Coper
[email protected]+86-18127431870Fax: +86-18127431870

Test Firm

Guangdong Asia Hongke Test Technology LimitedDarren Ding
[email protected]185656258618

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz7.60 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is peak conducted.
