2BHIY-IRADUOPRO5GTablet PC
Wishtel Pvt Ltd
Click to zoom
Application Details
- Equipment Class
- NII - Unlicensed National Information Infrastructure TX
- Date of Grant
- Mar 09, 2025
- Application Purpose
- Original Equipment
- Equipment Note
- Tablet PC
- Frequency Range
- 5180.00000000 - 5240.00000000
- Company
- Wishtel Pvt Ltd
- Country
- India
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual

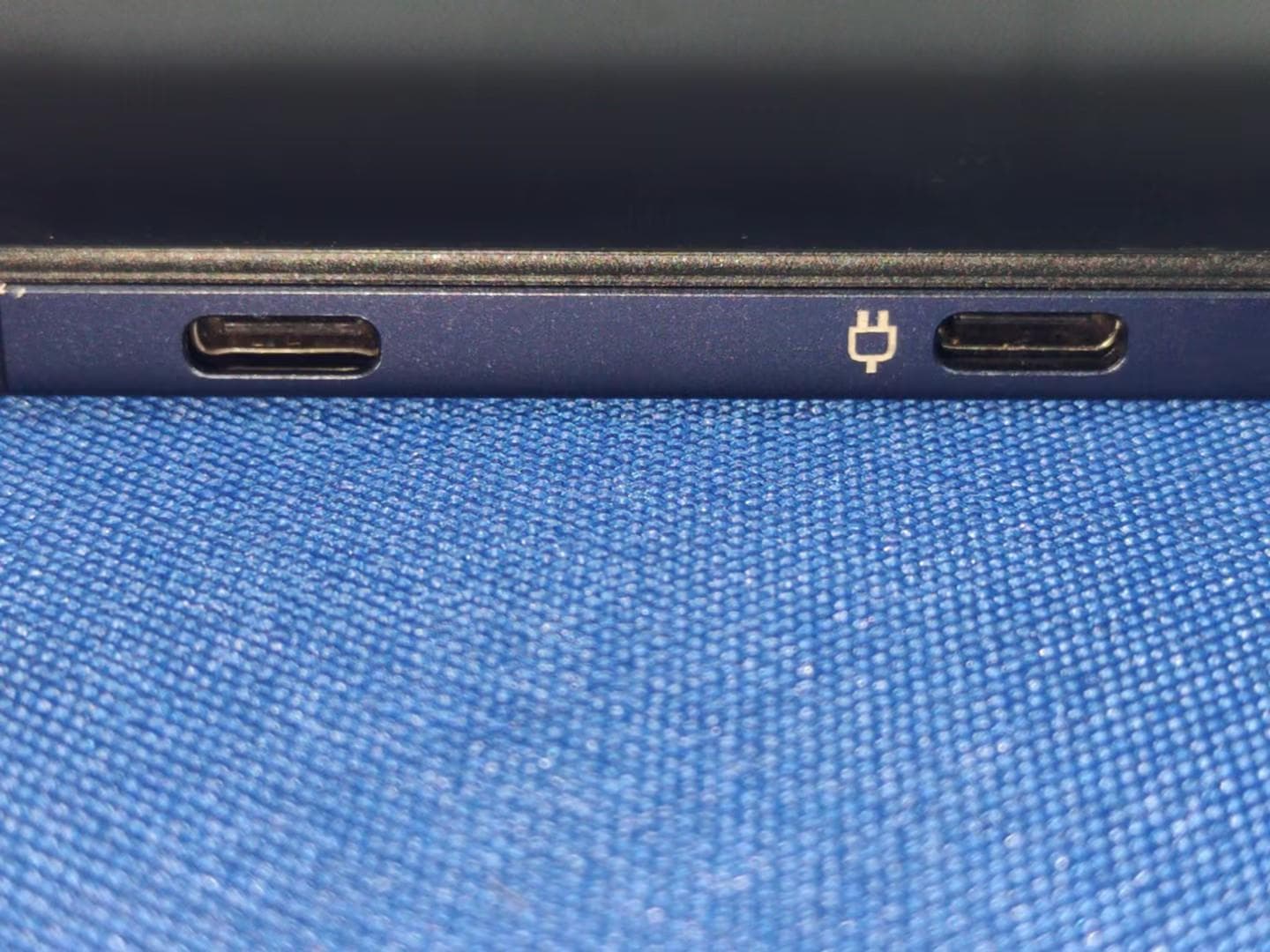

Special Explanation: The new machine you got has entered the transportation mode, please try the matching charger and data cable to connect the tablet activation, and then press the power button to boot Understand the equipment β β‘ β’β£ β€ β₯ β¦ β Power button β‘ Volume key β’ USB Type-c interface β£ USB Type-c interface (charge only) β€ 3.5 Headphone jack β₯ SIM / TF card slot β¦ keyboard contact point Product Parameter nameparameter CPUUSM9620 (T760) octacore frequency 2.2 Ghz memory6GB+128GB cameraTop 8MP (FF) + Back 13MP (AF) network Supports 4G cellular network, WiFi, and Bluetooth BT5.0 show10.95-inch HD display resolution 1200 * 1920 joggle 1 * 5G SIM card slot 2 * Type-C 1*3.5mm headphone audio cell7000 mAh battery, standard with a charger fingerboardSpecial leather case keyboard operating system android14.0 Machine size 256.87*168.42*7.25mm (length * width * thick) Take / insert card instructions lWhen using the card needle, please pay attention to safety to prevent finger injury or damage to the equipment. lPlease take good care of the card needles and place them in a safe area to prevent children from inadvertently swallowing or injuring themselves. lThe card slot allows for two nano-SIM cards or one nano-SIM card + one TF memory card. lUse a standard nano-SIM card or it may cause Cato damage causing the device to recognize the SIM card. οPlease refer to the figure below to complete the operation of inserting the card. Please use the matching card pin when taking the card. Pay attention to the direction when inserting the card, and keep the cato horizontal direction. β β‘ If you encounter any problems in the use process, you can get more help information through the following ways and methods. lPlease visit https://www.cerbook.com for product information, more help, and other information. security information Get more [Warning] Before using and operating the equipment, to ensure the best performance of the equipment and to avoid dangerous or illegal situations, please consult and follow all safety information. Operation and safety lHearing damage is dangerous, please do not listen for a long time. lPlease use this product in the temperature range of 0Β°C ~35Β°C, and store it in the range of-20Β°C ~ + 45Β°C. lThis product USB Type-C, the interface can accept the power supply capacity of 5.0 V = 2.0 Aor 9.0 V = 2.0 A. lPower plug as disconnection device, power socket should be installed near the product and should be easy to operate. lThere is a risk of fire or explosion if the incorrect model battery is replaced. lDo not expose the battery to high temperatures or around heating products, such as sunlight, heater, microwave, oven or water heater. An overheated battery may cause an explosion. lDo not place the battery in an very low pressure environment that may cause an explosion or leakage of flammable liquid or gas. lDo not throw the battery into the fire as it will cause a battery fire and explosion. lThe equipment adopts the non-removable built-in battery. Do not replace the battery by itself to avoid the normal operation of the equipment or battery damage. For your personal safety and to ensure the normal operation of the product, you are strongly recommended to replace the original battery of this equipment. lWhen charging or not, disconnect the power adapter from the device and unplug the power adapter from the power socket. lDo not use power adapter in wet places (such as sink, bathtub or shower), do not plug out power adapter with wet hand. lUse of unapproved or incompatible power supplies, power adapter or battery may cause fire, explosion or other hazards. lWhen the product is not sold with a power adapter, if the consumer uses the power adapter for power supply, they should buy a power adapter that meets the corresponding safety standards or a CCC certified power adapter. lUpgrading device firmware and systems using unauthorized third- party software, there may be security risks such as not usable or leaking your personal information. It is recommended that you use an online upgrade or send your device to your nearby customer service center. lDo not drop, squeeze, or puncture the battery. Avoid exposing the battery to large external pressure, which leads to a short circuit and overheating inside the battery. lDo not disassemble or modify the battery, insert a foreign matter, or immerse it in water or other liquid to avoid battery leakage, overheating, fire or explosion. lPlease dispose of the battery according to local regulations, not as household waste. If the battery is not disposed of properly, the battery may explode. lRadio waves or containing magnets generated by devices may affect the normal operation of implantable medical devices or personal medical devices, such as pacemakers, cochlear implants, hearing aids, etc. If you use these medical devices, consult your manufacturer about the restrictions. lWhen using this device, maintain a distance of at least 15 cm from the implanted medical device (e. g. pacemakers, cochlea, etc.). lOnly accessories approved by the equipment manufacturer and compatible with this type shall be used. If other types of accessories are used, they may violate the warranty terms of the equipment and the relevant regulations of the country where the equipment is located, and may lead to safety accidents. For approved accessories, please contact the Customer Service Center. lTo prevent data loss, it is recommended that you back up during daily use, before equipment upgrade or before repair. lThe exterior surface of the device keys and the camera decoration are treated with insulation coating, and the corresponding surface is an insulator. Special substances Part name Name and content of hazardous substances in the product lead (Pb) mercury (Hg) cadmium (Cd) hexavalent chromium οΌCrοΌVIοΌοΌ Polybrominate d biphenyl οΌPBBοΌ Polybromodi phenyl ether (PBDE) main engine ββββββ cellββββββ chargerββββββ Shell material ββββββ appendi x ββββββ * This form is preparedβ¦
Text truncated - open the document above for the full version.
RF Exposure Info
Page 31 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 32 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 33 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 34 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 35 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 36 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 37 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 38 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 39 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 40 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 41 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 42 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 43 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 44 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 45 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 46 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 47 of 51 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: webmaster@β¦
Text truncated - open the document above for the full version.
Test Setup Photos
Page 1 of 5 FCC ID:2BHIY-IRA DUO PRO 5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix D Photographs 1. SAR measurement System 2. Photographs of Tissue Simulate Liquid 3. Photographs of EUT test position 4. EUT Constructional Details Page 2 of 5 FCC ID:2BHIY-IRA DUO PRO 5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 1. SAR measurement System Page 3 of 5 FCC ID:2BHIY-IRA DUO PRO 5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 2. Photographs of Tissue Simulate Liquid Photo 1: Tissue Simulant Liquid for Head 835 Photo 2: Tissue Simulant Liquid for Head 1900 Photo 3: Tissue Simulant Liquid for Head2450 Photo 4: Tissue Simulant Liquid for Head 2600 Photo 5: Tissue Simulant Liquid for Head 3700 Photo 6: Tissue Simulant Liquid for Head 5000 Page 4 of 5 FCC ID:2BHIY-IRA DUO PRO 5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 3. Photographs of EUT test position Photo 7: Back side 0mm Photo 8: Right side 0mm Photo 9: Top side 0mm Photo10: Left side 0mm Page 5 of 5 FCC ID:2BHIY-IRA DUO PRO 5G Report No.: LCSA11054150EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity EUT Constructional Details Photo 10: Front View Photo 11: Back View
Test Setup Photos
Page 1 of 2 FCC ID: 2BHIY-IRADUOPRO5G Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2 Page 2 of 2 FCC ID: 2BHIY-IRADUOPRO5G Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Setup Photo(s) of Conducted Emissions Measurement Fig. 3
Test Report
Page 1 of 42 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EF Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT For Wishtel Pvt Ltd Tablet PC Test Model: IRA DUO PRO 5G Prepared for : Wishtel Pvt Ltd Address : 4, Champaklal Industrail Estate, Sion East, Mumbai, MH - 400022 Mumbai India Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : November 18, 2024 Number of tested samples : 2 Sample No. : A241118064-1, A241118064-2 Serial number : Prototype Date of Test : November 18, 2024 ~ January 10, 2025 Date of Report : January 14, 2025 Page 2 of 42 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EF Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT FCC CFR 47 PART 15 E (15.407) Report Reference No. ................. : LCSA11054150EF Date of Issue ................................... : January 14, 2025 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards β Partial application of Harmonised standards β‘ Other standard testing method β‘ Applicantβs Name .......................... : Wishtel Pvt Ltd Address ........................................... : 4, Champaklal Industrail Estate, Sion East, Mumbai, MH - 400022 Mumbai India Test Specification Standard ......................................... : FCC CFR 47 PART 15 E (15.407) Test Report Form No. ................... : TRF-4-E-118 A/0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Tablet PC Trade Mark ...................................... : N/A Test Model ...................................... : IRA DUO PRO 5G Ratings ............................................ : Input: DC 5V, 2A or DC 9V, 2A DC 3.8V by Rechargeable Li-ion Battery, 8000mAh Result ............................................ : Positive Compiled by: Supervised by: Approved by: Nadia Zhou/ Administrator Cary Luo/ Technique principal Gavin Liang/ Manager Page 3 of 42 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EF Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC -- TEST REPORT Test Result: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA11054150EF January 14, 2025 Date of issue EUT......................................... : Tablet PC Test Model............................... : IRA DUO PRO 5G Applicant............................... : Wishtel Pvt Ltd Address.................................. : 4, Champaklal Industrail Estate, Sion East, Mumbai, MH - 400022 Mumbai India Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Wishtel Pvt Ltd Address................................... : 4, Champaklal Industrail Estate, Sion East, Mumbai, MH - 400022 Mumbai India Telephone............................... : / Fax.......................................... : / Factory................................... : Wishtel Pvt Ltd Address................................... : 4, Champaklal Industrail Estate, Sion East, Mumbai, MH - 400022 Mumbai India Telephone............................... : / Fax.......................................... : / Page 4 of 42 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EF Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revision History Report Version Issue Date Revision Content Revised By 000 January 14, 2025 Initial Issue --- Page 5 of 42 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EF Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity TABLE OF CONTENTS 1. GENERAL INFORMATION ...........................β¦
Text truncated - open the document above for the full version.
Test Report
Page 1 of 43 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EE Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT For Wishtel Pvt Ltd Tablet PC Test Model: IRA DUO PRO 5G Prepared for : Wishtel Pvt Ltd Address : 4, Champaklal Industrail Estate, Sion East, Mumbai, MH - 400022 Mumbai India Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : November 18, 2024 Number of tested samples : 2 Sample No. : A241118064-1, A241118064-2 Serial number : Prototype Date of Test : November 18, 2024 ~ January 10, 2025 Date of Report : January 14, 2025 Page 2 of 43 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EE Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT FCC CFR 47 PART 15E (15.407) Report Reference No. ................. : LCSA11054150EE Date of Issue .................................. : January 14, 2025 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards β Partial application of Harmonised standards β‘ Other standard testing method β‘ Applicantβs Name ......................... : Wishtel Pvt Ltd Address .......................................... : 4, Champaklal Industrail Estate, Sion East, Mumbai, MH - 400022 Mumbai India Test Specification Standard ......................................... : FCC CFR 47 PART 15E (15.407) Test Report Form No.................... : TRF-4-E-146 A/0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Tablet PC Trade Mark ..................................... : N/A Test Model ...................................... : IRA DUO PRO 5G Ratings ........................................... : Input: DC 5V, 2A or DC 9V, 2A DC 3.8V by Rechargeable Li-ion Battery, 8000mAh Result ............................................ : Positive Compiled by: Supervised by: Approved by: Nadia Zhou/ Administrator Cary Luo/ Technique principal Gavin Liang/ Manager Page 3 of 43 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EE Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC -- TEST REPORT Test Result: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA11054150EE January 14, 2025 Date of issue EUT......................................... : Tablet PC Test Model............................... : IRA DUO PRO 5G Applicant............................... : Wishtel Pvt Ltd Address.................................. : 4, Champaklal Industrail Estate, Sion East, Mumbai, MH - 400022 Mumbai India Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Wishtel Pvt Ltd Address................................... : 4, Champaklal Industrail Estate, Sion East, Mumbai, MH - 400022 Mumbai India Telephone............................... : / Fax.......................................... : / Factory................................... : Wishtel Pvt Ltd Address................................... : 4, Champaklal Industrail Estate, Sion East, Mumbai, MH - 400022 Mumbai India Telephone............................... : / Fax.......................................... : / Page 4 of 43 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EE Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revision History Report Version Issue Date Revision Content Revised By 000 January 14, 2025 Initial Issue --- Page 5 of 43 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EE Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity TABLE OF CONTENTS 1. GENERAL INFORMATION ......................................β¦
Text truncated - open the document above for the full version.
Test Report
Page 1 of 49 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EF Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix E RF Test Data for 5.8GWIFI (Conducted Measurement) Product Name: Tablet PC Test Model: IRADUO PRO 5G Environmental Conditions Temperature: 23.5ο°C Relative Humidity: 52.3% ATM Pressure: 100.0 kPa Test Engineer: Paddi Chen Supervised by: Nick Peng Page 2 of 49 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EF Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity E.1 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant7 16.315 >=0.5 Pass NVNT a 5785 Ant7 16.334 >=0.5 Pass NVNT a 5825 Ant7 16.333 >=0.5 Pass NVNT n20 5745 Ant7 17.538 >=0.5 Pass NVNT n20 5785 Ant7 17.555 >=0.5 Pass NVNT n20 5825 Ant7 17.18 >=0.5 Pass NVNT n40 5755 Ant7 36.268 >=0.5 Pass NVNT n40 5795 Ant7 36.027 >=0.5 Pass NVNT ac20 5745 Ant7 17.27 >=0.5 Pass NVNT ac20 5785 Ant7 17.526 >=0.5 Pass NVNT ac20 5825 Ant7 17.414 >=0.5 Pass NVNT ac40 5755 Ant7 36.284 >=0.5 Pass NVNT ac40 5795 Ant7 36.163 >=0.5 Pass NVNT ac80 5775 Ant7 75.552 >=0.5 Pass Page 3 of 49 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EF Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs -6dB Bandwidth NVNT a 5745MHz Ant7 -6dB Bandwidth NVNT a 5785MHz Ant7 Page 4 of 49 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EF Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT a 5825MHz Ant7 -6dB Bandwidth NVNT n20 5745MHz Ant7 Page 5 of 49 FCC ID: 2BHIY-IRADUOPRO5G Report No.: LCSA11054150EF Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tβ¦
Text truncated - open the document above for the full version.
Contact Information
Applicant
Charanjeet Singh Arora
[email protected]Fax: N/A
Test Firm
Shenzhen LCS Compliance Testing Laboratory Ltd.Gavin Liang
[email protected]Fax: 0755-82591132
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15E | 5.18 GHz - 5.24 GHz | 20.10 mW |
| 2 | 15E | 5.75 GHz - 5.83 GHz | 20.80 mW |
