2BHJP-CXZ502carplay

carplay This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help important announcement Note: Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Dongguan Chenxin Zheng hardware plastic technology Co., LTD 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Dongguan Chenxin Zheng hardware plastic technology Co., LTD Address: No. 78, Qinglin Road, Qingxi Town, Dongguan City, China Product Name: carplay FCC ID: 2BHJP-CXZ502 Model(s): CXZ502, CXZ501 2.911(d)(5)(i) Equipment Type We, [Dongguan Chenxin Zheng hardware plastic technology Co., LTD] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Yonglin Liu Date: 2024-08-08 Title and Company name: General Manager /Dongguan Chenxin Zheng hardware plastic technology Co., LTD NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Dongguan Chenxin Zheng hardware plastic technology Co., LTD 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Dongguan Chenxin Zheng hardware plastic technology Co., LTD Address: No. 78, Qinglin Road, Qingxi Town, Dongguan City, China Product Name: carplay FCC ID: 2BHJP-CXZ502 Model(s): CXZ502, CXZ501 2.911(d)(5)(ii) Applicant filing We, [Dongguan Chenxin Zheng hardware plastic technology Co., LTD] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Yonglin Liu Date: 2024-08-08 Title and Company name: General Manager /Dongguan Chenxin Zheng hardware plastic technology Co., LTD NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Dongguan Chenxin Zheng hardware plastic technology Co., LTD 2.911 (d)(7)USA Agent v1.3 Section 2.911(d)(7) USA Agent for Service of Process Company name: Dongguan Chenxin Zheng hardware plastic technology Co., LTD Address: No. 78, Qinglin Road, Qingxi Town, Dongguan City, China Product Name: carplay FCC ID: 2BHJP-CXZ502 Model(s): CXZ502, CXZ501 2.911(d)(7) USA Designated Agent for Service of Process We, [Dongguan Chenxin Zheng hardware plastic technology Co., LTD] (“the applicant”) designate [Wilson Tech Service LLC] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: Wilson Tech Service LLC Address: 1312 17th Street Suite 692, Denver, CO, 80202, US FRN: 0033402033 Contact Name: Wilson Cheung Telephone No: +1-716-965-5112 Email: [email protected] Applicant Company name: Dongguan Chenxin Zheng hardware plastic technology Co., LTD Address: No. 78, Qinglin Road, Qingxi Town, Dongguan City, China FRN: 0035675859 FCC Grantee Code:2BHJP Contact Name: Yonglin Liu Telephone No: 13113313939 Email: [email protected] Dongguan Chenxin Zheng hardware plastic technology Co., LTD 2.911 (d)(7)USA Agent v1.3 Signature: Title:Manager Signature: Title: General Manager Date: 2024-08-09 Date: 2024-08-09 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

FCC Software Configuration Control Declaration Rev1.1 Dongguan Chenxin Zheng hardware plastic technology Co., LTD FCC Software Configuration Control Declaration Date: 2024-08-08 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: active loudspeaker/Transparent One Encore PLUS Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Yonglin Liu Date: 2024-08-08 Title: General Manager Signature of applicant

Dongguan Chenxin Zheng hardware plastic technology Co., LTD Agent Authorization Company: Dongguan Chenxin Zheng hardware plastic technology Co., LTD Address: No. 78, Qinglin Road, Qingxi Town, Dongguan City, China Product Name: carplay Model Number(s): CXZ502, CXZ501 Product Description: Frequency in 2402-2480MHz, BT mode operation, and 5180MHz~5240MHz & 5725MHz~5850MHz, 5G WIFI mode operation. We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2024-08-08 Name: Yonglin Liu Title: General Manager Company: Dongguan Chenxin Zheng hardware plastic technology Co., LTD

Dongguan Chenxin Zheng hardware plastic technology Co., LTD Add: No. 78, Qinglin Road, Qingxi Town, Dongguan City, China Tel: 13113313939 Date: 2024-08-08 Dear Sir/Madam, We, Dongguan Chenxin Zheng hardware plastic technology Co., LTD Hereby declares the following statement , PCB board, circuit, structure and internal of these model(s) are the same, Only the model name and color are different, does not affect the electrical structure: Product name: carplay Models No.: CXZ502, CXZ501 FCC ID: 2BHJP-CXZ502 Sincerely, Client’s name / title : Yonglin Liu / General Manager Contact information / address: Dongguan Chenxin Zheng hardware plastic technology Co., LTD / No. 78, Qinglin Road, Qingxi Town, Dongguan City, China Tel: 13113313939 E-Mail: [email protected]

Dongguan Chenxin Zheng hardware plastic technology Co., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024-08-08 Subject; Request for Confidentiality FCC ID: 2BHJP-CXZ502 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure FCC Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yonglin Liu Dongguan Chenxin Zheng hardware plastic technology Co., LTD Title: General Manager

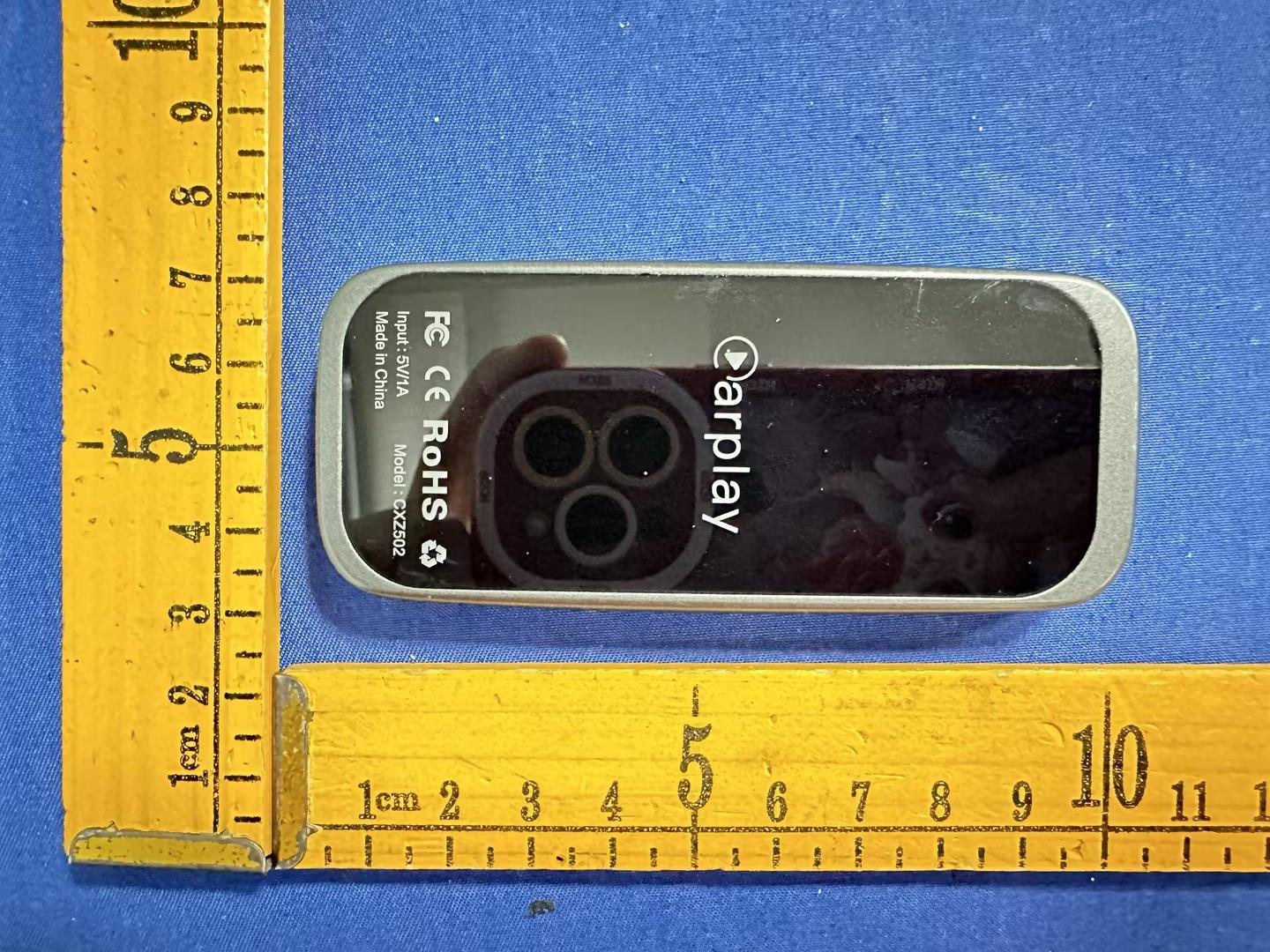

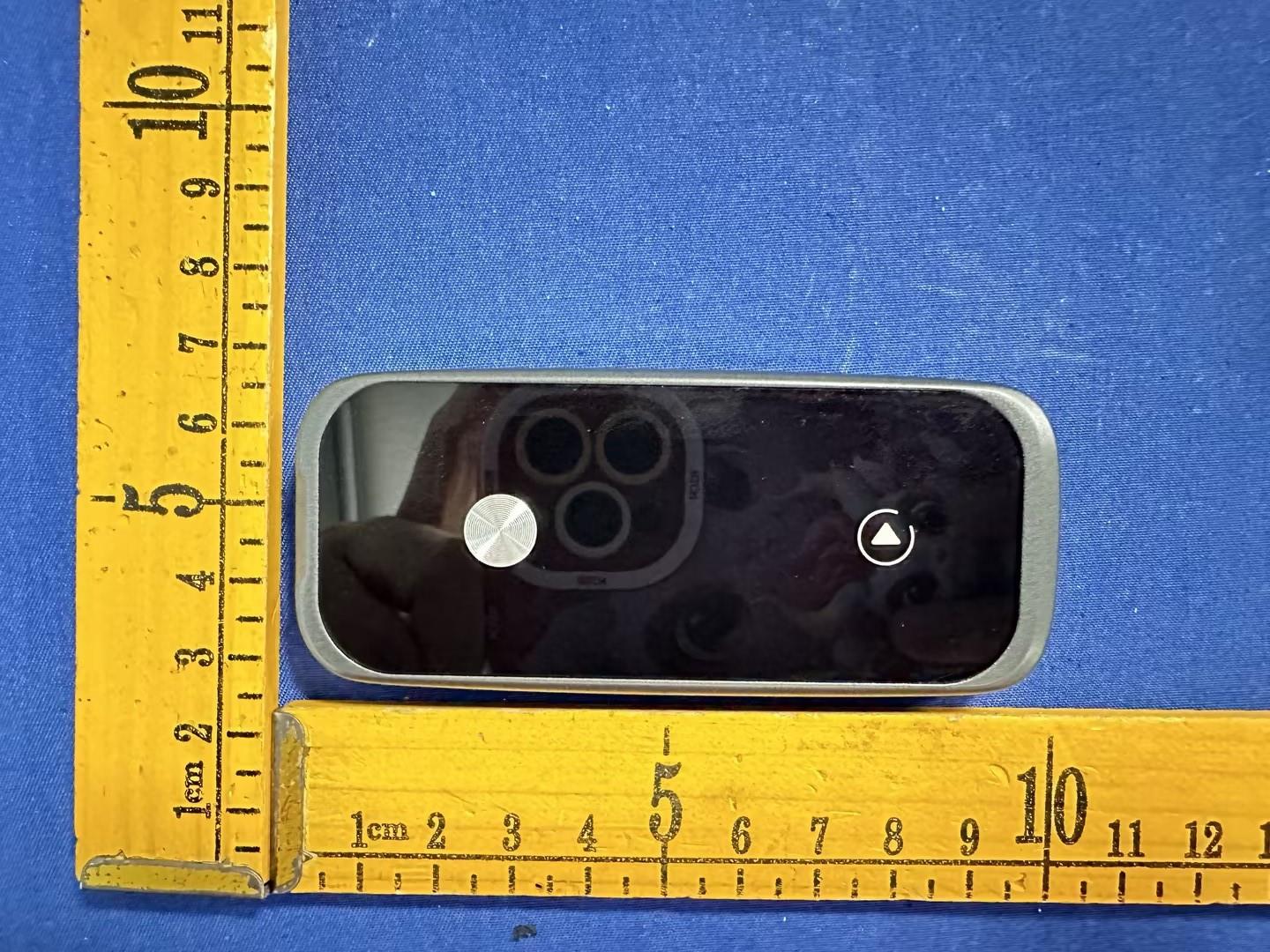

Page 1 of 4 Shenzhen NCT Testing Technology Co., Ltd. A101&2F B2, Fuqiao 6th Area, Xintian Community, Fuhai Street, Baoan District, Shenzhen, China Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn FCC ID: 2BHJP-CXZ502 External Photos Page 2 of 4 Shenzhen NCT Testing Technology Co., Ltd. A101&2F B2, Fuqiao 6th Area, Xintian Community, Fuhai Street, Baoan District, Shenzhen, China Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn Page 3 of 4 Shenzhen NCT Testing Technology Co., Ltd. A101&2F B2, Fuqiao 6th Area, Xintian Community, Fuhai Street, Baoan District, Shenzhen, China Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn Page 4 of 4 Shenzhen NCT Testing Technology Co., Ltd. A101&2F B2, Fuqiao 6th Area, Xintian Community, Fuhai Street, Baoan District, Shenzhen, China Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn

Label & label location (Size: L 3.0cm x W 0.8cm) label location Model: CXZ502 FCC ID: 2BHJP-CXZ502

Page 1 of 3 Shenzhen NCT Testing Technology Co., Ltd. A101&2F B2, Fuqiao 6th Area, Xintian Community, Fuhai Street, Baoan District, Shenzhen, China Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn FCC ID: 2BHJP-CXZ502 Internal Photos Page 2 of 3 Shenzhen NCT Testing Technology Co., Ltd. A101&2F B2, Fuqiao 6th Area, Xintian Community, Fuhai Street, Baoan District, Shenzhen, China Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn Bluetooth/ WIFI ANT Page 3 of 3 Shenzhen NCT Testing Technology Co., Ltd. A101&2F B2, Fuqiao 6th Area, Xintian Community, Fuhai Street, Baoan District, Shenzhen, China Hotline: 400-8868-419 Fax: 86-755-27790922 http://www.ncttesting.cn

RF Exposure evaluation Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device Refer Standard: KDB 447498 D01 General RF Exposure Guidance v06 FCC Part 2 §2.1091 FCC ID: 2BHJP-CXZ502 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 614 1.63 (100) * 6 3.0 – 30 1842/f 4.89/f (900/f 2 )* 6 30 – 300 61.4 0.163 1.0 6 300 – 1500 / / f/300 6 1500 – 100,000 / / 5 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 614 1.63 (100) * 30 3.0 – 30 824/f 2.19/f (180/f 2 )* 30 30 – 300 27.5 0.073 0.2 30 300 – 1500 / / f/1500 30 1500 – 100,000 / / 1.0 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information use antennas certificated as follows provided by manufacturer; Internal Identification Antenna Identification in Internal photos Antenna type and antenna number Operate frequency band Maximum antenna gain BT Antenna 0 PCB Antenna 2402MHz-2480MHz -2.23dBi 5.2G Wifi Antenna 0 PCB Antenna 5180MHz~5240MHz 3.08dBi 5.8G Wifi Antenna 0 PCB Antenna 5725MHz~5850MHz 5.12dBi 5. Manufacturing Tolerance BT GFSK(Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 4.0 4.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 BT π/4 DQPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 6.0 6.0 6.0 Tolerance ±(dB) 1.0 1.0 1.0 BT 8DPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 7.0 7.0 6.0 Tolerance ±(dB) 1.0 1.0 1.0 BT LE GFSK(Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 4.0 4.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 5.2G WLAN IEEE 802.11A (Average) Frequency (MHz) 5180 5200 5240 Target (dBm) 12.0 12.0 13.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n20 (Average) Frequency (MHz) 5180 5200 5240 Target (dBm) 12.0 12.0 13.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n40 (Average) Frequency (MHz) 5190 / 5230 Target (dBm) 10.0 / 10.0 Tolerance ±(dB) 1.0 / 1.0 5.8G WLAN IEEE 802.11A (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 11.0 10.0 8.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n20 (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 11.0 10.0 8.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n40 (Average) Frequency (MHz) 5755 / 5795 Target (dBm) 8.0 / 7.0 Tolerance ±(dB) 1.0 / 1.0 6. Evaluation Results for Standalone 6.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm2 ) MPE Limits (mW/cm2 ) dBm mW BT 8.0 6.3096 -2.23 0.5984 0.0008 1.0000 BLE 5.0 3.1623 -2.23 0.5984 0.0004 1.0000 5.2GWIFI 14.0 25.1189 3.08 2.0324 0.0102 1.0000 5.8GWIFI 12.0 15.8489 5.12 3.2509 0.0103 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Simultaneous MPE Result The product's Bluetooth and wifi use the same RF module and the same antenna, there is no need to consider synchronous transmission issues. 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device.

Page 1 of 87 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn TESTREPORT FCCID:2BHJP-CXZ502 Product: carplay ModelName:CXZ502,CXZ501 Brand: N/A ReportNo.: NCT24029551-3 Preparedfor DongguanChenxinZhenghardwareplastictechnologyCo.,LTD No.78,QinglinRoad,QingxiTown,DongguanCity,China Preparedby ShenzhenNCTTestingTechnologyCo.,Ltd. A101&2FB2,Fuqiao6thArea,XintianCommunity,FuhaiStreet,BaoanDistrict, Shenzhen,People’sRepublicofChina TEL:400-8868-419 FAX:86-755-27790922 ReportNo.:NCT24029551-3 Page 2 of 87 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 1TESTRESULTCERTIFICATION Applicant’sname:DongguanChenxinZhenghardwareplastictechnologyCo.,LTD Address:No.78,QinglinRoad,QingxiTown,DongguanCity,China Manufacture'sname:DongguanChenxinZhenghardwareplastictechnologyCo.,LTD Address:No.78,QinglinRoad,QingxiTown,DongguanCity,China Productname:carplay Modelname:CXZ502 Additionalmodel:CXZ501 ModelDifferent: Onlythemodelnameandcoloraredifferent,PCBboard,structureand internalofthesemodel(s)arethesame,Sonoadditionalmodelswere tested. Standards: FCCCFRTitle47Part15SubpartCSection15.407 ANSIC63.10:2013 KDB789033D02v02r01 Testprocedure:ANSIC63.10:2013 TestDate:Jun.25~Aug.09,2024 DateofIssue:Aug.09,2024 TestResult:Pass ThisdevicedescribedabovehasbeentestedbyNCT,andthetestresultsshowthatthe equipmentundertest(EUT)isincompliancewiththeFCCrequirements.Anditisapplicable onlytothetestedsampleidentifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofNCT,this documentmaybealteredorrevisedbyNCT,personalonly,andshallbenotedintherevision ofthedocument. TestEngineer: HughZhang/Engineer TechnicalManager: HenryWang/Manager ReportNo.:NCT24029551-3 Page 3 of 87 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn Contents Page 1TESTRESULTCERTIFICATION...............................................................................................................................2 2TESTSUMMARY..........................................................................................................................................................5 3TESTFACILITY.............................................................................................................................................................6 4GENERALINFORMATION..........................................................................................................................................7 4.1GENERALDESCRIPTIONOFE.U.T.....................................................................................................................7 4.2TESTSETUPCONFIGURATION............................................................................................................................9 4.3TESTMODE.........................................................................................................................................................9 5EQUIPMENTDURINGTEST....................................................................................................................................10 5.1EQUIPMENTSLIST.............................................................................................................................................10 5.2MEASUREMENTUNCERTAINTY.........................................................................................................................10 5.3DESCRIPTIONOFSUPPORTUNITS...................................................................................................................12 6CONDUCTEDEMISSION..........................................................................................................................................13 6.1E.U.T.OPERATION............................................................................................................................................13 6.2EUTSETUP.......................................................................................................................................................13 6.3TESTSET-UP(BLOCKDIAGRAMOFCONFIGURATION).................................................................................14 6.4MEASUREMENTPROCEDURE:...........................................................................................................................14 6.5CONDUCTEDEMISSIONLIMIT...........................................................................................................................14 6.6MEASUREMENTDESCRIPTION..........................................................................................................................14 6.7CONDUCTEDEMISSIONTESTRESULT.............................................................................................................14 7RADIATEDSPURIOUSEMISSIONS......................................................................................................................17 7.1EUTOPERATION...............................................................................................................................................17 7.2TESTSETUP......................................................................................................................................................18 7.3SPECTRUMANALYZERSETUP..........................................................................................................................19 7.4TESTPROCEDURE.............................................................................................................................................20 7.5SUMMARYOFTESTRESULTS...........................................................................................................................21 8POWERSPECTRALDENSITYTEST.....................................................................................................................33 8.1TESTSTANDARDANDLIMIT..............................................................................................................................33 8.2TESTSETUP................................…

Text truncated - open the document above for the full version.

ReportNo.:NCT24029551-3 Page 45 of 85 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn IEEE802.11a_Channel48_20MHz_Antenna0IEEE802.11n_Channel36_20MHz_Antenna0 IEEE802.11n_Channel40_20MHz_Antenna0IEEE802.11n_Channel48_20MHz_Antenna0 IEEE802.11n_Channel38_40MHz_Antenna0IEEE802.11n_Channel46_40MHz_Antenna0 ReportNo.:NCT24029551-3 Page 46 of 85 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn IEEE802.11a_Channel149_20MHz_Antenna0IEEE802.11a_Channel157_20MHz_Antenna0 IEEE802.11a_Channel165_20MHz_Antenna0IEEE802.11n_Channel149_20MHz_Antenna0 IEEE802.11n_Channel157_20MHz_Antenna0IEEE802.11n_Channel165_20MHz_Antenna0 ReportNo.:NCT24029551-3 Page 47 of 85 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn IEEE802.11n_Channel151_40MHz_Antenna0IEEE802.11n_Channel159_40MHz_Antenna0 ReportNo.:NCT24029551-3 Page 48 of 85 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 6dBBandwidth: ModeChannelAnt. Center Frequency (MHz) 6dBBandwidth (MHz) Limit (MHz) Result IEEE802.11a 36 0 518017.33 ≥0.5 PASS 40520017.34PASS 48524017.34PASS IEEE802.11n_20 36518016.01PASS 40520016.09PASS 48524016.05PASS IEEE802.11n_40 38519035.02PASS 46523035.12PASS ModeChannelAnt. Center Frequency (MHz) 6dBBandwidth (MHz) Limit (MHz) Result IEEE802.11a 149 0 574516.05 ≥0.5 PASS 157578516.06PASS 165582516.34PASS IEEE802.11n_20 149574517.25PASS 157578517.32PASS 165582516.62PASS IEEE802.11n_40 151575534.68PASS 159579535.59PASS ReportNo.:NCT24029551-3 Page 49 of 85 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn IEEE802.11a_Channel36_20MHz_Antenna0IEEE802.11a_Channel40_20MHz_Antenna0 IEEE802.11a_Channel48_20MHz_Antenna0IEEE802.11n_Channel36_20MHz_Antenna0 IEEE802.11n_Channel40_20MHz_Antenna0IEEE802.11n_Channel48_20MHz_Antenna0 ReportNo.:NCT24029551-3 Page 50 of 85 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn IEEE802.11n_Channel38_40MHz_Antenna0IEEE802.11n_Channel46_40MHz_Antenna0 IEEE802.11a_Channel149_20MHz_Antenna0IEEE802.11a_Channel157_20MHz_Antenna0 IEEE802.11a_Channel165_20MHz_Antenna0IEEE802.11n_Channel149_20MHz_Antenna0 ReportNo.:NCT24029551-3 Page 51 of 85 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn IEEE802.11n_Channel157_20MHz_Antenna0IEEE802.11n_Channel165_20MHz_Antenna0 IEEE802.11n_Channel151_40MHz_Antenna0IEEE802.11n_Channel159_40MHz_Antenna0 ReportNo.:NCT24029551-3 Page 52 of 85 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 10MaximumConductedOutputPower 10.1TestStandardandLimit AccordingtoFCC§15.407 (1)Fortheband5.15~5.25GHz (i)Foranoutdooraccesspointoperatingintheband5.15-5.25GHz,themaximumconductedoutput poweroverthefrequencybandofoperationshallnotexceed1Wprovidedthemaximumantennagain doesnotexceed6dBi.Iftransmittingantennasofdirectionalgaingreaterthan6dBiareused,boththe maximumconductedoutputpowerandthemaximumpowerspectraldensityshallbereducedbythe amountindBthatthedirectionalgainoftheantennaexceeds6dBi.Themaximume.i.r.p.atany elevationangleabove30degreesasmeasuredfromthehorizonmustnotexceed125mW(21dBm). (ii)Foranindooraccesspointoperatingintheband5.15-5.25GHz,themaximumconductedoutput poweroverthefrequencybandofoperationshallnotexceed1Wprovidedthemaximumantennagain doesnotexceed6dBi.Iftransmittingantennasofdirectionalgaingreaterthan6dBiareused,boththe maximumconductedoutputpowerandthemaximumpowerspectraldensityshallbereducedbythe amountindBthatthedirectionalgainoftheantennaexceeds6dBi. (iii)Forfixedpoint-to-pointaccesspointsoperatingintheband5.15-5.25GHz,themaximumconducted outputpoweroverthefrequencybandofoperationshallnotexceed1W.Fixedpoint-to-pointU-NII devicesmayemployantennaswithdirectionalgainupto23dBiwithoutanycorrespondingreductionin themaximumconductedoutputpower.Forfixedpoint-to-pointtransmittersthatemployadirectional antennagaingreaterthan23dBi,a1dBreductioninmaximumconductedoutputpowerisrequiredfor each1dBofantennagaininexcessof23dBi.Fixed,point-to-pointoperationsexcludetheuseofpoint- to-multipointsystems,omnidirectionalapplications,andmultiplecollocatedtransmitterstransmittingthe sameinformation.TheoperatoroftheU-NIIdevice,oriftheequipmentisprofessionallyinstalled,the installer,isresponsibleforensuringthatsystemsemployinghighgaindirectionalantennasareused exclusivelyforfixed,point-to-pointoperations. (iv)Formobileandportableclientdevicesinthe5.15-5.25GHzband,themaximumconductedoutput poweroverthefrequencybandofoperationshallnotexceed250mWprovidedthemaximumantenna gaindoesnotexceed6dBi.Iftransmittingantennasofdirectionalgaingreaterthan6dBiareused, boththemaximumconductedoutputpowershallbereducedbytheamountindBthatthedirectional gainoftheantennaexceeds6dBi. (2)For5725~5850MHz Fortheband5.725-5.85GHz,themaximumconductedoutputpoweroverthefrequencybandof operationshallnotexceed1W.Inaddition,themaximumpowerspectraldensityshallnotexceed30 dBminany500-kHzband.Iftransmittingantennasofdirectionalgaingreaterthan6dBiareused,both themaximumconductedoutputpowerandthemaximumpowerspectraldensityshallbereducedby theamountindBthatthedirectionalgainoftheantennaexceeds6dBi.However,fixedpoint-to-point U-NIIdevicesoperatinginthisbandmayemploytransmittingantennaswithdirectionalgaingreater than6dBiwithoutanycorrespondingreductionintransmitterconductedpower.Fixed,point-to-point operationsexcludetheuseofpoint-to-multipointsystems,omnidirectionalapplications,andmultiple collocatedtransmitterstransmittingthesameinformation.TheoperatoroftheU-NIIdevice,orifthe ReportNo.:NCT24029551-3 Page 53 of 85 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn equipmentisprofessionallyinstalled,theinstaller,isresponsibleforensuringthatsystemsemploying highgaindirectionalantennasareusedexclusivelyforfixed,point-to-pointoperatio…
