2BHTU-V1201MINI PARTY LIGHT BT SPEAKER

， 激光光源： 532nm 线光激光器／ 650nm 红光激光器 LED 光源：三合 一 RGB+UV 紫光灯珠 扫描系统：精密电机 11 喇叭规格： 52MM 充电电压： 5V 工作电流： 550MA 输入灵敏度： 400MV 无线接收距离 �15M 无线名称： V12 工作电压： 3.7-4.2V 电池容量： 5000MA 信噪比""BOdb 无线版本： V 5.2 音频输出功率：8W 使用环境： 10 ° C-40 ° C 最佳 II 工作时长：约 3-5 小时 产品毛重： 900 克 充电时长：纸 5-6 小时 产品净重：640 克 产品颠色：黑、粉、蓝、绿 ． ＾ 本产品属于川B类激光产品，应避免眼睛贴近出光源 ． 位置受到激光照射，否则可能引起眼睛不适。 ＾ 勿让儿童单独操作本产品，其他人操作前请进行安 ． 全提示。 ＾ 本产品适于室内使用，防护等级为 IP20 ，适于干燥环 ． 境，请避免在潮湿，腐蚀，过热，过冷，多灰尘的环境 中使用，温度低于 S ° C ，激光器可能不工作。 郑重声明： 本产品是气氛灯具，不是照明灯具， 一 般夜晚或者光 线暗的场所使用最佳，灯光效果最佳距离10米内。 瓦心］逵飞囚画］ ＿ Laser source: 532nm green laser/ 650nm red laser LED light source: Three in one RGB+UV purple light beads Scanningsy劝叩：Precisionm咖rhom Charging voltage: SV Working voltage: 3. 7-4.2V Workingcurrent;550邓 ll Batterycapacity:5000MA Input sensitivity: 400MV signal-to-noise rati畛80dB speeification:52MM l l BT version:V 5.2 Audio output power: SW BT receiving distance勺SM Operating environment: 10 •c-40 •c, optimal Charging time: Paper 5-6 hours working time: about 3-4 hours Product gross weight: 900g Product net weight: 640g Product colors: black, blue, pink, green ＿ &ThisproductbelongstoClasslIIBlaserproducts,andit � is important to avoid laser irradiation on the eyes close to the light source, otherwise it may cause discomfort to the eyes. &Donotallowchildrentooperatethisproductalone. u Please provide safety instructions before othe巧 operate. ^ Thisproductissuitableforindooruse,witha Ll protection level of IP20, suitable for dry environments. Please avoid exposure to moisture, corrosion, overheating, or undercooling, When used in dusty environments with temperatures below 5 °C, the laser may not work. Solemnly declare: This product is an atmosphere lighting fixture, not a lighting fixture. It is generally best used at night or in dimly lit places, with the best lighting effect within a distance of 10 meters. 芦＠函困画 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Speaker: Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement in portable exposure condition without restriction. Micrphone Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement in portable exposure condition without restriction.

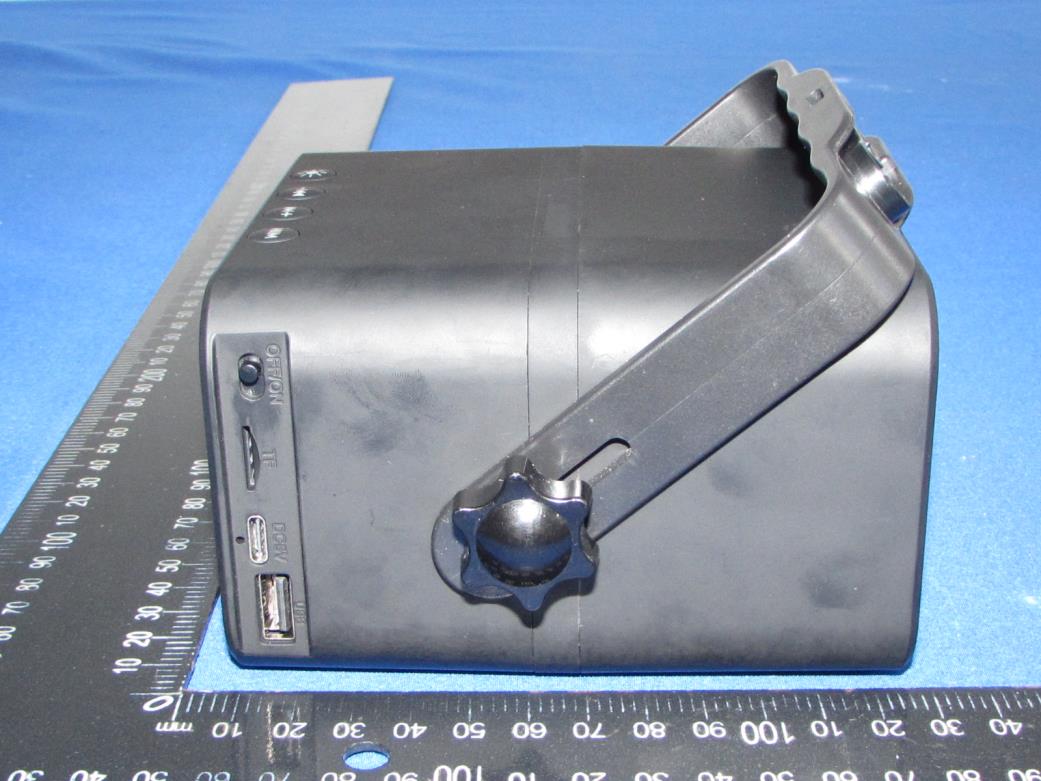

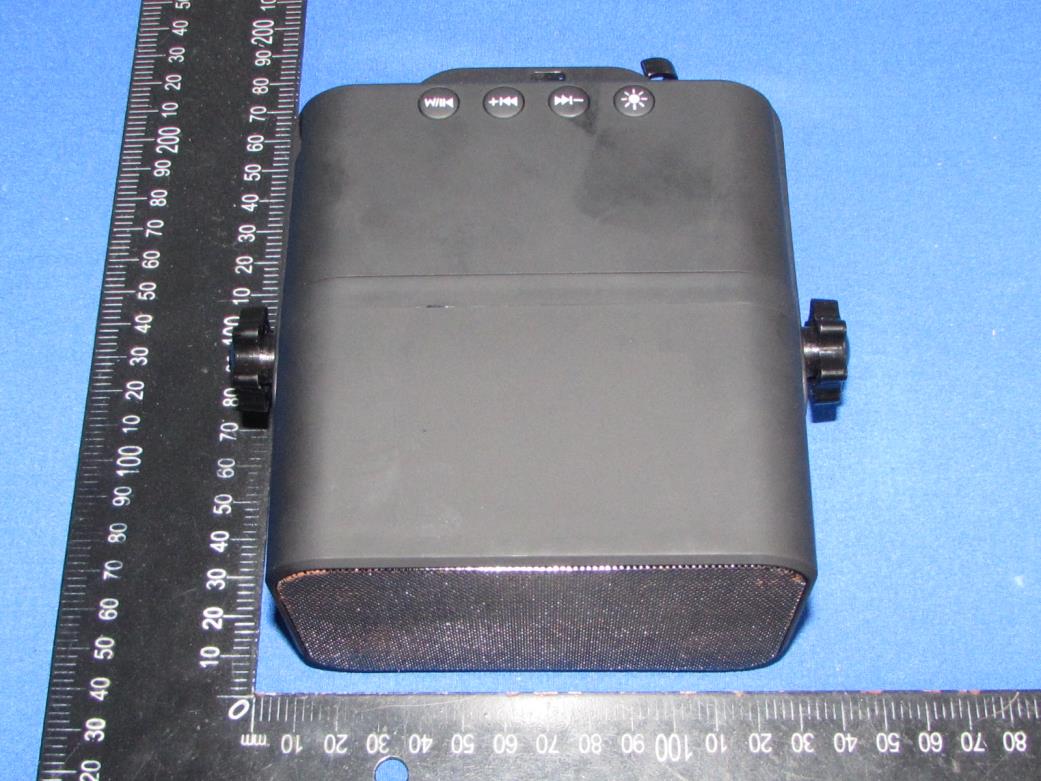

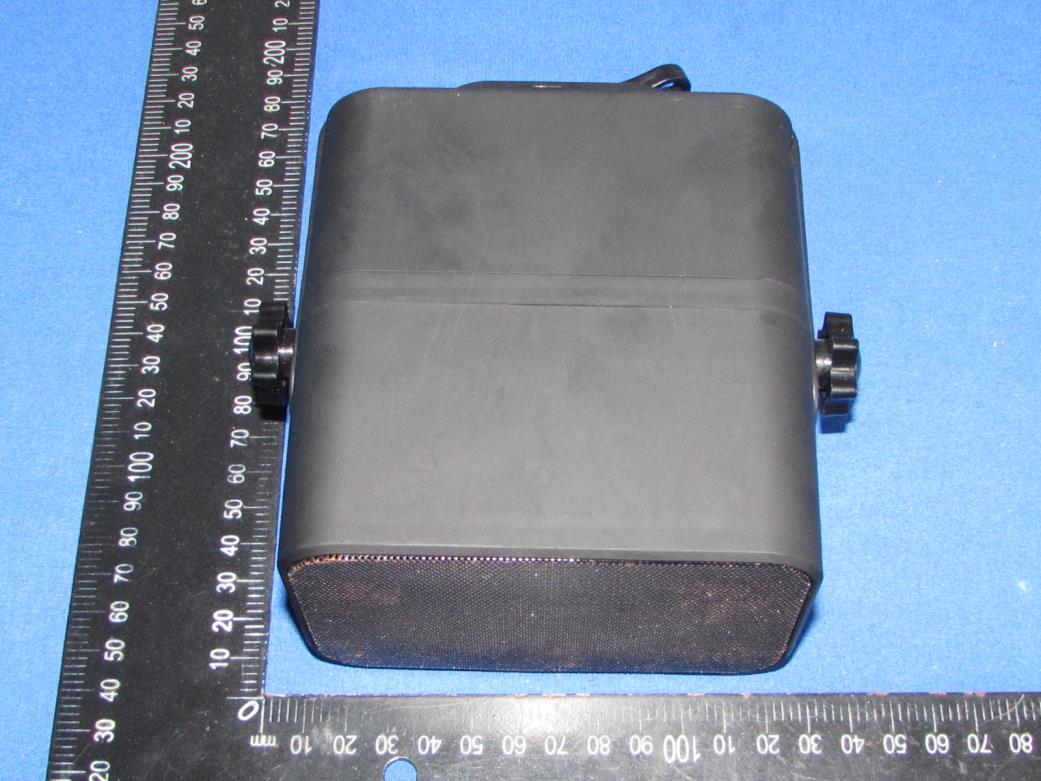

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6

Label Location: FCC ID: 2BHTU-V1201

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6 Antenna 1 Antenna 2

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 Maximum Permissible Exposure Report 1 PRODUCT INFORMATION EUT : MINI PARTY LIGHT BT SPEAKER Model Number : V12, SH-309, SH-319, SH-313, SH-316, SH-339, SH-318, W15,V16,V18,V19,V20, ZHF-337, XK-301, XK-302, XK-303, XK-304, XK-305, XK-306 Model Declaration : All the same except for the model name Test Model : V12 Power Supply : DC 3.6V by battery USB Input: DC5V Hardware version : V1.0 Software version : V1.0 2 LIMIT AND METHOD 2.1 Refer evaluation method According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “[(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 3 ANTENNA INFORMATION Antenna Gain and type refer to Antenna specification Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 4 CONDUCTED POWER Bluetooth 1(BDR+EDR) Test Mode Antenna Frequency[MHz] Result[dBm] DH5 Ant1 2402 -2.68 DH5 Ant1 2441 -2.40 DH5 Ant1 2480 -2.40 2DH5 Ant1 2402 -1.98 2DH5 Ant1 2441 -1.76 2DH5 Ant1 2480 -1.69 Bluetooth 2(BDR+EDR) Test Mode Antenna Frequency[MHz] Result[dBm] DH5 Ant1 2402 -2.85 DH5 Ant1 2441 -2.51 DH5 Ant1 2480 -2.55 2DH5 Ant1 2402 -2.10 2DH5 Ant1 2441 -1.81 2DH5 Ant1 2480 -1.84 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 5 MANUFACTURING TOLERANCE Bluetooth 1(BDR+EDR) GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -3.0 -3.0 -3.0 Tolerance ±(dB) 1 1 1 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.5 -2.5 -2 Tolerance ±(dB) 1 1 1 Bluetooth 2(BDR+EDR) GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -3.5 -3.0 -3.0 Tolerance ±(dB) 1 1 1 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.5 -2.5 -2.5 Tolerance ±(dB) 1 1 1 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 6 MEASUREMENT RESULTS 6.1 Standalone Evaluation Result Bluetooth 1(BDR+EDR) Modulation Type Output power Antenn a Gain Antenn a Gain separatio n distance (mm) Caculatio n Value SAR Test Exclusion Threshol d SAR Test Exclusio n (dBi) (linear) dBm mW GFSK -2.0 0.6310 -0.58 0.8750 5 0.196 3.000 Yes π/4-DQPSK -1.0 0.7943 -0.58 0.8750 5 0.246 3.000 Yes Bluetooth 2(BDR+EDR) Modulation Type Output power Antenn a Gain Antenn a Gain separatio n distance (mm) Caculatio n Value SAR Test Exclusion Threshol d SAR Test Exclusio n (dBi) (linear) dBm mW GFSK -2.0 0.6310 0.58 1.1429 5 0.224 3.000 Yes π/4-DQPSK -1.5 0.7079 0.58 1.1429 5 0.251 3.000 Yes Note: Calculation Value =P F /D P=Maximum turn-up power plus Antenna Gain in mW F=Channel frequency in GHz D=Minimum test separation distance in mm Remark: 1. Output power including tune-up tolerance; 2. evaluate distance is 5mm from user manual provide by manufacturer; 6.2 Simultaneous Transmission The highest estimated SAR(1g) Summary Calculation Value Limit Conclusion Ant.1(W/kg) Ant.2(W/kg) 0.033 0.033 0.041 ≤1 Pass The highest estimated SAR = the max Calculation Value / 7.5 Summary Calculation Value = ∑of (the highest measured or estimated SAR Ant.1 +SAR Ant.2 )/1.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 T…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 1 of 36 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: MINI PARTY LIGHT BT SPEAKER Trade Mark: Test Model: V12 FCC ID: 2BHTU-V1201 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 1.029 2401.490 2402.519 --- --- DH5 Ant1 2441 1.041 2440.490 2441.531 --- --- DH5 Ant1 2480 1.050 2479.484 2480.534 --- --- 2DH5 Ant1 2402 1.296 2401.376 2402.672 --- --- 2DH5 Ant1 2441 1.308 2440.367 2441.675 --- --- 2DH5 Ant1 2480 1.326 2479.346 2480.672 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 2 of 36 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 3 of 36 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 4 of 36 2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 5 of 36 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.91054 2401.5561 2402.4666 --- --- DH5 Ant1 2441 0.94448 2440.5316 2441.4761 --- --- DH5 Ant1 2480 0.94128 2479.5314 2480.4727 --- --- 2DH5 Ant1 2402 1.1987 2401.4153 2402.6140 --- --- 2DH5 Ant1 2441 1.2274 2440.4035 2441.6309 --- --- 2DH5 Ant1 2480 1.2173 2479.4089 2480.6262 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 6 of 36 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 7 of 36 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 8 of 36 2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 9 of 36 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency[MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -2.68 ≤20.97 PASS DH5 Ant1 2441 -2.40 ≤20.97 PASS DH5 Ant1 2480 -2.40 ≤20.97 PASS 2DH5 Ant1 2402 -1.98 ≤20.97 PASS 2DH5 Ant1 2441 -1.76 ≤20.97 PASS 2DH5 Ant1 2480 -1.69 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 10 of 36 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 11 of 36 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 12 of 36 2DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 13 of 36 Appendix D: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.864 ≥0.700 PASS 2DH5 Ant1 Hop 1.128 ≥0.884 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 14 of 36 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 15 of 36 Appendix E: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.879 70 0.202 ≤0.4 PASS 2DH5 Ant1 Hop 2.885 60 0.173 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 16 of 36 Test Graphs DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 17 of 36 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 18 of 36 Appendix F: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 19 of 36 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 20 of 36 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -3.24 -50.65 ≤-23.24 PASS DH5 Ant1 High 2480 -2.86 -48.74 ≤-22.86 PASS DH5 Ant1 Low Hop_2402 -3.74 -50.61 ≤-23.74 PASS DH5 Ant1 High Hop_2480 -3.04 -48.65 ≤-23.04 PASS 2DH5 Ant1 Low 2402 -3.24 -50.12 ≤-23.24 PASS 2DH5 Ant1 High 2480 -3.25 -49.29 ≤-23.25 PASS 2DH5 Ant1 Low Hop_2402 -7.93 -50.7 ≤-27.93 PASS 2DH5 Ant1 High Hop_2480 -5.09 -49.62 ≤-25.09 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 21 of 36 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 22 of 36 DH5-Ant1-Hop_2402-PASS DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 23 of 36 2DH5-Ant1-2480-PASS 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 24 of 36 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT1 Page 25 of 36 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 0~Reference -3.91 -3.91 --- PASS DH5 Ant1 2402 30~1000 -3.91 -62.72 ≤-23.91 PASS DH5 Ant1 2402 1000~26500 -3.91 -50.35 ≤-23.91 PASS DH5 Ant1 2441 0~Reference -3.08 -3.08 --- PASS DH5 Ant1 2441 30~1000 -3.08 -63.19 ≤-23.08 PASS DH5 Ant1 2441 1000~2…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 1 of 36 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: MINI PARTY LIGHT BT SPEAKER Trade Mark: Test Model: V12 FCC ID: 2BHTU-V1201 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 1.020 2401.493 2402.513 --- --- DH5 Ant1 2441 1.038 2440.490 2441.528 --- --- DH5 Ant1 2480 1.041 2479.490 2480.531 --- --- 2DH5 Ant1 2402 1.293 2401.373 2402.666 --- --- 2DH5 Ant1 2441 1.356 2440.334 2441.690 --- --- 2DH5 Ant1 2480 1.347 2479.343 2480.690 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 2 of 36 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 3 of 36 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 4 of 36 2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 5 of 36 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.91553 2401.5464 2402.4619 --- --- DH5 Ant1 2441 0.94166 2440.5349 2441.4766 --- --- DH5 Ant1 2480 0.93936 2479.5340 2480.4733 --- --- 2DH5 Ant1 2402 1.2042 2401.4097 2402.6139 --- --- 2DH5 Ant1 2441 1.2102 2440.4109 2441.6211 --- --- 2DH5 Ant1 2480 1.2315 2479.4027 2480.6342 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 6 of 36 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 7 of 36 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 8 of 36 2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 9 of 36 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency[MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -2.85 ≤30 PASS DH5 Ant1 2441 -2.51 ≤30 PASS DH5 Ant1 2480 -2.55 ≤30 PASS 2DH5 Ant1 2402 -2.10 ≤20.97 PASS 2DH5 Ant1 2441 -1.81 ≤20.97 PASS 2DH5 Ant1 2480 -1.84 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 10 of 36 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 11 of 36 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 12 of 36 2DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 13 of 36 Appendix D: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.278 ≥1.041 PASS 2DH5 Ant1 Hop 0.984 ≥0.904 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 14 of 36 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 15 of 36 Appendix E: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.878 130 0.374 ≤0.4 PASS 2DH5 Ant1 Hop 2.884 130 0.375 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 16 of 36 Test Graphs DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 17 of 36 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 18 of 36 Appendix F: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 19 of 36 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 20 of 36 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -3.59 -49.96 ≤-23.59 PASS DH5 Ant1 High 2480 -3.12 -49.58 ≤-23.12 PASS DH5 Ant1 Low Hop_2402 -4.56 -50.25 ≤-24.56 PASS DH5 Ant1 High Hop_2480 -3.47 -49.64 ≤-23.47 PASS 2DH5 Ant1 Low 2402 -3.41 -50.31 ≤-23.41 PASS 2DH5 Ant1 High 2480 -3.39 -49.27 ≤-23.39 PASS 2DH5 Ant1 Low Hop_2402 -7.33 -49.74 ≤-27.33 PASS 2DH5 Ant1 High Hop_2480 -3.49 -48.76 ≤-23.49 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 21 of 36 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 22 of 36 DH5-Ant1-Hop_2402-PASS DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 23 of 36 2DH5-Ant1-2480-PASS 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 24 of 36 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1201 Report No.: TZ240706032-BT2 Page 25 of 36 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 0~Reference -3.98 -3.98 --- PASS DH5 Ant1 2402 30~1000 -3.98 -63.22 ≤-23.98 PASS DH5 Ant1 2402 1000~26500 -3.98 -50.63 ≤-23.98 PASS DH5 Ant1 2441 0~Reference -3.77 -3.77 --- PASS DH5 Ant1 2441 30~1000 -3.77 -62.02 ≤-23.77 PASS DH5 Ant1 2441 1000~26500 -…

Text truncated - open the document above for the full version.

FCC TEST REPORT Test report On Behalf of Dongguan Xinbaike Electronic Technology Co., Ltd For MINI PARTY LIGHT BT SPEAKER Model No.: V12, SH-309, SH-319, SH-313, SH-316, SH-339, SH-318, W15,V16,V18,V19,V20, ZHF-337, XK-301, XK-302, XK-303, XK-304, XK-305, XK-306 FCC ID: 2BHTU-V1201 Prepared for : Dongguan Xinbaike Electronic Technology Co., Ltd 2nd Floor, No. 19 Gaoyuan Road, Shigu Village, Tangxia Town, Dongguan City, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2024/7/8 ~ 2024/7/15 Date of Report: 2024/7/16 Report Number: TZ240706032-BT1 The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ240706032-BT1 Page 2 of 37 TEST RESULT CERTIFICATION Applicant’s name ................. : Dongguan Xinbaike Electronic Technology Co., Ltd Address .................................. : 2nd Floor, No. 19 Gaoyuan Road, Shigu Village, Tangxia Town, Dongguan City, China Manufacture's Name ............ : Dongguan Xinbaike Electronic Technology Co., Ltd Address .................................. : 2nd Floor, No. 19 Gaoyuan Road, Shigu Village, Tangxia Town, Dongguan City, China Product description Trade Mark ................................ : Product name ............................ : MINI PARTY LIGHT BT SPEAKER Model and/or type reference : V12, SH-309, SH-319, SH-313, SH-316, SH-339, SH-318, W15,V16,V18,V19,V20, ZHF-337, XK-301, XK-302, XK-303, XK-304, XK-305, XK-306 Standards .............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2024/7/8 ~ 2024/7/15 Date of Issue .......................................... : 2024/7/16 Test Result .............................................. : Pass Testing Engineer : (Allen Lai) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ240706032-BT1 Page 3 of 37 Revision History Revision Issue Date Revisions Revised By 00 2024/7/16 Initial Issue Andy Zhang Report No.: TZ240706032-BT1 Page 4 of 37 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................ 5 1.1 Description of Device (EUT) ...................................................................................................... 5 1.2 Wireless Function Tested in this Report ................................................................................... 5 1.3 EUT configuration ..................................................................................................................... 6 1.4 Description of Test Facility ........................................................................................................ 6 1.5 Statement of the Measurement Uncertainty .............................................................................. 6 1.6 Measurement Uncertainty ......................................................................................................... 7 1.7 Description of Test Modes ........................................................................................................ 7 1.8 Frequency of Channels ............................................................................................................. 7 2 TEST METHODOLOGY ..................................................................................................... 8 2.1 EUT Configuration ..................................................................................................................... 8 2.2 EUT Exercise ............................................................................................................................ 8 2.3 Test Sample .............................................................................................................................. 8 3 SYSTEM TEST CONFIGURATION .................................................................................... 9 3.1 Justification ............................................................................................................................... 9 3.2 EUT Exercise Software ............................................................................................................. 9 3.3 Special Accessories .................................................................................................................. 9 3.4 Block Diagram/Schematics ....................................................................................................... 9 3.5 Equipment Modifications ........................................................................................................... 9 3.6 Test Setup ................................................................................................................................. 9 4 SUMMARY OF TEST RESULTS ...................................................................................... 10 5 MEASUREMENT RESULTS ............................................................................................ 11 5.1 Maximum Peak Conducted Output Power .............................................................................. 11 5.2 Frequency Separation and 20 dB Bandwidth .......................................................................... 12 5.3 Number of Hopping Frequency .....................…
