2BHTU-V1202MINI PARTY LIGHT BT SPEAKER

， 激光光源： 532nm 线光激光器／ 650nm 红光激光器 LED 光源：三合 一 RGB+UV 紫光灯珠 扫描系统：精密电机 11 喇叭规格： 52MM 充电电压： 5V 工作电流： 550MA 输入灵敏度： 400MV 无线接收距离 �15M 无线名称： V12 工作电压： 3.7-4.2V 电池容量： 5000MA 信噪比""BOdb 无线版本： V 5.2 音频输出功率：8W 使用环境： 10 ° C-40 ° C 最佳 II 工作时长：约 3-5 小时 产品毛重： 900 克 充电时长：纸 5-6 小时 产品净重：640 克 产品颠色：黑、粉、蓝、绿 ． ＾ 本产品属于川B类激光产品，应避免眼睛贴近出光源 ． 位置受到激光照射，否则可能引起眼睛不适。 ＾ 勿让儿童单独操作本产品，其他人操作前请进行安 ． 全提示。 ＾ 本产品适于室内使用，防护等级为 IP20 ，适于干燥环 ． 境，请避免在潮湿，腐蚀，过热，过冷，多灰尘的环境 中使用，温度低于 S ° C ，激光器可能不工作。 郑重声明： 本产品是气氛灯具，不是照明灯具， 一 般夜晚或者光 线暗的场所使用最佳，灯光效果最佳距离10米内。 瓦心］逵飞囚画］ ＿ Laser source: 532nm green laser/ 650nm red laser LED light source: Three in one RGB+UV purple light beads Scanningsy劝叩：Precisionm咖rhom Charging voltage: SV Working voltage: 3. 7-4.2V Workingcurrent;550邓 ll Batterycapacity:5000MA Input sensitivity: 400MV signal-to-noise rati畛80dB speeification:52MM l l BT version:V 5.2 Audio output power: SW BT receiving distance勺SM Operating environment: 10 •c-40 •c, optimal Charging time: Paper 5-6 hours working time: about 3-4 hours Product gross weight: 900g Product net weight: 640g Product colors: black, blue, pink, green ＿ &ThisproductbelongstoClasslIIBlaserproducts,andit � is important to avoid laser irradiation on the eyes close to the light source, otherwise it may cause discomfort to the eyes. &Donotallowchildrentooperatethisproductalone. u Please provide safety instructions before othe巧 operate. ^ Thisproductissuitableforindooruse,witha Ll protection level of IP20, suitable for dry environments. Please avoid exposure to moisture, corrosion, overheating, or undercooling, When used in dusty environments with temperatures below 5 °C, the laser may not work. Solemnly declare: This product is an atmosphere lighting fixture, not a lighting fixture. It is generally best used at night or in dimly lit places, with the best lighting effect within a distance of 10 meters. 芦＠函困画 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Speaker: Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement in portable exposure condition without restriction. Micrphone Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement in portable exposure condition without restriction.

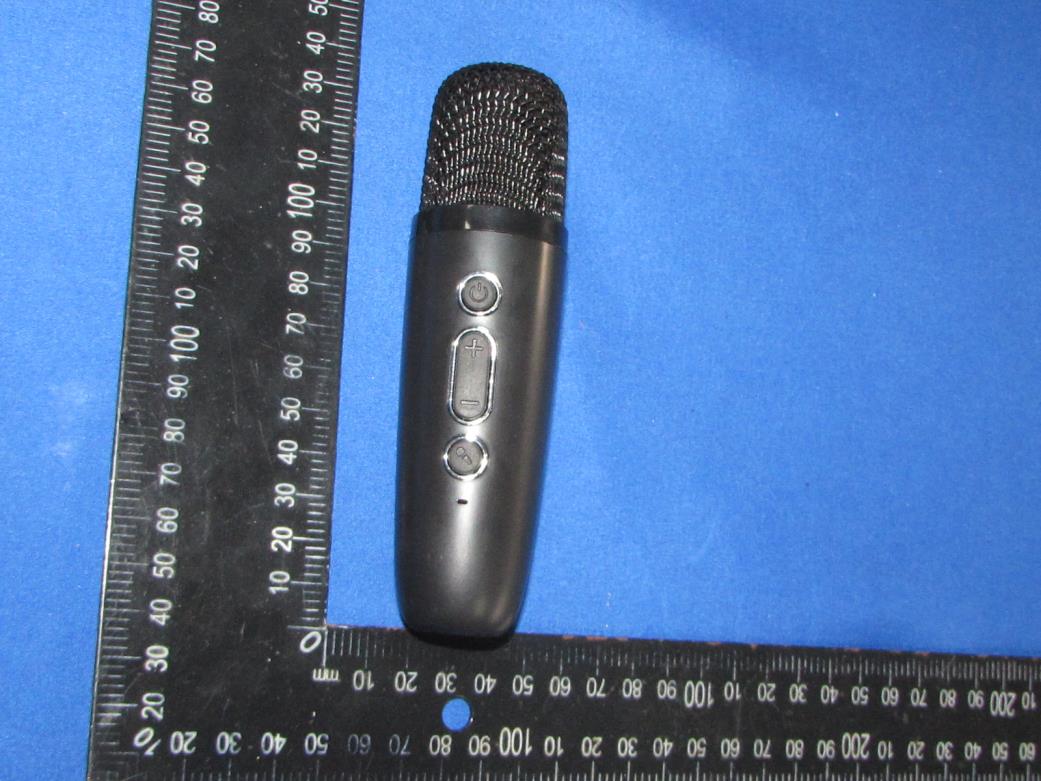

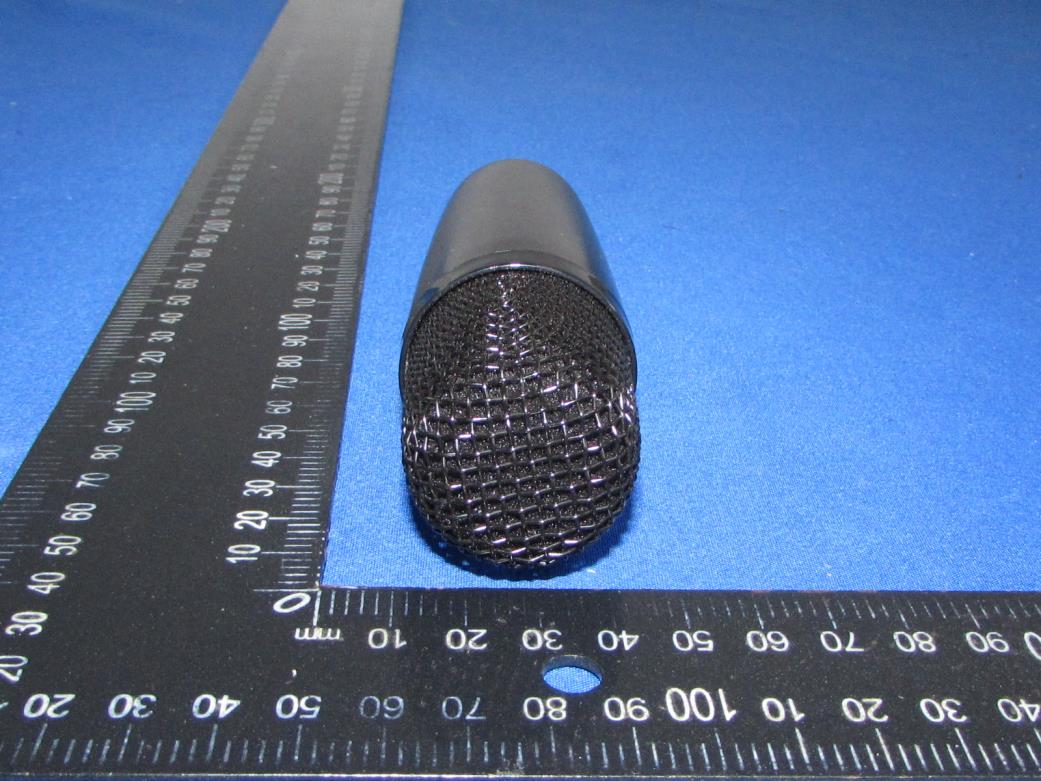

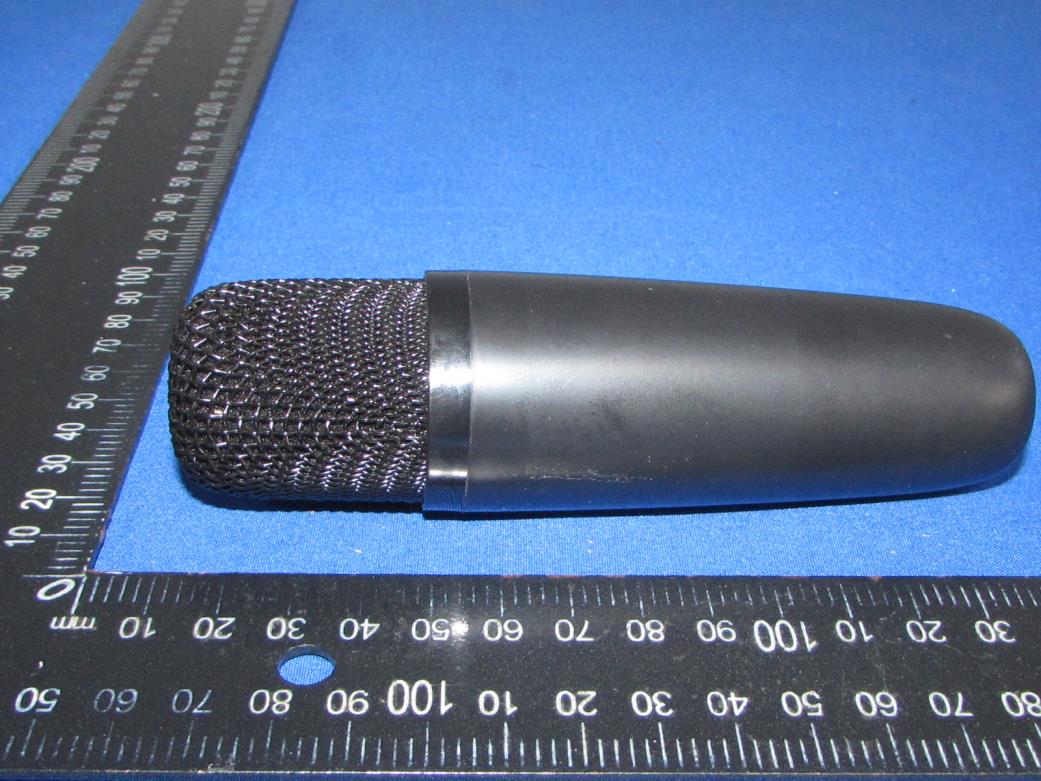

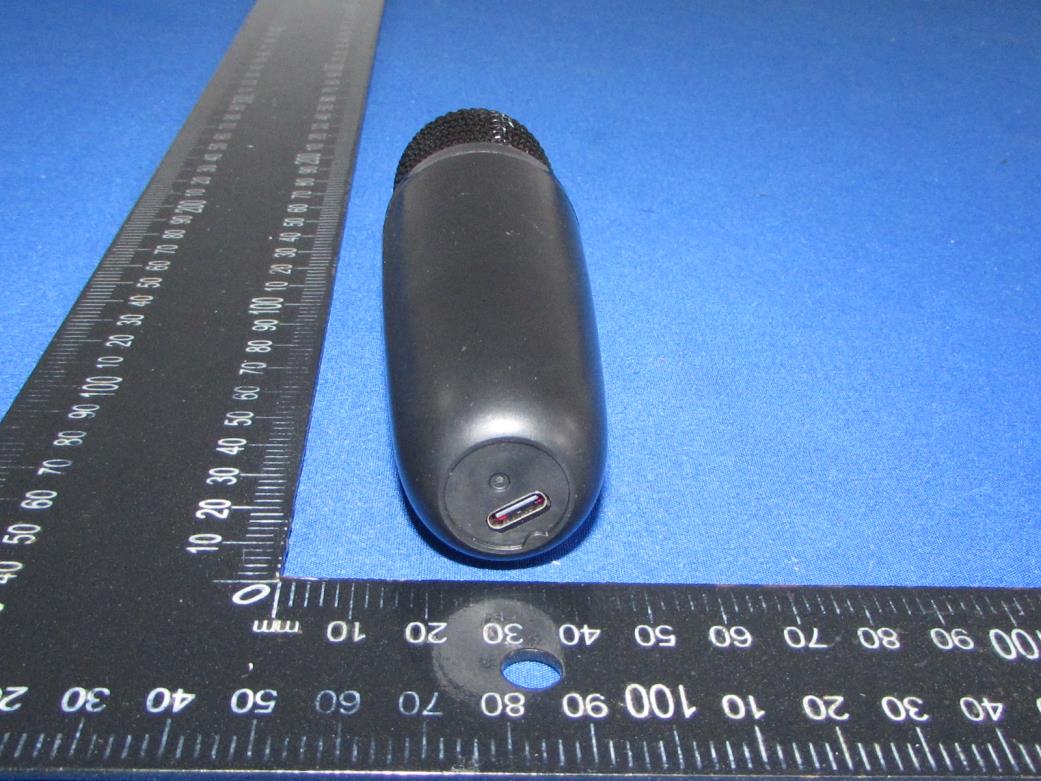

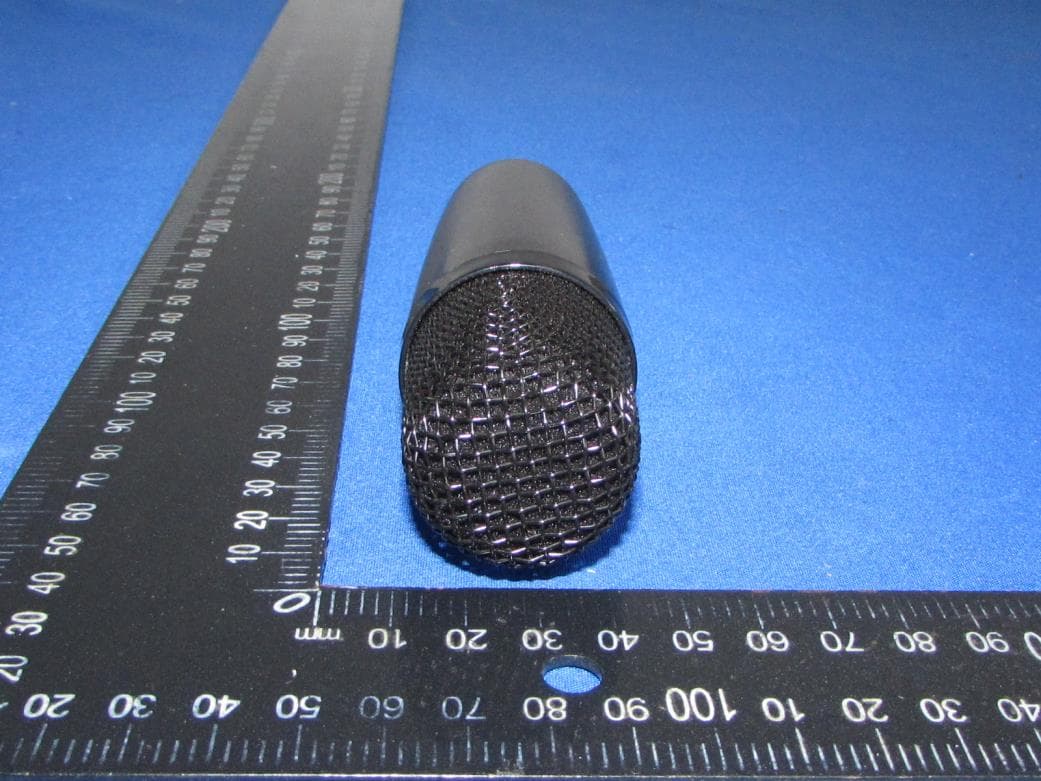

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6

Label Location: FCC ID: 2BHTU-V1202

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Fig.3 Fig.4

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Antenna Frequency[MHz] Result[dBm] DH5 Ant1 2402 -2.64 DH5 Ant1 2441 -2.38 DH5 Ant1 2480 -2.35 2DH5 Ant1 2402 -2.00 2DH5 Ant1 2441 -1.67 2DH5 Ant1 2480 -1.73 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -3.0 -3.0 -3.0 Tolerance ±(dB) 1 1 1 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.5 -2 -2 Tolerance ±(dB) 1 1 1 Results Test Mode Max Conducted Tune Up Power(dBm) Max of ERP and Conducted Power including Tune Up (dBm) Max of ERP and Conducted Power including Tune Up (mW) Exemption Limit(mW) GFSK -2 -2.0 0.63 3 π/4-DQPSK -1 -1.0 0.79 3 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The antenna gain of the EUT for BT is -0.58dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Inverted F Antenna Specification Summary CEPS TNA METI TNA G4.2 emaN ledoM lacitreV latnoziroH 24 00MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 -0.58dB i niaG .XAM lacitreV dna latnoziroH noitaziraloP Azimuth Beam Pattern Omni-directional mhO 05 ecnadepmI mm02.83 htgneL annetnA Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horiz ontal:2400 MHz 2450 MHz 2500 MHz Power ( dBm) Max: 0 Min: -40 Scale: 5/div Gain(d B) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical:2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(d B) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 1 of 36 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: MINI PARTY LIGHT BT SPEAKER Trade Mark: Test Model: V12 FCC ID: 2BHTU-V1202 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 1.038 2401.484 2402.522 --- --- DH5 Ant1 2441 1.056 2440.466 2441.522 --- --- DH5 Ant1 2480 1.047 2479.481 2480.528 --- --- 2DH5 Ant1 2402 1.305 2401.367 2402.672 --- --- 2DH5 Ant1 2441 1.329 2440.343 2441.672 --- --- 2DH5 Ant1 2480 1.341 2479.334 2480.675 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 2 of 36 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 3 of 36 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 4 of 36 2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 5 of 36 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.93493 2401.5394 2402.4743 --- --- DH5 Ant1 2441 0.92313 2440.5442 2441.4673 --- --- DH5 Ant1 2480 0.93277 2479.5374 2480.4702 --- --- 2DH5 Ant1 2402 1.2080 2401.4077 2402.6157 --- --- 2DH5 Ant1 2441 1.2240 2440.4015 2441.6255 --- --- 2DH5 Ant1 2480 1.2317 2479.4025 2480.6342 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 6 of 36 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 7 of 36 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 8 of 36 2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 9 of 36 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency[MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -2.64 ≤20.97 PASS DH5 Ant1 2441 -2.38 ≤20.97 PASS DH5 Ant1 2480 -2.35 ≤20.97 PASS 2DH5 Ant1 2402 -2.00 ≤20.97 PASS 2DH5 Ant1 2441 -1.67 ≤20.97 PASS 2DH5 Ant1 2480 -1.73 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 10 of 36 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 11 of 36 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 12 of 36 2DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 13 of 36 Appendix D: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.934 ≥0.704 PASS 2DH5 Ant1 Hop 0.928 ≥0.894 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 14 of 36 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 15 of 36 Appendix E: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.878 120 0.345 ≤0.4 PASS 2DH5 Ant1 Hop 2.884 80 0.231 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 16 of 36 Test Graphs DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 17 of 36 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 18 of 36 Appendix F: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 19 of 36 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 20 of 36 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -3.25 -50.41 ≤-23.25 PASS DH5 Ant1 High 2480 -2.90 -49.47 ≤-22.9 PASS DH5 Ant1 Low Hop_2402 -4.01 -50.76 ≤-24.01 PASS DH5 Ant1 High Hop_2480 -2.86 -49.34 ≤-22.86 PASS 2DH5 Ant1 Low 2402 -4.24 -49.06 ≤-24.24 PASS 2DH5 Ant1 High 2480 -4.02 -49.43 ≤-24.02 PASS 2DH5 Ant1 Low Hop_2402 -6.73 -49.69 ≤-26.73 PASS 2DH5 Ant1 High Hop_2480 -3.21 -49.16 ≤-23.21 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 21 of 36 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 22 of 36 DH5-Ant1-Hop_2402-PASS DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 23 of 36 2DH5-Ant1-2480-PASS 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 24 of 36 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 Report No.: TZ240706033-BT Page 25 of 36 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 0~Reference -3.39 -3.39 --- PASS DH5 Ant1 2402 30~1000 -3.39 -62.5 ≤-23.39 PASS DH5 Ant1 2402 1000~26500 -3.39 -48.13 ≤-23.39 PASS DH5 Ant1 2441 0~Reference -3.54 -3.54 --- PASS DH5 Ant1 2441 30~1000 -3.54 -62.79 ≤-23.54 PASS DH5 Ant1 2441 1000~26500 -3.54 -49.85 ≤-23.54…

Text truncated - open the document above for the full version.

FCC TEST REPORT Test report On Behalf of Dongguan Xinbaike Electronic Technology Co., Ltd For MINI PARTY LIGHT BT SPEAKER Model No.: V12, SH-309, SH-319, SH-313, SH-316, SH-339, SH-318, W15,V16,V18,V19,V20, ZHF-337, XK-301, XK-302, XK-303, XK-304, XK-305, XK-306 FCC ID: 2BHTU-V1202 Prepared for : Dongguan Xinbaike Electronic Technology Co., Ltd 2nd Floor, No. 19 Gaoyuan Road, Shigu Village, Tangxia Town, Dongguan City, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2024/7/8 ~ 2024/7/15 Date of Report: 2024/7/16 Report Number: TZ240706033-BT The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ240706033-BT Page 2 of 37 TEST RESULT CERTIFICATION Applicant’s name ................. : Dongguan Xinbaike Electronic Technology Co., Ltd Address .................................. : 2nd Floor, No. 19 Gaoyuan Road, Shigu Village, Tangxia Town, Dongguan City, China Manufacture's Name ............ : Dongguan Xinbaike Electronic Technology Co., Ltd Address .................................. : 2nd Floor, No. 19 Gaoyuan Road, Shigu Village, Tangxia Town, Dongguan City, China Product description Trade Mark ................................ : Product name ............................ : MINI PARTY LIGHT BT SPEAKER Model and/or type reference : V12, SH-309, SH-319, SH-313, SH-316, SH-339, SH-318, W15,V16,V18,V19,V20, ZHF-337, XK-301, XK-302, XK-303, XK-304, XK-305, XK-306 Standards .............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2024/7/8 ~ 2024/7/15 Date of Issue .......................................... : 2024/7/16 Test Result .............................................. : Pass Testing Engineer : (Allen Lai) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ240706033-BT Page 3 of 37 Revision History Revision Issue Date Revisions Revised By 00 2024/7/16 Initial Issue Andy Zhang Report No.: TZ240706033-BT Page 4 of 37 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................ 5 1.1 Description of Device (EUT) ...................................................................................................... 5 1.2 Wireless Function Tested in this Report ................................................................................... 5 1.3 EUT configuration ..................................................................................................................... 6 1.4 Description of Test Facility ........................................................................................................ 6 1.5 Statement of the Measurement Uncertainty .............................................................................. 6 1.6 Measurement Uncertainty ......................................................................................................... 7 1.7 Description of Test Modes ........................................................................................................ 7 1.8 Frequency of Channels ............................................................................................................. 7 2 TEST METHODOLOGY ..................................................................................................... 8 2.1 EUT Configuration ..................................................................................................................... 8 2.2 EUT Exercise ............................................................................................................................ 8 2.3 Test Sample .............................................................................................................................. 8 3 SYSTEM TEST CONFIGURATION .................................................................................... 9 3.1 Justification ............................................................................................................................... 9 3.2 EUT Exercise Software ............................................................................................................. 9 3.3 Special Accessories .................................................................................................................. 9 3.4 Block Diagram/Schematics ....................................................................................................... 9 3.5 Equipment Modifications ........................................................................................................... 9 3.6 Test Setup ................................................................................................................................. 9 4 SUMMARY OF TEST RESULTS ...................................................................................... 10 5 MEASUREMENT RESULTS ............................................................................................ 11 5.1 Maximum Peak Conducted Output Power .............................................................................. 11 5.2 Frequency Separation and 20 dB Bandwidth .......................................................................... 12 5.3 Number of Hopping Frequency .........................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 TEST SETUP PHOTOS OF THE EUT Conducted Emission Radiated Emission Below 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHTU-V1202 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Radiated Emission Above 1GHz
