2BHVQ-X5X5 WIRELESS MECHANICAL KEYBOARD

名称：XK2109(X5)海外版说明书 料号：42XK2109006 材质：80g书写纸+打针 尺寸：130x105mm 页数：16页 印刷：2C X5 WIRELESS MECHANICAL KEYBOARD Quick Start Guide 1. Product introduction The user interface and other illustrations of the product accessories in the manual are all schematic diagrams, which are only for reference. Due to the update and upgrading of the product, the actual product may be slightly different from the schematic diagram. Please refer to the actual product. Self-locking hand rest "One-key double Function"key(Fn combination key) Fn Key Tripod Type - c interface Receiver Power switch USB cable 2. Schematic diagram of assembly and disassembly for keyboard hand rest Assembly instructions of keyboard hand restDisassembly instructions of keyboard hand rest 1. Grasp the middle end of the hand rest and align it with the keyboard lock slot, push it in slightly, and hear a "click". Indicates that the keyboard has been locked. 2. The effect of Complete assembly. 1. Grasp the middle of the hand rest and push it forward slightly, and then quickly pull it out after hearing a "click". Remove the hand rest. 2. The effect of complete disassembly. 2.4G modeWired mode 3. Installation instructions 1. Turn on the power switch on the back of the keyboard 1. Connect the "TYPE-C" of the data cable to the keyboard. 2. Insert the USB connector into the USB port of the computer. 3. Plug the receiver into the USB port of the computer 2. Take out the 2.4G wireless receiver ※ After connecting to the computer, the system automatically detects the 2.4G device and installs it by itself. It can be used after the installation is successful. ※ After connecting to the computer, the system will automatically detect the USB device and install it by itself.After successful installation, the user will be prompted to use the current device. > For good 2.4g wireless performance, plug the USB wireless receiver into the USB port on the PC front panel or connect through a USB extension cord to bring the USB wireless receiver closer to the keyboard. 4. FN combination function keys Keep pressing 3S to restore factory default backlight constant brightness mode Custom light mode Backlight interactive mode cycle switch Backlit breathing mode Play / PauseNext songPrev song Volume +Mute Full key / 6 key anti-ghosting (cable model） Win lock Full light switch Custom light clearing (long press 3 seconds) Volume - Custom lighting mode: Short press FN + END to call up the current custom light, then long press FN + END 3S function indicator and the END key to flash, and enter the custom light effect mode. At this time, press the key that needs to be set to modify the on-off and on-off status of the corresponding LED, and press FN + END to save and exit. 5. Charging instructions The USB cable will automatically charge when connected to the computer. The "Fn key" light flashes when charging, and the "Fn key" light follows the current light mode when fully charged. In wireless mode, if the battery is low, the "Fn key" light will flash, please connect to the USB cable for charging. Adjust the backlight brightness - brighter Adjust the speed of backlight change - fast Adjust the backlight brightness - dimming Adjust the speed of backlight change - slow Lock all keys When the keyboard is locked, the "F12" button light is flashes 8. Warning If any liquid enters the product , please immediately disconnect from the computer and remove the product. Continued use may cause fire or electric shock, please contact the agent for inspection and maintenance. Check the product shell regularly for any damage, maintenance operations are outside the scope of product compliance requirements. Disassembly, replacement of parts , modification or modification without express approval will cause the user to lose the right of operating the equipment and the warranty failure. 7. The name and content of the hazardous substance in the product Hazardous substances (Hg)(Cd)(Cr(VI))(PBB)(PBDE) Component name keyboard body Metal case Plastic keys This form has been prepared in accordance with the requirements of SJ/T 11364. O : Indicates that the content of the hazardous substance in all homogeneous materials of the component is below the limit specified in GB/T 26572. X : Indicates that the hazardous substance is contained in at least one homogeneous material of the component. The quantity exceeds the limit specified in GB/T 26572. (Pb) 6. Basic specifications Battery capacity: 2300mah Cable Material: USB Cable braided wire Weight: 1150g Size: 445 x 135 x 37 mm Keyboard type: Dual-mode mechanical keyboard Switch life: 100 Million Cycles Report Rate: 1000HZ ( Wired mode ) Backlight: Monochromatic Function: FN combination function key Attended mode: 2.4G / Wired Voltage / Current: 3.7V / 300mA Keypad: 108 key/Anti-ghosting ( Wired mode ) Supporting: Windows all/Mac OS/Android Switch: Kailh upgrade BOX Switch ( Hexgears custom-made ) 1. 产品介绍 说明书中的产品、配件、用户界面等插图均为示意图, 仅供参考。 由于产品的更新与升级, 产品实物与示意图可能略有差异，请以实物 为准。 自锁式手托 “一键双义”键（Fn 组合键） Fn 键 脚架 Type-c 接口 接收器 电源开关 USB数据线 2. 键盘附手托组装及拆卸示意图 组装手托说明拆卸手托说明 1. 抓住手托的中端平衡对准键盘锁槽，微用力推入，听见一声“咔”响， 表示已经锁入键盘。 2. 完成组装的效果。 1. 抓住手托中端微用力向前推，听见一声“咔”响后迅速往外拉，便可 取下手托。 2. 完成拆卸的效果。 2.4G模式有线模式 3. 安装说明 1. 打开键盘背面的电源开关 1. 将数据线的“TYPE-C”头与键盘相连接。 2. 将USB接头插入电脑的USB接口。 2. 取出2.4G无线接收器 3. 将接收器插入电脑USB接口 ※ 接入电脑后系统自动检 测2.4G设备, 并自行安装, 安装成功后便可使用了。 > 为拥有良好的 2.4G 无线性能，请将 USB 无线接收器插入 PC 前面板的 USB 端口，或通过 USB 延长线连接，使 USB 无线接收器更靠近键盘。 ※ 接入电脑后，系统将自动检测到USB设备，并自行安装，安 装成功后会提示用户当前设备可以使用。 4. FN组合功能键 长按3S恢复出厂默认 背光恒亮模式背光互动模式循环切换背光呼吸模式 播放/暂停下一曲上一曲 音量加静音 全键/6键无冲切换 (有线模式） WIN锁 音量减 自定义灯光模式全灯光开关自定义灯光清除(长按3秒) 自定义灯光模式：短按Fn+End 调出当前自定义灯光，之后长按Fn+End 3S 三颗功能指示灯和End 按键灯闪烁，进入 自定义灯效模式，此时按下需要设定的键，修改对应按键LED灯亮、灭状态，完成设置短按Fn+End保存退出。 5. 充电说明 当USB线连接电脑后将自动充电，充电时”Fn键“灯光闪烁，充满电后”Fn键“灯光跟随当前灯光模式；在无线模式使用时，如果电池 电量不足，”Fn键“灯光会闪烁，请接入USB连接线进行充电。 调整背光亮度-调亮 调整背光变化速率-调快 调整背光亮度-调暗 调整背光变化速率-调慢 锁全键 键盘全键锁住时“F12”按 键灯单独闪烁 6. 基本参数 键盘类型：双模机械键盘 开关寿命：1亿次 按键功能：FN组合功能键 连接方式：2.4G / 有线 电压/电流：3.7V / 300mA 电池容量：2300mah 线材材质：USB Cable 编织线 产品重量：1150g 产品尺寸：445 x…

Text truncated - open the document above for the full version.

Hexgears (Shenzhen) Technology Co.,Ltd U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: UUX GROUP INC FRN: 0033701590 Contact Name: Jack Fu Address: 36 South 18th Avenue, Suite A, Brighton, CO 80601, USA Telephone No: (213) 375-3998 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature:Jack Fu Date:2024/9/20 Signed by (Printed Name/Title): Jack Fu/Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Hexgears (Shenzhen) Technology Co.,Ltd Grantee Code: 2BHVQ FCC ID: 2BHVQ-X5 FRN: 0035728724 Contact Name: XiangQu Hu Address: No. 1407, 14th Floor, Building 4, Excellence Meilin Center Plaza (North), Zhongkang Road, Meilin Street, Futian District, Shenzhen, China Email: [email protected] Applicant Signature: XiangQu Hu Date: 2024.09.20 Signed by (Printed Name/Title): XiangQu Hu / Manager

Hexgears (Shenzhen) Technology Co.,Ltd 2024.09.20 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BHVQ-X5 [Hexgears (Shenzhen) Technology Co.,Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) XiangQu Hu (Applicant printed name) XiangQu Hu Hexgears (Shenzhen) Technology Co.,Ltd 2024.09.20 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BHVQ-X5 [Hexgears (Shenzhen) Technology Co.,Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) XiangQu Hu (Applicant printed name) XiangQu Hu

Hexgears (Shenzhen) Technology Co.,Ltd 2024.09.20 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: XiangQu Hu Client’s name / title : XiangQu Hu /Manager Contact information / address: No. 1407, 14th Floor, Building 4, Excellence Meilin Center Plaza (North), Zhongkang Road, Meilin Street, Futian District, Shenzhen, China Product Name: X5 WIRELESS MECHANICAL KEYBOARD Trademark: Model/Type reference: X5 KX5BK108T20206E, KX5WT108T20206E, KX5PK108T20206E, KX5BN108T20206E, KX5BK108C20206E, KX5WT108C20206E, KX5PK108C20206E, KX5BN108C20206E, KX5BK108L20206E, KX5WT108L20206E, KX5PK108L20206E, KX5BN108L20206E FCC ID: 2BHVQ-X5

Hexgears (Shenzhen) Technology Co.,Ltd 2024.09.20 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: XiangQu Hu Client’s name / title : XiangQu Hu /Manager Contact information / address: No. 1407, 14th Floor, Building 4, Excellence Meilin Center Plaza (North), Zhongkang Road, Meilin Street, Futian District, Shenzhen, China

Hexgears (Shenzhen) Technology Co.,Ltd Model Difference 2024/06/27 Product Name:X5 WIRELESS MECHANICAL KEYBOARD Trademark: Model/Type reference:X5 KX5BK108T20206E, KX5WT108T20206E, KX5PK108T20206E, KX5BN108T20206E, KX5BK108C20206E, KX5WT108C20206E, KX5PK108C20206E, KX5BN108C20206E, KX5BK108L20206E, KX5WT108L20206E, KX5PK108L20206E, KX5BN108L20206E FCCID: 2BHVQ-X5 All the model are the same circuit and RF module, except appearance color and model name. Regards Sincerely Client’s signature: XiangQu Hu Client’s name / title : XiangQu Hu /Manager Contact information / address: No. 1407, 14th Floor, Building 4, Excellence Meilin Center Plaza (North), Zhongkang Road, Meilin Street, Futian District, Shenzhen, China

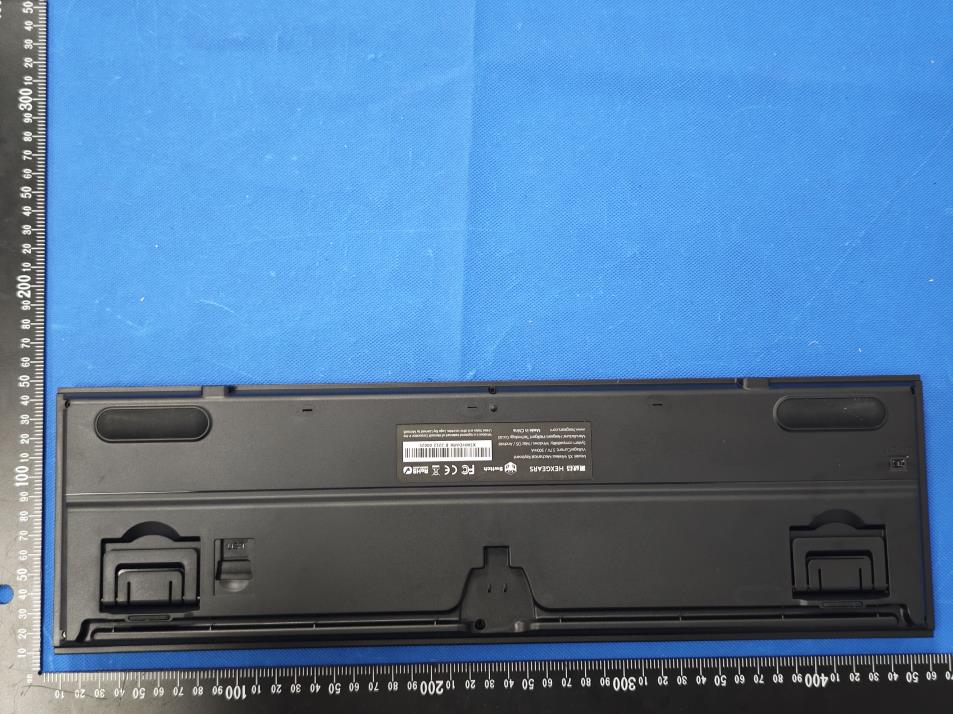

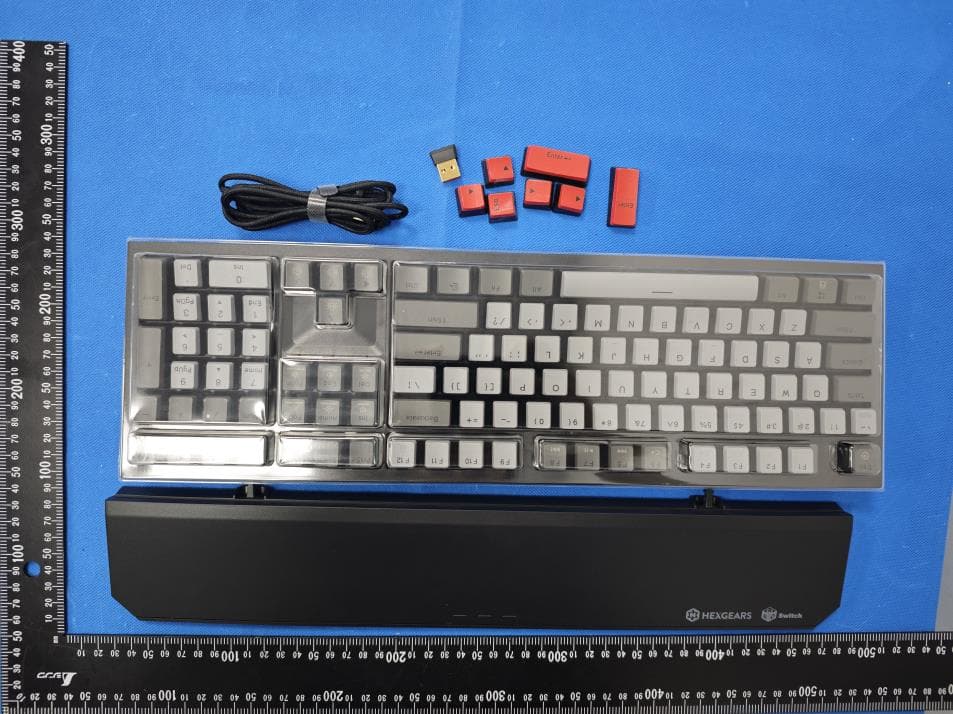

External Photos

Size:10*5mm FCC ID:2BHVQ-X5 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Label location

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID:2BHVQ-X5 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. SDR GFSK 2402 -8.31 30 GFSK 2440 -7.45 30 GFSK 2480 -7.2 30 max possible output power (PK,conducted)：-7±1dBm 3.22 dBi logarithmic terms convert to numeric result is nearly 2.10 -6dBm=0.25mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.25/5*√2.402=0.078≤3.0 2440MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=0.25/5*√2.44=0.078≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.25/5*√2.48=0.078≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

KeyboardAntennaSpecification Antennaoverview 1.AntennaTypeandModel: Type:PCBAntenna Model:PIFAAntenna 2．Gain:about3.22dBi(Peak) 3.AntennaDirectivityCoefficient:about1.8@2450MHz 4.AntennaPolarizationcharacteristic:ellipticalpolarization 5.Insideoroutside:Inside 6.NameofManufacturer:ShenzhenBailiheTechnologyCo.,LTD (深圳市百里和科技有 限公司) 7.NameofLaboratory:ShenzhenBailiheTechnologyCo.,LTD(深圳市百里和科技有限 公司) KeyboardPIFAAntenna Thekeyboardantennaadoptstheultra-smallPIFAantenna,andbecauseofthe limitedareaofPCB,thegainofantennawillbesmallerthanthatoftheotherantennas. Thecommunicationdistancecanreachabout15~20meters.Thesizeofthekeyboard ModulePCBantennais12.8*7.7mm,andthethicknessofPCBis1.6mm.Thespecific sizeoftheantennaisshowninfigure1,thephysicalobjectisshowninfigure2. Figure1:KeyboardAntennasize Figure2:KeyboardAntenna Theantenna'sS11testdataisshowninfigure3,coveringtheentire2.4G frequencyband. 图3KeyboardAntennaS11 ChannelList-2.4G(MHz) 2402240424062408241024122414241624182420 2422242424262428243024322434243624382440 2442244424462448245024522454245624582460 2462246424662468247024722474247624782480 FrequencyGain(dBi)Efficiency(%) 2400MHz2.8952 2410MHz2.8352 2420MHz2.9052 2430MHz3.1752 2440MHz3.1251 2450MHz3.2251 Thegainsimulationdataoftheantennaisshowninfigure. 1DRadiationPattern PHI=0PHI=90 THETA=90 ANNEXBRADIATIONPATTERN B.13DPattern B1.13DPatternfor2400MHz 2460MHz3.0651 2470MHz2.9451 2480MHz3.1151 2490MHz3.1651 2500MHz2.8550 B1.23DPatternfor2450MHz B1.33DPatternfor2500MHz

No.：BCTC/RF-EMC-005 Page: 1 of 44 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2409547211E Applicant: Hexgears (Shenzhen) Technology Co.,Ltd Product Name: X5 WIRELESS MECHANICAL KEYBOARD Test Model: X5 Tested Date: 2024-09-03 to 2024-09-09 Issued Date: 2024-09-09 Report No.: BCTC2409547211E No.：BCTC/RF-EMC-005 Page: 2 of 44 Edition：B.2 FCC ID:2BHVQ-X5 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: X5 WIRELESS MECHANICAL KEYBOARD Trademark: Model/Type reference: X5 KX5BK108T20206E, KX5WT108T20206E, KX5PK108T20206E, KX5BN108T20206E, KX5BK108C20206E, KX5WT108C20206E, KX5PK108C20206E, KX5BN108C20206E, KX5BK108L20206E, KX5WT108L20206E, KX5PK108L20206E, KX5BN108L20206E Prepared For: Hexgears (Shenzhen) Technology Co.,Ltd Address: No. 1407, 14th Floor, Building 4, Excellence Meilin Center Plaza (North), Zhongkang Road, Meilin Street, Futian District, Shenzhen, China Manufacturer: Hexgears (Shenzhen) Technology Co.,Ltd Address: No. 1407, 14th Floor, Building 4, Excellence Meilin Center Plaza (North), Zhongkang Road, Meilin Street, Futian District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-09-03 Sample tested Date: 2024-09-03 to 2024-09-09 Issue Date: 2024-09-09 Report No.: BCTC2409547211E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is SRD-2.4GHz radio test report. Tested by: Approved by: Tang Changyu/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2409547211E No.：BCTC/RF-EMC-005 Page: 3 of 44 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ............................................................................................................. 9 4.6 Table Of Parameters Of Text Software Setting ................................................... 11 5. Test Facility And Test Instrument Used ............................................................... 12 5.1 Test Facility ......................................................................................................... 12 5.2 Test Instrument Used .......................................................................................... 12 6. Conducted Emissions .......................................................................................... 14 6.1 Block Diagram Of Test Setup .............................................................................. 14 6.2 Limit .................................................................................................................... 14 6.3 Test Procedure ................................................................................................... 14 6.4 EUT Operating Conditions .................................................................................. 14 6.5 Test Result .......................................................................................................... 15 7. Radiated Emissions ............................................................................................. 17 7.1 Block Diagram Of Test Setup .............................................................................. 17 7.2 Limit .................................................................................................................... 18 7.3 Test Procedure ................................................................................................... 19 7.4 EUT Operating Conditions .................................................................................. 20 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 24 8.1 Block Diagram Of Test Setup .............................................................................. 24 8.2 Limit .................................................................................................................... 24 8.3 Test Procedure ................................................................................................... 25 8.4 EUT operating Conditions ................................................................................... 25 8.5 Test Result .......................................................................................................... 26 9. Power Spectral Density Test ............................................................................... 27 9.1 Block Diagram Of Test Setup .............................................................................. 27 9.2 Limit .................................................................................................................... 27 9.3 Test Procedure .........................…

Text truncated - open the document above for the full version.

17. EUT Test Setup Photographs Conducted Measurement Photo Radiated Measurement Photos
