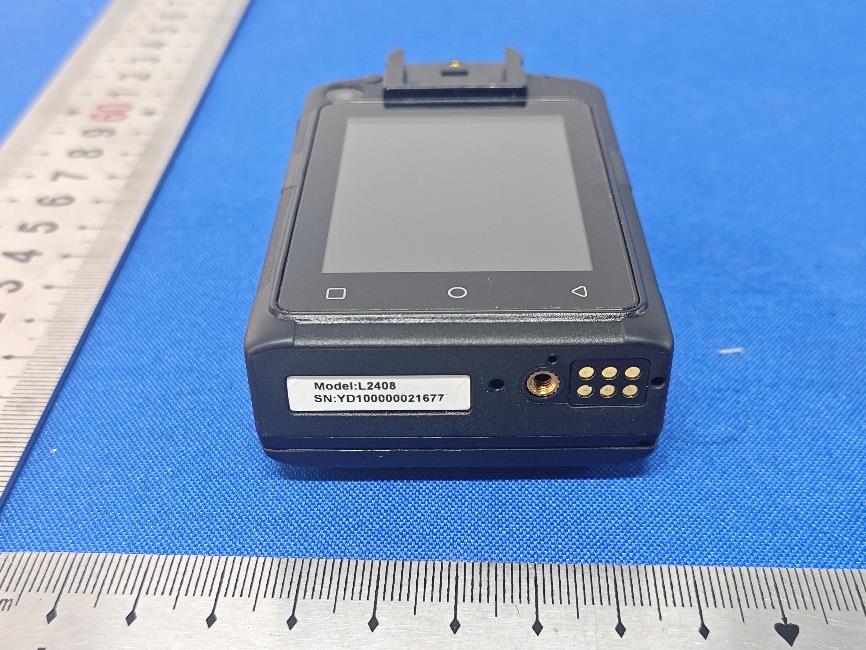

2BKL6-L2408wireless data terminal

FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RF Exposure Statement SAR tests are conducted using standard operating positions according standards with the device transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This model product has been tested and meets the RF exposure guidelines with the test distance 0mm for body worn. The highest SAR 1g value is 4 W/Kg. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with RF exposure requirements, and should be avoided 0.654

Page 58 of 198 Report No.: AiTSZ-250919151FW6 Band2_20MHz_QPSK_LCH_1860MHz_RB_100_0_NTNV Band2_20MHz_QPSK_MCH_1880MHz_RB_100_0_NTNV Page 59 of 198 Report No.: AiTSZ-250919151FW6 Band2_20MHz_QPSK_HCH_1900MHz_RB_100_0_NTNV Band2_20MHz_16QAM_LCH_1860MHz_RB_100_0_NTNV Page 60 of 198 Report No.: AiTSZ-250919151FW6 Band2_20MHz_16QAM_MCH_1880MHz_RB_100_0_NTNV Band2_20MHz_16QAM_HCH_1900MHz_RB_100_0_NTNV Page 61 of 198 Report No.: AiTSZ-250919151FW6 5. Peak-Average Ratio 5.1 Test Result 5.1.1 B2_1.4MHz Band: 2 / Bandwidth: 1.4MHz / NTNV Modulation Frequency (MHz) RB Allocation Peak-Average Ratio (dB) Verdict Size Offset Result Limit QPSK 1850.7 6 0 5.51 <=13 Pass 1880 6 0 5.73 <=13 Pass 1909.3 6 0 4.99 <=13 Pass 16QAM 1850.7 6 0 6.34 <=13 Pass 1880 6 0 6.44 <=13 Pass 1909.3 6 0 5.80 <=13 Pass 5.1.2 B2_3MHz Band: 2 / Bandwidth: 3MHz / NTNV Modulation Frequency (MHz) RB Allocation Peak-Average Ratio (dB) Verdict Size Offset Result Limit QPSK 1851.5 15 0 5.65 <=13 Pass 1880 15 0 5.76 <=13 Pass 1908.5 15 0 5.34 <=13 Pass 16QAM 1851.5 15 0 6.50 <=13 Pass 1880 15 0 6.59 <=13 Pass 1908.5 15 0 6.14 <=13 Pass 5.1.3 B2_5MHz Band: 2 / Bandwidth: 5MHz / NTNV Modulation Frequency (MHz) RB Allocation Peak-Average Ratio (dB) Verdict Size Offset Result Limit QPSK 1852.5 25 0 5.74 <=13 Pass 1880 25 0 5.82 <=13 Pass 1907.5 25 0 5.64 <=13 Pass 16QAM 1852.5 25 0 6.41 <=13 Pass 1880 25 0 6.51 <=13 Pass 1907.5 25 0 6.25 <=13 Pass 5.1.4 B2_10MHz Band: 2 / Bandwidth: 10MHz / NTNV Modulation Frequency (MHz) RB Allocation Peak-Average Ratio (dB) Verdict Size Offset Result Limit QPSK 1855 50 0 5.67 <=13 Pass 1880 50 0 5.75 <=13 Pass 1905 50 0 5.67 <=13 Pass 16QAM 1855 50 0 6.46 <=13 Pass 1880 50 0 6.51 <=13 Pass 1905 50 0 6.38 <=13 Pass 5.1.5 B2_15MHz Band: 2 / Bandwidth: 15MHz / NTNV Modulation Frequency RB Allocation Peak-Average Ratio (dB) Verdict Page 62 of 198 Report No.: AiTSZ-250919151FW6 (MHz) Size Offset Result Limit QPSK 1857.5 75 0 5.19 <=13 Pass 1880 75 0 5.25 <=13 Pass 1902.5 75 0 5.34 <=13 Pass 16QAM 1857.5 75 0 6.24 <=13 Pass 1880 75 0 6.29 <=13 Pass 1902.5 75 0 6.30 <=13 Pass 5.1.6 B2_20MHz Band: 2 / Bandwidth: 20MHz / NTNV Modulation Frequency (MHz) RB Allocation Peak-Average Ratio (dB) Verdict Size Offset Result Limit QPSK 1860 100 0 5.64 <=13 Pass 1880 100 0 5.66 <=13 Pass 1900 100 0 5.63 <=13 Pass 16QAM 1860 100 0 6.59 <=13 Pass 1880 100 0 6.64 <=13 Pass 1900 100 0 6.66 <=13 Pass Page 63 of 198 Report No.: AiTSZ-250919151FW6 5.2 Test Graph 5.2.1 B2_1.4MHz Band2_1.4MHz_QPSK_LCH_1850.7MHz_RB_6_0_NTNV Band2_1.4MHz_QPSK_MCH_1880MHz_RB_6_0_NTNV Page 64 of 198 Report No.: AiTSZ-250919151FW6 Band2_1.4MHz_QPSK_HCH_1909.3MHz_RB_6_0_NTNV Band2_1.4MHz_16QAM_LCH_1850.7MHz_RB_6_0_NTNV Page 65 of 198 Report No.: AiTSZ-250919151FW6 Band2_1.4MHz_16QAM_MCH_1880MHz_RB_6_0_NTNV Band2_1.4MHz_16QAM_HCH_1909.3MHz_RB_6_0_NTNV Page 66 of 198 Report No.: AiTSZ-250919151FW6 5.2.2 B2_3MHz Band2_3MHz_QPSK_LCH_1851.5MHz_RB_15_0_NTNV Band2_3MHz_QPSK_MCH_1880MHz_RB_15_0_NTNV Page 67 of 198 Report No.: AiTSZ-250919151FW6 Band2_3MHz_QPSK_HCH_1908.5MHz_RB_15_0_NTNV Band2_3MHz_16QAM_LCH_1851.5MHz_RB_15_0_NTNV Page 68 of 198 Report No.: AiTSZ-250919151FW6 Band2_3MHz_16QAM_MCH_1880MHz_RB_15_0_NTNV Band2_3MHz_16QAM_HCH_1908.5MHz_RB_15_0_NTNV Page 69 of 198 Report No.: AiTSZ-250919151FW6 5.2.3 B2_5MHz Band2_5MHz_QPSK_LCH_1852.5MHz_RB_25_0_NTNV Band2_5MHz_QPSK_MCH_1880MHz_RB_25_0_NTNV Page 70 of 198 Report No.: AiTSZ-250919151FW6 Band2_5MHz_QPSK_HCH_1907.5MHz_RB_25_0_NTNV Band2_5MHz_16QAM_LCH_1852.5MHz_RB_25_0_NTNV Page 71 of 198 Report No.: AiTSZ-250919151FW6 Band2_5MHz_16QAM_MCH_1880MHz_RB_25_0_NTNV Band2_5MHz_16QAM_HCH_1907.5MHz_RB_25_0_NTNV Page 72 of 198 Report No.: AiTSZ-250919151FW6 5.2.4 B2_10MHz Band2_10MHz_QPSK_LCH_1855MHz_RB_50_0_NTNV Band2_10MHz_QPSK_MCH_1880MHz_RB_50_0_NTNV Page 73 of 198 Report No.: AiTSZ-250919151FW6 Band2_10MHz_QPSK_HCH_1905MHz_RB_50_0_NTNV Band2_10MHz_16QAM_LCH_1855MHz_RB_50_0_NTNV Page 74 of 198 Report No.: AiTSZ-250919151FW6 Band2_10MHz_16QAM_MCH_1880MHz_RB_50_0_NTNV Band2_10MHz_16QAM_HCH_1905MHz_RB_50_0_NTNV Page 75 of 198 Report No.: AiTSZ-250919151FW6 5.2.5 B2_15MHz Band2_15MHz_QPSK_LCH_1857.5MHz_RB_75_0_NTNV Band2_15MHz_QPSK_MCH_1880MHz_RB_75_0_NTNV Page 76 of 198 Report No.: AiTSZ-250919151FW6 Band2_15MHz_QPSK_HCH_1902.5MHz_RB_75_0_NTNV Band2_15MHz_16QAM_LCH_1857.5MHz_RB_75_0_NTNV Page 77 of 198 Report No.: AiTSZ-250919151FW6 Band2_15MHz_16QAM_MCH_1880MHz_RB_75_0_NTNV Band2_15MHz_16QAM_HCH_1902.5MHz_RB_75_0_NTNV Page 78 of 198 Report No.: AiTSZ-250919151FW6 5.2.6 B2_20MHz Band2_20MHz_QPSK_LCH_1860MHz_RB_100_0_NTNV Band2_20MHz_QPSK_MCH_1880MHz_RB_100_0_NTNV Page 79 of 198 Report No.: AiTSZ-250919151FW6 Band2_20MHz_QPSK_HCH_1900MHz_RB_100_0_NTNV Band2_20MHz_16QAM_LCH_1860MHz_RB_100_0_NTNV Page 80 of 198 Report No.: AiTSZ-250919151FW6 Band2_20MHz_16QAM_MCH_1880MHz_RB_100_0_NTNV Band2_20MHz_16QAM_HCH_1900MHz_RB_100_0_NTNV Page 81 of 198 Report No.: AiTSZ-250919151FW6 6. Spurious Emission 6.1 Test Result 6.1.1 B2_1.4MHz Band: 2 / Bandwidth: 1.4MHz / NTNV Modulation Frequency (MHz) RB Allocation Spurious Emission Verdict Size Offset Result Limit QPSK 1850.7 1 0 Refer To Test Graph Pass 6 0 Refer To Test Graph Pass 1880 1 0 Refer To Test Graph Pass 1909.3 1 0 Refer To Test Graph Pass 5 Refer To Test Graph Pass 6 0 Refer To Test Graph Pass 16QAM 1850.7 1 0 Refer To Test Graph Pass 6 0 Refer To Test Graph Pass 1880 1 0 Refer To Test Graph Pass 1909.3 1 0 Refer To Test Graph Pass 5 Refer To Test Graph Pass 6 0 Refer To Test Graph Pass 6.1.2 B2_3MHz Band: 2 / Bandwidth: 3MHz / NTNV Modulation Frequency (MHz) RB Allocation Spurious Emission Verdict Size Offset Result Limit QPSK 1851.5 1 0 Refer To Test Graph Pass 15 0 Refer To Test Graph Pass 1880 1 0 Refer To Test Graph Pass 1908.5 1 0 Refer To Test Graph Pass 14 Refer To Test Graph Pass 15 0 Refer To Test Graph Pass 16QAM 1851.5 1 0 Refer To Test Graph Pass 15 0 Refer To Test Graph Pass 1880 1 0 Refer To Test Graph Pass 1908.5 1 0 Refer To Test Graph Pass 14 Ref…

Text truncated - open the document above for the full version.

Page 1 of 145 Report No.: AiTSZ-250919151FW6 Appendix Test Data for LTE_band_7 Page 2 of 145 Report No.: AiTSZ-250919151FW6 1. Effective (Isotropic) Radiated Power Output Data 1.1 Test Result 1.1.1 B7_5MHz_EIRP Band: 7 / Bandwidth: 5MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit QPSK 2502.5 1 0 22.81 1.90 24.71 <=33.01 Pass 13 22.88 1.90 24.78 <=33.01 Pass 24 22.89 1.90 24.79 <=33.01 Pass 12 0 21.60 1.90 23.50 <=33.01 Pass 6 21.62 1.90 23.52 <=33.01 Pass 13 21.67 1.90 23.57 <=33.01 Pass 25 0 21.66 1.90 23.56 <=33.01 Pass 2535 1 0 22.44 1.90 24.34 <=33.01 Pass 13 22.38 1.90 24.28 <=33.01 Pass 24 22.37 1.90 24.27 <=33.01 Pass 12 0 21.81 1.90 23.71 <=33.01 Pass 6 21.80 1.90 23.70 <=33.01 Pass 13 21.80 1.90 23.70 <=33.01 Pass 25 0 21.82 1.90 23.72 <=33.01 Pass 2567.5 1 0 22.41 1.90 24.31 <=33.01 Pass 13 22.43 1.90 24.33 <=33.01 Pass 24 22.47 1.90 24.37 <=33.01 Pass 12 0 21.99 1.90 23.89 <=33.01 Pass 6 21.96 1.90 23.86 <=33.01 Pass 13 22.01 1.90 23.91 <=33.01 Pass 25 0 22.00 1.90 23.90 <=33.01 Pass 16QAM 2502.5 1 0 21.42 1.90 23.32 <=33.01 Pass 13 21.40 1.90 23.30 <=33.01 Pass 24 21.22 1.90 23.12 <=33.01 Pass 12 0 20.65 1.90 22.55 <=33.01 Pass 6 20.66 1.90 22.56 <=33.01 Pass 13 20.74 1.90 22.64 <=33.01 Pass 25 0 20.71 1.90 22.61 <=33.01 Pass 2535 1 0 21.42 1.90 23.32 <=33.01 Pass 13 21.38 1.90 23.28 <=33.01 Pass 24 21.42 1.90 23.32 <=33.01 Pass 12 0 20.82 1.90 22.72 <=33.01 Pass 6 20.79 1.90 22.69 <=33.01 Pass 13 20.80 1.90 22.70 <=33.01 Pass 25 0 20.84 1.90 22.74 <=33.01 Pass 2567.5 1 0 21.71 1.90 23.61 <=33.01 Pass 13 21.72 1.90 23.62 <=33.01 Pass 24 21.74 1.90 23.64 <=33.01 Pass 12 0 21.02 1.90 22.92 <=33.01 Pass 6 21.00 1.90 22.90 <=33.01 Pass 13 21.00 1.90 22.90 <=33.01 Pass 25 0 21.02 1.90 22.92 <=33.01 Pass Note1: EIRP=Conducted Power+Antenna Gain Page 3 of 145 Report No.: AiTSZ-250919151FW6 1.1.2 B7_10MHz_EIRP Band: 7 / Bandwidth: 10MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit QPSK 2505 1 0 22.44 1.90 24.34 <=33.01 Pass 25 22.15 1.90 24.05 <=33.01 Pass 49 22.17 1.90 24.07 <=33.01 Pass 25 0 21.62 1.90 23.52 <=33.01 Pass 13 21.69 1.90 23.59 <=33.01 Pass 25 21.74 1.90 23.64 <=33.01 Pass 50 0 21.72 1.90 23.62 <=33.01 Pass 2535 1 0 22.20 1.90 24.10 <=33.01 Pass 25 22.30 1.90 24.20 <=33.01 Pass 49 22.25 1.90 24.15 <=33.01 Pass 25 0 21.75 1.90 23.65 <=33.01 Pass 13 21.82 1.90 23.72 <=33.01 Pass 25 21.86 1.90 23.76 <=33.01 Pass 50 0 21.88 1.90 23.78 <=33.01 Pass 2565 1 0 22.40 1.90 24.30 <=33.01 Pass 25 22.49 1.90 24.39 <=33.01 Pass 49 22.52 1.90 24.42 <=33.01 Pass 25 0 21.99 1.90 23.89 <=33.01 Pass 13 21.98 1.90 23.88 <=33.01 Pass 25 22.03 1.90 23.93 <=33.01 Pass 50 0 22.05 1.90 23.95 <=33.01 Pass 16QAM 2505 1 0 21.13 1.90 23.03 <=33.01 Pass 25 21.19 1.90 23.09 <=33.01 Pass 49 21.22 1.90 23.12 <=33.01 Pass 25 0 20.69 1.90 22.59 <=33.01 Pass 13 20.72 1.90 22.62 <=33.01 Pass 25 20.83 1.90 22.73 <=33.01 Pass 50 0 20.71 1.90 22.61 <=33.01 Pass 2535 1 0 21.43 1.90 23.33 <=33.01 Pass 25 21.53 1.90 23.43 <=33.01 Pass 49 21.50 1.90 23.40 <=33.01 Pass 25 0 20.81 1.90 22.71 <=33.01 Pass 13 20.86 1.90 22.76 <=33.01 Pass 25 20.92 1.90 22.82 <=33.01 Pass 50 0 20.88 1.90 22.78 <=33.01 Pass 2565 1 0 21.90 1.90 23.80 <=33.01 Pass 25 21.95 1.90 23.85 <=33.01 Pass 49 21.94 1.90 23.84 <=33.01 Pass 25 0 21.07 1.90 22.97 <=33.01 Pass 13 21.04 1.90 22.94 <=33.01 Pass 25 21.08 1.90 22.98 <=33.01 Pass 50 0 21.02 1.90 22.92 <=33.01 Pass Note1: EIRP=Conducted Power+Antenna Gain Page 4 of 145 Report No.: AiTSZ-250919151FW6 1.1.3 B7_15MHz_EIRP Band: 7 / Bandwidth: 15MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit QPSK 2507.5 1 0 21.96 1.90 23.86 <=33.01 Pass 38 22.08 1.90 23.98 <=33.01 Pass 74 22.10 1.90 24.00 <=33.01 Pass 36 0 21.53 1.90 23.43 <=33.01 Pass 18 21.63 1.90 23.53 <=33.01 Pass 39 21.70 1.90 23.60 <=33.01 Pass 75 0 21.62 1.90 23.52 <=33.01 Pass 2535 1 0 22.12 1.90 24.02 <=33.01 Pass 38 22.27 1.90 24.17 <=33.01 Pass 74 22.20 1.90 24.10 <=33.01 Pass 36 0 21.76 1.90 23.66 <=33.01 Pass 18 21.77 1.90 23.67 <=33.01 Pass 39 21.81 1.90 23.71 <=33.01 Pass 75 0 21.76 1.90 23.66 <=33.01 Pass 2562.5 1 0 22.26 1.90 24.16 <=33.01 Pass 38 22.45 1.90 24.35 <=33.01 Pass 74 22.48 1.90 24.38 <=33.01 Pass 36 0 21.90 1.90 23.80 <=33.01 Pass 18 21.92 1.90 23.82 <=33.01 Pass 39 21.97 1.90 23.87 <=33.01 Pass 75 0 21.95 1.90 23.85 <=33.01 Pass 16QAM 2507.5 1 0 21.42 1.90 23.32 <=33.01 Pass 38 21.55 1.90 23.45 <=33.01 Pass 74 21.52 1.90 23.42 <=33.01 Pass 36 0 20.55 1.90 22.45 <=33.01 Pass 18 20.62 1.90 22.52 <=33.01 Pass 39 20.66 1.90 22.56 <=33.01 Pass 75 0 20.59 1.90 22.49 <=33.01 Pass 2535 1 0 21.35 1.90 23.25 <=33.01 Pass 38 21.52 1.90 23.42 <=33.01 Pass 74 21.46 1.90 23.36 <=33.01 Pass 36 0 20.74 1.90 22.64 <=33.01 Pass 18 20.82 1.90 22.72 <=33.01 Pass 39 20.81 1.90 22.71 <=33.01 Pass 75 0 20.81 1.90 22.71 <=33.01 Pass 2562.5 1 0 21.78 1.90 23.68 <=33.01 Pass 38 21.97 1.90 23.87 <=33.01 Pass 74 21.93 1.90 23.83 <=33.01 Pass 36 0 20.98 1.90 22.88 <=33.01 Pass 18 20.98 1.90 22.88 <=33.01 Pass 39 21.00 1.90 22.90 <=33.01 Pass 75 0 21.02 1.90 22.92 <=33.01 Pass Note1: EIRP=Conducted Power+Antenna Gain Page 5 of 145 Report No.: AiTSZ-250919151FW6 1.1.4 B7_20MHz_EIRP Band: 7 / Bandwidth: 20MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit QPSK 2510 1 0 21.98 1.90 23.88 <=33.01 Pass 50 22.14 1.90 24.04 <=33.01 Pass 99 22.19 1.90 24.09 <=33.01 Pass 50 0 21.48 1.90 23.38 <=33.01 Pass 25 21.71 1.90 23.61 <=33.01 Pass 50 21.67 1.90 23.57 <=33.01 Pass 100 0 21.61 1.90 23.51 <=33.01 Pass 2535 1 0 22.11 1.90 24.01 <=33.01 Pass 50 22.26 1.90 24.16 <=33.01 Pass 99 22.15 1.90 24.05 <=33.01 Pass 50 0 21.81 1.90 23.71 <=33.01 Pass 25 21.83 1.90 23.73 <=33.01 Pass 50 21.91 1.90 23.81 <=33.01 Pass 100 0 21.88 1.90 23.78 <=33.01…

Text truncated - open the document above for the full version.

Page 106 of 121 Report No.: AiTSZ-250919151FW6 Band5_10MHz_QPSK_LCH_829MHz_RB_1_0_NTNV Band5_10MHz_QPSK_LCH_829MHz_RB_1_0_NTNV Page 107 of 121 Report No.: AiTSZ-250919151FW6 Band5_10MHz_QPSK_LCH_829MHz_RB_1_0_NTNV Band5_10MHz_QPSK_LCH_829MHz_RB_50_0_NTNV Page 108 of 121 Report No.: AiTSZ-250919151FW6 Band5_10MHz_QPSK_MCH_836.5MHz_RB_1_0_NTNV Band5_10MHz_QPSK_MCH_836.5MHz_RB_1_0_NTNV Page 109 of 121 Report No.: AiTSZ-250919151FW6 Band5_10MHz_QPSK_MCH_836.5MHz_RB_1_0_NTNV Band5_10MHz_QPSK_MCH_836.5MHz_RB_1_0_NTNV Page 110 of 121 Report No.: AiTSZ-250919151FW6 Band5_10MHz_QPSK_HCH_844MHz_RB_1_0_NTNV Band5_10MHz_QPSK_HCH_844MHz_RB_1_0_NTNV Page 111 of 121 Report No.: AiTSZ-250919151FW6 Band5_10MHz_QPSK_HCH_844MHz_RB_1_0_NTNV Band5_10MHz_QPSK_HCH_844MHz_RB_1_0_NTNV Page 112 of 121 Report No.: AiTSZ-250919151FW6 Band5_10MHz_QPSK_HCH_844MHz_RB_1_49_NTNV Band5_10MHz_QPSK_HCH_844MHz_RB_50_0_NTNV Page 113 of 121 Report No.: AiTSZ-250919151FW6 Band5_10MHz_16QAM_LCH_829MHz_RB_1_0_NTNV Band5_10MHz_16QAM_LCH_829MHz_RB_1_0_NTNV Page 114 of 121 Report No.: AiTSZ-250919151FW6 Band5_10MHz_16QAM_LCH_829MHz_RB_1_0_NTNV Band5_10MHz_16QAM_LCH_829MHz_RB_1_0_NTNV Page 115 of 121 Report No.: AiTSZ-250919151FW6 Band5_10MHz_16QAM_LCH_829MHz_RB_1_0_NTNV Band5_10MHz_16QAM_LCH_829MHz_RB_50_0_NTNV Page 116 of 121 Report No.: AiTSZ-250919151FW6 Band5_10MHz_16QAM_MCH_836.5MHz_RB_1_0_NTNV Band5_10MHz_16QAM_MCH_836.5MHz_RB_1_0_NTNV Page 117 of 121 Report No.: AiTSZ-250919151FW6 Band5_10MHz_16QAM_MCH_836.5MHz_RB_1_0_NTNV Band5_10MHz_16QAM_MCH_836.5MHz_RB_1_0_NTNV Page 118 of 121 Report No.: AiTSZ-250919151FW6 Band5_10MHz_16QAM_HCH_844MHz_RB_1_0_NTNV Band5_10MHz_16QAM_HCH_844MHz_RB_1_0_NTNV Page 119 of 121 Report No.: AiTSZ-250919151FW6 Band5_10MHz_16QAM_HCH_844MHz_RB_1_0_NTNV Band5_10MHz_16QAM_HCH_844MHz_RB_1_0_NTNV Page 120 of 121 Report No.: AiTSZ-250919151FW6 Band5_10MHz_16QAM_HCH_844MHz_RB_1_49_NTNV Band5_10MHz_16QAM_HCH_844MHz_RB_50_0_NTNV Page 121 of 121 Report No.: AiTSZ-250919151FW6 7. Form731 7.1 Test Result 7.1.1 Form731_Power Band BW Lower Freq High Freq MAX Power (W) Value Hz/ppm Emission Designator Rule Parts MAX Power (dBm) 5 1.4 824.7 848.3 0.2588 0.0057 ppm 1M12G7D 22H 24.13 5 1.4 824.7 848.3 0.2153 0.0085 ppm 1M11W7D 22H 23.33 5 3 825.5 847.5 0.2570 0.0083 ppm 2M74G7D 22H 24.10 5 3 825.5 847.5 0.2104 0.0068 ppm 2M73W7D 22H 23.23 5 5 826.5 846.5 0.2624 0.0059 ppm 4M56G7D 22H 24.19 5 5 826.5 846.5 0.2183 0.0066 ppm 4M56W7D 22H 23.39 5 10 829 844 0.2600 0.0049 ppm 9M05G7D 22H 24.15 5 10 829 844 0.2153 0.0055 ppm 9M06W7D 22H 23.33 7.1.2 Form731_ERP Band BW Lower Freq High Freq MAX Power (W) Value Hz/ppm Emission Designator Rule Parts MAX Power (dBm) 5 1.4 824.7 848.3 0.0705 0.0057 ppm 1M12G7D 22H 18.48 5 1.4 824.7 848.3 0.0586 0.0085 ppm 1M11W7D 22H 17.68 5 3 825.5 847.5 0.0700 0.0083 ppm 2M74G7D 22H 18.45 5 3 825.5 847.5 0.0573 0.0068 ppm 2M73W7D 22H 17.58 5 5 826.5 846.5 0.0714 0.0059 ppm 4M56G7D 22H 18.54 5 5 826.5 846.5 0.0594 0.0066 ppm 4M56W7D 22H 17.74 5 10 829 844 0.0708 0.0049 ppm 9M05G7D 22H 18.50 5 10 829 844 0.0586 0.0055 ppm 9M06W7D 22H 17.68 ********************** End of Report **********************

Page 60 of 121 Report No.: AiTSZ-250919151FW6 Band5_1.4MHz_QPSK_MCH_836.5MHz_RB_1_0_NTNV Band5_1.4MHz_QPSK_MCH_836.5MHz_RB_1_0_NTNV Page 61 of 121 Report No.: AiTSZ-250919151FW6 Band5_1.4MHz_QPSK_MCH_836.5MHz_RB_1_0_NTNV Band5_1.4MHz_QPSK_MCH_836.5MHz_RB_1_0_NTNV Page 62 of 121 Report No.: AiTSZ-250919151FW6 Band5_1.4MHz_QPSK_HCH_848.3MHz_RB_1_0_NTNV Band5_1.4MHz_QPSK_HCH_848.3MHz_RB_1_0_NTNV Page 63 of 121 Report No.: AiTSZ-250919151FW6 Band5_1.4MHz_QPSK_HCH_848.3MHz_RB_1_0_NTNV Band5_1.4MHz_QPSK_HCH_848.3MHz_RB_1_0_NTNV Page 64 of 121 Report No.: AiTSZ-250919151FW6 Band5_1.4MHz_QPSK_HCH_848.3MHz_RB_1_5_NTNV Band5_1.4MHz_QPSK_HCH_848.3MHz_RB_6_0_NTNV Page 65 of 121 Report No.: AiTSZ-250919151FW6 Band5_1.4MHz_16QAM_LCH_824.7MHz_RB_1_0_NTNV Band5_1.4MHz_16QAM_LCH_824.7MHz_RB_1_0_NTNV Page 66 of 121 Report No.: AiTSZ-250919151FW6 Band5_1.4MHz_16QAM_LCH_824.7MHz_RB_1_0_NTNV Band5_1.4MHz_16QAM_LCH_824.7MHz_RB_1_0_NTNV Page 67 of 121 Report No.: AiTSZ-250919151FW6 Band5_1.4MHz_16QAM_LCH_824.7MHz_RB_1_0_NTNV Band5_1.4MHz_16QAM_LCH_824.7MHz_RB_6_0_NTNV Page 68 of 121 Report No.: AiTSZ-250919151FW6 Band5_1.4MHz_16QAM_MCH_836.5MHz_RB_1_0_NTNV Band5_1.4MHz_16QAM_MCH_836.5MHz_RB_1_0_NTNV Page 69 of 121 Report No.: AiTSZ-250919151FW6 Band5_1.4MHz_16QAM_MCH_836.5MHz_RB_1_0_NTNV Band5_1.4MHz_16QAM_MCH_836.5MHz_RB_1_0_NTNV Page 70 of 121 Report No.: AiTSZ-250919151FW6 Band5_1.4MHz_16QAM_HCH_848.3MHz_RB_1_0_NTNV Band5_1.4MHz_16QAM_HCH_848.3MHz_RB_1_0_NTNV Page 71 of 121 Report No.: AiTSZ-250919151FW6 Band5_1.4MHz_16QAM_HCH_848.3MHz_RB_1_0_NTNV Band5_1.4MHz_16QAM_HCH_848.3MHz_RB_1_0_NTNV Page 72 of 121 Report No.: AiTSZ-250919151FW6 Band5_1.4MHz_16QAM_HCH_848.3MHz_RB_1_5_NTNV Band5_1.4MHz_16QAM_HCH_848.3MHz_RB_6_0_NTNV Page 73 of 121 Report No.: AiTSZ-250919151FW6 6.2.2 B5_3MHz Band5_3MHz_QPSK_LCH_825.5MHz_RB_1_0_NTNV Band5_3MHz_QPSK_LCH_825.5MHz_RB_1_0_NTNV Page 74 of 121 Report No.: AiTSZ-250919151FW6 Band5_3MHz_QPSK_LCH_825.5MHz_RB_1_0_NTNV Band5_3MHz_QPSK_LCH_825.5MHz_RB_1_0_NTNV Page 75 of 121 Report No.: AiTSZ-250919151FW6 Band5_3MHz_QPSK_LCH_825.5MHz_RB_1_0_NTNV Band5_3MHz_QPSK_LCH_825.5MHz_RB_15_0_NTNV Page 76 of 121 Report No.: AiTSZ-250919151FW6 Band5_3MHz_QPSK_MCH_836.5MHz_RB_1_0_NTNV Band5_3MHz_QPSK_MCH_836.5MHz_RB_1_0_NTNV Page 77 of 121 Report No.: AiTSZ-250919151FW6 Band5_3MHz_QPSK_MCH_836.5MHz_RB_1_0_NTNV Band5_3MHz_QPSK_MCH_836.5MHz_RB_1_0_NTNV Page 78 of 121 Report No.: AiTSZ-250919151FW6 Band5_3MHz_QPSK_HCH_847.5MHz_RB_1_0_NTNV Band5_3MHz_QPSK_HCH_847.5MHz_RB_1_0_NTNV Page 79 of 121 Report No.: AiTSZ-250919151FW6 Band5_3MHz_QPSK_HCH_847.5MHz_RB_1_0_NTNV Band5_3MHz_QPSK_HCH_847.5MHz_RB_1_0_NTNV Page 80 of 121 Report No.: AiTSZ-250919151FW6 Band5_3MHz_QPSK_HCH_847.5MHz_RB_1_14_NTNV Band5_3MHz_QPSK_HCH_847.5MHz_RB_15_0_NTNV Page 81 of 121 Report No.: AiTSZ-250919151FW6 Band5_3MHz_16QAM_LCH_825.5MHz_RB_1_0_NTNV Band5_3MHz_16QAM_LCH_825.5MHz_RB_1_0_NTNV Page 82 of 121 Report No.: AiTSZ-250919151FW6 Band5_3MHz_16QAM_LCH_825.5MHz_RB_1_0_NTNV Band5_3MHz_16QAM_LCH_825.5MHz_RB_1_0_NTNV Page 83 of 121 Report No.: AiTSZ-250919151FW6 Band5_3MHz_16QAM_LCH_825.5MHz_RB_1_0_NTNV Band5_3MHz_16QAM_LCH_825.5MHz_RB_15_0_NTNV Page 84 of 121 Report No.: AiTSZ-250919151FW6 Band5_3MHz_16QAM_MCH_836.5MHz_RB_1_0_NTNV Band5_3MHz_16QAM_MCH_836.5MHz_RB_1_0_NTNV Page 85 of 121 Report No.: AiTSZ-250919151FW6 Band5_3MHz_16QAM_MCH_836.5MHz_RB_1_0_NTNV Band5_3MHz_16QAM_MCH_836.5MHz_RB_1_0_NTNV Page 86 of 121 Report No.: AiTSZ-250919151FW6 Band5_3MHz_16QAM_HCH_847.5MHz_RB_1_0_NTNV Band5_3MHz_16QAM_HCH_847.5MHz_RB_1_0_NTNV Page 87 of 121 Report No.: AiTSZ-250919151FW6 Band5_3MHz_16QAM_HCH_847.5MHz_RB_1_0_NTNV Band5_3MHz_16QAM_HCH_847.5MHz_RB_1_0_NTNV Page 88 of 121 Report No.: AiTSZ-250919151FW6 Band5_3MHz_16QAM_HCH_847.5MHz_RB_1_14_NTNV Band5_3MHz_16QAM_HCH_847.5MHz_RB_15_0_NTNV Page 89 of 121 Report No.: AiTSZ-250919151FW6 6.2.3 B5_5MHz Band5_5MHz_QPSK_LCH_826.5MHz_RB_1_0_NTNV Band5_5MHz_QPSK_LCH_826.5MHz_RB_1_0_NTNV Page 90 of 121 Report No.: AiTSZ-250919151FW6 Band5_5MHz_QPSK_LCH_826.5MHz_RB_1_0_NTNV Band5_5MHz_QPSK_LCH_826.5MHz_RB_1_0_NTNV Page 91 of 121 Report No.: AiTSZ-250919151FW6 Band5_5MHz_QPSK_LCH_826.5MHz_RB_1_0_NTNV Band5_5MHz_QPSK_LCH_826.5MHz_RB_25_0_NTNV Page 92 of 121 Report No.: AiTSZ-250919151FW6 Band5_5MHz_QPSK_MCH_836.5MHz_RB_1_0_NTNV Band5_5MHz_QPSK_MCH_836.5MHz_RB_1_0_NTNV Page 93 of 121 Report No.: AiTSZ-250919151FW6 Band5_5MHz_QPSK_MCH_836.5MHz_RB_1_0_NTNV Band5_5MHz_QPSK_MCH_836.5MHz_RB_1_0_NTNV Page 94 of 121 Report No.: AiTSZ-250919151FW6 Band5_5MHz_QPSK_HCH_846.5MHz_RB_1_0_NTNV Band5_5MHz_QPSK_HCH_846.5MHz_RB_1_0_NTNV Page 95 of 121 Report No.: AiTSZ-250919151FW6 Band5_5MHz_QPSK_HCH_846.5MHz_RB_1_0_NTNV Band5_5MHz_QPSK_HCH_846.5MHz_RB_1_0_NTNV Page 96 of 121 Report No.: AiTSZ-250919151FW6 Band5_5MHz_QPSK_HCH_846.5MHz_RB_1_24_NTNV Band5_5MHz_QPSK_HCH_846.5MHz_RB_25_0_NTNV Page 97 of 121 Report No.: AiTSZ-250919151FW6 Band5_5MHz_16QAM_LCH_826.5MHz_RB_1_0_NTNV Band5_5MHz_16QAM_LCH_826.5MHz_RB_1_0_NTNV Page 98 of 121 Report No.: AiTSZ-250919151FW6 Band5_5MHz_16QAM_LCH_826.5MHz_RB_1_0_NTNV Band5_5MHz_16QAM_LCH_826.5MHz_RB_1_0_NTNV Page 99 of 121 Report No.: AiTSZ-250919151FW6 Band5_5MHz_16QAM_LCH_826.5MHz_RB_1_0_NTNV Band5_5MHz_16QAM_LCH_826.5MHz_RB_25_0_NTNV Page 100 of 121 Report No.: AiTSZ-250919151FW6 Band5_5MHz_16QAM_MCH_836.5MHz_RB_1_0_NTNV Band5_5MHz_16QAM_MCH_836.5MHz_RB_1_0_NTNV Page 101 of 121 Report No.: AiTSZ-250919151FW6 Band5_5MHz_16QAM_MCH_836.5MHz_RB_1_0_NTNV Band5_5MHz_16QAM_MCH_836.5MHz_RB_1_0_NTNV Page 102 of 121 Report No.: AiTSZ-250919151FW6 Band5_5MHz_16QAM_HCH_846.5MHz_RB_1_0_NTNV Band5_5MHz_16QAM_HCH_846.5MHz_RB_1_0_NTNV Page 103 of 121 Report No.: AiTSZ-250919151FW6 Band5_5MHz_16QAM_HCH_846.5MHz_RB_1_0_NTNV Band5_5MHz_16QAM_HCH_846.5MHz_RB_1_0_NTNV Page 104 of 121 Report No.: AiTSZ-250919151FW6 Band5_5MHz_16QAM_HCH_846.5MHz_RB_1_24_NTNV Band5_5MHz_16QAM_HCH_846.5MHz_RB_25_0_NTNV Page 105 of 121 Report No.: AiTSZ-250919151FW6 6.2.4 B5_10MHz Band5_10MHz_QPSK_LCH_829MHz_RB_1_…

Text truncated - open the document above for the full version.

Page 1 of 121 Report No.: AiTSZ-250919151FW6 Appendix Test Data for LTE_band_5 Page 2 of 121 Report No.: AiTSZ-250919151FW6 1. Effective (Isotropic) Radiated Power Output Data 1.1 Test Result 1.1.1 B5_1.4MHz_ERP Band: 5 / Bandwidth: 1.4MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) ERP (dBm) Verdict Size Offset Result Limit QPSK 824.7 1 0 23.99 -3.50 18.34 <=38.45 Pass 2 24.02 -3.50 18.37 <=38.45 Pass 5 23.99 -3.50 18.34 <=38.45 Pass 3 0 24.10 -3.50 18.45 <=38.45 Pass 2 24.10 -3.50 18.45 <=38.45 Pass 3 24.12 -3.50 18.47 <=38.45 Pass 6 0 23.06 -3.50 17.41 <=38.45 Pass 836.5 1 0 24.07 -3.50 18.42 <=38.45 Pass 2 24.08 -3.50 18.43 <=38.45 Pass 5 24.07 -3.50 18.42 <=38.45 Pass 3 0 24.13 -3.50 18.48 <=38.45 Pass 2 24.12 -3.50 18.47 <=38.45 Pass 3 24.10 -3.50 18.45 <=38.45 Pass 6 0 23.16 -3.50 17.51 <=38.45 Pass 848.3 1 0 23.96 -3.50 18.31 <=38.45 Pass 2 23.92 -3.50 18.27 <=38.45 Pass 5 23.92 -3.50 18.27 <=38.45 Pass 3 0 24.05 -3.50 18.40 <=38.45 Pass 2 24.07 -3.50 18.42 <=38.45 Pass 3 24.07 -3.50 18.42 <=38.45 Pass 6 0 23.04 -3.50 17.39 <=38.45 Pass 16QAM 824.7 1 0 23.07 -3.50 17.42 <=38.45 Pass 2 23.09 -3.50 17.44 <=38.45 Pass 5 23.10 -3.50 17.45 <=38.45 Pass 3 0 23.09 -3.50 17.44 <=38.45 Pass 2 23.07 -3.50 17.42 <=38.45 Pass 3 23.07 -3.50 17.42 <=38.45 Pass 6 0 21.95 -3.50 16.30 <=38.45 Pass 836.5 1 0 23.32 -3.50 17.67 <=38.45 Pass 2 23.31 -3.50 17.66 <=38.45 Pass 5 23.33 -3.50 17.68 <=38.45 Pass 3 0 23.12 -3.50 17.47 <=38.45 Pass 2 23.10 -3.50 17.45 <=38.45 Pass 3 23.10 -3.50 17.45 <=38.45 Pass 6 0 22.16 -3.50 16.51 <=38.45 Pass 848.3 1 0 22.82 -3.50 17.17 <=38.45 Pass 2 22.91 -3.50 17.26 <=38.45 Pass 5 22.89 -3.50 17.24 <=38.45 Pass 3 0 23.16 -3.50 17.51 <=38.45 Pass 2 23.22 -3.50 17.57 <=38.45 Pass 3 23.22 -3.50 17.57 <=38.45 Pass 6 0 22.04 -3.50 16.39 <=38.45 Pass Note1: ERP=Conducted Power+Antenna Gain-2.15 Page 3 of 121 Report No.: AiTSZ-250919151FW6 1.1.2 B5_3MHz_ERP Band: 5 / Bandwidth: 3MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) ERP (dBm) Verdict Size Offset Result Limit QPSK 825.5 1 0 24.02 -3.50 18.37 <=38.45 Pass 7 23.99 -3.50 18.34 <=38.45 Pass 14 24.05 -3.50 18.40 <=38.45 Pass 8 0 23.04 -3.50 17.39 <=38.45 Pass 4 22.99 -3.50 17.34 <=38.45 Pass 7 23.03 -3.50 17.38 <=38.45 Pass 15 0 23.04 -3.50 17.39 <=38.45 Pass 836.5 1 0 24.06 -3.50 18.41 <=38.45 Pass 7 24.10 -3.50 18.45 <=38.45 Pass 14 24.01 -3.50 18.36 <=38.45 Pass 8 0 23.10 -3.50 17.45 <=38.45 Pass 4 23.13 -3.50 17.48 <=38.45 Pass 7 23.16 -3.50 17.51 <=38.45 Pass 15 0 23.15 -3.50 17.50 <=38.45 Pass 847.5 1 0 23.96 -3.50 18.31 <=38.45 Pass 7 23.77 -3.50 18.12 <=38.45 Pass 14 23.63 -3.50 17.98 <=38.45 Pass 8 0 23.00 -3.50 17.35 <=38.45 Pass 4 23.00 -3.50 17.35 <=38.45 Pass 7 22.99 -3.50 17.34 <=38.45 Pass 15 0 23.04 -3.50 17.39 <=38.45 Pass 16QAM 825.5 1 0 23.09 -3.50 17.44 <=38.45 Pass 7 23.07 -3.50 17.42 <=38.45 Pass 14 23.11 -3.50 17.46 <=38.45 Pass 8 0 22.12 -3.50 16.47 <=38.45 Pass 4 22.08 -3.50 16.43 <=38.45 Pass 7 22.12 -3.50 16.47 <=38.45 Pass 15 0 22.09 -3.50 16.44 <=38.45 Pass 836.5 1 0 23.09 -3.50 17.44 <=38.45 Pass 7 23.23 -3.50 17.58 <=38.45 Pass 14 23.06 -3.50 17.41 <=38.45 Pass 8 0 22.09 -3.50 16.44 <=38.45 Pass 4 22.13 -3.50 16.48 <=38.45 Pass 7 22.13 -3.50 16.48 <=38.45 Pass 15 0 22.11 -3.50 16.46 <=38.45 Pass 847.5 1 0 23.07 -3.50 17.42 <=38.45 Pass 7 23.07 -3.50 17.42 <=38.45 Pass 14 23.06 -3.50 17.41 <=38.45 Pass 8 0 22.21 -3.50 16.56 <=38.45 Pass 4 22.21 -3.50 16.56 <=38.45 Pass 7 22.19 -3.50 16.54 <=38.45 Pass 15 0 22.12 -3.50 16.47 <=38.45 Pass Note1: ERP=Conducted Power+Antenna Gain-2.15 Page 4 of 121 Report No.: AiTSZ-250919151FW6 1.1.3 B5_5MHz_ERP Band: 5 / Bandwidth: 5MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) ERP (dBm) Verdict Size Offset Result Limit QPSK 826.5 1 0 24.08 -3.50 18.43 <=38.45 Pass 13 24.08 -3.50 18.43 <=38.45 Pass 24 24.15 -3.50 18.50 <=38.45 Pass 12 0 23.02 -3.50 17.37 <=38.45 Pass 6 23.01 -3.50 17.36 <=38.45 Pass 13 22.99 -3.50 17.34 <=38.45 Pass 25 0 23.02 -3.50 17.37 <=38.45 Pass 836.5 1 0 24.07 -3.50 18.42 <=38.45 Pass 13 24.07 -3.50 18.42 <=38.45 Pass 24 24.11 -3.50 18.46 <=38.45 Pass 12 0 23.12 -3.50 17.47 <=38.45 Pass 6 23.12 -3.50 17.47 <=38.45 Pass 13 23.13 -3.50 17.48 <=38.45 Pass 25 0 23.16 -3.50 17.51 <=38.45 Pass 846.5 1 0 24.19 -3.50 18.54 <=38.45 Pass 13 24.08 -3.50 18.43 <=38.45 Pass 24 24.02 -3.50 18.37 <=38.45 Pass 12 0 23.11 -3.50 17.46 <=38.45 Pass 6 23.00 -3.50 17.35 <=38.45 Pass 13 23.00 -3.50 17.35 <=38.45 Pass 25 0 23.08 -3.50 17.43 <=38.45 Pass 16QAM 826.5 1 0 23.15 -3.50 17.50 <=38.45 Pass 13 23.12 -3.50 17.47 <=38.45 Pass 24 23.16 -3.50 17.51 <=38.45 Pass 12 0 22.03 -3.50 16.38 <=38.45 Pass 6 22.06 -3.50 16.41 <=38.45 Pass 13 21.97 -3.50 16.32 <=38.45 Pass 25 0 22.03 -3.50 16.38 <=38.45 Pass 836.5 1 0 23.39 -3.50 17.74 <=38.45 Pass 13 23.32 -3.50 17.67 <=38.45 Pass 24 23.33 -3.50 17.68 <=38.45 Pass 12 0 22.19 -3.50 16.54 <=38.45 Pass 6 22.15 -3.50 16.50 <=38.45 Pass 13 22.11 -3.50 16.46 <=38.45 Pass 25 0 22.14 -3.50 16.49 <=38.45 Pass 846.5 1 0 22.55 -3.50 16.90 <=38.45 Pass 13 22.39 -3.50 16.74 <=38.45 Pass 24 22.45 -3.50 16.80 <=38.45 Pass 12 0 22.14 -3.50 16.49 <=38.45 Pass 6 22.03 -3.50 16.38 <=38.45 Pass 13 22.03 -3.50 16.38 <=38.45 Pass 25 0 22.13 -3.50 16.48 <=38.45 Pass Note1: ERP=Conducted Power+Antenna Gain-2.15 Page 5 of 121 Report No.: AiTSZ-250919151FW6 1.1.4 B5_10MHz_ERP Band: 5 / Bandwidth: 10MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) ERP (dBm) Verdict Size Offset Result Limit QPSK 829 1 0 24.00 -3.50 18.35 <=38.45 Pass 25 24.10 -3.50 18.45 <=38.45 Pass 49 24.15 -3.50 18.50 <=38.45 Pass 25 0 23.10 -3.50 17.45 <=38.45 Pass 13 23.15 -3.50 17.50 <=38.45 Pass 25 23.07 -3.50 17.42 <=38.45 Pass 50 0 23.15 -3.50 17.50 <=38.45 Pass 836.5 1 0 24.10 -3.50 18.45 <=38.45 Pass 25 24.13 -3.50 18.48 <=38.45 Pass 49 24.06 -3.50 18.41 <=38.45 Pass 25 0 23.16 -3.50 17.51 <=38.45 Pass 13 23.14 -3.50…

Text truncated - open the document above for the full version.

Page 154 of 198 Report No.: AiTSZ-250919151FW6 Band4_10MHz_16QAM_MCH_1732.5MHz_RB_1_0_NTNV Band4_10MHz_16QAM_MCH_1732.5MHz_RB_1_0_NTNV Page 155 of 198 Report No.: AiTSZ-250919151FW6 Band4_10MHz_16QAM_MCH_1732.5MHz_RB_1_0_NTNV Band4_10MHz_16QAM_MCH_1732.5MHz_RB_1_0_NTNV Page 156 of 198 Report No.: AiTSZ-250919151FW6 Band4_10MHz_16QAM_MCH_1732.5MHz_RB_1_0_NTNV Band4_10MHz_16QAM_HCH_1750MHz_RB_1_0_NTNV Page 157 of 198 Report No.: AiTSZ-250919151FW6 Band4_10MHz_16QAM_HCH_1750MHz_RB_1_0_NTNV Band4_10MHz_16QAM_HCH_1750MHz_RB_1_0_NTNV Page 158 of 198 Report No.: AiTSZ-250919151FW6 Band4_10MH…

Text truncated - open the document above for the full version.
