2BLCN-MS01E-Ink

MS01 重要事项 产品概述 StarTag与苹果的Find My网络和谷歌的Find Hub集成， 为追踪物品提供了安全且对用户友好的解决方案，能轻松 定位钥匙、钱包等，并优先考虑安全性、隐私性。 StarTag专为方便用户而设计，简化日常生活，让您告别 物品丢失，享受安心的生活方式。 User Manual 说明书70mm*60mm 警告：请勿吞下电池； 存在化学灼伤危险 窒息危险警告 StarTag、电池本身和外壳可能会造成窒息危险或对 幼儿造成伤害。请把这些东西放在小孩子够不着的地方。 医疗器械干扰 StarTag包含发射电磁场的组件和无线电。这些元件可 能潜在干扰起搏器或其他医疗设备。为确保安全，请在 您的医疗设备和StarTag之间保持安全距离。我们强烈 建议咨询您的医生和医疗设备制造商，以获取针对您具体 情况的信息。如果您怀疑StarTag干扰了您的起搏器或 任何其他医疗设备，请立即停止使用。 重要处理指南 StarTag在经常使用时出现变色是正常的。要清洁它，请 使用柔软、干燥、无绒布。避免用尖锐物体对设备内部的 橡胶密封件或蓄电池端子触点施加压力。 不要让湿气进入任何开口，也不要使用气雾剂、溶剂或研 磨材料清洁设备。 Medical Device Interference The StarTag contains components and radios that emit electromagnetic fields, as well as magnets. These elements may potentially interfere with pacemakers, defibrillators, or other medical devices. To ensure safety, maintain a safe distance between your medical device and the StarTag. We strongly advise consulting your physician and the manufacturer of your medical device for information that is specific to your situation. If you suspect that the StarTag is interfering with your pacemaker defibrillator or any other medical device, discontinue its use immediately. Choking Hazard Warning The StarTag, its battery compartment door, the battery itself, and the case may pose a choking hazard or cause injury to small children. Please keep these items out of reach of young children. Important Handling Guidelines Its normal for the StarTag to show discoloration with regular use. To clean it, use a soft, dry, lint-free cloth. Avoid applying pressure with sharp objects on the rubber seal or the battery terminal contacts inside the device. Do not allow moisture to enter any openings or use aerosol sprays, solvents or abrasive materials to clean the device. 用户手册 Google 2.4 打开“查找中心”应用程序。 2.5 产品配对窗口将自动弹出。 2.6 一旦找到您要绑定的StarTag，点击“连接”，然后 点击“接受并继续”。 2.7 点击“完成”或“打开应用程序”。 注：仅支持海外Android，既可使用完整Google服务的机型。 Find My连接配对操作 注：iOS或iPadOS为14.5以上版本； Android 9 或更高版本的手机或平板电脑。 你可以根据拥有的设备情况，在iOS和Android系统中，二选 一连接StarTag。 1.1 将StarTag放在您的苹果设备(如iPhone)旁边； 1.2 在您的苹果设备(如iPhone)上打开蓝牙并连接到互联网； 1.3 点按1次StarTag的正面按钮，将设备开机； 1.4 打开“查找”应用程序； 1.5 在“查找”应用程序中，点击添加物品-其他支持物品； 1.6 点击“连接”； 1.7 命名您的StarTag，然后点击“继续”； 1.8 选择一个表情符号; 1.9 点击“继续”，然后点击“完成”，即可完成配对。 Apple 如何禁用 长按按键(约 5s)，待听到3声嘀嘀嘀提示音。 按钮功能 开机 点按一下按键，听到1声提示音，红色指示灯闪烁一次。 关机 长按按键(约 5s)，待听到3声嘀嘀嘀提示音后松开按键。 恢复出厂设置 快速单击3次+第4次长按，听到一个长嘀提示音，同时 红色指示灯随旋律闪烁。 查看SN 快速双击按键，嘀嘀嘀嘀4声，蓝色指示灯闪4次。 Overview Introduction The StarTag integrates with Apple Find My network and Google Find Hub to provide a secure and user-friendly solution for tracking items, making it easy to locate keys, wallets, and more, with security and privacy at the forefront. StarTag is designed for the convenience of users, simplifying daily life, allowing you to say goodbye to lost belongings and enjoy a peace of mind lifestyle. Power On Press the button once, and you will hear one beep, the red indicator light flashes once. Power Off Long press the button (about 5s) until you hear three beeps， release the button. Factory Reset Quickly click 3 times and long-press the 4th time until you hear a long beep, and the red indicator light flashes in time with the melody. Button Function Learn More Quickly press the button twice. Four confirmation beeps will sound, and the blue indicator light flashes 4 times. MS01 Use of the Works with Apple badge means that a product has been designed to work specifically with the technology identified in the badge and has been certified by the product manufacturer to meet Apple Find My network product specifications and requirements. Apple is not responsible for the operation of this device or use of this product or its compliance with safety and regulatory standards. Apple, Apple Find My, Apple Watch, Find My, iPhone, iPad, iPadOS, Mac, macOS and watchOS are trademarks of Apple Inc., registered in the U.S. and other countries. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license. Find Hub network requires location services and Bluetooth to be turned on. Requires cell service or internet connection. Works on Android 9+ and in certain countries for age-eligible users. This product has been certified by Google to meet Find Hub network accessory specifications. Google is not responsible for the operation of this product. Google is also not responsible for the ensuring that the product complies with any applicable safety standards or other requirements. Find Hub helps you find and connect to what matters in a single secure place. Google, Android, and Find Hub are trademarks of Google LLC. 使用“Works with Apple”标识，表明该产品专为与标 识中所示技术配合使用而设计，并已通过产品制造商认证， 符合Apple Find My网络产品的规范及要求。苹果公司不 对本设备的操作、本产品的使用及其是否符合安全与法规 标准承担责任。 Apple、Apple Find My、Apple Watch、Find My、 iPhone、iPad、iPadOS、Mac、macOS 及 watchOS 均 为苹果公司在美国及其他国家/地区注册的商标。iOS为思 科公司在美国及其他国家/地区的商标或注册商标，经授权 使用。 本产品已通过谷歌认证，符合Find Hub网络配件规范要求。 谷歌不对本产品的运行承担责任，同时也不对本产品是否符 合任何适用的安全标准或其他相关要求承担责任。 使用 Find Hub 网络需开启定位服务与蓝牙，并需要 蜂窝网络或互联网连接。支持 Android 9 及以上版本， 仅限特定国家/地区的适龄用户使用。 Find Hub能帮你在一个安全的专属空间里，找到并连接所有 重要物品。 Google、Android 及 Find Hub 均为谷歌有限 责任公司的商标。 StarTag包含精密的电子部件，包括电池，为避免损坏、 功能丧失或潜在伤害，请避免跌落、撞击、刺穿、压碎、 拆卸、暴露在高温或液体中，或将其放置在工业化学品浓 度高的区域。 6.3 电池使用时间，与个人使用习惯有关，频繁使用呼叫功能 会加速电池的消耗。 6.2 删除设备 从苹果设备中删除StarTag，请打开“查找”APP，选择 “物品”，找到设备，然后向下滚动，点击“移除此设备”； 从谷歌设备中删除StarTag，请打开“查找中心”APP，找 到设备，点击从“查找中心”中移除，依次点击2次“移除”。 2.1 将StarTag放在您的谷歌设备旁边。 2.2 将手机或平板，打开蓝牙并连接到互联网。 2.3 短按一下 StarTag的正面按钮，将设备开机。 How to Disable Press and hold the button for five seconds. Three confirmation beeps will sound . Apple 1.1 Place the StarTag next to your Apple device like iPhone. 1.2 Turn on bluetooth on iPhone and connect to Internet. 1.3 Press the front button of the StarTag once to turn on the device. 1.4 Open the 'Find My' app. 1.5 In 'Find My' app, Tap '+', then 'Add Other ltem'. 1.6 Once your StarTag is located, tap 'connect '. 1.7 Enter a name and choose an emoji for your StarTag and tap 'Continue'. 1.8 Find My will ask for confirmation to add your StarTag to your Apple ID. Tap 'Agree'. 1.9 Tap 'Finish' and your Sta…

Text truncated - open the document above for the full version.

Rev 1/26/2023 Shenzhen Companion Technology Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2026-05-06 FCC ID: 2BLCN-MS01 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing Shenzhen Companion Technology Co., Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Shenzhen Companion Technology Co., Ltd. certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing Shenzhen Companion Technology Co., Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Applicant: Shenzhen Companion Technology Co., Ltd. Address: 102, Building B, Wanzhong Runfeng Entrepreneurship Park, No. 973 Minzhi Avenue, Longhua District, Shenzhen, China Contact Person: Mei Huang Tel.: +86-15090363172 Email: [email protected] Sincerely, Signature:

Attestation Statements Date: 2026-05-06 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for(FCC ID: 2BLCN-MS01) Shenzhen Companion Technology Co., Ltd., the undersigned, hereby authorize FCC US Agent, LLC to act as our designated agent for service of process, Shenzhen Companion Technology Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. FCC US Agent, LLC accepts the responsibility to act as designated agent for service of process. Applicant Information： Company name: Shenzhen Companion Technology Co., Ltd. Contact Name: Mei Huang Address: 102, Building B, Wanzhong Runfeng Entrepreneurship Park, No. 973 Minzhi Avenue, Longhua District, Shenzhen, China Telephone No: +86-15090363172 Email: [email protected] FRN: 0035992684 Signature: Mei Huang Agent Information: Company Name: FCC US Agent, LLC Address:3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN: 0033402884 Contact Name: Tim Payne Telephone No: 708-571-3148 Email: [email protected] Signature: Tim Payne

Shenzhen Companion Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: May 8, 2026 Subject; Request for Confidentiality FCC ID: 2BLCN-MS01 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Mei Huang Title: Manager

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 Shenzhen Companion Technology Co., Ltd. Date：2026-05-06 Product Model Number: MS01 FCC ID：2BLCN-MS01 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. Signature: By: Mei Huang Contact Listed on FCC Wesbite Title: Manager Email: [email protected] On behalf of: Shenzhen Companion Technology Co., Ltd.

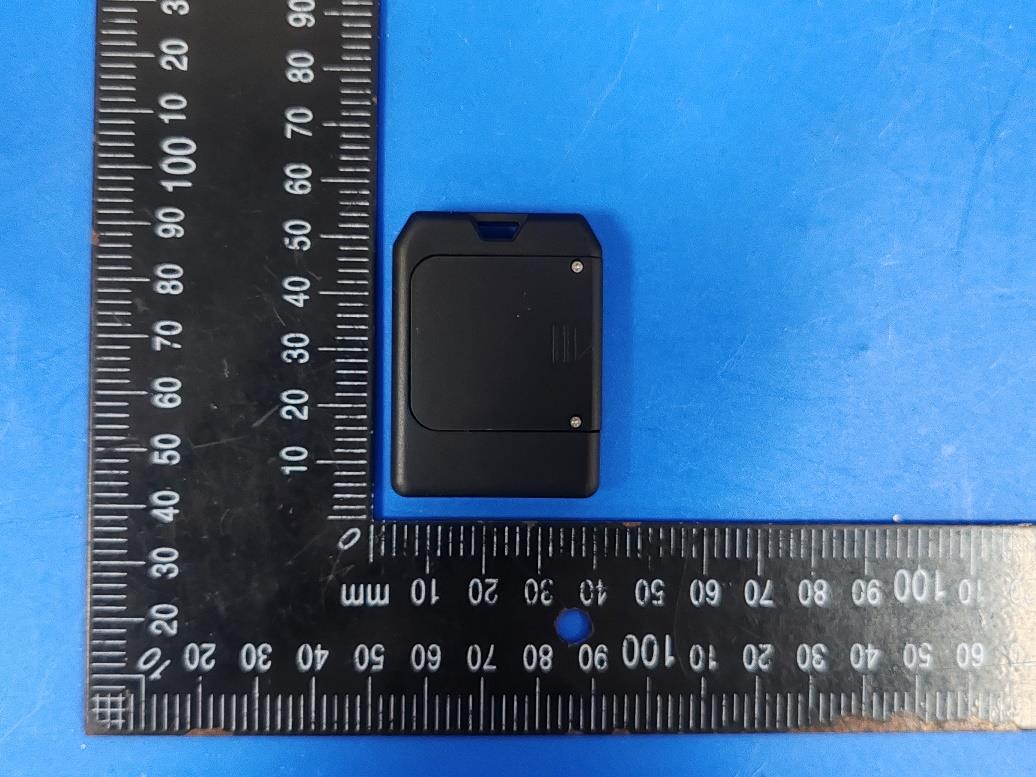

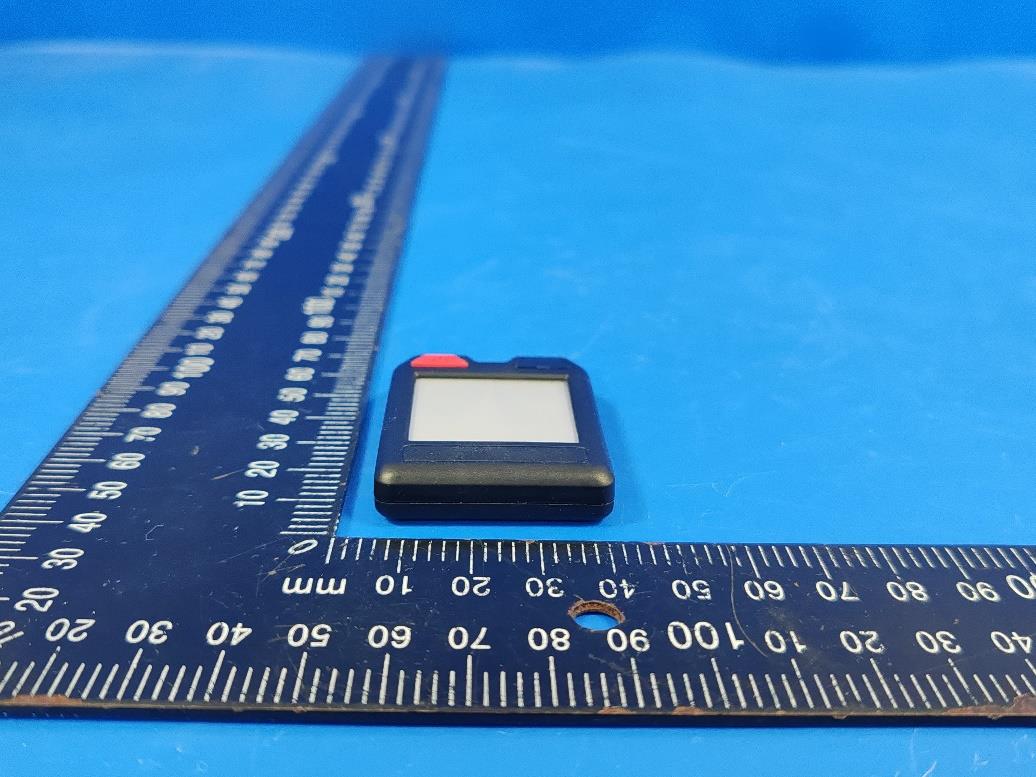

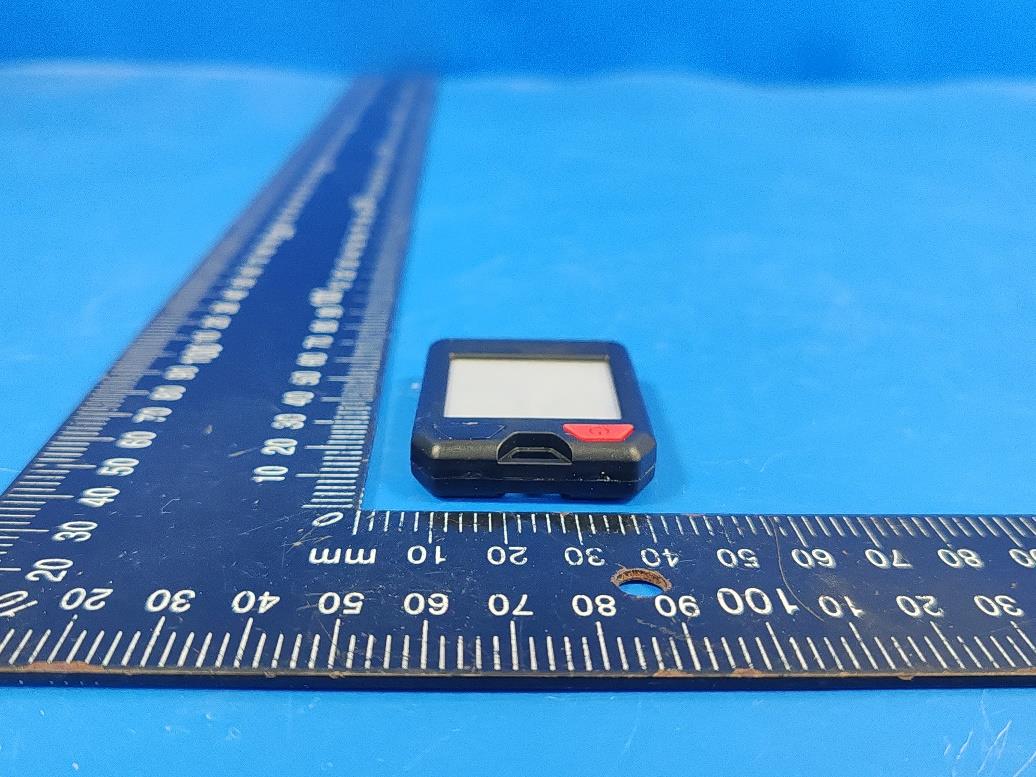

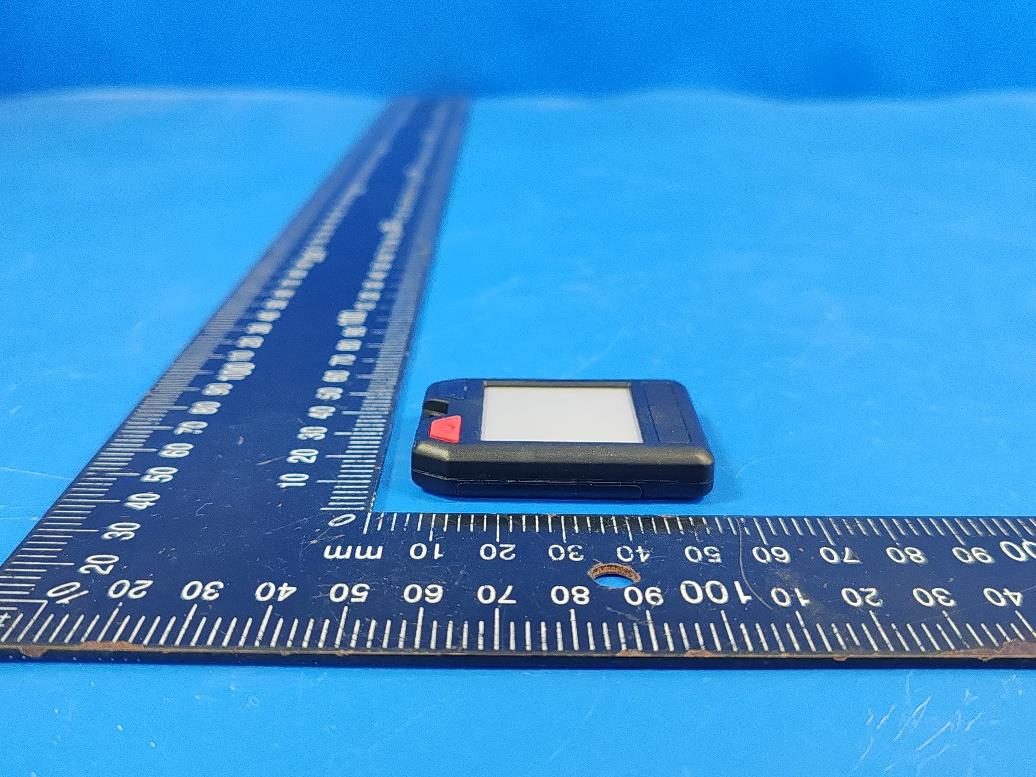

Page 1 of 3 Report No.: LGT26C146 Appendix - External Photographs of EUT Constructional Details Photo 1 Photo 2 Page 2 of 3 Report No.: LGT26C146 Appendix - External Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 3 Report No.: LGT26C146 Appendix - External Photographs of EUT Constructional Details Photo 5 Photo 6

Label Size: 12*6.2mm Model Name: MS01 FCC ID: 2BLCN-MS01

Page 1 of 5 Report No.: LGT26C146 Appendix - Internal Photographs of EUT Constructional Details Photo 1 Photo 2 Page 2 of 5 Report No.: LGT26C146 Appendix - Internal Photographs of EUT Constructional Details Photo 3 Photo 4 ANT Page 3 of 5 Report No.: LGT26C146 Appendix - Internal Photographs of EUT Constructional Details Photo 5 Photo 6 Page 4 of 5 Report No.: LGT26C146 Appendix - Internal Photographs of EUT Constructional Details Photo 7 Photo 8 Page 5 of 5 Report No.: LGT26C146 Appendix - Internal Photographs of EUT Constructional Details Photo 9 Photo 10

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 8 EMF TEST REPORT Product Name: E-Ink Model Number: MS01 FCC ID: 2BLCN-MS01 Issued For : Shenzhen Companion Technology Co., Ltd. 102, Building B, Wanzhong Runfeng Entrepreneurship Park, No. 973 Minzhi Avenue, Longhua District, Shenzhen, China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26C146HA02 Sample Received Date: Mar. 17, 2026 Date of Test: Mar. 17, 2026 ~ Mar. 27, 2026 Date of Issue: Mar. 27, 2026 Report No.: LGT26C146HA02 Page 2 of 8 TEST REPORT CERTIFICATION Applicant: Shenzhen Companion Technology Co., Ltd. Address: 102, Building B, Wanzhong Runfeng Entrepreneurship Park, No. 973 Minzhi Avenue, Longhua District, Shenzhen, China Manufacturer: Shenzhen Companion Technology Co., Ltd. Address: 102, Building B, Wanzhong Runfeng Entrepreneurship Park, No. 973 Minzhi Avenue, Longhua District, Shenzhen, China Product Name: E-Ink Trademark: NA Model Number: MS01 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47 CFR §2.1093 KDB 447498 D01 General RF Exposure Guidance v06 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT26C146HA02 Page 3 of 8 TABLE OF CONTENTS 1 . GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST LABORATORY 5 2 . FCC 47CFR §2.1093 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 8 Report No.: LGT26C146HA02 Page 4 of 8 Revision History Rev. Issue Date Revisions 00 Mar. 27, 2026 Initial Issue Report No.: LGT26C146HA02 Page 5 of 8 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name: E-Ink Test Model Number: MS01 Series Number: N/A Model Difference: N/A Frequency Bands: Bluetooth BLE 2402-2480MHz Battery: Capacity: 210mAh Rated Voltage: 3V Hardware Version: MS01_OM6626B_V02 Software Version: EH_QD_MS01_V3.0.3_R19 1.2 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 Report No.: LGT26C146HA02 Page 6 of 8 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in KDB 447498 D01 General RF Exposure Guidance v06 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Report No.: LGT26C146HA02 Page 7 of 8 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: LGT26C146HA02 Page 8 of 8 2.3 TEST RESULT Turn up Result Mode Turn up Power BLE 1M-GFSK -1±1.5dBm BLE 2M-GFSK -1±1dBm The MPE result of worst mode: RF Function Frequency (MHz) Max Turn up Power (dBm) Max Turn up Power (mW) Estimated SAR Limit Ratio Result BLE 2402 0.50 1.12 0.348 3 0.116 Pass Note: 1. The Maximum Power Density is less than the limit, complies with the exemption requirements. ※※※※※END OF THE REPORT※※※※※

深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PBXY TECHNOLOGY Limited AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY : SeraCHECKED BY: XD DESIGNED BY: SeraAPPROVED BY: XD TITLE：CHIP2450-3216 Specification DOCUMENT NO. 3216 SPEC REV. P1 产品规格承认书 SPECIFICATIONS 客户: CUSTOMER: 产品名称: DESCRIPTION: 客户型号: CUSTOMER PART No: 产品型号: OUR MODEL NO:PBX3216HC01 日期: DATE: 确认签字,盖章后请返回承认书一份 PLEASE RETURN TO US ONE COPY OF “SPECIFICATION FOR APPROVAL” WITH YOUR APPROVED SIGNATURES Shenzhen Pengpeng Xingye Technology Co., LTD. Address: Room 608,Building 4,1970 Science and Technology Town,Minzhi Street,Longhua District,Shenzhen. 深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PBXY TECHNOLOGY Limited AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY : SeraCHECKED BY: XD DESIGNED BY: SeraAPPROVED BY: XD TITLE：CHIP2450-3216 Specification DOCUMENT NO. 3216 SPEC REV. P1 PBX3216HC01 Specification Operating Temp. : -40°C~+85°C 1. FEATURES : ●Light weight, compact ●Wide bandwidth, low cost ●Built-in antenna with high gain 2. APPLICATIONS : ●Bluetooth, Wireless LAN, Mobile TV ●Home RF System, etc 3. PRODUCT IDENTIFICATION (1)(2)(3) (1) Product type: Multilayer chip Antenna (2) Center Frequency: 2450MHz (3) External Dimensions (L×W) (mm): 3.2*1.6 4. SHAPE AND DIMENSIONS: LWHA 3.2±0.21.6±0.2 0.52 ± 0.10.4 ± 0.1 CH IP45 032 2 16 Shenzhen Pengpeng Xingye Technology Co., LTD. 深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PBXY TECHNOLOGY Limited AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY : SeraCHECKED BY: XD DESIGNED BY: SeraAPPROVED BY: XD TITLE：CHIP2450-3216 Specification DOCUMENT NO. 3216 SPEC REV. P1 Shenzhen Pengpeng Xingye Technology Co., LTD. Unit: mm 深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PBXY TECHNOLOGY Limited AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY : SeraCHECKED BY: XD DESIGNED BY: SeraAPPROVED BY: XD TITLE：CHIP2450-3216 Specification DOCUMENT NO. 3216 SPEC REV. P1 APPLICATION GUIDE 5. SPECIFICATIONS: * Test condition: Test board size 90*40 mm Matching circuit: Pi matching circuit will be required Shenzhen Pengpeng Xingye Technology Co., LTD. Linear polarization Test Item Specification Bandwidth Polarization mode Maximum gain Efficiency Input impedance 深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PBXY TECHNOLOGY Limited AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY : SeraCHECKED BY: XD DESIGNED BY: SeraAPPROVED BY: XD TITLE：CHIP2450-3216 Specification DOCUMENT NO. 3216 SPEC REV. P1 6. Electrical Characteristics : MarkFrequencyVSWR 12400 MHz1.513 22440 MHz1.068 32480 MHz1.464 Shenzhen Pengpeng Xingye Technology Co., LTD. 深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PBXY TECHNOLOGY Limited AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY : SeraCHECKED BY: XD DESIGNED BY: SeraAPPROVED BY: XD TITLE：CHIP2450-3216 Specification DOCUMENT NO. 3216 SPEC REV. P1 Radiation Pattern The Gain pattern is measured in FAR-field chamber. DUT is placed on the table of rotator,a standard horn antenna and Vector Network Analyzer is used to collect data. ◎ 效率 最大增益 Shenzhen Pengpeng Xingye Technology Co., LTD. 深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PBXY TECHNOLOGY Limited AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY : SeraCHECKED BY: XD DESIGNED BY: SeraAPPROVED BY: XD TITLE：CHIP2450-3216 Specification DOCUMENT NO. 3216 SPEC REV. P1 ◎3D Gain Pattern (2400 MHz) ◎3D Gain Pattern (2440 MHz) ◎3D Gain Pattern (2480 MHz) Shenzhen Pengpeng Xingye Technology Co., LTD. 深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PBXY TECHNOLOGY Limited AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY : SeraCHECKED BY: XD DESIGNED BY: SeraAPPROVED BY: XD TITLE：CHIP2450-3216 Specification DOCUMENT NO. 3216 SPEC REV. P1 7. Environmental Characteristics (1) Reliability Test (2) Storage Condition (a) At warehouse: The temperature should be within 0 ~ 30°Cand humidity should be less than 60% RH. The product should be used within 1 year from the time of delivery. (b) On board: The temperature should be within -40~85°Cand humidity should be less than 85% RH. (3) Operating Temperature Range Operating temperature range : -40 °C to +105 °C . Shenzhen Pengpeng Xingye Technology Co., LTD. 深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE…

Text truncated - open the document above for the full version.

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 52 RF TEST REPORT Product Name: E-Ink Model Number: MS01 FCC ID: 2BLCN-MS01 Issued For : Shenzhen Companion Technology Co., Ltd. 102, Building B, Wanzhong Runfeng Entrepreneurship Park, No. 973 Minzhi Avenue, Longhua District, Shenzhen, China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26C146RF02 Sample Received Date: Mar. 17, 2026 Date of Test: Mar. 17, 2026 ~ Mar. 27, 2026 Date of Issue: Mar. 27, 2026 Report No.: LGT26C146RF02 Page 2 of 52 TEST REPORT CERTIFICATION Applicant: Shenzhen Companion Technology Co., Ltd. Address: 102, Building B, Wanzhong Runfeng Entrepreneurship Park, No. 973 Minzhi Avenue, Longhua District, Shenzhen, China Manufacturer: Shenzhen Companion Technology Co., Ltd. Address: 102, Building B, Wanzhong Runfeng Entrepreneurship Park, No. 973 Minzhi Avenue, Longhua District, Shenzhen, China Product Name: E-Ink Trademark: NA Model Number: MS01 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2020 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT26C146RF02 Page 3 of 52 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST LABORATORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 TEST SOFTWARE AND POWER LEVEL 9 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 10 2.5 EQUIPMENTS LIST 11 3. EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.2 TEST PROCEDURE 13 3.3 TEST SETUP 13 3.4 EUT OPERATING CONDITIONS 13 3.5 TEST RESULTS 13 4. RADIATED EMISSION MEASUREMENT 14 4.1 RADIATED EMISSION LIMITS 14 4.2 TEST PROCEDURE 16 4.3 TEST SETUP 16 4.4 EUT OPERATING CONDITIONS 17 4.5 FIELD STRENGTH CALCULATION 17 4.6 TEST RESULTS (BAND EDGE REQUIREMENTS) 22 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 23 5.1 LIMIT 23 5.2 TEST PROCEDURE 23 5.3 TEST SETUP 23 5.4 EUT OPERATION CONDITIONS 23 5.5 TEST RESULTS 23 6. POWER SPECTRAL DENSITY TEST 24 6.1 LIMIT 24 6.2 TEST PROCEDURE 24 6.3 TEST SETUP 24 6.4 EUT OPERATION CONDITIONS 24 Report No.: LGT26C146RF02 Page 4 of 52 6.5 TEST RESULTS 24 7. BANDWIDTH TEST 25 7.1 LIMIT 25 7.2 TEST PROCEDURE 25 7.3 TEST SETUP 25 7.4 EUT OPERATION CONDITIONS 25 7.5 TEST RESULTS 25 8. PEAK OUTPUT POWER TEST 26 8.1 LIMIT 26 8.2 TEST PROCEDURE 26 8.3 TEST SETUP 26 8.4 EUT OPERATION CONDITIONS 26 8.5 TEST RESULTS 26 9. ANTENNA REQUIREMENT 27 9.1 STANDARD REQUIREMENT 27 9.2 EUT ANTENNA 27 APPENDIX I - TEST RESULTS 28 DUTY CYCLE 28 MAXIMUM PEAK CONDUCTED OUTPUT POWER 31 -6DB BANDWIDTH 34 OCCUPIED CHANNEL BANDWIDTH 37 MAXIMUM POWER SPECTRAL DENSITY LEVEL 40 BAND EDGE 43 CONDUCTED RF SPURIOUS EMISSION 47 APPENDIX II - MEASUREMENT PHOTOS 52 Report No.: LGT26C146RF02 Page 5 of 52 Revision History Rev. Issue Date Revisions 00 Mar. 27, 2026 Initial Issue Report No.: LGT26C146RF02 Page 6 of 52 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 Part 15.247 Meas Guidance v05r02. FCC Part 15.247, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Report No.: LGT26C146RF02 Page 7 of 52 1.1 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Occupied Channel Bandwidth ±0.46% 2 RF Output Power, Conducted ±0.71dB 3 Power Spectral Density, Conducted ±1.57dB 4 Unwanted Emission, Conducted ±0.63dB 5 Conducted emission ±2.80dB 6 All Emissions, Radiated (0.009-30MHz) ±2.16dB 7 All Emissions, Radiated (30MHz-1GHz) ±4.61dB 8 All Emissions, Radiated (1GHz-18GHz) ±5.49dB 9 Temperature ±0.5°C 10 Humidity ±2% 11 Duty Cycle ±2.3% Note: The measurement uncertainty is not included in the test result. Report No.: LGT26C146RF02 Page 8 of 52 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: E-Ink Test Model Number: MS01 Series Number: N/A Model Difference: N/A Product Description: Operation Frequency: 2402~2480 MHz Modulation Type: GFSK Radio Technology: BLE Bluetooth Configuration: BLE (1M PHY, 2M PHY) Number Of Channel: 40 Antenna Designation: Multilayer chip Antenna Antenna Gain (dBi) 2.67 Channel List: Please refer to the Note 3. Battery: Capacity: 210mAh Rated Voltage: 3V Hardware Version: MS01_OM6626B_V02 Software Version: EH_QD_MS01_V3.0.3_R19 Connecting I/O Port(s): Please refer to the Note 1. Note: 1. For a more detailed features description, please refer to the manuf…

Text truncated - open the document above for the full version.

Page 1 of 1 Report No.: LGT26C146 Appendix - Test Setup photos Set-up for Radiated Spurious Emission, Below 1GHz Set-up for Radiated Spurious Emission, Above 1GHz
