2BLCN-ORBOrb Smart Global Locator

Rev 1/26/2023 Shenzhen Companion Technology Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2026-06-02 FCC ID: 2BLCN-ORB Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing Shenzhen Companion Technology Co., Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Shenzhen Companion Technology Co., Ltd. certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant toDA-24-8 8 6andKDB 9 8 6 4 4 6 D01 Covered Equipment Guidancesection B(2a). Device is inherently compliant based on hardware limitations or software controls. or 口 A Software Bill of Materials (SBOM) is provided to the TCB for review, and 口 The end-user or third parties cannot install additional software on this device. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing Shenzhen Companion Technology Co., Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Applicant: Shenzhen Companion Technology Co., Ltd. Address: 102, Building B, Wanzhong Runfeng Entrepreneurship Park, No. 973 Minzhi Avenue, Longhua District, Shenzhen, China Contact Person: Mei Huang Tel.: 15090363172 Email: [email protected] Sincerely, Signature:

Attestation Statements Date: 2026-06-01 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for(FCC ID: 2BLCN-ORB) Shenzhen Companion Technology Co., Ltd., the undersigned, hereby authorize FCC US Agent, LLC to act as our designated agent for service of process, Shenzhen Companion Technology Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. FCC US Agent, LLC accepts the responsibility to act as designated agent for service of process. Applicant Information： Company name: Shenzhen Companion Technology Co., Ltd. Contact Name: Mei Huang Address: 102, Building B, Wanzhong Runfeng Entrepreneurship Park, No. 973 Minzhi Avenue, Longhua District, Shenzhen, China Telephone No: +86-15090363172 Email: [email protected] FRN: 0035992684 Signature: Mei Huang Agent Information: Company Name: FCC US Agent, LLC Address:3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN: 0033402884 Contact Name: Tim Payne Telephone No: 708-571-3148 Email: [email protected] Signature: Tim Payne

Shenzhen Companion Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jun 02, 2026 Subject; Request for Confidentiality FCC ID: 2BLCN-ORB To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram 口 Parts List Operational Description 口 Tune-up Procedure 口 SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); 口 External Photos 口 Test Setup Photos 口 Internal Photos 口 User Manual 口 For 45 days, pursuant to Public Notice DA 04-1705. OR 口 For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Title: Manager

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 Shenzhen Companion Technology Co., Ltd. Date：2026-04-27 Product Model Number: Orb Finder FCC ID: 2BLCN-ORB To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. Signature: By: Contact Listed on FCC Wesbite Title:Manager Email: [email protected] On behalf of: Shenzhen Companion Technology Co., Ltd.

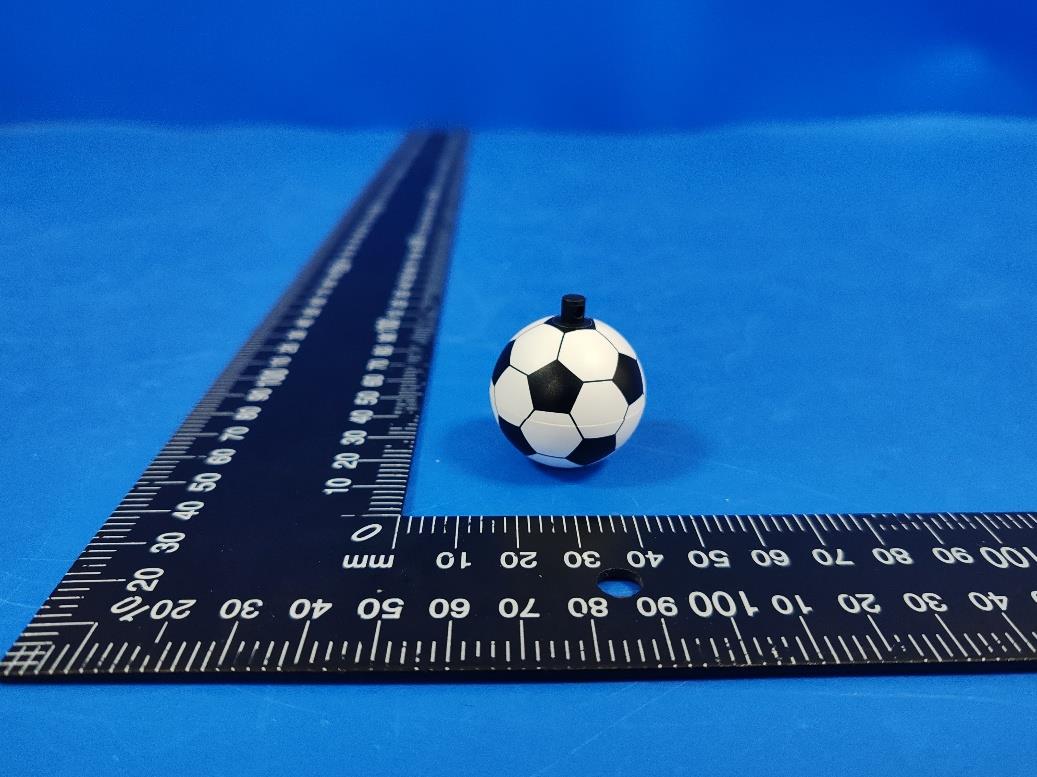

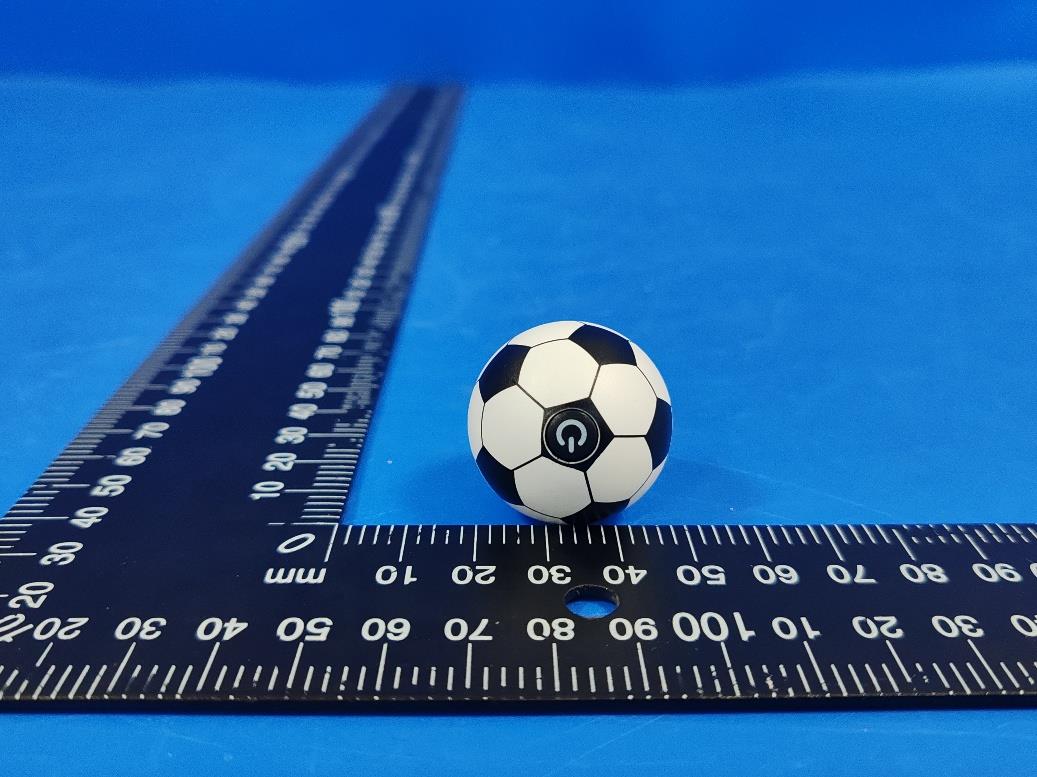

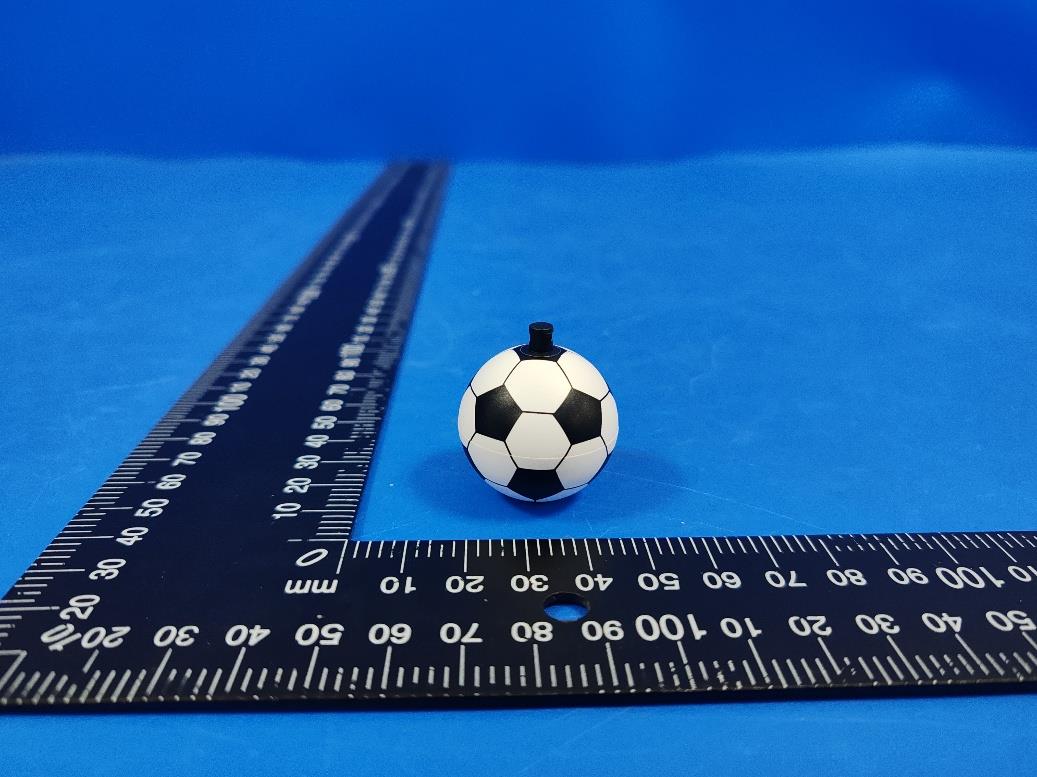

Page 1 of 3 Report No.: LGT26E088 Appendix - External Photographs of EUT Constructional Details Photo 1 Photo 2 Page 2 of 3 Report No.: LGT26E088 Appendix - External Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 3 Report No.: LGT26E088 Appendix - External Photographs of EUT Constructional Details Photo 5 Photo 6

Label Size: 18*2mm Model Name: Orb Finder FCC ID: 2BLCN-ORB

Page 1 of 4 Report No.: LGT26E088 Appendix - Internal Photographs of EUT Constructional Details Photo 1 Photo 2 Page 2 of 4 Report No.: LGT26E088 Appendix - Internal Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 4 Report No.: LGT26E088 Appendix - Internal Photographs of EUT Constructional Details Photo 5 Photo 6 ANT Page 4 of 4 Report No.: LGT26E088 Appendix - Internal Photographs of EUT Constructional Details Photo 7

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 8 EMF TEST REPORT Product Name: Orb Smart Global Locator Model Number: Orb Finder FCC ID: 2BLCN-ORB Issued For : Shenzhen Companion Technology Co., Ltd. 102, Building B, Wanzhong Runfeng Entrepreneurship Park, No. 973 Minzhi Avenue, Longhua District, Shenzhen, China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26E088HA01 Sample Received Date: May 15, 2026 Date of Test: May 15, 2026 ~ May 26, 2026 Date of Issue: May 26, 2026 Report No.: LGT26E088HA01 Page 2 of 8 TEST REPORT CERTIFICATION Applicant: Shenzhen Companion Technology Co., Ltd. Address: 102, Building B, Wanzhong Runfeng Entrepreneurship Park, No. 973 Minzhi Avenue, Longhua District, Shenzhen, China Manufacturer: Shenzhen Companion Technology Co., Ltd. Address: 102, Building B, Wanzhong Runfeng Entrepreneurship Park, No. 973 Minzhi Avenue, Longhua District, Shenzhen, China Product Name: Orb Smart Global Locator Trademark: N/A Model Number: Orb Finder Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47 CFR §2.1093 KDB 447498 D01 General RF Exposure Guidance v06 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT26E088HA01 Page 3 of 8 TABLE OF CONTENTS 1 . GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST LABORATORY 5 2 . FCC 47CFR §2.1093 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 8 Report No.: LGT26E088HA01 Page 4 of 8 Revision History Rev. Issue Date Revisions 00 May 26, 2026 Initial Issue Report No.: LGT26E088HA01 Page 5 of 8 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name: Orb Smart Global Locator Test Model Number: Orb Finder Series Number: N/A Model Difference: N/A Frequency Bands: Bluetooth BLE 2402-2480MHz Battery: Capacity: 600mAh Rated Voltage: 3.0V Hardware Version: PBX_LS01_HS6626_V1.0 Software Version: 1.0.1 1.2 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 Report No.: LGT26E088HA01 Page 6 of 8 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in KDB 447498 D01 General RF Exposure Guidance v06 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Report No.: LGT26E088HA01 Page 7 of 8 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: LGT26E088HA01 Page 8 of 8 2.3 TEST RESULT Turn up Result Mode Turn up Power BLE 1M-GFSK -1.5±1dBm BLE 2M-GFSK -1.5±1dBm The MPE result of worst mode: RF Function Frequency (MHz) Max Turn up Power (dBm) Max Turn up Power (mW) Estimated SAR Limit Ratio Result BLE 2440 -0.50 0.89 0.278 3 0.093 Pass Note: 1. The Maximum Power Density is less than the limit, complies with the exemption requirements. ※※※※※END OF THE REPORT※※※※※

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 49 RF TEST REPORT Product Name: Orb Smart Global Locator Model Number: Orb Finder FCC ID: 2BLCN-ORB Issued For : Shenzhen Companion Technology Co., Ltd. 102, Building B, Wanzhong Runfeng Entrepreneurship Park, No. 973 Minzhi Avenue, Longhua District, Shenzhen, China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26E088RF01 Sample Received Date: May 15, 2026 Date of Test: May 15, 2026 ~ May 26, 2026 Date of Issue: May 26, 2026 Report No.: LGT26E088RF01 Page 2 of 49 TEST REPORT CERTIFICATION Applicant: Shenzhen Companion Technology Co., Ltd. Address: 102, Building B, Wanzhong Runfeng Entrepreneurship Park, No. 973 Minzhi Avenue, Longhua District, Shenzhen, China Manufacturer: Shenzhen Companion Technology Co., Ltd. Address: 102, Building B, Wanzhong Runfeng Entrepreneurship Park, No. 973 Minzhi Avenue, Longhua District, Shenzhen, China Product Name: Orb Smart Global Locator Trademark: N/A Model Number: Orb Finder Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2020 PASS Prepared by: Approved by: Chris Chen Vita Li Engineer Technical Director Report No.: LGT26E088RF01 Page 3 of 49 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST LABORATORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 TEST SOFTWARE AND POWER LEVEL 9 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 10 2.5 EQUIPMENTS LIST 11 3. EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.2 TEST PROCEDURE 13 3.3 TEST SETUP 13 3.4 EUT OPERATING CONDITIONS 13 3.5 TEST RESULTS 13 4. RADIATED EMISSION MEASUREMENT 14 4.1 RADIATED EMISSION LIMITS 14 4.2 TEST PROCEDURE 16 4.3 TEST SETUP 16 4.4 EUT OPERATING CONDITIONS 17 4.5 FIELD STRENGTH CALCULATION 17 4.6 TEST RESULTS (BAND EDGE REQUIREMENTS) 22 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 23 5.1 LIMIT 23 5.2 TEST PROCEDURE 23 5.3 TEST SETUP 23 5.4 EUT OPERATION CONDITIONS 23 5.5 TEST RESULTS 23 6. POWER SPECTRAL DENSITY TEST 24 6.1 LIMIT 24 6.2 TEST PROCEDURE 24 6.3 TEST SETUP 24 6.4 EUT OPERATION CONDITIONS 24 Report No.: LGT26E088RF01 Page 4 of 49 6.5 TEST RESULTS 24 7. BANDWIDTH TEST 25 7.1 LIMIT 25 7.2 TEST PROCEDURE 25 7.3 TEST SETUP 25 7.4 EUT OPERATION CONDITIONS 25 7.5 TEST RESULTS 25 8. PEAK OUTPUT POWER TEST 26 8.1 LIMIT 26 8.2 TEST PROCEDURE 26 8.3 TEST SETUP 26 8.4 EUT OPERATION CONDITIONS 26 8.5 TEST RESULTS 26 9. ANTENNA REQUIREMENT 27 9.1 STANDARD REQUIREMENT 27 9.2 EUT ANTENNA 27 APPENDIX I - TEST RESULTS 28 1. DUTY CYCLE 28 2. BANDWIDTH 31 3. MAXIMUM CONDUCTED OUTPUT POWER 36 4. MAXIMUM POWER SPECTRAL DENSITY 39 5. UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS 42 APPENDIX II - MEASUREMENT PHOTOS 49 Report No.: LGT26E088RF01 Page 5 of 49 Revision History Rev. Issue Date Revisions 00 May 26, 2026 Initial Issue Report No.: LGT26E088RF01 Page 6 of 49 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 Part 15.247 Meas Guidance v05r02. FCC Part 15.247, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Report No.: LGT26E088RF01 Page 7 of 49 1.1 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Occupied Channel Bandwidth ±0.46% 2 RF Output Power, Conducted ±0.71dB 3 Power Spectral Density, Conducted ±1.57dB 4 Unwanted Emission, Conducted ±0.63dB 5 Conducted emission ±2.80dB 6 All Emissions, Radiated (0.009-30MHz) ±2.16dB 7 All Emissions, Radiated (30MHz-1GHz) ±4.61dB 8 All Emissions, Radiated (1GHz-18GHz) ±5.49dB 9 Temperature ±0.5°C 10 Humidity ±2% 11 Duty Cycle ±2.3% Note: The measurement uncertainty is not included in the test result. Report No.: LGT26E088RF01 Page 8 of 49 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: Orb Smart Global Locator Test Model Number: Orb Finder Series Number: N/A Model Difference: N/A Product Description: Operation Frequency: 2402~2480 MHz Modulation Type: GFSK Radio Technology: BLE Bluetooth Configuration: BLE (1M PHY, 2M PHY) Number Of Channel: 40 Antenna Designation: Multilayer chip Antenna Antenna Gain (dBi) 2.67 Channel List: Please refer to the Note 3. Battery: Capacity: 600mAh Rated Voltage: 3.0V Hardware Version: PBX_LS01_HS6626_V1.0 Software Version: 1.0.1 Connecting I/O Port(s): Please refer to the Note 1. Note: 1. For a more detailed features…

Text truncated - open the document above for the full version.

深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PBXY TECHNOLOGY Limited AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY : SeraCHECKED BY: XD DESIGNED BY: SeraAPPROVED BY: XD TITLE：CHIP2450-3216 Specification DOCUMENT NO. 3216 SPEC REV. P1 产品规格承认书 SPECIFICATIONS 客户: CUSTOMER: 产品名称: DESCRIPTION: 客户型号: CUSTOMER PART No: 产品型号: OUR MODEL NO:PBX3216HC01 日期: DATE: 确认签字,盖章后请返回承认书一份 PLEASE RETURN TO US ONE COPY OF “SPECIFICATION FOR APPROVAL” WITH YOUR APPROVED SIGNATURES Shenzhen Pengpeng Xingye Technology Co., LTD. Address: Room 608,Building 4,1970 Science and Technology Town,Minzhi Street,Longhua District,Shenzhen. 深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PBXY TECHNOLOGY Limited AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY : SeraCHECKED BY: XD DESIGNED BY: SeraAPPROVED BY: XD TITLE：CHIP2450-3216 Specification DOCUMENT NO. 3216 SPEC REV. P1 PBX3216HC01 Specification Operating Temp. : -40°C~+85°C 1. FEATURES : ●Light weight, compact ●Wide bandwidth, low cost ●Built-in antenna with high gain 2. APPLICATIONS : ●Bluetooth, Wireless LAN, Mobile TV ●Home RF System, etc 3. PRODUCT IDENTIFICATION (1)(2)(3) (1) Product type: Multilayer chip Antenna (2) Center Frequency: 2450MHz (3) External Dimensions (L×W) (mm): 3.2*1.6 4. SHAPE AND DIMENSIONS: LWHA 3.2±0.21.6±0.2 0.52 ± 0.10.4 ± 0.1 CH IP45 032 2 16 Shenzhen Pengpeng Xingye Technology Co., LTD. 深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PBXY TECHNOLOGY Limited AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY : SeraCHECKED BY: XD DESIGNED BY: SeraAPPROVED BY: XD TITLE：CHIP2450-3216 Specification DOCUMENT NO. 3216 SPEC REV. P1 Shenzhen Pengpeng Xingye Technology Co., LTD. Unit: mm 深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PBXY TECHNOLOGY Limited AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY : SeraCHECKED BY: XD DESIGNED BY: SeraAPPROVED BY: XD TITLE：CHIP2450-3216 Specification DOCUMENT NO. 3216 SPEC REV. P1 APPLICATION GUIDE 5. SPECIFICATIONS: * Test condition: Test board size 90*40 mm Matching circuit: Pi matching circuit will be required Shenzhen Pengpeng Xingye Technology Co., LTD. Linear polarization Test Item Specification Bandwidth Polarization mode Maximum gain Efficiency Input impedance 深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PBXY TECHNOLOGY Limited AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY : SeraCHECKED BY: XD DESIGNED BY: SeraAPPROVED BY: XD TITLE：CHIP2450-3216 Specification DOCUMENT NO. 3216 SPEC REV. P1 6. Electrical Characteristics : MarkFrequencyVSWR 12400 MHz1.513 22440 MHz1.068 32480 MHz1.464 Shenzhen Pengpeng Xingye Technology Co., LTD. 深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PBXY TECHNOLOGY Limited AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY : SeraCHECKED BY: XD DESIGNED BY: SeraAPPROVED BY: XD TITLE：CHIP2450-3216 Specification DOCUMENT NO. 3216 SPEC REV. P1 Radiation Pattern The Gain pattern is measured in FAR-field chamber. DUT is placed on the table of rotator,a standard horn antenna and Vector Network Analyzer is used to collect data. ◎ 效率 最大增益 Shenzhen Pengpeng Xingye Technology Co., LTD. 深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PBXY TECHNOLOGY Limited AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY : SeraCHECKED BY: XD DESIGNED BY: SeraAPPROVED BY: XD TITLE：CHIP2450-3216 Specification DOCUMENT NO. 3216 SPEC REV. P1 ◎3D Gain Pattern (2400 MHz) ◎3D Gain Pattern (2440 MHz) ◎3D Gain Pattern (2480 MHz) Shenzhen Pengpeng Xingye Technology Co., LTD. 深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PBXY TECHNOLOGY Limited AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY : SeraCHECKED BY: XD DESIGNED BY: SeraAPPROVED BY: XD TITLE：CHIP2450-3216 Specification DOCUMENT NO. 3216 SPEC REV. P1 7. Environmental Characteristics (1) Reliability Test (2) Storage Condition (a) At warehouse: The temperature should be within 0 ~ 30°Cand humidity should be less than 60% RH. The product should be used within 1 year from the time of delivery. (b) On board: The temperature should be within -40~85°Cand humidity should be less than 85% RH. (3) Operating Temperature Range Operating temperature range : -40 °C to +105 °C . Shenzhen Pengpeng Xingye Technology Co., LTD. 深圳市朋伴兴业科技有限公司 UNLESS OTHER SPECIFIED TOLERANCES ON： X＝±X.X＝±X.XX＝ AN G L E S＝ ± H O L E D I A＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGS AND SPECIFICATIONS ARE…

Text truncated - open the document above for the full version.

Page 1 of 1 Report No.: LGT26E088 Appendix - Test Setup photos Set-up for Radiated Spurious Emission, Below 1GHz Set-up for Radiated Spurious Emission, Above 1GHz
