2BLM8-KP02C2Wireless IP Camera

Wireless IP Camera User Manual Contents EN DE 01 12 FR IT 23 ES 34 45 1 What’s in the box? Please refer to this list to check the accessories included in the package. Tips: The actual product may vary from the images shown. lmages are for illustrative purposes only. Window Camera USB Cable Adhesive Cable ClipsUser Manual Power Adapter Adhesive Mounting Base 2 Product Introduction Lens Reset Button Speaker Microphone Indicator Light DC Power Supply Mounting Screw Hole TF Card Slot App Download While your camera charges, download the InstaVision app from the App Store or Google Play, or simply scan the QR code below with your smartphone's camera to open app listing. 3 Window Camera Connection Preparation Bring the camera and phone within 20ft of the router. ~20ftphone 4 (1) Ensure your phone's Bluetooth is on before use. (2) Open the App, tap "Add Camera" on the Home screen, or go to "Add & Manage Cameras" and tap "Add Camera" to get started. Adding camera to your account 5 (3) Power on the camera. If needed, reset it by pressing and holding the reset button for at least 5 seconds to reset. Once you hear the “welcome ...” sound, tap "continue" to proceed. (4) App begins scanning for nearby cameras. Make sure your phone and camera are close to each other.Scanning may take a few seconds. 6 (5) Select the camera you want to connect and click "continue". 7 (6) Select the WiFi network you want to connect to. Then enter the password, and click "Next". Please note, the camera works with 2.4 GHz and 5GHz WiFi network. Note:passwords are case-sensitive, make sure you enter the correct one. 8 (7) Tap “Confirm” after entering the correct passwords. 9 (8) After a short wait, the pairing will be successful. 10 (9) Click "continue", then you can see the camera on the home screen. Settings. Screenshot. One-way call: The phone plays the sound from the camera. One-way call: The camera plays the sound from the phone. Switch video quality. Live video recording. 11 12 Was ist in der Box? Bitte beziehen Sie sich auf diese Liste, um die im Paket enthaltenen Zubehörteile zu überprüfen. Hinweis: Das tatsächliche Produkt kann von den gezeigten Abbildungen abweichen. Die Bilder dienen nur zur Veranschaulichung. Fensterkamera USB-Kabel KlebekabelclipsBenutzerhandbuch Netzteil Klebe-Montagebasis 13 Produkteinführung Objektiv Reset-Taste Lautsprecher Mikrofon Statusleuchte DC- Stromversorgung Montage-Schraubenloch TF- Kartensteckplatz App-Herunterladen Während Ihre Kamera lädt, laden Sie die InstaVision-App aus dem App Store oder Google Play herunter, oder scannen Sie einfach den QR-Code unten mit der Kamera Ihres Smartphones, um die App-Liste zu öffnen. 14 Fensterkamera Verbindungsvorbereitung Stellen Sie die Kamera und das Telefon innerhalb von ca. 6 Metern (20 Fuß) vom Router. ~6 MeterTelefon 15 (1) Stellen Sie sicher, dass das Bluetooth Ihres Telefons vor der Verwendung eingeschaltet ist. (2) Öffnen Sie die App, tippen Sie auf dem Startbildschirm auf „Kamera hinzufügen", oder gehen Sie zu „Kameras hinzufügen & verwalten" und tippen Sie auf „Kamera hinzufügen", um zu beginnen. Kamera zu Ihrem Konto hinzufügen 16 (3) Schalten Sie die Kamera ein. Falls erforderlich, setzen Sie sie durch Drücken und Halten der Reset-Taste für mindestens 5 Sekunden zurück. Sobald Sie den Begrüßungston „Welcome...“ hören, tippen Sie auf „Weiter“, um fortzufahren. (4) Die App beginnt mit der Suche nach Kameras in der Nähe. Stellen Sie sicher, dass Ihr Telefon und die Kamera nahe beieinander sind. Der Scanvorgang kann einige Sekunden dauern. 17 (5) Wählen Sie die Kamera aus, mit der Sie eine Verbindung herstellen möchten, und klicken Sie auf „Weiter". 18 (6) Wählen Sie das WLAN-Netzwerk aus, mit dem Sie eine Verbindung herstellen möchten. Geben Sie dann das Passwort ein und klicken Sie auf „Weiter".Bitte beachten Sie: Die Kamera funktioniert mit 2,4-GHz- und 5-GHz-WLAN- Netzwerken. Hinweis: Passwörter sind groß-/kleinschreibungsabhängig. Stellen Sie sicher, dass Sie das richtige Passwort eingeben. 19 (7) Tippen Sie auf „Bestätigen", nachdem Sie das korrekte Passwort eingegeben haben. 20 (8) Nach einem kurzen Moment wird die Kopplung erfolgreich abgeschlossen sein. 21 (9) Klicken Sie auf „Weiter", dann können Sie die Kamera auf dem Startbildschirm sehen. 22 Einstellungen Bildschirmfoto Einseitiger Anruf: Das Telefon gibt den Ton von der Kamera wieder. Einseitiger Anruf: Die Kamera gibt den Ton vom Telefon wieder. Videoqualität umschalten Live-Videoaufnahme 23 Que contient la boîte ? Veuillez vous référer à cette liste pour vérifier les accessoires inclus dans l'emballage. Conseil : Le produit réel peut différer des images présentées. Les images sont fournies à titre d'illustration uniquement. Caméra pour fenêtre Câble USB Attaches de câble adhésivesManuel d'utilisation Adaptateur secteur Base d'installation adhésive 24 Introduction au produit Objectif Bouton de réinitialisation Haut-parleur Microphone Voyant lumineux Alimentation CC Trou de vis de fixation Fente pour carte mémoire Téléchargement de l'application Pendant que votre caméra charge, téléchargez l'application InstaVision depuis l'App Store ou Google Play, ou scannez simplement le code QR ci-dessous avec l'appareil photo de votre smartphone pour ouvrir la page de téléchargement de l'application. 25 Caméra pour fenêtre Préparation de la connexion Placez la caméra et le téléphone à moins de 6 mètres (20 pieds) du routeur. ~6 mTéléphone 26 (1) Assurez-vous que le Bluetooth de votre téléphone est activé avant utilisation. (2) Ouvrez l'application, appuyez sur "Ajouter une caméra" sur l'écran d'accueil, ou accédez à "Ajouter et gérer les caméras" et appuyez sur "Ajouter une caméra" pour commencer. Ajout de la caméra à votre compte 27 (3) Allumez la caméra.Si nécessaire, réinitialisez-la en maintenant le bouton de réinitialisation enfoncé pendant au moins 5 secondes.Lorsque vous entendrez le message vocal "Welcome...", appuyez sur "Continuer" dans l'application pour poursuivre. (4) L'a…

Text truncated - open the document above for the full version.

Shenzhen Zhishengquwu Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: February 26, 2026 Subject; Request for Confidentiality FCC ID: 2BLM8-KP02C2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Liao Zhijun Title: Product Director

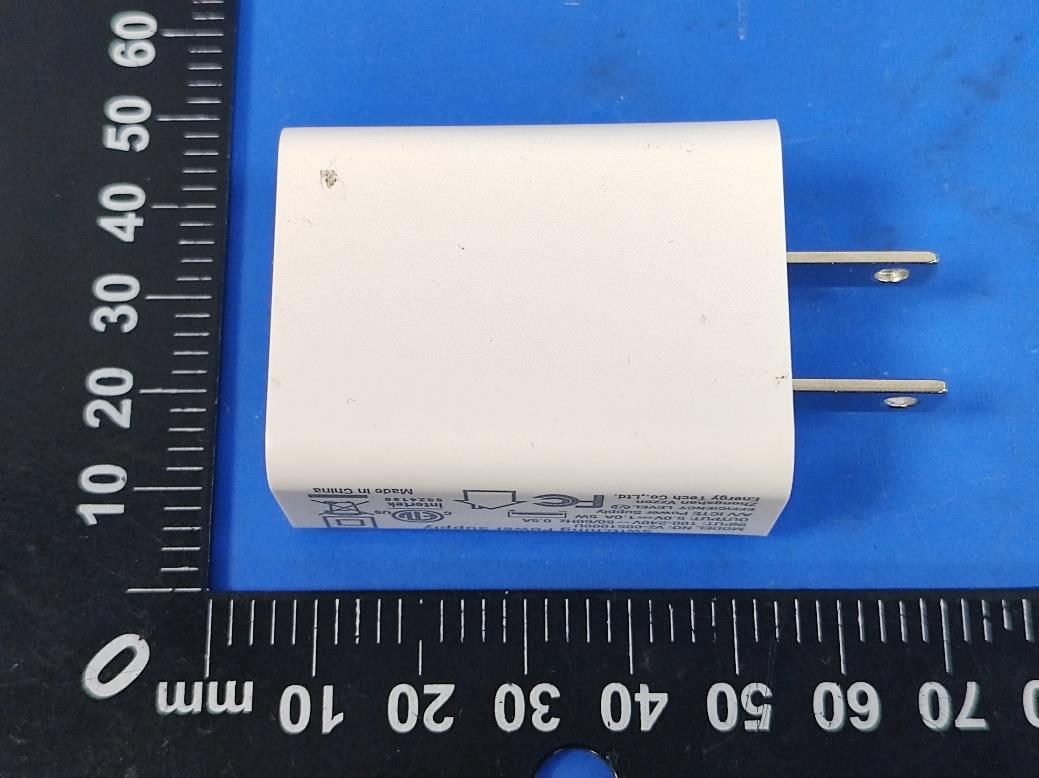

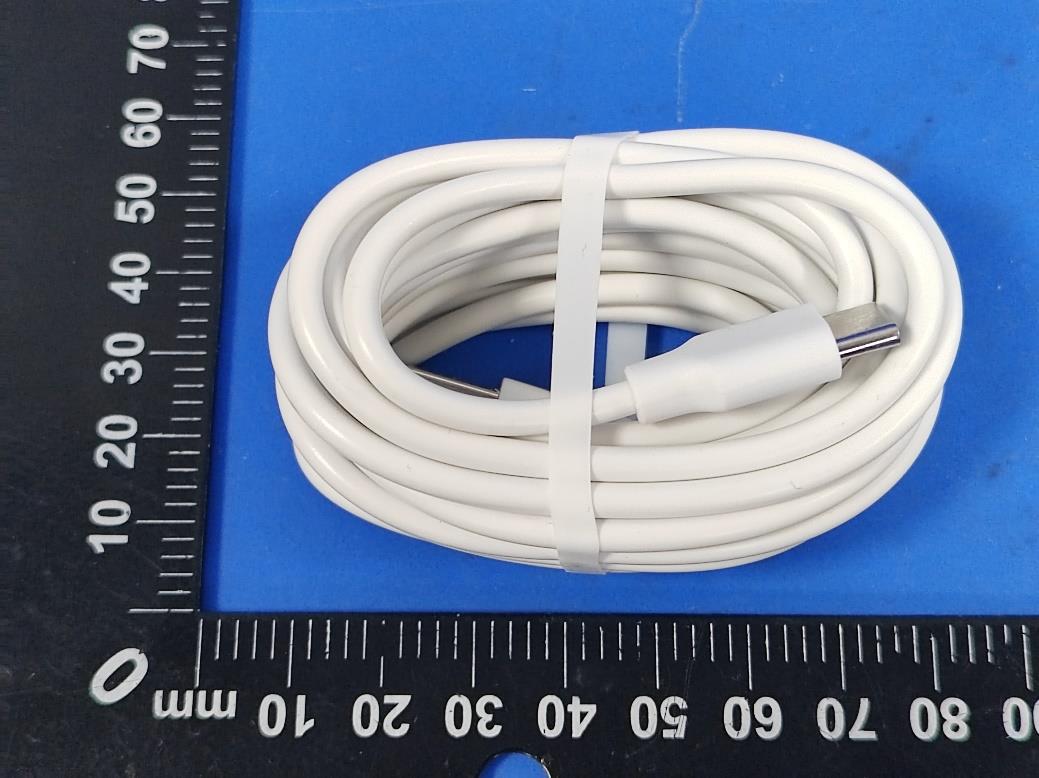

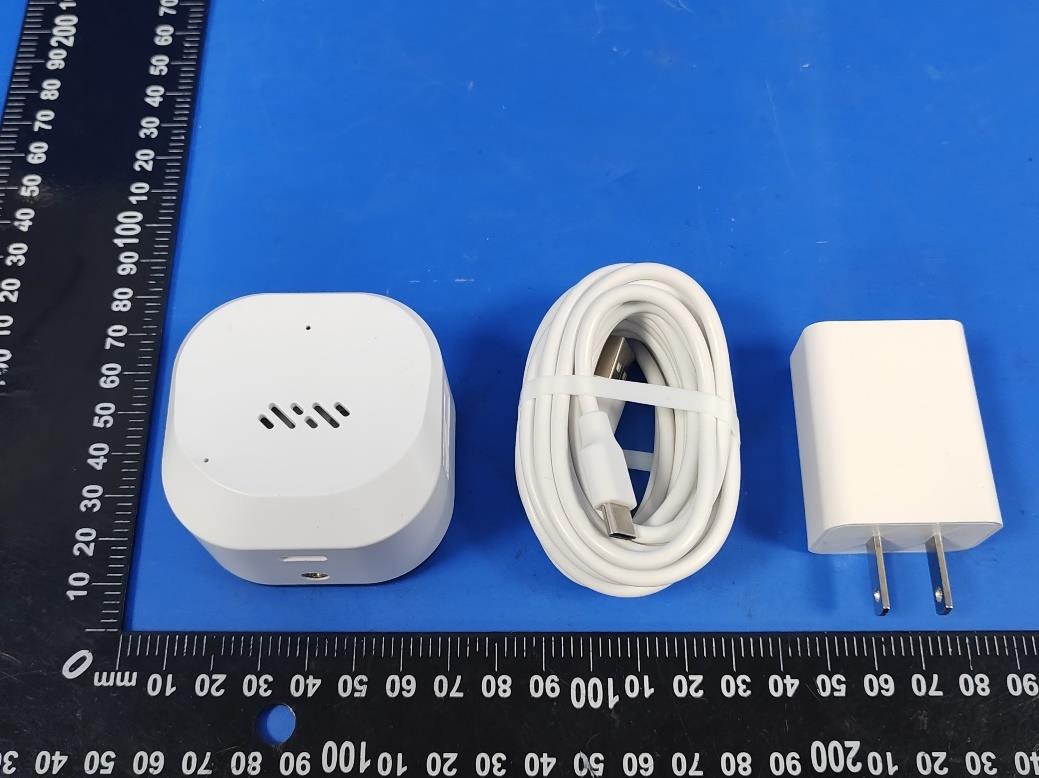

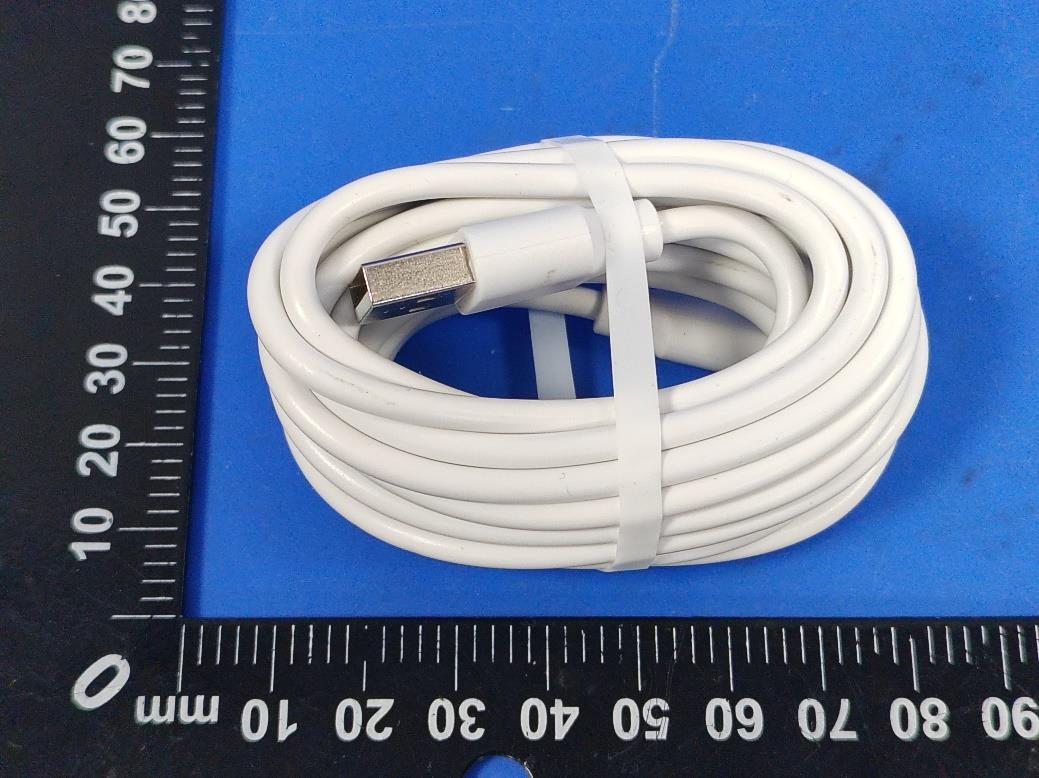

Page 1 of 6 Report No.: LGT26A188 Appendix - External Photographs of EUT Constructional Details Photo 1 Photo 2 Page 2 of 6 Report No.: LGT26A188 Appendix - External Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 6 Report No.: LGT26A188 Appendix - External Photographs of EUT Constructional Details Photo 5 Photo 6 Page 4 of 6 Report No.: LGT26A188 Appendix - External Photographs of EUT Constructional Details Photo 7 Photo 8 Page 5 of 6 Report No.: LGT26A188 Appendix - External Photographs of EUT Constructional Details Photo 9 Photo 10 Page 6 of 6 Report No.: LGT26A188 Appendix - External Photographs of EUT Constructional Details Photo 11 Photo 12

Label Model: KP02-C2 FCC ID: 2BLM8-KP02C2

Page 1 of 3 Report No.: LGT26A188 Appendix - Internal Photographs of EUT Constructional Details Photo 1 Photo 2 Page 2 of 3 Report No.: LGT26A188 Appendix - Internal Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 3 Report No.: LGT26A188 Appendix - Internal Photographs of EUT Constructional Details Photo 5 ANT

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 8 EMF TEST REPORT Product Name: Wireless IP Camera Model Number: KP02-C2, KP02-C2-A1, KP02-C2-A2, KP02-C2-A3, KP02- C2-A4, KP02-C2-B1, KP02-C2-B2, KP02-C2-B3, KP02-C2-B4 FCC ID: 2BLM8-KP02C2 Issued For : Shenzhen Zhishengquwu Technology Co., Ltd Room A1001, East Wing, Lenovo Building, No.16, Gaoxin South First Road, Gaoxin Community, Yuehai Street, Nanshan District, Shenzhen, China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26A188HA01 Sample Received Date: Jan. 26, 2026 Date of Test: Jan. 26, 2026 ~ Feb. 04, 2026 Date of Issue: Feb. 04, 2026 Report No.: LGT26A188HA01 Page 2 of 8 TEST REPORT CERTIFICATION Applicant: Shenzhen Zhishengquwu Technology Co., Ltd Address: Room A1001, East Wing, Lenovo Building, No.16, Gaoxin South First Road, Gaoxin Community, Yuehai Street, Nanshan District, Shenzhen, China Manufacturer: Ansjer Electronics Co.,Ltd Address: 3 rd Floor,No.21 Yongtian Road ,Xiangzhou 519000,Zhuhai,Guangdong,China Product Name: Wireless IP Camera Trademark: DETIKO Model Number: KP02-C2, KP02-C2-A1, KP02-C2-A2, KP02-C2-A3, KP02-C2-A4, KP02-C2-B1, KP02-C2-B2, KP02-C2-B3, KP02-C2-B4 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47 CFR §2.1091 KDB 447498 D01 General RF Exposure Guidance v06 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT26A188HA01 Page 3 of 8 TABLE OF CONTENTS 1 . GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST LABORATORY 5 2 . FCC 47CFR §2.1091 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 EUT OPERATION CONDITION 7 2.4 CLASSIFICATION 7 2.5 TEST RESULT 8 Report No.: LGT26A188HA01 Page 4 of 8 Revision History Rev. Issue Date Revisions 00 Feb. 04, 2026 Initial Issue Report No.: LGT26A188HA01 Page 5 of 8 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name: Wireless IP Camera Test Model Number: KP02-C2 Series Number: KP02-C2-A1, KP02-C2-A2, KP02-C2-A3, KP02-C2-A4, KP02- C2-B1, KP02-C2-B2, KP02-C2-B3, KP02-C2-B4 Model Difference: Difference in the quantity of the entire set:(A1/B1 represents one set; A2/B2 represents two sets, A3/B3 represents three sets, A4/B4 represents four sets)(A represents long focal length, B represents short focal length) Frequency Bands: Bluetooth 2402-2480MHz 2.4G WLAN 802.11b/g/n(20MHz): 2412~2462MHz 802.11n(40MHz):2422~2452MHz 5G WLAN IEEE 802.11a/n(HT20): 5.180GHz-5.240GHz IEEE 802.11n(HT40): 5.190GHz-5.230GHz IEEE 802.11a/n(HT20):5.745GHz-5.825GHz IEEE 802.11a/n(HT40):5.755GHz-5.795GHz Adapter: Input: 100-240V 50/60Hz 0.5A Output: 5V 1.0A 5.0W Hardware Version: TX5112CV300+CV2003+6132 Software Version: 1.1.01 1.2 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 Report No.: LGT26A188HA01 Page 6 of 8 2. FCC 47CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 0.3-3.0 614 1.63 *(100) 3.0-30 1842/f 4.89/f *(900/f 2 ) 30-300 61.4 0.163 1.0 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 1.34-30 824/f 2.19/f *(180/f 2 ) 30-300 27.5 0.073 0.2 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 F= Frequency in MHz * = Plane-wave equivalent power density. Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. Report No.: LGT26A188HA01 Page 7 of 8 2.3 EUT OPERATION CONDITION EUT was enabled to transmit and receive at lowest, middle and highest channels. 2.4 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. Report No.: LGT26A188HA01 Page 8 of 8 2.5 TEST RESULT Tu…

Text truncated - open the document above for the full version.

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 87  RF TEST REPORT Product Name: Wireless IP Camera Model Number: KP02-C2, KP02-C2-A1, KP02-C2-A2, KP02-C2-A3, KP02- C2-A4, KP02-C2-B1, KP02-C2-B2, KP02-C2-B3, KP02-C2-B4 FCC ID: 2BLM8-KP02C2 Issued For : Shenzhen Zhishengquwu Technology Co., Ltd Room A1001, East Wing, Lenovo Building, No.16, Gaoxin South First Road, Gaoxin Community, Yuehai Street, Nanshan District, Shenzhen, China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26A188RF03 Sample Received Date: Jan. 26, 2026 Date of Test: Jan. 26, 2026 ~ Feb. 04, 2026 Date of Issue: Feb. 04, 2026 Report No.: LGT26A188RF03 Page 2 of 87 TEST REPORT CERTIFICATION Applicant: Shenzhen Zhishengquwu Technology Co., Ltd Address: Room A1001, East Wing, Lenovo Building, No.16, Gaoxin South First Road, Gaoxin Community, Yuehai Street, Nanshan District, Shenzhen, China Manufacturer: Ansjer Electronics Co.,Ltd Address: 3 rd Floor,No.21 Yongtian Road ,Xiangzhou 519000,Zhuhai,Guangdong,China Product Name: Wireless IP Camera Trademark: DETIKO Model Number: KP02-C2, KP02-C2-A1, KP02-C2-A2, KP02-C2-A3, KP02-C2-A4, KP02-C2-B1, KP02-C2-B2, KP02-C2-B3, KP02-C2-B4 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.407, Subpart E ANSI C63.10-2020 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT26A188RF03 Page 3 of 87 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST LABORATORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 11 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 RADIATED EMISSION AND ( BANDEDGE) MEASUREMENT 18 4. POWER SPECTRAL DENSITY TEST 29 4.1 LIMIT 29 4.2 TEST PROCEDURE 29 4.3 DEVIATION FROM STANDARD 29 4.4 TEST SETUP30 4.5 EUT OPERATION CONDITIONS 30 4.6 TEST RESULTS 30 5. BANDWIDTH MEASUREMENT 31 5.1 EMISSION BANDWIDTH (EBW) 26 BANDWID PROCEDURES / LIMIT 31 5.2 OCCUPIED BANDWIDTH ( 99%) TEST APPLIED PROCEDURES / LIMIT 32 5.3 MINIMUM EMISSION BANDWIDTH(6 DB) PROCEDURES / LIMIT 33 6. MAXIMUM CONDUCTED OUTPUT POWER 34 6.1 LIMIT 34 6.2 TEST PROCEDURE 34 6.3 DEVIATION FROM STANDARD 34 6.4 TEST SETUP35 6.5 EUT OPERATION CONDITIONS 35 6.6 TEST RESULTS 35 7. CONDUCTED BANDEDGE 36 7.1 LIMIT 36 7.2 TEST PROCEDURE 36 7.3 DEVIATION FROM STANDARD 36 Report No.: LGT26A188RF03 Page 4 of 87 7.4 TEST SETUP36 7.5 EUT OPERATION CONDITIONS 36 7.6 TEST RESULTS 36 8. AUTOMATICALLY DISCONTINUE TRANSMISSION 36 8.1 LIMIT OF AUTOMATICALLY DISCONTINUE TRANSMISSION 36 8.2 TEST RESULT OF AUTOMATICALLY DISCONTINUE TRANSMISSION 37 9. ANTENNA REQUIREMENT 38 9.1 STANDARD REQUIREMENT 38 9.2 EUT ANTENNA 38 APPENDIX I - TEST RESULTS 39 1. DUTY CYCLE 39 2. BANDWIDTH 46 3. MAXIMUM CONDUCTED OUTPUT POWER 60 4. MAXIMUM POWER SPECTRAL DENSITY 67 5. UNWANTED EMISSIONS IN RESTRICTED FREQUENCY BANDS 74 APPENDIX II - MEASUREMENT PHOTOS 87 Report No.: LGT26A188RF03 Page 5 of 87 Revision History Rev. Issue Date Revisions 00 Feb. 04, 2026 Initial Issue Report No.: LGT26A188RF03 Page 6 of 87 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: Part 15.407,KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 FCC Part 15.407 FCC standard Test Item Results 15.207 AC Conducted Emission PASS 15.407 (a) /15.407 (e) 26dB/6dB &99% Bandwidth PASS 15.407(a) Maximum Conducted Output Power PASS 15.407(b)/15.205/15.209 Radiated Emission And (bandedge Emissions) Measurement PASS 15.407(a) Power Spectral Density PASS 15.407(c) Automatically Discontinue Transmission PASS 15.203/15.204 Antenna Requirement PASS NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. (3) Manufacturers of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the users manual. Report No.: LGT26A188RF03 Page 7 of 87 1.1 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Occupied Channel Bandwidth › 0.46% 2 RF Output Power, Conducted › 0.71dB 3 Power Spectral Density, Conducted › 1.57dB 4 Unwanted Emission, Conducted › 0.63dB 5 Conducted emission › 2.80dB 6 All Emissions, Radiated (0.009-30MHz) › 2.16dB 7 All Emissions, Radiated (30MHz-1GHz) › 4.61dB 8 All Emissions, Radiated (1GHz-18GHz) › 5.49dB 9 Temperature › 0.5°C 10Humidity › 2% 11 Duty Cycle ±2.3% Note: The measurement uncertainty is not included in the test result. Report No.: LGT26A188RF03 Page 8 of 87 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: Wireless IP Camera Test Model Number: KP02-C2 Series Num…

Text truncated - open the document above for the full version.

WIFI Antenna Test Report 2011.12.06 2025.12.19 Customer Anshijia Project C690 WIFI dual frequency steel sheet antenna Antenna RevisionA0 Product Description Product No GP1611B-BXG-A 深圳市飞讯联科电子有限公司 Shenzhen Feixun Lianke Electronics Co., Ltd. Add: Building 2, 5th Floor, Jiwei Daowugou Factory, Jiwei Community, Hangcheng Subdistrict, Bao'an District, Shenzhen City Antenna Designation: Bipolar Antenna Purpose This report is to measure the performance of antenna for All test date are showed as below. Content GAIN & Efficiency 2D & 3D Directional pattern 2 深圳市飞讯联科电子有限公司 Shenzhen Feixun Lianke Electronics Co., Ltd. 3 1.Product Overview WIFI Dual frequency steel sheet antenna Antenna frequency 深圳市飞讯联科电子有限公司 chip end Antenna end Matching parameters： 0Ω NC 2.4NH Shenzhen Feixun Lianke Electronics Co., Ltd. 4 2. Test Result 2.1 WIFI Dual Frequency Steel Antenna OTA 深圳市飞讯联科电子有限公司 Frequency 802.11b/11Mpbs channel 1612 TRP 212221 TIS -82 802.11a/54Mpbs 3660161 161516 -70 Shenzhen Feixun Lianke Electronics Co., Ltd. 5 2. Test Result Frequenc y (MHz) 24002450250057005800 VSWR1.191.571.682.754.81 2.1 WIFI Dual frequency steel sheet antenna VSWR 深圳市飞讯联科电子有限公司 Shenzhen Feixun Lianke Electronics Co., Ltd. 6 2. Test Result 2.2 WIFI Dual frequency steel sheet antenna RETRUN LOSS 深圳市飞讯联科电子有限公司 Frequenc y (MHz) 24002450250057005800 RETRUN LOSS（DB） -20.83-13.05-11.86-6.59-3.65 Shenzhen Feixun Lianke Electronics Co., Ltd. 7 2. Test Result 2.2 WIFI Dual frequency steel sheet antenna 深圳市飞讯联科电子有限公司 Frequenc y (MHz) 24002450250057005800 41.9532.6930.8352.6313.09 Shenzhen Feixun Lianke Electronics Co., Ltd. 8 2. Test Result 2.3 WIFI Dual frequency steel sheet antenna GAIN & Efficiency 深圳市飞讯联科电子有限公司 FreqEffiGain (MHz)(%)(dBi) 2400 40.071.28 2410 41.141.09 2420 41.551.71 2430 40.541.83 2440 47.451.85 2450 40.311.73 2460 41.262.42 2470 49.671.72 2480 49.81.85 2490 45.552.71 2500 43.572.76 FreqEffiGain (MHz)(%)(dBi) 5150 43.141.72 5160 45.261.63 5170 46.311.51 5180 44.531.49 5190 48.751.71 5200 45.261.42 5210 42.311.46 5220 44.281.35 5230 46.211.76 5240 44.521.2 5250 43.681.23 Shenzhen Feixun Lianke Electronics Co., Ltd. FreqEffiGain (MHz)(%)(dBi) 5700 45.472.12 5710 48.231.16 5720 47.821.48 5730 43.461.44 5740 47.841.74 5750 43.431.38 5760 43.671.43 5770 44.261.39 5780 47.141.77 5790 441.2 5800 42.61.07 9 2. Test Result 2.4 WIFI Dual frequency steel sheet antenna 2D & 3D Directional pattern 深圳市飞讯联科电子有限公司 Shenzhen Feixun Lianke Electronics Co., Ltd. 10 2. Test Result 2.4 WIFI Dual frequency steel sheet antenna 2D & 3D Directional pattern 深圳市飞讯联科电子有限公司 Shenzhen Feixun Lianke Electronics Co., Ltd.

Page 1 of 2 Report No.: LGT26A188 Appendix - Test Setup photos Set-up for Radiated Spurious Emission, Below 1GHz Set-up for Radiated Spurious Emission, Above 1GHz Page 2 of 2 Report No.: LGT26A188 Set-up for Conducted Emission
