2BLVO-AEONElectric unicycle

APEX USER MANUAL TABLE OF CONTENTS 03 Company Introduction 04-05 Diagram and Size 09 Suspension Linkage Adjustment 06-07 Specs and Software 02 Package Contents 08 Software and Suspension 10 General Maintenance 11 Display Info 12 Error Codes 13-14 Terms of Use & Warranty PACKAGE CONTENTS 1 X APEX 1 X Charger + AC Cable 1 X APEX User Manual 1 X Suspension User Manual 1 X Valve Extender 1 X Shock Air Pump (Only for Air shock installed products) NOSFET is like a lovechild of the core team's passion and dedication. We're all in this together, pouring our hearts into a product that not only walks the talk but also dares to dream big. Our mantra? Keeping our eyes on the prize: creating an unforgettable experience for our awesome customers! We get it, you're itching to take your snazzy new NOSFET gadget for a spin, and hey, we're all for it! But before you rev up, let's lay down some ground rules! Get to know every cool trick your gadget can pull off before zooming around. Stick to the rules of the road, abide by local laws and regulations! Keep it chill with the speed, following all the rules. Give your NOSFET buddy some regular TLC (tender loving care) AKA service and maintenance. Need backup? Your retailer is there for you! Need extra backup? Find us through our official website. www.nosfet.com NOT YOUR ORDINARY COMPANY 3 2.75-14 Tire Motor Spiked Pedals Front Bumper Headlight Charge Ports Display Collision Proof Kickstand Collision Proof Mudguard Battery Box Bumpers Stanchions Rear Bumper Shock Suspension Linkage 4 Taillight APEX DIAGRAM 3.5 ( W i t h o u t l o a d ) 6 6 0 m m - 7 3 5 m m 5 SIZE 135mm207mm 95mm Tire Gap 5 4 5 m m 485mm ModelAPEX Free Spin Speed125km/h Safe Speed19km/h Battery 5000mAh Charger151.2v 5A Charge Time4H at 5A, 2H at 10A Max Weight120kg Motor Nominal 3200W / Peak 8000W Tire2.75-14 Operating Temperature -10°C-80°C Weight & Size Dimension Net Weight39.5kg Dimension545 x 207mm Hardware Suspension Air Shock 205-63 Coil Shock 220-66 ControllerDual Board, 36pc MOS, Max Current 840A Headlight20W TaillightDual Taillight Modes - Slow Brake/Emergency Brake DisplaySpeedometer, Voltage, Mileage, Battery, Ride Mode etc... Charge PortGX20-5 Max 15A MotorMagnesium Alloy Rim 6 SPECIFICATIONS Error Self Detection Left/Right Battery: high temperature alarm, overvoltage alarm, over discharge alarm, charging current over voltage, and vehicle high temperature alarm etc... Angle Protection Vertical Tilt Max of 68° Horizontal Tilt can be between 35 ~75° through display. Riding Mode Pedal hardness value can be set between 0%-100% through display. Power Tilt Back Power tilt-back value could be set between 30%-100% through display Speed Tilt Back Speed tilt-back value can be set between 10kph-200kph through display. Speed Alarm Speed alarm value could be set between 10kph--200kph through display. Button Volume Button volume value can be set between 0-100% through display. Low Battery Mode Always ON High Speed Mode Always ON Smart BMS Inspecting each string of cells: 6 zones of temperature monitoring, displaying voltage etc. Low Voltage Protection Initial alarm at 117V, tilt back at 113.4V. Alarm at 109.8v, tilt back at 106.2V (low voltage mode). Temperature Alarm Alarm at 85°C (upper control board) Alarm at 105°C (lower board). 7 SOFTWARE SUGGESTED PSI FOR AIR SHOCK: 70KG AND BELOW: 200PSI 70-80KG: 250PSI 80KG+: 300PSI PSI are only suggested guidelines, you should set the rebound, compression and PSI according to your own preference. 8 The kickstand is designed to be collision proof, meaning that it will go from it’s lower position to a higher position in the event of a collision. Kickstand Mudguard The mudguard is designed to take impact without breaking. The screw holds the rear mudguard in place. On impact it may shift to reduce impact, it can be easily re-adjusted by hand. SUSPENSION AND MORE Other Functions Multiple functions adjustable all adjustable through display, supports data logging. Hall Sensor-less Algorithm Detects hall sensor error and automatically fixes algorithm to allow the wheel to balancing. Smart Field Weakening to Speed Up Increase speed safety margin through software algorithm. Motor Position Hold Motor holds position and does not release when there is current with no speed. No Hall Emergency Mode In the event the wheel has no hall sensor the product can still continue riding with impacted performance. APP InfoSpeed, voltage, distance, trip, current, temperature etc To adjust the height and suspension travel please follow this procedure: 1.Loosen the hand screw (yellow). 2.Lift the wheel with the front and rear bumpers to shake the suspension tooth loose. 3.Pull the lever downwards, pull the suspension tooth module outwards. 4.Once the suspension is loose, set to desired height. 5. Ensure suspension tooth is the same height on both sides and secure by pushing the lever upwards. 6. IMPORTANT! Lastly completely tighten suspension hand screw LEVERLEVER HAND SCREWHAND SCREW SUSPENSION TOOTH SUSPENSION TOOTH 9 Need additional help? Check out our Youtube Channel SUSPENSION LINKAGE ADJUSTMENT Battery: Please store battery away from direct sunlight and heat. For prolonged storage and extended health please store the battery between: 30%-70%. Tire: Please keep tire well inflated to prevent damage to the rim. Inspect the tire before each ride, ensure it’s free from cracks and punctures and has enough tread. Suspension: Please refer to shock manual for maintenance guidelines. Stanchions should be lubricated every 500kms. 10 GENERAL MAINTENANCE MD: Ride Mode ANG: Vertical Angle Adjustment TLT: Tiltback Speed PWT: PWM Value ALM: Alarm Speed BRT: Brightness CAL: Calibration TRM: Transport Mode UNT: Unit VtA: Voltage Adjustment STA: Side Tilt Angle (L/R) SND: Volume Adjustment MxV: Max Charge Voltage ANG %: Acceleration Assist Battery Current/Amps Speedometer High Speed Mode and Low Battery Mode are on by default. 11 DISPLAY INFO W: Watts V: Voltage A: Amps/Current mph: miles/h km…

Text truncated - open the document above for the full version.

Guangzhou JiDongTai Intelligent Equipment Co.,LTD 4th Floor,Building A,Yashi Creative Park,No. 2,Bangsheng 1st Road, Shitang Industrial Zone,JingHu Avenue,Huadu District,Guangzhou, 510805 China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/12/06 U.S. Agent Designation Guangzhou JiDongTai Intelligent Equipment Co.,LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BLVO-AEON): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Guangzhou JiDongTai Intelligent Equipment Co.,LTD Guangzhou JiDongTai Intelligent Equipment Co.,LTD with the FRN [0036195261] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Jack Hsu Manager Guangzhou JiDongTai Intelligent Equipment Co.,LTD Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

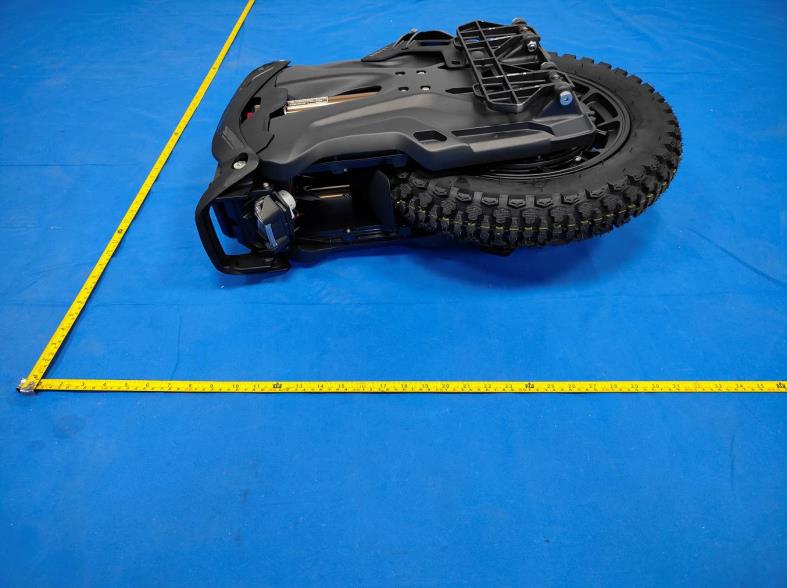

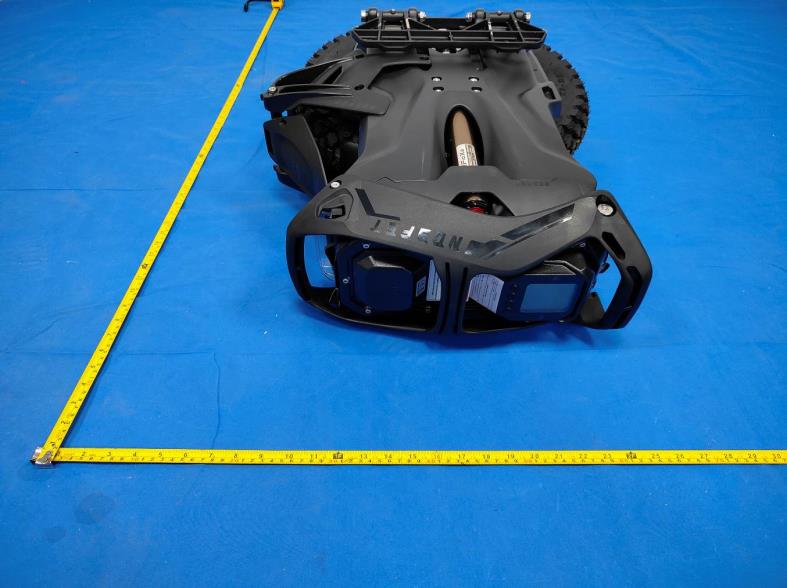

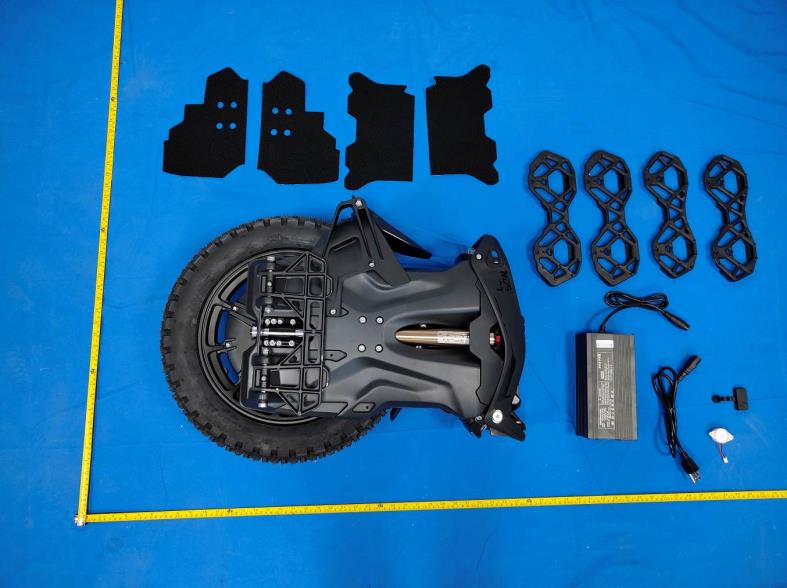

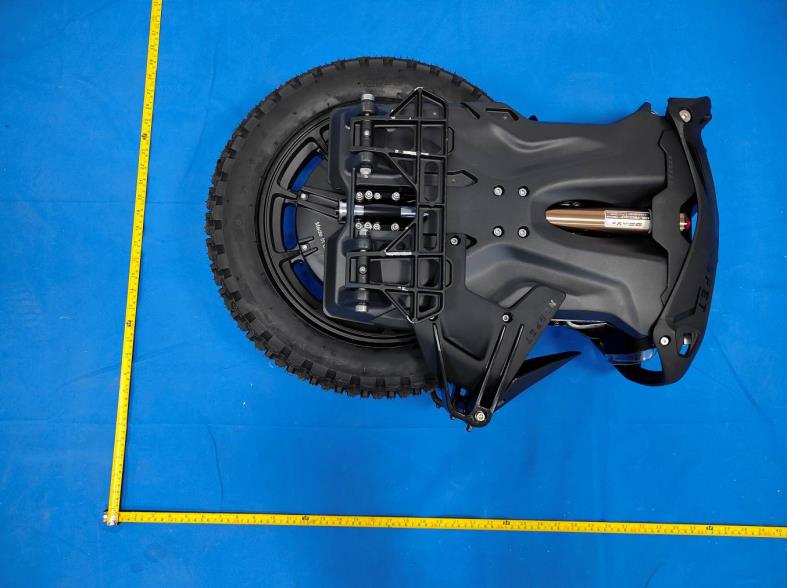

FCC ID:2BLVO-AEON External Photos of the EUT FCC ID:2BLVO-AEON FCC ID:2BLVO-AEON

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BLVO-AEON

FCC ID:2BLVO-AEON Internal Photos of the EUT FCC ID:2BLVO-AEON FCC ID:2BLVO-AEON FCC ID:2BLVO-AEON FCC ID:2BLVO-AEON ANT FCC ID:2BLVO-AEON FCC ID:2BLVO-AEON FCC ID:2BLVO-AEON FCC ID:2BLVO-AEON FCC ID:2BLVO-AEON FCC ID:2BLVO-AEON FCC ID:2BLVO-AEON FCC ID:2BLVO-AEON

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID. ........................................... : CTA25112200802 2BLVO-AEON Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Ace Chai Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Nov. 28, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Guangzhou JiDongTai Intelligent Equipment Co.,LTD Address ............................................ : 4th Floor,Building A,Yashi Creative Park,No. 2,Bangsheng 1st Road, Shitang Industrial Zone,JingHu Avenue,Huadu District,Guangzhou, 510805 China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Electric unicycle Trade Mark ....................................... : NOSFET Manufacturer ..................................... : Guangzhou JiDongTai Intelligent Equipment Co.,LTD Model/Type reference ....................... : AEON Listed Models .................................... : N/A Rating ............................................... : DC 129.6V From battery and DC 151.2V From external circuit Result ................................................ : PASS Report No.: CTA25112200802 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Electric unicycle Model /Type : AEON Listed Models : N/A Applicant : Guangzhou JiDongTai Intelligent Equipment Co.,LTD Address : 4th Floor,Building A,Yashi Creative Park,No. 2,Bangsheng 1st Road, Shitang Industrial Zone,JingHu Avenue,Huadu District,Guangzhou, 510805 China Manufacturer : Guangzhou JiDongTai Intelligent Equipment Co.,LTD Address : 4th Floor,Building A,Yashi Creative Park,No. 2,Bangsheng 1st Road, Shitang Industrial Zone,JingHu Avenue,Huadu District,Guangzhou, 510805 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25112200802 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25112200802 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, …

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model Frequency range 2400-2500MHz Manufacturer Guangzhou JiDongTai Intelligent Equipment Co.,LTD ANT Peak Gain 0.75 dBi 2. Antenna Photo: Length: 12.26mm Width: 4.94mm AEON 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA25112200801 2BLVO-AEON Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Nov. 28, 2025 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Guangzhou JiDongTai Intelligent Equipment Co.,LTD Address ...........................................: 4th Floor,Building A,Yashi Creative Park,No. 2,Bangsheng 1st Road, Shitang Industrial Zone,JingHu Avenue,Huadu District,Guangzhou, 510805 China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Electric unicycle Trade Mark ......................................: NOSFET Manufacturer ...................................: Guangzhou JiDongTai Intelligent Equipment Co.,LTD Model/Type reference .....................: AEON Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: DC 129.6V From battery and DC 151.2V From external circuit Result ..............................................: PASS Report No.: CTA25112200801 Page 2 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Electric unicycle Model /Type : AEON Listed Models : N/A Applicant : Guangzhou JiDongTai Intelligent Equipment Co.,LTD Address : 4th Floor,Building A,Yashi Creative Park,No. 2,Bangsheng 1st Road, Shitang Industrial Zone,JingHu Avenue,Huadu District,Guangzhou, 510805 China Manufacturer : Guangzhou JiDongTai Intelligent Equipment Co.,LTD Address : 4th Floor,Building A,Yashi Creative Park,No. 2,Bangsheng 1st Road, Shitang Industrial Zone,JingHu Avenue,Huadu District,Guangzhou, 510805 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25112200801 Page 3 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions ................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BLE FCC ID : 2BLVO-AEON Company : Guangzhou JiDongTai Intelligent Equipment Co.,LTD EUT : Electric unicycle Model Number : AEON Report No. : CTA25112200801 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.644 2401.692 2402.336 0.5 PASS 2440 0.652 2439.688 2440.340 0.5 PASS 2480 0.664 2479.680 2480.344 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0058 2401.5164 2402.5222 --- --- 2440 1.0070 2439.5142 2440.5212 --- --- 2480 1.0021 2479.5192 2480.5213 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -0.05 ≤30 PASS 2440 -0.46 ≤30 PASS 2480 -0.45 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -16.44 ≤8.00 PASS 2440 -15.65 ≤8.00 PASS 2480 -16.04 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -0.03 -46.91 ≤-20.03 PASS High 2480 -0.37 -53.08 ≤-20.37 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -0.38 -0.38 --- PASS 30~1000 -0.38 -67.36 ≤-20.38 PASS 1000~26500 -0.38 -42.55 ≤-20.38 PASS 2440 Reference -0.58 -0.58 --- PASS 30~1000 -0.58 -67.6 ≤-20.58 PASS 1000~26500 -0.58 -44.36 ≤-20.58 PASS 2480 Reference -1.74 -1.74 --- PASS 30~1000 -1.74 -50.56 ≤-21.74 PASS 1000~26500 -1.74 -42.14 ≤-21.74 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21

FCC ID:2BLVO-AEON Test Setup Photos of the EUT FCC ID:2BLVO-AEON
