2BLVO-XENOXENO Electric unicycle

USER MANUAL XENO 1.5 TABLE OF CONTENTS 02 Company Introduction 03-04 Diagram and Size 08 Suspension Adjustment 05-06 Specs and Software 01 Package Contents 07 Headlight 09 General Maintenance 10-11 Display Info and Settings Options 12 Error Codes 13-14 Terms of Use & Warranty PACKAGE CONTENTS 1 X XENO 1 X Charger + AC Cable 1 X XENO User Manual 1 X Suspension User Manual 1 X NOSFET Stickers Manuales en varios idiomas / Manuels multilingues : Многоязычные руководства / Manuais multilíngues: https://www.nosfet.com/support NOSFET is like a lovechild of the core team's passion and dedication. We're all in this together, pouring our hearts into a product that not only walks the talk but also dares to dream big. Our mantra? Keeping our eyes on the prize: creating an unforgettable experience for our awesome customers! We get it, you're itching to take your snazzy new NOSFET gadget for a spin, and hey, we're all for it! But before you rev up, let's lay down some ground rules! Get to know every cool trick your gadget can pull off before zooming around. Stick to the rules of the road, abide by local laws and regulations! Keep it chill with the speed, following all the rules. Give your NOSFET buddy some regular TLC (tender loving care) AKA service and maintenance. Need backup? Your retailer is there for you! Need extra backup? Find us through our official website. www.nosfet.com NOT YOUR ORDINARY COMPANY 2 Kickstand Mudguard Charge Port RGB Taillight Headlight 80/90-14 Tire Motor Spiked Pedals Front Bumper Trolley Handle Rear Bumper Display Suspension Shocks 3 XENO DIAGRAM 3.5 5 1 2 m m 280mm x 105mm （ smallest size) 230mm 4 SIZE 95mm Tire Gap 5 4 5 m m 283mm XENO Width 675mm 250mm ModelXENO Free Spin Speed95km/h Safe Speed19km/h BatterySamsung INR21700 50S 126v 2200wh Charger Input 110-240V~,50/60Hz, 7.5A Charger OutputDC 126V, 5A Charge Time5 hours Max Weight120kg Motor Nominal 2500W / Peak 10000W Tire80-90/14 Operating Temperature -10°C-80°C Weight & Size Dimension Net Weight33kg DimensionHeight 925mm x Width 283mm x Length 545mm Hardware SuspensionSymetrical Bidrectional Suspension 90mm Controller Dual Board, 24pc MOS max Current 495A Controller 200A Current Headlight20W TaillightDual Taillight Modes - Slow Brake/Emergency Brake DisplaySpeedometer, Voltage, Mileage, Battery, Ride Mode etc... Charge PortGX16-6 Max 5A MotorMagnesium Alloy Rim 5 SPECIFICATIONS Error Self Detection Left/Right Battery: high temperature alarm, overvoltage alarm, over discharge alarm, charging current over voltage, and vehicle high temperature alarm etc... Angle Protection Vertical Tilt Max of 68° Horizontal Tilt can be between 35 ~75° through display. Riding Mode Pedal hardness value can be set between 0%-100% through display. Power Tilt Back Power tilt-back value could be set between 30%-100% through display Speed Tilt Back Speed tilt-back value can be set between 10kph-200kph through display. Speed Alarm Speed alarm value could be set between 10kph--200kph through display. Button Volume Button volume value can be set between 0-100% through display. Low Battery Mode Always ON High Speed Mode Always ON Smart BMS Inspecting each string of cells: 6 zones of temperature monitoring, displaying voltage etc. Low Voltage Protection Initial alarm at 91.5v, tilt back at 88.5v. BMS emergency shut off voltage 85.5v. Temperature Alarm Alarm at 85°C (upper control board) Alarm at 105°C (lower board). 6 SOFTWARE Other Functions Multiple functions adjustable all adjustable through display, supports data logging. Hall Sensor-less Algorithm Detects hall sensor error and automatically fixes algorithm to allow the wheel to balancing. Smart Field Weakening to Speed Up Increase speed safety margin through software algorithm. Motor Position Hold Motor holds position and does not release when there is current with no speed. APP InfoSpeed, voltage, distance, trip, current, temperature etc 7 Headlight features 4 lights modes + stealth mode. The three modes: Daylight Running Light Low Brightness Medium Brightness Highest Brightness Can be triggered by hitting the headlight function. Speed is auto brightness dependent on speed. Stealth Mode: Hold down the headlight button with main beam off to turn off the daylight running light. Taillight The taillight has a variety of modes that can be toggled by using the up arrow. LTB function also allows riders to change the default taillight mode the rear light turns on to. HEADLIGHT & TAILLIGHT ReboundRebound AdjustmentAdjustment Rebound Adjustment CompressionCompression AdjustmentAdjustment Compression Adjustment PreloadPreload AdjustmentAdjustment Preload Adjustment The XENO features a bidirectional dampening suspension on each side with rebound and dampening adjustment. The bidirectional dampening feature allows the same coil to fit more weight classes of riders. Rebound Adjustment: Silver Dial at the Top Preload Adjustment: Size 16 Wrench at the Top Compression Adjustment: Gold Dial located at Bottom 8 TIP: For heavier riders, we recommend increasing the compression if bottom out happens often. SUSPENSION ADJUSTMENT Battery: Please store battery away from direct sunlight and heat. After riding in below 0 degrees celcius, please rest for at least 30minutes indoors before charging. Riding in low temperature may effect battery range. For prolonged storage and extended health please store the battery between: 30%-70%. Tire: Please keep tire well inflated to prevent damage to the rim. Inspect the tire before each ride, ensure it’s free from cracks and punctures and has enough tread. Suspension: Please refer to shock manual for maintenance guidelines. Maintenance is required for the suspension to ensure smoothest performance. 9 GENERAL MAINTENANCE W: Watts V: Voltage A: Amps/Current mph: miles/h kmh: kilometers/h Lift Switch Mode 1.Push once to enable lift mode, to prevent motor from spinning. P will show on the display. 2.Push again to disable lift mode, ensure wheel is self balancing before riding. Adju…

Text truncated - open the document above for the full version.

Guangzhou JiDongTai Intelligent Equipment Co.,LTD 4th Floor,Building A,Yashi Creative Park,No. 2, Bangsheng 1st Road,Shitang Industrial Zone, JingHu Avenue,Huadu District,Guangzhou, 510805 China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/05/09 U.S. Agent Designation Guangzhou JiDongTai Intelligent Equipment Co.,LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BLVO-XENO): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Guangzhou JiDongTai Intelligent Equipment Co.,LTD with the FRN [0036195261] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Jack Hsu Manager Guangzhou Jiezhixin Electronic Technology Co., Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

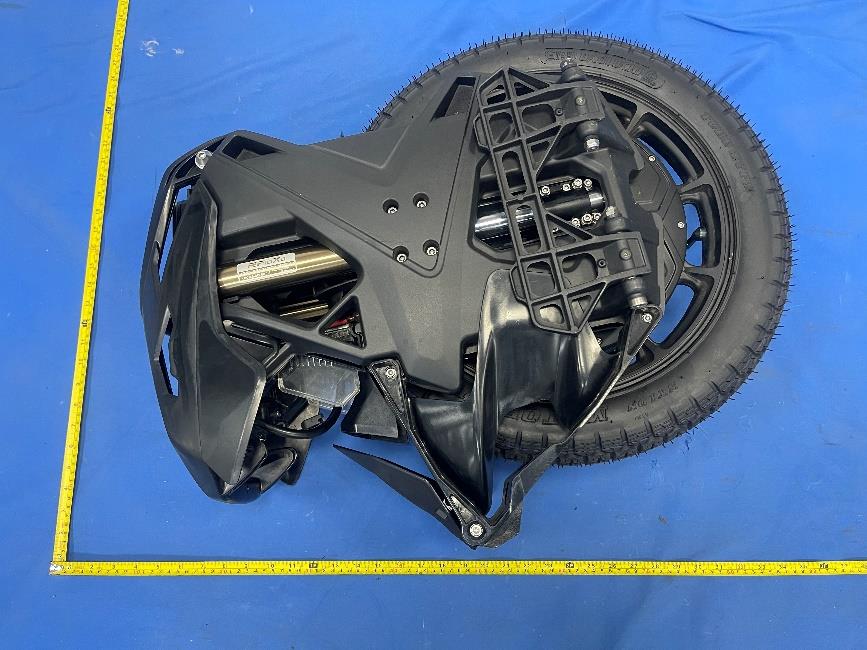

FCC ID:2BLVO-XENO External Photos of the EUT FCC ID:2BLVO-XENO FCC ID:2BLVO-XENO

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BLVO-XENO

FCC ID:2BLVO-XENO Internal Photos of the EUT FCC ID:2BLVO-XENO FCC ID:2BLVO-XENO FCC ID:2BLVO-XENO Antenna FCC ID:2BLVO-XENO FCC ID:2BLVO-XENO FCC ID:2BLVO-XENO FCC ID:2BLVO-XENO FCC ID:2BLVO-XENO

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26042000302 2BLVO-XENO Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 30, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Guangzhou JiDongTai Intelligent Equipment Co.,LTD Address............................................ : 4th Floor,Building A,Yashi Creative Park,No. 2, Bangsheng 1st Road,Shitang Industrial Zone,JingHu Avenue,Huadu District,Guangzhou, 510805 China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : XENO Electric unicycle Trade Mark ....................................... : NOSFET Manufacturer .................................... : Guangzhou JiDongTai Intelligent Equipment Co.,LTD Model/Type reference ...................... : XENO Listed Models ................................... : N/A Rating ............................................... : DC 108V From battery and DC 126V From external circuit Result ............................................... : PASS Report No.: CTA26042000302 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : XENO Electric unicycle Model /Type : XENO Applicant : Guangzhou JiDongTai Intelligent Equipment Co.,LTD Address : 4th Floor,Building A,Yashi Creative Park,No. 2, Bangsheng 1st Road,Shitang Industrial Zone, JingHu Avenue,Huadu District,Guangzhou, 510805 China Manufacturer : Guangzhou JiDongTai Intelligent Equipment Co.,LTD Address : 4th Floor,Building A,Yashi Creative Park,No. 2, Bangsheng 1st Road,Shitang Industrial Zone, JingHu Avenue,Huadu District,Guangzhou, 510805 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26042000302 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26042000302 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial…

Text truncated - open the document above for the full version.

1. Antenna Description: PCB antennaAntenna type Model Frequency range 2400-2500MHz Guangzhou JiDongTai Intelligent Equipment Co.,LTDManufacturer Address 2. Antenna Photo: Length: 12.26mm Width: 4.94mm ANT Peak Gain 0.75 dBi 4th Floor,Building A,Yashi Creative Park,No. 2, Bangsheng 1st Road,Shitang Industrial Zone, JingHu Avenue,Huadu District,Guangzhou, 510805 China XENO 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26042000301 2BLVO-XENO Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Apr. 30, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Guangzhou JiDongTai Intelligent Equipment Co.,LTD Address ...........................................: 4th Floor,Building A,Yashi Creative Park,No. 2, Bangsheng 1st Road,Shitang Industrial Zone,JingHu Avenue,Huadu District,Guangzhou, 510805 China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : XENO Electric unicycle Trade Mark ......................................: NOSFET Manufacturer ...................................: Guangzhou JiDongTai Intelligent Equipment Co.,LTD Model/Type reference .....................: XENO Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: DC 108V From battery and DC 126V From external circuit Result ..............................................: PASS Report No.: CTA26042000301 Page 2 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : XENO Electric unicycle Model /Type : XENO Applicant : Guangzhou JiDongTai Intelligent Equipment Co.,LTD Address : 4th Floor,Building A,Yashi Creative Park,No. 2, Bangsheng 1st Road,Shitang Industrial Zone,JingHu Avenue,Huadu District,Guangzhou, 510805 China Manufacturer : Guangzhou JiDongTai Intelligent Equipment Co.,LTD Address : 4th Floor,Building A,Yashi Creative Park,No. 2, Bangsheng 1st Road,Shitang Industrial Zone,JingHu Avenue,Huadu District,Guangzhou, 510805 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26042000301 Page 3 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions ..............................…

Text truncated - open the document above for the full version.

Report No.: CTA26042000301 Page 38 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042000301 Page 39 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042000301 Page 40 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042000301 Page 41 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ********************** End of Reprt **********************

1 FCC Appendix RF Test Data for BLE FCC ID : 2BLVO-XENO Company : Guangzhou JiDongTai Intelligent Equipment Co.,LTD EUT : XENO Electric unicycle Model Number : XENO Report No. : CTA26042000301 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.636 2401.696 2402.332 0.5 PASS 2440 0.636 2439.700 2440.336 0.5 PASS 2480 0.628 2479.696 2480.324 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0078 2401.5201 2402.5279 --- --- 2440 1.0081 2439.5176 2440.5257 --- --- 2480 1.0113 2479.5160 2480.5273 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -6.50 ≤30 PASS 2440 -7.07 ≤30 PASS 2480 -7.39 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -22.38 ≤8.00 PASS 2440 -22.55 ≤8.00 PASS 2480 -22.63 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -6.63 -56.78 ≤-26.63 PASS High 2480 -7.58 -44.34 ≤-27.58 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -8.25 -8.25 --- PASS 30~1000 -8.25 -68.26 ≤-28.25 PASS 1000~26500 -8.25 -51.81 ≤-28.25 PASS 2440 Reference -9.22 -9.22 --- PASS 30~1000 -9.22 -67.75 ≤-29.22 PASS 1000~26500 -9.22 -55.63 ≤-29.22 PASS 2480 Reference -8.39 -8.39 --- PASS 30~1000 -8.39 -67.98 ≤-28.39 PASS 1000~26500 -8.39 -52.22 ≤-28.39 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21 22 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -60.36 2.00 1.80 38.64 ≤54 PASS AV 2372.450 -58.75 2.00 1.80 40.25 ≤54 PASS AV 2390.000 -60.05 2.00 1.80 38.95 ≤54 PASS Peak 2310.000 -53.15 2.00 0.00 44.05 ≤74 PASS Peak 2370.560 -49.14 2.00 0.00 48.06 ≤74 PASS Peak 2390.000 -51.99 2.00 0.00 45.21 ≤74 PASS High 2480 AV 2483.500 -58.61 2.00 1.80 40.39 ≤54 PASS AV 2483.600 -57.88 2.00 1.80 41.12 ≤54 PASS AV 2500.000 -58.93 2.00 1.80 40.07 ≤54 PASS Peak 2483.500 -51.04 2.00 0.00 46.16 ≤74 PASS Peak 2495.440 -48.26 2.00 0.00 48.94 ≤74 PASS Peak 2500.000 -51.2 2.00 0.00 46.00 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 23 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV 24 BLE_1M_Ant1_High_2480_Peak

FCC ID:2BLVO-XENO Test Setup Photos of the EUT FCC ID:2BLVO-XENO
