2BM2F-XC406automobile data recorder

四录行车记录仪 使用说明书 使用本产品前，请仔细阅读使用说明书 说明书仅供参考，具体操作以实物为准 一、产品结构 产品说明 二、按键及接口功能介绍 1.电源键 1.长按2秒开机/关机； 2.开机状态下点按可息屏，再次点按亮屏。 2.OK键 1.确认键； 2.点按可录像、拍照、播放或暂停。 3.上键 1.向上选择； 2.拍照/录像模式中长按可打开/关闭红外灯 4.下键 1.向下选择； 2.拍照、录像模式点按切换各镜头画面； 5.模式/菜单键 1.长按可切换录像/拍照/回放模式； 2.点按调出设置菜单； 3.正在录像时点按可对当前录制视频加锁。 6.复位孔 当机器出现花屏、异常死机等情况时，用针孔状的东西短戳一下可强制关机。 7.后拉接口 用于连接外接后视镜输入接口； 8.GPS接口选配 连接GPS；作用是提前提醒车主电子眼或测速雷达的存在，可防止因为超速或违规而被 罚款和扣分。 9.充电接口 1.接口类型：Typ e-C； 2.用于连接外接电源给电池充电或提供 工作电源； 3.用于连接PC端可进行‘存储器/摄像头’操作。 三、基本操作说明 1.开机与关机 长按‘电源键’2秒可开机或关机设备；带内存卡开机时会自动录像。 2.录像模式 1.关机状态长按‘电源键’开启设备，进入录像模式； 2.点按‘OK键’可进行录像，再次点按停止录像并自动保存； 3.录像时点按‘模式/菜单键’可对正在录像中的视频加锁； 4.点按‘下键’可切换镜头画面； 1.长按‘模式/菜单键’可切换模式；点按可调出子菜单及系统设置菜单； 2.点按‘电源键’可熄屏，再次点按可亮屏。 3.拍照模式 1.关机状态长按‘电源键’开启设备（带卡开机时先点按‘OK键’停止录像），长按一 次‘模式/菜单键’进入拍照模式； 2.点按‘OK键’进行拍照； 3.点按‘下键’可切换镜头画面； 4.长按‘上键’可打开/关闭红外灯； 5.长按‘模式/菜单键’可切换模式；点按可调出子菜单及系统设置菜单； 6.点按‘电源键’可熄屏，再次点按可亮屏。 4 .回放模式 1.关机状态长按‘电源键’开启设备（带卡开机时先点按‘OK键’停止录像），长按两 次‘模式/菜单键’进入回放模式； 2.点按‘上/下键’切换文件；播放视频文件时点按可增加或减小音量； 3.查看视频文件点按‘OK键’进行播放或暂停； 4.长按‘模式/菜单键’可切换模式；点按可调出子菜单及系统设置菜单。 5.点按‘电源键’可熄屏，再次点按可亮屏。 注：在录像/拍照/回放模式工作中，禁止拔插卡！ 5.WiFi模式 1.开启WiFi：在录像或拍照界面时，长按‘上键’可开启WiFi； 2.安装与使用WiFi：开启WiFi功能前，请在智能手机上下载并安装‘录风者’应用程 序。注意：Android用户，请扫设备中提示的二维码，或扫下方二维码；ios用户可在 Apple Store中搜索‘录风者’下载。 连接步骤： 1.在设备开机后长按"上键"开启wifi，屏幕会显示设备wifi名称与密码表示wifi已开 启； 2.点开下载的APP，找到"添加设备"-进入wifi设置中找到设备显示的wifi名称XC406 并输入密码：12345678 后即连接成功。 1.关闭WiFi：开启WiFi功能后，长按‘上键’可关闭WiFi。 6.USB模式 设备使用USB数据与电脑连接，设备自动开机后屏幕显示‘存储器/摄像头’两个选项 （注：接入后拉不会进入此模式）： 存储器：在此模式下可进行视频文件或者照片文件的存取与查看； 摄像头：在此模式下可用于电脑摄像头进行使用； 四、产品参数与规格 PCB型号XC406-6248-v1 主控GC6248 影像传感器GC0308/0 30/2 083 TFT显示屏3.0寸彩色显示屏(640*360) 录像分辨率2K，1080p，720P 录像文件格 式 AVI 图片分辨率12M、10M、8M、5M、3M、2MHD、1.3M、 照片格式JPG 循环录像关、1分钟、2分钟、3分钟、5分钟 曝光补偿 +2.0、+5/3、+4/3、+1.0、+2/3、+1/3、0.0、-1/3、-2/3、-4/3、-5/3、 -2.0 移动侦测关开 录音音频关、开 日期标签关、开 重力感应关、2G、4G、8G 停车模式关、开 日期时间自定义 自动关机关、1分钟、3分钟 屏幕保护关、3分钟、5分钟、10分钟 按键声音关、开 语言设置 英、繁中、简中、土耳其、法、德、越南、意大利、葡萄牙、俄、西班牙 、 泰 光源频率50Hz、60Hz 格式化确认、取消 默认设置确认、取消 版本241228 V1.0 工作温度≤85° 工作温度-25°/+ 60° 供电USB:5V；电池：3.7V 待机电流电池3.7V待机53.5uA 电源功耗≤2.01W 低电提示3.63V 注意：本产品保留设计和规格更改权恕不另行通知。 Four-channel Driving Recorder USER MANUAL please read the Instruction Manual carefully. The instruction manual is for reference only. The specific operation shall be subject to the actual produ ct. I: Product Produ ct Description II: Introdu ction to keys and interface functions 1. Powe r key 1.Press and hold for 2 seconds to turn on/off; 2.Click to shut do wn the screen wh en the powe r is turned on, and click to ligh t up the screen aga in. 2. OK key 1.C onfirm key; 2.Tap to record, take pictures, play or pause. 3. Up key 1.Select upwa rd; 2.Press and hold the infrared ligh t in the photo/recordi ng mode to turn on/off; 4. Down key 1.Select do wn wa rd; 1.Click to swi tch the lens screens in the photo/recordi ng mode ; 5. Mode /menu key 1.Press and hold to swi tch the vide o recordi ng/photo/playback mode ; 2.Click to bring up the settings menu; 3.Click to lock the currently recorde d vide o wh ile recordi ng. 6. Reset hole: When the machi ne has a screen, abnormal crash, etc., use a pinhole-shaped object to force shut do wn the machine. 7. Rear pull interface: used to connect to external rearview mirror input interface; 8. GPS interface optional: connect to GPS; It is used to remind the own er of the existence of electronic eyes or speed measurement rada r in adv ance, wh ich can prevent fines and de du ctions from speedi ng or violations. 9. Chargi ng interface: 1.Interface type: Type-C; 2.Used to connect external powe r to charge the battery or provide wo rking powe r; 3.Used to connect the PC terminal to perform 'memory/camera' operation. III: Basic operati ng instr ucti ons: 1. Powe r on and off: Press and hold the 'Powe r key' for 2 seconds to turn on or off the de vice; it wi ll automatically record the vide o wh en the memory card is turned on. 2. Recordi ng mode : 1.Press the 'Powe r key' to turn on the de vice and enter the recordi ng mode ; 2.Click the 'OK key' to record, click aga in to stop recordi ng and s ave automatically; 3.Click 'du ring recordi ng Mode /menu key' can lock the vide o in recordi ng; 4.Click the 'do wn key' to swi tch the lens screen; 5.Press the 'up key' to turn on/off the infrared ligh t; 6.Press the 'up key' mode / Menu key 'swi tch mode ; tap to adj ust the submenu and system settings menu; 1.Tap 'Powe r key' to turn off the screen, and tap aga in to ligh t up the screen. 3. Photo mode: 1.Press the 'Powe r key' to turn on the de vice (click the 'OK key' first wh en powe ring on w ith card to stop recordi ng) , and press the 'Mode /Menu key' once to enter the photo mode ; 2.Click 'OK key' to take pictures; 3.Click 'Down key' to swi tch the lens screen; 4.Press 'Up key' to turn on/off the infrared ligh t; 5.Press 'Mode /Menu key' to swi tch the mode ; Press to adj ust the submenu and system settings menu; 6.Click the 'Powe r key' to turn off the screen, and click aga in to ligh t up the screen. 4. Playback mode : 1.Press the 'Powe r key' to turn on the de vice (click the 'OK key' first wh en powe ring on wi th card to stop recordi ng) , and press the 'Mode /Menu key' twi ce to enter the playback mode ; 2.Click Press the 'up/do wn key' to swi tch the file; click to increase or de crease the volume wh en playing vide o files; 3.Click the 'OK key' to play or pause; 4.Press the 'Mode /Menu key' to long- term Swi tch mode ; click to adj ust the submenu and system settings menu. 5.Tap the 'Powe r key' to turn off the screen, and tap aga in to ligh t up the screen. Note: In vide o/photo/playback mode, unpluggi ng and pluggi ng the card is prohibited! 5. WiFi Mode 1.Turn on WiFi: When recordi ng or taking pictures, press and hold the 'up key' to enable WiFi; 2.Install and use WiFi: Before turning on the WiFi function, please do wn load and install the 'Recorde r' application on your smartphone. Note: Andr oid users, please scan the QR code prompted on the de vice, or scan the QR code below; ios users can search for 'Record Wind' in the Apple Store to do wn loa d. Connection …

Text truncated - open the document above for the full version.

DongguanAlaikeElectronicsCo.,LTD AttestationStatements NotCoveredEntityApplicant&NotCoveredEquipment To:FederalCommunicationsCommissionDate:May.11,26 7435OaklandMillsRoad, Columbia,MD21046,USA Ref:InformationRequiredbySection2.911(d)(5)(i)&(ii) FCCID:2BM2F-XC406 DongguanAlaikeElectronicsCo.,LTD.(“theapplicant”)certifiesthat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredList,establishedpursuantto§1.50002of referencechapter,asanentityproducing“covered”communicationequipment.Theequipmentfor whichauthorizationissoughtisnot“covered”telecommunicationsequipmentandvideosurveillance equipmentproducedbyentitiesidentifiedontheCommission’sCoveredListthatprohibitedfrom receivinganequipmentauthorizationpursuanttosection§2.903oftheFCCrules. Sincerelyyours, ApplicantSignature PrintedName:AnWu Title:Manager Address：Room701,Building1,No.56ZifengStreet,DalingshanTown,DongguanCity,GuangdongProvince, China Tel.:+8618814358355 Email:[email protected]

DongguanAlaikeElectronicsCo.,LTD 1|Page AttestationStatements To:FederalCommunicationsCommissionDate:May.11,26 7435OaklandMillsRoad, Columbia,MD21046,USA Subject:AttestationofCompliancewithFCCCoveredListSoftwareRequirements FCCID:[2BM2F-XC406] ProductName:[automobiledatarecorder] Thisletterservesasanattestationthattheequipmentidentifiedabove☐is/☒isnot(selectone)"covered" softwareasdefinedundertheFederalCommunicationsCommission(FCC)CoveredListrequirements,as outlinedinFCC22-84andKDB986446. Specifically,theundersignedcertifiesthattheequipmentforwhichauthorizationissought: 1.Doesnotcontaincybersecurityoranti-virussoftwareproducedorprovidedbyKasperskyLab, Inc.oranyofitssuccessors,assignees,parents,subsidiaries,affiliates,oranyentitythathasrebranded orrelabeledsoftwareproducedbytheaforementionedentities. 2.Doesnothavethecapabilitytostore,run,ordeliveranysoftwareidentifiedontheFCCCoveredList, includingbutnotlimitedtocybersecurityandanti-virussoftware. Tosupportthisattestation,theappendixevaluationdocumentationhasbeenpreparedandisincludedinthe certificationfiling. Thisattestationisbasedonathoroughevaluationofthedevice'sdesign,functionality,andsoftware environment.Theundersignedaffirmsthattheinformationprovidedisaccurateandcompletetothebestof theirknowledge. Sincerelyyours, ApplicantSignature PrintedName:AnWu Title:Manager Address:Room701,Building1,No.56ZifengStreet,DalingshanTown,DongguanCity,GuangdongProvince, China Tel.:+8618814358355 Email:[email protected] DongguanAlaikeElectronicsCo.,LTD 2|Page EvaluationregardingtotheCoveredListSoftware: Compliance Methodology EvaluationProcessResults Deviceis Inherent compliance ☒ TheChipset(s)usedislimitedtorun theCybersecurityoranti-virus software. Compliance. ☒ TheMemoryusedislimitedtorunthe Cybersecurityoranti-virussoftware. Compliance. ☒ Thereisstoragecapacitylimitationfor storeorinstalltheCybersecurityor anti-virussoftware. Compliance. ☒ Operatingsystemusedislimitedto run,installordelivertheCybersecurity oranti-virussoftware. Compliance. Deviceisnot Inherent compliance ☐ EvaluationBasedonSoftware BillofMaterials(SBoM) Seeattached“SBoM“ Note:TheSBoMcontentislimited tothescopeofcoveredlist software(e.g.antivirusand cybersecuritysoftware). ☐ EvaluationBasedonScanfor Softwareonthedevice ☐ EvaluationBasedonFilesystemscan ☐ EvaluationBasedonRunning softwarecheck

DongguanAlaikeElectronicsCo.,LTD U.S.AgentLetterofAttestation To:FederalCommunicationsCommission 7435OaklandMillsRoad,Columbia,MD21046,USA Date:May.11,26 Ref: AttestationStatement–Part 2.911(d)(7)filing FCCID:2BM2F-XC406 [DongguanAlaikeElectronicsCo.,LTD](“theapplicant”)certifiesthat,asofthedateofthefilingof theapplication,[LOBOSIOWAINC](“theagent”)isourdesignatedU.S.agentforserviceof processfortheabovereferenceFCCID.Theapplicantacceptstomaintainanagentforserviceof processintheUnitedStatesfornolessthanoneyearaftereitherthegranteehaspermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingtheequipment, whicheverislater.TheapplicantfurtheracknowledgesitisourresponsibilitytoinformtheFCC whenevertheagentinformationchanges. [LOBOSIOWAINC]("theagent)understanditistheagent'sobligationtoacceptserviceofprocess intheUnitedStatesformattersrelatedtotheapplicableequipment,andatthephysicalU.S. addressandemailaddress. DesignatedU.S.Agent CompanyName:LOBOSIOWAINC FRN:0036413961 Address:4623BittercreekDrColoradoSpringsco 80922UnitedStates Signature: ContactPerson:HarleyLi Tel: (818)818-0538 Email:[email protected] Applicant CompanyName:DongguanAlaikeElectronicsCo.,LTD FRN:0036436400 Address:Room701,Building1,No.56ZifengStreet, DalingshanTown,DongguanCity,GuangdongProvince, China Signature: ContactPerson:AnWu Tel:+8618814358355Email: [email protected]

DongguanAlaikeElectronicsCo.,LTD (Apr24,2026) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:ConfidentialityRequestfor:FCCID:2BM2F-XC406 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestpermanent confidentialtreatmentoftheexhibitsaccompanyingthiscertificationapplicationasoutlinedbelow:  BlockDiagram Schematics  OperationalDescription Theaboveexhibitscontaintradesecretsand/orproprietaryinformationthatarenotpubliclyavailableand materialsthattheApplicanthasspentconsiderableeffortsindeveloping.Publicdisclosureofthesemay beharmfultotheApplicantandgiveanunfairadvantagetocompetitorsonthemarket. Sincerely, (Signature) Title:Manager Address:Room701,Building1,No.56ZifengStreet,DalingshanTown,DongguanCity, GuangdongProvince,China Tel.:+8618814358355 Email:[email protected]

DongguanAlaikeElectronicsCo.,LTD (Apr25,2026) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:AgentAuthorizationforFCCID:2BM2F-XC406 I,theundersigned,herebyauthorizeHDTestingTechnology(GuangDong)Co.,Ltd.toactonourbehalf inallmattersrelatingtothisapplicationforequipmentcertification. AnyactcarriedoutbyHDTestingTechnology(GuangDong)Co.,Ltd.shallhavethesameeffectasour ownandIacknowledgethatallresponsibilityforcomplyingwiththetermsandconditionsofcertification, asspecifiedbyDERYCOMCERTIFICATIONSERVICES,INC.,stillresideswithDongguanAlaike ElectronicsCo.,LTD . WecertifythatwearenotsubjecttoadenialoffederalbenefitsthatincludesFCCbenefitspursuantto Section5301oftheAnti-DrugAbuseActof1988,21U.S.C.§862,andthatnopartytotheapplication,as definedin47CFR§1.2002(b),issubjecttoadenialoffederalbenefitsthatincludesFCCbenefits pursuanttothatsection. Sincerely, (Signature) (AnWu) (Manager) Tel:+8618814358355 Email:[email protected]

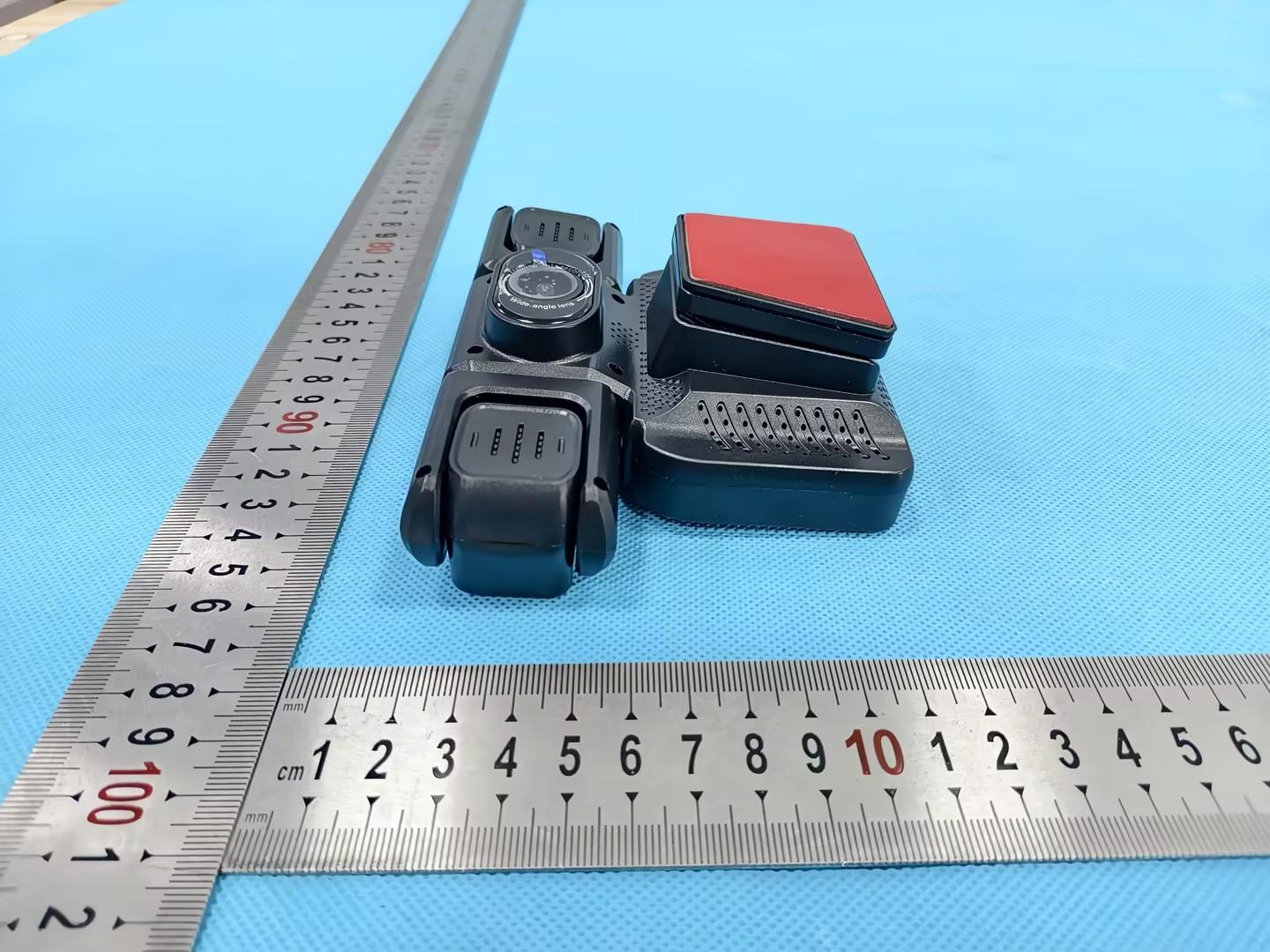

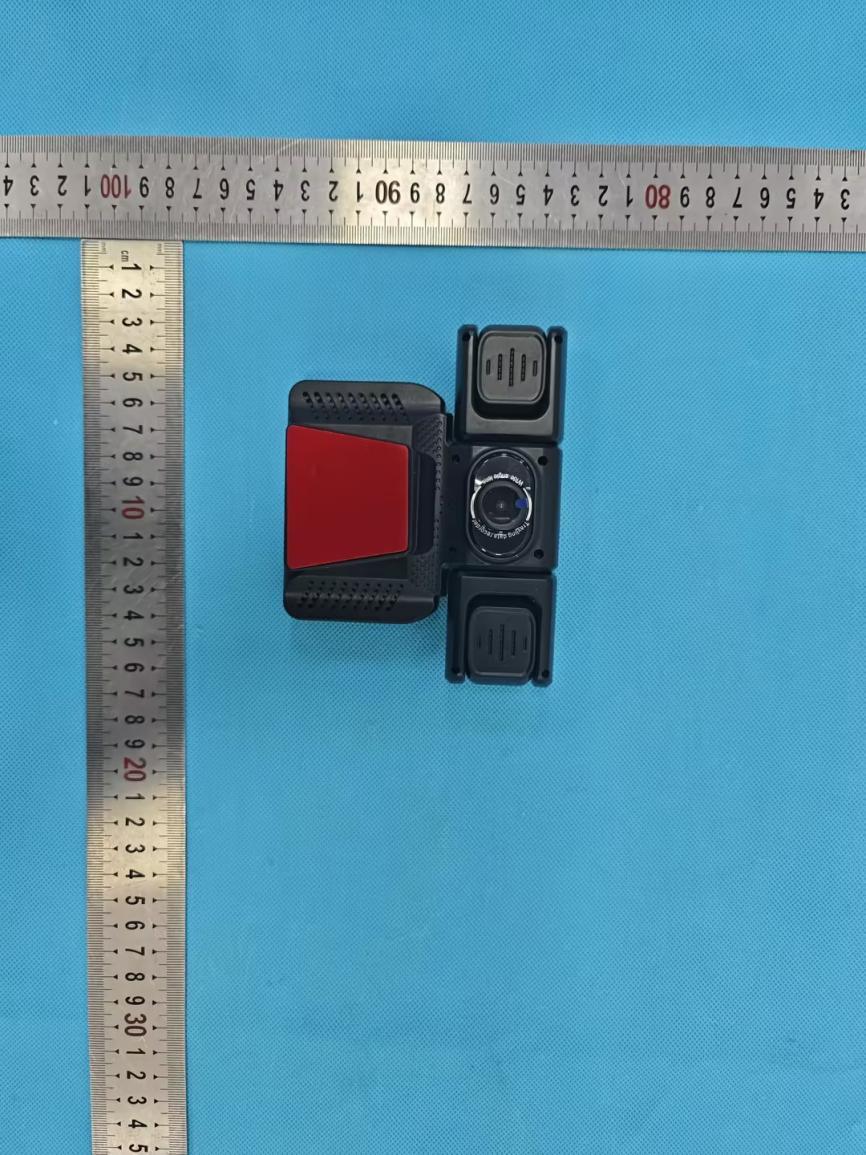

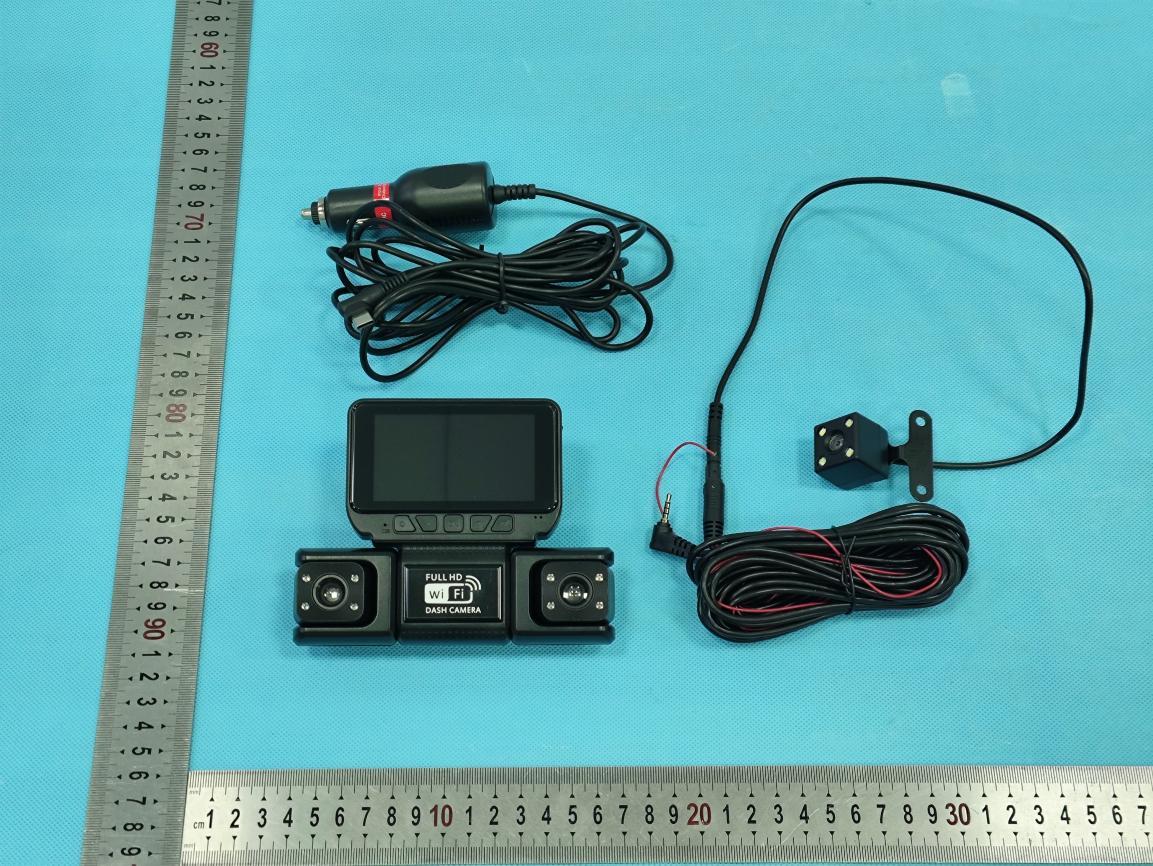

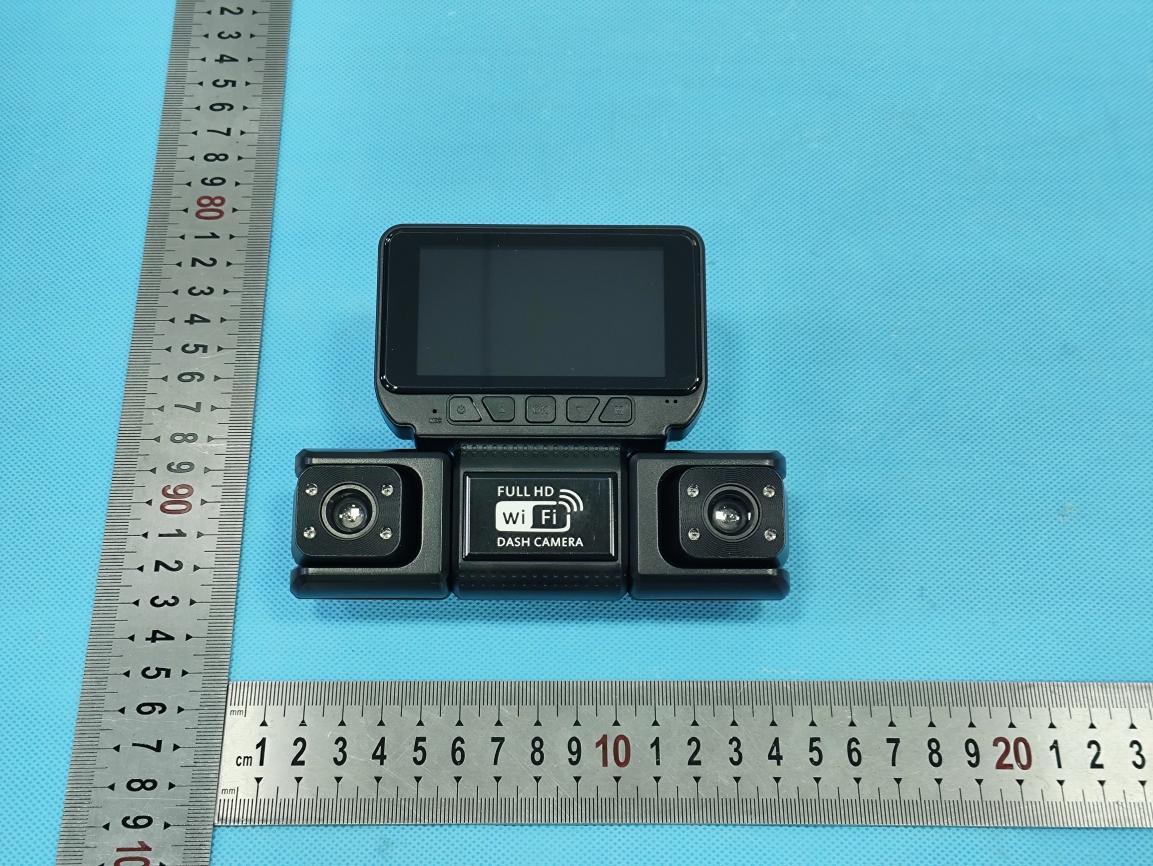

FCCID:2BM2F-XC406 Page 1 / 4 PHOTOSOFEUTEXTERNALPHOTOS EUTPhoto EUTPhoto FCCID:2BM2F-XC406 Page 2 / 4 EUTPhoto EUTPhoto FCCID:2BM2F-XC406 Page 3 / 4 EUTPhoto EUTPhoto FCCID:2BM2F-XC406 Page 4 / 4 EUTPhoto

LabelandLabelLocation FCCID:2BM2F-XC406 L*W:10mm*5mm labelandWhitefont

FCCID:2BM2F-XC406 Page 1 / 5 PHOTOSOFEUTINTERNALPHOTOS EUTPhoto EUTPhoto FCCID:2BM2F-XC406 Page 2 / 5 EUTPhoto EUTPhoto FCCID:2BM2F-XC406 Page 3 / 5 EUTPhoto EUTPhoto FCCID:2BM2F-XC406 Page 4 / 5 EUTPhoto EUTPhoto PCBAntenna FCCID:2BM2F-XC406 Page 5 / 5 EUTPhoto

ReportNo.:86260417268Date:May11,2026Page1of5 HDTestingTechnology(GuangDong)Co.,Ltd. Building1,No.18,ShihuanRoad,DongchengSubdistrict, Dongguan,Guangdong,China Tel:+86-0769-22221088 E-mail:[email protected] Website:www.hdt-lab.com Thisreportisgovernedby,andincorporatesbyreference,theconditionsoftestingaspostedatthe dateofissuanceofthisreportathttp://www.hdt-lab.com/andisintendedforyourexclusiveuse.Any copyingorreplicationofthisreporttoorforanyotherpersonorentity,oruseofournameortrademark, ispermittedonlywithourpriorwrittenpermission.Thisreportsetsforthourfindingssolelywithrespect tothetestsamplesidentifiedherein.Theresultssetforthinthisreportarenotindicativeor representativeofthequalityorcharacteristicsofthelotfromwhichatestsamplewastakenorany similaroridenticalproductunlessspecificallyandexpresslynoted.Ourreportincludesallofthetests requestedbyyouandtheresultsthereofbasedupontheinformationthatyouprovidedtous. Measurementuncertaintyisonlyprovideduponrequestforaccreditedtests.Statementsofconformity arebasedonsimpleacceptancecriteriawithouttakingmeasurementuncertaintyintoaccount,unless otherwiserequestedinwriting.Youhave15daysfromdateofissuanceofthisreporttonotifyusofany materialerrororomissioncausedbyournegligenceorifyourequiremeasurementuncertainty; provided,however,thatsuchnoticeshallbeinwritingandshallspecificallyaddresstheissueyouwish toraise.Afailuretoraisesuchissuewithintheprescribedtimeshallconstituteyourunqualified acceptanceofthecompletenessofthisreport,thetestsconductedandthecorrectnessofthereport contents. RFTESTREPORT Applicant:DongguanAlaikeElectronicsCo.,LTD Address: Room701,Building1,No.56ZifengStreet,DalingshanTown,DongguanCity, GuangdongProvince,China Manufacturer:DongguanAlaikeElectronicsCo.,LTD Address: Room701,Building1,No.56ZifengStreet,DalingshanTown,DongguanCity, GuangdongProvince,China EUTName:automobiledatarecorder Trademark:/ Model:XC406 FCCID：2BM2F-XC406 Rating:PoweredbyDC12Vbattery SampleReceived Date: Apr.17,2026 TestDate:Apr.17,2026~Apr.29,2026 Applicable Standards: CFR47,FCCPart2.1091 TestResultPass Preparedby:Approvedby: EvanFang/ProjectEngineerBruceZhang/TechnicalManager ReportNo.:86260417268 May11,2026 Page2of5 HDTestingTechnology(GuangDong)Co.,Ltd. Building1,No.18,ShihuanRoad,DongchengSubdistrict, Dongguan,Guangdong,China Tel:+86-0769-22221088 E-mail:[email protected] Website:www.hdt-lab.com Thisreportisgovernedby,andincorporatesbyreference,theconditionsoftestingaspostedatthe dateofissuanceofthisreportathttp://www.hdt-lab.com/andisintendedforyourexclusiveuse.Any copyingorreplicationofthisreporttoorforanyotherpersonorentity,oruseofournameortrademark, ispermittedonlywithourpriorwrittenpermission.Thisreportsetsforthourfindingssolelywithrespect tothetestsamplesidentifiedherein.Theresultssetforthinthisreportarenotindicativeor representativeofthequalityorcharacteristicsofthelotfromwhichatestsamplewastakenorany similaroridenticalproductunlessspecificallyandexpresslynoted.Ourreportincludesallofthetests requestedbyyouandtheresultsthereofbasedupontheinformationthatyouprovidedtous. Measurementuncertaintyisonlyprovideduponrequestforaccreditedtests.Statementsofconformity arebasedonsimpleacceptancecriteriawithouttakingmeasurementuncertaintyintoaccount,unless otherwiserequestedinwriting.Youhave15daysfromdateofissuanceofthisreporttonotifyusofany materialerrororomissioncausedbyournegligenceorifyourequiremeasurementuncertainty; provided,however,thatsuchnoticeshallbeinwritingandshallspecificallyaddresstheissueyouwish toraise.Afailuretoraisesuchissuewithintheprescribedtimeshallconstituteyourunqualified acceptanceofthecompletenessofthisreport,thetestsconductedandthecorrectnessofthereport contents. RevisionHistory VersionDateofIssueDescription V00May11,2026OriginalVersion ReportNo.:86260417268 May11,2026 Page3of5 HDTestingTechnology(GuangDong)Co.,Ltd. Building1,No.18,ShihuanRoad,DongchengSubdistrict, Dongguan,Guangdong,China Tel:+86-0769-22221088 E-mail:[email protected] Website:www.hdt-lab.com Thisreportisgovernedby,andincorporatesbyreference,theconditionsoftestingaspostedatthe dateofissuanceofthisreportathttp://www.hdt-lab.com/andisintendedforyourexclusiveuse.Any copyingorreplicationofthisreporttoorforanyotherpersonorentity,oruseofournameortrademark, ispermittedonlywithourpriorwrittenpermission.Thisreportsetsforthourfindingssolelywithrespect tothetestsamplesidentifiedherein.Theresultssetforthinthisreportarenotindicativeor representativeofthequalityorcharacteristicsofthelotfromwhichatestsamplewastakenorany similaroridenticalproductunlessspecificallyandexpresslynoted.Ourreportincludesallofthetests requestedbyyouandtheresultsthereofbasedupontheinformationthatyouprovidedtous. Measurementuncertaintyisonlyprovideduponrequestforaccreditedtests.Statementsofconformity arebasedonsimpleacceptancecriteriawithouttakingmeasurementuncertaintyintoaccount,unless otherwiserequestedinwriting.Youhave15daysfromdateofissuanceofthisreporttonotifyusofany materialerrororomissioncausedbyournegligenceorifyourequiremeasurementuncertainty; provided,however,thatsuchnoticeshallbeinwritingandshallspecificallyaddresstheissueyouwish toraise.Afailuretoraisesuchissuewithintheprescribedtimeshallconstituteyourunqualified acceptanceofthecompletenessofthisreport,thetestsconductedandthecorrectnessofthereport contents. 1.EUTDESCRIPTION Product:automobiledatarecorder TestModel:XC406 AdditionalModel:N/A Rating:PoweredbyDC12Vbattery FCCID:2BM2F-XC406 AntennaType:PCBAntenna AntennaGain:0.41dBi Specification 2.4GWIFI,b/g/n20 OperationFrequency: 2412-2462MHz NumberofChannels: 11 ModulationType: DSSS,OFDM HardwareVersion:N/A SoftwareVersion:N/A Note: 1)Foramoredetailedfeaturesdescription,pleaserefertothemanufacturer'sspecificationsorthe User'sManual. 2)Antennagainwasprovidedbytheapplicant/manufacturer,andtheapplicant/manufactureris responsibleforitsvalidity. 3)Thetestresultsinthereportonlyapplytothetestedsample. ReportNo.:86260417268 May11,2026 Page4of5 HDTestingTechnology(GuangDong)Co.,Ltd. Building1,No.18,ShihuanRoad,Dongch…

Text truncated - open the document above for the full version.

ReportNo.:86260417101Date:May13,2026Page1of32 HDTestingTechnology(GuangDong)Co.,Ltd. Building1,No.18,ShihuanRoad,DongchengSubdistrict, Dongguan,Guangdong,China Tel:+86-0769-22221088 E-mail:[email protected] Website:www.hdt-lab.com Thisreportisgovernedby,andincorporatesbyreference,theconditionsoftestingaspostedatthe dateofissuanceofthisreportathttp://www.hdt-lab.com/andisintendedforyourexclusiveuse.Any copyingorreplicationofthisreporttoorforanyotherpersonorentity,oruseofournameortrademark, ispermittedonlywithourpriorwrittenpermission.Thisreportsetsforthourfindingssolelywithrespect tothetestsamplesidentifiedherein.Theresultssetforthinthisreportarenotindicativeor representativeofthequalityorcharacteristicsofthelotfromwhichatestsamplewastakenorany similaroridenticalproductunlessspecificallyandexpresslynoted.Ourreportincludesallofthetests requestedbyyouandtheresultsthereofbasedupontheinformationthatyouprovidedtous. Measurementuncertaintyisonlyprovideduponrequestforaccreditedtests.Statementsofconformity arebasedonsimpleacceptancecriteriawithouttakingmeasurementuncertaintyintoaccount,unless otherwiserequestedinwriting.Youhave15daysfromdateofissuanceofthisreporttonotifyusofany materialerrororomissioncausedbyournegligenceorifyourequiremeasurementuncertainty; provided,however,thatsuchnoticeshallbeinwritingandshallspecificallyaddresstheissueyouwish toraise.Afailuretoraisesuchissuewithintheprescribedtimeshallconstituteyourunqualified acceptanceofthecompletenessofthisreport,thetestsconductedandthecorrectnessofthereport contents. RFTESTREPORT Applicant:DongguanAlaikeElectronicsCo.,LTD Address: Room701,Building1,No.56ZifengStreet,DalingshanTown,DongguanCity, GuangdongProvince,China Manufacturer:DongguanAlaikeElectronicsCo.,LTD Address: Room701,Building1,No.56ZifengStreet,DalingshanTown,DongguanCity, GuangdongProvince,China EUTName:automobiledatarecorder Trademark:/ Model:XC406 FCCID：2BM2F-XC406 Rating:PoweredbyDC12Vbattery SampleReceived Date: Apr.17,2026 TestDate:Apr.17,2026~Apr.29,2026 Applicable Standards: FCC47,CFRPart15.247 TestResultPass Preparedby:Approvedby: EvanFang/ProjectEngineerBruceZhang/TechnicalManager ReportNo.:86260417101 May13,2026 Page2of32 HDTestingTechnology(GuangDong)Co.,Ltd. Building1,No.18,ShihuanRoad,DongchengSubdistrict, Dongguan,Guangdong,China Tel:+86-0769-22221088 E-mail:[email protected] Website:www.hdt-lab.com Thisreportisgovernedby,andincorporatesbyreference,theconditionsoftestingaspostedatthe dateofissuanceofthisreportathttp://www.hdt-lab.com/andisintendedforyourexclusiveuse.Any copyingorreplicationofthisreporttoorforanyotherpersonorentity,oruseofournameortrademark, ispermittedonlywithourpriorwrittenpermission.Thisreportsetsforthourfindingssolelywithrespect tothetestsamplesidentifiedherein.Theresultssetforthinthisreportarenotindicativeor representativeofthequalityorcharacteristicsofthelotfromwhichatestsamplewastakenorany similaroridenticalproductunlessspecificallyandexpresslynoted.Ourreportincludesallofthetests requestedbyyouandtheresultsthereofbasedupontheinformationthatyouprovidedtous. Measurementuncertaintyisonlyprovideduponrequestforaccreditedtests.Statementsofconformity arebasedonsimpleacceptancecriteriawithouttakingmeasurementuncertaintyintoaccount,unless otherwiserequestedinwriting.Youhave15daysfromdateofissuanceofthisreporttonotifyusofany materialerrororomissioncausedbyournegligenceorifyourequiremeasurementuncertainty; provided,however,thatsuchnoticeshallbeinwritingandshallspecificallyaddresstheissueyouwish toraise.Afailuretoraisesuchissuewithintheprescribedtimeshallconstituteyourunqualified acceptanceofthecompletenessofthisreport,thetestsconductedandthecorrectnessofthereport contents. RevisionHistory VersionDateofIssueDescription V00May13,2026OriginalVersion ReportNo.:86260417101 May13,2026 Page3of32 HDTestingTechnology(GuangDong)Co.,Ltd. Building1,No.18,ShihuanRoad,DongchengSubdistrict, Dongguan,Guangdong,China Tel:+86-0769-22221088 E-mail:[email protected] Website:www.hdt-lab.com Thisreportisgovernedby,andincorporatesbyreference,theconditionsoftestingaspostedatthe dateofissuanceofthisreportathttp://www.hdt-lab.com/andisintendedforyourexclusiveuse.Any copyingorreplicationofthisreporttoorforanyotherpersonorentity,oruseofournameortrademark, ispermittedonlywithourpriorwrittenpermission.Thisreportsetsforthourfindingssolelywithrespect tothetestsamplesidentifiedherein.Theresultssetforthinthisreportarenotindicativeor representativeofthequalityorcharacteristicsofthelotfromwhichatestsamplewastakenorany similaroridenticalproductunlessspecificallyandexpresslynoted.Ourreportincludesallofthetests requestedbyyouandtheresultsthereofbasedupontheinformationthatyouprovidedtous. Measurementuncertaintyisonlyprovideduponrequestforaccreditedtests.Statementsofconformity arebasedonsimpleacceptancecriteriawithouttakingmeasurementuncertaintyintoaccount,unless otherwiserequestedinwriting.Youhave15daysfromdateofissuanceofthisreporttonotifyusofany materialerrororomissioncausedbyournegligenceorifyourequiremeasurementuncertainty; provided,however,thatsuchnoticeshallbeinwritingandshallspecificallyaddresstheissueyouwish toraise.Afailuretoraisesuchissuewithintheprescribedtimeshallconstituteyourunqualified acceptanceofthecompletenessofthisreport,thetestsconductedandthecorrectnessofthereport contents. TABLEOFCONTENTS 1.TESTSUMMARY.....................................................................................................................4 2.TESTSITE...............................................................................................................................5 2.1.TestFacility........................................................................................................................................5 2.2.MeasurementUncertainty..................................................................................................................5 2.3.TestEnvironmentCondition...................................................................................................…

Text truncated - open the document above for the full version.

Antena Test Report 客户名称：艾莱卡 频段：WIFI2.4G 版本：A 专业的4G/3G/GPS/WIFI等天线方案设计及供应 项目名称： 制作日期： 商 1 Test system 2 天线电路 3 效率&增益 4 5 6

FCCID:2BM2F-XC406 AppendixA:TestResultsof2.4GWIFI ConductedOutputPower TestResult ConductedOutputPower ModeChannel Ant.0 (dBm) Total (dBm) Limit (dBm) Result IEEE802.11b 110.2310.23≤30PASS 610.2210.22≤30PASS 119.389.38≤30PASS IEEE802.11g 19.899.89≤30PASS 69.769.76≤30PASS 119.149.14≤30PASS IEEE802.11n_20 19.149.14≤30PASS 69.059.05≤30PASS 118.398.39≤30PASS ISEDEIRP ModeChannel Ant.0 (dBm) Limit (dBm) Result IEEE802.11b 110.64≤36.02PASS 610.63≤36.02PASS 119.79≤36.02PASS IEEE802.11g 110.3≤36.02PASS 610.17≤36.02PASS 119.55≤36.02PASS IEEE802.11n_20 19.55≤36.02PASS 69.46≤36.02PASS 118.8≤36.02PASS Note: 1.ANTGain:0.41dBi,EIRP=OutputPower+ANTGain FCCID:2BM2F-XC406 99%Bandwidth TestResult ModeChannelAnt. CenterFrequency (MHz) 99%BW(MHz) IEEE802.11b 1 0 241213.800 6243713.765 11246213.939 IEEE802.11g 1241217.170 6243717.195 11246217.350 IEEE802.11n_20 1241217.800 6243717.670 11246217.848 TestGraphs IEEE802.11b_Channel1_20MHz_Antenna0IEEE802.11b_Channel6_20MHz_Antenna0 IEEE802.11b_Channel11_20MHz_Antenna0IEEE802.11g_Channel1_20MHz_Antenna0 IEEE802.11g_Channel6_20MHz_Antenna0IEEE802.11g_Channel11_20MHz_Antenna0 FCCID:2BM2F-XC406 IEEE802.11n_Channel1_20MHz_Antenna0IEEE802.11n_Channel6_20MHz_Antenna0 IEEE802.11n_Channel11_20MHz_Antenna0 FCCID:2BM2F-XC406 6dBBandwidth TestResult ModeChannelAnt. Center Frequency (MHz) 6dBBandwidth (MHz) Limit (MHz) Result IEEE802.11b 1 0 24129.107 ≥0.5 PASS 624379.088PASS 1124629.126PASS IEEE802.11g 1241217.44PASS 6243717.09PASS 11246217.46PASS IEEE802.11n_20 1241215.51PASS 6243715.73PASS 11246215.79PASS TestGraphs IEEE802.11b_Channel1_20MHz_Antenna0IEEE802.11b_Channel6_20MHz_Antenna0 IEEE802.11b_Channel11_20MHz_Antenna0IEEE802.11g_Channel1_20MHz_Antenna0 FCCID:2BM2F-XC406 IEEE802.11g_Channel6_20MHz_Antenna0IEEE802.11g_Channel11_20MHz_Antenna0 IEEE802.11n_Channel1_20MHz_Antenna0IEEE802.11n_Channel6_20MHz_Antenna0 IEEE802.11n_Channel11_20MHz_Antenna0 FCCID:2BM2F-XC406 ConductedSpurious&BandEdgeEmission TestResult ModeChannelAnt. OOB Emission Frequency (MHz) OOB Emission Level (dBm) Limit (dBm) OverLimit (dB) Result IEEE802.11b 1 0 2400.00-41.495-21.06-20.435PASS 24976.3-45.830-21.06-24.770PASS 624476.3-45.309-20.95-24.359PASS 11 2483.50-47.790-21.79-26.000PASS 24690.4-46.471-21.79-24.681PASS IEEE802.11g 1 2398.53-45.963-26.05-19.913PASS 2400.00-46.883-26.05-20.833PASS 24959.4-46.280-26.05-20.230PASS 624711.0-46.858-26.16-20.698PASS 11 2483.50-48.577-26.69-21.887PASS 24546.2-46.077-26.69-19.387PASS IEEE 802.11n_20 1 2398.66-45.836-27.76-18.076PASS 2400.00-46.793-27.76-19.033PASS 24613.6-45.834-27.76-18.074PASS 624619.8-46.226-27.68-18.546PASS 11 2483.50-48.136-28.53-19.606PASS 24637.9-46.246-28.53-17.716PASS Note:inputcompensationcoeffcient(dB)=CableLoss(dB) TestGraphs In-BandReferenceLevel IEEE802.11b_Channel1_20MHz_Antenna0 OutOfBandEmission IEEE802.11b_Channel1_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11b_Channel1_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11b_Channel6_20MHz_Antenna0 FCCID:2BM2F-XC406 30.0MHz-25000.0MHz IEEE802.11b_Channel6_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11b_Channel11_20MHz_Antenna0 OutOfBandEmission IEEE802.11b_Channel11_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11b_Channel11_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11g_Channel1_20MHz_Antenna0 OutOfBandEmission IEEE802.11g_Channel1_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11g_Channel1_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11g_Channel6_20MHz_Antenna0 FCCID:2BM2F-XC406 30.0MHz-25000.0MHz IEEE802.11g_Channel6_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11g_Channel11_20MHz_Antenna0 OutOfBandEmission IEEE802.11g_Channel11_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11g_Channel11_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11n_Channel1_20MHz_Antenna0 OutOfBandEmission IEEE802.11n_Channel1_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11n_Channel1_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11n_Channel6_20MHz_Antenna0 FCCID:2BM2F-XC406 30.0MHz-25000.0MHz IEEE802.11n_Channel6_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11n_Channel11_20MHz_Antenna0 OutOfBandEmission IEEE802.11n_Channel11_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11n_Channel11_20MHz_Antenna0 FCCID:2BM2F-XC406 PowerSpectralDensity TestResult ModeChannel PSD (dBm/3kHz) Ant.0 Limit (dBm/3kHz) Result IEEE802.11b 1-14.930 ≤8 PASS 6-14.830PASS 11-15.740PASS IEEE802.11g 1-15.530PASS 6-15.850PASS 11-16.430PASS IEEE802.11n_20 1-17.430PASS 6-17.510PASS 11-18.180PASS TestGraphs IEEE802.11b_Channel1_20MHz_Antenna0IEEE802.11b_Channel6_20MHz_Antenna0 IEEE802.11b_Channel11_20MHz_Antenna0IEEE802.11g_Channel1_20MHz_Antenna0 FCCID:2BM2F-XC406 IEEE802.11g_Channel6_20MHz_Antenna0IEEE802.11g_Channel11_20MHz_Antenna0 IEEE802.11n_Channel1_20MHz_Antenna0IEEE802.11n_Channel6_20MHz_A…

Text truncated - open the document above for the full version.
