2BMBQ-HB588AIPUBABY MONITOR

US EN QUICK START GUIDE 1. Contents Inside Box WARNING: Strangulation hazard. Children have STRANGLED on cords. Keep this cord out of the reach of children (more than 3ft (1m) away). Never use extension cords with AC Adaptor. Only use the AC Adaptor provided. For a full explanation of all the features and instructions, please refer to the User’s Guide (available for download from support.hubbleconnected.com). x7 Baby Unit (Camera) Parent Unit Portable Battery Wall Wire Cover A Wall Wire Cover B Wall Wire Cover C USB Power Cable USB Charger Camera Support Sleeve Mounting Wall Plate 1. 2. 3. Quick Start Guide BABY MONITOR Model: Go Baby Plus 5.0 Video Baby Monitor (HB585AI) Go Baby Portable Plus 5.0Video Baby Monitor (HB588AI) Go Baby Plus Baby Camera (HB585AIBU) Go Baby Portable Plus Camera (HB588AIBU) GoBaby Parent Unit (HB585AIPU) GoBaby Parent Unit (HB588AIPU) 2. Overview of the Camera Unit 2 3 1 10 2 3 8 7 9 1. Light sensor 2. Camera Lens 3. Microphone 4. Power LED Indicator - Steady Red: Offline - Steady Green: Connected - Blink between Red and Green alternatively: Pairing 5. Micro-SD card Slot - Support up to 128GB memory storage 6. Night Light - Support up to 7 colors 7. USB-C Power Socket 8. PAIR Button 9. Speaker 10. Wi-Fi ON/OFF Switch 56 4 1. Display (LCD screen) 2. Power and Connection LED - Green when mains power connected 3. Sound Level indicators (Green, Amber, Red, Red) - Show the sound level detected by the Baby Unit (the louder of sound detected, the more LEDs light up.) 4. VOLUME - 5. VOLUME + 6. Display ON/OFF button 7. Microphone 3. Installation of the Camera 8. MENU button 9. Navigation button 10. OK button 11. TALK button 12. Power button 13. Antenna 14. RESET pin hole 15. Speaker 16. USB-C Power Socket 17. Round ring stand 145 3 16 2 12 6 11 9 7 10 8 18 16 13 14 3. Basic operation of the keys and display icons Parent unit ON/OFF buttonPr ess and hold to turn the Parent Unit ON/OFF. Vol+ and Vol- buttons Pr ess -/+ to select volume level of the Parent Unit. UP/DOWN buttons Pr ess to tilt the camera up or down. Pr ess to adjust menu setting when menu is active. LEFT/RIGHT buttons Pr ess to pan the camera left or right. Pr ess to access menu options when menu is active. MENU buttonPr ess to access or exit the menu. OK button In menu mode, press to confirm a selection. When multiple cameras are paired to the parent unit, press to switch cameras, select camera scan or split screen viewing modes. DISPLAY ON/OFF Pr ess to turn the LCD screen ON/OFF. Audio will be active when the screen is off. TALK buttonPr ess and hold to talk to your baby. RESET pin holePr ess and hold with a small pin to reset the unit. Baby Unit PAIR button Wi-Fi ON/OFF Switch Press and hold to pair with the parent unit or HubbleClub App. ON to enable Wi-Fi connection with HubbleClubApp OFF to disable Wi-Fi connectivity (Privacy mode) Menu Icons LCD Brightness Level Control (8 Levels). Zoom Level Control. Alarm Setting On status bar, indicates alarm set, and when flashing, that alarm time has been reached or missed. Tap to talk to Baby Unit. Tap to turn Night Light on or off. Camera Control (add , del , view , scan ). Set Screen Off Timer (Off, 5 mins, 15 mins, 30 mins). Temperature scale select (°C) Readings display in grey , but turns RED if > 29 °C or < 14 °C. Displays HH °C if >36 °C. Displays LL °C if < 1 °C. Audio Media selection - Personal Recordings , Lullabies/Soothing Sounds , Audio Books , Volume control of media playback . * The playlist appears only if you make the audio recording via HubbleClub for Partners app. Audio Media Playback menu icons Select to display personal recording playlist. * Select to display soothing sound or lullaby playlist. Select to display audio book playlist. Volume control of media playback. Play selected audio media on the playlist. Stop playing audio media. Display icons Signal Level (5 Levels). Night Vision Mode (Video also changes to Black/White). Indicates the screen off timer is set. Volume Level Control (8 Levels). No Baby Unit detected. Battery Level Indicator (4 Levels). 3. Setting up your Camera Unit Connecting the Power Supply for the Camera Unit 1. Insert the USB-A (bigger end) plug of the USB cable into the USB charger then insert the USB-C (smaller end) into the USB-C socket at the end of the flexible arm of the camera 2. Connect the USB charger to the electrical outlet. 3. The power indicator on the camera lights in green colour. Note Only use the supplied power adapter (DC5V/1500mA) B. Connecting the Power Supply of the Parent Unit. A rechargeable battery (Lithium ion battery 3.8V 5000mAh) inside the Parent Unit allows you to move it without losing the link and picture from the Baby Unit. We recommend charging the for at least 6 hours before first use, and when the Parent Unit indicates the battery is low. • Connect the USB-C plug of the power adapter to the parent unit and the other end to the electrical outlet. Only use the adapter (DC5V/1500mA). • Pr ess and hold the button to turn the Parent unit on, the Parent unit and Baby unit are automatically linked and ready to use. NOTE: When the Baby and Parent Units are both turned on and within range, the Parent Unit should show a color image from the Baby Unit camera, but if the room is dark, the image will be in black and white, with an icon showing the Baby Unit is in Night Vision mode. C. Desktop Stand of the Parent Unit • The parent unit comes with a desktop round ring stand attached to the back of the parent unit. • To place the parent unit on a desk, simply pull out the stand, as shown. Note: D. Connecting the Camera unit to the Portable Battery Apart from being powered by an electrical outlet, the camera can also be connected to a portable battery, adding mobility to the setup. The portable battery is a 3.8V 4000mAh Lithium-ion battery that allows you to move it without losing the link with the Parent Unit and the HubbleClub App. The battery provides up to 15 hours of standby with day vision …

Text truncated - open the document above for the full version.

HUBBLE BABY CARE LIMITED 11‐20‐2025 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BMBQ‐HB588AIPU HUBBLE BABY CARE LIMITED (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber‐security or anti‐virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) YH Tong HUBBLE BABY CARE LIMITED 11‐20‐2025 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BMBQ‐HB588AIPU HUBBLE BABY CARE LIMITED (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) YH Tong

HUBBLE BABY CARE LIMITED Unit 802, 8/F, Nan Fung Commercial Centre, 19 Lam Lok Street, Kowloon Bay, Kowloon, Hong Kong China Date:11-21-2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BMBQ-HB588AIPU FRN: 0036304772 US Agent – Attestation Statement / Part 2.911(d)(7) HUBBLE BABY CARE LIMITED certifies, that as of 11-21-2025, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2BMBQ-HB588AIPU. HUBBLE BABY CARE LIMITED, accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of HUBBLE BABY CARE LIMITED for FCC ID: 2BMBQ-HB588AIPU. Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: HUBBLE BABY CARE LIMITED Designated Agent: FCC US Agent, LLC Company Representative: YH Tong Designated Agent Representative: Tim Payne Signature: [Signature] Signature:

HUBBLE BABY CARE LIMITED Date: Nov 20, 2025 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2BMBQ-HB588AIPU Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Long-term confidentiality: Schematics Block Diagram Operational Description Schematics.pdf Block Diagram.pdf Operational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, HUBBLE BABY CARE LIMITED Signature YH Tong / Manager Typed name and Title

HUBBLE BABY CARE LIMITED FC C ID: 2BMBQ-HB588AIPU POWER OF ATTORNEY Date: Nov 20, 2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group Co., Ltd. (Deval Qin) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group Co., Ltd. (Deval Qin) on our behalf shall have the same effect as acts of our own. This authorization expires on Nov. 19, 2026. Sincerely, HUBBLE BABY CARE LIMITED Signature YH Tong / Manager Typed name and Title

HUBBLE BABY CARE LIMITED FCC ID: 2BMBQ-HB588AIPU Date: 11/20/2025 To whom it May concern, Statement We confirm the product BABY MONITOR with models Go Baby Al Portable Pro (HB588AI), Go Baby Al Pro (HB585Al), HB588AIBU, HB585AIBU only the model name is different. The other respects are same. Yours sincerely, YH Tong Manager HUBBLE BABY CARE LIMITED

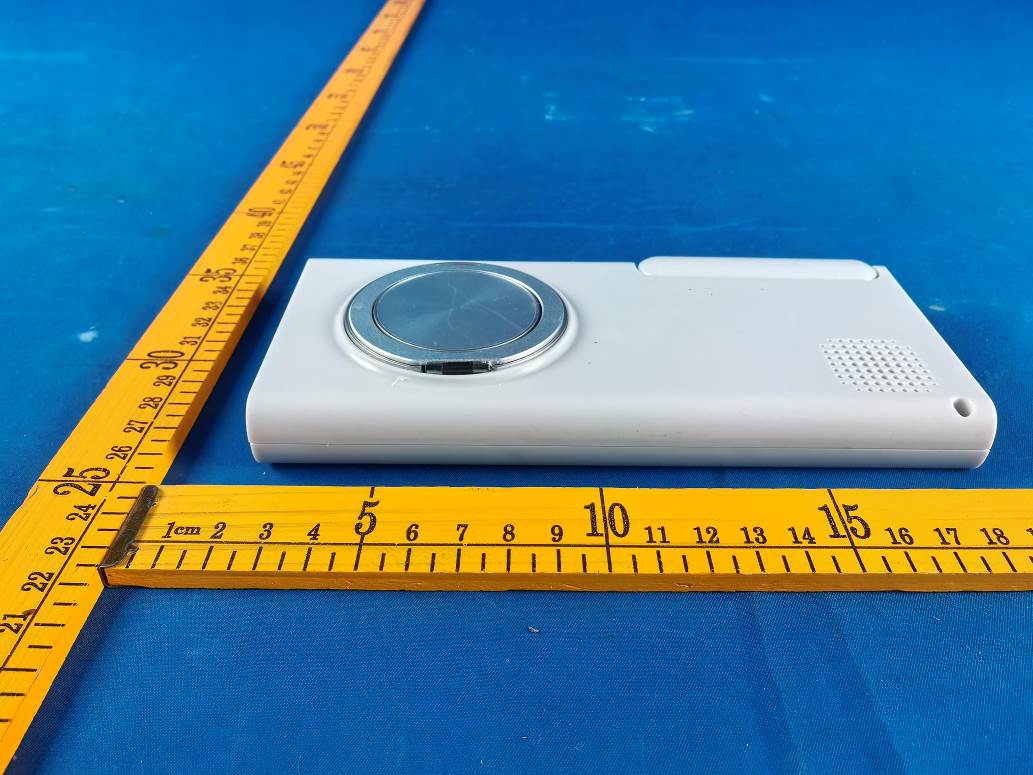

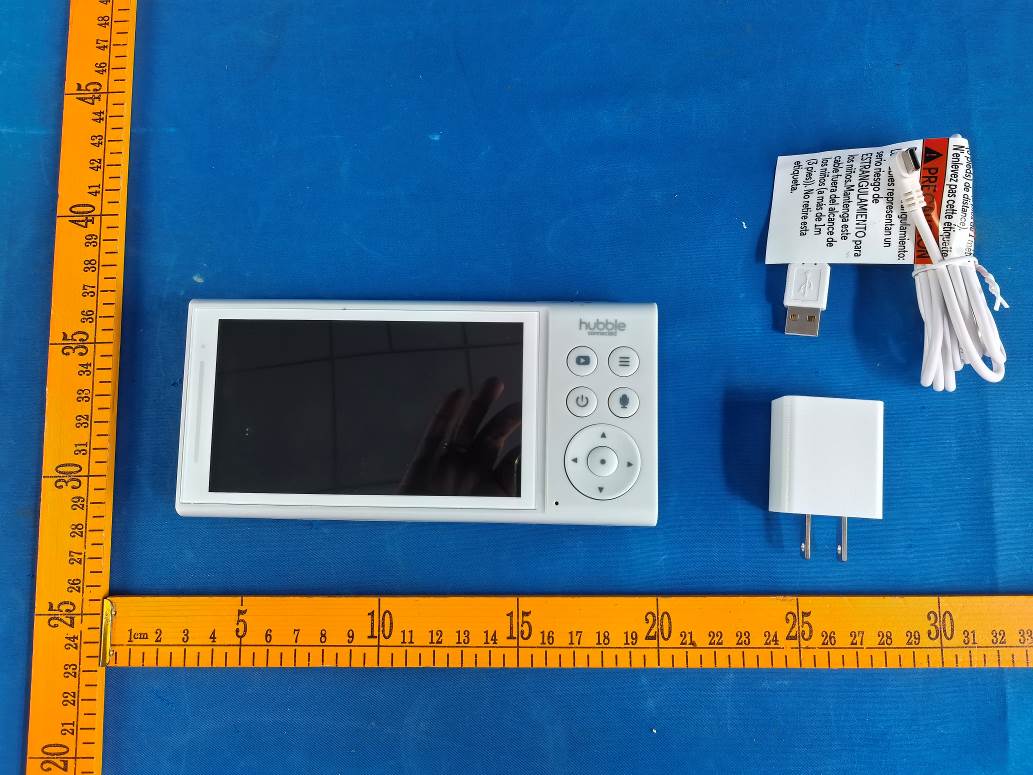

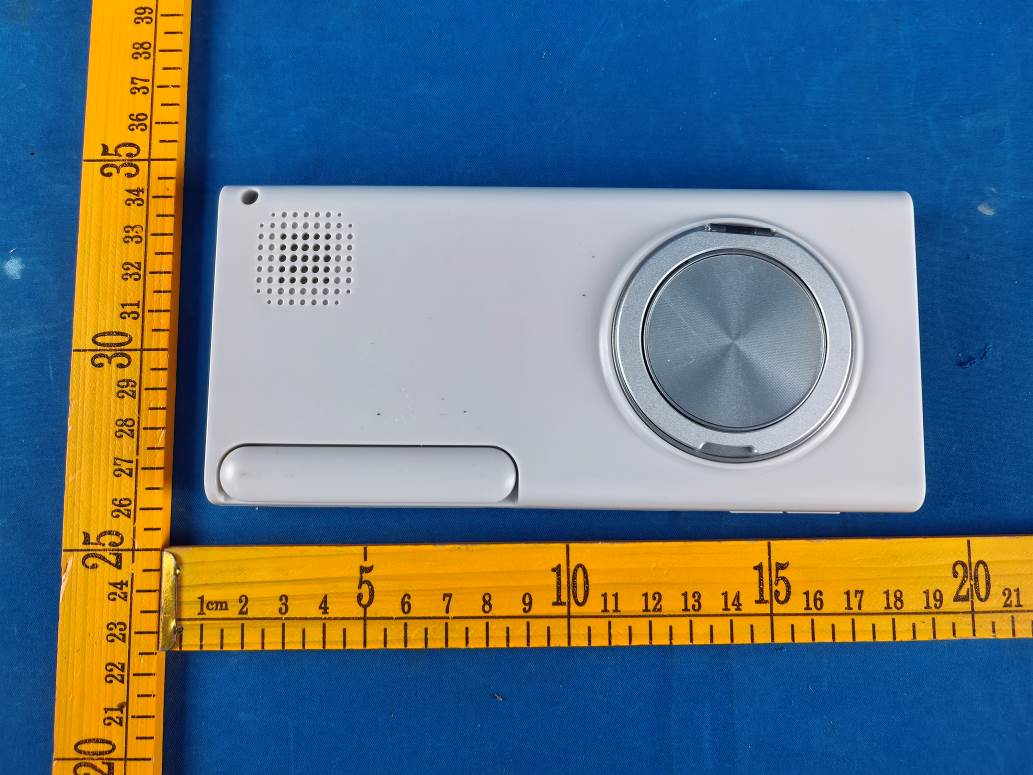

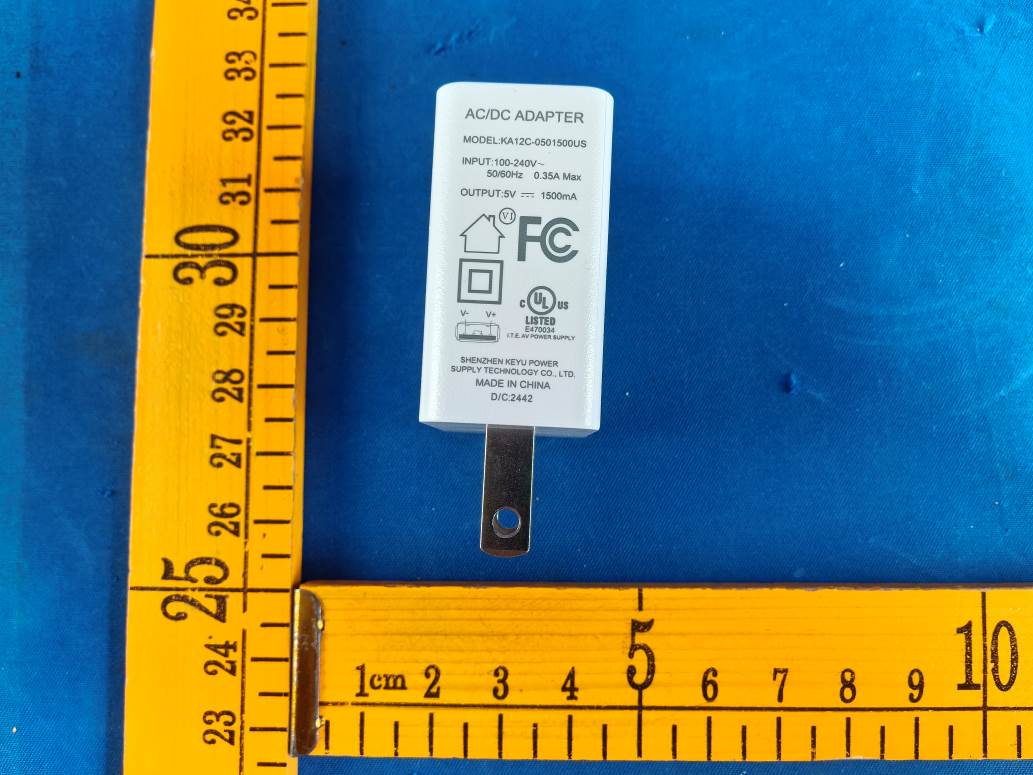

Appendix-HB588AIPU-Photos FCC ID: 2BMBQ-HB588AIPU Page 3 of 9 2. Photographs –Constructional Details 2.1. EUT – External View Appendix-HB588AIPU-Photos FCC ID: 2BMBQ-HB588AIPU Page 4 of 9 Appendix-HB588AIPU-Photos FCC ID: 2BMBQ-HB588AIPU Page 5 of 9 ANT Appendix-HB588AIPU-Photos FCC ID: 2BMBQ-HB588AIPU Page 6 of 9

Go Baby AI Portable Pro, HB588AI North America label set v3 Part Name: Parent Unit H588 Size: 45mm x 13mm KC 5G= July/2025 Parent Unit Labelling HB588AI Model: HB588AIPU FCC ID: 2BMBQ-HB588AIPU IC : 33263-HB588AIPU HVIN: HB588AIPU SN: H588KC5G000001 MADE IN CHINA QR code Model: HB585AIPU FCC ID: 2BMBQ-HB588AIPU IC : 33263-HB588AIPU HVIN: HB588AIPU SN: H588KC5G000001 MADE IN CHINA QR code

Appendix-HB588AIPU-Photos FCC ID: 2BMBQ-HB588AIPU Page 7 of 10 2.2. EUT – Internal View Appendix-HB588AIPU-Photos FCC ID: 2BMBQ-HB588AIPU Page 8 of 10 Appendix-HB588AIPU-Photos FCC ID: 2BMBQ-HB588AIPU Page 9 of 10 Appendix-HB588AIPU-Photos FCC ID: 2BMBQ-HB588AIPU Page 10 of 10 ======End======

Page: 1/10 Ref : ACR.49.6.25.BES.A WALTEK TESTING GROUP (SHENZHEN) CO., LTD 1/F., ROOM 101, BUILDING 1, HONGWEI INDUSTRIAL PARK, LIUXIAN 2ND ROAD, BLOCK 70 BAO'AN DISTRICT, SHENZHEN, GUANGDONG, 518101 CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: 0725-EPGO-446 Calibrated at MVG Z.I. de la pointe du diable Technopôle Brest Iroise – 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibration date: 02/12/2025 Accreditations #2-6789 Scope available on www.cofrac.fr The use of the Cofrac brand and the accreditation references is prohibited from any reproduction. Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed at MVG, using the CALIPROBE test bench, for use with a MVG COMO SAR system only. The test results covered by accreditation are traceable to the International System of Units (SI). COMOSAR E-Field Probe Calibration Report


          COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.49.6.25.BES.A Page: 2/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Name Function Date Signature Prepared by : Pedro Ruiz Technical Manager 02/18/2025 Checked & approved by: Pedro Ruiz Technical Manager 02/18/2025 Authorized by: Geraldine Toutain Quality Manager Customer Name Distribution : WALTEK TESTING GROUP (SHENZHEN) CO., LTD Issue Name Date Modifications A Pedro Ruiz 2/18/2025 Initial release




 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.49.6.25.BES.A Page: 3/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Sensitivity _______________________________________________________________ 4 3.2 Linearity ________________________________________________________________ 5 3.3 Isotropy _________________________________________________________________ 5 3.4 Boundary Effect __________________________________________________________ 5 3.5 Probe Modulation Response _________________________________________________ 6 4 Measurement Uncertainty .......................................................................................... 6 5 Calibration Results ..................................................................................................... 6 5.1 Calibration in air __________________________________________________________ 6 5.2 Calibration in liquid _______________________________________________________ 7 6 Verification Results ................................................................................................... 8 7 List of Equipment ...................................................................................................... 9


          COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.49.6.25.BES.A Page: 4/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer MVG Model SSE2 Serial Number 0725-EPGO-446 Product Condition (new / used) New Frequency Range of Probe 0.15 GHz-7.5GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.248 M: Dipole 2: R2= 0.215 M: Dipole 3: R3=0.224 M: 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION MVG’s COMOSAR E field Probes are built in accordance to the IEC/IEEE 62209-1528 and FCC KDB865664 D01 standards. Figure 1 – MVG COMOSAR Dosimetric E field Probe Probe Length 330 mm Length of Individual Dipoles 2 mm Maximum external diameter 8 mm Probe Tip External Diameter 2.5 mm Distance between dipoles / probe extremity 1 mm 3 MEASUREMENT METHOD The IEC/IEEE 62209-1528 and FCC KDB865664 D01 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their effect. All calibrations / measurements performed meet the fore-mentioned standards. 3.1 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards for frequency range 600- 7500MHz and using the calorimeter cell method (transfer method) as outlined in the standards for frequency 150-450 MHz.


          COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.49.6.25.BES.A Page: 5/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 3.2 LINEARITY The evaluatio…

Text truncated - open the document above for the full version.

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 38 TEST REPORT Reference No. .................... : WTX25X10272597W002 FCC ID ................................ : 2BMBQ-HB588AIPU Applicant ........................... : HUBBLE BABY CARE LIMITED Address.............................. : Unit 802,8/F, Nan Fung Commercial Centre,19 Lam Lok Street,Kowloon Bay, Kowloon, Hong Kong Manufacturer ..................... HUBBLE BABY CARE LIMITED Address.............................. Unit 802,8/F, Nan Fung Commercial Centre,19 Lam Lok Street,Kowloon Bay, Kowloon, Hong Kong Product Name ................... : BABY MONITOR Model No.. .......................... : Go Baby Al Portable Pro (HB588AI) Standards .......................... : FCC Part 2.1093, IEEE Std C95.1: 2019 IEEE C95.3: 2021 Date of Receipt sample .... : 2025-10-17 Date of Test........................ : 2025-10-27 to 2025-11-04 Date of Issue ..................... : 2025-11-04 Test Report Form No. ....... : WTX_Part2_1093W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Lily Yang /Project Engineer Jason Su/Manager Reference No.: WTX25X10272597W002 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 38 TABLE OF CONTENTS 1. General Information ...................................................................................................................................................4 1.1 Product Description for Equipment Under Test (EUT) .........................................................................................4 1.2 Test Standards ....................................................................................................................................................5 1.3 Test Methodology ................................................................................................................................................5 1.4 Test Facility .........................................................................................................................................................5 2. Summary of Test Results ..........................................................................................................................................6 3. Specific Absorption Rate (SAR) ................................................................................................................................7 3.1 Introduction ..........................................................................................................................................................7 3.2 SAR Definition .....................................................................................................................................................7 4. SAR Measurement System ........................................................................................................................................8 4.1 The Measurement System ..................................................................................................................................8 4.2 Probe ...................................................................................................................................................................8 4.3 Probe Calibration Process ................................................................................................................................. 10 4.4 Phantom ............................................................................................................................................................ 10 4.5 Device Holder .................................................................................................................................................... 11 4.6 Test Equipment List ........................................................................................................................................... 12 5. Tissue Simulating Liquids ....................................................................................................................................... 13 5.1 Composition of Tissue Simulating Liquid ........................................................................................................... 13 5.2 Tissue Dielectric Parameters for Head and Body Phantoms ............................................................................. 14 5.3 Tissue Calibration Result ................................................................................................................................... 15 6. SAR Measurement Evaluation ................................................................................................................................ 16 6.1 Purpose of System Performance Check ............................................................................................................ 16 6.2 System Setup .................................................................................................................................................... 16 6.3 Validation Results .............................................................................................................................................. 17 7. EUT Testing Position ............................................................................................................................................... 18 7.1 Body Position ..........................................................…

Text truncated - open the document above for the full version.

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 42 TEST REPORT Reference No..................... : WTD25D09244224W002 FCC ID ................................ : 2BMBQ-HB588AIPU Applicant ........................... : HUBBLE BABY CARE LIMITED Address ............................. : Unit 802, 8/F, Nan Fung Commercial Centre, 19 Lam Lok Street, Kowloon Bay, Kowloon, Hong Kong Manufacturer .................... : HUBBLE BABY CARE LIMITED Address ............................. : Unit 802, 8/F, Nan Fung Commercial Centre, 19 Lam Lok Street, Kowloon Bay, Kowloon, Hong Kong Product .............................. : BABY MONITOR Model(s). ............................ : Go Baby Al Portable Pro (HB588AI), Go Baby Al Pro (HB585Al) HB588AIPU, HB585AIPU Standards .......................... : FCC 47CFR Part 15.247 Date of Receipt sample .... : 2025-09-17 Date of Test ....................... : 2025-09-25 to 2025-11-03 Date of Issue ..................... : 2025-11-27 Test Result ........................ : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Estel Qian / Pro ject Engineer Deval Qin/Designated Reviewer Reference No.: WTD25D09244224W002 Page 2 of 42 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................... 2 3 REVISION HISTORY ................................................................................................................................. 4 4 GENERAL INFORMATION ....................................................................................................................... 5 4.1 GENERAL DESCRIPTION OF E.U.T.................................................................................................... 5 4.2 DETAILS OF E.U.T .......................................................................................................................... 5 4.3 CHANNEL LIST ................................................................................................................................ 5 4.4 TEST FACILITY ................................................................................................................................ 6 4.5 SUBCONTRACTED ........................................................................................................................... 6 4.6 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................ 6 4.7 TEST MODE .................................................................................................................................... 6 5 EQUIPMENT USED DURING TEST ......................................................................................................... 7 5.1 EQUIPMENTS LIST ........................................................................................................................... 7 5.2 DESCRIPTION OF SUPPORT UNITS ................................................................................................... 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 8 5.4 TEST EQUIPMENT CALIBRATION ....................................................................................................... 8 6 TEST SUMMARY ...................................................................................................................................... 9 7 CONDUCTED EMISSION ....................................................................................................................... 10 7.1 E.U.T. OPERATION ....................................................................................................................... 10 7.2 EUT SETUP .................................................................................................................................. 10 7.3 MEASUREMENT DESCRIPTION ........................................................................................................ 10 7.4 CONDUCTED EMISSION TEST RESULT ............................................................................................ 11 8 RADIATED EMISSIONS ......................................................................................................................... 13 8.1 EUT OPERATION .......................................................................................................................... 13 8.2 TEST SETUP ................................................................................................................................. 14 8.3 SPECTRUM ANALYZER SETUP ........................................................................................................ 15 8.4 TEST PROCEDURE ........................................................................................................................ 16 8.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ......................................................................... 16 8.6 SUMMARY OF TEST RESULTS ........................................................................................................ 17 9 CONDUCTED SPURIOUS EMISSIONS ................................................................................................. 20 9.1 TEST PROCEDURE ............…

Text truncated - open the document above for the full version.

Appendix-HB588AIPU-Photos FCC ID: 2BMBQ-HB588AIPU Page 1 of 9 1. Test Setup photos 1.1 Photograph – Conducted Emission Test Setup For Conducted Emission Test Site 1# 1.2 Photograph – Radiated Emissions For 9kHz…
