2BMUF-TL-RCURemote Control

HardwarePower ChipsetVideo DecodingRAMFlash eMMC 32GB Video Output HDMI 2.1 , HDCP2.2 DC Input RangePower ConsumptionAspect Ratio Auto, Full screen Video ResolutionVideo FileFormat Support *.mkv, *.wmv, *.mpg, *.mpeg, *.dat, *.avi,*.mov, *.iso, *.mp4, *.rm, *.jpg, *.bmp, *.gif etc… Easily access live TV, DVR, on-demand, streaming apps, and more on TG S TREAM . Ask Google Assistant to control it all using your voice. device device device AV1 [email protected] up to 4Kx2K@60fps STBPower Adapter BatteryQuick Guide Remote ControlHDMI Cable Google, Google Play, Android TV, Google Cast and other marks aretrademarks of Google LLC.The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. 5.0V 2.0A 12W This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Powered by Android TV TM FCC STATEMENT FCC STATEMENT QUICK START GUIDE SAFETY INFORMATION SPECIFICATION QUICK GUIDE DEVICE INFORMATION SETUP DIAGRAM SETUP QUICK START GUIDE Video Operating TemperatureModel TL-4KTG -- Consult the dealer or an experienced radio/TV technician for help.This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.Radiation Exposure StatementThis device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons.CAUTIONRisks of explosion if the battery is replaced by an incorrect type:• Replacement of a battery with an incorrect type that can compromise safety (for example, in the case of some lithium battery types)• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

Translite Global LLC Date: 8/29/2025 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(5) Attestation FCC ID: 2BMUF-TL-RCU Grantee FRN: 0036417517 1. Translite Global LLC certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. Translite Global LLC (“the applicant”) certifies that, the device does not have cybersecurity and / or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, identified on the Covered List installed on the device, nor will it be installed by the applicant anytime after certification. 3. Translite Global LLC certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Name: Amar S Job Title: Vice President Company Name: Translite Global LLC

Translite Global LLC Date: 8/29/2025 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) Agent Designation Attestation FCC ID: 2BMUF-TL- RCU Grantee FRN: 0036417517 To whom it may concern: Translite Global LLC (“the applicant”) as required by section §2.911(d)(7), will also serve as the agent for service of process for the above referenced FCC ID. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility under CFR 47 §2.929(c) to inform the FCC whenever the agent information changes. Contact Person Amar S Company Name Translite Global LLC FCC FRN: 0036417517 Company US Address PO BOX 1015, Spring, Texas 77383, United States Email [email protected] Sincerely yours, Name: Amar S Job Title: Vice President Company Name: Translite Global LLC

Translite Global LLC Date: August 29, 2025 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Translite Global LLC Contact Name: Amar S Title of Person: Vice President Address: PO BOX 1015, Spring, Texas 77383, United States

Translite Global LLC Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2BMUF-TL-RCU To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Translite Global LLC Contact Name: Amar S Title of Person: Vice President Address: PO BOX 1015, Spring, Texas 77383, United States Date:8/29/2025

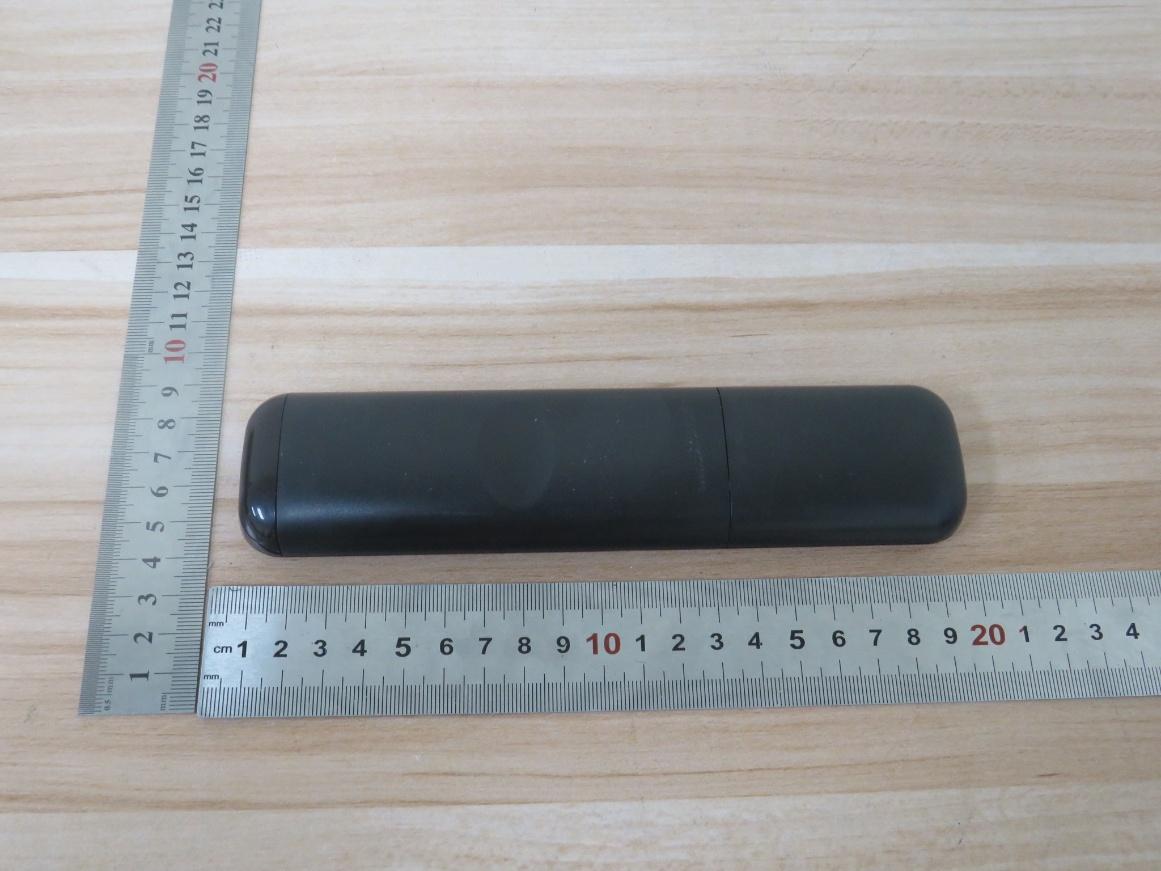

External Photographs Project No.:4791901646-1 Page 2 of 4 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-1 View of EUT-2 Page 3 of 4 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-3 View of EUT-4 Page 4 of 4 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-5 View of EUT-6

123456789101112 123456789101112 A B C D E F G H A B C D E F G H 30mm 5mm Label location The label is located in the battery compartment, and users will find it when installing the battery. The permanent adhesive type is used to fix the label, and the label drawing is not easy to remove.

Internal Photographs Project No.:4791901646-1 Page 2 of 4 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-1 Internal View of EUT-2 Page 3 of 4 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-3 Internal View of EUT-4 Page 4 of 4 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-5 Internal View of EUT-6 Ant

FCC ID: 2BMUF-TL-RCU According to 447498 D04 Interim General RF Exposure Guidance v01, 2.1.4 MPE-Based Exemption An alternative to the SAR-based exemption is provided in § 1.1307(b)(3)(i)(C), for a much wider frequency range, from 300 kHz to 100 GHz, applicable for separation distances greater or equal to λ/2π, where λ is the free-space operating wavelength in meters. The MPE-based test exemption condition is in terms of ERP, defined as the product of the maximum antenna gain and the delivered maximum time-averaged power.10 For this case, a RF source is an RF exempt device if its ERP (watts) is no more than a frequency-dependent value, as detailed tabular form in Appendix B. These limits have been derived based on the basic specifications on Maximum Permissible Exposure (MPE) considered for the FCC rules in § 1.1310(e)(1). B.4 SAR-based Exemption SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time- averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). The example values shown in Table B.2 are for illustration only. 1. SAR test exclusion threshold for 2.402GHz~2.480GHz is 7.42 mW. Note: Considered by 10-g extremity SAR applies, SAR test exemption may be considered by applying a factor of 2.5 to the SAR-based exemption thresholds. -The maximum tune-up power with tolerance is 6 dBm=3.98mW, the antenna is 3.53 dBi, so the maximum EIRP is 9.53 dBm, the ERP = EIRP – 2.15 = 7.38 dBm=5.47 mW. - When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 2. Conclusion: No SAR is required.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C TEST REPORT For Remote Control MODEL NUMBER: B073TG-01-W12 REPORT NUMBER: 4791901646-1-RF-1 ISSUE DATE: September 5, 2025 FCC ID:2BMUF-TL-RCU Prepared for Translite Global LLC PO BOX 1015, Spring, Texas 77383 Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Room 101, Building 2, No.4, Information Road, Songshan Lake, Dongguan, Guangdong, China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4791901646-1-RF-1 Page 2 of 71 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 September 5, 2025 Initial Issue REPORT NO.: 4791901646-1-RF-1 Page 3 of 71 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission ANSI C63.10-2020, Clause 6.2 FCC Part 15.207 N/A Conducted Output Power ANSI C63.10-2020, Clause 11.9.1.2 FCC Part 15.247 (b)(3) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020, Clause 11.8.1 FCC Part 15.247 (a)(2) Pass Power Spectral Density ANSI C63.10-2020, Clause 11.10.2 FCC Part 15.247 (e) Pass Conducted Band edge and spurious emission ANSI C63.10-2020, Clause 11.11 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2020, Clause 11.12 FCC Part 15.247 (d) FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2020, Clause 11.6 None; for reporting purposes only. Pass Note: 1. N/A: In this whole report not applicable. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C> when <Simple Acceptance> decision rule is applied. REPORT NO.: 4791901646-1-RF-1 Page 4 of 71 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 6 2. TEST METHODOLOGY ......................................................................................................... 7 3. FACILITIES AND ACCREDITATION ..................................................................................... 7 4. CALIBRATION AND UNCERTAINTY ................................................................................... 8 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 8 5. EQUIPMENT UNDER TEST .................................................................................................. 9 5.1. DESCRIPTION OF EUT ........................................................................................... 9 5.2. CHANNEL LIST ........................................................................................................ 9 5.3. MAXIMUM POWER .................................................................................................. 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER .......................................... 10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 10 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 11 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 12 7. ANTENNA PORT TEST RESULTS ..................................................................................... 15 7.1. CONDUCTED OUTPUT POWER ........................................................................... 15 7.2. 6DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH ........................................ 16 7.3. POWER SPECTRAL DENSITY .............................................................................. 18 7.4. CONDUCTED BAND EDGE AND SPURIOUS EMISSION ..................................... 20 7.5. DUTY CYCLE ......................................................................................................... 22 8. RADIATED TEST RESULTS ............................................................................................... 23 8.1. RESTRICTED BANDEDGE .................................................................................... 30 8.2. SPURIOUS EMISSIONS(1 GHZ~3 GHZ) ............................................................... 36 8.3. SPURIOUS EMISSIONS(3 GHZ~18 GHZ) ............................................................. 42 8.4. SPURIOUS EMISSIONS(9 KHZ~30 MHZ) ............................................................. 48 8.5. SPURIOUS EMISSIONS(18 GHZ~26 GHZ) ........................................................... 51 8.6. SPURIOUS EMISSIONS(30 MHZ~1 GHZ) ............................................................. 53 9. ANTENNA REQUIREMEN…

Text truncated - open the document above for the full version.

QCR69-2-2504 TEST REPORT Report No.：202515011441 Name of the sample： WH-8287 Hook-Shaped Antenna Model/Type： WH-8287 Applicant： Wuxi Weida Intelligent Electronics Co.,Ltd. Test Category： Entrusted Inspection Jiangsu Electronic Information Product Quality Supervision & Inspection Institute (Jiangsu Information Security Evaluation Center) Add: No.100, Jinshui Road, WuXi, Jiangsu, China (Location A)/ 1F., Building D2, No.999, Gaolang East Road, Wuxi, Jiangsu, China (Location B)/ Xuzhuang, Lingkou, Danyang, Zhenjiang, Jiangsu, China (Location C)/ No. 87 Xingyang Road, Wuxi City, Binhu District, Jiangsu Province (Location D) P.C.:214073(Location A) Tel: +86/(0)510-8510-5775 Fax: +86/(0)510-8510-4572 E-mail: [email protected] Web:www.jnlab.com Jiangsu Electronic Information Product Quality Supervision & Inspection Institute (Jiangsu Information Security Evaluation Center) Test report No.：202515011441 Page 1 of 12 QCR69-2-2504 TEST REPORT General information: Applicant. ......................................: Wuxi Weida Intelligent Electronics Co.,Ltd. Address .........................................: No.85 Feihong Road, Liangxi District, Wuxi City, Jiangsu Province Manufacturer ....................... .......: Wuxi Weida Intelligent Electronics Co.,Ltd. Address .........................................: No.85 Feihong Road, Liangxi District, Wuxi City, Jiangsu Province Factory ..................................... : Wuxi Weida Intelligent Electronics Co.,Ltd. Address .................................... : No.85 Feihong Road, Liangxi District, Wuxi City, Jiangsu Province Name of the sample ................. : Trade Mark ............................... : Model/Type ............................... : Sample Quantity ...................... : Production Date / Lot No ......... : Date of receipt.......................... : WH-8287 Hook-Shaped Antenna N/A WH-8287 1 set N/A 2025-11-22 Sample acquisition mode:  Client delivering sample Sampling Sampling Location ............................ : Sampling Base .......................... : Date of test ............................... : 2025-11-26 Test Result ............................... : This test only provides test data. Tested by .................................. : Checked by .............................. : Approved by(Name+ Signature): Date of issue: ........................... : 2025-12-01 Note Jiangsu Electronic Information Product Quality Supervision & Inspection Institute (Jiangsu Information Security Evaluation Center) Test report No.：202515011441 Page 2 of 12 QCR69-2-2504 General sample information: Composition and state of sample....: The sample for this test is the WH-8287 hook-shaped antenna, with a model specification of WH-8287. The main operating frequency points of the sample are 2400MHz, 2450MHz and 2500MHz. The sample reception status is good and meets the testing conditions. Sample Photograph(s)...................: See photo page. Main function description...............: the radio frequency (RF) signal transmission and reception of remote control devices (such as TVs, projectors, set-top boxes, etc.) (“The information of this part in the report is provided by the applicant, who is responsible for its authenticity.”). Additional Information.....................: None. Test Standard： 1. IEEE Std 149-2021 IEEE Recommended Practice for Antenna Measurements 2. Entrustment Letter for Inspection and Testing Test Instructions: Received 1 sets/pcs samples for testing, actual test 1 sets/pcs. Please find corresponding test group and sample number in the test result. Name Model/Type Test sample number No. in this report WH-8287 Hook-Shaped Antenna WH-8287 20250112312001 1# Testing location/ address .............: No.100 Jinshui Road, Binhu District, Wuxi, Jiangsu, PRC. Additional Information..................: 1. JEPSI is not responsible for wrong test results due to incorrect information (e.g. max. clock frequency, highest internal frequency, antenna gain, cable loss, etc.) provided by the applicant. 2. JEPSI is not responsible for the authenticity, integrity and the validity of the conclusion based on results of the data provided by applicant. 3. The Entrustment Letter for Inspection and Testing only provides test standard information and frequency points selection. 4. For this test, the EMT-AMS Antenna Measurement System Software (Version V 2.0.1) was used. 5. During this test, the test frequency points were 2400MHz, 2450MHz and 2500MHz. For the "Gain" item, the test results show the Theta angle cut plane where the maximum gain of the main polarization is located (the cross-polarization cut plane is the same as the main polarization at the same frequency point), as well as the maximum gain values of the main polarization and cross-polarization. For the "Radiation Pattern" item, the results show the Theta angle cut plane where the maximum gain of the main polarization and cross-polarization is located (this part of the content is determined by the client). 6. During this test, the records of atmospheric pressure, temperature and humidity in the test environment are shown in the table below. Test Data Temperature (°C) Relative humidity (%) Atmospheric pressure (kPa) 2025-11-26 18.3 29.0 101.5 Jiangsu Electronic Information Product Quality Supervision & Inspection Institute (Jiangsu Information Security Evaluation Center) Test report No.：202515011441 Page 3 of 12 QCR69-2-2504 Possible test case verdicts: - test case does not apply to the test object....: N/A - test object does meet the requirement........: P (Pass) - test object does not meet the requirement...: F (Fail) STATEMENT： 1.This test report is invalid if it is without special inspection seal of the test laboratory. 2.This test report is invalid if altered or without signatures from compilation and audit or not signed by the authorized signature. 3. This test report shall not be reproduced, except in full, without the written consent of Jiangsu Electronic Information Product Quality Sup…

Text truncated - open the document above for the full version.

Appendix II Setup Photographs Project No.:4791901646-1 Page 2 of 4 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Radiated Band edge and Spurious Emission RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) MEASUREMENT POSITION MEASUREMENT POSITION (X axis) Page 3 of 4 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. MEASUREMENT POSITION (Y axis) MEASUREMENT POSITION (Z axis) Page 4 of 4 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. RADIATED RF MEASUREMENT SETUP (30MHz~1GHz) RADIATED RF MEASUREMENT SETUP (Below 30MHz)
