FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. RF EXPOSURE WARNING The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter, except in accordance with FCC multi-transmitter product procedures. -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from -that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

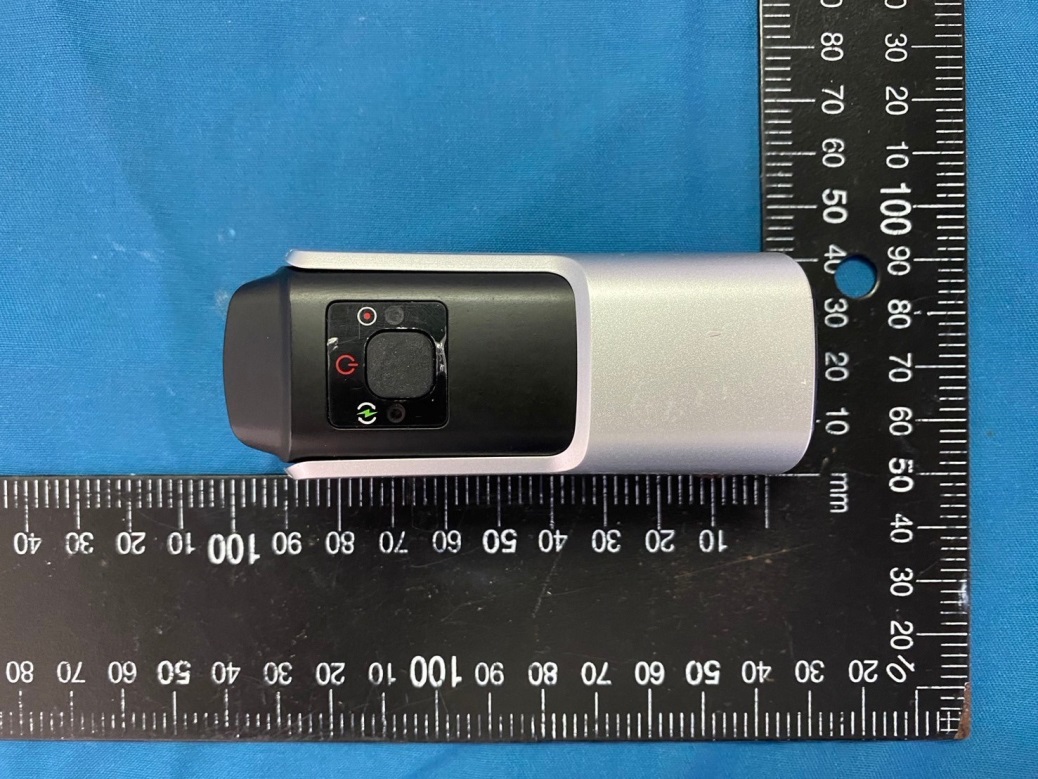

Global Certification Corp. Date of Issue: Oct.01.2025 Report No:FR2-3N0101 External Photos Trade name:Global Eagle Model name:FD-1 01. Front view of EUT 02. Rear view of EUT
Global Certification Corp. Date of Issue: Oct.01.2025 Report No:FR2-3N0101 Label Trade name:Global Eagle Model name:FD-1 ID Label
Global Certification Corp. Date of Issue: Oct.01.2025 Report No:FR2-3N0101 Internal Photos Trade name:Global Eagle Model name:FD-1 01.Inside 02. Front view of PCB1 Global Certification Corp. Date of Issue: Oct.01.2025 Report No:FR2-3N0101 Internal Photos Trade name:Global Eagle Model name:FD-1 03. Rear view of PCB 04. Front view of PCB2 Global Certification Corp. Date of Issue: Oct.01.2025 Report No:FR2-3N0101 Internal Photos Trade name:Global Eagle Model name:FD-1 05. Rear view of PCB2 06. Antenna Trade name :WuXi Sunsky Technology Co., Ltd Model name:F7 Global Certification Corp. Date of Issue: Oct.01.2025 Report No:FR2-3N0101 Internal Photos Trade name:Global Eagle Model name:FD-1 07. View of RFIC 06. Li Battery Trade:LB-LINK Model name:BL-R8189RM2 Global Certification Corp. Date of Issue: Oct.01.2025 Report No:FR2-3N0101 Internal Photos Trade name:Global Eagle Model name:FD-1 07. Front View of Lens 08. Rear View of Lens
Global Certification Corp. Date of Issue:Oct.01.2025 Report No:FR2-3N0101a Page1/7 RF EXPOSURE REPORT FOR Product Name: Locomotive driving recorder Model : FD-1 Series : FD-2,FD-3,FD-5 Trade Name : Global Eagle Issued to NAVSTAR ELECTRONICS CO., LTD. 5F.,-5 No.16, LN.609, SEC.5, CHONGXIN Rd., SANCHONG Dist., NEW Taipei City 241, Taiwan Issued by Global Certification Corp. No.146, Sec. 2, Xiangzhang Rd., Xizhi Dist.,New Taipei City 221, Taiwan (R.O.C.) Note: This test refers exclusively to the test presented test model and sample. This report shall not be reproduced except in full, without the written approval of Global Certification Corporation. This document may be altered or revised by Global Certification Corporation. Personnel only, and shall be noted in the revision section of the document.The decision rule is according to the standard test method and request, that measurement result doesn’t consider uncertainty. Global Certification Corp. Date of Issue:Oct.01.2025 Report No:FR2-3N0101a Page2/7 Revision History Revision No. Report Number Issue Date Description Author/ Revised by 1. 3N0101 FR2-3N0101a Oct.01, 2025 Original Report Judy Global Certification Corp. Date of Issue:Oct.01.2025 Report No:FR2-3N0101a Page3/7 TABLE OF CONTENTS ------------------------------------------------------------------------------------------- 3 1. GENERAL INFORMATION ---------------------------------------------------------------------------------------------- 4 1.1 DESCRIPTION OF THE TESTED SAMPLES ------------------------------------------------------------------------------------- 5 2. GENERAL SAR TEST REDUCTION AND EXCLUSION GUIDANCE----------------------------------------- 6 3. MPE CALCULATION METHOD ---------------------------------------------------------------------------------------- 7 3.1 LIMIT ---------------------------------------------------------------------------------------------------------------------- 7 3.2. CACULATION METHOD --------------------------------------------------------------------------------------------------- 7 3.3. CALCULATED RESULT --------------------------------------------------------------------------------------------------- 7 Global Certification Corp. Date of Issue:Oct.01.2025 Report No:FR2-3N0101a Page4/7 1. GENERAL INFORMATION Applicant : NAVSTAR ELECTRONICS CO., LTD. Address : 5F.,-5 No.16, LN.609, SEC.5, CHONGXIN Rd., SANCHONG Dist., NEW Taipei City 241, Taiwan Manufacturer : NAVSTAR ELECTRONICS CO., LTD. Address : 5F.,-5 No.16, LN.609, SEC.5, CHONGXIN Rd., SANCHONG Dist., NEW Taipei City 241, Taiwan EUT : Dashcam Model No. : FD-1 Series No. : FD-2, FD-3, FD-5 Trade Name : Global Eagle Model Differences : The major electrical and mechanical constructions of series models are identical to the basic model, except different marketing purpose. The model, FD-1 is the testing sample, and the final test data are shown on this test report. Is here with confirmed to comply with the requirements set out in the FCC Rules and Regulations. The said equipment has been tested and found compliance with the requirement of the relative standards . Test Standard : FCC Title 47 Part 2.1091, KDB 447498 D01 V06 Tested By: Approved by: Jan.15.2024 Oct.01.2025 Date Alex Huang, Engineer Date Adam Chou, Manager Designation Number: TW1640 Global Certification Corp. Date of Issue:Oct.01.2025 Report No:FR2-3N0101a Page5/7 1.1 DESCRIPTION OF THE TESTED SAMPLES EUT Name : Locomotive driving recorder Model : FD-1 FCC ID : 2BMUNFD-1 Power From InsideOutside Adaptor Battery DC Power Source Support Unit PC Power Rating(Battery) : 5 Vdc Power Rating(Adapter) 12Vdc to 5Vdc Operate Frequency : Refer to the channel list as described below Basic Spec : Bluetooth Bluetooth LE 802.11b 802.11g 802.11n HT20/HT40 Operate Frequency : 2412 MHz ~ 2462 MHz Number of Channels : 11 Step of Channel : N/A MHz Modulation Type : OFDM FHSS DSSS CCK GFSK Antenna Quantity : 1Tx/1Rx Antenna Type : FPC Antenna gain : 2.05 dBi EUT Received Date : Nov.07.2023 EUT Channel List : Wifi type Channel 802.11b、802.11g、802.11 n20 802.11 n40 Low CH 2412MHz 2422MHz Mid CH 2437MHz 2437MHz High CH 3462MHz 2452MHz Global Certification Corp. Date of Issue:Oct.01.2025 Report No:FR2-3N0101a Page6/7 2. GENERAL SAR TEST REDUCTION AND EXCLUSION GUIDANCE 2.1 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,21 where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation22 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 2.2 At 100 MHz to 6 GHz and for test separation distances > 50 mm, the SAR test exclusion threshold is determined according to the following [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·( f(MHz)/150)] mW, at 100 MHz to 1500 MHz [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·10] mW at > 1500 MHz and ≤ 6 GHz 2.3 At frequencies below 100 MHz, the following may be considered for SAR test exclusion The threshold at the corresponding test separation distance at 100 MHz in step 2) is multiplied by [1 + log(100/f(MHz))] for test separation distances > 50 mm and < 200 mm The threshold determined by the equation in a) for 50 mm and 100 MHz is multiplied by ½ for test separation distances ≤ 50 mm SAR measurement procedures are not established below 100 MHz. When SAR test exclusion cannot be applied, a KDB inquiry is required to determine SAR evaluation requirements for any test re…
Text truncated - open the document above for the full version.
Shenzhen Zhongcheng Communication Technology Co., Ltd. Page1 Antenna Approval Sheet For S3 Project Customer Project S3 Band WiFi 2.4G ZC PN XF003‐CA‐93 Version R:A Data 2022‐11‐16 RF ME Checked By Confirmed By Cust Confirm Shenzhen Zhongcheng Communication Technology Co., Ltd. Page2 1. Summary of the DUT Antenna Picture Ω Shenzhen Zhongcheng Communication Technology Co., Ltd. Page3 2. Test Condition 1. 1.Return Loss 2.S.W.R 2.Antenna Gain 1. R&S ZVL6 2.Satimo SG24(3D) 3. Agilent 8960 E5515C 3. RF Performance 3.1.1 WIFI Antenna Material The antenna material was FPC+ 3.1.2 Matching Circuit The matching circuit was shown below: Antenna Matching Circuit 3.1.3 Measurement Freq. (MHz) 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 Gain (dBi) 0.78 1.151.26 1.411.812.051.761.52 1.39 1.150.85 4.3 S Parameter Shenzhen Zhongcheng Communication Technology Co., Ltd. Page4 4.4 Radiation Pattern 4.4.1 Antenna 3D Radiation Pattern 2400 MHZ Shenzhen Zhongcheng Communication Technology Co., Ltd. Page5 2500 MHZ 4.4.2 Antenna 2D Radiation Pattern 2400 MHZ Shenzhen Zhongcheng Communication Technology Co., Ltd. Page6 2450 MHZ 2500 MHZ Shenzhen Zhongcheng Communication Technology Co., Ltd. Page7 4. ME Drawing for the antenna
Global Certification Corp. Date of Issue: Oct. 01. 2025 Report No:FR2-3N0101 Page1/118 FCC Part 15 Subpart C TEST REPORT FOR Product Name: Locomotive driving recorder Model : FD-1 Series : FD-2,FD-3,FD-5 Trade Name: Global Eagle Issued to NAVSTAR ELECTRONICS CO., LTD. 5F.,-5 No.16, LN.609, SEC.5, CHONGXIN Rd., SANCHONG Dist., NEW Taipei City 241, Taiwan Issued by Global Certification Corp. No.146, Sec. 2, Xiangzhang Rd., Xizhi Dist.,New Taipei City 221, Taiwan (R.O.C.) Note: This test refers exclusively to the test presented test model and sample. This report shall not be reproduced except in full, without the written approval of Global Certification Corporation. This document may be altered or revised by Global Certification Corporation. Personnel only, and shall be noted in the revision section of the document. The decision rule is according to the standard test method and request, that measurement result doesn’t consider uncertainty. Global Certification Corp. Date of Issue: Oct. 01. 2025 Report No:FR2-3N0101 Page2/118 Revision History Revision No. Report Number Issue Date Description Author/ Revised by 1. 3N0101 FR2-3N0101 Oct. 01, 2025 Original Report Judy Global Certification Corp. Date of Issue: Oct. 01. 2025 Report No:FR2-3N0101 Page3/118 TABLE OF CONTENTS ---------------------------------------------------------------------------------------------------- 3 1. GENERAL INFORMATION --------------------------------------------------------------------------------------------------------- 5 2. TEST METHODOLOGY ------------------------------------------------------------------------------------------------------------- 7 3. TEST AND MEASUREMENT EQUIPMENT ---------------------------------------------------------------------------------- 11 4. ANTENNA REQUIREMENTS ---------------------------------------------------------------------------------------------------- 13 4.1 STANDARD APPLICABLE --------------------------------------------------------------------------------------------------- 13 4.2 ANTENNA CONSTRUCTION AND DIRECTIONAL GAIN ------------------------------------------------------------ 13 5. CONDUCTED EMISSIONS -------------------------------------------------------------------------------------------------------- 14 5.1 TEST SETUP --------------------------------------------------------------------------------------------------------------------- 14 5.2 LIMIT ------------------------------------------------------------------------------------------------------------------------------ 14 5.3 TEST PROCEDURE ------------------------------------------------------------------------------------------------------------ 14 5.4 TEST RESULT ------------------------------------------------------------------------------------------------------------------- 15 5.5 TEST DATA ---------------------------------------------------------------------------------------------------------------------- 15 6. PEAK OUTPUT POWER ----------------------------------------------------------------------------------------------------------- 16 6.1 TEST SETUP --------------------------------------------------------------------------------------------------------------------- 16 6.2 LIMIT ------------------------------------------------------------------------------------------------------------------------------ 16 6.3 TEST PROCEDURE ------------------------------------------------------------------------------------------------------------ 16 6.4 TEST RESULT ------------------------------------------------------------------------------------------------------------------- 16 6.5 TEST DATA ---------------------------------------------------------------------------------------------------------------------- 17 7. RADIATED BAND EDGE ---------------------------------------------------------------------------------------------------------- 18 7.1 TEST SETUP --------------------------------------------------------------------------------------------------------------------- 18 7.2 LIMIT ------------------------------------------------------------------------------------------------------------------------------ 19 7.3 TEST RESULT ------------------------------------------------------------------------------------------------------------------- 19 7.4 TEST DATA ---------------------------------------------------------------------------------------------------------------------- 20 8. 6DB BANDWIDTH ------------------------------------------------------------------------------------------------------------------- 36 8.1 TEST SETUP --------------------------------------------------------------------------------------------------------------------- 36 8.2 LIMIT ------------------------------------------------------------------------------------------------------------------------------ 36 8.3 TEST PROCEDURE ------------------------------------------------------------------------------------------------------------ 36 8.4 TEST RESULT ------------------------------------------------------------------------------------------------------------------- 36 8.5 TEST DATA ---------------------------------------------------------------------------------------------------------------------- 37 9. RADIATED SPURIOUS EMISSIONS ------------------------------------------------------------------------------------------- 44 9.1 TEST SETUP --------------------------------------------------------------------------------------------------------------------- 44 9.2 LIMIT ------------------------------------------------------------------------------------------------------------------------------ 45 9.3 TEST PROCEDURE ------------------------------------------------------------------------------------------------------------ 46 9.4 TEST RESULT ------------------------------------------------------------------------------------------------------------------- 46 9.5 TEST DATA ----------------------------------------------------------------------…
Text truncated - open the document above for the full version.
Global Certification Corp. Date of Issue: Oct.01.2025 Report No:FR2-3N0101 Test Setup Photos Trade name:Global Eagle Model name:FD-1 01. RADIATED BAND EDGE Front View(1GHz below) 02. RADIATED BAND EDGE Rear View(1GHz below) Global Certification Corp. Date of Issue: Oct.01.2025 Report No:FR2-3N0101 Test Setup Photos Trade name:Global Eagle Model name:FD-1 03. RADIATED BAND EDGE Front View(1GHz above) 04. RADIATED BAND EDGE Rear View(1GHz above) Global Certification Corp. Date of Issue: Oct.01.2025 Report No:FR2-3N0101 Test Setup Photos Trade name:Global Eagle Model name:FD-1 05. PEAK OUTPUT POWER / CONDUCTED SPURIOUS EMISSIONS 6DB BANDWIDTH / POWER SPECTRAL DENSITY
