2BNP4-E500Smart watch

HOW TO INSTALL APP Scan the following QR code or downloads the " G Band " in application markets to install the paired APP. Demands on Device: IOS 9.0 or above; Android 5.0 or above. Scan QR code for download and installation "G Band" CONNECT WITH DEVICE Open the APP click "Device" "Add Device" "Select Device"，click the corresponding model, and follow the prompts to connect (see the operation Demands on Device: IOS 9.0 or above; Android 5.0 or above. （SKETCH MAP） Wireless connection:After successful pairing, APP will automatically save watch Wireless address. When APP is opened or operated in the background,it will automatically search and connect the watch. Data synchronization: Manually drop APP main page down to synchronize data; the watch can save offline date of 7 days. The date is more, the synchronization time will be longer. lt wiwill take no more than 2 seconds to synchronize data. After synchronization, "synchronization finish" will be popped up. EN（英语） INSTRUCTION FOR QUICK USE ON /OFF 1.When the watch is off, charge it or press and hold for 3 seconds. The bracelet vibrates to turn on: 2.Change to shutdown interface in start-up state, and have a long press on shutdown interface for 3 seconds to power off. B AND OPERATION 1.Slide to light up screen or change display in start-up state; 2.No operation default five-second screen, users can connect to the mobile APP to modify the screen time: IP68 G BAND PRECAUTIONS Please prevent your watch from being shocked, or exposed under high temperature or blazing sun for a long time. Please don't disassemble, repair or change the device. The device should adopt current 0.5A to charge, it is forbidden to charge with over-voltage power supply. It should be used within the temperature of 0 degrees - 45 degrees. lt is forbidden to throw into fire, avoiding explosion. Please charge after drying the band with soft cloth, otherwise, it will corrode charging touch points, leading to charge fault. Please keep away from chemical substance such as gasoline, cleaning solvent, propanol, alcohol or insect repellent. Please don't use the product in high voltage and high magnetic environment. in case of sensitive dry skin or too- tight wearing, you may be uncomfortable. Please don't take a hot bath by wearing it. Please dry sweat in your wrist timely for its possibility to lead to skin itch or allergy by long-time touch with soap, sweat, allergens or contaminated ingredients.in case of frequent use, it is suggested to clean weekly. Please wipe with a damp cloth, and remove oil or dust by mild soap. Do not open more push without special requirements. COMMON PROBLEM How to do when it cannot connect with Wireless? (low speed/ failed to connect or reconnect) Please confirm whether your device is lOS9.0, Android 5.0 or above. lt takes time differently for each connection caused by the signal interference of wireless connection. lf it fails to connect for a long time，please confirm that you use it in environment without magnetic field or interference of multiple Wireless device . Turn on again after turning off the Wireless. Turn off the background applications of mobile phones or restart your mobile phones. Please don't make your mobile phones connect with other Wireless device or functions at the same time. Please check whether the APP is operated normally in the background. Otherwise, it may fail to connect. I nformation to User This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Important Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The uses of equipment generates and radiates radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. CÓMO INSTALAR LA APLICACIÓN Escanee el siguiente código QR o descargue "G Band" en las tiendas de aplicaciones para instalar la aplicación empare jada. Requisitos del dispositivo: IOS 9.0 o superior; Android 5.0 o superior. Escanee el código QR para descargar e instalar "G Band" CONECTAR CON EL DISPOSITIVO Abra la aplicación, haga clic en "Dispositivo", "Agregar dispositivo", "Seleccionar dispositivo", haga clic en el modelo correspondiente y siga las indicaciones para conectar (ver Requisitos del dispositivo: IOS 9.0 o superior; Android 5.0 o superior. ). （ESQUEMA） Conexión Inalámbrico: después de un empare jamiento exitoso, la aplicación guardará automáticamente la dirección Inalámbrico del reloj. Cuando la aplicación esté abierta o ejecutándose en segundo plano, buscará y se conectará automáticamente al reloj. Sincronización de datos: arrastre manualmente hacia abajo la página principal de la aplicación para sincroni…

Text truncated - open the document above for the full version.

Shenzhen Changtai Electronics Co.,Ltd Covered Equipment Certification Attestation Letter 2/24/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BNP4-E500 Shenzhen Changtai Electronics Co.,Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen Changtai Electronics Co.,Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Shenzhen Changtai Electronics Co.,Ltd (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). <Signature>: Name: Wendy Feng Title: Sales Manager Company: Shenzhen Changtai Electronics Co.,Ltd Date: 2/24/2026

Shenzhen Changtai Electronics Co.,Ltd * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 2/24/2026 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2BNP4-E500 FRN of applicant: 0036660769 Per section 2.911(d)(7) of the FCC rules, [Shenzhen Changtai Electronics Co.,Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Herland International Trading Inc FCC Registration Number (FRN): 0036324101 Physical U.S. Company Address: 1370 Valley Vista Dr Ste 200 Diamond Bar, CA 91765 Contact Person: Jianfeng Gao Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Wendy Feng Title: Sales Manager Company Name: Shenzhen Changtai Electronics Co.,Ltd Date: 2/24/2026 Agent Signed (if different from Applicant): Signed: Printed name: Jianfeng Gao Title: Manager Company Name: Herland International Trading Inc Date: 2/24/2026

Shenzhen Changtai Electronics Co.,Ltd 2026-02-24 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen DL Testing Technology Co., Ltd.（101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China）to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Changtai Electronics Co.,Ltd（4/F, Building 17, Huafeng Manufacturing Zone,Wanle Road, Shajing, Baoan, Shenzhen, China） <Signature>: Name: Wendy Feng Title: Sales Manager Company: Shenzhen Changtai Electronics Co.,Ltd

Shenzhen Changtai Electronics Co.,Ltd 2026-02-24 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature>: Name: Wendy Feng Title: Sales Manager Company: Shenzhen Changtai Electronics Co.,Ltd

Shenzhen Changtai Electronics Co.,Ltd 2026-02-24 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BNP4-E500 Product Name: Smart watch Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description  BOM These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>: Name: Wendy Feng Title: Sales Manager Company: Shenzhen Changtai Electronics Co.,Ltd

Shenzhen Changtai Electronics Co.,Ltd FCC ID: 2BNP4-E500 Product Similarity Declaration Applicant: Shenzhen Changtai Electronics Co.,Ltd Address: 4/F, Building 17, Huafeng Manufacturing Zone,Wanle Road, Shajing, Baoan, Shenzhen, China Manufacturer: Shenzhen Changtai Electronics Co.,Ltd Address: 4/F, Building 17, Huafeng Manufacturing Zone,Wanle Road, Shajing, Baoan, Shenzhen, China Product Name: Smart watch Trade Mark: N/A Model Number: E500, E300, E400, V500, E600, E700, E800, E300P, E400P, E500P, V500P, E600P, E700P, E300S, E400S, E500S, V500S, E600S We (Shenzhen Changtai Electronics Co.,Ltd) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), All models are the same as the samples except for the model name, appearance color. <Signature>: Name: Wendy Feng Title: Sales Manager Company: Shenzhen Changtai Electronics Co.,Ltd

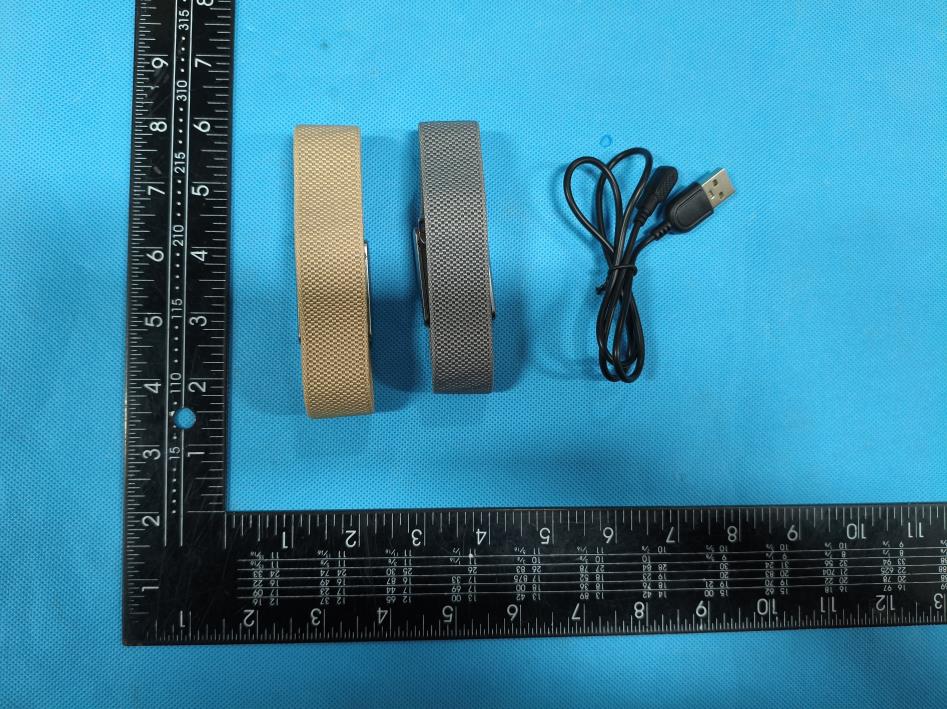

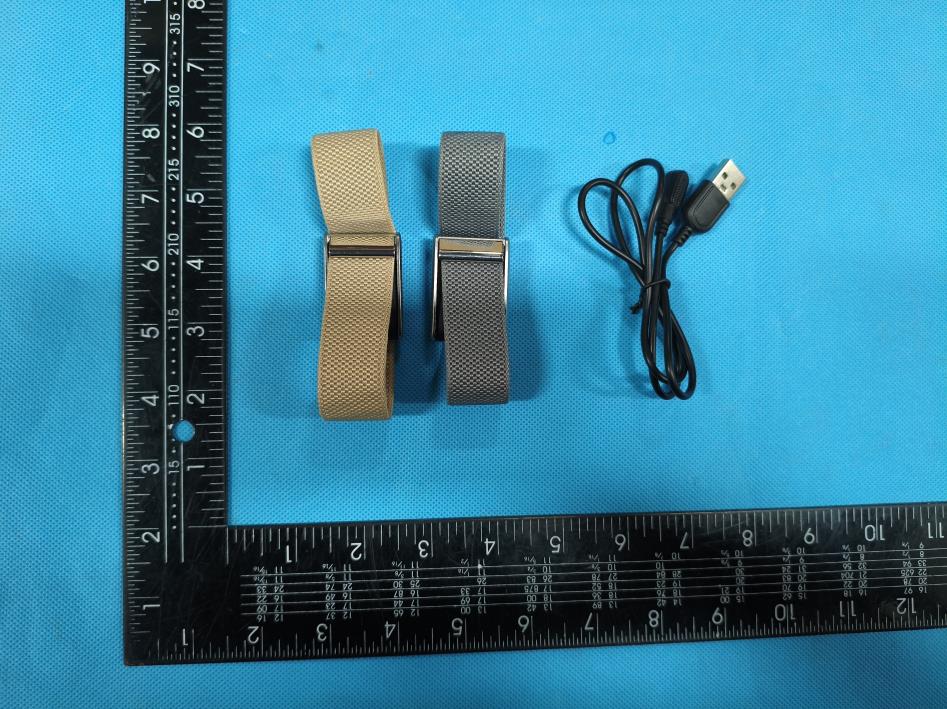

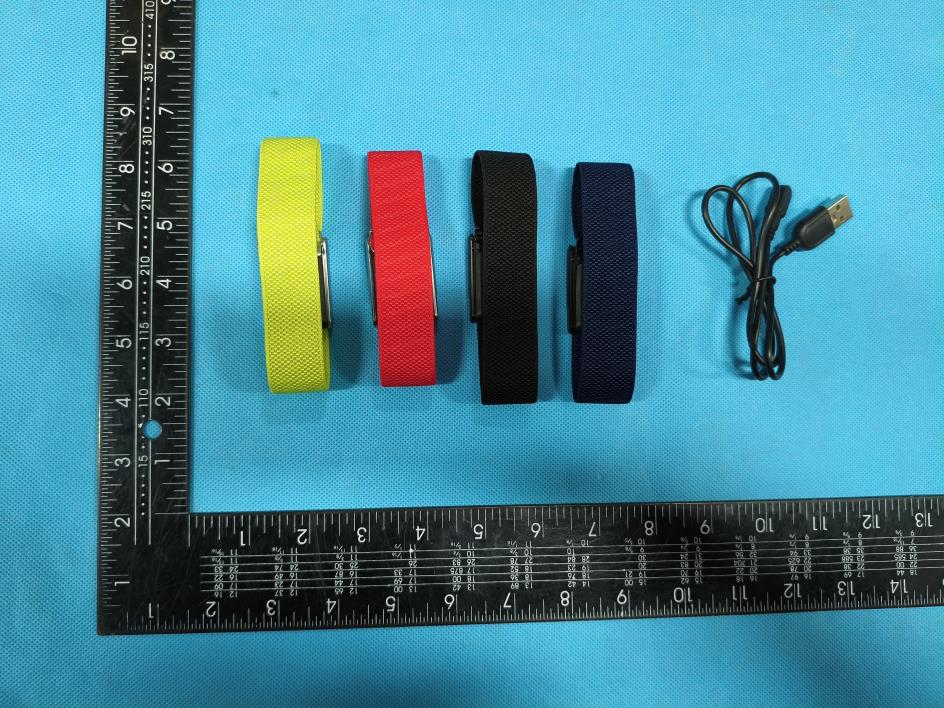

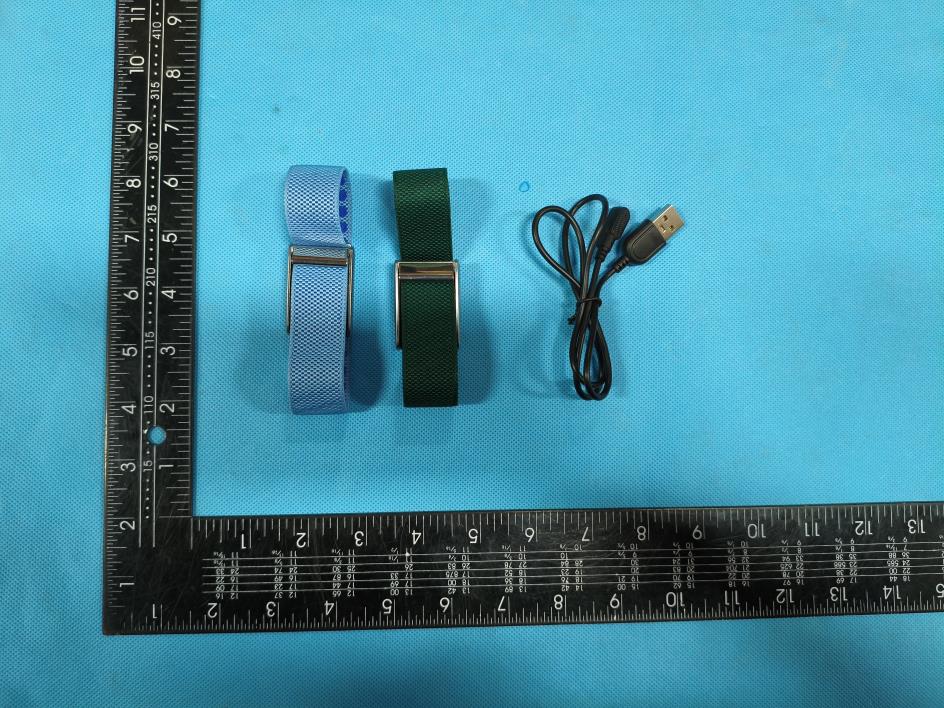

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(External Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

Size: 15*8mm Model.: E500 FCC ID: 2BNP4-E500 Label location

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(Internal Photos) Shenzhen DL Testing Technology Co., Ltd. ANT Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

FCC ID: 2BNP4-E500 RF Exposure Evaluation According to KDB 447498 D01 V06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison EIRP=E Meas +20log(d Meas )-104.7 EIRP is the equivalent isotropically radiated power, in dBm E Meas is the field strength of the emission at the measurement distance, in dBμV/m d Meas is the measurement distance, in m Here, BT Peak Output Power (dBm) Max tune-up (mW) Frequency (MHz) Min. distance(mm) Calc. thresholds limit 0.18 1.04 2480 5 0.33 3.0 So a SAR test is not required

Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260130024R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 33 FCC Part 15C Test Report FCC ID: 2BNP4-E500 Applicant: Shenzhen Changtai Electronics Co.,Ltd Address: 4/F, Building 17, Huafeng Manufacturing Zone,Wanle Road, Shajing, Baoan, Shenzhen, China Manufacturer: Shenzhen Changtai Electronics Co.,Ltd Address: 4/F, Building 17, Huafeng Manufacturing Zone,Wanle Road, Shajing, Baoan, Shenzhen, China Product Name: Smart watch Trade Mark: N/A Model Number: E500, E300, E400, V500, E600, E700, E800, E300P, E400P, E500P, V500P, E600P, E700P, E300S, E400S, E500S, V500S, E600S Date of Receipt: Jan. 30, 2026 Test Date: Jan. 30, 2026 - Feb. 05, 2026 Date of Report: Feb. 05, 2026 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2020 Test Result: Pass Report Number: DLE-260130024R Prepared (Test Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260130024R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 33 Table of Contents Page 1. . SUMMARY OF TEST RESULTS 4 1.1. MEASUREMENT UNCERTAINTY 4 2. . GENERAL INFORMATION 5 2.1. GENERAL DESCRIPTION OF EUT 5 2.2. DESCRIPTION OF TEST MODES 6 2.3. BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 6 2.4. DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5. TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6. EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3. . EMC EMISSION TEST 9 3.1. CONDUCTED EMISSION MEASUREMENT 9 3.1.1. POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2. TEST PROCEDURE 9 3.1.3. DEVIATION FROM TEST STANDARD 9 3.1.4. TEST SETUP 10 3.1.5. EUT OPERATING CONDITIONS 10 3.1.6. TEST RESULTS 11 3.2. RADIATED EMISSION MEASUREMENT 13 3.2.1. RADIATED EMISSION LIMITS 13 3.2.2. TEST PROCEDURE 14 3.2.3. DEVIATION FROM TEST STANDARD 14 3.2.4. TEST SETUP 14 3.2.5. EUT OPERATING CONDITIONS 15 3.2.6. TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 16 3.2.7. TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 17 3.2.8. TEST RESULTS (1GHZ~25GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT 20 3.3.1 TEST REQUIREMENT: 20 3.3.2 TEST PROCEDURE 20 3.3.3 DEVIATION FROM TEST STANDARD 20 3.3.4 TEST SETUP 21 3.3.5 EUT OPERATING CONDITIONS 21 3.4 CONDUCTED BAND EDGE EMISSION&CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 23 3.4.1 APPLICABLE STANDARD 23 3.4.2 TEST PROCEDURE 23 3.4.3 DEVIATION FROM STANDARD 23 3.4.4 TEST SETUP 23 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260130024R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 33 Table of Contents Page 3.4.5 EUT OPERATION CONDITIONS 23 3.4.6 TEST RESULTS 23 4. . PEAK OUTPUT POWER 26 4.1. APPLIED PROCEDURES / LIMIT 26 4.1.1. TEST PROCEDURE 26 4.1.2. DEVIATION FROM STANDARD 26 4.1.3. TEST SETUP 26 4.1.4. EUT OPERATION CONDITIONS 26 4.1.5. TEST RESULTS 27 5. . POWER SPECTRAL DENSITY TEST 29 5.1. APPLIED PROCEDURES / LIMIT 29 5.1.1. TEST PROCEDURE 29 5.1.2. DEVIATION FROM STANDARD 29 5.1.3. TEST SETUP 29 5.1.4. EUT OPERATION CONDITIONS 29 5.1.5. TEST RESULTS 29 6. . 6DB BANDWIDTH TEST 31 6.1. APPLIED PROCEDURES / LIMIT 31 6.1.1. TEST PROCEDURE 31 6.1.2. DEVIATION FROM STANDARD 31 6.1.3. TEST SETUP 31 6.1.4. EUT OPERATION CONDITIONS 31 6.1.5. TEST RESULTS 31 7. . ANTENNA REQUIREMENT 33 7.1. STANDARD REQUIREMENT 33 7.2. EUT ANTENNA 33 8. . TEST SEUUP PHOTO 33 9. . EUT PHOTO 33 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260130024R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 33 1.. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(c) Radiated Spurious Emission PASS 15.205 Band Edge Emission PASS 15.247(b) Peak Output Power PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 1.1. MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 8 6dB Bandwidth ±0.2MHz 9 Power Spectral Density ±0.3dBm Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260130024R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 33 2.. GENERAL INFORMATION 2.1. GENERAL DESCRIPTION OF EUT Product Name: Smart watch Trade Mark: N/A Model Number: E500, E300, E400, V500, E600, E700, E800, E300P, E400P, E500P, V500P, E600P, E700P, E300S, E400S, E500S, V500S, E600S Test Model: E500 Model Difference: All models are same as the samples except model name and appearance color, they have the same structure and circuit. Operation Frequency: 2402~2480MHz Channel numbers: 40 Channels Channel separation: 1MHz Data R…

Text truncated - open the document above for the full version.

Shenzhen Changtai Fuyuan Electronics Co., LTD 3rd Floor, Building G, No. 2070, Jincheng Road, Haoxiang Community, Shajing Street, Baoan District, Shenzhen Antenna Specification 1 PRODUCT INFORMATION 1.1Manufacturer Information ManufacturerShenzhen Changtai Fuyuan Electronics Co., LTD Address 3rd Floor, Building G, No. 2070, Jincheng Road, Haoxiang Community, Shajing Street, Baoan District, Shenzhen 1.2General Description for Equipment under Test (EUT) Model Name Under Test 2.4G BT-ANT Antenna Type Wire Antenna Dimensions90mm*10mm MAX. Gain-2.70dBi Antenna Type Wire 1.3Technical Information Frequencies2400~2500MHz Test Frequencies 2400MHz, 2410MHz, 2420MHz, 2430MHz, 2440MHz, 2450MHz 2460MHz, 2470MHz, 2480MHz, 2490MHz, 2500MHz 1.4Antenna shape Tested by:Luo YouningChecked by: Li ChenjiaApproved by:Sally Yu ShenzhenChangtaiFuyuanElectronicsCo., LTD 3rd Floor,BuildingG, No. 2070,JinchengRoad,HaoxiangCommunity,ShajingStreet,BaoanDistrict,Shenzhen VSWR Frequency VSWR 24 00MHz1.57 2450MHz1.76 2500MHz1.93 ShenzhenChangtaiFuyuanElectronicsCo., LTD 3rd Floor,BuildingG, No. 2070,JinchengRoad,HaoxiangCommunity,ShajingStreet,BaoanDistrict,Shenzhen 3D Pattern B1.13D Patternfor 2400MHz B1.23D Patternfor 2450MHz ShenzhenChangtaiFuyuanElectronicsCo., LTD 3rd Floor,BuildingG, No. 2070,JinchengRoad,HaoxiangCommunity,ShajingStreet,BaoanDistrict, Shenzhen B1.33D Patternfor 2500MHz ShenzhenChangtaiFuyuanElectronicsCo., LTD 3rd Floor,BuildingG, No. 2070,JinchengRoad,HaoxiangCommunity,ShajingStreet,BaoanDistrict,Shenzhen 1D RadiationPattern PHI=0 PHI=90 ShenzhenChangtaiFuyuanElectronicsCo., LTD 3rd Floor,BuildingG, No. 2070,JinchengRoad,HaoxiangCommunity,ShajingStreet,BaoanDistrict, Shenzhen THETA=90 Frequency(MHz)Gain(dBi)Efficiency(%) 2400-2.7018 2410-2.9217 2420-3.0717 2430-3.0916 2440-3.4815 2450-3.7315 2460-3.7714 2470-3.8114 2480-3.6914 2490-3.9314 2500-4.1814

Shenzhen DL Testing Technology Co., Ltd. EUT TEST PHOTO Radiated Measurement Photos Shenzhen DL Testing Technology Co., Ltd. Conducted Measurement Photos ※※※※※ END OF REPORT ※※※※※
