2BNWO-7000594Embedded Console

CORE HEALTH & FITNESS IMPORTANT SAFETY INSTRUCTIONS LCD+ CONSOLES Page 2 DANGER: to reduce the risk of electrical shock: 1. Always unplug the machine from the electrical outlet before cleaning or servicing. 2. This product is factory-equipped with a specific DC Power Supply to permit connection to the proper electric circuit. Make sure that the product is connected to a dedicated power line having an outlet with the same configuration as that of the plug. 3. This machine is not intended to be serviced by the end user, refer servicing to qualified personnel only. 4. If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid hazard. 5. Keep the cord away from heated surfaces. Unplug power cord when the machine is unattended and before performing any preventative maintenance such as cleaning or replacing a worn part. 6. Do not operate unit in damp or wet locations. WARNING: to reduce the risk of serious injury to persons using this equipment, read and follow all of these warnings: 1. This equipment is designed for use in a commercial gymnasium or health club. To ensure the proper use of the equipment in a safe manner, all users of the equipment should read this manual before using the machine. This machine should be made a part of your club training program in order that the equipment is used by your members in a safe manner as intended. In addition to instructing the club members in the proper use of the equipment, he club member should obtain a complete physical examination form their health care provider before beginning any exercise program. 2. The safety and integrity of this machine can only be maintained when the equipment is regularly examined for damage and wear and repaired. It is the sole responsibility of the owner of this equipment to ensure that regular maintenance is performed. Worn or damaged parts must be replaced immediately or the equipment removed from service until the repair is made. 3. It is the purchaser’s sole responsibility to properly instruct its end users and supervising personnel as to the proper operating procedures of all Core Health & Fitness equipment. 4. This machine is not intended to be used by children. It is not intended to be used by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless given instruction and under the personal supervision concerning use of the machine by a person responsible for their safety. Do not leave children unsupervised around the machine. 5. Obtain a medical exam before beginning any exercise program. If at any time during exercise you feel faint, dizzy, or experience pain, stop and consult your physician. Use the value calculated or measured by the console for reference purposes only. 6. Use only replacement components supplied by Core Health & Fitness. Substitutes are forbidden and will void all warranties. 7. WARNING: Heart rate monitoring systems may be inaccurate. Over-exercising may result in serious injury or death. If you feel faint stop exercising immediately. SAVE THESE INSTRUCTIONS NOTICE: For installation and operation instructions, please refer to the Owner’s Manual included with the base product. If you no longer have the original manual, scan the QR code below to access it online: 6TR6CT 6UB6RB FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Industry Canada (IC) Warning: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. To satisfy FCC&IC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommende…

Text truncated - open the document above for the full version.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BNWO-7000594 Embedded Console We hereby acknowledge as follows: i. both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii. the point of contact provides the physical U.S. address and email as listed below iii. both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. US-American Point of Contact Applicant/Approval Holder Company Name: Core Health & Fitness, LLC Land America Health & Fitness Co., Ltd FRN: 0034144030 0036703940 Contact Name: Felipe J. Marin Scott Koumis Address: 4400 NE 77th Avenue, Suite 300, Vancouver, Washington, United States No. 25 North 2nd Road, Xinglin, Jimei, Xiamen, 361022, China Phone: (714) 616-9904 86-13043009987 Email: [email protected] [email protected]

Land America Health & Fitness Co., Ltd 092723-17 rev 10 Certification Application Attestation Statements Date: January 25, 2026 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) ______Land America Health & Fitness Co., Ltd______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) ______Land America Health & Fitness Co., Ltd______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / ☒ - is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates – see KDB 986446 Question 5) as an entity producing “covered” equipment. The applicant also certifies that the device does not have cybersecurity and/or anti-virus software produced by Kaspersky Lab, Inc or any of its successors and assignees identified on the covered list installed on the device, nor will it be installed by the applicant at any time after certification. Thank you, By: ______Scott Koumis____ (Signature 2 ) (Print name) Title: ENGINEERING DIRECTOR Company: Land America Health & Fitness Co., Ltd Telephone: +86 13043009987 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters must be placed on appropriate letterhead.

Land America Health & Fitness Co., Ltd 041521-14 Authority to Act as Agent Date: January 13, 2026 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______Intertek Testing Service (Shanghai FTZ) Co., Ltd______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: _____January 12, 2027_____ By: Scott Koumis (Signature 1 ) (Print name) Title: ENGINEERING DIRECTOR On behalf of: Land America Health & Fitness Co., Ltd (Company Name) Telephone: +86 13043009987

Land America Health & Fitness Co., Ltd Model Difference Declaration Related FCC ID: 2BNWO-7000594 IC: 33606-7000594 We Land America Health & Fitness Co., Ltd Hereby declares that the product Embedded Console /700-0594, 700-0597 The products above are electrically identical except for differences in the key components. Date: January 11, 2026 Name / Title Scott Koumis / Engineering Director Company: Land America Health & Fitness Co., Ltd Tel: +86 13043009987 Email: [email protected]

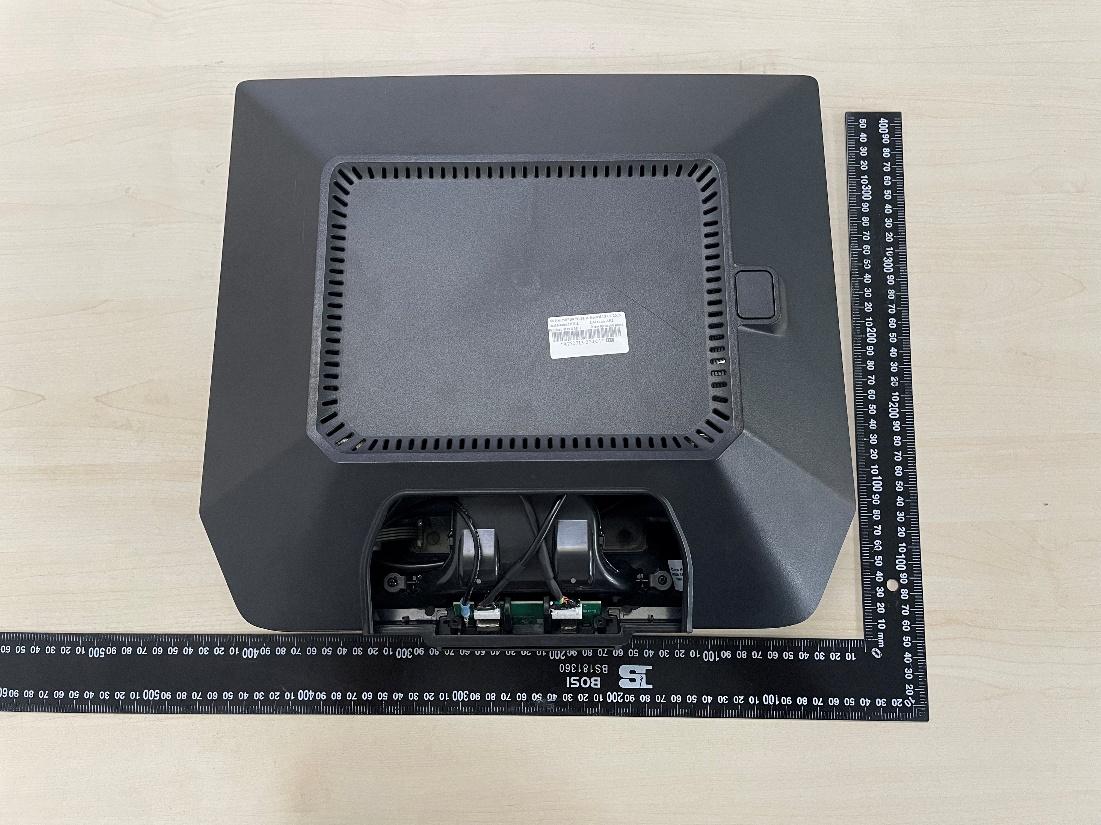

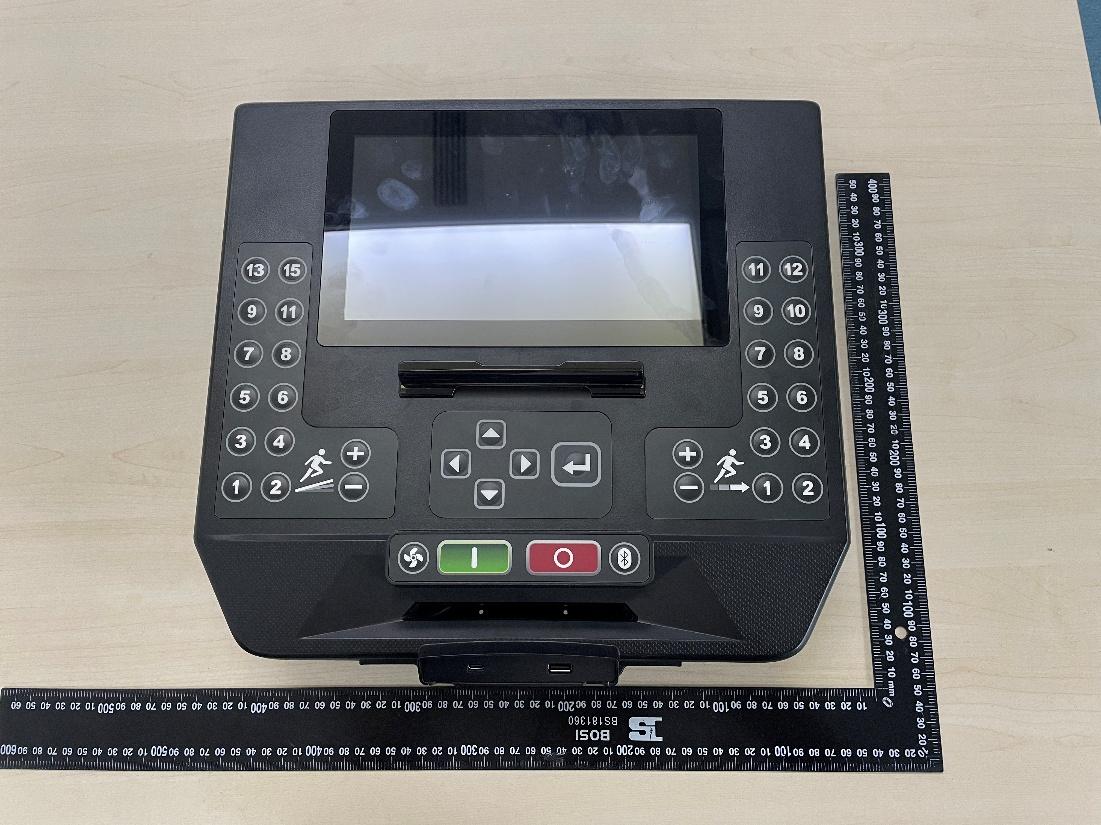

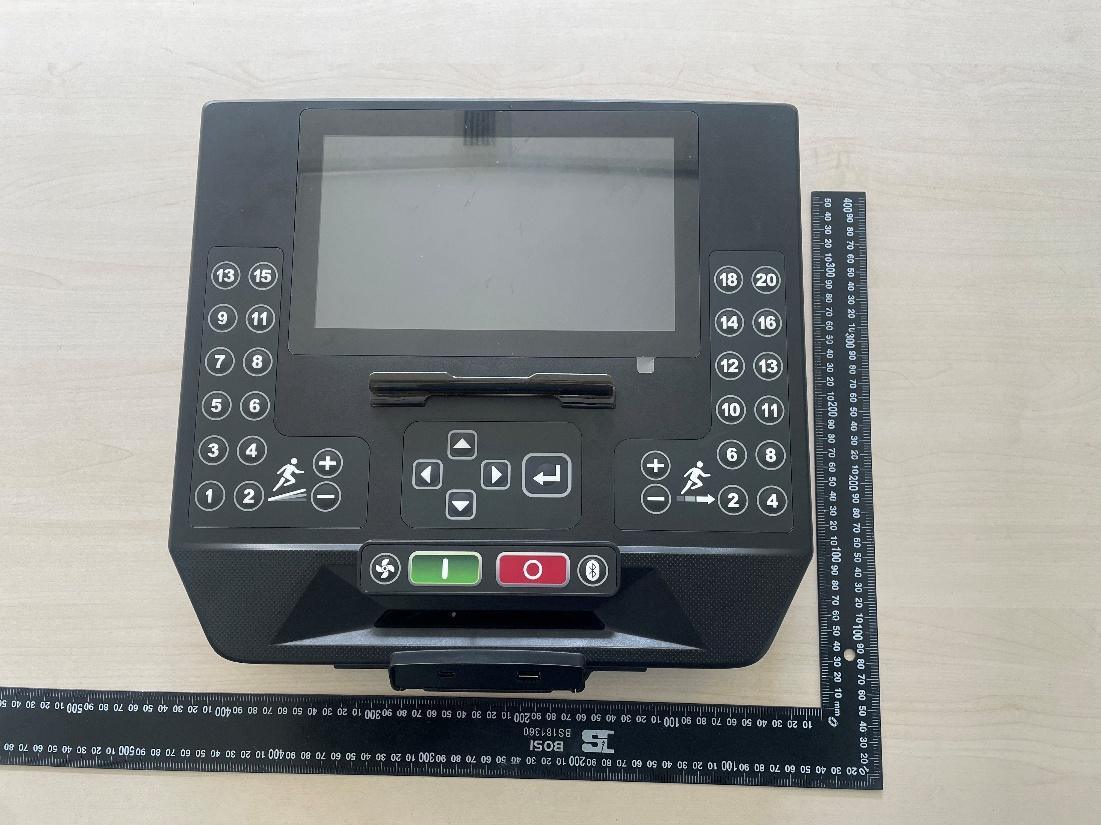

Page 1 of 6 External Photos Page 2 of 6 Model: 700-0594 Page 3 of 6 Page 4 of 6 Model: 700-0594 Model: 700-0594 Model: 700-0597 Page 5 of 6 Page 6 of 6

Label for Model: 700-0594 Label for Model: 700-0597 Location

Page 1 of 11 Internal Photos Page 2 of 11 Model: 700-0594 Page 3 of 11 Antenna Page 4 of 11 Page 5 of 11 Page 6 of 11 Page 7 of 11 Model: 700-0597 Page 8 of 11 Page 9 of 11 Page 10 of 11 Page 11 of 11

Land America Health & Fitness Co., Ltd MPE ASSESSMENT REPORT Report Type: FCC MPE assessment report Model: 700-0594, 700-0597 REPORT NUMBER: 2512B0596SHA-003 ISSUE DATE: January 7, 2026 DOCUMENT CONTROL NUMBER: TTRFFCCMPE-01_V1 © 2018 Intertek Intertek Testing Services (Shanghai FTZ) Co., Ltd Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCMPE-01_V1© 2018 Intertek Page 2 of 9 Report no.: 2512B0596SHA-003 Applicant: Land America Health & Fitness Co., Ltd No. 25 North 2nd Road, Xinglin, Jimei, Xiamen, 361022, China Manufacturer: Land America Health & Fitness Co., Ltd No. 25 North 2nd Road, Xinglin, Jimei, Xiamen, 361022, China Manufacturer Site: Land America Health & Fitness Co., Ltd No. 25 North 2nd Road, Xinglin, Jimei, Xiamen, 361022, China Product Name: Embedded Console Type/Model: 700-0594, 700-0597 FCC ID: 2BNWO-700594 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: KDB447498 D01 General RF Exposure Guidance v06 FCC Part2.1091, FCC Part2.1093 FCC Part1.1307(b) PREPARED BY: REVIEWED BY: Project Engineer Scout Gong Reviewer Eric Li Report No.: 2512B0596SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 3 of 9 Revision History Report No. Version Description Issued Date 2512B0596SHA-003 Rev. 01 Initial issue of report January 7, 2026 Report No.: 2512B0596SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 4 of 9 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: Embedded console Type/Model: 700-0594, 700-0597 Description of EUT: The EUT is an embedded console which supports Wi-Fi/BT function. There are two models. All models are electrically identical except the key components. Rating: 12V DC, 5A Category of EUT: Class B EUT type: Table top Floor standing Software Version: - Hardware Version: - Serial numbers: A250713-27-001 Sample received date: July 13, 2025 Date of test: July 13, 2025, to November 20, 2025 Report No.: 2512B0596SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 5 of 9 1.2 Technical Specification Frequency Range: 2400MHz ~ 2483.5MHz Support Standards: Bluetooth 5.2 (BR+EDR) Modulation Technique: Frequency Hopping Spread Spectrum (FHSS) Type of Modulation: GFSK, π/4 DQPSK, 8DPSK Channel Number: 79 (0 - 78) Data Rate: 1Mbps Channel Separation: 1 MHz Antenna: FPCB Antenna, 2.03 dBi Gain Frequency Band: 2400MHz ~ 2483.5MHz Support Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n(HT20) Type of Modulation: IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64-QAM, 16-QAM, QPSK, BPSK) IEEE 802.11n(HT20): OFDM (64-QAM, 16-QAM, QPSK, BPSK) Operating Frequency: 2412MHz to 2462MHz for IEEE 802.11b/g/n(HT20) Channel Number: 11 Channels for 802.11b, 802.11g ,802.11n(HT20) Channel Separation: 5 MHz Report No.: 2512B0596SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 6 of 9 1.3 Description of Test Facility Name: Intertek Testing Services (Shanghai FTZ) Co., Ltd Address: Building 86, No. 1198 Qinzhou Road (North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L21189 FCC Accredited Lab Designation Number: CN0175 IC Registration Lab CAB identifier.: CN0014 VCCI Registration Lab Registration No.: R-14243, G-10845, C-14723, T-12252 A2LA Accreditation Lab Certificate Number: 3309.02 Report No.: 2512B0596SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 7 of 9 2 MPE Assessment Test Result: Pass 2.1 MPE Assessment Limit Mobile device exposure for standalone operations: Frequency range E-field strength (V/m) H-field strength (A/m) B-field (uT) Equivalent plane wave power density S eq (W/m 2 ) 0-1 Hz - 3,2 × 10 4 4 × 10 4 - 1-8 Hz 10 000 3,2 × 10 4 /f 2 4 × 10 4 /f 2 - 8-25 Hz 10 000 4 000/f 5 000/f - 0,025-0,8 kHz 250/f 4/f 5/f - 0,8-3 kHz 250/f 5 6,25 - 3-150 kHz 87 5 6,25 - 0,15-1 MHz 87 0,73/f 0,92/f - 1-10 MHz 87/f 1/2 0,73/f 0,92/f - 10-400 MHz 28 0,073 0,092 2 400-2 000 MHz 1,375 f 1/2 0,0037 f 1/2 0,0046 f 1/2 f/200 2-300 GHz 61 0,16 0,20 10 Mobile device exposure for simultaneous transmission operations: the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in a host device is ≤ 1.0 Report No.: 2512B0596SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 8 of 9 2.2 Assessment Results Power density (S) is calculated according to the formula: S = PG / (4πR²) Where S = power density in mW/cm² P = Radiated transmit power in mW G = numeric gain of transmit antenna R = distance (cm) As we can see from the test report 2512B0596SHA-001, 2512B0596SHA-002: The calculations in the table below use the highest gain of antenna for client EUT. These calculations represent worst case in terms of the exposure levels. Note: 1 mW/cm2 from 1.310 Table 1. BT and 2.4G WIFI cannot simultaneous transmitting, so the maximum rate of MPE is: 0.0363 ≤ 1.0 Mode Work Frequency Power Antenna Ga…

Text truncated - open the document above for the full version.

ProductDatasheet BL043-0001 WiFiAntenna KeyFeatures WiFiPCBAntenna,MHF(BLI代)TO 1.13mm黑色+PCB，L=220mm ProductDatasheet 1.AntennaElectricalCharacteristics 2.Materialandenvironmentalcharacteristics Band(MHz) Frequency(MHz)2400/2600MHZ VSWR2.0 Efficiency(%)54.35% PeakGain(dBi)2.03 Impendance(Ohm)50 PolarisationVertical Max.InputPower(W)10 Innerstructure Spring MaterialofPlastic N/A CableType 1.13 ConnectorType IPEX1 Dimensions(mm)247MM AntennacolorBlack OperationTemperature -40to+80 StorageTemperature -40to+80 SubstanceComplianceROHS ProductDatasheet ProductDatasheet 4.Antennatestparameters AntennaMeasurementConditions: MountedonGroundPlaneof280x80mm MeasuredinCertified3DAnechoicChamber ThenetworkanalyzerisAgilent5071c ThecomprehensivetesterisAgilentcmv500 ProductDatasheet ProductDatasheet 4.1VSWR ProductDatasheet 4.2E1幅度图 ProductDatasheet 4.3E2幅度图 ProductDatasheet 4.4H幅度图 ProductDatasheet 4.53D幅度图 ProductDatasheet 4.6幅度图 ProductDatasheet 4.7参数信息 频率 (MHz) 增益 (dBi) 效率 (dB)效率(%) 23000.73-3.5244.5 23101.02-3.3346.42 23201.32-3.0749.37 23301.53-2.951.3 23401.69-2.7752.8 23501.8-2.6853.97 23601.82-2.6554.35 23701.78-2.6554.27 23801.73-2.6754.12 23901.67-2.6953.85 24001.63-2.7253.43 24101.67-2.7153.52 24201.8-2.6853.94 24301.92-2.6454.5 24402.01-2.5955.09 24502.03-2.5655.48 24601.94-2.5755.31 24701.79-2.6354.63 24801.66-2.6853.98 24901.51-2.7253.5 25001.36-2.7752.88 25101.2-2.8651.72 25201.06-2.9750.43 25300.95-3.0549.5 25400.92-3.0749.31 25500.91-3.0749.29 25600.84-3.0949.11 25700.79-3.0649.46 25800.84-2.9850.4 25900.72-3.0249.88 26001.1-2.7752.85

Land America Health & Fitness Co., Ltd RF TEST REPORT Report Type: FCC Part 15.247 & ISED RSS-247 RF report MODEL: 700-0594, 700-0597 REPORT NUMBER: 2512B0596SHA-001 ISSUE DATE: January 7, 2026 DOCUMENT CONTROL NUMBER: TTRF15.247-01_V1 © 2018 Intertek Intertek Testing Services (Shanghai FTZ) Co., Ltd Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRF15.247-01_V1 © 2017 Intertek Page 2 of 81 Report no.: 2512B0596SHA-001 Applicant: Land America Health & Fitness Co., Ltd No. 25 North 2nd Road, Xinglin, Jimei, Xiamen, 361022, China Manufacturer: Land America Health & Fitness Co., Ltd No. 25 North 2nd Road, Xinglin, Jimei, Xiamen, 361022, China Manufacturer Site: Land America Health & Fitness Co., Ltd No. 25 North 2nd Road, Xinglin, Jimei, Xiamen, 361022, China Product Name: Embedded Console Type/Model: 700-0594, 700-0597 FCC ID: 2BNWO-7000594 IC: 33606-7000594 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2024): Radio Frequency Devices (Subpart C) C63.10-2020 +Cor. 1-2023 +C63.10a-2024 +Errata to C63.10a-2024: American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Device – Corrigendum 1 RSS-247 Issue 4 (July 2025): Digital Transmission Systems, Frequency Hopping Systems and Licence-Exempt Local Area Network Devices in 902-928MHz, 2400-2483.5MHz, 5150- 5350MHz, and 5470-5895MHz bands RSS-Gen Issue 5 (February 2021) Amendment 2: General Requirements for Compliance of Radio Apparatus PREPARED BY: REVIEWED BY: Project Engineer Scout Gong Reviewer Eric Li Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 3 of 81 Content REVISION HISTORY................................................................................................................................................ 5 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 6 1 GENERAL INFORMATION ............................................................................................................................. 7 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ................................................................................................ 7 1.2 TECHNICAL SPECIFICATION ................................................................................................................................ 8 1.3 FREQUENCY HOPPING SYSTEM REQUIREMENT...................................................................................................... 9 1.4 DESCRIPTION OF TEST FACILITY ........................................................................................................................ 11 2 TEST SPECIFICATIONS ................................................................................................................................. 12 2.1 STANDARDS OR SPECIFICATION ........................................................................................................................ 12 2.2 MODE OF OPERATION DURING THE TEST .......................................................................................................... 12 2.3 TEST SOFTWARE LIST ..................................................................................................................................... 13 2.4 TEST PERIPHERALS LIST .................................................................................................................................. 13 2.5 TEST ENVIRONMENT CONDITION: .................................................................................................................... 13 2.6 INSTRUMENT LIST ......................................................................................................................................... 14 2.7 MEASUREMENT UNCERTAINTY ........................................................................................................................ 15 3 20DB BANDWIDTH .................................................................................................................................... 16 3.1 LIMIT ......................................................................................................................................................... 16 3.2 MEASUREMENT PROCEDURE .......................................................................................................................... 16 3.3 TEST CONFIGURATION ................................................................................................................................... 17 3.4 TEST RESULTS OF 20DB BANDWIDTH ............................................................................................................... 17 4 CARRIER FREQUENCY SEPARATION ............................................................................................................ 18 4.1 LIMIT .....................................................................…

Text truncated - open the document above for the full version.

Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 61 of 81 Number of Hopping Channels Test Result Test Mode Antenna Frequency [MHz] Result [Num] Limit [Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 62 of 81 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 63 of 81 Band Edge Measurements Test Result Test Mode Antenna ChName Frequency [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 6.99 -50.01 ≤-13.01 PASS DH5 Ant1 High 2480 5.55 -49.11 ≤-14.45 PASS DH5 Ant1 Low Hop_2402 5.84 -50.15 ≤-14.16 PASS DH5 Ant1 High Hop_2480 5.52 -50.2 ≤-14.48 PASS 2DH5 Ant1 Low 2402 2.80 -49.03 ≤-17.2 PASS 2DH5 Ant1 High 2480 2.15 -49.19 ≤-17.86 PASS 2DH5 Ant1 Low Hop_2402 -2.99 -50.92 ≤-22.99 PASS 2DH5 Ant1 High Hop_2480 -0.62 -50.24 ≤-20.62 PASS 3DH5 Ant1 Low 2402 2.89 -49.99 ≤-17.11 PASS 3DH5 Ant1 High 2480 2.97 -50.24 ≤-17.03 PASS 3DH5 Ant1 Low Hop_2402 -0.62 -50.26 ≤-20.62 PASS 3DH5 Ant1 High Hop_2480 0.36 -50.04 ≤-19.64 PASS Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 64 of 81 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS DH5-Ant1-Hop_2402-PASS DH5-Ant1-Hop_2480-PASS Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 65 of 81 2DH5-Ant1-2402-PASS 2DH5-Ant1-2480-PASS 2DH5-Ant1-Hop_2402-PASS Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 66 of 81 2DH5-Ant1-Hop_2480-PASS 3DH5-Ant1-2402-PASS 3DH5-Ant1-2480-PASS Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 67 of 81 3DH5-Ant1-Hop_2402-PASS 3DH5-Ant1-Hop_2480-PASS Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 68 of 81 Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 0~Reference 6.98 6.98 --- PASS DH5 Ant1 2402 30~1000 6.98 -61.48 ≤-13.02 PASS DH5 Ant1 2402 1000~26500 6.98 -46.32 ≤-13.02 PASS DH5 Ant1 2441 0~Reference 6.70 6.70 --- PASS DH5 Ant1 2441 30~1000 6.70 -61.25 ≤-13.3 PASS DH5 Ant1 2441 1000~26500 6.70 -49.02 ≤-13.3 PASS DH5 Ant1 2480 0~Reference 5.42 5.42 --- PASS DH5 Ant1 2480 30~1000 5.42 -61.24 ≤-14.58 PASS DH5 Ant1 2480 1000~26500 5.42 -50.69 ≤-14.58 PASS 2DH5 Ant1 2402 0~Reference 2.51 2.51 --- PASS 2DH5 Ant1 2402 30~1000 2.51 -60.97 ≤-17.49 PASS 2DH5 Ant1 2402 1000~26500 2.51 -51.24 ≤-17.49 PASS 2DH5 Ant1 2441 0~Reference 2.61 2.61 --- PASS 2DH5 Ant1 2441 30~1000 2.61 -61.72 ≤-17.39 PASS 2DH5 Ant1 2441 1000~26500 2.61 -50.15 ≤-17.39 PASS 2DH5 Ant1 2480 0~Reference 2.11 2.11 --- PASS 2DH5 Ant1 2480 30~1000 2.11 -61.37 ≤-17.89 PASS 2DH5 Ant1 2480 1000~26500 2.11 -49.31 ≤-17.89 PASS 3DH5 Ant1 2402 0~Reference 2.75 2.75 --- PASS 3DH5 Ant1 2402 30~1000 2.75 -60.68 ≤-17.25 PASS 3DH5 Ant1 2402 1000~26500 2.75 -50.18 ≤-17.25 PASS 3DH5 Ant1 2441 0~Reference 1.43 1.43 --- PASS 3DH5 Ant1 2441 30~1000 1.43 -61.19 ≤-18.57 PASS 3DH5 Ant1 2441 1000~26500 1.43 -50.4 ≤-18.57 PASS 3DH5 Ant1 2480 0~Reference 2.29 2.29 --- PASS 3DH5 Ant1 2480 30~1000 2.29 -60.98 ≤-17.71 PASS 3DH5 Ant1 2480 1000~26500 2.29 -50.75 ≤-17.71 PASS Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 69 of 81 Test Graphs DH5-Ant1-2402-0~Reference-PASS DH5-Ant1-2402-30~1000-PASS DH5-Ant1-2402-1000~26500-PASS DH5-Ant1-2441-0~Reference-PASS Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 70 of 81 DH5-Ant1-2441-30~1000-PASS DH5-Ant1-2441-1000~26500-PASS DH5-Ant1-2480-0~Reference-PASS Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 71 of 81 DH5-Ant1-2480-30~1000-PASS DH5-Ant1-2480-1000~26500-PASS 2DH5-Ant1-2402-0~Reference-PASS Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 72 of 81 2DH5-Ant1-2402-30~1000-PASS 2DH5-Ant1-2402-1000~26500-PASS 2DH5-Ant1-2441-0~Reference-PASS Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 73 of 81 2DH5-Ant1-2441-30~1000-PASS 2DH5-Ant1-2441-1000~26500-PASS 2DH5-Ant1-2480-0~Reference-PASS Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 74 of 81 2DH5-Ant1-2480-30~1000-PASS 2DH5-Ant1-2480-1000~26500-PASS 3DH5-Ant1-2402-0~Reference-PASS Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 75 of 81 3DH5-Ant1-2402-30~1000-PASS 3DH5-Ant1-2402-1000~26500-PASS 3DH5-Ant1-2441-0~Reference-PASS Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 76 of 81 3DH5-Ant1-2441-30~1000-PASS 3DH5-Ant1-2441-1000~26500-PASS 3DH5-Ant1-2480-0~Reference-PASS Report No.: 2512B0596SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 77 of 81 3DH5-Ant1-2480-30~1000…
