2BOZ9-M1V20Thermal Imaging Telescope

Medusa Series 1 2 3 4 5 6 1. Turn on the WiFi in the device menu, then turn on the phone WiFi and the APP in the test software. Find the MAC address name "APPshow-XX-XXXXX" on the phone's WiFi list and enter the password "12345678" to connect the device. 2. After the device is connected to the phone via WiFi, real-time captured images can be observed. Short press the menu button to enter the reticle zeroing calibration interface, then short press the video button to switch between different function options, and short press the up/down keys to adjust the value of the function; Image Freeze: Short press the menu button to choose whether to freeze the screen; Short press the video button to move to the X and Y axis values, and adjust the reticle position through the up/down keys until it coincides with the impact point. Short press the video button to move to other options. After setting, move to the save option and short press the menu button to save and exit, or long press the menu button to exit without saving; The set distance is used as the zeroing distance in smart ballistics and saved in the zeroing storage. Short press the menu button to enter the submenu page, short press the menu button to select turn on or off, and short press the menu button to confirm the selection and return to the main menu. 7 Short press the menu button to enter the subpage, and short press the menu button to turn the gyroscope on or off. There are three modes for auto ballistics: Off disables the feature, On enables automatic ballistic calculation, and Settings allows you to manually adjust the ballistic parameters. There are two options for range unit selection: Meter / Yard. White Heat Mode, Black Heat Mode, High Brightness Mode, Low Light Mode, Pseudocolor Mode. Choose the appropriate mode based on your needs, and consider whether to cycle through them. 8 9 XX-XX-XXX XX-XX-XXX WLAN Falcon Outdoor 10 11 11

HONGKONGFALCONOPTICSCO.,LIMITED CoveredEquipmentCertificationAttestationLetter 7/8/2026 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA ATTN.:ReviewingEngineer FCCID:2BOZ9-M1V20 HONGKONGFALCONOPTICSCO.,LIMITED(“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibitedfrom receivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedbyanyof theentitiesidentifiedonthecurrentCoveredList,theapplicantshouldincludean explanationonwhytheequipmentisnot“covered”equipment. HONGKONGFALCONOPTICSCO.,LIMITED(“theapplicant”)certifiesthat,asofthe dateofthefilingoftheapplication,theapplicantisnotidentifiedontheCoveredList(as aspecificallynamedentityoranyofitssubsidiariesoraffiliates)asanentityproducing “covered”equipment. HONGKONGFALCONOPTICSCO.,LIMITED(“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtdoesnotincludecybersecurityoranti-virus softwareproducedorprovidedbyKasperskyLab,Inc.oranyofitssuccessorsand assignees,includingequipmentwithintegratedKasperskyLab,Inc.(oranyofits successorsandassignees)cybersecurityoranti-virussoftwarepursuanttoDA-24-886 andKDB986446D01CoveredEquipmentGuidancesectionB(2a). Signed: Printedname:IrisTang Title:OfficeClerk CompanyName:HONGKONGFALCONOPTICSCO.,LIMITED Date:7/8/2026

CERTIFICATIONDESIGNATINGAU.S.AGENTFORSERVICEOFPROCESS Date:Jul.07,2026 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,Maryland21046 FCCID:2BOZ9-M1V20 ToWhomItMayConcern: Asrequiredbysection2.911(d)(7),we[HONGKONGFALCONOPTICSCO.,LIMITED, FRN:0036969798]certifiesthatweacknowledgethedesignationofacontactlocated intheUnitedStatesforpurposesofactingastheapplicant’sagentforserviceof process.We[HONGKONGFALCONOPTICSCO.,LIMITED]acceptstomaintainan agentfornolessthanoneyearafterthegranteehasterminatedallmarketingand importationortheconclusionofanyCommission-relatedproceedinginvolvingthe equipment. Asrequiredbysection2.911(d)(7),we[ATHORSTRADINGINC,111TownSquare PlaceSuite#1203JerseyCity,NJ7310,UnitedStates,FRN:0036421360]certifies thatweacknowledgeourobligationactingastheapplicant’sagentforserviceof processfortheabovereferencedFCCID.We[ATHORSTRADINGINC]confirmthat wearenotassociatedwithorpartofanyTCBorFCCrecognisedtestlab. Thankyouforyourattentiontothismatter. Sincerelyyours, SignaturebyapplicantSignaturebydesignatedagent(ifdifferent fromapplicant) PrintedName:IrisTangPrintedName:GeorgeWu Company:HONGKONGFALCONOPTICSCO., LIMITED Company:ATHORSTRADINGINC Address:Room1101D,11/F,LippoSun Plaza,28CantonRoad,TsimShaTsui, Kowloon,HongKong,China Address:111TownSquarePlaceSuite #1203JerseyCity,NJ7310,UnitedStates JobTitle:OfficeClerkJobTitle:Manager Email:[email protected]:[email protected] Telephone:+1602-0358-1146Telephone:(617)834-9181

HONGKONGFALCONOPTICSCO.,LIMITED Date:2026-07-08 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 RE:LETTEROFAGENTAUTHORIZATION FCCID:2BOZ9-M1V20 ToWhomItMayConcern: We,theundersigned,herebyauthorizeComplianceTesting,LLCtoactonourbehalfinallmatters relatingtoapplicationforequipmentauthorization,includingthesigningofalldocumentsrelatingto thesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothedenialof benefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988,21 U.S.C.853(a). Signature PrintedName:IrisTang Company:HONGKONGFALCONOPTICSCO.,LIMITED JobTitle:OfficeClerk Email:[email protected] Telephone:+1602-0358-1146

HONGKONGFALCONOPTICSCO.,LIMITED RequestforLong-TermConfidentialityLetter-FCC Date:2026-07-08 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,Maryland21046 Re:RequestforLong-Termconfidentiality FCCID:2BOZ9-M1V20 Towhomitmayconcern, Weherebyrespectfullyrequestthatundertheprovisionof47CFR0.459and0.457(d)the documentslistedbelowandattachedwiththisapplicationforcertificationbeprovidedwithLong- Termconfidentialstatus.  Schematics  OperationalDescription FrequencyBlockDiagrams Anyexhibit/informationforwhichwehaverequestedconfidentiality,butwhichmaynotbe accordedsuchtreatmentbytheFCC,shouldbereturnedtous. Thedocumentslistedabovecontaintradesecretsthataretreatedasconfidentialbyus. Substantialcompetitiveharmtouscouldresultshouldtheybemadeavailabletothepublic. Sincerelyyours, Signature PrintedName:IrisTang Company:HONGKONGFALCONOPTICSCO.,LIMITED JobTitle:OfficeClerk Email:[email protected] Telephone:+1602-0358-1146

HONGKONGFALCONOPTICSCO.,LIMITED ProductSimilarityDeclaration Productname:ThermalImagingTelescope Modelname:M1V2.0,M1V2.0-650L,MMV2.0-650L,MMV2.0 FCCID:2BOZ9-M1V20 We(HONGKONGFALCONOPTICSCO.,LIMITED)herebystate thatallthemodelsareelectricalidenticalincludingthesame softwareparameterandhardwaredesign(i.e.,circuitdesign,PCB Layout,RFmodule/circuit,antennatype(s)andantennalocation, componentsonPCB,etc.,),samemechanicalstructureand design(includingproductenclosure,materials,etc.,).Onlythe modelnamesaredifferent. Signature PrintedName:IrisTang Company:HONGKONGFALCONOPTICSCO.,LIMITED Title:OfficeClerk Email:[email protected] Telephone:+1602-0358-1146

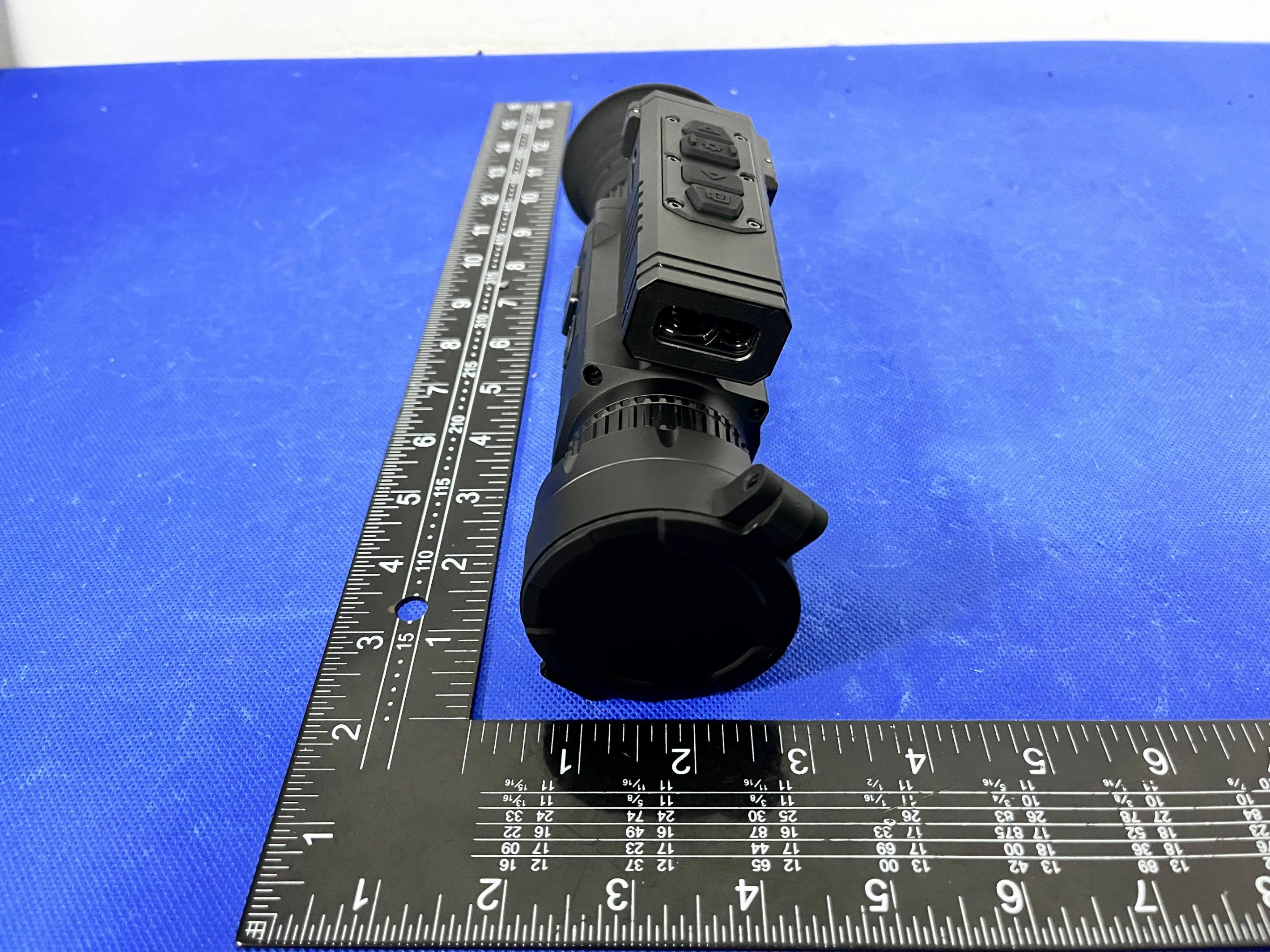

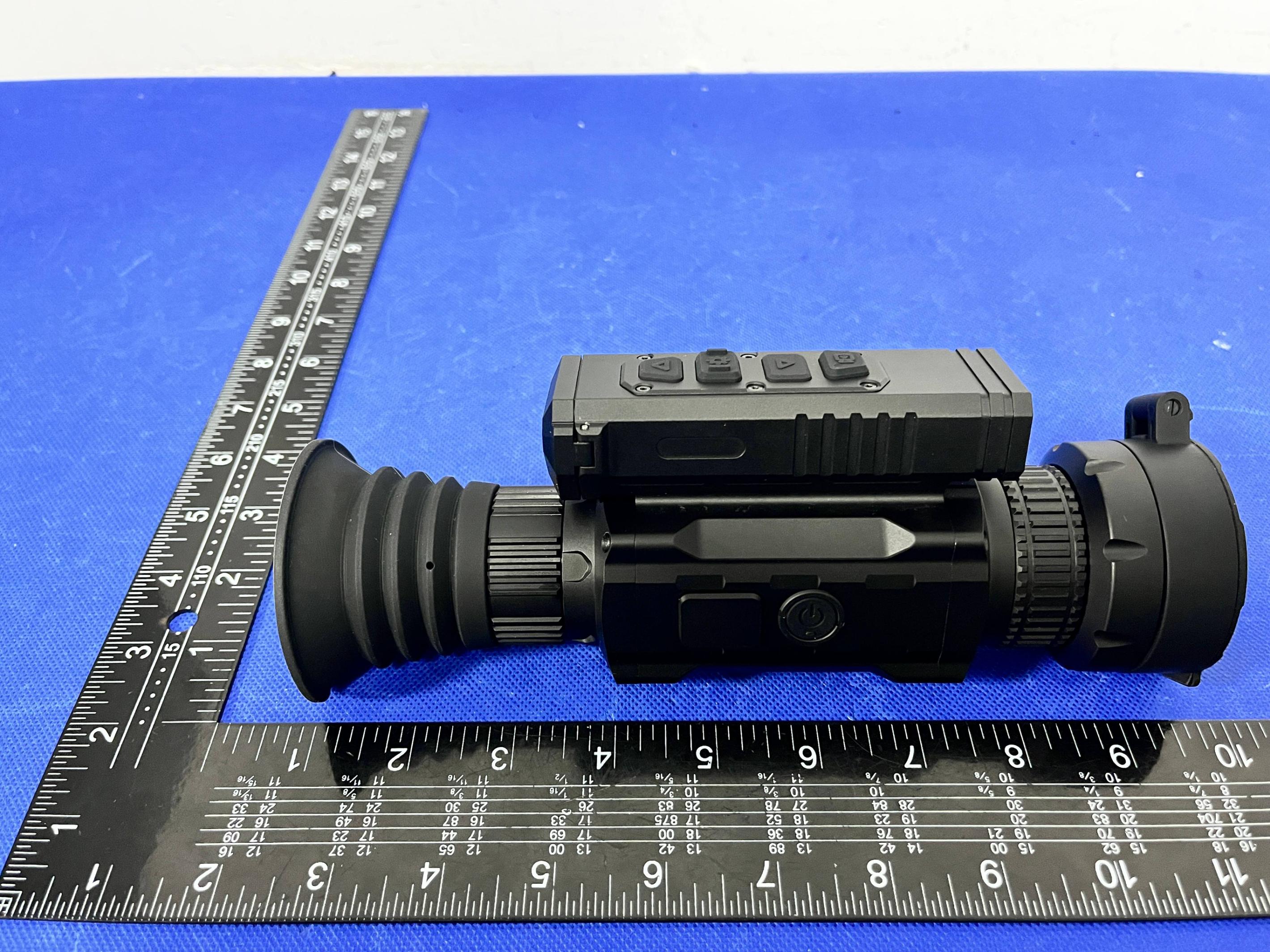

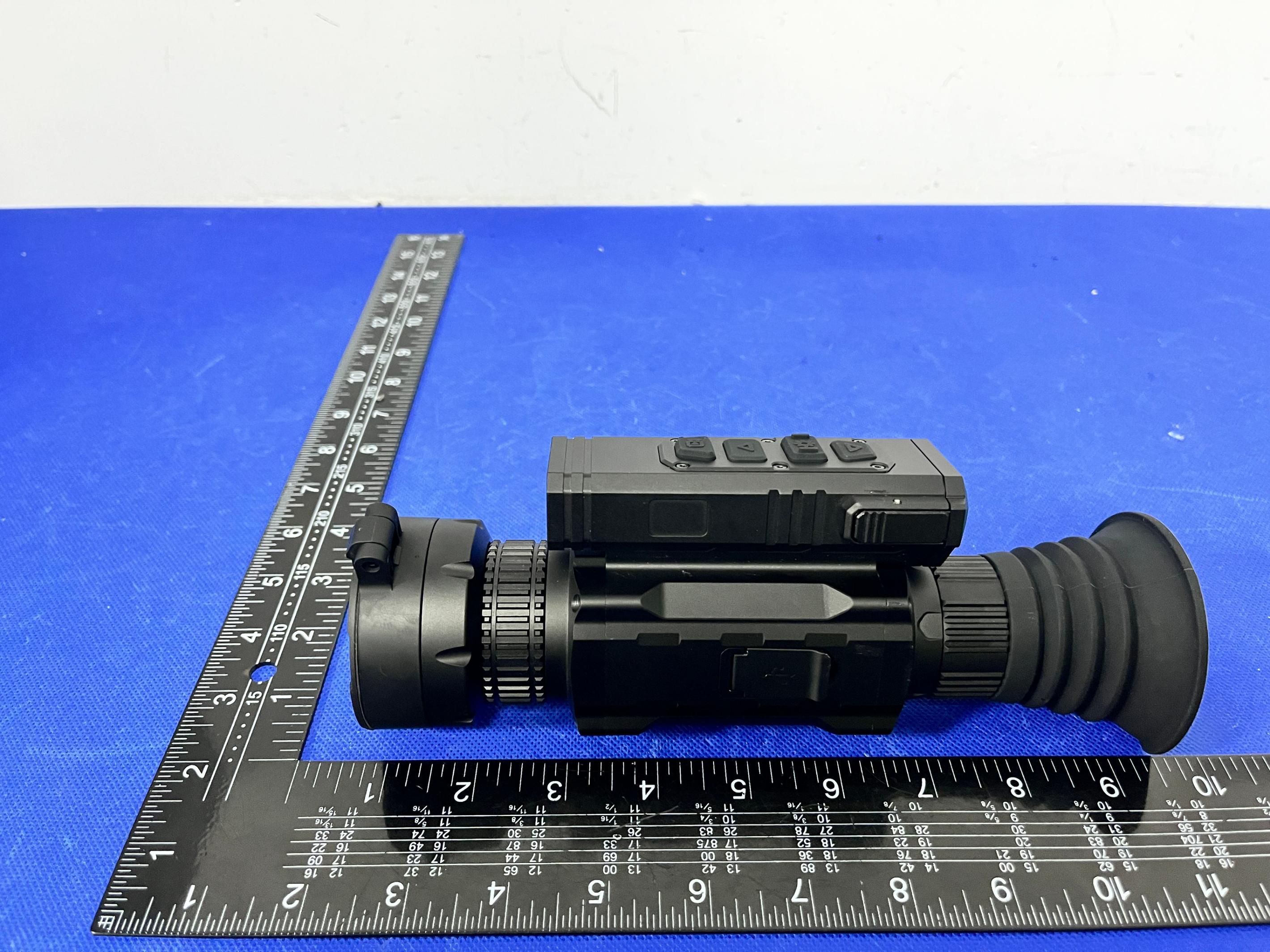

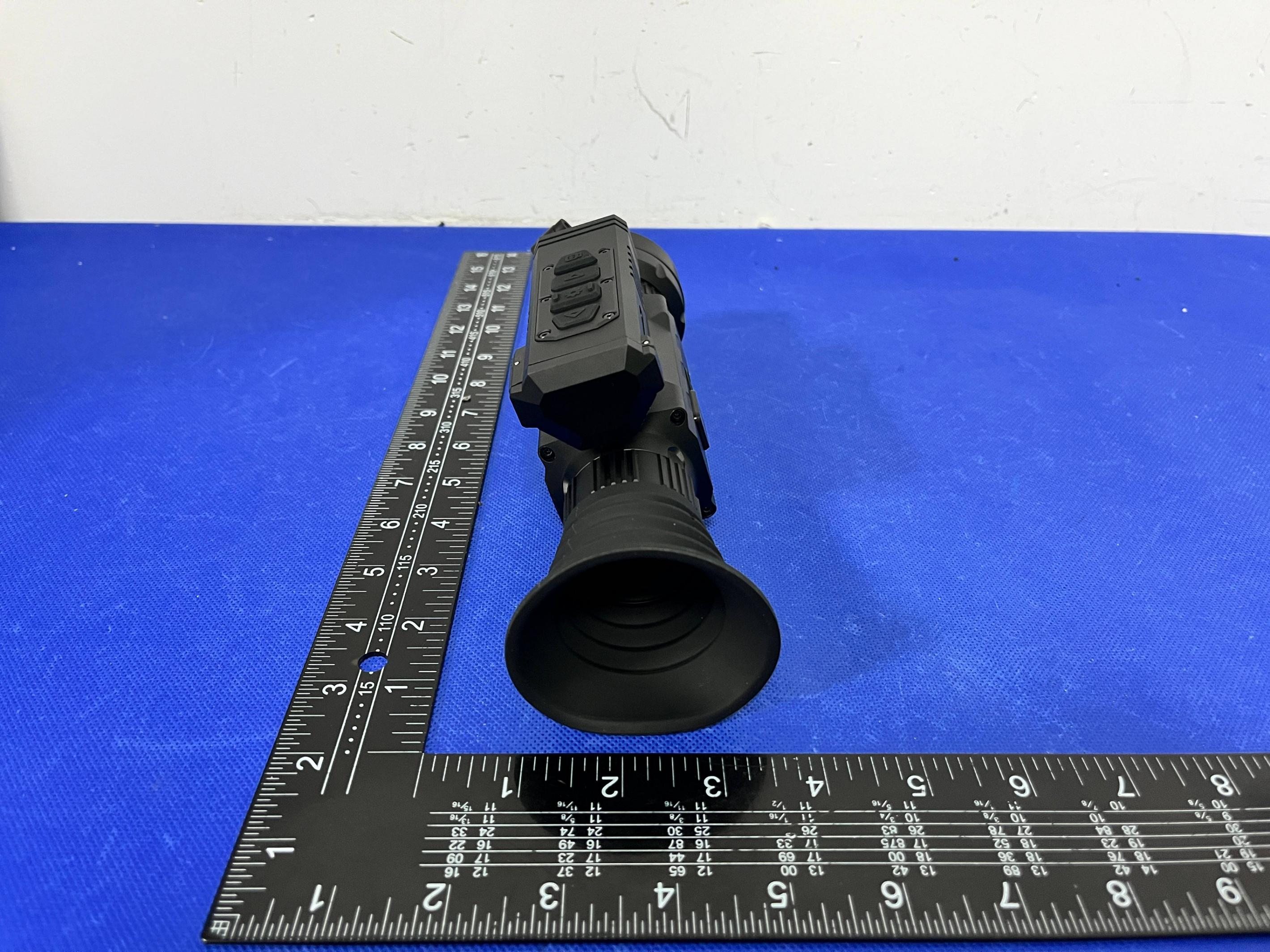

ReportNo.:BKC26063182FE-4 ExternalPhotos Model:M1V2.0 ReportNo.:BKC26063182FE-4 ReportNo.:BKC26063182FE-4

FCCID:2BOZ9-M1V20 1.5CM 0.5CM

ReportNo.:BKC26063182FE-5 InternalPhotos Model:M1V2.0 ReportNo.:BKC26063182FE-5 ReportNo.:BKC26063182FE-5 ReportNo.:BKC26063182FE-5 ReportNo.:BKC26063182FE-5 ReportNo.:BKC26063182FE-5 ReportNo.:BKC26063182FE-5 ReportNo.:BKC26063182FE-5 ReportNo.:BKC26063182FE-5 ReportNo.:BKC26063182FE-5 ReportNo.:BKC26063182FE-5 ReportNo.:BKC26063182FE-5 ReportNo.:BKC26063182FE-5 ReportNo.:BKC26063182FE-5 ※※※※※ENDOFREPORT※※※※※

FCCID:2BOZ9-M1V20 RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093， UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone 1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposure conditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, FrequencyRange:2.4GWIFI:2412-2462MHz For2.4GWIFI Remark:2.4GWIFIantennagain=-7.77dBi Result:Compliant SoaSARtestisnotrequired maxtune-uppower (dBm) maxtune-uppower (mW) Frequency (MHz) Min.Distance (mm) Calc.thresholdslimit 3.492.23424125 0.694 3.0

深圳锐锋电子技术有限公司 ShenzhenRuifengElectronicTechnologyCo.,Ltd 公司地址：深圳市宝安区福永镇重庆路新福工业园B5栋4楼电话:0755-27211658传真:0755-29485750 CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'an District,ShenzhenCity.Tel:0755-27211658.Fax:0755-29485750 承认书 SPECIFICATIONFORAPPROVAL 审批/Approval客户批准/CustomerApproval 制作 PreparedBy 审核 CheckedBy 批准 ApprovalBy 审核 CheckedBy 批准 ApprovalBy 签章 Signature 李瑶娜符学荣夏承磊 日期 Date 2026.6.112026.6.112026.6.11 修订履历/ChangeLog 版本 Version 修订内容 ChangeDescription 责任人 PersoninCharge 核准 ApprovalBy 日期 Date 客户名称 CustomerName 视宇通 客户项目名Customer ProjectName MMV2 项目名 ProjectName MMV2 客户编码 CustomerP/N 料号 P/N WF7035B-0812R-70 频段 Band WiFi2.4G 版本号 Version A0 设计人信息/DesignerInformation 射频工程师 RFEngineer 符学荣 研发主管 R&DDiretor 夏承磊 结构工程师 MEEngineer 黄宗宝 深圳锐锋电子技术有限公司 ShenzhenRuifengElectronicTechnologyCo.,Ltd 公司地址：深圳市宝安区福永镇重庆路新福工业园B5栋4楼电话:0755-27211658传真:0755-29485750 CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'an District,ShenzhenCity.Tel:0755-27211658.Fax:0755-29485750 目录/Catalogue 序号 No. 项目 Item 页码 PageNo. 1 图纸或实物图片 DrawingorProductImage 3/5 2 尺寸测量报告 DimensionsTestReport 4/6 3 射频性能测试报告 RFPerformanceTestReport 7-10 4 可靠性测试报告 ReliabilityTestReport1 11 5 安装事宜或其它 InstallWizardorOther 12 深圳锐锋电子技术有限公司 ShenzhenRuifengElectronicTechnologyCo.,Ltd 公司地址：深圳市宝安区福永镇重庆路新福工业园B5栋4楼电话:0755-27211658传真:0755-29485750 CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'an District,ShenzhenCity.Tel:0755-27211658.Fax:0755-29485750 产品图纸或实物图片 DrawingorProductImage H Z B W F 7 0 3 5 B - 0 8 1 2 R - 7 0 M M V 2 X . X ± 0 . 5 X . X X ± 0 . 2 X X X . ± 1 0 . 0 X X . ± 5 . 0 X . ± 2 . 0 1 7 0 1 注 ： 端 子 头 朝 下  手 撕 位 M M V 2 W F   深圳锐锋电子技术有限公司 ShenzhenRuifengElectronicTechnologyCo.,Ltd 公司地址：深圳市宝安区福永镇重庆路新福工业园B5栋4楼电话:0755-27211658传真:0755-29485750 CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'an District,ShenzhenCity.Tel:0755-27211658.Fax:0755-29485750 样品尺寸测量报告 SampleDimensionsTestReport 测试日期 TestDate 2026.6.11 样品数量 SampleQty. 3 测试人 Inspector 许燕芳 尺寸编号 DimensionNo. 标准 Standard 样品1 Sample1 样品2 Sample2 样品3 Sample3 Pass/NG ①长度9.9±0.2mm9.99.910 Pass ②宽度14.6±0.2mm14.614.714.7 Pass ③厚度0.1±0.03mm0.10.10.1 Pass ④线长70±2mm707170 Pass 最终结论 Conclusion PASS 测试人&日期 Inspector&Date 许燕芳2026.6.11 批准&日期 Approval&Date 深圳锐锋电子技术有限公司 ShenzhenRuifengElectronicTechnologyCo.,Ltd 公司地址：深圳市宝安区福永镇重庆路新福工业园B5栋4楼电话:0755-27211658传真:0755-29485750 CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'an District,ShenzhenCity.Tel:0755-27211658.Fax:0755-29485750 射频性能测量报告 RFPerformanceTestReport 天线测试设备简介 AntennaTestEquipmentIntroduction 测试天线输入特性使用AgilentE5071CandAgilent5062A矢量网络分析仪；辐射特性利 用广屏三维近场暗室进行测试，并分别使用8960E5515和AgilentE4438C进行了分析。暗房的测 试坐标如下: TestofantennainputcharacteristicsusingAgilentE5071CandAgilent5062Avectornetwork analyzer;Theradiationpatternoftheantennaaretestedusingtheguangping3DnearfieldAnechoicChamber, andtheinstrumentisusedtoagilent8960E5515andAgilentE4438C.Thetestcoordinatesofthedarkroom areasfollows: 1.S11参数测量/S11Parameter-VSWR 使用一根50Ω同轴电缆连接到天线，然后该电缆连接到网络分析仪测量S11参数，被测量产品远离金属至少 20厘米。 MeasuringMethodisa50Ωcoaxialcableisconnectedtotheantenna.Thenthiscableisconnectedtoanetworkanalyzer tomeasuretheS11parameter,Keepingthisfixtureawayfrommetalatleast20cm. 深圳锐锋电子技术有限公司 ShenzhenRuifengElectronicTechnologyCo.,Ltd 公司地址：深圳市宝安区福永镇重庆路新福工业园B5栋4楼电话:0755-27211658传真:0755-29485750 CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'an District,ShenzhenCity.Tel:0755-27211658.Fax:0755-29485750 S11Parameter-VSWR 2.天线匹配网络/AntennaMatchingNetwork 深圳锐锋电子技术有限公司 ShenzhenRuifengElectronicTechnologyCo.,Ltd 公司地址：深圳市宝安区福永镇重庆路新福工业园B5栋4楼电话:0755-27211658传真:0755-29485750 CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'an District,ShenzhenCity.Tel:0755-27211658.Fax:0755-29485750 3.Gain&Efficiency- Frequency(MHz)Efficiency(%)PeakGAIN(dBi) 2400 15.63-8.29 2450 16.41-8.03 2500 17.47-7.77 深圳锐锋电子技术有限公司 ShenzhenRuifengElectronicTechnologyCo.,Ltd 公司地址：深圳市宝安区福永镇重庆路新福工业园B5栋4楼电话:0755-27211658传真:0755-29485750 CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'an District,ShenzhenCity.Tel:0755-27211658.Fax:0755-29485750 可靠性测试报告 ReliabilityTestReport 测试日期 TestDate 2026.6.11 样品数量 SampleQty. 3 测试人 Inspector 许燕芳 测试项目 TestItem 要求 Requirement 试验设备 testing equipment 样品1 Sample1 样品2 Sample2 样品3 Sample3 判定 PASS/NG 高温存储 在+85°C条件下暴露 24H，恢复2H后进行测 试 恒温恒湿箱OKOKOKPass 低温存储 在-40°C条件下暴露 24H，恢复2H后进行测 试 恒温恒湿箱OKOKOKPass 高温工作 在+60°C条件下通电工 作24H 恒温恒湿箱OKOKOKPass 低温工作 在-20°C条件下通电工 作24H 恒温恒湿箱OKOKOKPass 盐雾试验 (5士0．5)%氯化钠、 pH值为6.5～7.2，实验 箱温度(35±2)°C □24H☑48H 盐雾试验机OKOKOKPass 连接器铆压拉 拔力 1.13线径≥10N 0.81线径≥8N RG174≥60N RG178≥50N 推拉力计≥8N≥8N≥8NPass 最终结论 Conclusion Pass 测试人&日 期 Inspector& Date 许燕芳2026.6.11 批准&日期 Approval&D ate 深圳锐锋电子技术有限公司 ShenzhenRuifengElectronicTechnologyCo.,Ltd 公司地址：深圳市宝安区福永镇重庆路新福工业园B5栋4楼电话:0755-27211658传真:0755-29485750 CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'an District,ShenzhenCity.Tel:0755-27211658.Fax:0755-29485750 安装事宜或其它 InstallWizardorOther 安装过程： 取1PCS产品，用手撕下FPC背面的离型纸，然后将FPC定位孔位置与外壳定位孔位置（定位筋 位或定位线）对齐，平整的贴附与外壳上，具体位置如下图所示： 安装过程注意事项： □粘贴天线后保证FPC完整贴附于外壳； □定位孔与外壳定位柱位置对齐； □FPC边缘与外壳边缘对齐； □带端子天线在将端子扣合到主板PCBA端时请首先对齐端子，然后垂直扣合； □拆卸天线端子时需使用工具（如专用撬棍）垂直翘起端子，不可直接拽线拆卸 深圳锐锋电子技术有限公司 ShenzhenRuifengElectronicTechnologyCo.,Ltd 公司地址：深圳市宝安区福永镇重庆路新福工业园B5栋4楼电话:0755-27211658传真:0755-29485750 CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'an District,ShenzhenCity.Tel:0755-27211658.Fax:0755-29485750

Report HONGKONGFALCONOPTICSCO.,LIMITED Model:M1V2.0 FCCID:2BOZ9-M1V20 1.DutyCycle ConditionModeFrequency(MHz)AntennaDutyCycle(%)CorrectionFactor(dB)1/T(kHz) NVNTb2412Ant110000 NVNTb2437Ant110000 NVNTb2462Ant110000 NVNTg2412Ant110000 NVNTg2437Ant110000 NVNTg2462Ant110000 NVNTn202412Ant110000 NVNTn202437Ant110000 NVNTn202462Ant110000 Report DutyCycleNVNTb2412MHzAnt1 DutyCycleNVNTb2437MHzAnt1 Report DutyCycleNVNTb2462MHzAnt1 DutyCycleNVNTg2412MHzAnt1 Report DutyCycleNVNTg2437MHzAnt1 DutyCycleNVNTg2462MHzAnt1 Report DutyCycleNVNTn202412MHzAnt1 DutyCycleNVNTn202437MHzAnt1 Report DutyCycleNVNTn202462MHzAnt1 Report 2.MaximumAverageConductedOutputPower ConditionModeFrequency (MHz) AntennaConductedPower (dBm) DutyFactor (dB) TotalPower (dBm) Limit (dBm) Verdict NVNTb2412Ant13.0503.0530Pass NVNTb2437Ant12.9502.9530Pass NVNTb2462Ant12.5902.5930Pass NVNTg2412Ant13.4903.4930Pass NVNTg2437Ant13.1903.1930Pass NVNTg2462Ant12.9202.9230Pass NVNTn202412Ant13.4103.4130Pass NVNTn202437Ant13.303.330Pass NVNTn202462Ant12.8702.8730Pass Report AveragePowerNVNTb2412MHzAnt1 AveragePowerNVNTb2437MHzAnt1 Report AveragePowerNVNTb2462MHzAnt1 AveragePowerNVNTg2412MHzAnt1 Report AveragePowerNVNTg2437MHzAnt1 AveragePowerNVNTg2462MHzAnt1 Report AveragePowerNVNTn202412MHzAnt1 AveragePowerNVNTn202437MHzAnt1 Report AveragePowerNVNTn202462MHzAnt1 Report 3.-6dBBandwidth ConditionModeFrequency(MHz)Antenna-6dBBandwidth(MHz)Limit-6dBBandwidth(MHz)Verdict NVNTb2412Ant110.1560.5Pass NVNTb2437Ant110.1490.5Pass NVNTb2462Ant110.1550.5Pass NVNTg2412Ant116.3840.5Pass NVNTg2437Ant116.4230.5Pass NVNTg2462Ant116.3550.5Pass NVNTn202412Ant117.6180.5Pass NVNTn202437Ant117.6180.5Pass NVNTn202462Ant117.5900.5Pass Report -6dBBandwidthNVNTb2412MHzAnt1 -6dBBandwidthNVNTb2437MHzAnt1 Report -6dBBandwidthNVNTb2462MHzAnt1 -6dBBandwidthNVNTg2412MHzAnt1 Report -6dBBandwidthNVNTg2437MHzAnt1 -6dBBandwidthNVNTg2462MHzAnt1 Report -6dBBandwidthNVNTn202412MHzAnt1 -6dBBandwidthNVNTn202437MHzAnt1 Report -6dBBandwidthNVNTn202462MHzAnt1 Report 4.OccupiedChannelBandwidth ConditionModeFrequency(MHz)Antenna99%OBW(MHz) NVNTb2412Ant115.017 NVNTb2437Ant114.998 NVNTb2462Ant115.019 NVNTg2412Ant116.556 NVNTg2437Ant116.513 NVNTg2462Ant116.55 NVNTn202412Ant117.732 NVNTn202437Ant117.70 NVNTn202462Ant117.702 Report OBWNVNTb2412MHzAnt1 OBWNVNTb2437MHzAnt1 Report OBWNVNTb2462MHzAnt1 OBWNVNTg2412MHzAnt1 Report OBWNVNTg2437MHzAnt1 OBWNVNTg2462MHzAnt1 Report OBWNVNTn202412MHzAnt1 OBWNVNTn202437MHzAnt1 Report OBWNVNTn202462MHzAnt1 Report 5.MaximumPowerSpectralDensityLevel ConditionModeFrequency (MHz) AntennaConductedPSD (dBm/3kHz) DutyFactor (dB) TotalPSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNTb2412Ant1-14.120-14.128Pass NVNTb2437Ant1-14.620-14.628Pass NVNTb2462Ant1-14.800-14.808Pass NVNTg2412Ant1-16.200-16.208Pass NVNTg2437Ant1-16.670-16.678Pass NVNTg2462Ant1-17.030-17.038Pass NVNTn202412Ant1-16.850-16.858Pass NVNTn202437Ant1-16.740-16.748Pass NVNTn202462Ant1-17.440-17.448Pass Report PSDNVNTb2412MHzAnt1 PSDNVNTb2437MHzAnt1 Report PSDNVNTb2462MHzAnt1 PSDNVNTg2412MHzAnt1 Report PSDNVNTg2437MHzAnt1 PSDNVNTg2462MHzAnt1 Report PSDNVNTn202412MHzAnt1 PSDNVNTn202437MHzAnt1 Report PSDNVNTn202462MHzAnt1 Report 6.BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTb2412Ant1-43.77-30Pass NVNTb2462Ant1-48.64-30Pass NVNTg2412Ant1-35.48-30Pass NVNTg2462Ant1-45.11-30Pass NVNTn202412Ant1-38.55-30Pass NVNTn202462Ant1-46.34-30Pass Report BandEdgeNVNTb2412MHzAnt1Ref BandEdgeNVNTb2412MHzAnt1Emission Report BandEdgeNVNTb2462MHzAnt1Ref BandEdgeNVNTb2462MHzAnt1Emission Report BandEdgeNVNTg2412MHzAnt1Ref BandEdgeNVNTg2412MHzAnt1Emission Report BandEdgeNVNTg2462MHzAnt1Ref BandEdgeNVNTg2462MHzAnt1Emission Report BandEdgeNVNTn202412MHzAnt1Ref BandEdgeNVNTn202412MHzAnt1Emission Report BandEdgeNVNTn202462MHzAnt1Ref BandEdgeNVNTn202462MHzAnt1Emission Report 7.ConductedRFSpuriousEmission ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTb2412Ant1-35.69-30Pass NVNTb2437Ant1-35.10-30Pass NVNTb2462Ant1-34.83-30Pass NVNTg2412Ant1-35.24-30Pass NVNTg2437Ant1-35.44-30Pass NVNTg2462Ant1-35.38-30Pass NVNTn202412Ant1-35.88-30Pass NVNTn202437Ant1-35.71-30Pass NVNTn202462Ant1-34.78-30Pass Report Tx.SpuriousNVNTb2412MHzAnt1Ref Tx.SpuriousNVNTb2412MHzAnt1Emission Report Tx.SpuriousNVNTb2437MHzAnt1Ref Tx.SpuriousNVNTb2437MHzAnt1Emission Report Tx.SpuriousNVNTb2462MHzAnt1Ref Tx.SpuriousNVNTb2462MHzAnt1Emission Report Tx.SpuriousNVNTg2412MHzAnt1Ref Tx.SpuriousNVNTg2412MHzAnt1Emission Report Tx.SpuriousNVNTg2437MHzAnt1Ref Tx.SpuriousNVNTg2437MHzAnt1Emission Report Tx.SpuriousNVNTg2462MHzAnt1Ref Tx.SpuriousNVNTg2462MHzAnt1Emission Report Tx.SpuriousNVNTn202412MHzAnt1Ref Tx.SpuriousNVNTn202412MHzAnt1Emission Report Tx.SpuriousNVNTn202437MHzAnt1Ref Tx.SpuriousNVNTn202437MHzAnt1Emission Report Tx.SpuriousNVNTn202462MHzAnt1Ref Tx.SpuriousNVNTn202462MHzAnt1Emission

ShenzhenBKCTestingCo.,Ltd.ReportNo.:BKC26063182FE-1 TestReportTel:4000-875-3820755-84829082Web:Http://www.bkc-lab.comPage1of30 TESTREPORT Applicant:HONGKONGFALCONOPTICSCO.,LIMITED Address: Room1101D,11/F,LippoSunPlaza,28CantonRoad,TsimShaTsui, Kowloon,HongKong,China Manufacturer:HONGKONGFALCONOPTICSCO.,LIMITED Address: Room1101D,11/F,LippoSunPlaza,28CantonRoad,TsimShaTsui, Kowloon,HongKong,China ProductName:ThermalImagingTelescope ModelNumber:M1V2.0,M1V2.0-650L,MMV2.0-650L,MMV2.0 Trademark:N/A FCCID:2BOZ9-M1V20 TestDate:Jun.12,2026-Jun.22,2026 DateofReport:Jul.08,2026 TestResult: ThisdevicedescribedabovehasbeentestedbyBKC,andthetest resultsshowthattheequipmentundertest(EUT)isincompliance withtheStandardrequirements.Anditisapplicableonlytothetested sampleidentifiedinthereport. TestProcedureUsed: Standards:FCCCFRTitle47Part15SubpartCSection15.247 ANSI C63.10-2020+Cor.1-2023 Preparedby(TestEngineer): CareyZheng Reviewer(Supervisor): CaseyWang Approved(Manager): JerryLiao ShenzhenBKCTestingCo.,Ltd.ReportNo.:BKC26063182FE-1 TestReportTel:4000-875-3820755-84829082Web:Http://www.bkc-lab.comPage2of30 TABLEOFCONTENT 1.GeneralInformation......................................................................................5 1.1.DescriptionofDevice(EUT).......................................................................................................................5 1.2.ChannelList..................................................................................................................................................5 1.3.Summaryoftestresult................................................................................................................................6 1.4.SpecialAccessoriesandAuxiliaryEquipment........................................................................................6 1.5.Testmode......................................................................................................................................................6 1.6.BlockDiagram...............................................................................................................................................7 1.7.Testconfiguration.........................................................................................................................................7 1.8.TestConditions.............................................................................................................................................7 1.9.MeasurementUncertainty(95%confidencelevels,k=2)......................................................................7 1.10.TestFacility..................................................................................................................................................8 1.11.TestEquipment...........................................................................................................................................8 2.Conductedemissionatthemainsterminalstest....................................10 2.1.Limit..............................................................................................................................................................10 2.2.TestSetup....................................................................................................................................................10 2.3.TestProcedure............................................................................................................................................10 2.4.TestResult...................................................................................................................................................11 3.RadiatedSpuriousEmissions...................................................................13 3.1.TestProcedure............................................................................................................................................13 3.2.Limit..............................................................................................................................................................14 3.3.TestSetup....................................................................................................................................................15 3.4.TestResult...................................................................................................................................................17 4.ConductedSpuriousEmissions................................................................22 4.1.Limit..............................................................................................................................................................22 4.2.TestSetup....................................................................................................................................................22 4.3.TestProcedure............................................................................................................................................22 4.4.TestResult...................................................................................................................................................22 5.BandEdgeMeasurement...........................................................................23 5.1.Limit..............................................................................................................................................................23 5.2.Testsetup....................................................................................................................................................23 5.3.TestProcedure............................................................................................................................................23 5.4.TestResult...................................................................................................................................................23 6.-6dBBandwidthand99%BandwidthMeasurement..............................2…

Text truncated - open the document above for the full version.

ReportNo.:BKC26063182FE-3 EUTTESTPHOTO Model:M1V2.0 ReportNo.:BKC26063182FE-3
