2BOZ9-M4V20Thermal Imaging Telescope

Medusa Series 1 2 3 4 5 Press theMenu Button to enter the subpage, then, press Left/Right to select on or off and press the Menu Button briefly to confirm To connect via WiFi, first enable the WiFi function in the device's Menu Button, then turn on your mobile phone's WiFi and open the required software app. Locate the WiFi network with the MAC address V3XXXXXXXX and enter the password 12345678 to connect to the device. Once connected, real-time video will be displayed on your mobile phone screen. The device offers 5 color palettes: White Hot, Low Light, Black Hot, Red Hot, and Pseudocolor. The default is "White Hot". When in the menu interface, press the Left/Right Navigation Button briefly to switch palettes, then press the Menu Button briefly to confirm and exit. After entering the crosshair zeroing calibration interface, briefly press the record button to cycle through different function options. Use the Left/Right navigation buttons to adjust the function values. Image Freeze: Briefly press the menu button to toggle image freeze. Briefly press the record button to move to the X and Y axis values. Use the Left and Right navigation buttons to adjust the crosshair position until it aligns with the point of impact. Briefly press the record button to move to other options. After completing settings, move to the save option. Briefly press the menu button to save and exit; press and hold the menu button to cancel saving. The set distance is used as the zeroing point distance in Smart Ballistics and saved to the zeroing memory. 6 Press the Menu Button to enter the sub menu. Use the Left/Right buttons to select either "On" or "Off," and press the Menu Button briefly to confirm. Short- press the Menu Button, and a secondary menu appears on the right. Use the Left/Right navigation buttons to select the unit. Two options are available: Meters / Yards. 7 8 9 WLAN XX-XX-XXX XX-XX-XXX AIMview 10 11 12

HONGKONGFALCONOPTICSCO.,LIMITED CoveredEquipmentCertificationAttestationLetter 6/15/2026 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA ATTN.:ReviewingEngineer FCCID:2BOZ9-M4V20 HONGKONGFALCONOPTICSCO.,LIMITED(“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibitedfrom receivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedbyanyof theentitiesidentifiedonthecurrentCoveredList,theapplicantshouldincludean explanationonwhytheequipmentisnot“covered”equipment. HONGKONGFALCONOPTICSCO.,LIMITED(“theapplicant”)certifiesthat,asofthe dateofthefilingoftheapplication,theapplicantisnotidentifiedontheCoveredList(as aspecificallynamedentityoranyofitssubsidiariesoraffiliates)asanentityproducing “covered”equipment. HONGKONGFALCONOPTICSCO.,LIMITED(“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtdoesnotincludecybersecurityoranti-virus softwareproducedorprovidedbyKasperskyLab,Inc.oranyofitssuccessorsand assignees,includingequipmentwithintegratedKasperskyLab,Inc.(oranyofits successorsandassignees)cybersecurityoranti-virussoftwarepursuanttoDA-24-886 andKDB986446D01CoveredEquipmentGuidancesectionB(2a). Signed: Printedname:IrisTang Title:OfficeClerk CompanyName:HONGKONGFALCONOPTICSCO.,LIMITED Date:6/15/2026

CERTIFICATIONDESIGNATINGAU.S.AGENTFORSERVICEOFPROCESS Date:Jun.12,2026 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,Maryland21046 FCCID:2BOZ9-M4V20 ToWhomItMayConcern: Asrequiredbysection2.911(d)(7),we[HONGKONGFALCONOPTICSCO.,LIMITED, FRN:0036969798]certifiesthatweacknowledgethedesignationofacontactlocated intheUnitedStatesforpurposesofactingastheapplicant’sagentforserviceof process.We[HONGKONGFALCONOPTICSCO.,LIMITED]acceptstomaintainan agentfornolessthanoneyearafterthegranteehasterminatedallmarketingand importationortheconclusionofanyCommission-relatedproceedinginvolvingthe equipment. Asrequiredbysection2.911(d)(7),we[ATHORSTRADINGINC,111TownSquare PlaceSuite#1203JerseyCity,NJ7310,UnitedStates,FRN:0036421360]certifies thatweacknowledgeourobligationactingastheapplicant’sagentforserviceof processfortheabovereferencedFCCID.We[ATHORSTRADINGINC]confirmthat wearenotassociatedwithorpartofanyTCBorFCCrecognisedtestlab. Thankyouforyourattentiontothismatter. Sincerelyyours, SignaturebyapplicantSignaturebydesignatedagent(ifdifferent fromapplicant) PrintedName:IrisTangPrintedName:GeorgeWu Company:HONGKONGFALCONOPTICSCO., LIMITED Company:ATHORSTRADINGINC Address:Room1101D,11/F,LippoSun Plaza,28CantonRoad,TsimShaTsui, Kowloon,HongKong,China Address:111TownSquarePlaceSuite #1203JerseyCity,NJ7310,UnitedStates JobTitle:OfficeClerkJobTitle:Manager Email:[email protected]:[email protected] Telephone:+1602-0358-1146Telephone:(617)834-9181

HONGKONGFALCONOPTICSCO.,LIMITED Date:2026-06-15 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 RE:LETTEROFAGENTAUTHORIZATION FCCID:2BOZ9-M4V20 ToWhomItMayConcern: We,theundersigned,herebyauthorizeComplianceTesting,LLCtoactonourbehalfinallmatters relatingtoapplicationforequipmentauthorization,includingthesigningofalldocumentsrelatingto thesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothedenialof benefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988,21 U.S.C.853(a). Signature PrintedName:IrisTang Company:HONGKONGFALCONOPTICSCO.,LIMITED JobTitle:OfficeClerk Email:[email protected] Telephone:+1602-0358-1146

HONGKONGFALCONOPTICSCO.,LIMITED RequestforLong-TermConfidentialityLetter-FCC Date:2026-06-15 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,Maryland21046 Re:RequestforLong-Termconfidentiality FCCID:2BOZ9-M4V20 Towhomitmayconcern, Weherebyrespectfullyrequestthatundertheprovisionof47CFR0.459and0.457(d)the documentslistedbelowandattachedwiththisapplicationforcertificationbeprovidedwithLong- Termconfidentialstatus.  Schematics  OperationalDescription FrequencyBlockDiagrams Anyexhibit/informationforwhichwehaverequestedconfidentiality,butwhichmaynotbe accordedsuchtreatmentbytheFCC,shouldbereturnedtous. Thedocumentslistedabovecontaintradesecretsthataretreatedasconfidentialbyus. Substantialcompetitiveharmtouscouldresultshouldtheybemadeavailabletothepublic. Sincerelyyours, Signature PrintedName:IrisTang Company:HONGKONGFALCONOPTICSCO.,LIMITED JobTitle:OfficeClerk Email:[email protected] Telephone:+1602-0358-1146

HONGKONGFALCONOPTICSCO.,LIMITED ProductSimilarityDeclaration Productname:ThermalImagingTelescope Modelname:M4V2.0,M4V2.0-225L,TP3 FCCID:2BOZ9-M4V20 We(HONGKONGFALCONOPTICSCO.,LIMITED)herebystate thatallthemodelsareelectricalidenticalincludingthesame softwareparameterandhardwaredesign(i.e.,circuitdesign,PCB Layout,RFmodule/circuit,antennatype(s)andantennalocation, componentsonPCB,etc.,),samemechanicalstructureand design(includingproductenclosure,materials,etc.,).Onlythe modelnamesaredifferent. Signature PrintedName:IrisTang Company:HONGKONGFALCONOPTICSCO.,LIMITED Title:OfficeClerk Email:[email protected] Telephone:+1602-0358-1146

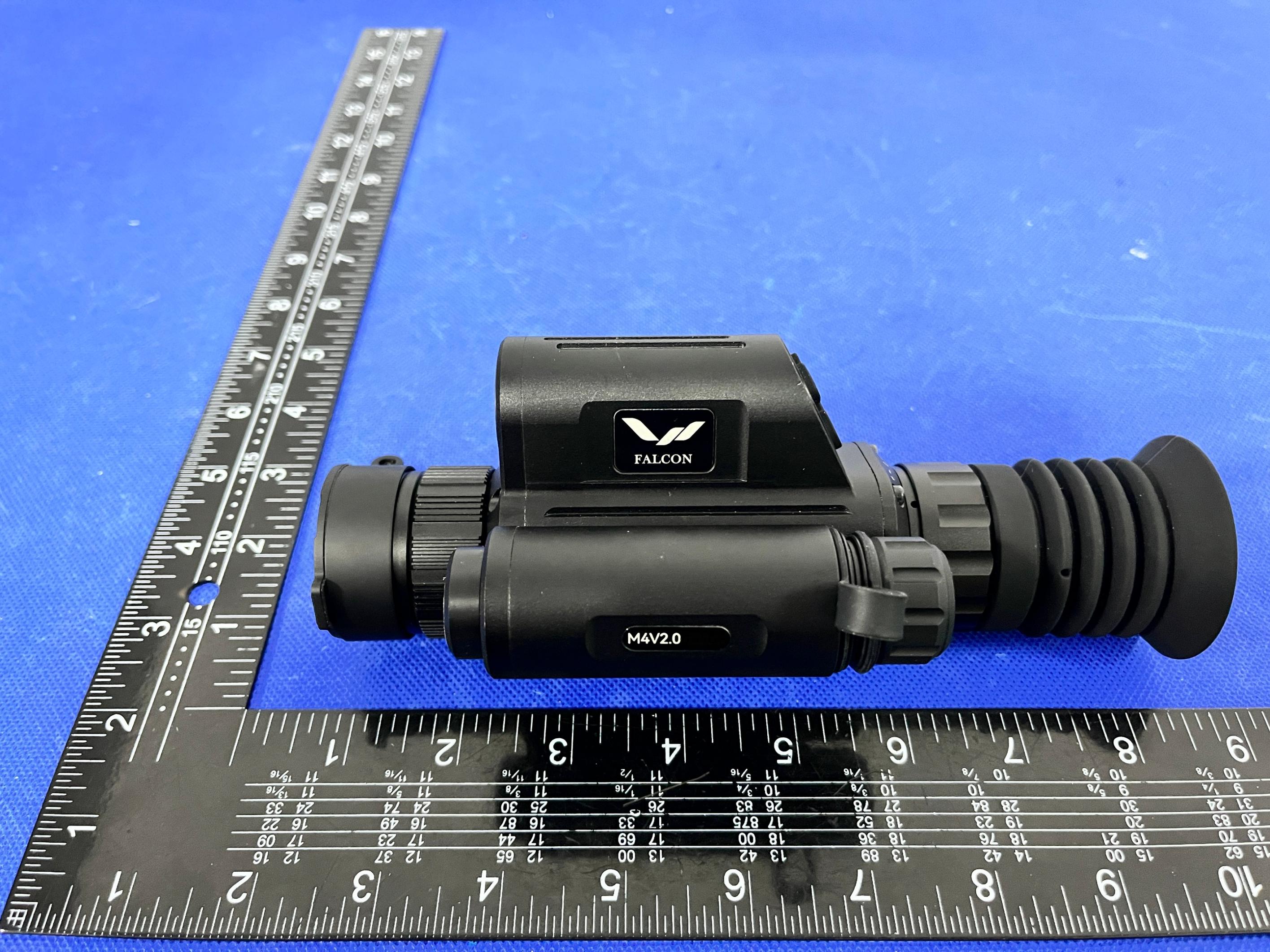

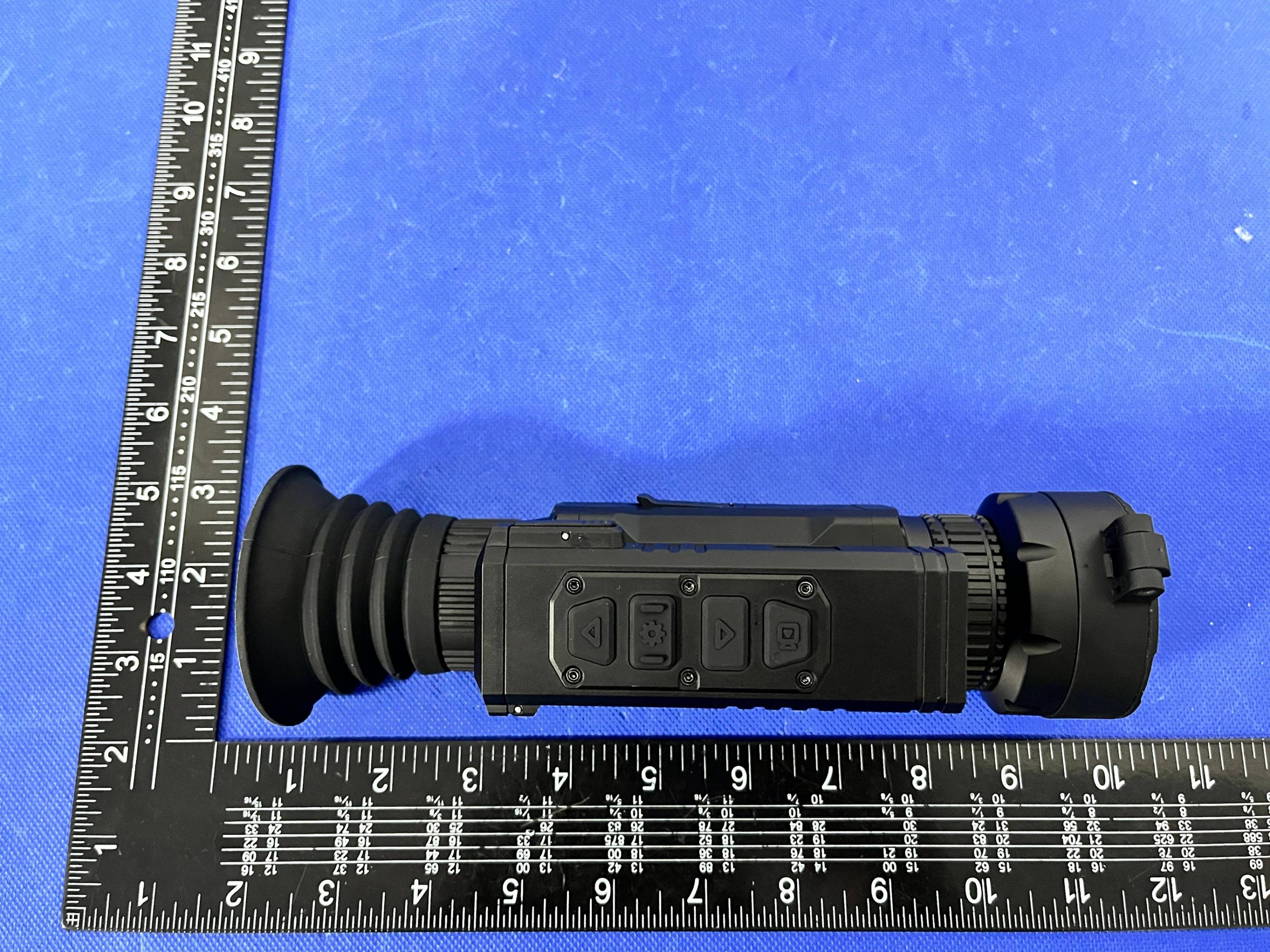

ReportNo.:BKC26062858FE-4 ExternalPhotos Model:M4V2.0 ReportNo.:BKC26062858FE-4 ReportNo.:BKC26062858FE-4

FCCID:2BOZ9-M4V20 1.5CM 0.5CM

ReportNo.:BKC26062858FE-5 InternalPhotos Model:M4V2.0 ReportNo.:BKC26062858FE-5 ReportNo.:BKC26062858FE-5 ReportNo.:BKC26062858FE-5 ReportNo.:BKC26062858FE-5 ReportNo.:BKC26062858FE-5 ReportNo.:BKC26062858FE-5 ReportNo.:BKC26062858FE-5 ReportNo.:BKC26062858FE-5 ※※※※※ENDOFREPORT※※※※※

FCCID:2BOZ9-M4V20 RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093， UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone 1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposure conditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, FrequencyRange:2.4GWIFI:2412-2462MHz For2.4GWIFI Remark:2.4GWIFIantennagain=-4.47dBi Result:Compliant SoaSARtestisnotrequired maxtune-uppower (dBm) maxtune-uppower (mW) Frequency (MHz) Min.Distance (mm) Calc.thresholdslimit 2.781.89724125 0.589 3.0

ResearchanddevelopmentofShenzhenRuifengElectronicTechnologyCo.,LTD CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'anDistrict, Shenzhen TEL:0755-27211658FAX:0755-29485750 AcknowledgmentLetter SPECIFICATIONFORAPPROVAL ApprovalustomerApproval PreparedByCheckedByApprovalByCheckedByApprovalBy Signature Huang Zongbao FuXuerongXiaChenglei Date2025.4.102025.4.102025.4.10 hangeLog VersionChangeDescriptionPersoninChargeApprovalByDate CustomerNameShiyutong CustomerProject Name XMProjectNameXM CustomerP/NRFP/N WF4749B-B150-A Band Versio WIFI2.4G n A0 DesignerInformation RFEngineerFuXuerongR&DDiretorXiaChenglei MEEngineerHuangZongbao ResearchanddevelopmentofShenzhenRuifengElectronicTechnologyCo.,LTD CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'anDistrict, Shenzhen TEL:0755-27211658FAX:0755-29485750 Catalogue No.ItemPageNo. 1DrawingorProductImage3 2DimensionsTestReport4 3RFPerformanceTestReport5-7 4ReliabilityTestReport18 5PackageDocument9 6RoHSControllistforSample10 7InstallWizardorOther10 ResearchanddevelopmentofShenzhenRuifengElectronicTechnologyCo.,LTD CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'anDistrict, Shenzhen TEL:0755-27211658FAX:0755-29485750 DrawingorProductImage W F a n t e n n a L i Y a o N a W F 4 7 4 9 B - B 1 5 0 M - A X M X . X ± 0 . 5 X . X X ± 0 . 2 X X X . ± 1 0 . 0 X X . ± 5 . 0 X . ± 2 . 0 T h e p r o p o r t i o n  S D C X M 4 W F B a c k F r o n t  H a n d t e a r p o s i t i o n B a c k p a d R e l e a s e p a p e r p o s i t i o n ResearchanddevelopmentofShenzhenRuifengElectronicTechnologyCo.,LTD CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'anDistrict, Shenzhen TEL:0755-27211658FAX:0755-29485750 SampleDimensionsTestReport TestDate2025.4.10SampleQty.3Inspector XuYanfang DimensionNo.StandardSample1Sample2Sample3Pass/NG ①diameter17.5±0.2mm17.517.617.5 Pass ②thickness0.1±0.03mm0.10.10.1 Pass ③Linelength150±2mm150151150 Pass ConclusionPASS Inspector&Date XuYanfang2025.4.10 Approval&Date ResearchanddevelopmentofShenzhenRuifengElectronicTechnologyCo.,LTD CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'anDistrict, Shenzhen TEL:0755-27211658FAX:0755-29485750 RFPerformanceTestReport AntennaTestEquipmentIntroduction TestofantennainputcharacteristicsusingAgilentE5071CandAgilent5062Avectornetwork analyzer;Theradiationpatternoftheantennaaretestedusingtheguangping3DnearfieldAnechoicChamber, andtheinstrumentisusedtoagilent8960E5515andAgilentE4438C.Thetestcoordinatesofthedarkroom areasfollows: 1.S11Parameter-VSWR MeasuringMethodisa50Ωcoaxialcableisconnectedtotheantenna.Thenthiscableisconnectedtoanetworkanalyzer tomeasuretheS11parameter,Keepingthisfixtureawayfrommetalatleast20cm. ResearchanddevelopmentofShenzhenRuifengElectronicTechnologyCo.,LTD CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'anDistrict, Shenzhen TEL:0755-27211658FAX:0755-29485750 S11Parameter-VSWR 2. AntennaMatchingNetwork frequency（MHZ）2400 24502500 standing-waveratio 1.61.191.59 ResearchanddevelopmentofShenzhenRuifengElectronicTechnologyCo.,LTD CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'anDistrict, Shenzhen TEL:0755-27211658FAX:0755-29485750 3.Gain&Efficiency Frequency(MHz)Efficiency(%)PeakGAIN(dBi) 240011.28-4.56 245010.64-4.47 250010.63-6.35 ResearchanddevelopmentofShenzhenRuifengElectronicTechnologyCo.,LTD CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'anDistrict, Shenzhen TEL:0755-27211658FAX:0755-29485750 ReliabilityTestReport TestDate2025.4.10SampleQty.3Inspector XuYanfang TestItemRequirement testing equipment Sample1Sample2Sample3PASS/NG high temperature storage Exposeto+85°Cfor 24hours,recoverfor 2hours,andconduct testing Constant temperature andhumidity box OKOKOKPass low temperature storage Exposeto-40°Cfor 24hours,recoverfor 2hours,andperform testing Constant temperature andhumidity box OKOKOKPass High temperature operation Poweredonfor24 hoursat+60°C Constant temperature andhumidity box OKOKOKPass Low temperature operation Poweredonfor24 hoursat-20°C Constant temperature andhumidity box OKOKOKPass Saltspray test (5士0．5)%sodium chloride、pHValue is6.5～7.2， Temperatureof experimental chamber(35±2)°C □24H☑48H Saltspray testing machine OKOKOKPass Connector rivetingand pulling force 1.13Wirediameter≥ 10N 0.81Wirediameter≥ 8N RG174≥60N RG178≥50N Push-pull forcegauge ≥10N≥10N≥10NPass Conclusion Pass Inspector& Date XuYanfang2025.4.10 Approval&D ate ResearchanddevelopmentofShenzhenRuifengElectronicTechnologyCo.,LTD CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,FuyongTown,Bao'anDistrict, Shenzhen TEL:0755-27211658FAX:0755-29485750 ProductROHSCompositionDeclarationForm InstallWizard orOther setupscript： Take1PCSofproduct,tearoffthereleasepaperonthebackoftheFPCbyhand,and thenaligntheFPCpositioningholepositionwiththeshellpositioningholeposition (positioningribpositionorpositioningline),andattachitflattotheshell,asshown inthefollowingfigure: Installationprocessprecautions： □EnsurethattheFPCisfullyattachedtothehousingafterpastingtheantenna； □Alignthepositioningholewiththepositionofthecasingpositioningcolumn； □AlignFPCedgewithshelledge； □WhenattachingtheterminaltothePCBAendofthemotherboard,pleasefirstalign theterminalsandthensnapthemvertically； □Whendisassemblingantennaterminals,itisnecessarytouseatool(suchasaspecial prybar)toverticallylifttheterminalsandnotdirectlypull thewiresfordisassembly produc tname Unifo rm mater ial Harmfulsubstancecontent(PPM) HStestreportnumber DateofHStest report PbCdHgCrBr WIFI& BT anten na FPC NDNDNDNDND UNIB21042707HR-01 2025.4.10 NDNDNDNDND NDNDNDNDND NDNDNDNDND NDNDNDNDND wire rod NDNDNDNDND NDNDNDNDND NDNDNDNDND termin NDNDNDNDND ResearchanddevelopmentofShenzhenRuifengElectronicTechnologyCo.,LTD CompanyAddress:4thFloor,BuildingB5,XinfuIndustrialPark,ChongqingRoad,Fuyon…

Text truncated - open the document above for the full version.

Report HONGKONGFALCONOPTICSCO.,LIMITED Model:M4V2.0 FCCID:2BOZ9-M4V20 1.DutyCycle ConditionModeFrequency(MHz)AntennaDutyCycle(%)CorrectionFactor(dB)1/T(kHz) NVNTb2412Ant110000 NVNTb2437Ant110000 NVNTb2462Ant110000 NVNTg2412Ant110000 NVNTg2437Ant110000 NVNTg2462Ant110000 NVNTn202412Ant110000 NVNTn202437Ant110000 NVNTn202462Ant110000 Report DutyCycleNVNTb2412MHzAnt1 DutyCycleNVNTb2437MHzAnt1 Report DutyCycleNVNTb2462MHzAnt1 DutyCycleNVNTg2412MHzAnt1 Report DutyCycleNVNTg2437MHzAnt1 DutyCycleNVNTg2462MHzAnt1 Report DutyCycleNVNTn202412MHzAnt1 DutyCycleNVNTn202437MHzAnt1 Report DutyCycleNVNTn202462MHzAnt1 Report 2.MaximumAverageConductedOutputPower ConditionModeFrequency (MHz) AntennaConductedPower (dBm) DutyFactor (dB) TotalPower (dBm) Limit (dBm) Verdict NVNTb2412Ant12.2802.2830Pass NVNTb2437Ant11.8001.8030Pass NVNTb2462Ant11.4501.4530Pass NVNTg2412Ant12.5602.5630Pass NVNTg2437Ant12.3202.3230Pass NVNTg2462Ant12.5102.5130Pass NVNTn202412Ant12.7802.7830Pass NVNTn202437Ant12.5402.5430Pass NVNTn202462Ant12.2402.2430Pass Report AveragePowerNVNTb2412MHzAnt1 AveragePowerNVNTb2437MHzAnt1 Report AveragePowerNVNTb2462MHzAnt1 AveragePowerNVNTg2412MHzAnt1 Report AveragePowerNVNTg2437MHzAnt1 AveragePowerNVNTg2462MHzAnt1 Report AveragePowerNVNTn202412MHzAnt1 AveragePowerNVNTn202437MHzAnt1 Report AveragePowerNVNTn202462MHzAnt1 Report 3.-6dBBandwidth ConditionModeFrequency(MHz)Antenna-6dBBandwidth(MHz)Limit-6dBBandwidth(MHz)Verdict NVNTb2412Ant110.1590.5Pass NVNTb2437Ant110.160.5Pass NVNTb2462Ant110.1610.5Pass NVNTg2412Ant116.4420.5Pass NVNTg2437Ant116.3480.5Pass NVNTg2462Ant116.4810.5Pass NVNTn202412Ant117.6390.5Pass NVNTn202437Ant117.6150.5Pass NVNTn202462Ant117.6340.5Pass Report -6dBBandwidthNVNTb2412MHzAnt1 -6dBBandwidthNVNTb2437MHzAnt1 Report -6dBBandwidthNVNTb2462MHzAnt1 -6dBBandwidthNVNTg2412MHzAnt1 Report -6dBBandwidthNVNTg2437MHzAnt1 -6dBBandwidthNVNTg2462MHzAnt1 Report -6dBBandwidthNVNTn202412MHzAnt1 -6dBBandwidthNVNTn202437MHzAnt1 Report -6dBBandwidthNVNTn202462MHzAnt1 Report 4.OccupiedChannelBandwidth ConditionModeFrequency(MHz)Antenna99%OBW(MHz) NVNTb2412Ant115.032 NVNTb2437Ant115.028 NVNTb2462Ant115.032 NVNTg2412Ant116.558 NVNTg2437Ant116.537 NVNTg2462Ant116.581 NVNTn202412Ant117.677 NVNTn202437Ant117.688 NVNTn202462Ant117.705 Report OBWNVNTb2412MHzAnt1 OBWNVNTb2437MHzAnt1 Report OBWNVNTb2462MHzAnt1 OBWNVNTg2412MHzAnt1 Report OBWNVNTg2437MHzAnt1 OBWNVNTg2462MHzAnt1 Report OBWNVNTn202412MHzAnt1 OBWNVNTn202437MHzAnt1 Report OBWNVNTn202462MHzAnt1 Report 5.MaximumPowerSpectralDensityLevel ConditionModeFrequency (MHz) AntennaConductedPSD (dBm/3kHz) DutyFactor (dB) TotalPSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNTb2412Ant1-15.230-15.238Pass NVNTb2437Ant1-15.630-15.638Pass NVNTb2462Ant1-16.210-16.218Pass NVNTg2412Ant1-17.250-17.258Pass NVNTg2437Ant1-17.580-17.588Pass NVNTg2462Ant1-17.490-17.498Pass NVNTn202412Ant1-17.260-17.268Pass NVNTn202437Ant1-16.990-16.998Pass NVNTn202462Ant1-17.960-17.968Pass Report PSDNVNTb2412MHzAnt1 PSDNVNTb2437MHzAnt1 Report PSDNVNTb2462MHzAnt1 PSDNVNTg2412MHzAnt1 Report PSDNVNTg2437MHzAnt1 PSDNVNTg2462MHzAnt1 Report PSDNVNTn202412MHzAnt1 PSDNVNTn202437MHzAnt1 Report PSDNVNTn202462MHzAnt1 Report 6.BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTb2412Ant1-42.74-30Pass NVNTb2462Ant1-48.6-30Pass NVNTg2412Ant1-36.39-30Pass NVNTg2462Ant1-45.12-30Pass NVNTn202412Ant1-38.17-30Pass NVNTn202462Ant1-44.05-30Pass Report BandEdgeNVNTb2412MHzAnt1Ref BandEdgeNVNTb2412MHzAnt1Emission Report BandEdgeNVNTb2462MHzAnt1Ref BandEdgeNVNTb2462MHzAnt1Emission Report BandEdgeNVNTg2412MHzAnt1Ref BandEdgeNVNTg2412MHzAnt1Emission Report BandEdgeNVNTg2462MHzAnt1Ref BandEdgeNVNTg2462MHzAnt1Emission Report BandEdgeNVNTn202412MHzAnt1Ref BandEdgeNVNTn202412MHzAnt1Emission Report BandEdgeNVNTn202462MHzAnt1Ref BandEdgeNVNTn202462MHzAnt1Emission Report 7.ConductedRFSpuriousEmission ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTb2412Ant1-35.45-30Pass NVNTb2437Ant1-34.81-30Pass NVNTb2462Ant1-33.76-30Pass NVNTg2412Ant1-35.64-30Pass NVNTg2437Ant1-35.65-30Pass NVNTg2462Ant1-34.61-30Pass NVNTn202412Ant1-35.05-30Pass NVNTn202437Ant1-33.3-30Pass NVNTn202462Ant1-32.28-30Pass Report Tx.SpuriousNVNTb2412MHzAnt1Ref Tx.SpuriousNVNTb2412MHzAnt1Emission Report Tx.SpuriousNVNTb2437MHzAnt1Ref Tx.SpuriousNVNTb2437MHzAnt1Emission Report Tx.SpuriousNVNTb2462MHzAnt1Ref Tx.SpuriousNVNTb2462MHzAnt1Emission Report Tx.SpuriousNVNTg2412MHzAnt1Ref Tx.SpuriousNVNTg2412MHzAnt1Emission Report Tx.SpuriousNVNTg2437MHzAnt1Ref Tx.SpuriousNVNTg2437MHzAnt1Emission Report Tx.SpuriousNVNTg2462MHzAnt1Ref Tx.SpuriousNVNTg2462MHzAnt1Emission Report Tx.SpuriousNVNTn202412MHzAnt1Ref Tx.SpuriousNVNTn202412MHzAnt1Emission Report Tx.SpuriousNVNTn202437MHzAnt1Ref Tx.SpuriousNVNTn202437MHzAnt1Emission Report Tx.SpuriousNVNTn202462MHzAnt1Ref Tx.SpuriousNVNTn202462MHzAnt1Emission

ShenzhenBKCTestingCo.,Ltd.ReportNo.:BKC26062858FE-1 TestReportTel:4000-875-3820755-84829082Web:Http://www.bkc-lab.comPage1of30 TESTREPORT Applicant:HONGKONGFALCONOPTICSCO.,LIMITED Address: Room1101D,11/F,LippoSunPlaza,28CantonRoad,TsimShaTsui, Kowloon,HongKong,China Manufacturer:HONGKONGFALCONOPTICSCO.,LIMITED Address: Room1101D,11/F,LippoSunPlaza,28CantonRoad,TsimShaTsui, Kowloon,HongKong,China ProductName:ThermalImagingTelescope ModelNumber:M4V2.0,M4V2.0-225L,TP3 Trademark:N/A FCCID:2BOZ9-M4V20 TestDate:Jun.01,2026-Jun.09,2026 DateofReport:Jun.15,2026 TestResult: ThisdevicedescribedabovehasbeentestedbyBKC,andthetest resultsshowthattheequipmentundertest(EUT)isincompliance withtheStandardrequirements.Anditisapplicableonlytothetested sampleidentifiedinthereport. TestProcedureUsed: Standards:FCCCFRTitle47Part15SubpartCSection15.247 ANSI C63.10-2020+Cor.1-2023 Preparedby(TestEngineer): CareyZheng Reviewer(Supervisor): CaseyWang Approved(Manager): JerryLiao ShenzhenBKCTestingCo.,Ltd.ReportNo.:BKC26062858FE-1 TestReportTel:4000-875-3820755-84829082Web:Http://www.bkc-lab.comPage2of30 TABLEOFCONTENT 1.GeneralInformation......................................................................................5 1.1.DescriptionofDevice(EUT).......................................................................................................................5 1.2.ChannelList..................................................................................................................................................5 1.3.Summaryoftestresult................................................................................................................................6 1.4.SpecialAccessoriesandAuxiliaryEquipment........................................................................................6 1.5.Testmode......................................................................................................................................................6 1.6.BlockDiagram...............................................................................................................................................7 1.7.Testconfiguration.........................................................................................................................................7 1.8.TestConditions.............................................................................................................................................7 1.9.MeasurementUncertainty(95%confidencelevels,k=2)......................................................................7 1.10.TestFacility..................................................................................................................................................8 1.11.TestEquipment...........................................................................................................................................8 2.Conductedemissionatthemainsterminalstest....................................10 2.1.Limit..............................................................................................................................................................10 2.2.TestSetup....................................................................................................................................................10 2.3.TestProcedure............................................................................................................................................10 2.4.TestResult...................................................................................................................................................11 3.RadiatedSpuriousEmissions...................................................................13 3.1.TestProcedure............................................................................................................................................13 3.2.Limit..............................................................................................................................................................14 3.3.TestSetup....................................................................................................................................................15 3.4.TestResult...................................................................................................................................................17 4.ConductedSpuriousEmissions................................................................22 4.1.Limit..............................................................................................................................................................22 4.2.TestSetup....................................................................................................................................................22 4.3.TestProcedure............................................................................................................................................22 4.4.TestResult...................................................................................................................................................22 5.BandEdgeMeasurement...........................................................................23 5.1.Limit..............................................................................................................................................................23 5.2.Testsetup....................................................................................................................................................23 5.3.TestProcedure............................................................................................................................................23 5.4.TestResult...................................................................................................................................................23 6.-6dBBandwidthand99%BandwidthMeasurement..............................24 6.1.Limit....…

Text truncated - open the document above for the full version.

ReportNo.:BKC26062858FE-3 EUTTESTPHOTO Model:M4V2.0 ReportNo.:BKC26062858FE-3
