Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
DrKumo Inc. Hub-101A Page 1 of 16 Quick Start User Guide Model: KumoPal™ XL100 Part Number: HUB-101A DrKumo Inc. Hub-101A Page 2 of 16 Welcome! Let's Get Started This Quick Start Guide introduces the main components of your KumoPal Hub, provides instructions to power it on, and includes important care and safety information. Follow the steps on the next pages to get your device ready for use. What's in the Box 1. KumoPal Hub 2. Quick Start Guide 3. USB-C Charging Cable 4. USB-C Charging Adapter DrKumo Inc. Hub-101A Page 3 of 16 Getting to Know Your Hub 1. Power Button 2. Volume + Button 3. Volume - Button 4. USB 2.0 Type-C Port 5. Speakers 6. Microphone 7. Headphone Jack 8. Front-facing Camera 9. Rear-facing Cameras 10. Flashlight DrKumo Inc. Hub-101A Page 4 of 16 What each component does 1. Power Button • Power On: Press and hold the Power button to turn on the Hub. • Power-off: Press and hold the Power Button for a few seconds. Then, on your screen, tap Power off. • Forced restart: Press and hold the Power button for about 8-9 seconds, or until your phone restarts. 2. Volume + Button • Increase the volume of your Hub 3. Volume - Button • Decrease the volume of your Hub 4. USB 2.0 Type-C Port The USB-C charging port is where you plug in a charging cable connected to a power adapter to charge your device's battery or transfer data. 5. Speakers Provides clear and immersive stereo sound directly from your tablet. 6. Microphone Captures audio clearly for video DrKumo Inc. Hub-101A Page 5 of 16 calls, voice commands, or audio recording. 7. Headphone Jack Connect wired headphones or external audio devices for private listening or enhanced audio quality. 8. Front-facing Camera Ideal for selfies, video conferencing, and facial recognition features. 9. Rear-facing Cameras Captures high-quality photos and videos from the rear side of your tablet. 10. Flash Light Provides illumination for capturing clearer photos/videos in low-light conditions or serves as a flashlight. DrKumo Inc. Hub-101A Page 6 of 16 Starting your Hub Step 1: Charge Your Hub 1. It is best to fully charge your Hub before you use it for the first time. This can take a few hours. 2. Connect the small end of the Charging Cable to the Charging Port on your Hub. 3. Connect the large end of the Charging Cable to the Power Adapter. 4. Plug the Power Adapter into a wall outlet. 5. A light or symbol on the screen will show you that it is charging. Step 2: Turn On Your Hub 1. Once your Hub is charged, you are ready to turn it on. 2. Press and hold the Power Button for a few seconds. The screen will light up. It may take a minute to start. DrKumo Inc. Hub-101A Page 7 of 16 Welcome to the DrKumo App It will start and open the DrKumo program for you automatically. You will not see other screens or apps like on other Hubs. This is normal. Your care team has already set everything up for you. Sleep and Wake Your Hub • To save battery, you can put the screen to sleep. • Quickly press and release the Power Button once. • The screen will go dark. Waking the Screen Up • Quickly press the Power Button again. • The screen will turn back on. DrKumo Inc. Hub-101A Page 8 of 16 If You Need Help What if my Hub won't turn on? • Make sure it has been charging for at least 30 minutes. Use the cable and power adapter that came in the box. What if the screen is dark? • The screen may be asleep. Quickly press the Power Button once to wake it up. What if I am still having trouble? • Tap the ? icon on your app for additional support. Important Safety & Care 1. Please only use the charger that came in the box. 2. Keep your Hub away from water and liquids. 3. Do not try to open the Hub or replace the battery yourself. 4. If you're not using your Hub, lock the screen. 5. Lightly touch the screen. Do not press the screen hard. 6. Hearing Damage Risk: Do not listen at high volume levels for a long period. DrKumo Inc. Hub-101A Page 9 of 16 7. Properly place / store it to avoid other objects falling on the Hub. 8. Do not place the Hub directly on the bed before going to bed because heavy pressure is likely to damage the screen during deep sleep DrKumo Inc. Hub-101A Page 10 of 16 Certification Statements FCC-USA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2BP5Q-XL100. CAUTION: Modification or dismantling of this equipment not expressly approved by Manufacturer may void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with DrKumo Inc. Hub-101A Page 11 of 16 the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. SAR Information Statement Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal DrKumo Inc. Hub-101A Page 12 of 16 Communica…
Text truncated - open the document above for the full version.
DrKumo Inc. * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 6/23/2025 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2BP5Q-XL100 FRN of applicant: 0037140282 Per section 2.911(d)(7) of the FCC rules, DrKumo Inc. FRN:0037140282(“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: DrKumo Inc. FCC Registration Number (FRN): 0037140282 Physical U.S. Company Address: 6850 Lincoln Ave. STE 102 Buena Park, CA 90620, USA. Contact Person: Duc Pham Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Duc Pham Title: CTO Company Name: DrKumo Inc. Date: 6/23/2025 Agent Signed (if different from Applicant): Signed: Printed name: Duc Pham Title: CTO Company Name: DrKumo Inc. Date: 6/23/2025
DrKumo Inc. Covered Equipment Certification Attestation Letter 6/23/2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID:2BP5Q-XL100 DrKumo Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. DrKumo Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. DrKumo Inc. (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Duc Pham Title: CTO Company Name: DrKumo Inc. Date: 6/23/2025
DrKumo Inc. Date: 2025/6/23 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC.to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, Dated this 2025-6-23 By: Duc Pham Signature Printed Title: CTO On behalf of : DrKumo Inc. Telephone: (866) 435-6447
DrKumo Inc. DATE :2025-6-23 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BP5Q-XL100 Product Name: Tablet Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation description • BOM • Tune up These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2025-6-23 By: Duc Pham Signature Printed Title: CTO On behalf of : DrKumo Inc. Telephone: (866) 435-6447

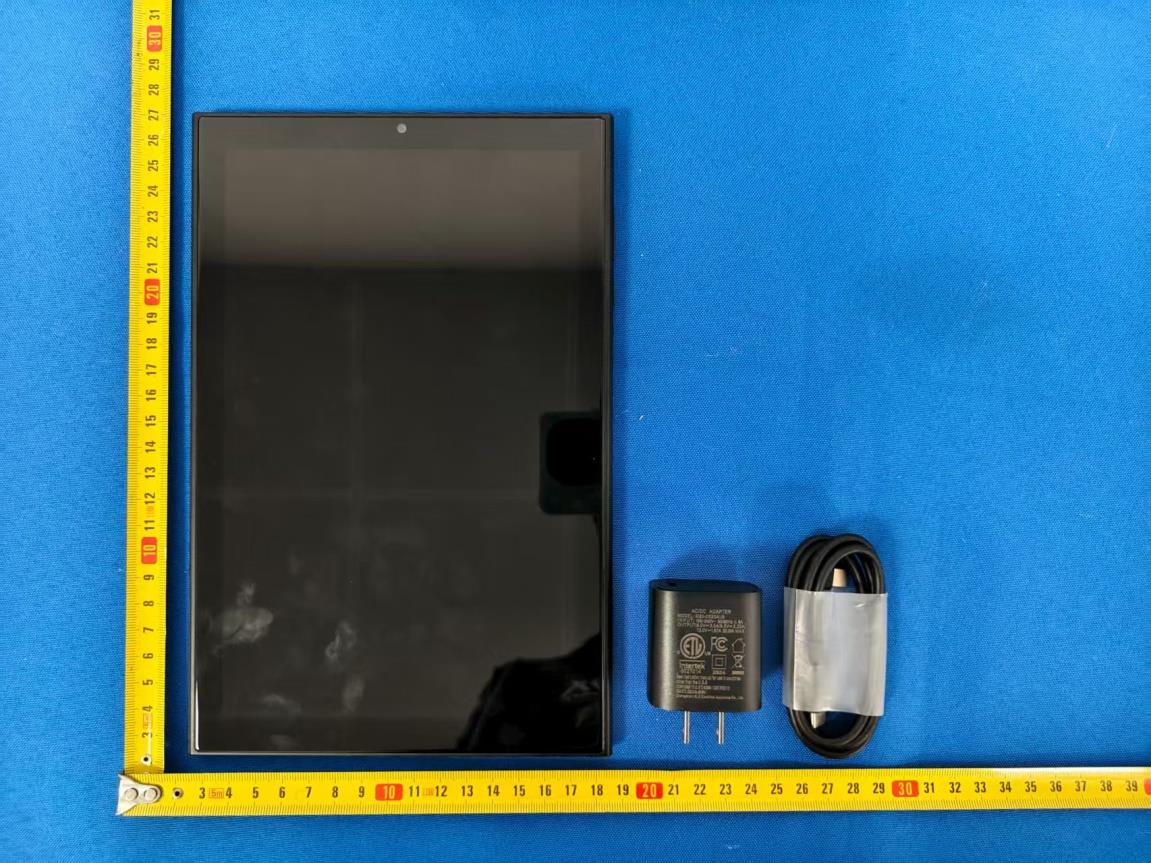

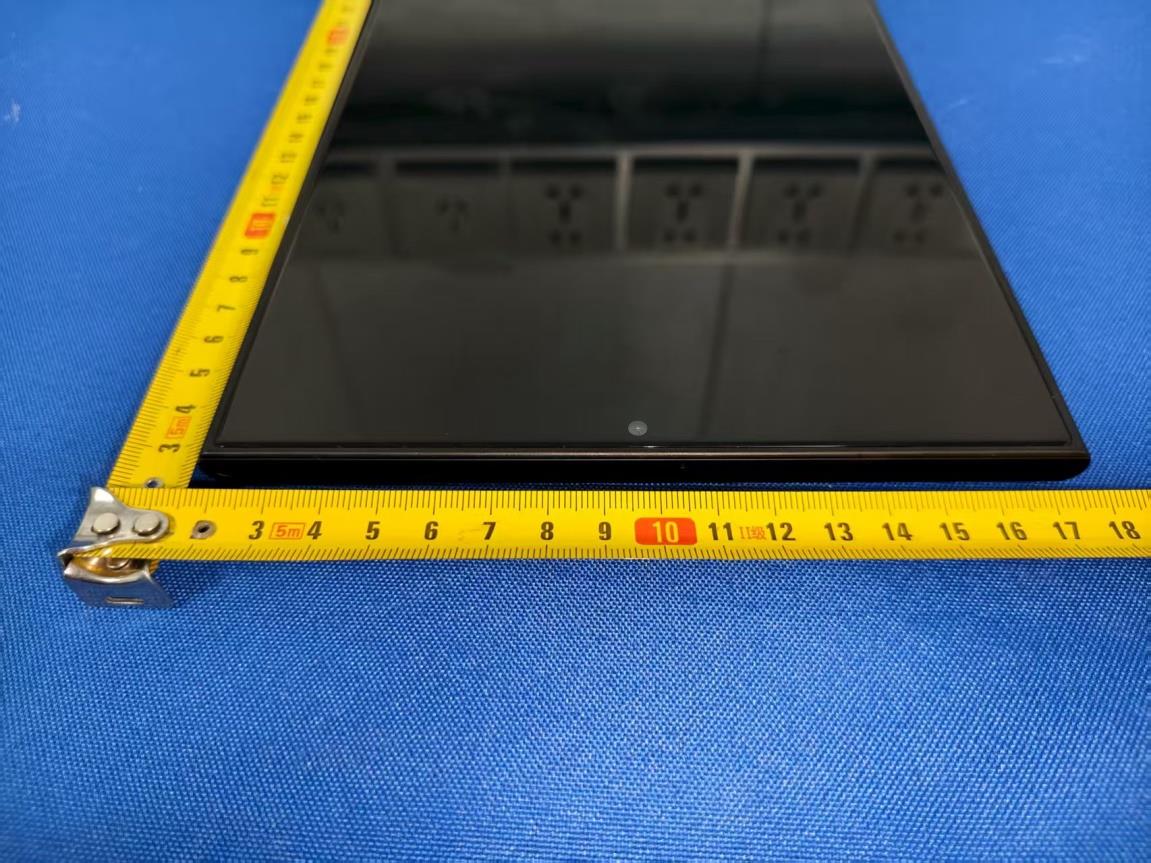

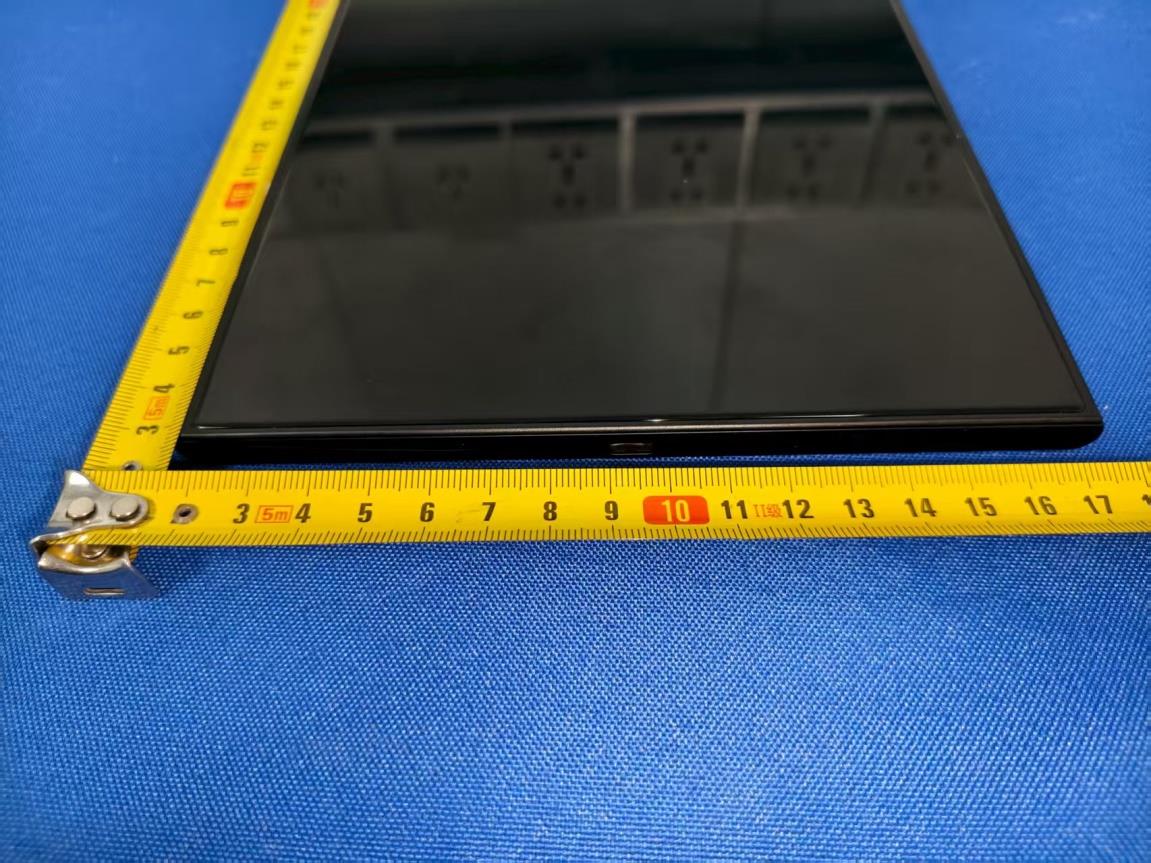

Report No.: SZ25090313 Page 1 of 4 Appendix G _ External Photos of the EUT Report No.: SZ25090313 Page 2 of 4 Report No.: SZ25090313 Page 3 of 4 Report No.: SZ25090313 Page 4 of 4 ※※※※※END ※※※※※
Report No.: SZ25090313 Page 1 of 7 Appendix F _ Internal Photos of the EUT Report No.: SZ25090313 Page 2 of 7 Report No.: SZ25090313 Page 3 of 7 Report No.: SZ25090313 Page 4 of 7 Report No.: SZ25090313 Page 5 of 7 Report No.: SZ25090313 Page 6 of 7 Report No.: SZ25090313 Page 7 of 7 ※※※※※END ※※※※※
TestReportNumber:SZ250903131S01 MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd. FL.1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page1of60 SARTestReport For ApplicantName:DrKumoInc. Address:6850LincolnAve.STE102BuenaPark,CA90620,USA. EUTName:Tablet ModelNumber:XL100 SeriesModelNumber:/ IssuedBy CompanyName: ShenzhenMorlabCommunicationsTechnologyCo.,Ltd. Address: 101,201and301,Building1,Block2,TantouIndustrialPark, TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen, China ReportNumber:SZ250903131S01 TestStandards: FCC47CFRPart2(2.1093) IEEE1528-2013 FCCID:2BP5Q-XL100 TestConclusion:Pass TestDate:2025-08-14to2025-08-24 DateofIssue:2025-09-14 TestedBy:PangSiyu PreparedBy:PangSiyu Date:2025-09-26 ApprovedBy:GanYueming Date:2025-09-26 ThisdocumentisissuedbyShenzhenMorlabCommunicationsTechnologyCo.,thetestreportshall notbereproducedexceptinfullwithoutpriorwrittenpermissionofthecompany.Thetestresults applyonlytotheparticularsample(s)testedandtothespecifictestscarriedoutwhichisavailableon requestforvalidationandinformationconfirmedatourwebsite. TestReportNumber:SZ250903131S01 MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd. FL.1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page2of133 TableofContents 1.Introduction...........................................................................................................................................................................4 1.1IdentificationofTestingLaboratory.............................................................................................................................4 1.2IdentificationoftheResponsibleTestingLocation.....................................................................................................4 1.3LaboratoryCondition...................................................................................................................................................4 1.4Announcement............................................................................................................................................................4 2.ProductInformation...............................................................................................................................................................5 2.1ApplicationInformation...............................................................................................................................................5 2.2ManufacturerInformation............................................................................................................................................5 2.3FactoryInformation.....................................................................................................................................................5 2.4GeneralDescriptionofEquipmentunderTest(EUT).................................................................................................5 2.5EquipmentunderTestAncillaryEquipment................................................................................................................5 2.6TechnicalInformation..................................................................................................................................................5 3.SummaryofTestResults.....................................................................................................................................................7 3.1TestStandards............................................................................................................................................................7 3.2DeviceCategoryandSARLimit.................................................................................................................................7 3.3TestResultSummary..................................................................................................................................................8 3.4TestUncertainty..........................................................................................................................................................9 4.MeasurementSystem...........................................................................................................................................................9 4.1SpecificAbsorptionRate(SAR)Definition..................................................................................................................9 4.2MVGSARSystem.....................................................................................................................................................10 5.SystemVerification.............................................................................................................................................................14 5.1PurposeofSystemCheck........................................................................................................................................14 5.2SystemCheckSetup.................................................................................................................................................14 6.TestPositionConfigurations...............................................................................................................................................15 6.1HeadExposureConditions.......................................................................................................................................15 6.2Body-wornPositionConditions.................................................................................................................................20 6.3HotspotModeExposurePositionConditions.............................................................................…
Text truncated - open the document above for the full version.
Ref : ACR.189.1.16.SATU.A SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY CO., LTD FL3, BUILDING A, FEIYANG SCIENCE PARK, NO.8 LONGCHANG ROAD, BLOCK 67, BAOAN DISTRICT, SHENZHEN, GUANGDONG PROVINCE, P.R. CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 37/08 EP80 Calibrated at MVG US 2105 Barrett Park Dr. - Kennesaw, GA 30144 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in MVG USA using the CALISAR / CALIBAIR test bench, for use with a COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report !"#$%&"'$() *"'+, -./-/1-1 0 . COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.189.1.16.SATU.A Page: 2/9 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Name Function Date Signature Prepared by : Jérôme LUC Product Manager Checked by : Jérôme LUC Product Manager Approved by : Kim RUTKOWSKI Quality Manager Customer Name Distribution : Shenzhen Morlab Communications Technology Co., Ltd Issue DateModifications A Initial release 7/7/202 5 7/7/202 5 7/7/202 5 7/7/202 5 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.189.1.16.SATU.A Page: 3/9 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 5 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment ...................................................................................................... 9 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.189.1.16.SATU.A Page: 4/9 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer MVG Model SSE5 Serial Number SN 37/08 EP80 Product Condition (new / used) Used Frequency Range of Probe 0.7 GHz-3GHz Resistance of Three Dipoles at Connector Dipole 1: R1=1.445 M Dipole 2: R2=1.467 M Dipole 3: R3=1.477 M A yearly calibration interval is recommended. 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION MVG’s COMOSAR E field Probes are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. Figure 1 – MVG COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 4.5 mm Maximum external diameter 8 mm Probe Tip External Diameter 5 mm Distance between dipoles / probe extremity 2.7 mm 3 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C, CENELEC EN50361 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.189.1.16.SATU.A Page: 5/9 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled wi…
Text truncated - open the document above for the full version.
Dipole Impedance and Return Loss Check Report Object: SID750- SN 50/20 DIP 0G750-506 Check Date: March 06, 2025 Check reference: IEC/IEEE 62209-1528:2020, FCC KDB 865664 D01 Checked By: (Eric Wang, SAR project engineer) Reviewed By: (Janet Wei, manager) Environment of Test Site Temperature: 18 ~ 25 C Humidity: 50~60% RH Atmospheric Pressure: 1011 mbar Test Data Comparison with Original report Items Calibrated By MVG In 2024 Checked By JYT In 2025 Deviation Limit Impendence for Head TSL 52.3Ω +1.3jΩ 52.76Ω +1.32jΩ 0.46Ω +0.02Ω ±5Ω Return Loss for Head TSL -31.64dB -30.53dB -3.51% ±20%(No less than 20 dB) Result Compliance Dipole Impedance and Return Loss Check Report Object: SID835 - SN 50/20 DIP 0G835-507 Check Date: March 06, 2025 Check reference: IEC/IEEE 62209-1528:2020, FCC KDB 865664 D01 Checked By: (Eric Wang, SAR project engineer) Reviewed By: (Janet Wei, manager) Environment of Test Site Temperature: 18 ~ 25 C Humidity: 50~60% RH Atmospheric Pressure: 1011 mbar Test Data Comparison with Original report Items Calibrated By MVG In 2024 Checked By JYT In 2025 Deviation Limit Impendence for Head TSL 51.4Ω -1.6jΩ 47.19Ω -1.21jΩ -4.21Ω –0.39jΩ ±5Ω Return Loss for Head TSL -33.61dB -30.04dB -10.62% ±20%(No less than 20 dB) Result Compliance Dipole Impedance and Return Loss Check Report Object: SID1750 - SN 50/20 DIP 1G750-510 Check Date: March 06, 2025 Check reference: IEC/IEEE 62209-1528:2020, FCC KDB 865664 D01 Checked By: (Eric Wang, SAR project engineer) Reviewed By: (Janet Wei, manager) Environment of Test Site Temperature: 18 ~ 25C Humidity: 50~60% RH Atmospheric Pressure: 1011 mbar Test Data Comparison with Original report Items Calibrated By MVG In 2024 Checked By JYT In 2025 Deviation Limit Impendence for Head TSL 42.7Ω-2.4jΩ 41.34Ω-3.87jΩ -1.36Ω-1.47jΩ ±5Ω Return Loss for Head TSL -21.66 dB -19.68 dB -9.14% ±20%(No less than 20 dB) Result Compliance Dipole Impedance and Return Loss Check Report Object: SID1900 - SN 50/20 DIP 1G900-511 Check Date: March 06, 2025 Check reference: IEC/IEEE 62209-1528:2020, FCC KDB 865664 D01 Checked By: (Eric Wang, SAR project engineer) Reviewed By: (Janet Wei, manager) Environment of Test Site Temperature: 18 ~ 25C Humidity: 50~60% RH Atmospheric Pressure: 1011 mbar Test Data Comparison with Original report Items Calibrated By MVG In 2024 Checked By JYT In 2025 Deviation Limit Impendence for Head TSL 48.1Ω+4.1jΩ 46.02Ω+1.29jΩ -2.08Ω-2.81jΩ ±5Ω Return Loss for Head TSL -26.82dB -27.22dB -1.49% ±20%(No less than 20 dB) Result Compliance Dipole Impedance and Return Loss Check Report Object: SID2450 - SN 50/20 DIP 2G450-514 Check Date: March 06, 2025 Check reference: IEC/IEEE 62209-1528:2020, FCC KDB 865664 D01 Checked By: (Eric Wang, SAR project engineer) Reviewed By: (Janet Wei, manager) Environment of Test Site Temperature: 18 ~ 25C Humidity: 50~60% RH Atmospheric Pressure: 1011 mbar Test Data Comparison with Original report Items Calibrated By MVG In 2024 Checked By JYT In 2025 Deviation Limit Impendence for Head TSL 52.3Ω+5.9jΩ 48.75Ω+4.9jΩ -3.55Ω-1.0jΩ ±5Ω Return Loss for Head TSL -24.18dB -25.83dB 6.82% ±20%(No less than 20 dB) Result Compliance
尚远科技(中国)有限公司 Sunnyway Technology (china) Co., LTD. Infomation Matching circuit WCDMA 2/4/5 LTE 2/4/5/12/13/17/25/26/66/71/41 GPS+WIFI 802.11 a/b/g/n Designer 高辉 Serial Number/ESN/IMEI A1 GSM 850/900/ 1800/1900 Band Manufacturer 小辣椒 Model Name AP37 Date 2025/06.10 Antenna size MAIN DIV GWB GSM900: 0.8dBi DCS1800: 1.4dBi WCDMA 2: 1.0dBi WCDMA 4: 1.2dBi WCDMA 5: 0.5dBi LTE2: 1.2dBi LTE4: 0.8dBi LTE5: 0.8dBi LTE12: -0.6dBi LTE13: -0.2dBi LTE17: -0.7dBi LTE25: 1.3dBi PEAK Gain Antenna Gain LTE26: 0.4dBi LTE41: 1.5dBi LTE66: 1.2dBi LTE71: -1.5dBi GPS: 1.3 dBi 2.4WIFI: 1.1dBi 5.8WIFI: -0.5dBi GPS Measuremen t Band Total Measuremen t BandTotalBandTIS TRPFDD_B2(10MHz) 17.08 TRPGSM850 26.45 TRPFDD_B2(10MHz) 17.74 TRPGSM850 26.51 -142.2 TRPFDD_B2(10MHz) 18.25 TRPGSM850 26.32 TIS(RSSI)FDD_B2(10MHz) -91.65 TIS(RSSI)GSM850 -101.54 TRPFDD_B4(10MHz) 19.05 TRPGSM900 23.56 TRPFDD_B4(10MHz) 18.99 TRPGSM900 23.49 TRPFDD_B4(10MHz) 18.86 TRPGSM900 24.05 TIS(RSSI)FDD_B4(10MHz) -91.32 TRPGSM900 -104.36 TRPFDD_B5(10MHz) 17.75 TRPDCS1800 23.74 TRPFDD_B5(10MHz) 17.62 TRPDCS1800 25.31 TRPFDD_B5(10MHz) 17.51 TRPDCS1800 25.29 TIS(RSSI)FDD_B5(10MHz) -91.67 TIS(RSSI)DCS1800 -103.85 TRPFDD_B7(10MHz) 15.98 TRPPCS1900 24.75 TRPFDD_B7(10MHz) 17.31 TRPPCS1900 24.86 TRPFDD_B7(10MHz) 17.24 TRPPCS1900 25.69 TIS(RSSI)FDD_B7(10MHz) -94.23 TIS(RSSI)PCS1900 -102.84 TRPFDD_B12(10MHz) 15.87 TRPWCDMA_B2 16.99 TRPFDD_B12(10MHz) 16.07 TRPWCDMA_B2 18.32 PEAK Gain GPS OTA MAIN TRPFDD_B12(10MHz) 16.18 TRPWCDMA_B2 18.21 TIS(RSSI)FDD_B12(10MHz) -91.52 TIS(RSSI)WCDMA_B2 -103.63 TRPFDD_B13(10MHz) 17.41 TRPWCDMA_B4 18.75 TIS(RSSI)FDD_B13(10MHz) -90.63 TIS(RSSI)WCDMA_B4 18.99 TRPFDD_B25(10MHz) 17.75 TRPWCDMA_B4 19.05 TRPFDD_B25(10MHz) 18.55 TRPWCDMA_B4 -102.34 TRPFDD_B25(10MHz) 17.49 TRPWCDMA_B5 17.48 TIS(RSSI)FDD_B25(10MHz) -92.85 TIS(RSSI)WCDMA_B5 16.32 TRPFDD_B26(10MHz) 17.01 TRPWCDMA_B5 16.98 TRPFDD_B26(10MHz) 16.63 TRPWCDMA_B5 -103.75 TRPFDD_B26(10MHz) 16.74 WIFI TIS(RSSI)FDD_B26(10MHz) -91.15 TRPFDD_B30(10MHz) 18.21 1611 TIS(RSSI)FDD_B30(10MHz) -91.33 2,4122,4372,467 TRPTDD_B38(20MHz) 20.01 11.6511.7411.78 TRPTDD_B38(20MHz) 19.98 -82.79 TRPTDD_B38(20MHz) 19.77 TIS(RSSI)TDD_B38(20MHz) -97.12 TRPTDD_B40(20MHz) 18.62 1611 TRPTDD_B40(20MHz) 18.78 2,4122,4372,467 TRPTDD_B40(20MHz) 18.54 10.2311.0510.74 TIS(RSSI)TDD_B40(20MHz) -91.36 -69.85 TRPTDD_B41(20MHz) 20.75 TRPTDD_B41(20MHz) 20.78 TRPTDD_B41(20MHz) 19.26 1611 TIS(RSSI)TDD_B41(20MHz) -91.23 2,4122,4372,467 TRPFDD_B66(10MHz) 19.45 9.9310.3110.42 TRPFDD_B66(10MHz) 19.59 -67.26 TRPFDD_B66(10MHz) 18.41 TIS(RSSI)FDD_B66(10MHz) -89.21 TRPFDD_B71(10MHz) 15.43 36149165 TRPFDD_B71(10MHz) 15.76 5,1805,7455,825 TRPFDD_B71(10MHz) 16.15 8.969.749.22 54mbps Frequency (MHz) TRP(dBm) Frequency (MHz) TRP(dBm) TIS(dBm) 802.11awifi 5G(A) TRP(dBm) TIS(dBm) 802.11n Wifi 2.4G(N) MCS7 TIS(dBm) 802.11gwifi 2.4G(G) 54mbps Frequency (MHz) 802.11b Wifi 2.4G(B) 11mbps Frequency (MHz) TRP(dBm) TIS(RSSI)FDD_B71(10MHz) -89.06 -71.59 36149165 5,1805,7455,825 8.688.428.39 -68.22 wifi 5G(N) MCS7 Frequency (MHz) TRP(dBm) TIS(dBm) TIS(dBm) 802.11n S11/方向图 MAIN DIV GWB MAIN B71 B71 B12/13/17 B5/26 B2/4/25/66 GPS B41 WIFI
NOTE:ThisdocumentisissuedbyShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,thetestreportshallnotbereproducedexceptin fullwithoutpriorwrittenpermissionofthecompany.Thetestresultsapplyonlytotheparticularsample(s)testedandtothespecifictestscarried outwhichisavailableonrequestforvalidationandinformationconfirmedatourwebsite. MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd. FL.1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page 1 of 93 REPORTNo.:SZ25090313W01 TESTREPORT APPLICANT : DrKumoInc. PRODUCTNAME: Tablet MODELNAME: XL100 BRAN…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.41 GHz - 2.46 GHz | 42.36 mW |
| 2 | 15C | 2.40 GHz - 2.48 GHz | 305.00 µW |
