Shenzhen Dequn Quick Circuit Co., Ltd (May 18, 2026) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID:2BPMD-D08 [Shenzhen Dequn Quick Circuit Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name)Lai bin zhang Shenzhen Dequn Quick Circuit Co., Ltd (May 18, 2026) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID:2BPMD-D08 [Shenzhen Dequn Quick Circuit Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name)Lai bin zhang

Shenzhen Dequn Quick Circuit Co., Ltd Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 [May 18, 2026] U.S. Agent Designation [Shenzhen Dequn Quick Circuit Co., Ltd] acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought FCC ID: 2BPMD-D08 Name and company of U.S. agent: [GLOCERTS TECHNOLOGY INC] Physical U.S. address of agent: [19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507] FRN of U.S. agent: [0036339737] Email address of U.S. agent: [[email protected]] Telephone of U.S.agent: (626) 588-8039 [GLOCERTS TECHNOLOGY INC] acknowledges their obligation to accept service of process on behalf of [Shenzhen Dequn Quick Circuit Co., Ltd]. [Shenzhen Dequn Quick Circuit Co., Ltd] with the FRN [0037052693] accepts its obligation to maintain an agent for service of process in the United States for no less than 1 year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Signature [Lai bin zhang] [Huiying Fan] [manager] [Director] [Shenzhen Dequn Quick Circuit Co., Ltd] [GLOCERTS TECHNOLOGY INC]

Shenzhen Dequn Quick Circuit Co., Ltd (May 18, 2026) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (lulaven i Card / D08 / FCC ID: 2BPMD- D08 ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Lai bin zhang Title: manager

Shenzhen Dequn Quick Circuit Co., Ltd (May 18, 2026) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Lai bin zhang Title: manager

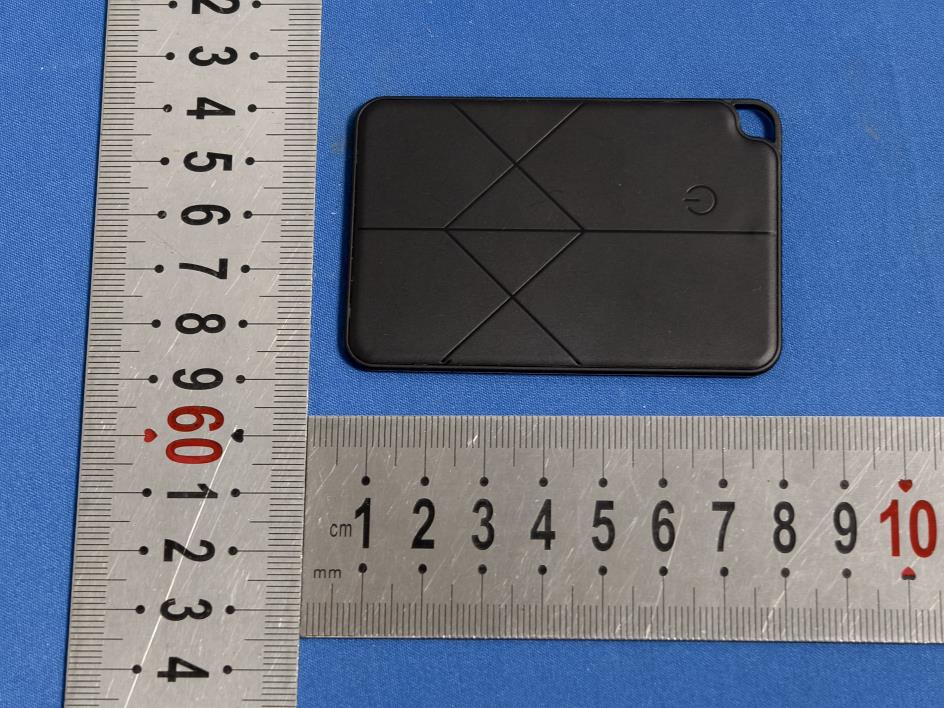

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 4 Model: D08 External Photos Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 4

FCC ID LABEL: Label Location: FCC ID: 2BPMD-D08 Model No.: D08

Shenzhen CTB Testing Technology Co., Ltd. FCC ID:2BPMD-D08 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE1M: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 2.761 1.892±13.002.00<50.618473.00YES 2.441 1.132 1.301±12.001.58<50.495243.00YES 2.480 -0.612 0.870±11.001.26<50.396513.00YES GFSK BLE2M: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 2.846 1.932±13.002.00<50.618473.00YES 2.441 1.211 1.321±12.001.58<50.495243.00YES 2.480 -0.559 0.880±11.001.26<50.396513.00YES GFSK Conclusion: For the max result : 0.61847≤ FCC Limit 3.0 for 1g SAR.

深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300A) Engineering Specification DOCUMENT YF3216F3P2G4502 REV. NO. B PAGE 1 OF 12 YF 3216 F3 P 2G45 02 1 2 3 4 5 6 3.2X1.6X0.5 (mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300A) Engineering Specification 1. Product Number 1 2 3 4 5 6 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300A) Engineering Specification DOCUMENT YF3216F3P2G4502 REV. NO. B PAGE 2 OF 12 2.Features *Stable and reliable in performances *Low temperature coefficient of frequency *Low profile, compact size *RoHS compliance *SMT processes compatible 3.Applications *Bluetooth earphone systems *Hand-held devices when WiFi /Bluetooth functions are needed, e.g., Smart phone. *IEEE802.11 b/g/n *ZigBee *Wireless PCMCIA cards or USB dongle 4.Description Yingfeng chip antenna series are specially designed for WiFi/Bluetooth applications. Based on yingfeng proprietary design and processes, this chip antenna has excellent stability and sensitivity to consistently provide high signal reception efficiency. 5.Electrical Specifications (80 x 40 mm 2 ground plane) 5-1. Electrical Table Characteristics Specifications Unit Outline Dimensions 3.2x1.6x0.5 mm Working Frequency 2400~2500 MHz VSWR 2 Max. Impedance 50  Polarization Linear Polarization Gain Peak 2.5 (typical) dBi Efficiency 78 (typical) % 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300A) Engineering Specification DOCUMENT YF3216F3P2G4502 REV. NO. B PAGE 3 OF 12 5-2. Return Loss & VSWR Return Loss (S 11 ) VSWR(S 11 ) 6. Antenna Dimensions & Test Board (unit: mm) a. Antenna Dimensions 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300A) Engineering Specification DOCUMENT YF3216F3P2G4502 REV. NO. B PAGE 4 OF 12 b. Test Board with Antenna 80 40 Unit: mm 7. Radiation Pattern (80 x 40 mm 2 ground plane) 7-1. 3D Gain Pattern @ 2442 MHz Z X Y 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300A) Engineering Specification DOCUMENT YF3216F3P2G4502 REV. NO. B PAGE 5 OF 12 7-2. 3D Efficiency Table Frequency( MHz) 2400 2410 2420 2430 2442 2450 2460 2470 2480 2490 2500 Efficiency (dB) -1.4 -1.0 -0.9 -0.7 -0.7 -0.8 -0.9 -1.1 -1.2 -1.3 -1.4 Efficiency (%) 72.8 73.7 74.3 74.4 75.5 75.0 74.0 73.6 73.1 72.6 71.5 Gain (dBi) 2.1 2.2 2.3 2.4 2.5 2.5 2.4 1.8 1.7 1.6 1.4 Y X Z Y X X Y Z 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300A) Engineering Specification DOCUMENT YF3216F3P2G4502 REV. NO. B PAGE 6 OF 12 7-3. 3D Efficiency vs. Frequency 8. Layout Guide a. Solder Land Pattern: Land pattern for soldering (gray marking areas) is as shown below. Depending on Customer’s requirement, matching circuit as shown below is also recommended. Efficiency vs. Frequency 50 60 70 80 90 100 24002410242024302442245024602470248024902500 Frequency(MHz) Efficiency(%) 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300A) Engineering Specification DOCUMENT YF3216F3P2G4502 REV. NO. B PAGE 7 OF 12 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300A) Engineering Specification DOCUMENT YF3216F3P2G4502 REV. NO. B PAGE 8 OF 12 9. Frequency tuning a. Chip antenna tuning scenario： b. Matching c ircuit：(Center frequency is about 2442 MHz @ 80 x 40 mm 2 ground plane) System Matching Circuit Component Location Description Vendor Toleranc e 1 1.2 pF* Murata (0402) ±0.1 pF 2 10PF* Murata(0402) ±0.5 PF 3 N/A* - - Fine tuning element 4 1.5 pF* Murata (0402) ±0.1 pF *Typical reference values which may need to be changed when circuit boards or part vendors are different. Matching circuit Feed 4. Fine tuning elemet 1 2 3 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300A) Engineering Specification DOCUMENT YF3216F3P2G4502 REV. NO. B PAGE 9 OF 12 c. Fine tuning element vs. Center frequency 10. Soldering Conditions a. Typical Soldering Profile for Lead-free Process Time (s.) 60-180s 60-150s 20-40 s Pre-heati ng 150-200° C 217°C 260° C Temperature (°C) 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300A) Engineering Specification DOCUMENT YF3216F3P2G4502 REV. NO. B PAGE 10 OF 12 11. Packing (1) Quantity/Reel: 5000 pcs/Reel: 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300A) Engineering Specification DOCUMENT YF3216F3P2G4502 REV. NO. B PAGE 11 OF 12 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Blu…
