2BQEA-YPL-15Smart Bluetooth Temperature Probe

❶ ❷ ❸ Smart Bluetooth Wireless Thermometer User Manual v1.0.5 1. Introduction This product gets rid of the traditional wired connection of the temperature probe and adopts wireless Bluetooth transmission technology to measure the internal temperature of food, the oil temperature of the frying pan and the surface temperature of the heating table. Download the APP from your smartphone and become a chef in seconds, easily controlling the process of baking, steaming and grilling. 2. Appearance Introduction Heat-resistant handle Power indicator light Probe Type-C charging port Silicone handle Charging stand Insert food until it exceeds the safety line Oven temperature measurement Food temperature measurement The probe is prohibited from burning with open flames, and it is prohibited to put the probe directly into the oven without food inserted. Tin foil will affect signal transmission, so do not immerse the probe completely in tin foil. 3. Operating Instructions When you get the instrument for the first time, please check whether the appearance and accessories of the instrument are complete. Please charge the
instrument before use. When charging, please put the probe into the charging stand first, and then connect the power supply through the USB port of the instrument to charge. When the indicator light turns completely green, it means that it is fully charged. (1) Download
APP The APP software used for this instrument can be obtained from the dealer. (2) Measuring the internal temperature of food When measuring the internal temperature of the food, remove the silicone handle first, and the probe must be inserted into the food until it reaches the safety line, otherwise it may damage the instrument! (3) Measuring the surface temperature of the heating table Insert the silicone handle into the tip of the probe, hold the silicone handle when measuring, and place the metal part of the handle on the surface of the heating table. The temperature and data can be read from the APP. (4) Measuring the oil temperature of the deep fryer Hold the silicone handle, place the metal part of the handle into the oil pan, and read the oil temperature through the APP. Tips: ŸPlease operate the product correctly within the parameters specified in the technical data and for the intended use. ŸThe charger base is not waterproof, do not immerse it in water or other liquids. ŸThe probe will be very hot during or after cooking, do not touch it directly with your hands. ŸPlease be careful with the tip of the probe. ŸDo not use the probe in a microwave or pressure cooker. ŸThe probe cannot be cleaned in a dishwasher, please pay attention to the waterproof problem, it is best to wipe it with a damp cloth. ŸWhen cooking, make sure that no part of the probe touches any hot cooking surface. ŸWhen not in use, store the probe in a dry, cool place. ŸDo not use this product outdoors in rainy days, thunderstorms or other adverse weather conditions. ŸIf the temperature displayed is too high or the temperature rises too quickly, please check whether the probe is inserted into the food. Please reinsert the probe correctly into the food and make sure that the probe is not exposed to the flame. ŸIf you have any questions, please contact after-sales personnel in time. 4.
Technical parameters Measuring range Front
end:
0°C~+100°C Back
end:
0°C~+270°C Resolution ratio 1°C Communication distance 15 m (clear open environment, height 2 m) Sampling interval10 seconds Storage temperature -15~+45°C Battery capacity1.8mah
@3.8V Charging interval15min Protection classIP68 Shell material Stainless steel, polyether ether ketone plastic Probe rod diameter 6mm Probe length 130mm ❹❺❻ Cooking mode setting Three grilling modes: 9 recipes, timing, and target temperature. There are 9 types of recipe modes to choose from. Click "
" to start the cooking process. 5. APP operation APP interface Bluetooth connection Bluetooth disconnection Cooking alarm Bluetooth interruption ①Bluetooth connection ②Four probes, click to view the food status of each probe. ③Current food temperature ④Grill temperature ⑤Start/Stop ⑥Set temperature unit, language and alarm type ⑦Set cooking mode ⑧Current cooking mode
⑨Target food temperature ⑩View all probes ① Click Bluetooth to view the device list Click to select the relevant probe to connect After successfully connecting the probe, press the return key to exit the Bluetooth device list ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ When the Bluetooth signal of the probe is interrupted, the probe will reconnect. At this time, please immediately move the phone close to the probe to avoid affecting the temperature measurement. When the food reaches the preset temperature or the timer is over, the phone will remind you with the set alarm method, and prompt that the cooking is complete. Note: The alarm reminder can be turned off by clicking "ok" or automatically turned off after waiting for 10 minutes. Press and hold the connected Bluetooth, select "Yes" to confirm the disconnection, and the disconnected Bluetooth will clear all the status. Note: (1) The probe cannot search and connect to Bluetooth when it is charging or when the battery is low. (2) Only after the Bluetooth connection of one probe is successful can the next one be connected. (3) Before connecting to Bluetooth, you must first turn on the Bluetooth and positioning functions of your mobile phone. Note: Each probe is independent of each other, and the cooking parameters of each probe must be set separately. Set temperature unit, language and alarm type
→Click to enter the setting interface Click to select Celsius/ Fahrenheit Click to select English/ Chinese Click to select alarm type: sound, vibration, sound and vibration FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equi…

Text truncated - open the document above for the full version.

SHENZHEN YOWEXA MEASUREMENT TECHNOLOGY CO.,LTD 16th Floor, Building 2, Guangming Phoenix Plaza, Guangming District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/12/22 U.S. Agent Designation SHENZHEN YOWEXA MEASUREMENT TECHNOLOGY CO.,LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BQEA-YPL-15): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of SHENZHEN YOWEXA MEASUREMENT TECHNOLOGY CO.,LTD SHENZHEN YOWEXA MEASUREMENT TECHNOLOGY CO.,LTD with the FRN [0037181252] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Feng Luo Manager SHENZHEN YOWEXA MEASUREMENT TECHNOLOGY CO.,LTD Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

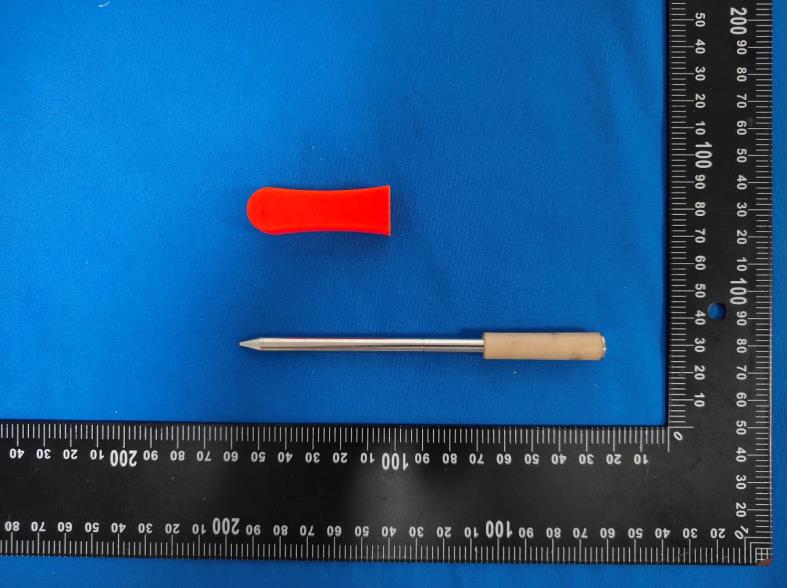

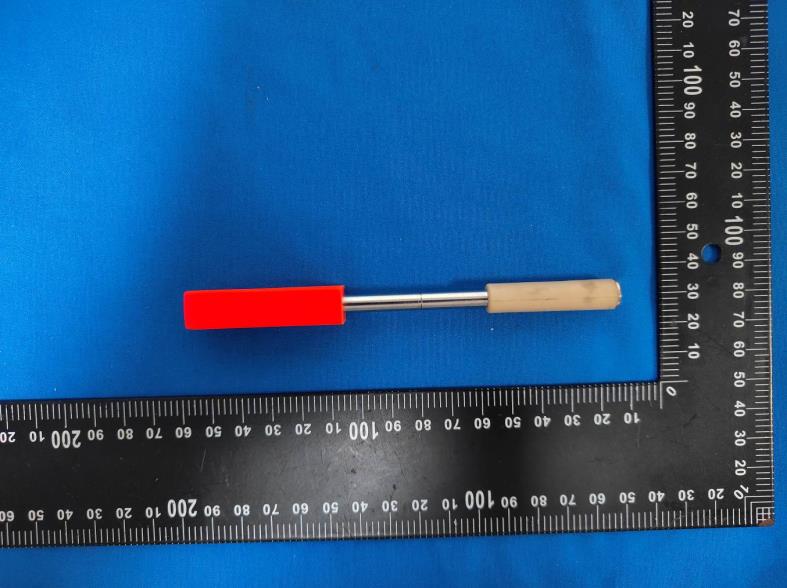

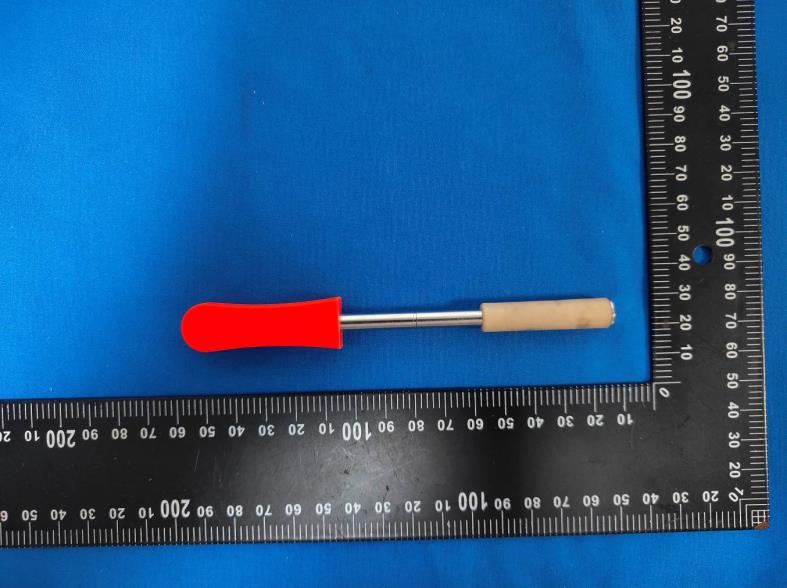

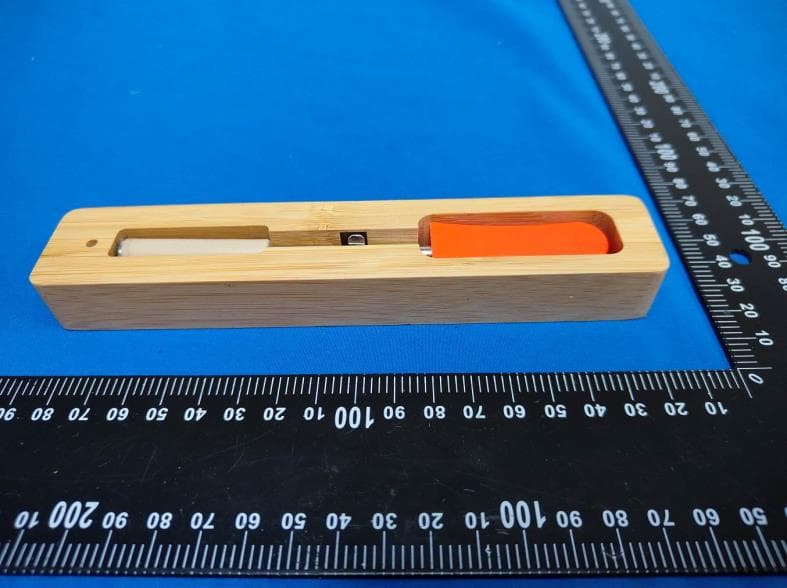

FCC ID:2BQEA-YPL-15 External Photos of the EUT FCC ID:2BQEA-YPL-15 FCC ID:2BQEA-YPL-15 FCC ID:2BQEA-YPL-15 FCC ID:2BQEA-YPL-15

Label and Location Size: L: 0.5cm*W: 0.2cm Label and Location FCC ID : 2BQEA-YPL-15

FCC ID:2BQEA-YPL-15 Internal Photos of the EUT FCC ID:2BQEA-YPL-15 FCC ID:2BQEA-YPL-15 ANT

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID. ........................................... : CTA25112600902 2BQEA-YPL-15 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Ace Chai Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Dec. 20, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : SHENZHEN YOWEXA MEASUREMENT TECHNOLOGY CO.,LTD Address ............................................ : 16th Floor, Building 2, Guangming Phoenix Plaza, Guangming District, Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Smart Bluetooth Temperature Probe Trade Mark ....................................... : N/A Manufacturer .................................... : SHENZHEN YOWEXA MEASUREMENT TECHNOLOGY CO.,LTD Model/Type reference ....................... : YPL-15 Listed Models ................................... : Refer to page 2 Ratings .............................................. : Input: 5V1A Capacitor: 3.8V1.8Wh Result ................................................ : PASS Report No.: CTA25112600902 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Smart Bluetooth Temperature Probe Model /Type : YPL-15 Listed Models : YPL-15-A, YPL-15-B, YPL-15-C, YPL-15-D, YPL-15-E, YPL-15-F, YPL-15-G, YPL-15-H, YPL-15-I, YPL-15-J, YPL-15-K, YPL-15-L, YPL-15-M, YPL-15-N, YPL-15-O, YPL-15-P, YPL-15-Q, YPL-15-R, YPL-15-S, YPL-15-T, YPL-15-U, YPL-15-V, YPL-15-W, YPL-15-X, YPL-15-Y, YPL-15-Z, YPL-16, YPL-16-A, YPL-16-B, YPL-16-C, YPL-16-D, YPL-16-E, YPL-16-F, YPL-16-G, YPL-16-H, YPL-16-I, YPL-16-J, YPL-16-K, YPL-16-L, YPL-16-M, YPL-16-N, YPL-16-O, YPL-16-P, YPL-16-Q, YPL-16-R, YPL-16-S, YPL-16-T, YPL-16-U, YPL-16-V, YPL-16-W, YPL-16-X, YPL-16-Y, YPL-16-Z, YPL-17, YPL-17-A, YPL-17-B, YPL-17-C, YPL-17-D, YPL-17-E, YPL-17-F, YPL-17-G, YPL-17-H, YPL-17-I, YPL-17-J, YPL-17-K, YPL-17-L, YPL-17-M, YPL-17-N, YPL-17-O, YPL-17-P, YPL-17-Q, YPL-17-R, YPL-17-S, YPL-17-T, YPL-17-U, YPL-17-V, YPL-17-W, YPL-17-X, YPL-17-Y, YPL-17-Z, YPL-18, YPL-18-A, YPL-18-B, YPL-18-C, YPL-18-D, YPL-18-E, YPL-18-F, YPL-18-G, YPL-18-H, YPL-18-I, YPL-18-J, YPL-18-K, YPL-18-L, YPL-18-M, YPL-18-N, YPL-18-O, YPL-18-P, YPL-18-Q, YPL-18-R, YPL-18-S, YPL-18-T, YPL-18-U, YPL-18-V, YPL-18-W, YPL-18-X, YPL-18-Y, YPL-18-Z Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : SHENZHEN YOWEXA MEASUREMENT TECHNOLOGY CO.,LTD Address : 16th Floor, Building 2, Guangming Phoenix Plaza, Guangming District, Shenzhen, China Manufacturer : SHENZHEN YOWEXA MEASUREMENT TECHNOLOGY CO.,LTD Address : 16th Floor, Building 2, Guangming Phoenix Plaza, Guangming District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25112600902 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty .…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type Spring antenna Model YPL-15 Frequency range 2400-2500MHz Manufacturer SHENZHEN YOWEXA MEASUREMENT TECHNOLOGY CO.,LTD Address 16th Floor, Building 2, Guangming Phoenix Plaza, Guangming District, Shenzhen, China ANT Peak Gain 0.63 dBi 2. Antenna Photo: Length :3.53mm Width:2.06mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA25112600901 2BQEA-YPL-15 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Dec. 20, 2025 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: SHENZHEN YOWEXA MEASUREMENT TECHNOLOGY CO.,LTD Address ...........................................: 16th Floor, Building 2, Guangming Phoenix Plaza, Guangming District, Shenzhen, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Smart Bluetooth Temperature Probe Trade Mark ......................................: N/A Manufacturer ...................................: SHENZHEN YOWEXA MEASUREMENT TECHNOLOGY CO.,LTD Model/Type reference .....................: YPL-15 Listed Models ..................................: Refer to page 2 Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: Input: 5V1A Capacitor: 3.8V1.8Wh Result ..............................................: PASS Report No.: CTA25112600901 Page 2 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Smart Bluetooth Temperature Probe Model /Type : YPL-15 Listed Models : YPL-15-A, YPL-15-B, YPL-15-C, YPL-15-D, YPL-15-E, YPL-15-F, YPL-15-G, YPL-15-H, YPL-15-I, YPL-15-J, YPL-15-K, YPL-15-L, YPL-15-M, YPL-15-N, YPL-15-O, YPL-15-P, YPL-15-Q, YPL-15-R, YPL-15-S, YPL-15-T, YPL-15-U, YPL-15-V, YPL-15-W, YPL-15-X, YPL-15-Y, YPL-15-Z, YPL-16, YPL-16-A, YPL-16-B, YPL-16-C, YPL-16-D, YPL-16-E, YPL-16-F, YPL-16-G, YPL-16-H, YPL-16-I, YPL-16-J, YPL-16-K, YPL-16-L, YPL-16-M, YPL-16-N, YPL-16-O, YPL-16-P, YPL-16-Q, YPL-16-R, YPL-16-S, YPL-16-T, YPL-16-U, YPL-16-V, YPL-16-W, YPL-16-X, YPL-16-Y, YPL-16-Z, YPL-17, YPL-17-A, YPL-17-B, YPL-17-C, YPL-17-D, YPL-17-E, YPL-17-F, YPL-17-G, YPL-17-H, YPL-17-I, YPL-17-J, YPL-17-K, YPL-17-L, YPL-17-M, YPL-17-N, YPL-17-O, YPL-17-P, YPL-17-Q, YPL-17-R, YPL-17-S, YPL-17-T, YPL-17-U, YPL-17-V, YPL-17-W, YPL-17-X, YPL-17-Y, YPL-17-Z, YPL-18, YPL-18-A, YPL-18-B, YPL-18-C, YPL-18-D, YPL-18-E, YPL-18-F, YPL-18-G, YPL-18-H, YPL-18-I, YPL-18-J, YPL-18-K, YPL-18-L, YPL-18-M, YPL-18-N, YPL-18-O, YPL-18-P, YPL-18-Q, YPL-18-R, YPL-18-S, YPL-18-T, YPL-18-U, YPL-18-V, YPL-18-W, YPL-18-X, YPL-18-Y, YPL-18-Z Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : SHENZHEN YOWEXA MEASUREMENT TECHNOLOGY CO.,LTD Address : 16th Floor, Building 2, Guangming Phoenix Plaza, Guangming District, Shenzhen, China Manufacturer : SHENZHEN YOWEXA MEASUREMENT TECHNOLOGY CO.,LTD Address : 16th Floor, Building 2, Guangming Phoenix Plaza, Guangming District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25112600901 Page 3 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ...................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BLE FCC ID : 2BQEA-YPL-15 Company : SHENZHEN YOWEXA MEASUREMENT TECHNOLOGY CO.,LTD EUT : Smart Bluetooth Temperature Probe Model Number : YPL-15 Report No. : CTA25112600901 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.632 2401.700 2402.332 0.5 PASS 2440 0.636 2439.700 2440.336 0.5 PASS 2480 0.640 2479.696 2480.336 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0073 2401.5161 2402.5234 --- --- 2440 1.0069 2439.5150 2440.5219 --- --- 2480 1.0030 2479.5186 2480.5216 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -3.37 ≤30 PASS 2440 -3.69 ≤30 PASS 2480 -3.73 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -19.23 ≤8.00 PASS 2440 -19.43 ≤8.00 PASS 2480 -19.53 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -3.55 -57.32 ≤-23.55 PASS High 2480 -4.61 -56.89 ≤-24.61 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -4.85 -4.85 --- PASS 30~1000 -4.85 -68.24 ≤-24.85 PASS 1000~26500 -4.85 -47.04 ≤-24.85 PASS 2440 Reference -5.52 -5.52 --- PASS 30~1000 -5.52 -45.65 ≤-25.52 PASS 1000~26500 -5.52 -45.83 ≤-25.52 PASS 2480 Reference -4.35 -4.35 --- PASS 30~1000 -4.35 -67.06 ≤-24.35 PASS 1000~26500 -4.35 -46.7 ≤-24.35 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.63 0.6508 65.08 1.87 --- --- 2440 0.41 0.63 0.6508 65.08 1.87 --- --- 2480 0.41 0.63 0.6508 65.08 1.87 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21

FCC ID:2BQEA-YPL-15 Test Setup Photos of the EUT FCC ID:2BQEA-YPL-15
