2BQNL-2IHPA1016TRACKER

INSIDE THE BOX (1) iHome Duo Tag (1) CR2032 (3V) Battery (1) Mini Screwdriver (1) User Manual OVERVIEW INTRODUCTION iHome Duo Tag Tracker, your ultimate companion for keeping track of the things that matter most. Designed for those on the move, this premium tracker features a sleek, durable design with an integrated carabiner, allowing you to clip it to keys, backpacks, or luggage in seconds. OPERATION INSTRUCTIONS 1 • Power On: Press and hold the button for about 2 seconds until you hear a single beep, then release to enter pairing mode. 2 • Power Off: Press the power button 5 times in a row with 2 seconds intervals until you hear sound. 3 • Power On Confirmation: Double click the Power button , if you hear a beep, it is on. If it does not beep, it is off. 4 • Factory Reset: Give the Power Button 4 quick presses to hear the initial tone. Then, press and hold the button until you hear a beep. Continue pressing don't let go until the second musical chime sounds. 5 • Pairing Mode Timeout: when the device is on, and is not paired within 10 minutes, the device will exit pairing mode and will time out. please click the device button twice to enter into pairing mode.. 1.5 In 'Find My' app, Tap '+', then 'Add Other ltem'. As shown in Figure 1. 1.6 Once your iHome Smart Tag is located, tap 'connect'. As shown in Figure 2. 1.7 Enter a name and choose an emoji for your iHome Smart Tag and tap 'Continue'. As shown in Figure 3 1.8 Find My will ask for confirmation to add your iHome Smart Tag to your Apple ID. Tap 'Agree'. 1.9 Tap 'Finish' and your iHome Smart Tag will be set up and ready to be used. HOW TO PAIR FOR ANDROID USERS (FIND HUB) FAST PAIR INSTRUCTION 2 • Bring the item close to your Android device and wait for the pop-up. If none appears, restart your phone. Tap Connect 1 • Requires Find Hub app (download on Google Play) a nd Android 9+ , Make sure your phones Bluetooth and 3 • Agreements:Review the "Use responsibly" notice and s elect "Agree and Continue". network connection are turned on. • This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested. • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. • KEEP new and used batteries OUT OF REACH of CHILDREN. • Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body. TECHNICAL PARAMETERS Battery: CR2032 (3V) Max. Operating Frequency: 24Mhz Standby Static Power Consumption: 18-22uA IMPORTANT MATTER The iHome Duo Tag Tracker contains delicate electronic parts, including a battery to avoid damage, loss of function, or potential harm, please refrain from dropping, hitting, puncturing, crushing, disassembling, exposing it to extreme heat or liquids, or placing it in areas with a high concentration of industrial chemicals. MEDICAL DEVICE INTERFERENCE iHome Duo Tag Tracker contains components and radios that emit electromagnetic fields, as well as magnets. These elements may potentially interfere with pacemakers, defibrillators, or other medical devices. To ensure safety, maintain a safe distance between your medical device and the iHome Smart Tag. We strongly advise consulting your physician and the manufacturer of your medical device for information that is specific to your situation. If you suspect that the iHome Smart Tag is interfering with your pacemaker defibrillator or any CHOKING HAZARD WARNING The iHome Smart Tag, its battery compartment door, the battery itself, and the case may pose a choking hazard or cause injury to small children. Please keep these items out of reach of young children. other medical device, discontinue its use immediately. IMPORTANT HANDLING GUIDELINES Its normal for the iHome Duo Tag Tracker to show discoloration with regular use. To clean it, use a soft, dry, lint-free cloth. Avoid applying pressure with sharp objects on the rubber seal or the battery terminal contacts inside the device. Do not allow moisture to enter any openings or use aerosol sprays, solvents or abrasive materials to clean the device. •Install batteries correctly per polarity (+ and -). •Do not mix old and new batteries, different brands or types. •Do not heat above 60°C(140°F) •Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children. •Do NOT dispose of batteries in household trash or incinerate. •Even used batteries may cause severe injury or death. •Call a local poison control center for treatment information. •Non-rechargeable batteries are not to be recharged. •Do not force discharge, recharge, disassemble, heat above the manufacturer’s specified temperature rating, or incinerate. •Remove and immediately recycle or dispose of batteries from equipment not used for an extended period according to local regulations. •Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep them away from children • SUPPORT: 877 543 3540 FCC ID: 2BQNL-2IHPA1016 Th is device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, an d (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equ ipment. NOTE: This equipment has been tested a nd found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential i nstallation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is n o gua…

Text truncated - open the document above for the full version.

1/1 USAgentforServiceofProcessLETTEROFATTESTATION TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USAgentforServiceofProcess: CompanyName:HOPEKCORPORATIONINC Address:16755CoyoteBushDrUnit84,SanDiego,CA92127UnitedStates FRN:0034562900 ContactName:YangyangXu TelephoneNo:(561)875-9826 E-mail:[email protected] ThisletteristoconfirmthattheUSAgentforServiceofProcessacceptsresponsibilitytoactas alocalrepresentativeonbehalfofDONGGUANCOHESIONLEATHERGOODSCO.LTD TheUSAgentforServiceofProcessisawareofandagreestocomplywiththerequirements outlinedintheFCCEquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause §2.911. Applicant: CompanyName:DONGGUANCOHESIONLEATHERGOODSCO.LTD ProductDescription:TRACKER FRN:0037236122 GranteeCode:2BQNL FCCID:2BQNL-2IHPA1016 ContactName:EdwinLiu Address:ROOM301,BUILDING1,NO.30WEIXINGROAD,CHASHANTOWN,DONGGUAN CITY,GUANGDONGPROVINCE,CHINA TelephoneNo:18122991511 E-mail:[email protected] TheApplicantisawareofandagreestocomplywiththerequirementsoutlinedintheFCC EquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause§2.911. ThisAgreementisvaliduntil(Permanentlyvalid). Date:2026/5/29 Applicant’sName: DONGGUANCOHESIONLEATHERGOODS CO.LTD USAgentforServiceofProcess’sName: HOPEKCORPORATIONINC Title:SalesManagerTitle:Manager SignatureSignature

Rev 1/26/2023 DONGGUAN COHESION LEATHER GOODS CO.LTD Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: May 18, 2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BQNL-2IHPA1016 [DONGGUAN COHESION LEATHER GOODS CO.LTD] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [DONGGUAN COHESION LEATHER GOODS CO.LTD] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Edwin Liu Rev 1/26/2023 DONGGUAN COHESION LEATHER GOODS CO.LTD Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: May 18, 2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BQNL-2IHPA1016 [DONGGUAN COHESION LEATHER GOODS CO.LTD] certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Edwin Liu

DONGGUAN COHESION LEATHER GOODS CO.LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: May 29, 2026 Subject; Request for Confidentiality FCC ID: 2BQNL-2IHPA1016 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Edwin Liu Title: Sales Manager

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 DONGGUAN COHESION LEATHER GOODS CO.LTD Date: May 18, 2026 Product Model Number: F5506 FCC ID: 2BQNL-2IHPA1016 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: Sales Manager Email: [email protected] Telephone: 181 2299 1511 On behalf of: DONGGUAN COHESION LEATHER GOODS CO.LTD

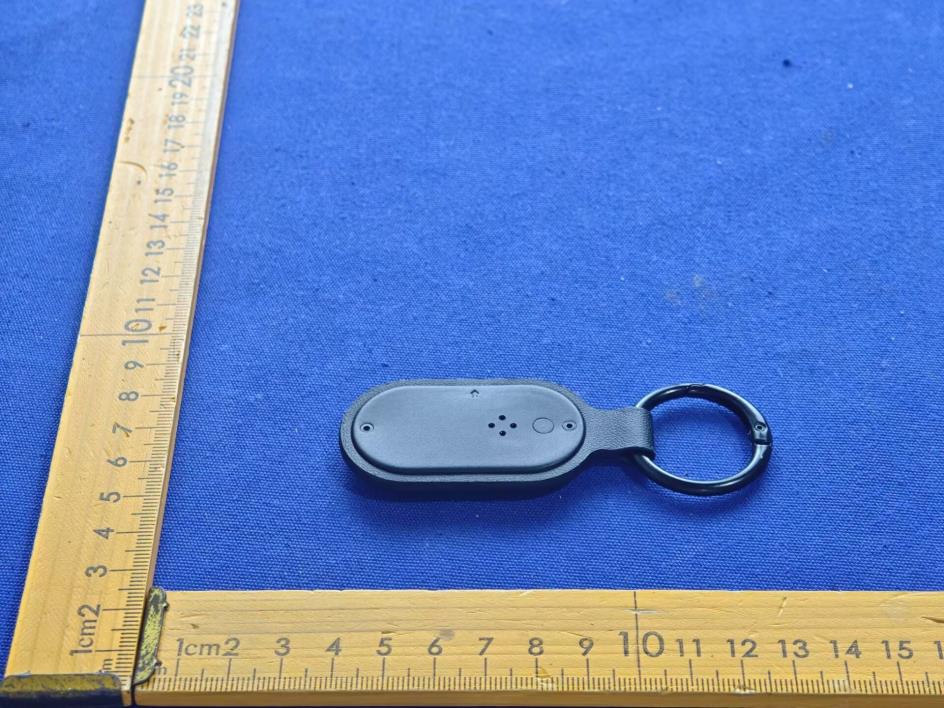

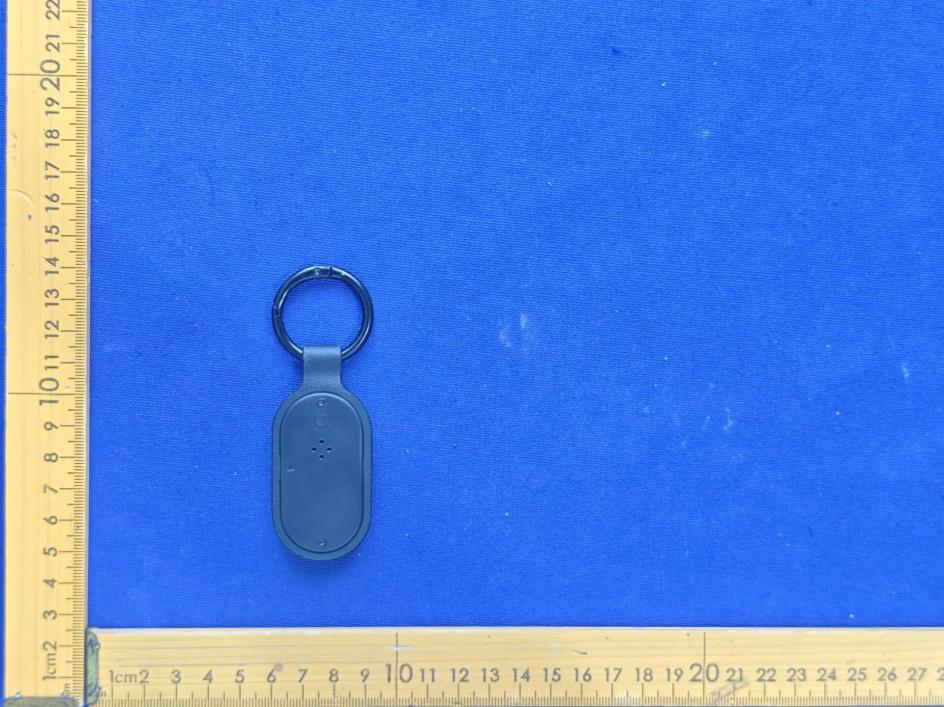

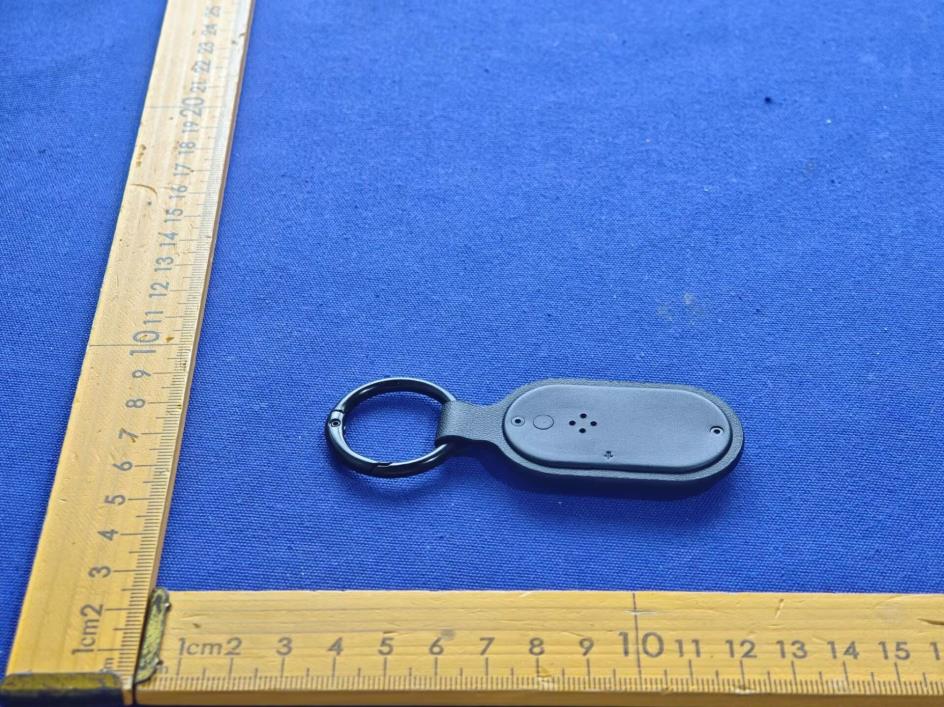

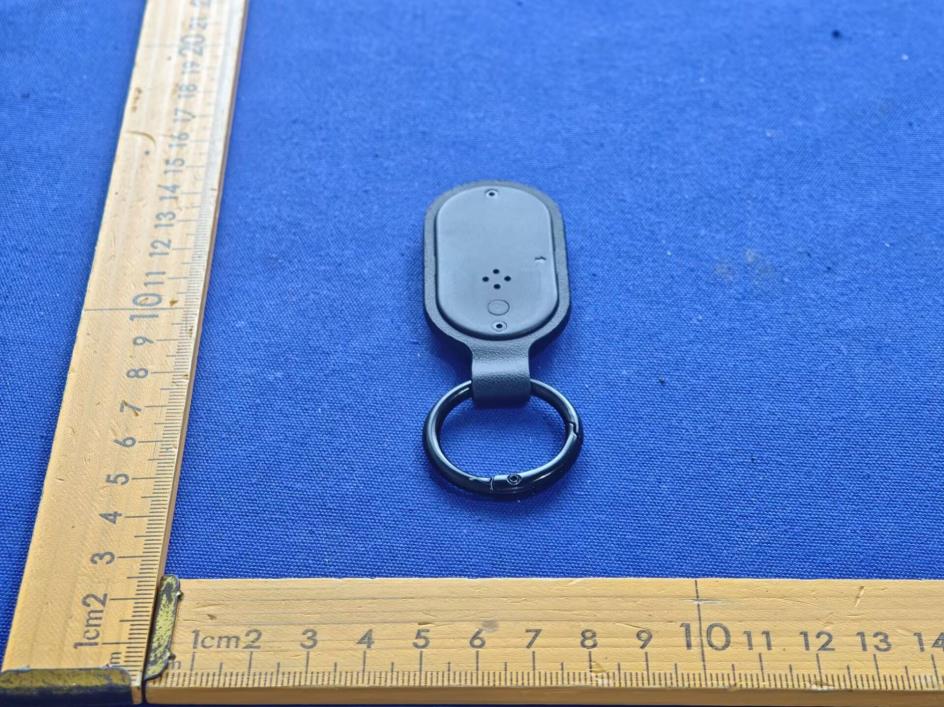

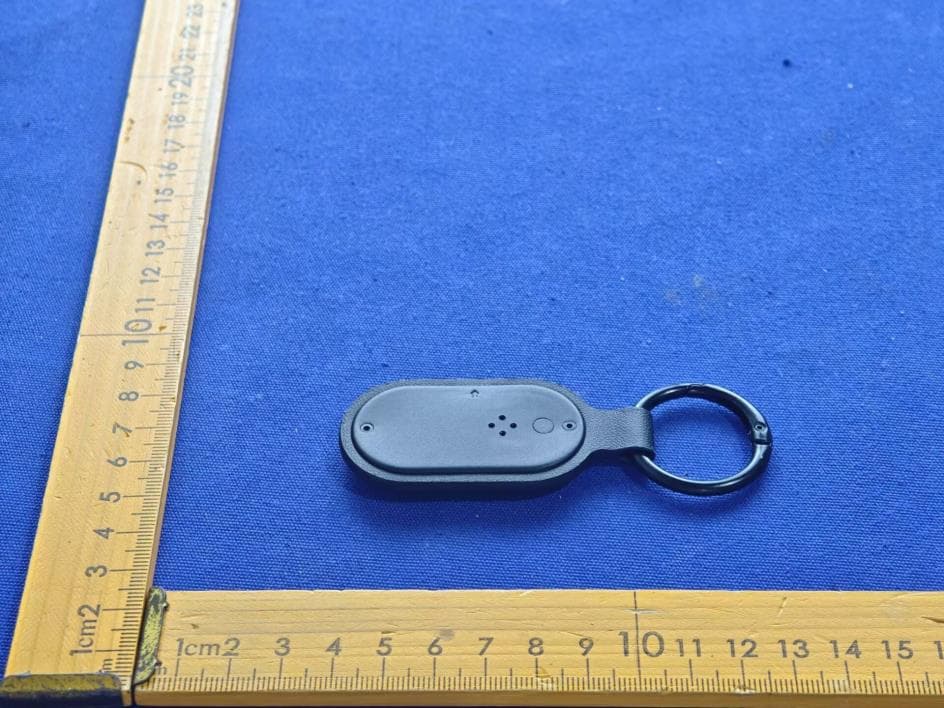

Ext Photos Model: F5506 Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Int Photos Model: F5506 Photo 1 Photo 2 Photo 3 Photo 4 ANT Photo 5

- Page 1 of 9 - Report No.: HB20260513002E-02 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com RF EXPOSURE Test Report Product: TRACKER Trade Mark: N/A Model Number: F5506 FCC ID: 2BQNL-2IHPA1016 Prepared for DONGGUAN COHESION LEATHER GOODS CO.LTD ROOM 301, BUILDING 1, NO. 30 WEIXING ROAD, CHASHAN TOWN, DONGGUAN CITY, GUANGDONG PROVINCE, CHINA Prepared by Shenzhen HongBiao Certification& Testing Co., Ltd Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Tel.: +86-755-2998 9321 Fax.: +86-755-2998 5110 Website: http://www.sz-hongbiao.com - Page 2 of 9 - Report No.: HB20260513002E-02 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Table of Contents 1 GENERAL DESCRIPTION ..................................................................................................................................... 5 1.1 DESCRIPTION OF EUT ................................................................................................................................................ 5 1.2 TEST MODE .............................................................................................................................................................. 5 1.3 TEST SETUP .............................................................................................................................................................. 5 1.4 ANCILLARY EQUIPMENT .............................................................................................................................................. 5 2 TEST FACILITIES AND ACCREDITATIONS .............................................................................................................. 6 2.1 TEST LABORATORY ..................................................................................................................................................... 6 2.2 ENVIRONMENTAL CONDITIONS ..................................................................................................................................... 6 2.3 MEASUREMENT UNCERTAINTY ..................................................................................................................................... 6 2.4 TEST SOFTWARE ........................................................................................................................................................ 6 3 LIST OF TEST EQUIPMENT .................................................................................................................................. 7 4 RF EXPOSURE..................................................................................................................................................... 8 4.1 STANDALONE SAR TEST EXCLUSION CONSIDERATIONS........................................................................................................ 8 4.1.1. Limit ............................................................................................................................................................ 8 4.1.2. Test Procedures ........................................................................................................................................... 8 4.1.3. Test Result ................................................................................................................................................... 9 - Page 3 of 9 - Report No.: HB20260513002E-02 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com TEST RESULT CERTIFICATION Applicant’s Name ................. : DONGGUAN COHESION LEATHER GOODS CO.LTD Address ................................. : ROOM 301, BUILDING 1, NO. 30 WEIXING ROAD, CHASHAN TOWN, DONGGUAN CITY, GUANGDONG PROVINCE, CHINA Manufacturer's Name .......... : DONGGUAN COHESION LEATHER GOODS CO.LTD Address ................................. : ROOM 301, BUILDING 1, NO. 30 WEIXING ROAD, CHASHAN TOWN, DONGGUAN CITY, GUANGDONG PROVINCE, CHINA Product description Product name ........................ : TRACKER Model Number ....................... : F5506 Standards ............................. : FCC CFR 47 PART 1 , 1.1310 Test procedure ....................... : KDB 447498 D01 General RF Exposure Guidance v06 This device described above has been tested by Shenzhen HongBiao Certification& Testing Co., Ltd and the test results show that the equipment under test (EUT) is in compliance with the EMC requirements. And it is applicable only to the tested sample identified in the report. Date of Test ........................................... : Date (s) of performance of tests ............. : May 13, 2026~May 18, 2026 Test Result .............................................. : Pass Testing Engineer : ( Z o e Su) Technical Manager : ( M i n g L i u) Authorized Signatory : (L e o S u) - Page 4 of 9 - Report No.: HB20260513002E-02 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Revision History Revised No. Date of Issue Description 01 May 18, 2026 Original - Page 5 of 9 - Report No.: HB20260513002E-02 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com 1 General Description 1.1 Description of EUT Product name: TRACKER Mod…

Text truncated - open the document above for the full version.

- Page 1 of 49 - Report No.: HB20260513002E-01 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Test Report Product: TRACKER Trade Mark: N/A Model Number: F5506 FCC ID: 2BQNL-2IHPA1016 Prepared for DONGGUAN COHESION LEATHER GOODS CO.LTD ROOM 301, BUILDING 1, NO. 30 WEIXING ROAD, CHASHAN TOWN, DONGGUAN CITY, GUANGDONG PROVINCE, CHINA Prepared by Shenzhen HongBiao Certification& Testing Co., Ltd Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Tel.: +86-755-2998 9321 Fax.: +86-755-2998 5110 Website: http://www.sz-hongbiao.com - Page 2 of 49 - Report No.: HB20260513002E-01 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Table of Contents 1 GENERAL DESCRIPTION ................................................................................................................................... 6 1.1 DESCRIPTION OF EUT ................................................................................................................................................ 6 1.2 TEST MODE .............................................................................................................................................................. 6 1.3 OPERATION CHANNEL LIST ........................................................................................................................................... 6 1.4 TEST SETUP .............................................................................................................................................................. 7 1.5 POWER SETTING CONFIGURATION PARAMETERS ............................................................................................................... 7 1.6 ANCILLARY EQUIPMENT .............................................................................................................................................. 7 2 SUMMARY OF TEST RESULT ............................................................................................................................. 8 3 TEST FACILITIES AND ACCREDITATIONS ............................................................................................................ 9 3.1 TEST LABORATORY ..................................................................................................................................................... 9 3.2 ENVIRONMENTAL CONDITIONS ..................................................................................................................................... 9 3.3 MEASUREMENT UNCERTAINTY ..................................................................................................................................... 9 3.4 TEST SOFTWARE ...................................................................................................................................................... 10 4 LIST OF TEST EQUIPMENT .............................................................................................................................. 11 5 TEST ITEM AND RESULTS ............................................................................................................................... 13 5.1 ANTENNA REQUIREMENT .......................................................................................................................................... 13 5.1.1 Standard Requirement ............................................................................................................................. 13 5.1.2 Test Result ................................................................................................................................................. 13 5.2 CONDUCTED EMISSION ............................................................................................................................................. 14 5.2.1 Limits ........................................................................................................................................................ 14 5.2.2 Test Procedures ......................................................................................................................................... 14 5.2.3 Test Setup.................................................................................................................................................. 15 5.2.4 Test Result ................................................................................................................................................. 15 5.3 RADIATED EMISSION ................................................................................................................................................ 16 5.3.1 Limits ........................................................................................................................................................ 16 5.3.2 Test Procedures ......................................................................................................................................... 16 5.3.3 Test Setup.................................................................................................................................................. 16 5.3.4 Test Result ................................................................................................................................................. 17 5.3.5 Band Edge - Radiated ............................................................................................................................... 21 5.3.6 Spurious emission in band 1000MHz-25000MHz .................................................................................... 22 5.4 PEAK OU…

Text truncated - open the document above for the full version.

CA-C01 www.gzhwjdz.com 1 Antenna Specification Document OverAir TM SMD Antenna Series Compliant with RoHS regulations Antenna type: Ceramic Antenna • Guangzhou Cambrian Electronic Technology Co., Ltd. • Address: 1120, 1st Floor, Building 1, Hongda Creative Park, Yuanxiang Road, Yunpu Street, Huangpu District, Guangzhou City CA-C01 www.gzhwjdz.com 2 2.4GHz frequency band antenna 1. Characteristics 2. 1. A small-sized SMD patch antenna with dimensions of 3.20 x 1.60 x 0.40 mm³. 3. 2. Low energy loss and high antenna efficiency. 4. 3. High stability under temperature and humidity variations. 1. Application 2. 1. Antenna application for 2.4GHz ISM frequency band. 3. 2. Bluetooth, wireless, smart home applications。 construction 1. Antenna feed terminal 2. Antenna feed side grounding terminal 3. Antenna grounding terminal size three views symbol size (mm) L 3.20±0.10 W 1.60±0.10 T 0.40±0.05 a 0.60±0.10 1 2 3 CA-C01 www.gzhwjdz.com 3 electrical specification CA-C01 Specification 工作频率范围Working Frequency 2450±50MHz 带宽Band Width >100MHz 阻抗Impedance 50Ω 增益Gain(dBi) 2.96 驻波比VSWR <2 工作温度Operation Temperature -40°C~+85°C 可承受功率Power Capacity 3W The working frequency needs to be 2.45GHz, which can be achieved through impedance matching devices. Antenna pads and trace design PCB schematic reference design Antenna welding drawing CA-C01 www.gzhwjdz.com 4 PCB reference design Unit : mm Ground 50Ω Transmission line Soldering Pad *Empty Area: 8.3mm x 5.5mm* All layers in this area have sufficient clearance and no ground or wiring is required. **50Ω Feed line: The wiring impedance in the laid-out area should be 50Ω. Surface PCB drawing (dimensions in mm)： *Empty Area **50ΩFeed line CA-C01 CA-C01 www.gzhwjdz.com 5 Lower layer PCB drawing (dimensions in mm): Match the device values Series-connected device Series 1 0.75pF Parallel devices Shunt 1 1pF Series-connected device Series 2 1.8nH Parallel devices Shunt 2 NC Antenna test on the test board (board thickness 1.0mm) CA-C01 www.gzhwjdz.com 6 Antenna S11 characteristics Antenna VSWR characteristics CA-C01 www.gzhwjdz.com 7 Efficiency and radiation diagram The efficiency, radiation diagram, gain and other performance parameters are based on the test of the PCB board design. The test data of CA-C01 antenna specification and characteristics are based on the size of the tested PCB board and the test direction shown in the figure below. The following data are based on the test results of the ETS 3D microwave anechoic chamber. Antenna Gain Efficiency Test Table Frequency/MHz MaxGain/dBi Efficiency / % 2400 2.52 51.4 2410 2.59 53.09 2420 2.59 53.58 2430 2.62 53.83 2440 2.96 57.41 2450 2.62 57.94 2460 2.13 55.21 2470 2.26 54.7 2480 2.53 55.08 2490 2.1 53.83 2500 1.48 51.88 Z Y X CA-C01 www.gzhwjdz.com 8 Antenna gain curve graph Antenna efficiency curve graph 3D Directional Chart CA-C01 www.gzhwjdz.com 9 Maximum antenna gain 2D diagram Maximum antenna gain 3D pattern

Photographs of the Test Setup Model: F5506 Radiated Emission Below 1GHz Radiated Emission Above 1GHz
