2BQNL-F54013in1wireless charge

3in1 wireless charger Power Grid Instruction Manual Product Specs Input: 5V/3A,9V/3A Output: Phone: 5W/7.5W/10W/15W (max) Output: Watch: 2.5W Output: Earbuds: 5W 1 3 4 2 Product Overview 1. 2. 3. 4. 5. USB-C Input Wireless charging surface for earbuds Wireless charging surface for watch Wireless charging surface for phone Organizing tray 5 Charging your devices: - - - - Plug in the provided USB-C cable to the side of the lid You must have the organizer tray plugged in to use the wireless charger Plug the other end of the cable into a proper power source To charge your phone, place your phone on the wireless charging surface on top of the lid To charge your earbuds, place your earbuds on the wireless charging surface on top of the lid To charge your watch, place your watch on the wireless - - charging surface on top of the lid This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. FCC ID: 2BQNL-F5401

1/1 USAgentforServiceofProcessLETTEROFATTESTATION TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USAgentforServiceofProcess: CompanyName:HOPEKCORPORATIONINC Address:16755CoyoteBushDrUnit84,SanDiego,CA92127UnitedStates FRN:0034562900 ContactName:YangyangXu TelephoneNo:(561)875-9826 E-mail:[email protected] ThisletteristoconfirmthattheUSAgentforServiceofProcessacceptsresponsibilitytoactas alocalrepresentativeonbehalfofDONGGUANCOHESIONLEATHERGOODSCO.LTD TheUSAgentforServiceofProcessisawareofandagreestocomplywiththerequirements outlinedintheFCCEquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause §2.911. Applicant: CompanyName:DONGGUANCOHESIONLEATHERGOODSCO.LTD ProductDescription:3in1wirelesscharge FRN:0037236122 GranteeCode:2BQNL FCCID:2BQNL-F5401 ContactName:EdwinLiu Address:ROOM301,BUILDING1,NO.30WEIXINGROAD,CHASHANTOWN,DONGGUAN CITY,GUANGDONGPROVINCE,CHINA TelephoneNo:+8618122991511 E-mail:[email protected] TheApplicantisawareofandagreestocomplywiththerequirementsoutlinedintheFCC EquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause§2.911. ThisAgreementisvaliduntil(Permanentlyvalid). Date:2026/6/3 Applicant’sName: DONGGUANCOHESIONLEATHERGOODS CO.LTD USAgentforServiceofProcess’sName: HOPEKCORPORATIONINC Title:SalesManagerTitle:Manager SignatureSignature

Rev 1/26/2023 DONGGUAN COHESION LEATHER GOODS CO.LTD Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: May 11, 2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BQNL-F5401 [DONGGUAN COHESION LEATHER GOODS CO.LTD] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [DONGGUAN COHESION LEATHER GOODS CO.LTD] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Edwin Liu Rev 1/26/2023 DONGGUAN COHESION LEATHER GOODS CO.LTD Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: May 11, 2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BQNL-F5401 [DONGGUAN COHESION LEATHER GOODS CO.LTD] certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Edwin Liu

DONGGUAN COHESION LEATHER GOODS CO.LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 3, 2026 Subject; Request for Confidentiality FCC ID: 2BQNL-F5401 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Edwin Liu Title: Sales Manager

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 DONGGUAN COHESION LEATHER GOODS CO.LTD Date: May 11, 2026 Product Model Number: F5401 FCC ID: 2BQNL-F5401 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: Sales Manager Email: [email protected] Telephone: +86 181 2299 1511 On behalf of: DONGGUAN COHESION LEATHER GOODS CO.LTD

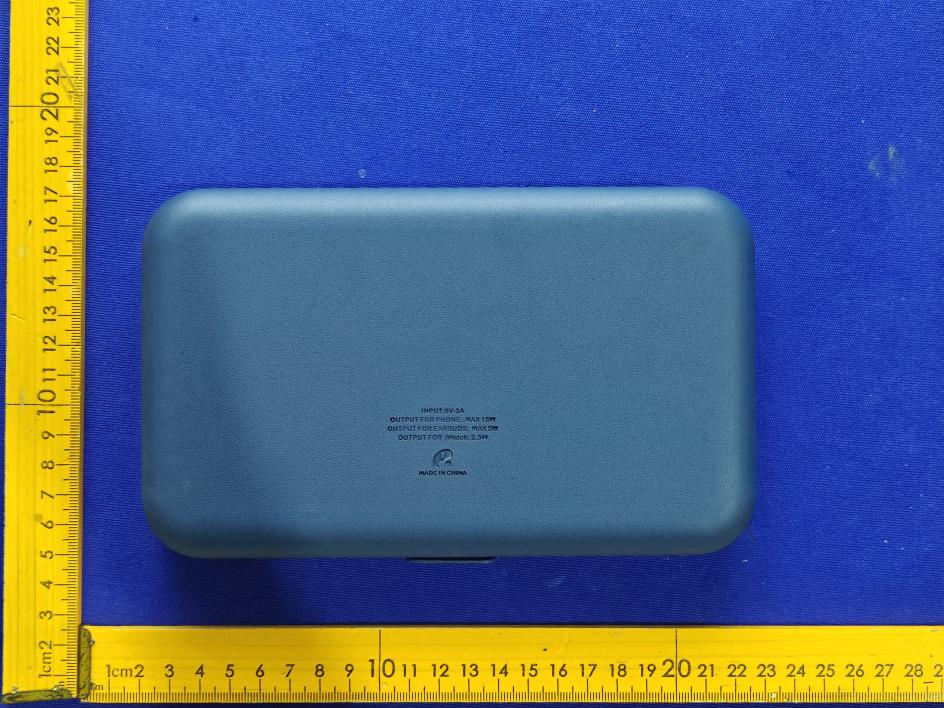

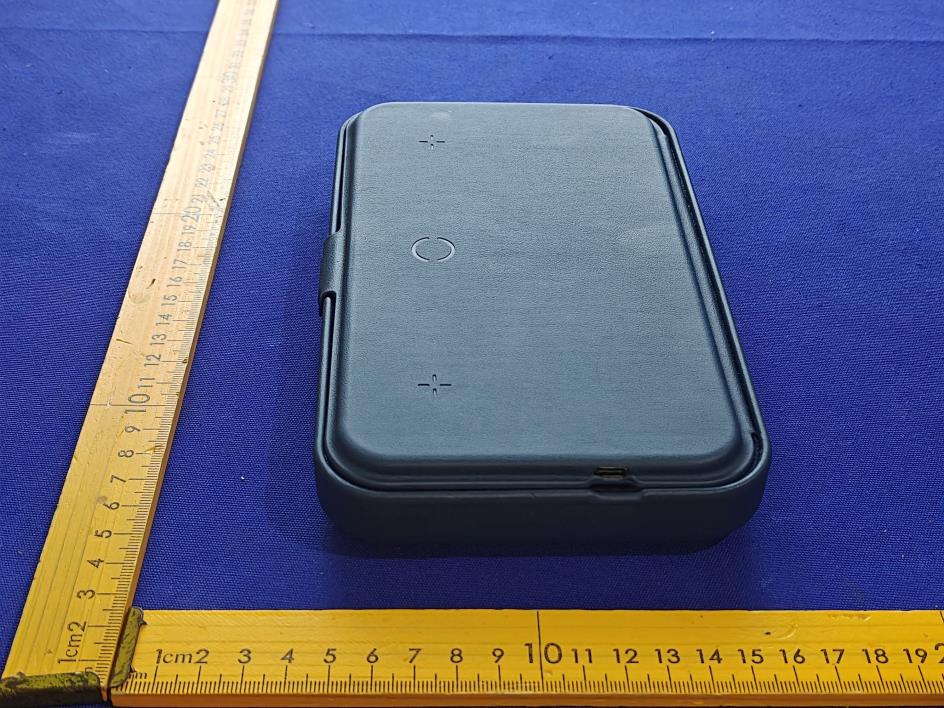

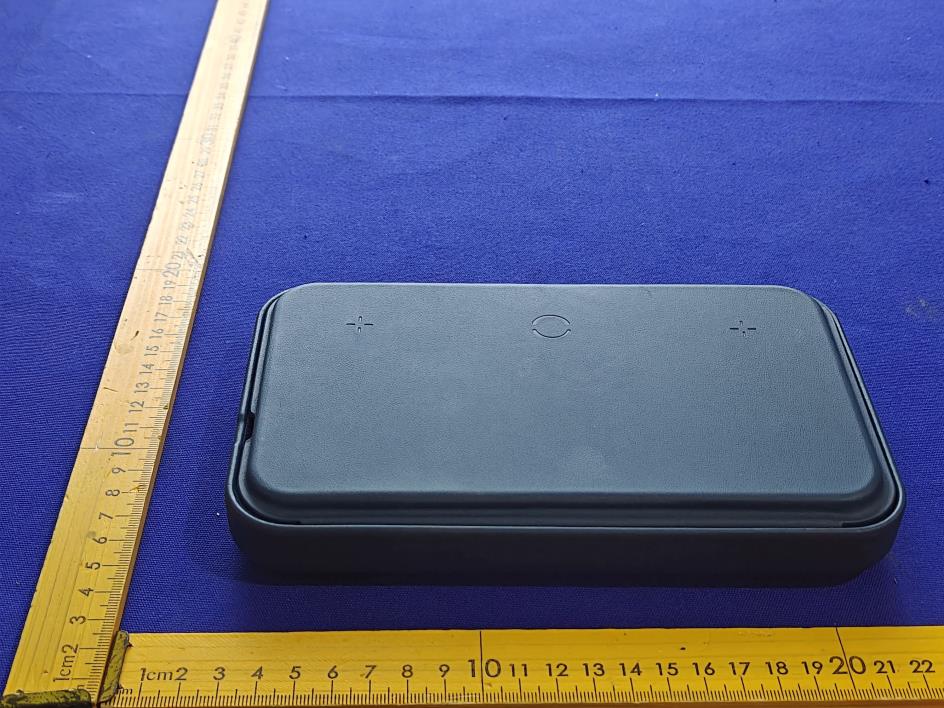

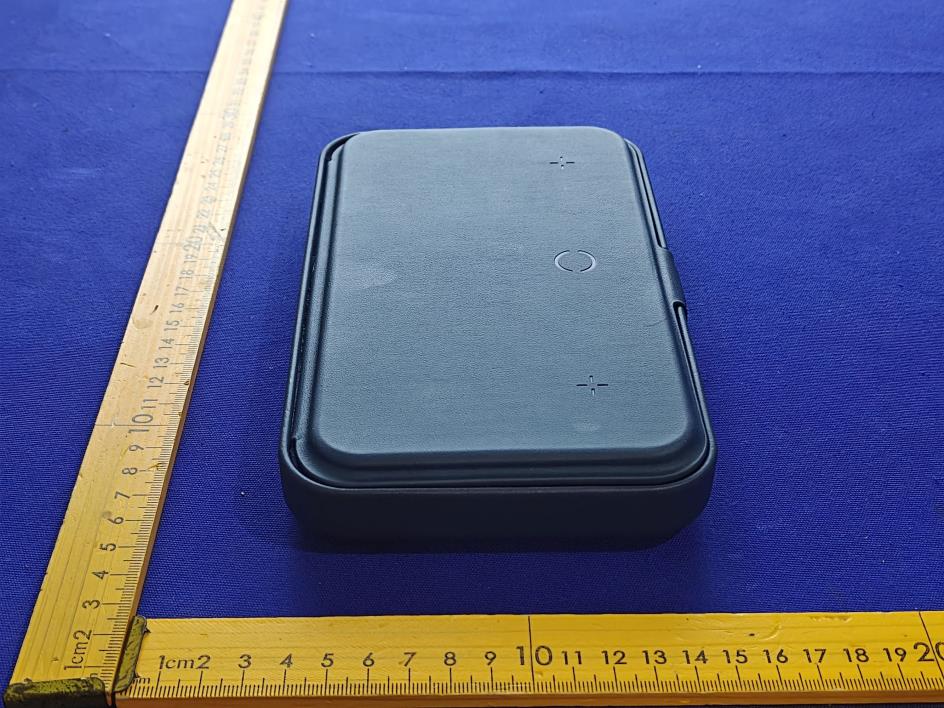

Ext Photos Model: F5401 Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7

3 0 m m

Int Photos Model: F5401 Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Earbuds ANT Phone ANT iWatch ANT

- Page 1 of 11 - Report No.: HB20260429001E-02 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com RF EXPOSURE Test Report Product: 3in1wireless charger Trade Mark: N/A Model Number: F5401 FCC ID: 2BQNL-F5401 Prepared for DONGGUAN COHESION LEATHER GOODS CO.LTD ROOM 301, BUILDING 1, NO. 30 W EIXING ROAD, CHASHAN TOW N, DONGGUAN CITY, GUANGDONG PROVINCE, CHINA Prepared by Shenzhen HongBiao Certification& Testing Co., Ltd Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Tel.: +86-755-2998 9321 Fax.: +86-755-2998 5110 Website: http://www.sz-hongbiao.com - Page 2 of 11 - Report No.: HB20260429001E-02 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Table of Contents 1 GENERAL DESCRIPTION ...........................................................................................................................5 1.1 DESCRIPTION OF EUT ........................................................................................................................................................5 1.2 TEST MODE ......................................................................................................................................................................5 1.3 TEST SETUP ......................................................................................................................................................................5 1.4 ANCILLARY EQUIPMENT......................................................................................................................................................6 2 TEST FACILITIES AND ACCREDITATIONS......................................................................................................7 2.1 TEST LABORATORY .............................................................................................................................................................7 2.2 ENVIRONMENTAL CONDITIONS ............................................................................................................................................7 2.3 MEASUREMENT UNCERTAINTY ............................................................................................................................................7 2.4 TEST SOFTWARE ................................................................................................................................................................7 3 LIST OF TEST EQUIPMENT ........................................................................................................................8 4 RF EXPOSURE .........................................................................................................................................9 4.1 MAXIMUM PERMISSIBLE EXPOSURE .....................................................................................................................................9 4.1.1. Limit.....................................................................................................................................................................9 4.1.2. Test Procedures ...................................................................................................................................................9 4.1.3. Test Setup ............................................................................................................................................................9 4.1.4. Test Result ...........................................................................................................................................................9 5 PHOTOGRAPHS OF THE TEST SETUP ........................................................................................................ 11 - Page 3 of 11 - Report No.: HB20260429001E-02 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com TEST RESULT CERTIFICATION Applicant’s Name................... : DONGGUAN COHESION LEATHER GOODS CO.LTD Address..................................... : ROOM 301, BUILDING 1, NO. 30 WEIXING ROAD, CHASHAN TOWN, DONGGUAN CITY, GUANGDONG PROVINCE, CHINA Manufacturer's Name ............ : DONGGUAN COHESION LEATHER GOODS CO.LTD Address..................................... : ROOM 301, BUILDING 1, NO. 30 WEIXING ROAD, CHASHAN TOWN, DONGGUAN CITY, GUANGDONG PROVINCE, CHINA Product description Product name ........................... : 3in1wireless charger Model Number.......................... : F5401 Standards ................................ : FCC CFR 47 PART 1 , 1.1310 Test procedure ......................... : KDB 680106 D01 Wireless Power Transfer v04 This device described above has been tested by Shenzhen HongBiao Certification& Testing Co., Ltd and the test results show that the equipment under test (EUT) is in compliance with the EMC requirements. And it is applicable only to the tested sample identified in the report. Date of Test .............................................: Date (s) of performance of tests ..............: Apr. 29, 2026~May 11, 2026 Test Result ................................................: Pass Testing Engineer : ( Z o e Su) Technical Manager : (M i n g Liu) Authorized Signatory : (L e o S u) - Page 4 of 11 - Report No.: HB20260429001E-02 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Revision Histo…

Text truncated - open the document above for the full version.

东 莞 市 石 碣 阿 美 欧 电 子 厂 Dongguan Shijie AMEIOU electronics factory 产 品 规 格 承 认 书 SPECIFICATION FOR APPROVAL ■产品形状和尺寸 Product Apperance & Dimensions (Unit: mm) ■产品电气特性 Product Electrical characteristics 参数 (Parameter)： 数值(Value) 产品名称（Product name） Wireless charging coil module 产品编号 (Product number)： Apple Watch soft magnetic - 20mm, 6.5uh 铁氧体型号 (Ferrite type)： Watch soft magnetic 25*8*2.5 线材型号 (Coil type)： Multi-strand enameled wire 0.08 * 24P 线圈匝数 (Coil Turns)： 12TS 绕线方向（Coil direction）: Clockwise (based on the outermost circle) 电感 (Inductance)： 6.5μH ±10% Q值（Q Value）： 25（Min） 测试仪器 (Testing Instrument)： TH2816B @100kHz、1Vrms、TH2512B At 25°C 备注（Note）： The back of the product is stuck with 3M double-sided adhesive tape, and the magnet has a gauss strength of 3000-3200GS. ■更多信息请咨询我们(Contact Us For More Information)。 电话（TEL）:15857396935 Room 501, No. 19, South Luotouzhou Road, Shijie Town, Dongguan City, Guangdong Province

SPECIFICATION FOR APPROVAL 1.MECHANICAL DIMENSION (UNIT:mm) 2.SCHEMATICS: 1. Attach the magnetic sheet to the coil. The size of the magnetic sheet is 45mm, with a thickness of 0.8 ± 0.05mm and a rectangular slot is made. 2. The position where the coil is connected to the outside Wrap adhesive tape 1-2 times. 3. Attach the back adhesive to the back of the magnetic sheet. ABC D2EHI 45±1.020±0.5 0.8±0.05 50±23±1.52.6MAX 3.WINDING： STE P START-FINISHWIRE TYPETURNSTAPE REMAR K N1S-F Wire mesh coil:0.08*105 strands, 2U EW 10TS (Ref) 4.ELECTRICAL SPECIFICATION: ITEMLDCRL Q value HI-POT TES T CON Coil with magnetic sheet S-F Single coil 100KHz,0.25V AT 25°C 100KHz,0.25V SPEC6.4uH±10% 60mΩ Max3.8uH±15% 5.BILF OF MATERIAL： NO.ITEMMATERIAL SPECIFICATIONMANUFACTURER SGS NO. 1 silk-covered wire Silk braided wire: 0.08 * 105 strands NANJINGJINNINGCO,LTD 2 Lead-free tin rodLead-free tin rod QIAODO 3 magnetic sheet 50*0.8 manganese-zinc hard magnetic sheet with L-shaped slot TAIYI CO.,LTD 4 glue Yellow Glue 999 LIANCHENG CO.,LTD 5 high-temperature adhesive tape 8mm wide heat-resistant adhesive tape CUDAK CO.,LTD 6 gum ⌀48.5*0.1CUDAK CO.,LTD HRSW ELECTRONICS CO.,LTD PART NO TITLE G45 slotting + adhesive backing 50mm DRAWN BYCHECKED BY APPROVED BY He weihuaWei lihongWei lihong SPECIFICATION FOR APPROVAL 6.SAMPLE TEST DATA 6.1DIMENSION TEST(UNIT:mm) TEST ITEMABCDEH SPEC 45±1.0 20± 0.5 0.8± 0.0570± 2 3±1.52.6MAX 144.6720.110.8150.153.50 2.56 244.3519.990.851.023.60 2.57 344.820.050.8350.863.70 2.56 444.7520.120.8250.263.80 2.48 544.5620.110.8550.84.00 2.45 6 7 8 9 10 MAX44.80 20.12 0.85 51.02 4.00 2.57 MIN44.35 19.99 0.80 50.15 3.50 2.45 AVERAGE44.63 20.08 0.82 50.62 3.72 2.52 6.2ELECTRICAL TEST TEST ITEM LDCRIDC QHI -POT S-FS-F TEST COND100KHz/0.25vAT 25°C SPEC 6.4uH ±10% 60mΩ(Max) 16.40 42.00 26.38 42.30 36.40 42.50 46.40 42.10 56.38 42.35 6 7 8 9 10 MAX6.40 42.50 MIN6.38 42.00 AVERAGE6.39 42.25 PART NO TITLE G45 slotting + adhesive backing 50mm DRAWN BYCHECKED BYAPPROVED BY He weihuaWei lihongWei lihong 深圳市鸿日昇威科技有限公司 HRSW ELECTRONICS CO.,LTD ADD:No. 1, 2nd Floor, 48 Zhuanwan Huancang Middle Road, Longhua New District, Shenzhen City TEL: +86-15112254520 FAX: +86-0755-28015170

- Page 1 of 32 - Report No.: HB20260429001E-01 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Test Report Product: 3in1wireless charger Trade Mark: N/A Model Number: F5401 FCC ID: 2BQNL-F5401 Prepared for DONGGUAN COHESION LEATHER GOODS CO.LTD ROOM 301, BUILDING 1, NO. 30 W EIXING ROAD, CHASHAN TOW N, DONGGUAN CITY, GUANGDONG PROVINCE, CHINA Prepared by Shenzhen HongBiao Certification& Testing Co., Ltd Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Tel.: +86-755-2998 9321 Fax.: +86-755-2998 5110 Website: http://www.sz-hongbiao.com - Page 2 of 32 - Report No.: HB20260429001E-01 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Table of Contents 1 GENERAL DESCRIPTION ...........................................................................................................................5 1.1 DESCRIPTION OF EUT ........................................................................................................................................................5 1.2 TEST MODE ......................................................................................................................................................................5 1.3 TEST SETUP ......................................................................................................................................................................6 1.4 POWER SETTING CONFIGURATION PARAMETERS .....................................................................................................................6 1.5 ANCILLARY EQUIPMENT......................................................................................................................................................6 2 SUMMARY OF TEST RESULT .....................................................................................................................7 3 TEST FACILITIES AND ACCREDITATIONS......................................................................................................8 3.1 TEST LABORATORY .............................................................................................................................................................8 3.2 ENVIRONMENTAL CONDITIONS ............................................................................................................................................8 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................................................8 3.4 TEST SOFTWARE ................................................................................................................................................................8 4 LIST OF TEST EQUIPMENT ...................................................................................................................... 10 5 TEST ITEM AND RESULTS ....................................................................................................................... 12 5.1 ANTENNA REQUIREMENT .................................................................................................................................................12 5.2 CONDUCTED EMISSION.....................................................................................................................................................13 5.3 RADIATED EMISSION ........................................................................................................................................................17 5.4 OCCUPIED BANDWIDTH ....................................................................................................................................................22 6 PHOTOGRAPHS OF THE TEST SETUP ........................................................................................................ 24 7 PHOTOGRAPHS OF THE EUT ................................................................................................................... 26 - Page 3 of 32 - Report No.: HB20260429001E-01 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com TEST RESULT CERTIFICATION Applicant’s Name................... : DONGGUAN COHESION LEATHER GOODS CO.LTD Address..................................... : ROOM 301, BUILDING 1, NO. 30 WEIXING ROAD, CHASHAN TOWN, DONGGUAN CITY, GUANGDONG PROVINCE, CHINA Manufacturer's Name ............ : DONGGUAN COHESION LEATHER GOODS CO.LTD Address..................................... : ROOM 301, BUILDING 1, NO. 30 WEIXING ROAD, CHASHAN TOWN, DONGGUAN CITY, GUANGDONG PROVINCE, CHINA Product description Product name ........................... : 3in1wireless charger Model Number.......................... : F5401 Standards ................................ : FCC Part 15C Test procedure ......................... : IEEE/ANSI C63.10-2020 This device described above has been tested by Shenzhen HongBiao Certification& Testing Co., Ltd and the test results show that the equipment under test (EUT) is in compliance with the EMC requirements. And it is applicable only to the tested sample identified in the report. Date of Test .............................................: Date (s) of performance of tests ..............: Apr. 29, 2026~May 11, 2026 Test Result ................................................: Pass Testing Engineer : ( Z o e Su) Technical Manager : (M i n g L i u) Authorized Signatory : (L e o S u) - Page 4 of 32 - Report No.: HB20260429001E-01 Add:Room…

Text truncated - open the document above for the full version.

SPECIFICATION FOR APPROVAL 1.MECHANICAL DIMENSION (UNIT:mm) 2.SCHEMATICS: 1. Attach the magnetic sheet to the coil. The size of the magnetic sheet is 45mm, with a thickness of 0.8 ± 0.05mm and a rectangular slot is made. 2. The position where the coil is connected to the outside Wrap adhesive tape 1-2 times. 3. Attach the back adhesive to the back of the magnetic sheet. ABC D2EHI 45±1.020±0.5 0.8±0.05 50±23±1.52.6MAX 3.WINDING： STE P START-FINISHWIRE TYPETURNSTAPE REMAR K N1S-F Wire mesh coil:0.08*105 strands, 2U EW 10TS (Ref) 4.ELECTRICAL SPECIFICATION: ITEMLDCRL Q value HI-POT TES T CON Coil with magnetic sheet S-F Single coil 100KHz,0.25V AT 25°C 100KHz,0.25V SPEC6.4uH±10% 60mΩ Max3.8uH±15% 5.BILF OF MATERIAL： NO.ITEMMATERIAL SPECIFICATIONMANUFACTURER SGS NO. 1 silk-covered wire Silk braided wire: 0.08 * 105 strands NANJINGJINNINGCO,LTD 2 Lead-free tin rodLead-free tin rod QIAODO 3 magnetic sheet 50*0.8 manganese-zinc hard magnetic sheet with L-shaped slot TAIYI CO.,LTD 4 glue Yellow Glue 999 LIANCHENG CO.,LTD 5 high-temperature adhesive tape 8mm wide heat-resistant adhesive tape CUDAK CO.,LTD 6 gum ⌀48.5*0.1CUDAK CO.,LTD HRSW ELECTRONICS CO.,LTD PART NO TITLE G45 slotting + adhesive backing 50mm DRAWN BYCHECKED BY APPROVED BY He weihuaWei lihongWei lihong SPECIFICATION FOR APPROVAL 6.SAMPLE TEST DATA 6.1DIMENSION TEST(UNIT:mm) TEST ITEMABCDEH SPEC 45±1.0 20± 0.5 0.8± 0.0570± 2 3±1.52.6MAX 144.6720.110.8150.153.50 2.56 244.3519.990.851.023.60 2.57 344.820.050.8350.863.70 2.56 444.7520.120.8250.263.80 2.48 544.5620.110.8550.84.00 2.45 6 7 8 9 10 MAX44.80 20.12 0.85 51.02 4.00 2.57 MIN44.35 19.99 0.80 50.15 3.50 2.45 AVERAGE44.63 20.08 0.82 50.62 3.72 2.52 6.2ELECTRICAL TEST TEST ITEM LDCRIDC QHI -POT S-FS-F TEST COND100KHz/0.25vAT 25°C SPEC 6.4uH ±10% 60mΩ(Max) 16.40 42.00 26.38 42.30 36.40 42.50 46.40 42.10 56.38 42.35 6 7 8 9 10 MAX6.40 42.50 MIN6.38 42.00 AVERAGE6.39 42.25 PART NO TITLE G45 slotting + adhesive backing 50mm DRAWN BYCHECKED BYAPPROVED BY He weihuaWei lihongWei lihong 深圳市鸿日昇威科技有限公司 HRSW ELECTRONICS CO.,LTD ADD:No. 1, 2nd Floor, 48 Zhuanwan Huancang Middle Road, Longhua New District, Shenzhen City TEL: +86-15112254520 FAX: +86-0755-28015170

Photographs of the Test Setup Model: F5401 Radiated Emission Below 30MHz Radiated Emission Above 30MHz Conducted emission MPE
