MQM711 Bluetooth (BLE) Module – Powered by Qualcomm QCC711 Data s heet 2 (30) Documentation Title Documentation No Revision Classification Status Date MQM711 Bluetooth (BLE) Module Datasheet V1.3 Public Release Aug 29,2025 Table of Contents 1 Product Overview ..........................................................................................................4 2 Hardware Specification ...............................................................................................7 2.1 Block Diagram .................................................................................................................... 7 2.2 Pinout Description ............................................................................................................ 8 2.2.1 Pin Map .......................................................................................................................................... 8 2.2.2 Pin Definition ................................................................................................................................. 9 2.2.3 I/O Pin Mux Table ....................................................................................................................... 10 2.2.4 Programmable Series Engine ................................................................................................... 11 2.3 Computing Subsystem ................................................................................................... 12 2.3.1 Microcontroller ........................................................................................................................... 12 2.4 Memory .............................................................................................................................. 13 2.5 Peripheral Interfaces ...................................................................................................... 13 3 Electrical Characteristics ............................................................................................15 3.1 Absolute Maximum Ratings ......................................................................................... 15 3.2 Recommended Operating Conditions ....................................................................... 15 4 Radio Performance .....................................................................................................17 5 Power Consumption ...................................................................................................18 5.1 Active Power ..................................................................................................................... 18 5.2 Sleep Power ....................................................................................................................... 18 6 Mechanical Specification ..........................................................................................20 6.1 Pin Antenna ....................................................................................................................... 20 6.1.1 Dimension .................................................................................................................................... 20 6.1.2 Recommended PCB Landing Pattern ...................................................................................... 20 3 (30) Documentation Title Documentation No Revision Classification Status Date MQM711 Bluetooth (BLE) Module Datasheet V1.3 Public Release Aug 29,2025 6.2 PCB Antenna ..................................................................................................................... 21 6.2.1 Dimension .................................................................................................................................... 21 6.2.2 Recommended PCB Landing Pattern ...................................................................................... 21 6.3 Connector Antenna ......................................................................................................... 22 6.3.1 Dimension .................................................................................................................................... 22 6.3.2 Recommended PCB Landing Pattern ...................................................................................... 22 7 Manufacturing Recommendation ..........................................................................23 7.1 Power Layout Guideline ................................................................................................. 23 7.2 Soldering Recommendations ....................................................................................... 23 8 Statement ......................................................................................................................25 8.1 Operational use conditions ................................................ Error! Bookmark not defined. 8.2 Antenna used .................................................................................................................... 25 8.3 Instruction to Host product manufacturer when choosing external connector: ........................................................................................... Error! Bookmark not defined. 8.4 Trace antenna designs information ................................. Error! Bookmark not defined. 4 (30) Documentation Title Documentation No Revision Classification Status Date MQM711 Bluetooth (BLE) Module Datasheet V1.3 Public Release Aug 29,2025 1 Product Overview Powered by Qualcomm QCC711, MQM711 modules are purposefully designed LGA form factor BLE modules that combine multi-core processing capabilities, high-security as well as BLE long- range to cater to the demands of diverse IoT applications. Their compact size and on-chip memory, including SRAM and RRAM (NVM), contribute to reducing costs and enhancing performance, making them an attractive choice for space-constrained IoT edge devices. Unlike many other BLE modules on the market, MQM711 …

Text truncated - open the document above for the full version.

METICOMM PTE. LTD. U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification -Section 2.911(d)(7) Information Designatcd U.s. Agcnt Company Name: United Consulting Technology Services Co., Ltd. FRN: 00 33495714 Contact Name: David Wu Street Address: 17800 CASTLETON ST STE 665 CITY OF INDUSTRY City/Provincc/Zip: CA 91748 Telephone No: (626) 2 17-4022 Email: [email protected] 11订s letter is to confirm that we (''the Designated U.S. Agent) have accepted the responsibility to act as the Designated U .S. Agent for Service of Process as required by section 47 CFR 2.91 l(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: David Wu Date: 2025/08/28 Sii:ned by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after tenninating all marketing and importation OR the conclusion of矶y Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to infonn the FCC whenever the Designated U.S, Agent infonnation above ch血 ges. Applicant Comp邸y name: METICOMM PTE. LTD. Grantee Code: 2BQY7 fRN:0037301827 FCC ID: 2BQY7-M7JJO Contact Na.inc: Lin Chen Street Address: 15 UPPER CIRCULAR ROAD, #06-01 Ci均肌ovince/Zip:SINGAPORE 058413 T�Jcpbo皿No:18652985388 .EmaiJ:.l.i.o,[email protected] Applicant Signature: Lin Chen Date; 2025/08/28 Sjgoed by (Prin回归e/Title)；沁cl矶 扫描全能王

METICOMM PTE. LTD. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United臼ates From: Company Name: METICOMM PTE. LTD. Add「ess:15 UPPER CIRCULAR ROAD, #06-01, SINGAPORE 058413 Regarding: Con币dentialltyRequest regarding application for FCC ID: 2BQY7州7110 LONG TERM CONFIDE 削 llALITY Pursuant to 47 CFR Se由·on0.459 and 0.457 of the commission ’ s ru峙 ， theappli臼nthereby request confidential甘eatmentof the documents listed below, a臼oc:iatedwi伽thece『ti币臼自onapprtcation referenced above. Schematic(s) Block Diag『ams Operational Descriptions The documents above contain proprietary information not rele部edto the public. Public disclosure of this information may p『·oveharmful to the business of the appli臼nt. Signature: [ t' fL d.,e,,t, Printed Name (on file wi伽theFCC associated with the Grantee Code): Lin Chen Title: Manager Company Name: METICOMM PTE. LTD.

METICOMM PTE. LTD. Cover Letter-Modular Approval FCC ID: 2BQY7-M7110 Date: 2025/08/28 Gentlemen: There’s a IoT Module that would like to have your authorization as a modular approval. The specific product as below, the Module with its designed features and specified description, meets special requirements for Full modular approval on FCC KDB996369 by cross-reference list below. Company METICOMM PTE. LTD. Module Name IoT Module Model Number MQM711-0-50-0B, MQM711-0-50-0U, MQM711-0-50-0P FCC ID 2BQY7-M7110 Requirement of FCC KDB996369 Comply（Y/N） 1. The modular transmitter must have its own RF shielding. Y The EUT has its own RF shielding. Please refer to EUT Photos. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Y The EUT uses the chip: QCC-711-1-MQFN48C-TR- 02-1 as an embedded processor to buffer the data. Please refer to Schematics. 3. The modular transmitter must have its own power supply regulation. Y The EUT has its own power supply regulation, The power supply of this module is DC 3.3V. Please refer to User Manual. 4. The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Y The EUT meets the FCC antenna requirements; The photo of antenna is shown in the test report. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. Y The EUT was tested with a test cable, see test report and setup photo 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2BQY7-M7110” or “Contains FCC ID: 2BQY7-M7110” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter Y Please see exhibition label sample for the FCC ID of this module. And also in the exhibition User’s manual, there are instructions to the OEM on how to label the end product. METICOMM PTE. LTD. case, a copy of these instructions must be included in the application for equipment authorization. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Y The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are given in the User Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Y The EUT complies with RF exposure requirement. Thank you. Sincerely, Print Name: Lin Chen Title: Manager Signature: On behalf of Company: METICOMM PTE. LTD. Telephone: 18652985388

METICOMM PTE. LTD. Current Date: 2025-08-02 To: SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. South of No. 6 Plant, No. 1, Runsheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone Dear Sir/Madam, Subject: Declaration Letter about Identity of Products *WE (METICOMM PTE. LTD.) HEREBY DECLARED THAT Product Description IoT Module Model No. MQM711-0-50-0B, MQM711-0-50-0P Manufacturer’s Name METICOMM PTE. LTD. Manufacturer’s Address 15 UPPER CIRCULAR ROAD, #06-01, SINGAPORE 058413 *Except that below differences, other are identical with the original product as follows: Note: The definition of identical should be “electrically identical”. A device will be considered to be electrically identical if no changes are made to the devices’ schematics, board layouts, component layouts, chip sets, resistors and all other electrical aspects of the device are identical. Model No.: MQM711-0-50-0U Manufacturer’s Name: METICOMM PTE. LTD. Manufacturer’s Address: 15 UPPER CIRCULAR ROAD, #06-01, SINGAPORE 058413 Sincerely, Signature: Printed Name: Lin Chen Position/Title: Manager Contact Number: 18652985388

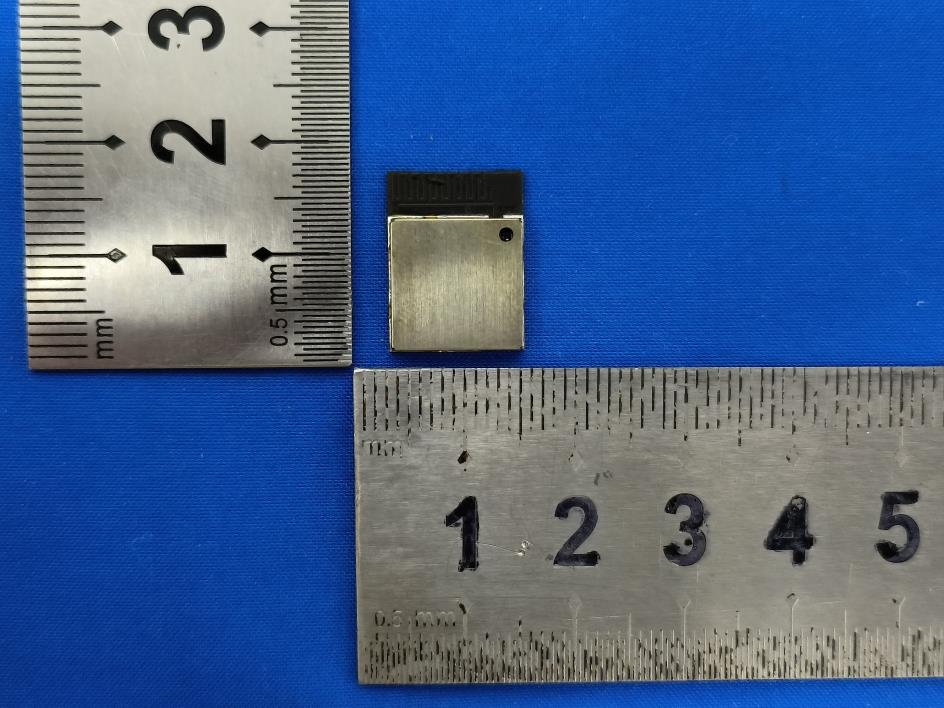

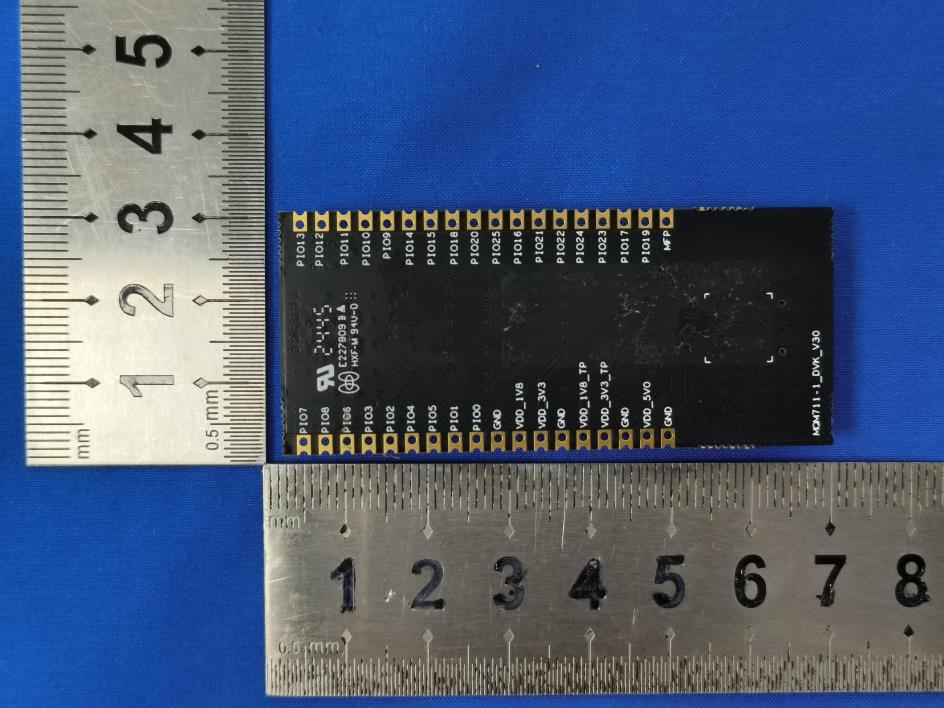

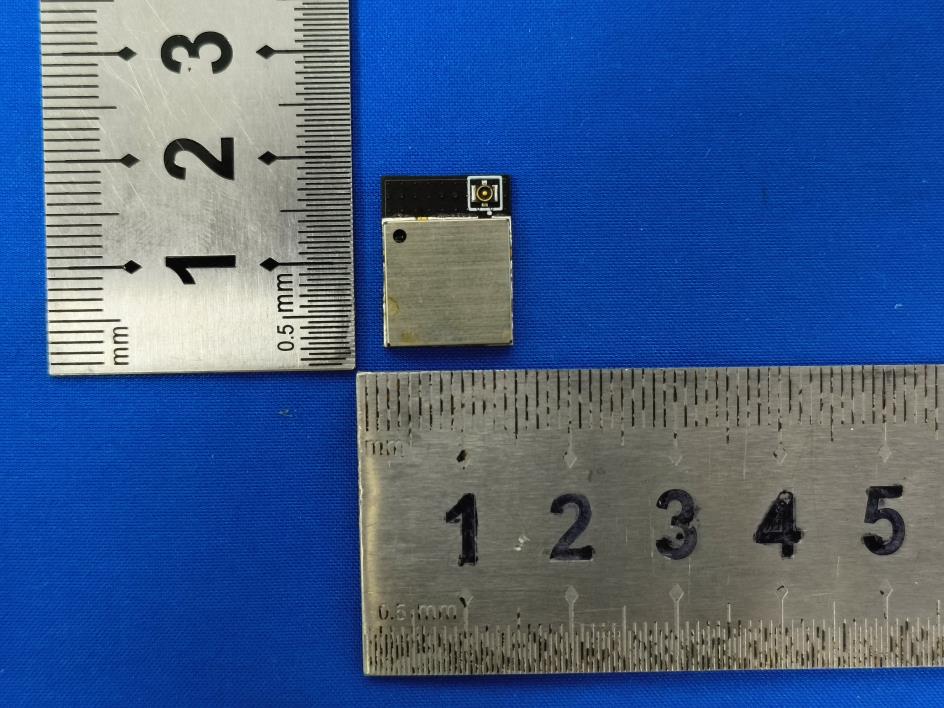

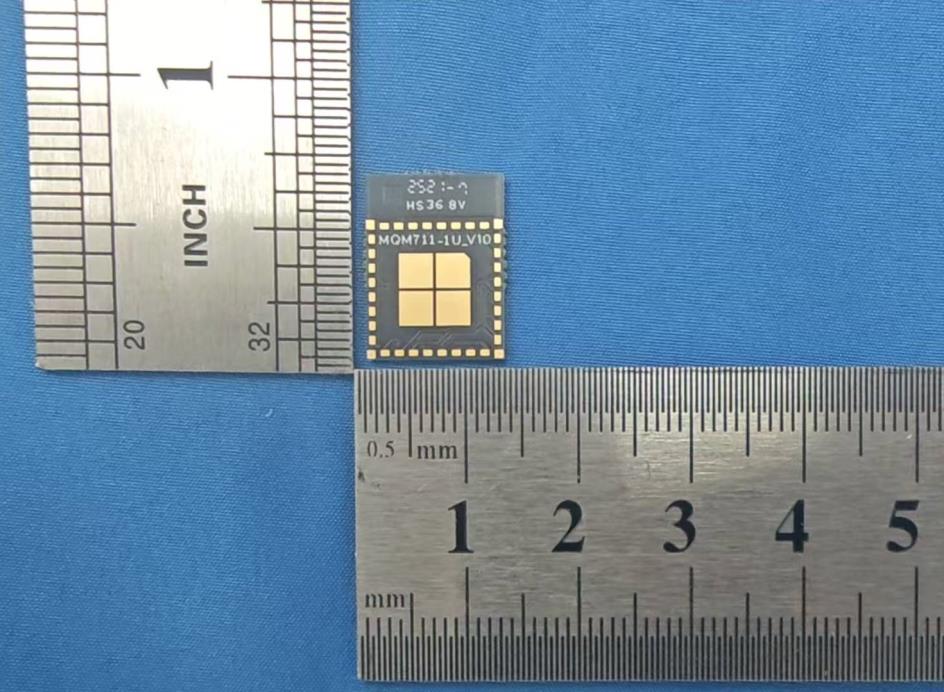

Page 1 of 5 Photographs of EUT Constructional Details MQM711-0-50-0B Page 2 of 5 MQM711-0-50-0U Page 3 of 5 MQM711-0-50-0P Page 4 of 5 PCB Antenna Dipole Antenna Page 5 of 5 Test Kit

Page 1 of 3 Photographs of EUT Constructional Details MQM711-0-50-0B Page 2 of 3 MQM711-0-50-0U Page 3 of 3 MQM711-0-50-0P

` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SUCR250400030902 Rev.: 01 Page: 1 of 10 RF Exposure Evaluation Report Application No.: SUCR2504000309MO Applicant: METICOMM PTE. LTD. Address of Applicant: 15 UPPER CIRCULAR ROAD, #06-01, SINGAPORE 058413 Manufacturer: METICOMM PTE. LTD. Address of Manufacturer: 15 UPPER CIRCULAR ROAD, #06-01, SINGAPORE 058413 Equipment Under Test (EUT): EUT Name: IoT Module Model No.: MQM711-0-50-0B, MQM711-0-50-0U, MQM711-0-50-0P Trade Mark: Meticomm FCC ID: 2BQY7-M7110 Standard(s) : FCC Rules 47 CFR §2.1091 KDB 447498 D04 interim General RF Exposure Guidance v01 Date of Receipt: June 7, 2025 Date of Test: June 8, 2025 to June 16, 2025 Date of Issue: July 11, 2025 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SUCR250400030902 Rev.: 01 Page: 2 of 10 Revision Record Version Description Date Remark 01 Original July 11, 2025 / Authorized for issue by: Tested By Hayley ZhangProject Manager Approved By Cloud Peng/Technical Manager ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SUCR250400030902 Rev.: 01 Page: 3 of 10 1 Contents Page 1 Contents ...................................................................................................................................... 3 2 General Information..................................................................................................................... 4 2.1 General Description of E.U.T. ................................................................................................ 4 2.2 Separation Distance .............................................................................................................. 4 2.3 Test Location ........................................................................................................................ 5 2.4 Test Facility ........................................................................................................................... 5 3 RF Exposure Test Exemptions ................................................................................................... 6 3.1 RF Exposure Test Exemptions for single RF sources ............................................................ 6 3.2 RF Exposure Test Exemptions for Simultaneous Transmission.............................................. 8 4 Measurement and Calculation .................................................................................................. 10 4.1 Maximum transmit power .................................................................................................... 10 4.2 RF Exposure Calculation ..................................................................................................... 10 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SUCR250400030902 Rev.: 01 Page: 4 of 10 2 General Information 2.1 General Description of E.U.T. Hardware Version: N/A Software Version: N/A Power Supply: 3.3V Antenna Type: MQM711-0-50-0U, MQM711-0-50-0P: Dipole Antenna MQM711-0-50-0B: PCB Antenna Antenna Gain: MQM711-0-50-0U, MQM711-0-50-0P: 3.37dBi MQM711-0-50-0B: 1.24dBi Note: The antenna gain are derived from the gain information report provided by the manufacturer. Note: *Since the above data and/or information is provided by the client relevant results or conclusions of this report are only made for these data and/or information, SGS is not responsible for the authenticity, integrity and results of the data and information and/or the validity of the conclusion. Remark: As above information is provided and confirmed by the applicant. SGS is not liable to the accuracy, suitability, reliability or/and integrity of the information. 2.2 Separation Distance Separation distance between the antenna to person (R): ＞20cm Remark: This minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. R has been stated in user manual. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SUCR250400030902 Rev.: 01 Page: 5 of 10 2.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. South of No. 6 Plant, No. 1, Runsheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone Post code: 215000 No tests were sub-contracted. Note: 1. SGS is not responsible for wrong test results due to incorrect information (e.g. max. clock frequency, highest internal frequency, antenna gain, cable loss, etc ) is provided by the applicant. (if applicable). 2. SGS is not responsible for the authenticity, integrity and the validity of the conclusion based on results of the data provided by applicant. (if applicable). 2.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 6336.01) SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 6336.01. • Innovation, Science and Economic Development Canada SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0120. IC#: 27594. • FCC –Designation Number: CN1312 SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. has been recognized as an accredited testing laboratory. Designation Number: CN1312. Test Firm Registration Number: 717327 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SUCR250400030902 Rev.: 01 Page: 6 of 10 3 RF Exposure Test Exemptions Test exemptions apply for devices used in general population/uncontrolled exposure environments, according to the SAR-based, or MPE…

Text truncated - open the document above for the full version.

PCB Antenna 2400~2500 MHz Working Frequency P/N: RFPCA521010EMABY01 Antenna Type : Dipole Customer： Approval No.： Issue Date： Production： INPAQ TECHNOLOGY(SUZHOU) Address： No. 81,Antai Road 1,Xishan Econmic Development Zone, Wuxi City,Jiangsu Province ,China *Contents in this sheet are subject to change without prior notice. 品名：RFPCA521010EMABY01 History List 版本 REV. 修訂者 EDITOR 修訂頁次 PAGE 修訂內容 ITEMS OF CHANGE 申請日期 DATE 生效日期 VALID DATE ECN編號 ECN NO. A0 Huiwenchan ALL Temporary Release 2024/11/29 According to the date of PLM Release N/A INPAQ TECHNOLOGY CO., LTD 2024/11/29 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：HW CHECKED BY：HW DESIGNED BY：Lang APPROVED BY：Brian TITLE：RFPCA521010EMABY01 DOCUMENT SPEC REV. NO. A0 PAGE 3 OF 12 1.Explanation of part number： RF PCA 5210 10 E M A B Y 01 Type Code Product Code PCB Dimension (Unit: mm) Cable Length (unit: cm) Connector Brand Type of Connector Application Project status Wire Diameter Project Walsin RF Device PCB Antenna Per 2 digits of length, width e.g.: 5210 Length 52.0 mm, Width 10.0mm 2 digits for cable length e.g.: 10 Cable Length 10.0 cm A: N C:MCX D:IPEX III E: IPEX IV F: IPEX A13 H: Hirose I: IPEX M: MMCX S: SMA T: TNC U:MURATA N: None A: Reverse Female B: Reverse Male F: Female M: Male N: None 0: 0GHz 3: 3GHz 5: 5 GHz 6: 6GHz A: 2.4GHz ISM band B: GSM 900/1800 dual band G: GPS band L: 2.4/5.2/5.8 GHz tri-band M: LTE+Sub-6G+5G LTE： 617~960/1710~2690MHz Sub-6G：3300~4200MHz 5G：5150~7150MHz N79：4.4~5GHz N: NFC S: UWB(6~7GHz) T:LTE band M:LTE+Sub-6G +5G B: MP T:During Test X: Pile Run 0:None 1:∅0.81 3:∅1.13 6:RG316 7:∅1.37 8:RG178 Y: ∅0.81 Low Loss 01~99 series number 2.Electrical Specification： Item Specification Frequency Range 2400 ~ 2500 MHz Impedance 50 Ohm Nominal VSWR 2.0 (Max) Peak Gain 3.37 dBi Radiation Omni-directional Polarization Linear Vertical Admitted Power 1W Operation Temperature －20°C ～ ＋65°C INPAQ TECHNOLOGY CO., LTD 2024/11/29 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：HW CHECKED BY：HW DESIGNED BY：Lang APPROVED BY：Brian TITLE：RFPCA521010EMABY01 DOCUMENT SPEC REV. NO. A0 PAGE 4 OF 12 3. Antenna Drawing： INPAQ TECHNOLOGY CO., LTD 2024/11/29 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：HW CHECKED BY：HW DESIGNED BY：Lang APPROVED BY：Brian TITLE：RFPCA521010EMABY01 DOCUMENT SPEC REV. NO. A0 PAGE 5 OF 12 Test Report ■ELECTRICAL CHARACTERISTICS INPAQ TECHNOLOGY CO., LTD 2024/11/29 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：HW CHECKED BY：HW DESIGNED BY：Lang APPROVED BY：Brian TITLE：RFPCA521010EMABY01 DOCUMENT SPEC REV. NO. A0 PAGE 6 OF 12 ■ELECTRICAL CHARACTERISTICS INPAQ TECHNOLOGY CO., LTD 2024/11/29 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：HW CHECKED BY：HW DESIGNED BY：Lang APPROVED BY：Brian TITLE：RFPCA521010EMABY01 DOCUMENT SPEC REV. NO. A0 PAGE 7 OF 12 ■Antenna Efficiency & Peak Gain INPAQ TECHNOLOGY CO., LTD 2024/11/29 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：HW CHECKED BY：HW DESIGNED BY：Lang APPROVED BY：Brian TITLE：RFPCA521010EMABY01 DOCUMENT SPEC REV. NO. A0 PAGE 8 OF 12 INPAQ TECHNOLOGY CO., LTD 2024/11/29 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：HW CHECKED BY：HW DESIGNED BY：Lang APPROVED BY：Brian TITLE：RFPCA521010EMABY01 DOCUMENT SPEC REV. NO. A0 PAGE 9 OF 12 ■RADIATION PATTERN X-Z Plane Phi=0.00deg Gain . dB INPAQ TECHNOLOGY CO., LTD 2024/11/29 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：HW CHECKED BY：HW DESIGNED BY：Lang APPROVED BY：Brian TITLE：RFPCA521010EMABY01 DOCUMENT SPEC REV. NO. A0 PAGE 10 OF 12 Y-Z Plane Phi=90.00deg Gain . dB INPAQ TECHNOLOGY CO., LTD 2024/11/29 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPEC…

Text truncated - open the document above for the full version.

PAGE 1 MQM711 LGA Module PCB Antenna Halogens Free Product P/N: RFIQM0711010NB001 *Contents in this sheet are subject to change without prior notice. INPAQ TECHNOLOGY CO., LTD 2025/3/30 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：詹惠雯 CHECKED BY：詹惠雯 DESIGNED BY：黃瑞郎 APPROVED BY：陳振榮 TITLE：RFIQM0711010NB001 DOCUMENT SPEC REV. NO. A0 PAGE 2 OF 5 1 Antenna Electrical specifications 1.1 Measurement Information 1.1.1 Experimental Setup INPAQ TECHNOLOGY CO., LTD 2025/3/30 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：詹惠雯 CHECKED BY：詹惠雯 DESIGNED BY：黃瑞郎 APPROVED BY：陳振榮 TITLE：RFIQM0711010NB001 DOCUMENT SPEC REV. NO. A0 PAGE 3 OF 5 1.1.2 Antenna Solution Detail 1.2 Antenna Characteristics: Passive and Active 1.2.1 VSWR Printed antenna design Tiny height: 4mm INPAQ TECHNOLOGY CO., LTD 2025/3/30 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：詹惠雯 CHECKED BY：詹惠雯 DESIGNED BY：黃瑞郎 APPROVED BY：陳振榮 TITLE：RFIQM0711010NB001 DOCUMENT SPEC REV. NO. A0 PAGE 4 OF 5 1.2.2 Antenna Efficiency and Peak Gain Maximum Efficiency at 2442 MHz : 28.38% Maximum Peak Gain at 2437 MHz : 1.24dBi Frequency(MHz)Efficiency(%)Peak gain(dBi) 241226.051.07 241726.761.18 242227.371.23 242727.621.24 243227.971.24 243728.331.24 244228.381.19 244727.771.03 245227.320.89 245726.620.69 246225.490.42 246724.160.11 247222.95-0.19 248420.26-0.92 INPAQ TECHNOLOGY CO., LTD 2025/3/30 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODU CED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：詹惠雯 CHECKED BY：詹惠雯 DESIGNED BY：黃瑞郎 APPROVED BY：陳振榮 TITLE：RFIQM0711010NB001 DOCUMENT SPEC REV. NO. A 0 PAGE 5 OF 5 1.2.3 3D Pattern & 3 views of antenna & 2D Radiation Patterns X-Z planeY-Z planeX-Y plane Z Y -Z -Y X Y -X -Y Z X -Z -X 2412MH 6.93dBi X Z X Z Y Z Y z2442MHz2484MHz -5.84dBi Peak gain 1.19dBi -5.47dBi Peak gain - - X 0.92dBi Y Peak gain 1.07dBi ZX planeZY planeXY plane Frequency [MHz] Max Value [dBi] Average [dBi] Max Value [dBi] Average [dBi] Max Value [dBi] Average [dBi] 2412 1.07 -6.34 -0.62 -4.83 -3.22 -6.49 2442 1.19 -5.92 -0.26 -4.74 -2.98 -6.12 2484 -0.93 -7.34 -1.73 -6.68 -4.59 -7.46 Z -Z -Y X -X -Y Z-Z -X X YY

` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SUCR250400030901 Rev.: 01 Page: 1 of 128 TEST REPORT Application No.: SUCR2504000309MO Applicant: METICOMM PTE. LTD. Address of Applicant: 15 UPPER CIRCULAR ROAD, #06-01, SINGAPORE 058413 Manufacturer: METICOMM PTE. LTD. Address of Manufacturer: 15 UPPER CIRCULAR ROAD, #06-01, SINGAPORE 058413 EUT Description: IoT Module Model No.: MQM711-0-50-0B, MQM711-0-50-0U, MQM711-0-50-0P   Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade Mark: Meticomm FCC ID: 2BQY7-M7110 Standards: FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C Date of Receipt: June 7, 2025 Date of Test: June 8, 2025 to June …
